REACH-Information

SVHC declaration according to the regulation EC 1907/2006 concerning the Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH).

Produkt: AM 414W - FILTRON

MANN+HUMMEL is well aware of REACH and meet all legal obligations under this regulation.

MANN+HUMMEL has established internal processes to ensure implementation and compliance with the REACH Regulation. Especially, we continuously work on the assessment of presence of SVHC (Substances of Very High Concern).

We may inform you that according to present level of information and best knowledge, this product does not contain any SVHC listed on the Candidate List in concentration above 0,1% (w/w).

Last update: 2024-09-19

Back

SPECIAL

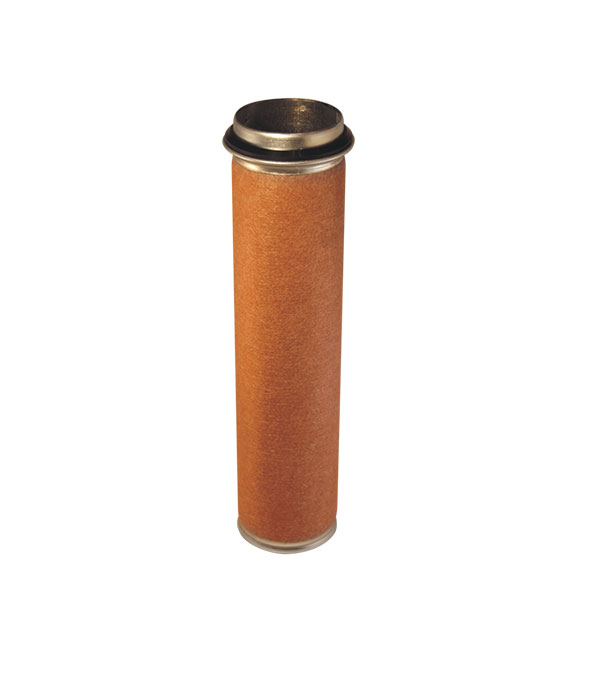

AM 414W

EAN CODE:

REACH information

DIMENSIONS (mm):

345

APPLICATION
SUBSTITUTES

IVECO (MAGIRUS)

256 D-Serie | 78-83

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
256 D 19	F 8 L 413 F				05/1978 → 07/1983	i Partly/or Safety Element	256 D 19 ENGINE CODE: F 8 L 413 F CC: kW: HP: YEAR OF MANUFACTURE: 05/1978 → 07/1983 i Partly/or Safety Element

ENGINE CODE

YEAR OF MANUFACTURE

256 D 19

F 8 L 413 F

05/1978 → 07/1983

ABG (VOLVO CE)

Alexander | 75-91

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
128	Deutz F4L 912		51	70	01/1975 → 01/1991	i Partly/or Safety Element	128 ENGINE CODE: Deutz F4L 912 CC: kW: 51 HP: 70 YEAR OF MANUFACTURE: 01/1975 → 01/1991 i Partly/or Safety Element

ENGINE CODE

YEAR OF MANUFACTURE

128

Deutz F4L 912

01/1975 → 01/1991

Puma-Serie | 75-90

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
177	Deutz F6L 912		76	104	01/1975 → 12/1990	i Safety Element	177 ENGINE CODE: Deutz F6L 912 CC: kW: 76 HP: 104 YEAR OF MANUFACTURE: 01/1975 → 12/1990

ENGINE CODE

YEAR OF MANUFACTURE

177

Deutz F6L 912

104

01/1975 → 12/1990

AGRALE-DEUTZ

8000-Serie | 84-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
8060	OM 352				01/1984 →	i Safety Element	8060 ENGINE CODE: OM 352 CC: kW: HP: YEAR OF MANUFACTURE: 01/1984 →

ENGINE CODE

YEAR OF MANUFACTURE

8060

OM 352

01/1984 →

ATMOS

PD - Serie

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
PD 30	Deutz F3M1011F					i Safety Element	PD 30 ENGINE CODE: Deutz F3M1011F CC: kW: HP:
PD 40	Deutz					i Safety Element	PD 40 ENGINE CODE: Deutz CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

PD 30

Deutz F3M1011F

PD 40

Deutz

BETICO

PT - Serie

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
PT 62						i Safety Element	PT 62 ENGINE CODE: CC: kW: HP:
PT 62 new version						i Safety Element	PT 62 new version ENGINE CODE: CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

PT 62

PT 62 new version

BOMAG

BW-Serie | 85-

	ENGINE CODE	kW	HP	YEAR OF MANUFACTURE
10, 10 A, S	Deutz F3/4L 912	49	67		i Safety Element	10, 10 A, S ENGINE CODE: Deutz F3/4L 912 CC: kW: 49 HP: 67
141 AC, AD	Deutz F4L 912	51	70		i Safety Element	141 AC, AD ENGINE CODE: Deutz F4L 912 CC: kW: 51 HP: 70
144 AC, AD-1, AD-2	Deutz F4L 912	51	70		i Safety Element	144 AC, AD-1, AD-2 ENGINE CODE: Deutz F4L 912 CC: kW: 51 HP: 70
151 AC, AD	Deutz F4L 912	51	70		i Safety Element	151 AC, AD ENGINE CODE: Deutz F4L 912 CC: kW: 51 HP: 70
154 AC, AD-1, AD-2	Deutz F4L 912	51	70		i Safety Element	154 AC, AD-1, AD-2 ENGINE CODE: Deutz F4L 912 CC: kW: 51 HP: 70
160 A-3, AD-1	Deutz F5L 912	48	65		i Safety Element	160 A-3, AD-1 ENGINE CODE: Deutz F5L 912 CC: kW: 48 HP: 65
160 AC, AD-2	Deutz F4L 912	51	70		i Safety Element	160 AC, AD-2 ENGINE CODE: Deutz F4L 912 CC: kW: 51 HP: 70
161 AC, AD	Deutz BF4L 913	70	95	01/1987 →	i Safety Element	161 AC, AD ENGINE CODE: Deutz BF4L 913 CC: kW: 70 HP: 95 YEAR OF MANUFACTURE: 01/1987 →
164 AC, AD	Deutz BF4L 913	70	95	01/1987 →	i Safety Element	164 AC, AD ENGINE CODE: Deutz BF4L 913 CC: kW: 70 HP: 95 YEAR OF MANUFACTURE: 01/1987 →
6, 6 S	Deutz F3L 912	37	50		i Safety Element	6, 6 S ENGINE CODE: Deutz F3L 912 CC: kW: 37 HP: 50

ENGINE CODE

YEAR OF MANUFACTURE

10, 10 A, S

Deutz F3/4L 912

141 AC, AD

Deutz F4L 912

144 AC, AD-1, AD-2

Deutz F4L 912

151 AC, AD

Deutz F4L 912

154 AC, AD-1, AD-2

Deutz F4L 912

160 A-3, AD-1

Deutz F5L 912

160 AC, AD-2

Deutz F4L 912

161 AC, AD

Deutz BF4L 913

01/1987 →

164 AC, AD

Deutz BF4L 913

01/1987 →

6, 6 S

Deutz F3L 912

CASE CONSTRUCTION

W-Serie (Radlader / Wheel Loaders) | 08-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
W15	6B-590					i Safety Element	W15 ENGINE CODE: 6B-590 CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

W15

6B-590

CASE-IH (CNH GLOBAL)

1000-Serie | 79-96

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
1056, 1056 XL/XLA	D 358	5867	77	105	01/1982 → 12/1992	i Safety Element	1056, 1056 XL/XLA ENGINE CODE: D 358 CC: 5867 kW: 77 HP: 105 YEAR OF MANUFACTURE: 01/1982 → 12/1992
1246, 1246 A	DT 358	5867	88	120		i Partly/or Safety Element	1246, 1246 A ENGINE CODE: DT 358 CC: 5867 kW: 88 HP: 120 i Partly/or Safety Element

ENGINE CODE

YEAR OF MANUFACTURE

1056, 1056 XL/XLA

D 358

5867

105

01/1982 → 12/1992

1246, 1246 A

DT 358

5867

120

800-Serie | 71-96

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
856 XL/XLA	DT 239	3911	63	86	05/1983 → 12/1996	i Partly/or Safety Element	856 XL/XLA ENGINE CODE: DT 239 CC: 3911 kW: 63 HP: 86 YEAR OF MANUFACTURE: 05/1983 → 12/1996 i Partly/or Safety Element

ENGINE CODE

YEAR OF MANUFACTURE

856 XL/XLA

DT 239

3911

05/1983 → 12/1996

CS/CS PRO/CS Compact-Serie | 94-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
CS 78, 78 A	MWM WD 401.81	4157	57	78	01/1994 → 12/1998	i Safety Element	CS 78, 78 A ENGINE CODE: MWM WD 401.81 CC: 4157 kW: 57 HP: 78 YEAR OF MANUFACTURE: 01/1994 → 12/1998
CS 86, 86 A	MWM WD 401.83	4400	63	86	03/1996 → 12/1999	i Safety Element	CS 86, 86 A ENGINE CODE: MWM WD 401.83 CC: 4400 kW: 63 HP: 86 YEAR OF MANUFACTURE: 03/1996 → 12/1999
CS 94, 94 A	MWM WD 401.85	4156	69	94	03/1996 → 12/1999	i Safety Element	CS 94, 94 A ENGINE CODE: MWM WD 401.85 CC: 4156 kW: 69 HP: 94 YEAR OF MANUFACTURE: 03/1996 → 12/1999

ENGINE CODE

YEAR OF MANUFACTURE

CS 78, 78 A

MWM WD 401.81

4157

01/1994 → 12/1998

CS 86, 86 A

MWM WD 401.83

4400

03/1996 → 12/1999

CS 94, 94 A

MWM WD 401.85

4156

03/1996 → 12/1999

CASE-STEYR (CNH GLOBAL)

8100-Serie | 76-95

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
8100, 8100 A	Steyer WD 611.40	5182	63	86	12/1978 → 12/1984	i Safety Element	8100, 8100 A ENGINE CODE: Steyer WD 611.40 CC: 5182 kW: 63 HP: 86 YEAR OF MANUFACTURE: 12/1978 → 12/1984
8110, 8110 A	Steyer WD 611.42/43	5182	66	90	06/1984 → 12/1994	i Safety Element	8110, 8110 A ENGINE CODE: Steyer WD 611.42/43 CC: 5182 kW: 66 HP: 90 YEAR OF MANUFACTURE: 06/1984 → 12/1994
8120, 8120 A	Steyer WD 611.85/86	5182	74	101	01/1978 → 12/1984	i Safety Element	8120, 8120 A ENGINE CODE: Steyer WD 611.85/86 CC: 5182 kW: 74 HP: 101 YEAR OF MANUFACTURE: 01/1978 → 12/1984
8130, 8130 A	Steyer WD 611.87/88	5182	81	110	06/1984 → 12/1995	i Safety Element	8130, 8130 A ENGINE CODE: Steyer WD 611.87/88 CC: 5182 kW: 81 HP: 110 YEAR OF MANUFACTURE: 06/1984 → 12/1995
8140, 8140 A	Steyer WD 612.40	6596	88	120	01/1977 → 12/1982	i Safety Element	8140, 8140 A ENGINE CODE: Steyer WD 612.40 CC: 6596 kW: 88 HP: 120 YEAR OF MANUFACTURE: 01/1977 → 12/1982

ENGINE CODE

YEAR OF MANUFACTURE

8100, 8100 A

Steyer WD 611.40

5182

12/1978 → 12/1984

8110, 8110 A

Steyer WD 611.42/43

5182

06/1984 → 12/1994

8120, 8120 A

Steyer WD 611.85/86

5182

101

01/1978 → 12/1984

8130, 8130 A

Steyer WD 611.87/88

5182

110

06/1984 → 12/1995

8140, 8140 A

Steyer WD 612.40

6596

120

01/1977 → 12/1982

9000 M-Serie (Super-M) | 94-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
M 9078, A	MWM WD420.81	4397	57	78	03/1996 → 01/2004	i Up to chassis no. 55000 Safety Element	M 9078, A ENGINE CODE: MWM WD420.81 CC: 4397 kW: 57 HP: 78 YEAR OF MANUFACTURE: 03/1996 → 01/2004 i Up to chassis no. 55000 Safety Element
M 9083 A	MWM WD401.89	4156	61	83	09/1994 → 01/1999	i Safety Element	M 9083 A ENGINE CODE: MWM WD401.89 CC: 4156 kW: 61 HP: 83 YEAR OF MANUFACTURE: 09/1994 → 01/1999
M 9086, A	MWM WD420.82	4397	63	86	03/1996 → 01/2004	i Up to chassis no. 55000 Safety Element	M 9086, A ENGINE CODE: MWM WD420.82 CC: 4397 kW: 63 HP: 86 YEAR OF MANUFACTURE: 03/1996 → 01/2004 i Up to chassis no. 55000 Safety Element
M 9094, A	MWM WD420.83	4397	68	94	03/1996 → 01/2004	i Up to chassis no. 55000 Safety Element	M 9094, A ENGINE CODE: MWM WD420.83 CC: 4397 kW: 68 HP: 94 YEAR OF MANUFACTURE: 03/1996 → 01/2004 i Up to chassis no. 55000 Safety Element

ENGINE CODE

YEAR OF MANUFACTURE

M 9078, A

MWM WD420.81

4397

03/1996 → 01/2004

M 9083 A

MWM WD401.89

4156

09/1994 → 01/1999

M 9086, A

MWM WD420.82

4397

03/1996 → 01/2004

M 9094, A

MWM WD420.83

4397

03/1996 → 01/2004

9000-Serie | 93-12

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
9078 (M 9078)	MWM WD401.81	4156	57	78	09/1993 → 12/1998	i Safety Element	9078 (M 9078) ENGINE CODE: MWM WD401.81 CC: 4156 kW: 57 HP: 78 YEAR OF MANUFACTURE: 09/1993 → 12/1998
9083 (M 9083)	WD401.82		61	83	→ 12/1998	i Some models: MWM Motor/engine Safety Element	9083 (M 9083) ENGINE CODE: WD401.82 CC: kW: 61 HP: 83 YEAR OF MANUFACTURE: → 12/1998 i Some models: MWM Motor/engine Safety Element
9086	MWM WD401.83	4156	63	86	09/1993 → 03/1996	i Safety Element	9086 ENGINE CODE: MWM WD401.83 CC: 4156 kW: 63 HP: 86 YEAR OF MANUFACTURE: 09/1993 → 03/1996
9086 (M 9086)	WD401.83		63	86	→ 12/1998	i Safety Element	9086 (M 9086) ENGINE CODE: WD401.83 CC: kW: 63 HP: 86 YEAR OF MANUFACTURE: → 12/1998
9094	MWM WD401.85	4156	69	94	09/1993 → 03/1996	i Safety Element	9094 ENGINE CODE: MWM WD401.85 CC: 4156 kW: 69 HP: 94 YEAR OF MANUFACTURE: 09/1993 → 03/1996
9094 (M 9094)	WD401.85		69	94	→ 12/1998	i Safety Element	9094 (M 9094) ENGINE CODE: WD401.85 CC: kW: 69 HP: 94 YEAR OF MANUFACTURE: → 12/1998

ENGINE CODE

YEAR OF MANUFACTURE

9078 (M 9078)

MWM WD401.81

4156

09/1993 → 12/1998

9083 (M 9083)

WD401.82

→ 12/1998

9086

MWM WD401.83

4156

09/1993 → 03/1996

9086 (M 9086)

WD401.83

→ 12/1998

9094

MWM WD401.85

4156

09/1993 → 03/1996

9094 (M 9094)

WD401.85

→ 12/1998

CLAAS

Dominator (5) (Mähdrescher / Harvesters) | 14-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
85	DB OM 352					i Safety Element	85 ENGINE CODE: DB OM 352 CC: kW: HP:
85	Perk. 6.372.4					i Safety Element	85 ENGINE CODE: Perk. 6.372.4 CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

DB OM 352

Perk. 6.372.4

Dominator (6) (Mähdrescher / Harvesters)

	ENGINE CODE
56	Perk. 4.248	i Safety Element	56 ENGINE CODE: Perk. 4.248 CC: kW: HP:
66	Perkins 6.354.4	i Safety Element	66 ENGINE CODE: Perkins 6.354.4 CC: kW: HP:
76	DB OM 352	i Safety Element	76 ENGINE CODE: DB OM 352 CC: kW: HP:
76	Perkins 6.354.4	i Safety Element	76 ENGINE CODE: Perkins 6.354.4 CC: kW: HP:
76	Perk. 6.372/372.4	i Safety Element	76 ENGINE CODE: Perk. 6.372/372.4 CC: kW: HP:
76 H	DB OM 352	i Safety Element	76 H ENGINE CODE: DB OM 352 CC: kW: HP:
86	DB OM 352	i Safety Element	86 ENGINE CODE: DB OM 352 CC: kW: HP:
86	Perkins 6.354.4	i Safety Element	86 ENGINE CODE: Perkins 6.354.4 CC: kW: HP:
86	Perk.6.372/372.4	i Safety Element	86 ENGINE CODE: Perk.6.372/372.4 CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

Perk. 4.248

Perkins 6.354.4

DB OM 352

Perkins 6.354.4

Perk. 6.372/372.4

76 H

DB OM 352

Perkins 6.354.4

Perk.6.372/372.4

Dominator (8) (Mähdrescher / Harvesters) | 82-99

	ENGINE CODE	kW	HP	YEAR OF MANUFACTURE
58 (48 Spezial)	Perkins 6.354.4				i Safety Element	58 (48 Spezial) ENGINE CODE: Perkins 6.354.4 CC: kW: HP:
58 S	Perkins 6.354.4				i Safety Element	58 S ENGINE CODE: Perkins 6.354.4 CC: kW: HP:
68	Perkins 6.354.4			01/1982 → 12/1987	i Filter for: ohne Staubabsaugung. Filter for: w/o dust exhaust. Use for OE no. 00 0176 169 1 Safety Element	68 ENGINE CODE: Perkins 6.354.4 CC: kW: HP: YEAR OF MANUFACTURE: 01/1982 → 12/1987 i Filter for: ohne Staubabsaugung. Filter for: w/o dust exhaust. Use for OE no. 00 0176 169 1 Safety Element
68	DB OM 352				i Safety Element	68 ENGINE CODE: DB OM 352 CC: kW: HP:
68	DB OM 366				i Safety Element	68 ENGINE CODE: DB OM 366 CC: kW: HP:
68 R, 68 S	DB OM 352				i Safety Element	68 R, 68 S ENGINE CODE: DB OM 352 CC: kW: HP:
68 R, 68 S	Perkins 6.354.4				i Safety Element	68 R, 68 S ENGINE CODE: Perkins 6.354.4 CC: kW: HP:
78 S	DB OM 352				i Safety Element	78 S ENGINE CODE: DB OM 352 CC: kW: HP:
78 S	Perk. 6.354.4PR				i Safety Element	78 S ENGINE CODE: Perk. 6.354.4PR CC: kW: HP:
78 S	Perkins 1006.6				i Safety Element	78 S ENGINE CODE: Perkins 1006.6 CC: kW: HP:
88 S	DB OM 352	110	150		i Safety Element	88 S ENGINE CODE: DB OM 352 CC: kW: 110 HP: 150
88 S	Perk. 6.354.4PR	110	150		i Safety Element	88 S ENGINE CODE: Perk. 6.354.4PR CC: kW: 110 HP: 150
88 SL	Perkins 1006.6				i Safety Element	88 SL ENGINE CODE: Perkins 1006.6 CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

58 (48 Spezial)

Perkins 6.354.4

58 S

Perkins 6.354.4

01/1982 → 12/1987

DB OM 352

DB OM 366

68 R, 68 S

DB OM 352

68 R, 68 S

Perkins 6.354.4

78 S

DB OM 352

78 S

Perk. 6.354.4PR

78 S

Perkins 1006.6

88 S

DB OM 352

110

150

88 S

Perk. 6.354.4PR

110

150

88 SL

Perkins 1006.6

DEMAG BAGGER (MANNESM.-DEMAG)

DF-Serie | 74-

	ENGINE CODE	kW	HP	YEAR OF MANUFACTURE
DF 100 C, 100 P	Deutz F4L 912	54	74	01/1974 →	i Safety Element	DF 100 C, 100 P ENGINE CODE: Deutz F4L 912 CC: kW: 54 HP: 74 YEAR OF MANUFACTURE: 01/1974 →
DF 110 P	Deutz F6L 912	78	106	01/1987 →	i Safety Element	DF 110 P ENGINE CODE: Deutz F6L 912 CC: kW: 78 HP: 106 YEAR OF MANUFACTURE: 01/1987 →
DF 120 C, 120 P	Deutz F6L 912	82	112	01/1974 →	i Safety Element	DF 120 C, 120 P ENGINE CODE: Deutz F6L 912 CC: kW: 82 HP: 112 YEAR OF MANUFACTURE: 01/1974 →

ENGINE CODE

YEAR OF MANUFACTURE

DF 100 C, 100 P

Deutz F4L 912

01/1974 →

DF 110 P

Deutz F6L 912

106

01/1987 →

DF 120 C, 120 P

Deutz F6L 912

112

01/1974 →

DEUTZ-FAHR (SAME DEUTZ-FAHR)

AgroPrima | 90-95

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
6.16	F6L-913				01/1991 → 12/1995	i Safety Element	6.16 ENGINE CODE: F6L-913 CC: kW: HP: YEAR OF MANUFACTURE: 01/1991 → 12/1995

ENGINE CODE

YEAR OF MANUFACTURE

6.16

F6L-913

01/1991 → 12/1995

Agrostar / Agrostar DX | 89-99

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
4.61	BF4L 913	4085	65	88	01/1989 → 12/1999	i Safety Element	4.61 ENGINE CODE: BF4L 913 CC: 4085 kW: 65 HP: 88 YEAR OF MANUFACTURE: 01/1989 → 12/1999
4.68	BF4L 913	4086	67	91	01/1993 → 12/1999	i Safety Element	4.68 ENGINE CODE: BF4L 913 CC: 4086 kW: 67 HP: 91 YEAR OF MANUFACTURE: 01/1993 → 12/1999
4.71	BF4L 913T	4085	70	95	01/1989 → 12/1999	i Safety Element	4.71 ENGINE CODE: BF4L 913T CC: 4085 kW: 70 HP: 95 YEAR OF MANUFACTURE: 01/1989 → 12/1999
4.78	BF4L 913T	4086	74	100	01/1993 → 12/1999	i Safety Element	4.78 ENGINE CODE: BF4L 913T CC: 4086 kW: 74 HP: 100 YEAR OF MANUFACTURE: 01/1993 → 12/1999
6.08	F6L 913	6128	79	107	01/1993 → 11/1999	i Safety Element	6.08 ENGINE CODE: F6L 913 CC: 6128 kW: 79 HP: 107 YEAR OF MANUFACTURE: 01/1993 → 11/1999
6.11	F6L 912F/913	6128	74	100	01/1989 → 12/1999	i Safety Element	6.11 ENGINE CODE: F6L 912F/913 CC: 6128 kW: 74 HP: 100 YEAR OF MANUFACTURE: 01/1989 → 12/1999
6.21	F6L 913	6128	83	113	09/1991 → 12/1999	i Safety Element	6.21 ENGINE CODE: F6L 913 CC: 6128 kW: 83 HP: 113 YEAR OF MANUFACTURE: 09/1991 → 12/1999
6.28	F6L 913	6128	85	115	01/1993 → 12/1999	i Safety Element	6.28 ENGINE CODE: F6L 913 CC: 6128 kW: 85 HP: 115 YEAR OF MANUFACTURE: 01/1993 → 12/1999
6.31	BF6L 913T	6128	88	120	01/1989 → 12/1999	i Safety Element	6.31 ENGINE CODE: BF6L 913T CC: 6128 kW: 88 HP: 120 YEAR OF MANUFACTURE: 01/1989 → 12/1999
6.38	BF6L 913T	6128	92	125	01/1993 → 12/1999	i Safety Element	6.38 ENGINE CODE: BF6L 913T CC: 6128 kW: 92 HP: 125 YEAR OF MANUFACTURE: 01/1993 → 12/1999

ENGINE CODE

YEAR OF MANUFACTURE

4.61

BF4L 913

4085

01/1989 → 12/1999

4.68

BF4L 913

4086

01/1993 → 12/1999

4.71

BF4L 913T

4085

01/1989 → 12/1999

4.78

BF4L 913T

4086

100

01/1993 → 12/1999

6.08

F6L 913

6128

107

01/1993 → 11/1999

6.11

F6L 912F/913

6128

100

01/1989 → 12/1999

6.21

F6L 913

6128

113

09/1991 → 12/1999

6.28

F6L 913

6128

115

01/1993 → 12/1999

6.31

BF6L 913T

6128

120

01/1989 → 12/1999

6.38

BF6L 913T

6128

125

01/1993 → 12/1999

Agroxtra (DX) | 90-96

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
4.47	BF4L 913	4086	63	85	01/1993 → 12/1995	i Safety Element	4.47 ENGINE CODE: BF4L 913 CC: 4086 kW: 63 HP: 85 YEAR OF MANUFACTURE: 01/1993 → 12/1995
DX 4.57	BF4L 913	4086	66	90	03/1990 → 12/1995	i Safety Element	DX 4.57 ENGINE CODE: BF4L 913 CC: 4086 kW: 66 HP: 90 YEAR OF MANUFACTURE: 03/1990 → 12/1995
DX 6.07	F6L 912/913	5655	74	101	01/1991 → 12/1995	i Safety Element	DX 6.07 ENGINE CODE: F6L 912/913 CC: 5655 kW: 74 HP: 101 YEAR OF MANUFACTURE: 01/1991 → 12/1995
DX 6.17	F6L 913	6128	84	115	10/1991 → 12/1995	i Safety Element	DX 6.17 ENGINE CODE: F6L 913 CC: 6128 kW: 84 HP: 115 YEAR OF MANUFACTURE: 10/1991 → 12/1995

ENGINE CODE

YEAR OF MANUFACTURE

4.47

BF4L 913

4086

01/1993 → 12/1995

DX 4.57

BF4L 913

4086

03/1990 → 12/1995

DX 6.07

F6L 912/913

5655

101

01/1991 → 12/1995

DX 6.17

F6L 913

6128

115

10/1991 → 12/1995

M 1000-Serie | 81-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
M 1002	F5L 912					i Partly/or Safety Element	M 1002 ENGINE CODE: F5L 912 CC: kW: HP: i Partly/or Safety Element
M 1080	F5L 912		64	87	01/1981 →	i Safety Element	M 1080 ENGINE CODE: F5L 912 CC: kW: 64 HP: 87 YEAR OF MANUFACTURE: 01/1981 →

ENGINE CODE

YEAR OF MANUFACTURE

M 1002

F5L 912

M 1080

F5L 912

01/1981 →

M 900-Serie | 81-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
M 980	F4L 912		55	75	01/1981 →	i Safety Element	M 980 ENGINE CODE: F4L 912 CC: kW: 55 HP: 75 YEAR OF MANUFACTURE: 01/1981 →

ENGINE CODE

YEAR OF MANUFACTURE

M 980

F4L 912

01/1981 →

FAUN-FRISCH (O+K)

F-Serie

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
85, 85 A	Deutz F5L 912					i Safety Element	85, 85 A ENGINE CODE: Deutz F5L 912 CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

85, 85 A

Deutz F5L 912

F100-Serie | 86-

	ENGINE CODE
115	Deutz F6L 413	i Partly/or Safety Element	115 ENGINE CODE: Deutz F6L 413 CC: kW: HP: i Partly/or Safety Element
115 P	Deutz F6L 413	i Partly/or Safety Element	115 P ENGINE CODE: Deutz F6L 413 CC: kW: HP: i Partly/or Safety Element
145, 145 P	Deutz F6L 413	i Partly/or Safety Element	145, 145 P ENGINE CODE: Deutz F6L 413 CC: kW: HP: i Partly/or Safety Element

ENGINE CODE

YEAR OF MANUFACTURE

115

Deutz F6L 413

115 P

Deutz F6L 413

145, 145 P

Deutz F6L 413

FENDT (AGCO)

Farmer 300-Serie | 80-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
306 S/LS/LSA	MWM D 226-4	4154	50	68	01/1980 → 08/1993	i Safety Element	306 S/LS/LSA ENGINE CODE: MWM D 226-4 CC: 4154 kW: 50 HP: 68 YEAR OF MANUFACTURE: 01/1980 → 08/1993
307 S/LS/LSA	MWM TD226-4	3117	55	75	01/1980 → 08/1993	i Use for OE no. F 184 200 090 040 Safety Element	307 S/LS/LSA ENGINE CODE: MWM TD226-4 CC: 3117 kW: 55 HP: 75 YEAR OF MANUFACTURE: 01/1980 → 08/1993 i Use for OE no. F 184 200 090 040 Safety Element
309 S/LS/LSA	MWM TD226-4	4154	66	90	01/1980 → 08/1993	i Safety Element	309 S/LS/LSA ENGINE CODE: MWM TD226-4 CC: 4154 kW: 66 HP: 90 YEAR OF MANUFACTURE: 01/1980 → 08/1993
310 LS/LSA	TD 226-4.2 ab 1990: TD 226 B-4	4160	70	95	01/1984 → 08/1993	i Safety Element	310 LS/LSA ENGINE CODE: TD 226-4.2 ab 1990: TD 226 B-4 CC: 4160 kW: 70 HP: 95 YEAR OF MANUFACTURE: 01/1984 → 08/1993
311 LS/LSA	D 226 - 6.2 ab 1990 TD 226 .B	6234	74	101	01/1984 → 08/1993	i Safety Element	311 LS/LSA ENGINE CODE: D 226 - 6.2 ab 1990 TD 226 .B CC: 6234 kW: 74 HP: 101 YEAR OF MANUFACTURE: 01/1984 → 08/1993
312 LS/LSA	MWM D 226.B-6	6234	88	120	01/1987 → 08/1993	i Safety Element	312 LS/LSA ENGINE CODE: MWM D 226.B-6 CC: 6234 kW: 88 HP: 120 YEAR OF MANUFACTURE: 01/1987 → 08/1993

ENGINE CODE

YEAR OF MANUFACTURE

306 S/LS/LSA

MWM D 226-4

4154

01/1980 → 08/1993

307 S/LS/LSA

MWM TD226-4

3117

01/1980 → 08/1993

309 S/LS/LSA

MWM TD226-4

4154

01/1980 → 08/1993

310 LS/LSA

TD 226-4.2 ab 1990: TD 226 B-4

4160

01/1984 → 08/1993

311 LS/LSA

D 226 - 6.2 ab 1990 TD 226 .B

6234

101

01/1984 → 08/1993

312 LS/LSA

MWM D 226.B-6

6234

120

01/1987 → 08/1993

Favorit (erste Reihe) | 59-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
610 S	D 225-6	5100	63	85	01/1972 → 12/1976	i Safety Element	610 S ENGINE CODE: D 225-6 CC: 5100 kW: 63 HP: 85 YEAR OF MANUFACTURE: 01/1972 → 12/1976
611 S	D 226-6	6234	77	105	01/1972 → 12/1976	i Safety Element	611 S ENGINE CODE: D 226-6 CC: 6234 kW: 77 HP: 105 YEAR OF MANUFACTURE: 01/1972 → 12/1976
611 SA	D 226-6	6234	77	105	01/1972 → 12/1976	i Safety Element	611 SA ENGINE CODE: D 226-6 CC: 6234 kW: 77 HP: 105 YEAR OF MANUFACTURE: 01/1972 → 12/1976

ENGINE CODE

YEAR OF MANUFACTURE

610 S

D 225-6

5100

01/1972 → 12/1976

611 S

D 226-6

6234

105

01/1972 → 12/1976

611 SA

D 226-6

6234

105

01/1972 → 12/1976

Favorit 600-Serie | 72-93

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
614 LS/LSA	MWM TD 226-6	6240	99	135	01/1976 → 12/1993	i Safety Element	614 LS/LSA ENGINE CODE: MWM TD 226-6 CC: 6240 kW: 99 HP: 135 YEAR OF MANUFACTURE: 01/1976 → 12/1993
614 SL	MWM TD 226-6	6240	99	135	01/1972 → 12/1976	i Safety Element	614 SL ENGINE CODE: MWM TD 226-6 CC: 6240 kW: 99 HP: 135 YEAR OF MANUFACTURE: 01/1972 → 12/1976
615 S/SL	MWM D226-6	6240	110	150	01/1972 → 09/1976	i Safety Element	615 S/SL ENGINE CODE: MWM D226-6 CC: 6240 kW: 110 HP: 150 YEAR OF MANUFACTURE: 01/1972 → 09/1976

ENGINE CODE

YEAR OF MANUFACTURE

614 LS/LSA

MWM TD 226-6

6240

135

01/1976 → 12/1993

614 SL

MWM TD 226-6

6240

135

01/1972 → 12/1976

615 S/SL

MWM D226-6

6240

110

150

01/1972 → 09/1976

GT-Serie | 57-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
390 GTA (T 390.220)	KHD F6L912	6128	73	100	01/1985 → 12/1995	i Safety Element	390 GTA (T 390.220) ENGINE CODE: KHD F6L912 CC: 6128 kW: 73 HP: 100 YEAR OF MANUFACTURE: 01/1985 → 12/1995
395 GTA/GHA (T 395.220/240)	Deutz F6L 913 / F6L912H	6128	88	120	01/1989 →	i Safety Element	395 GTA/GHA (T 395.220/240) ENGINE CODE: Deutz F6L 913 / F6L912H CC: 6128 kW: 88 HP: 120 YEAR OF MANUFACTURE: 01/1989 →

ENGINE CODE

YEAR OF MANUFACTURE

390 GTA (T 390.220)

KHD F6L912

6128

100

01/1985 → 12/1995

395 GTA/GHA (T 395.220/240)

Deutz F6L 913 / F6L912H

6128

120

01/1989 →

HAMM (WIRTGEN GROUP)

DV/DVO-Serie | 87-

	ENGINE CODE	kW	HP	YEAR OF MANUFACTURE
DV 6 K	Deutz F3L 912	38	52	01/1987 → 12/1994	i Safety Element	DV 6 K ENGINE CODE: Deutz F3L 912 CC: kW: 38 HP: 52 YEAR OF MANUFACTURE: 01/1987 → 12/1994
DV 6 V	Deutz F3L 912	38	52	01/1987 → 12/1994	i Safety Element	DV 6 V ENGINE CODE: Deutz F3L 912 CC: kW: 38 HP: 52 YEAR OF MANUFACTURE: 01/1987 → 12/1994
DV 6.21, 6.22	Deutz F3L 912	38	52	01/1987 → 12/1994	i Safety Element	DV 6.21, 6.22 ENGINE CODE: Deutz F3L 912 CC: kW: 38 HP: 52 YEAR OF MANUFACTURE: 01/1987 → 12/1994

ENGINE CODE

YEAR OF MANUFACTURE

DV 6 K

Deutz F3L 912

01/1987 → 12/1994

DV 6 V

Deutz F3L 912

01/1987 → 12/1994

DV 6.21, 6.22

Deutz F3L 912

01/1987 → 12/1994

JOHN DEERE

1000-Serie | 60-

	ENGINE CODE	kW	HP	YEAR OF MANUFACTURE
1052 (Maehdr./Combine)					i Safety Element	1052 (Maehdr./Combine) ENGINE CODE: CC: kW: HP:
1155 (Maehdr./Combine)					i Safety Element	1155 (Maehdr./Combine) ENGINE CODE: CC: kW: HP:
1550	3179D	32	43	01/1987 → 12/1994	i Partly/or Safety Element	1550 ENGINE CODE: 3179D CC: kW: 32 HP: 43 YEAR OF MANUFACTURE: 01/1987 → 12/1994 i Partly/or Safety Element
1750	3179D	37	49	01/1987 → 12/1994	i Partly/or Safety Element	1750 ENGINE CODE: 3179D CC: kW: 37 HP: 49 YEAR OF MANUFACTURE: 01/1987 → 12/1994 i Partly/or Safety Element
1850	3179D	45	60	01/1973 → 12/1979	i Partly/or Safety Element	1850 ENGINE CODE: 3179D CC: kW: 45 HP: 60 YEAR OF MANUFACTURE: 01/1973 → 12/1979 i Partly/or Safety Element

ENGINE CODE

YEAR OF MANUFACTURE

1052 (Maehdr./Combine)

1155 (Maehdr./Combine)

1550

3179D

01/1987 → 12/1994

1750

3179D

01/1987 → 12/1994

1850

3179D

01/1973 → 12/1979

3000-Serie | 61-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
3050	6359D		68	93	01/1986 → 12/1993	i Safety Element	3050 ENGINE CODE: 6359D CC: kW: 68 HP: 93 YEAR OF MANUFACTURE: 01/1986 → 12/1993
3350	6359D		74	101	01/1986 → 12/1993	i Safety Element	3350 ENGINE CODE: 6359D CC: kW: 74 HP: 101 YEAR OF MANUFACTURE: 01/1986 → 12/1993

ENGINE CODE

YEAR OF MANUFACTURE

3050

6359D

01/1986 → 12/1993

3350

6359D

101

01/1986 → 12/1993

900-Serie | 76-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
945(Maehdrescher/combine)						i Safety Element	945(Maehdrescher/combine) ENGINE CODE: CC: kW: HP:
952(Maehdrescher/Combine)						i Partly/or Safety Element	952(Maehdrescher/Combine) ENGINE CODE: CC: kW: HP: i Partly/or Safety Element

ENGINE CODE

YEAR OF MANUFACTURE

945(Maehdrescher/combine)

952(Maehdrescher/Combine)

LIEBHERR

L 500 (Radlader / Wheel Loaders) | 84-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
L 512 (Type 430)	Deutz BF4L913		69	94		i Up to chassis no. 0319 Safety Element	L 512 (Type 430) ENGINE CODE: Deutz BF4L913 CC: kW: 69 HP: 94 i Up to chassis no. 0319 Safety Element

ENGINE CODE

YEAR OF MANUFACTURE

L 512 (Type 430)

Deutz BF4L913

R/A 300 (Hydraulikbagger / Hydraulic Excavators) |

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
R 310B / A 310B	Deutz BF4M 1012E		58	79	01/1995 → 12/2004	i Safety Element	R 310B / A 310B ENGINE CODE: Deutz BF4M 1012E CC: kW: 58 HP: 79 YEAR OF MANUFACTURE: 01/1995 → 12/2004
R 312 / A 312	Deutz BF4M 1012		65	89	01/1994 → 12/2004	i Safety Element	R 312 / A 312 ENGINE CODE: Deutz BF4M 1012 CC: kW: 65 HP: 89 YEAR OF MANUFACTURE: 01/1994 → 12/2004

ENGINE CODE

YEAR OF MANUFACTURE

R 310B / A 310B

Deutz BF4M 1012E

01/1995 → 12/2004

R 312 / A 312

Deutz BF4M 1012

01/1994 → 12/2004

R/A 900 (Hydraulikbagger / Hydraulic Excavators) |

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
R 900 / A 900	Deutz F3/4L 912					i Safety Element	R 900 / A 900 ENGINE CODE: Deutz F3/4L 912 CC: kW: HP:
R 900 Li / A 900 Li	Deutz BF 4 L 913		59	80		i Some models: Type 367-368, 491-492. Some models: Type 575-606 Safety Element	R 900 Li / A 900 Li ENGINE CODE: Deutz BF 4 L 913 CC: kW: 59 HP: 80 i Some models: Type 367-368, 491-492. Some models: Type 575-606 Safety Element

ENGINE CODE

YEAR OF MANUFACTURE

R 900 / A 900

Deutz F3/4L 912

R 900 Li / A 900 Li

Deutz BF 4 L 913

LIEBHERR-MOBILKRANE

LTM-Serie | 90-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
LTM 1070	DB OM 442A					i Crane engine DB OM352A Safety Element	LTM 1070 ENGINE CODE: DB OM 442A CC: kW: HP: i Crane engine DB OM352A Safety Element

ENGINE CODE

YEAR OF MANUFACTURE

LTM 1070

DB OM 442A

MERCEDES-BENZ

MB trac-Serie | 73-

	ENGINE CODE	kW	HP	YEAR OF MANUFACTURE
1000 (441)	OM 366	74	101	04/1987 →	i Safety Element	1000 (441) ENGINE CODE: OM 366 CC: kW: 74 HP: 101 YEAR OF MANUFACTURE: 04/1987 →
1000 (441.161)	OM 353	70	95	11/1982 → 03/1987	i Safety Element	1000 (441.161) ENGINE CODE: OM 353 CC: kW: 70 HP: 95 YEAR OF MANUFACTURE: 11/1982 → 03/1987
1100 (441)	OM 366	81	110	04/1987 →	i Safety Element	1100 (441) ENGINE CODE: OM 366 CC: kW: 81 HP: 110 YEAR OF MANUFACTURE: 04/1987 →
700 (440.167/168/169)	OM 364	50	68	04/1987 →	i Safety Element	700 (440.167/168/169) ENGINE CODE: OM 364 CC: kW: 50 HP: 68 YEAR OF MANUFACTURE: 04/1987 →
800 (440)	OM 364	57	78	04/1987 →	i Safety Element	800 (440) ENGINE CODE: OM 364 CC: kW: 57 HP: 78 YEAR OF MANUFACTURE: 04/1987 →
900 (440.164)	OM 314 A (Turbo)	63	86	09/1981 → 03/1987	i Safety Element	900 (440.164) ENGINE CODE: OM 314 A (Turbo) CC: kW: 63 HP: 86 YEAR OF MANUFACTURE: 09/1981 → 03/1987
900 Turbo (440)	OM 364 A	66	90	04/1987 →	i Safety Element	900 Turbo (440) ENGINE CODE: OM 364 A CC: kW: 66 HP: 90 YEAR OF MANUFACTURE: 04/1987 →

ENGINE CODE

YEAR OF MANUFACTURE

1000 (441)

OM 366

101

04/1987 →

1000 (441.161)

OM 353

11/1982 → 03/1987

1100 (441)

OM 366

110

04/1987 →

700 (440.167/168/169)

OM 364

04/1987 →

800 (440)

OM 364

04/1987 →

900 (440.164)

OM 314 A (Turbo)

09/1981 → 03/1987

900 Turbo (440)

OM 364 A

04/1987 →

Unimog-Serie | 56-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
U 90 (408.100)	OM 602.941 D29	2874	66	90	11/1992 →	i Partly/or Safety Element	U 90 (408.100) ENGINE CODE: OM 602.941 D29 CC: 2874 kW: 66 HP: 90 YEAR OF MANUFACTURE: 11/1992 → i Partly/or Safety Element
U 90 turbo (408)	OM 602D29LA	2874	85	116	01/1997 →	i Safety Element	U 90 turbo (408) ENGINE CODE: OM 602D29LA CC: 2874 kW: 85 HP: 116 YEAR OF MANUFACTURE: 01/1997 →
U 100 L (408.215)	OM 602.948 D29	2874	71	97	11/1992 →	i Partly/or Safety Element	U 100 L (408.215) ENGINE CODE: OM 602.948 D29 CC: 2874 kW: 71 HP: 97 YEAR OF MANUFACTURE: 11/1992 → i Partly/or Safety Element
U 100 L turbo (408)	OM 602D29LA	2874	85	116	01/1997 →	i Safety Element	U 100 L turbo (408) ENGINE CODE: OM 602D29LA CC: 2874 kW: 85 HP: 116 YEAR OF MANUFACTURE: 01/1997 →

ENGINE CODE

YEAR OF MANUFACTURE

U 90 (408.100)

OM 602.941 D29

2874

11/1992 →

U 90 turbo (408)

OM 602D29LA

2874

116

01/1997 →

U 100 L (408.215)

OM 602.948 D29

2874

11/1992 →

U 100 L turbo (408)

OM 602D29LA

2874

116

01/1997 →

NEW HOLLAND

8000-Serie (Ford) | 68-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
8055	Ford 2713 / 2715E	6220	90	123	01/1983 → 12/1991	i Partly/or Safety Element	8055 ENGINE CODE: Ford 2713 / 2715E CC: 6220 kW: 90 HP: 123 YEAR OF MANUFACTURE: 01/1983 → 12/1991 i Partly/or Safety Element
8055	MB OM 352 A					i Partly/or Safety Element	8055 ENGINE CODE: MB OM 352 A CC: kW: HP: i Partly/or Safety Element

ENGINE CODE

YEAR OF MANUFACTURE

8055

Ford 2713 / 2715E

6220

123

01/1983 → 12/1991

8055

MB OM 352 A

O&K ORENSTEIN + KOPPEL (CNH)

L-Serie | 69-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
7	Deutz F3L 912		38	52	01/1977 →	i Safety Element	7 ENGINE CODE: Deutz F3L 912 CC: kW: 38 HP: 52 YEAR OF MANUFACTURE: 01/1977 →
8	Deutz F3L 912		40	55	01/1977 →	i Safety Element	8 ENGINE CODE: Deutz F3L 912 CC: kW: 40 HP: 55 YEAR OF MANUFACTURE: 01/1977 →

ENGINE CODE

YEAR OF MANUFACTURE

Deutz F3L 912

01/1977 →

Deutz F3L 912

01/1977 →

PUTZMEISTER

BSA-Serie (Betonpumpe / Concrete Pump) | 07-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
BSA 1005 D	Deutz BF4M 2011				01/2007 →	i Safety Element	BSA 1005 D ENGINE CODE: Deutz BF4M 2011 CC: kW: HP: YEAR OF MANUFACTURE: 01/2007 →

ENGINE CODE

YEAR OF MANUFACTURE

BSA 1005 D

Deutz BF4M 2011

01/2007 →

RENAULT AGRICULTURE (CLAAS)

100-Serie | 81-97

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
103.12 RS/TS/TX	MWM	4200	68	92	01/1981 → 12/1986	i Safety Element	103.12 RS/TS/TX ENGINE CODE: MWM CC: 4200 kW: 68 HP: 92 YEAR OF MANUFACTURE: 01/1981 → 12/1986
103.14 RS/TX	MWM	4200	68	92	01/1981 → 12/1986	i Safety Element	103.14 RS/TX ENGINE CODE: MWM CC: 4200 kW: 68 HP: 92 YEAR OF MANUFACTURE: 01/1981 → 12/1986

ENGINE CODE

YEAR OF MANUFACTURE

103.12 RS/TS/TX

MWM

4200

01/1981 → 12/1986

103.14 RS/TX

MWM

4200

01/1981 → 12/1986

70-Serie | 90-94

	ENGINE CODE	kW	HP	YEAR OF MANUFACTURE
70.12 SP					i Safety Element	70.12 SP ENGINE CODE: CC: kW: HP:
70.14 SP	MWM				i Safety Element	70.14 SP ENGINE CODE: MWM CC: kW: HP:
70.32 PA/PE/PS/PX	MWM				i Safety Element	70.32 PA/PE/PS/PX ENGINE CODE: MWM CC: kW: HP:
70.34 PX/Tractor		48	65	01/1990 → 12/1994	i Safety Element	70.34 PX/Tractor ENGINE CODE: CC: kW: 48 HP: 65 YEAR OF MANUFACTURE: 01/1990 → 12/1994

ENGINE CODE

YEAR OF MANUFACTURE

70.12 SP

70.14 SP

MWM

70.32 PA/PE/PS/PX

MWM

70.34 PX/Tractor

01/1990 → 12/1994

80-Serie

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
85.12 LS	MWM TD226-4					i Safety Element	85.12 LS ENGINE CODE: MWM TD226-4 CC: kW: HP:
85.14 LS	MWM TD226-4					i Safety Element	85.14 LS ENGINE CODE: MWM TD226-4 CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

85.12 LS

MWM TD226-4

85.14 LS

MWM TD226-4

90-Serie

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
95.12 TX	MWM TD226-4					i Safety Element	95.12 TX ENGINE CODE: MWM TD226-4 CC: kW: HP:
95.14 TX	MWM TD226-4					i Safety Element	95.14 TX ENGINE CODE: MWM TD226-4 CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

95.12 TX

MWM TD226-4

95.14 TX

MWM TD226-4

Ceres-Serie | 01-

	ENGINE CODE	kW	HP	YEAR OF MANUFACTURE
65	MWM D 226-3	52	71		i Some models: nur/only MWM motor Safety Element	65 ENGINE CODE: MWM D 226-3 CC: kW: 52 HP: 71 i Some models: nur/only MWM motor Safety Element
70 / 70 X	MWM D 226-3	52	71	05/2001 →	i Safety Element	70 / 70 X ENGINE CODE: MWM D 226-3 CC: kW: 52 HP: 71 YEAR OF MANUFACTURE: 05/2001 →
75 / 75 X	MWM				i 2WD Safety Element	75 / 75 X ENGINE CODE: MWM CC: kW: HP: i 2WD Safety Element
85 / 85 X	MWM D 226-4	63	86		i Safety Element	85 / 85 X ENGINE CODE: MWM D 226-4 CC: kW: 63 HP: 86
95 / 95 X	MWM D 226-4	70	95		i Safety Element	95 / 95 X ENGINE CODE: MWM D 226-4 CC: kW: 70 HP: 95

ENGINE CODE

YEAR OF MANUFACTURE

MWM D 226-3

70 / 70 X

MWM D 226-3

05/2001 →

75 / 75 X

MWM

85 / 85 X

MWM D 226-4

95 / 95 X

MWM D 226-4

SCHLUETER

Euro Trac-Serie | 90-

	YEAR OF MANUFACTURE
1000	01/1990 →	i Safety Element	1000 ENGINE CODE: CC: kW: HP: YEAR OF MANUFACTURE: 01/1990 →
1150	01/1990 →	i Safety Element	1150 ENGINE CODE: CC: kW: HP: YEAR OF MANUFACTURE: 01/1990 →
800	01/1990 →	i Safety Element	800 ENGINE CODE: CC: kW: HP: YEAR OF MANUFACTURE: 01/1990 →

ENGINE CODE

YEAR OF MANUFACTURE

1000

01/1990 →

1150

01/1990 →

800

01/1990 →

Super Trac-Serie | 88-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
1300VL						i Partly/or Safety Element	1300VL ENGINE CODE: CC: kW: HP: i Partly/or Safety Element

ENGINE CODE

YEAR OF MANUFACTURE

1300VL

SCHOPF

T-Serie

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
193						i Safety Element	193 ENGINE CODE: CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

193

VOLVO CONSTRUCTION EQUIPMENT

4000/ 5000 (Radlader / Wheeled Loaders) | 77-87

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
4200	Perkins D 39 L		47	64	01/1978 → 10/1983	i Safety Element	4200 ENGINE CODE: Perkins D 39 L CC: kW: 47 HP: 64 YEAR OF MANUFACTURE: 01/1978 → 10/1983

ENGINE CODE

YEAR OF MANUFACTURE

4200

Perkins D 39 L

01/1978 → 10/1983

L (Radlader / Wheel Loaders) | 85-

	ENGINE CODE	kW	HP	YEAR OF MANUFACTURE
L 30	Perkins 4.236	51	70	01/1987 → 09/1995	i Safety Element	L 30 ENGINE CODE: Perkins 4.236 CC: kW: 51 HP: 70 YEAR OF MANUFACTURE: 01/1987 → 09/1995
L 45	Deutz BF4M1013	73	98	01/1998 → 12/2000	i Safety Element	L 45 ENGINE CODE: Deutz BF4M1013 CC: kW: 73 HP: 98 YEAR OF MANUFACTURE: 01/1998 → 12/2000
L 50	D 45 B	66	90	01/1986 → 10/1993	i Safety Element	L 50 ENGINE CODE: D 45 B CC: kW: 66 HP: 90 YEAR OF MANUFACTURE: 01/1986 → 10/1993
L 50 C, L 50 C OR	Volvo TD 40 KAE	71	97	01/1995 → 10/1999	i Safety Element	L 50 C, L 50 C OR ENGINE CODE: Volvo TD 40 KAE CC: kW: 71 HP: 97 YEAR OF MANUFACTURE: 01/1995 → 10/1999
L 50 C, L 50 C OR	Volvo TD40GA				i Safety Element	L 50 C, L 50 C OR ENGINE CODE: Volvo TD40GA CC: kW: HP:
L 50 C, L 50 C OR	Volvo TD40GFE				i Safety Element	L 50 C, L 50 C OR ENGINE CODE: Volvo TD40GFE CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

L 30

Perkins 4.236

01/1987 → 09/1995

L 45

Deutz BF4M1013

01/1998 → 12/2000

L 50

D 45 B

01/1986 → 10/1993

L 50 C, L 50 C OR

Volvo TD 40 KAE

01/1995 → 10/1999

L 50 C, L 50 C OR

Volvo TD40GA

L 50 C, L 50 C OR

Volvo TD40GFE

LM / PARCA (Radlader / Wheel Loaders) | 72-80

	ENGINE CODE
621	D 42	i From chassis no. 5232 Safety Element	621 ENGINE CODE: D 42 CC: kW: HP: i From chassis no. 5232 Safety Element
622	D 42	i From chassis no. 5232 Safety Element	622 ENGINE CODE: D 42 CC: kW: HP: i From chassis no. 5232 Safety Element
641	D 42	i From chassis no. 5232 Safety Element	641 ENGINE CODE: D 42 CC: kW: HP: i From chassis no. 5232 Safety Element
642	D 42	i From chassis no. 5232 Safety Element	642 ENGINE CODE: D 42 CC: kW: HP: i From chassis no. 5232 Safety Element

ENGINE CODE

YEAR OF MANUFACTURE

621

D 42

622

D 42

641

D 42

642

D 42

MK (Autokrane / Mobile Cranes) | 74-80

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
MK 693	BM D 42		59	80	01/1974 → 12/1980	i Safety Element	MK 693 ENGINE CODE: BM D 42 CC: kW: 59 HP: 80 YEAR OF MANUFACTURE: 01/1974 → 12/1980

ENGINE CODE

YEAR OF MANUFACTURE

MK 693

BM D 42

01/1974 → 12/1980

WERNER WF TRAC

WF trac-Serie | 92-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
1100	MB OM 364 A		77	105	01/1992 →	i Safety Element	1100 ENGINE CODE: MB OM 364 A CC: kW: 77 HP: 105 YEAR OF MANUFACTURE: 01/1992 →
900	MB OM 364 A		68	93	01/1992 →	i Safety Element	900 ENGINE CODE: MB OM 364 A CC: kW: 68 HP: 93 YEAR OF MANUFACTURE: 01/1992 →

ENGINE CODE

YEAR OF MANUFACTURE

1100

MB OM 364 A

105

01/1992 →

900

MB OM 364 A

01/1992 →

WIRTGEN (WIRTGEN GROUP)

SF-Serie | 95-99

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
500CV	IVECO					i Partly/or. Series up to SN 00275 Safety Element	500CV ENGINE CODE: IVECO CC: kW: HP: i Partly/or. Series up to SN 00275 Safety Element

ENGINE CODE

YEAR OF MANUFACTURE

500CV

IVECO

W-Serie (cold milling machine) | 09-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
500 (06.05)						i Series 0005-0275 Safety Element	500 (06.05) ENGINE CODE: CC: kW: HP: i Series 0005-0275 Safety Element

ENGINE CODE

YEAR OF MANUFACTURE

500 (06.05)

ZETTELMEYER (VOLVO)

ZL-Serie | 88-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
801 B	Deutz BF4L 1011					i Safety Element	801 B ENGINE CODE: Deutz BF4L 1011 CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

801 B

Deutz BF4L 1011

AGCO

2710796M91
F184200090040

AHLMANN

41 91 749 A

BETICO

4634816

BOMAG

05821015

BUSCH

532-505-411

CASE-INTERNATIONAL/CASE-IH

161100190020
3216100R2

CLAAS

00 0176 169 1
0176 169 0
0178 429 1
CT 77 01 019 018

DEMAG (COMPAIR)

394 686 40
988 740 00

DEUTZ AG / DEUTZ-FAHR (KHD)

241 4950
241 5950
298 5037

FAHR (DEUTZ-FAHR)

1-1114-020-304.00

FAUN

0746-839
4134-370

FENDT

F 184 200 090 040

FRISCH

147-0634

HAMM

385905

IHC / CASE IH

3 216 100 R 1

IVECO

190 2130
241 5950

J.C.BAMFORD

32/906402

JOHN DEERE

AZ25494
AZ25498
DQ24942

KLEEMANN

M10015336

KRAMER

000 993 17 06

LIEBHERR

510 6525
510 6525-08
736 1346
736134680

LINDE

000 983 9018
000 983 9021
016 000 000 8 001
9839021

MERCEDES-BENZ (DAIMLER AG)

002 094 61 04
A 002 094 61 04

MWM

6.0541.29.7.0047
6.0690.16.7.0114

NEW HOLLAND (CNH)

80430289

ORENSTEIN + KOPPEL (O+K)

093 6693
765 821
800 3742

RENAULT TRUCKS (RVI)

77 01 019 018

STEYR-DAIMLER-PUCH

161100190020
611.00.19.0020
87682977

VALMET

0501 8609
80062100

VALTRA-VALMET

0501 8609

VOLVO (TRUCKS/VCE/VME/PENTA)

11033777
11033777 6640
11110148
11110148-1
4785611
6644840

WIRTGEN GROUP

1942

ZETTELMEYER

00 226 24805

Date of last data update: 2026-03-18 Print Report now

DIMENSIONS NEW FILTERS AND CHANGES SPECIAL FILTERS

FILTER CATALOGUE

Search results

Find a filter

REACH-Information

AM 414W

CLIPBOARD

Filtry Filtron
