REACH-Information

SVHC declaration according to the regulation EC 1907/2006 concerning the Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH).

Produkt: AM 416/6 - FILTRON

MANN+HUMMEL is well aware of REACH and meet all legal obligations under this regulation.

MANN+HUMMEL has established internal processes to ensure implementation and compliance with the REACH Regulation. Especially, we continuously work on the assessment of presence of SVHC (Substances of Very High Concern).

We may inform you that according to present level of information and best knowledge, this product does not contain any SVHC listed on the Candidate List in concentration above 0,1% (w/w).

Last update: 2024-09-19

Back

AIR FILTERS

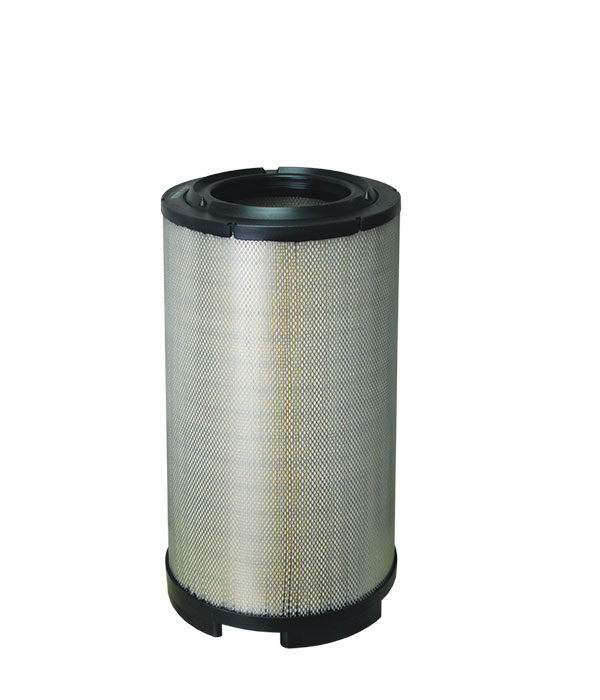

AM 416/6

EAN CODE:

REACH information

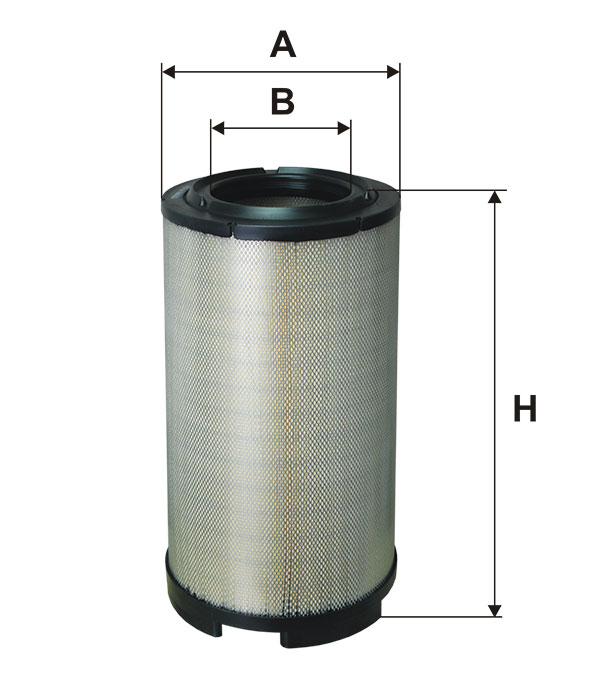

DIMENSIONS (mm):

302

169

535

APPLICATION
SUBSTITUTES

SCANIA

4 (94-164) | 95-08

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
R 144	DSC 14 (Euro2)	14200			11/1995 → 12/2001	i Filtration system Donaldson. Flame retardant filter media	R 144 ENGINE CODE: DSC 14 (Euro2) CC: 14200 kW: HP: YEAR OF MANUFACTURE: 11/1995 → 12/2001 i Filtration system Donaldson. Flame retardant filter media
R 164 V8 (164-480)	DC 16.02	15600	353	480	06/2000 → 10/2004	i Filtration system Donaldson. Flame retardant filter media	R 164 V8 (164-480) ENGINE CODE: DC 16.02 CC: 15600 kW: 353 HP: 480 YEAR OF MANUFACTURE: 06/2000 → 10/2004 i Filtration system Donaldson. Flame retardant filter media
R 164 V8 (164-580)	DC 16.01	15600	426	580	06/2000 → 10/2004	i Filtration system Donaldson. Flame retardant filter media	R 164 V8 (164-580) ENGINE CODE: DC 16.01 CC: 15600 kW: 426 HP: 580 YEAR OF MANUFACTURE: 06/2000 → 10/2004 i Filtration system Donaldson. Flame retardant filter media
T 144	DSC 14 (Euro2)	14200			11/1995 → 12/2001	i Filtration system Donaldson. Flame retardant filter media	T 144 ENGINE CODE: DSC 14 (Euro2) CC: 14200 kW: HP: YEAR OF MANUFACTURE: 11/1995 → 12/2001 i Filtration system Donaldson. Flame retardant filter media
T 164 V8 (164-480)	DC 16.02	15600	353	480	06/2000 → 10/2004	i Filtration system Donaldson. Flame retardant filter media	T 164 V8 (164-480) ENGINE CODE: DC 16.02 CC: 15600 kW: 353 HP: 480 YEAR OF MANUFACTURE: 06/2000 → 10/2004 i Filtration system Donaldson. Flame retardant filter media
T 164 V8 (164-580)	DC 16.01	15600	426	580	06/2000 → 10/2004	i Filtration system Donaldson. Flame retardant filter media	T 164 V8 (164-580) ENGINE CODE: DC 16.01 CC: 15600 kW: 426 HP: 580 YEAR OF MANUFACTURE: 06/2000 → 10/2004 i Filtration system Donaldson. Flame retardant filter media

ENGINE CODE

YEAR OF MANUFACTURE

R 144

DSC 14 (Euro2)

14200

11/1995 → 12/2001

R 164 V8 (164-480)

DC 16.02

15600

353

480

06/2000 → 10/2004

R 164 V8 (164-580)

DC 16.01

15600

426

580

06/2000 → 10/2004

T 144

DSC 14 (Euro2)

14200

11/1995 → 12/2001

T 164 V8 (164-480)

DC 16.02

15600

353

480

06/2000 → 10/2004

T 164 V8 (164-580)

DC 16.01

15600

426

580

06/2000 → 10/2004

P (P230 - P620) | 03-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
P 500	DC16 04/06/09/19/22	15600	368	500	04/2004 → 05/2019	i Filtration system Donaldson. Flame retardant filter media -> 03/2009	P 500 ENGINE CODE: DC16 04/06/09/19/22 CC: 15600 kW: 368 HP: 500 YEAR OF MANUFACTURE: 04/2004 → 05/2019 i Filtration system Donaldson. Flame retardant filter media -> 03/2009
P 560	DC16 05/18-560	15600	412	560	06/2004 → 05/2019	i Filtration system Donaldson. Flame retardant filter media -> 03/2009	P 560 ENGINE CODE: DC16 05/18-560 CC: 15600 kW: 412 HP: 560 YEAR OF MANUFACTURE: 06/2004 → 05/2019 i Filtration system Donaldson. Flame retardant filter media -> 03/2009
P 580	DC16 03-580 E3	15600	426	580	06/2004 → 05/2019	i Filtration system Donaldson. Flame retardant filter media -> 03/2009	P 580 ENGINE CODE: DC16 03-580 E3 CC: 15600 kW: 426 HP: 580 YEAR OF MANUFACTURE: 06/2004 → 05/2019 i Filtration system Donaldson. Flame retardant filter media -> 03/2009
P 620	DC16 08-620 E4, DC16 17-620 E5	15600	456	620	08/2006 → 05/2019	i Filtration system Donaldson. Flame retardant filter media -> 03/2009	P 620 ENGINE CODE: DC16 08-620 E4, DC16 17-620 E5 CC: 15600 kW: 456 HP: 620 YEAR OF MANUFACTURE: 08/2006 → 05/2019 i Filtration system Donaldson. Flame retardant filter media -> 03/2009

ENGINE CODE

YEAR OF MANUFACTURE

P 500

DC16 04/06/09/19/22

15600

368

500

04/2004 → 05/2019

P 560

DC16 05/18-560

15600

412

560

06/2004 → 05/2019

P 580

DC16 03-580 E3

15600

426

580

06/2004 → 05/2019

P 620

DC16 08-620 E4, DC16 17-620 E5

15600

456

620

08/2006 → 05/2019

R (R230 - R730) | 04-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
R 500	DC16 04/06/09/19/22	15600	368	500	03/2004 → 05/2019	i Filtration system Donaldson. Flame retardant filter media -> 03/2009	R 500 ENGINE CODE: DC16 04/06/09/19/22 CC: 15600 kW: 368 HP: 500 YEAR OF MANUFACTURE: 03/2004 → 05/2019 i Filtration system Donaldson. Flame retardant filter media -> 03/2009
R 560	DC16 05/18-560	15600	412	560	06/2004 → 05/2019	i Filtration system Donaldson. Flame retardant filter media -> 03/2009	R 560 ENGINE CODE: DC16 05/18-560 CC: 15600 kW: 412 HP: 560 YEAR OF MANUFACTURE: 06/2004 → 05/2019 i Filtration system Donaldson. Flame retardant filter media -> 03/2009
R 580	DC16 03-580 E3	15600	426	580	06/2004 → 05/2019	i Filtration system Donaldson. Flame retardant filter media -> 03/2009	R 580 ENGINE CODE: DC16 03-580 E3 CC: 15600 kW: 426 HP: 580 YEAR OF MANUFACTURE: 06/2004 → 05/2019 i Filtration system Donaldson. Flame retardant filter media -> 03/2009
R 620	DC16 08-620 E4, DC16 17-620 E5	15600	456	620	05/2006 → 05/2019	i Filtration system Donaldson. Flame retardant filter media -> 03/2009	R 620 ENGINE CODE: DC16 08-620 E4, DC16 17-620 E5 CC: 15600 kW: 456 HP: 620 YEAR OF MANUFACTURE: 05/2006 → 05/2019 i Filtration system Donaldson. Flame retardant filter media -> 03/2009

ENGINE CODE

YEAR OF MANUFACTURE

R 500

DC16 04/06/09/19/22

15600

368

500

03/2004 → 05/2019

R 560

DC16 05/18-560

15600

412

560

06/2004 → 05/2019

R 580

DC16 03-580 E3

15600

426

580

06/2004 → 05/2019

R 620

DC16 08-620 E4, DC16 17-620 E5

15600

456

620

05/2006 → 05/2019

T (T230 - T580) | 04-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
T 500	DC16 04	15600	368	500	09/2004 → 05/2019	i Filtration system Donaldson. Flame retardant filter media	T 500 ENGINE CODE: DC16 04 CC: 15600 kW: 368 HP: 500 YEAR OF MANUFACTURE: 09/2004 → 05/2019 i Filtration system Donaldson. Flame retardant filter media
T 580	DC16 03-580 Euro3	15600	426	580	09/2004 → 05/2019	i Filtration system Donaldson. Flame retardant filter media	T 580 ENGINE CODE: DC16 03-580 Euro3 CC: 15600 kW: 426 HP: 580 YEAR OF MANUFACTURE: 09/2004 → 05/2019 i Filtration system Donaldson. Flame retardant filter media

ENGINE CODE

YEAR OF MANUFACTURE

T 500

DC16 04

15600

368

500

09/2004 → 05/2019

T 580

DC16 03-580 Euro3

15600

426

580

09/2004 → 05/2019

KNORR-BREMSE

K165289N50

RENAULT TRUCKS (OKELIA)

74 24 993 642

SCANIA

172 8817

Date of last data update: 2025-05-29 Print Report now
