REACH-Information

SVHC declaration according to the regulation EC 1907/2006 concerning the Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH).

Produkt: AM 416/8 - FILTRON

MANN+HUMMEL is well aware of REACH and meet all legal obligations under this regulation.

MANN+HUMMEL has established internal processes to ensure implementation and compliance with the REACH Regulation. Especially, we continuously work on the assessment of presence of SVHC (Substances of Very High Concern).

We may inform you that according to present level of information and best knowledge, this product does not contain any SVHC listed on the Candidate List in concentration above 0,1% (w/w).

Last update: 2024-09-19

Back

AIR FILTERS

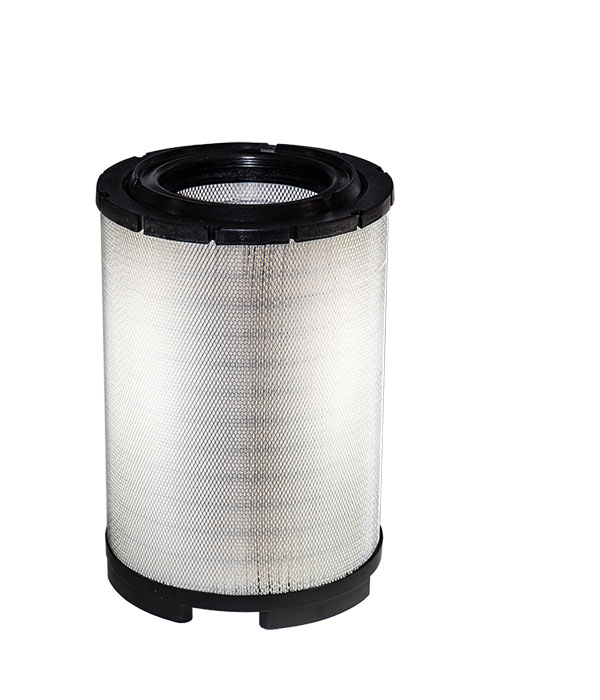

AM 416/8

EAN CODE:

REACH information

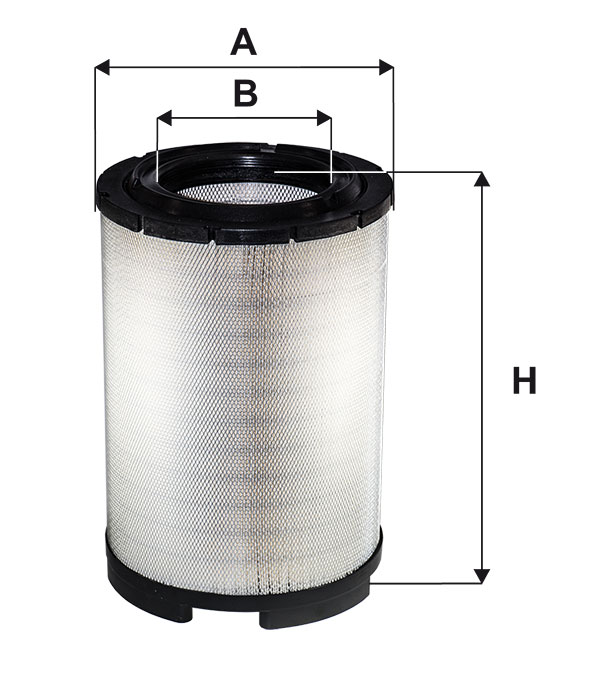

DIMENSIONS (mm):

303

172

447

APPLICATION
SUBSTITUTES

SCANIA

G (G230 - G490) | 04-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
G 230	DC9 16-230 E4	8900	169	230	10/2007 → 05/2019	i Filtration system Donaldson. Use for OE no. 186 9993 01/2009 ->	G 230 ENGINE CODE: DC9 16-230 E4 CC: 8900 kW: 169 HP: 230 YEAR OF MANUFACTURE: 10/2007 → 05/2019 i Filtration system Donaldson. Use for OE no. 186 9993 01/2009 ->
G 250	DC09 111-250 E6	9300	184	250	09/2012 → 05/2019	i Use for OE no. 186 9993	G 250 ENGINE CODE: DC09 111-250 E6 CC: 9300 kW: 184 HP: 250 YEAR OF MANUFACTURE: 09/2012 → 05/2019 i Use for OE no. 186 9993
G 270	DC9 17-270 E4	8900	198	270	10/2007 → 05/2019	i Filtration system Donaldson. Use for OE no. 186 9993 01/2009 ->	G 270 ENGINE CODE: DC9 17-270 E4 CC: 8900 kW: 198 HP: 270 YEAR OF MANUFACTURE: 10/2007 → 05/2019 i Filtration system Donaldson. Use for OE no. 186 9993 01/2009 ->
G 270	DC9 12-270 E3	9000	198	270	09/2004 → 05/2019	i Filtration system Donaldson. Use for OE no. 186 9993 01/2009 ->	G 270 ENGINE CODE: DC9 12-270 E3 CC: 9000 kW: 198 HP: 270 YEAR OF MANUFACTURE: 09/2004 → 05/2019 i Filtration system Donaldson. Use for OE no. 186 9993 01/2009 ->
G 270 Ethanol	DC 9E 02	8867	199	271	05/2008 → 05/2019	i Filtration system Donaldson. Use for OE no. 186 9993 01/2009 ->	G 270 Ethanol ENGINE CODE: DC 9E 02 CC: 8867 kW: 199 HP: 271 YEAR OF MANUFACTURE: 05/2008 → 05/2019 i Filtration system Donaldson. Use for OE no. 186 9993 01/2009 ->
G 280	DC09 113-280 E6	9300	206	280	10/2013 →	i Use for OE no. 186 9993	G 280 ENGINE CODE: DC09 113-280 E6 CC: 9300 kW: 206 HP: 280 YEAR OF MANUFACTURE: 10/2013 → i Use for OE no. 186 9993
G 280	DC09 29/36/38-280 E5/EEV	9300	206	280	10/2007 →	i Filtration system Donaldson. Use for OE no. 186 9993 01/2009 ->	G 280 ENGINE CODE: DC09 29/36/38-280 E5/EEV CC: 9300 kW: 206 HP: 280 YEAR OF MANUFACTURE: 10/2007 → i Filtration system Donaldson. Use for OE no. 186 9993 01/2009 ->
G 280 CNG	OC09 101 280 E5/E6/EEV	9300	206	280	03/2013 →	i Use for OE no. 186 9993	G 280 CNG ENGINE CODE: OC09 101 280 E5/E6/EEV CC: 9300 kW: 206 HP: 280 YEAR OF MANUFACTURE: 03/2013 → i Use for OE no. 186 9993
G 310	DC9.11, DC9.18	8867	228	310	04/2004 → 05/2019	i Filtration system Donaldson. Use for OE no. 186 9993 01/2009 ->	G 310 ENGINE CODE: DC9.11, DC9.18 CC: 8867 kW: 228 HP: 310 YEAR OF MANUFACTURE: 04/2004 → 05/2019 i Filtration system Donaldson. Use for OE no. 186 9993 01/2009 ->
G 320	DC09 108-320 E6	9300	235	320	10/2013 →	i Use for OE no. 186 9993	G 320 ENGINE CODE: DC09 108-320 E6 CC: 9300 kW: 235 HP: 320 YEAR OF MANUFACTURE: 10/2013 → i Use for OE no. 186 9993
G 320, G 325	DC9 22, DC9 28-320 E5	9300	235	320	10/2007 → 05/2019	i Filtration system Donaldson. Use for OE no. 186 9993 01/2009 ->	G 320, G 325 ENGINE CODE: DC9 22, DC9 28-320 E5 CC: 9300 kW: 235 HP: 320 YEAR OF MANUFACTURE: 10/2007 → 05/2019 i Filtration system Donaldson. Use for OE no. 186 9993 01/2009 ->
G 340	DC12 10-340 E4	11700	250	340	10/2007 → 05/2019	i Filtration system Donaldson. Use for OE no. 186 9993 01/2009 ->	G 340 ENGINE CODE: DC12 10-340 E4 CC: 11700 kW: 250 HP: 340 YEAR OF MANUFACTURE: 10/2007 → 05/2019 i Filtration system Donaldson. Use for OE no. 186 9993 01/2009 ->
G 340	DC11 08-340 E3	10600	250	340	06/2004 → 05/2019	i Filtration system Donaldson. Use for OE no. 186 9993 01/2009 ->	G 340 ENGINE CODE: DC11 08-340 E3 CC: 10600 kW: 250 HP: 340 YEAR OF MANUFACTURE: 06/2004 → 05/2019 i Filtration system Donaldson. Use for OE no. 186 9993 01/2009 ->
G 340 CNG	OC09.102 E5/6/EEV	9300	250	340	01/2011 →	i Use for OE no. 186 9993	G 340 CNG ENGINE CODE: OC09.102 E5/6/EEV CC: 9300 kW: 250 HP: 340 YEAR OF MANUFACTURE: 01/2011 → i Use for OE no. 186 9993
G 360	DC09 112-360 E6	9300	265	360	09/2012 → 05/2019	i Use for OE no. 186 9993	G 360 ENGINE CODE: DC09 112-360 E6 CC: 9300 kW: 265 HP: 360 YEAR OF MANUFACTURE: 09/2012 → 05/2019 i Use for OE no. 186 9993
G 360	DC13 06-360 E5	12700	265	360	10/2007 → 05/2019	i Filtration system Donaldson. Use for OE no. 186 9993 01/2009 ->	G 360 ENGINE CODE: DC13 06-360 E5 CC: 12700 kW: 265 HP: 360 YEAR OF MANUFACTURE: 10/2007 → 05/2019 i Filtration system Donaldson. Use for OE no. 186 9993 01/2009 ->
G 370	DC13 116-370 E6	12700	272	370	10/2013 → 05/2019	i Use for OE no. 186 9993	G 370 ENGINE CODE: DC13 116-370 E6 CC: 12700 kW: 272 HP: 370 YEAR OF MANUFACTURE: 10/2013 → 05/2019 i Use for OE no. 186 9993
G 380	DC 12 13, DC 12 17, DC 12 18	11700	280	381	04/2004 → 05/2019	i Filtration system Donaldson. Use for OE no. 186 9993 01/2009 ->	G 380 ENGINE CODE: DC 12 13, DC 12 17, DC 12 18 CC: 11700 kW: 280 HP: 381 YEAR OF MANUFACTURE: 04/2004 → 05/2019 i Filtration system Donaldson. Use for OE no. 186 9993 01/2009 ->
G 400	DC13 05-400 E5	12700	294	400	10/2007 → 05/2019	i Filtration system Donaldson. Use for OE no. 186 9993 01/2009 ->	G 400 ENGINE CODE: DC13 05-400 E5 CC: 12700 kW: 294 HP: 400 YEAR OF MANUFACTURE: 10/2007 → 05/2019 i Filtration system Donaldson. Use for OE no. 186 9993 01/2009 ->
G 410	DC13 115-410 E6	12700	302	410	09/2012 →	i Use for OE no. 186 9993	G 410 ENGINE CODE: DC13 115-410 E6 CC: 12700 kW: 302 HP: 410 YEAR OF MANUFACTURE: 09/2012 → i Use for OE no. 186 9993
G 420	DT12 12-420 E4	11700	309	420	10/2007 →	i Filtration system Donaldson. Use for OE no. 186 9993 01/2009 ->	G 420 ENGINE CODE: DT12 12-420 E4 CC: 11700 kW: 309 HP: 420 YEAR OF MANUFACTURE: 10/2007 → i Filtration system Donaldson. Use for OE no. 186 9993 01/2009 ->
G 420	DC12 15-420 E5	11700	309	420	10/2007 → 05/2019	i Filtration system Donaldson. Use for OE no. 186 9993 01/2009 ->	G 420 ENGINE CODE: DC12 15-420 E5 CC: 11700 kW: 309 HP: 420 YEAR OF MANUFACTURE: 10/2007 → 05/2019 i Filtration system Donaldson. Use for OE no. 186 9993 01/2009 ->
G 420	DC13 11-420 E5	12700	309	420	09/2007 →	i Filtration system Donaldson. Use for OE no. 186 9993 01/2009 ->	G 420 ENGINE CODE: DC13 11-420 E5 CC: 12700 kW: 309 HP: 420 YEAR OF MANUFACTURE: 09/2007 → i Filtration system Donaldson. Use for OE no. 186 9993 01/2009 ->
G 440	DC13 10-440 E5, DC13109-440 E6	12700	324	440	10/2007 → 05/2019	i Use for OE no. 186 9993. Filtration system Donaldson 01/2009 ->	G 440 ENGINE CODE: DC13 10-440 E5, DC13109-440 E6 CC: 12700 kW: 324 HP: 440 YEAR OF MANUFACTURE: 10/2007 → 05/2019 i Use for OE no. 186 9993. Filtration system Donaldson 01/2009 ->
G 440	DT12 18-440	11700	324	441	06/2004 → 05/2019	i Filtration system Donaldson. Use for OE no. 186 9993 01/2009 ->	G 440 ENGINE CODE: DT12 18-440 CC: 11700 kW: 324 HP: 441 YEAR OF MANUFACTURE: 06/2004 → 05/2019 i Filtration system Donaldson. Use for OE no. 186 9993 01/2009 ->
G 450	DC13 124/147-450 E6	12700	331	450	09/2012 → 05/2019	i Use for OE no. 186 9993	G 450 ENGINE CODE: DC13 124/147-450 E6 CC: 12700 kW: 331 HP: 450 YEAR OF MANUFACTURE: 09/2012 → 05/2019 i Use for OE no. 186 9993
G 470	DT12 06-470 E3	11700	345	470	10/2007 → 05/2019	i Filtration system Donaldson. Use for OE no. 186 9993 01/2009 ->	G 470 ENGINE CODE: DT12 06-470 E3 CC: 11700 kW: 345 HP: 470 YEAR OF MANUFACTURE: 10/2007 → 05/2019 i Filtration system Donaldson. Use for OE no. 186 9993 01/2009 ->
G 470	DC13 08-470 E5	12700	346	470	09/2007 →	i Filtration system Donaldson. Use for OE no. 186 9993 01/2009 ->	G 470 ENGINE CODE: DC13 08-470 E5 CC: 12700 kW: 346 HP: 470 YEAR OF MANUFACTURE: 09/2007 → i Filtration system Donaldson. Use for OE no. 186 9993 01/2009 ->
G 480	DT12 17-480 E4	11700	353	480	10/2007 → 05/2019	i Filtration system Donaldson. Use for OE no. 186 9993 01/2009 ->	G 480 ENGINE CODE: DT12 17-480 E4 CC: 11700 kW: 353 HP: 480 YEAR OF MANUFACTURE: 10/2007 → 05/2019 i Filtration system Donaldson. Use for OE no. 186 9993 01/2009 ->
G 480	DC13 07-480 E5	12700	353	480	10/2007 → 05/2019	i Filtration system Donaldson. Use for OE no. 186 9993 01/2009 ->	G 480 ENGINE CODE: DC13 07-480 E5 CC: 12700 kW: 353 HP: 480 YEAR OF MANUFACTURE: 10/2007 → 05/2019 i Filtration system Donaldson. Use for OE no. 186 9993 01/2009 ->
G 490	DC13 125-490 E6	12700	360	490	09/2012 → 05/2019	i Use for OE no. 186 9993	G 490 ENGINE CODE: DC13 125-490 E6 CC: 12700 kW: 360 HP: 490 YEAR OF MANUFACTURE: 09/2012 → 05/2019 i Use for OE no. 186 9993

ENGINE CODE

YEAR OF MANUFACTURE

G 230

DC9 16-230 E4

8900

169

230

10/2007 → 05/2019

G 250

DC09 111-250 E6

9300

184

250

09/2012 → 05/2019

G 270

DC9 17-270 E4

8900

198

270

10/2007 → 05/2019

G 270

DC9 12-270 E3

9000

198

270

09/2004 → 05/2019

G 270 Ethanol

DC 9E 02

8867

199

271

05/2008 → 05/2019

G 280

DC09 113-280 E6

9300

206

280

10/2013 →

G 280

DC09 29/36/38-280 E5/EEV

9300

206

280

10/2007 →

G 280 CNG

OC09 101 280 E5/E6/EEV

9300

206

280

03/2013 →

G 310

DC9.11, DC9.18

8867

228

310

04/2004 → 05/2019

G 320

DC09 108-320 E6

9300

235

320

10/2013 →

G 320, G 325

DC9 22, DC9 28-320 E5

9300

235

320

10/2007 → 05/2019

G 340

DC12 10-340 E4

11700

250

340

10/2007 → 05/2019

G 340

DC11 08-340 E3

10600

250

340

06/2004 → 05/2019

G 340 CNG

OC09.102 E5/6/EEV

9300

250

340

01/2011 →

G 360

DC09 112-360 E6

9300

265

360

09/2012 → 05/2019

G 360

DC13 06-360 E5

12700

265

360

10/2007 → 05/2019

G 370

DC13 116-370 E6

12700

272

370

10/2013 → 05/2019

G 380

DC 12 13, DC 12 17, DC 12 18

11700

280

381

04/2004 → 05/2019

G 400

DC13 05-400 E5

12700

294

400

10/2007 → 05/2019

G 410

DC13 115-410 E6

12700

302

410

09/2012 →

G 420

DT12 12-420 E4

11700

309

420

10/2007 →

G 420

DC12 15-420 E5

11700

309

420

10/2007 → 05/2019

G 420

DC13 11-420 E5

12700

309

420

09/2007 →

G 440

DC13 10-440 E5, DC13109-440 E6

12700

324

440

10/2007 → 05/2019

G 440

DT12 18-440

11700

324

441

06/2004 → 05/2019

G 450

DC13 124/147-450 E6

12700

331

450

09/2012 → 05/2019

G 470

DT12 06-470 E3

11700

345

470

10/2007 → 05/2019

G 470

DC13 08-470 E5

12700

346

470

09/2007 →

G 480

DT12 17-480 E4

11700

353

480

10/2007 → 05/2019

G 480

DC13 07-480 E5

12700

353

480

10/2007 → 05/2019

G 490

DC13 125-490 E6

12700

360

490

09/2012 → 05/2019

P (P230 - P620) | 03-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
P 230	DC9-01/04/13/16-230	9000	169	230	09/2004 → 05/2019	i Filtration system Donaldson. Use for OE no. 186 9993 01/2009 ->	P 230 ENGINE CODE: DC9-01/04/13/16-230 CC: 9000 kW: 169 HP: 230 YEAR OF MANUFACTURE: 09/2004 → 05/2019 i Filtration system Donaldson. Use for OE no. 186 9993 01/2009 ->
P 230	DC9 29/30/35/39-230 E5/EEV	9300	169	230	10/2007 → 05/2019	i Filtration system Donaldson. Use for OE no. 186 9993 01/2009 ->	P 230 ENGINE CODE: DC9 29/30/35/39-230 E5/EEV CC: 9300 kW: 169 HP: 230 YEAR OF MANUFACTURE: 10/2007 → 05/2019 i Filtration system Donaldson. Use for OE no. 186 9993 01/2009 ->
P 250	DC09 109/111-250 E5/6	9300	184	250	01/2012 → 05/2019	i Use for OE no. 186 9993	P 250 ENGINE CODE: DC09 109/111-250 E5/6 CC: 9300 kW: 184 HP: 250 YEAR OF MANUFACTURE: 01/2012 → 05/2019 i Use for OE no. 186 9993
P 270	DC9 12-270 E3	9000	198	270	09/2004 → 05/2019	i Filtration system Donaldson. Use for OE no. 186 9993 01/2009 ->	P 270 ENGINE CODE: DC9 12-270 E3 CC: 9000 kW: 198 HP: 270 YEAR OF MANUFACTURE: 09/2004 → 05/2019 i Filtration system Donaldson. Use for OE no. 186 9993 01/2009 ->
P 270	DC9 17-270 E4	8900	198	270	10/2005 → 05/2019	i Filtration system Donaldson. Use for OE no. 186 9993 01/2009 ->	P 270 ENGINE CODE: DC9 17-270 E4 CC: 8900 kW: 198 HP: 270 YEAR OF MANUFACTURE: 10/2005 → 05/2019 i Filtration system Donaldson. Use for OE no. 186 9993 01/2009 ->
P 270 CNG	OC 09 G 04	9291	199	271	01/2011 → 05/2019	i Use for OE no. 186 9993	P 270 CNG ENGINE CODE: OC 09 G 04 CC: 9291 kW: 199 HP: 271 YEAR OF MANUFACTURE: 01/2011 → 05/2019 i Use for OE no. 186 9993
P 270 Ethanol	DC 9E 02	8867	199	271	05/2008 → 05/2019	i Filtration system Donaldson. Use for OE no. 186 9993 01/2009 ->	P 270 Ethanol ENGINE CODE: DC 9E 02 CC: 8867 kW: 199 HP: 271 YEAR OF MANUFACTURE: 05/2008 → 05/2019 i Filtration system Donaldson. Use for OE no. 186 9993 01/2009 ->
P 280	DC9 29/36/38-280 E5/EEV	9300	206	280	10/2007 → 05/2019	i Filtration system Donaldson. Use for OE no. 186 9993 01/2009 ->	P 280 ENGINE CODE: DC9 29/36/38-280 E5/EEV CC: 9300 kW: 206 HP: 280 YEAR OF MANUFACTURE: 10/2007 → 05/2019 i Filtration system Donaldson. Use for OE no. 186 9993 01/2009 ->
P 280	DC09 113-280 E6	9300	206	280	10/2013 →	i Use for OE no. 186 9993	P 280 ENGINE CODE: DC09 113-280 E6 CC: 9300 kW: 206 HP: 280 YEAR OF MANUFACTURE: 10/2013 → i Use for OE no. 186 9993
P 280 CNG	OC09 101 280 E5/E6/EEV	9300	206	280	03/2013 → 05/2019	i Use for OE no. 186 9993	P 280 CNG ENGINE CODE: OC09 101 280 E5/E6/EEV CC: 9300 kW: 206 HP: 280 YEAR OF MANUFACTURE: 03/2013 → 05/2019 i Use for OE no. 186 9993
P 310	DC9 11/18/110-310 E 3/4/5	9300	228	310	09/2004 → 05/2019	i Filtration system Donaldson. Use for OE no. 186 9993 01/2009 ->	P 310 ENGINE CODE: DC9 11/18/110-310 E 3/4/5 CC: 9300 kW: 228 HP: 310 YEAR OF MANUFACTURE: 09/2004 → 05/2019 i Filtration system Donaldson. Use for OE no. 186 9993 01/2009 ->
P 310 CNG	OC9 G05 E5/6/EEV	9300	224	305	01/2011 → 05/2019	i Use for OE no. 186 9993	P 310 CNG ENGINE CODE: OC9 G05 E5/6/EEV CC: 9300 kW: 224 HP: 305 YEAR OF MANUFACTURE: 01/2011 → 05/2019 i Use for OE no. 186 9993
P 320, P 325	DC9 22/28/32/37/108	9300	235	320	10/2007 → 05/2019	i Filtration system Donaldson. Use for OE no. 186 9993 01/2009 ->	P 320, P 325 ENGINE CODE: DC9 22/28/32/37/108 CC: 9300 kW: 235 HP: 320 YEAR OF MANUFACTURE: 10/2007 → 05/2019 i Filtration system Donaldson. Use for OE no. 186 9993 01/2009 ->
P 340	DC11 08-340 E3	10600	250	340	09/2004 → 05/2019	i Filtration system Donaldson. Use for OE no. 186 9993 01/2009 ->	P 340 ENGINE CODE: DC11 08-340 E3 CC: 10600 kW: 250 HP: 340 YEAR OF MANUFACTURE: 09/2004 → 05/2019 i Filtration system Donaldson. Use for OE no. 186 9993 01/2009 ->
P 340	DC12 10-340 E4	11700	250	340	05/2006 → 05/2019	i Filtration system Donaldson. Use for OE no. 186 9993 01/2009 ->	P 340 ENGINE CODE: DC12 10-340 E4 CC: 11700 kW: 250 HP: 340 YEAR OF MANUFACTURE: 05/2006 → 05/2019 i Filtration system Donaldson. Use for OE no. 186 9993 01/2009 ->
P 340 CNG	OC09.102 E5/6/EEV	9300	250	340	01/2011 → 05/2019	i Use for OE no. 186 9993	P 340 CNG ENGINE CODE: OC09.102 E5/6/EEV CC: 9300 kW: 250 HP: 340 YEAR OF MANUFACTURE: 01/2011 → 05/2019 i Use for OE no. 186 9993
P 360	DC13 06-360 E5	12700	265	360	10/2007 → 05/2019	i Filtration system Donaldson. Use for OE no. 186 9993 01/2009 ->	P 360 ENGINE CODE: DC13 06-360 E5 CC: 12700 kW: 265 HP: 360 YEAR OF MANUFACTURE: 10/2007 → 05/2019 i Filtration system Donaldson. Use for OE no. 186 9993 01/2009 ->
P 360	DC09 112-360 E6	9300	265	360	10/2013 → 05/2019	i Use for OE no. 186 9993	P 360 ENGINE CODE: DC09 112-360 E6 CC: 9300 kW: 265 HP: 360 YEAR OF MANUFACTURE: 10/2013 → 05/2019 i Use for OE no. 186 9993
P 370	DC13 116-370 E6	12700	272	370	09/2012 → 05/2019	i Use for OE no. 186 9993	P 370 ENGINE CODE: DC13 116-370 E6 CC: 12700 kW: 272 HP: 370 YEAR OF MANUFACTURE: 09/2012 → 05/2019 i Use for OE no. 186 9993
P 380	DC11 09-380 E3	11000	279	380	09/2004 → 05/2019	i Filtration system Donaldson. Use for OE no. 186 9993 01/2009 ->	P 380 ENGINE CODE: DC11 09-380 E3 CC: 11000 kW: 279 HP: 380 YEAR OF MANUFACTURE: 09/2004 → 05/2019 i Filtration system Donaldson. Use for OE no. 186 9993 01/2009 ->
P 380	DC 12 13, DC 12 17, DC 12 18	11700	280	381	01/2003 → 05/2019	i Filtration system Donaldson. Use for OE no. 186 9993 01/2009 ->	P 380 ENGINE CODE: DC 12 13, DC 12 17, DC 12 18 CC: 11700 kW: 280 HP: 381 YEAR OF MANUFACTURE: 01/2003 → 05/2019 i Filtration system Donaldson. Use for OE no. 186 9993 01/2009 ->
P 400	DC13 05-400 E5	12700	294	400	10/2007 → 05/2019	i Filtration system Donaldson. Use for OE no. 186 9993 01/2009 ->	P 400 ENGINE CODE: DC13 05-400 E5 CC: 12700 kW: 294 HP: 400 YEAR OF MANUFACTURE: 10/2007 → 05/2019 i Filtration system Donaldson. Use for OE no. 186 9993 01/2009 ->
P 410	DC13 115-410 E6	12700	302	410	01/2011 → 05/2019	i Use for OE no. 186 9993	P 410 ENGINE CODE: DC13 115-410 E6 CC: 12700 kW: 302 HP: 410 YEAR OF MANUFACTURE: 01/2011 → 05/2019 i Use for OE no. 186 9993
P 420	DC 12 06/14/15, DT 12.11/12	11700	309	420	06/2004 → 05/2019	i Filtration system Donaldson. Use for OE no. 186 9993 01/2009 ->	P 420 ENGINE CODE: DC 12 06/14/15, DT 12.11/12 CC: 11700 kW: 309 HP: 420 YEAR OF MANUFACTURE: 06/2004 → 05/2019 i Filtration system Donaldson. Use for OE no. 186 9993 01/2009 ->
P 420	DC13 11-420 E5	12700	309	420	09/2007 → 05/2019	i Filtration system Donaldson. Use for OE no. 186 9993 01/2009 ->	P 420 ENGINE CODE: DC13 11-420 E5 CC: 12700 kW: 309 HP: 420 YEAR OF MANUFACTURE: 09/2007 → 05/2019 i Filtration system Donaldson. Use for OE no. 186 9993 01/2009 ->
P 440	DC13 10/109-440 E5/6	12700	324	440	10/2007 → 05/2019	i Filtration system Donaldson. Use for OE no. 186 9993 01/2009 ->	P 440 ENGINE CODE: DC13 10/109-440 E5/6 CC: 12700 kW: 324 HP: 440 YEAR OF MANUFACTURE: 10/2007 → 05/2019 i Filtration system Donaldson. Use for OE no. 186 9993 01/2009 ->
P 450	DC13 124-450 E6	12700	331	450	09/2012 → 05/2019	i Use for OE no. 186 9993	P 450 ENGINE CODE: DC13 124-450 E6 CC: 12700 kW: 331 HP: 450 YEAR OF MANUFACTURE: 09/2012 → 05/2019 i Use for OE no. 186 9993
P 480	DT12 17-480 E4	11700	353	480	09/2006 → 05/2019	i Filtration system Donaldson. Use for OE no. 186 9993 01/2009 ->	P 480 ENGINE CODE: DT12 17-480 E4 CC: 11700 kW: 353 HP: 480 YEAR OF MANUFACTURE: 09/2006 → 05/2019 i Filtration system Donaldson. Use for OE no. 186 9993 01/2009 ->
P 480	DC13 07-480 E5	12700	353	480	10/2007 → 05/2019	i Filtration system Donaldson. Use for OE no. 186 9993 01/2009 ->	P 480 ENGINE CODE: DC13 07-480 E5 CC: 12700 kW: 353 HP: 480 YEAR OF MANUFACTURE: 10/2007 → 05/2019 i Filtration system Donaldson. Use for OE no. 186 9993 01/2009 ->
P 490	DC13 125-490 E6	12700	360	490	10/2013 →	i Use for OE no. 186 9993	P 490 ENGINE CODE: DC13 125-490 E6 CC: 12700 kW: 360 HP: 490 YEAR OF MANUFACTURE: 10/2013 → i Use for OE no. 186 9993
P 550	DC13 119-550	12742	404	549	01/2012 → 05/2019	i Use for OE no. 186 9993	P 550 ENGINE CODE: DC13 119-550 CC: 12742 kW: 404 HP: 549 YEAR OF MANUFACTURE: 01/2012 → 05/2019 i Use for OE no. 186 9993

ENGINE CODE

YEAR OF MANUFACTURE

P 230

DC9-01/04/13/16-230

9000

169

230

09/2004 → 05/2019

P 230

DC9 29/30/35/39-230 E5/EEV

9300

169

230

10/2007 → 05/2019

P 250

DC09 109/111-250 E5/6

9300

184

250

01/2012 → 05/2019

P 270

DC9 12-270 E3

9000

198

270

09/2004 → 05/2019

P 270

DC9 17-270 E4

8900

198

270

10/2005 → 05/2019

P 270 CNG

OC 09 G 04

9291

199

271

01/2011 → 05/2019

P 270 Ethanol

DC 9E 02

8867

199

271

05/2008 → 05/2019

P 280

DC9 29/36/38-280 E5/EEV

9300

206

280

10/2007 → 05/2019

P 280

DC09 113-280 E6

9300

206

280

10/2013 →

P 280 CNG

OC09 101 280 E5/E6/EEV

9300

206

280

03/2013 → 05/2019

P 310

DC9 11/18/110-310 E 3/4/5

9300

228

310

09/2004 → 05/2019

P 310 CNG

OC9 G05 E5/6/EEV

9300

224

305

01/2011 → 05/2019

P 320, P 325

DC9 22/28/32/37/108

9300

235

320

10/2007 → 05/2019

P 340

DC11 08-340 E3

10600

250

340

09/2004 → 05/2019

P 340

DC12 10-340 E4

11700

250

340

05/2006 → 05/2019

P 340 CNG

OC09.102 E5/6/EEV

9300

250

340

01/2011 → 05/2019

P 360

DC13 06-360 E5

12700

265

360

10/2007 → 05/2019

P 360

DC09 112-360 E6

9300

265

360

10/2013 → 05/2019

P 370

DC13 116-370 E6

12700

272

370

09/2012 → 05/2019

P 380

DC11 09-380 E3

11000

279

380

09/2004 → 05/2019

P 380

DC 12 13, DC 12 17, DC 12 18

11700

280

381

01/2003 → 05/2019

P 400

DC13 05-400 E5

12700

294

400

10/2007 → 05/2019

P 410

DC13 115-410 E6

12700

302

410

01/2011 → 05/2019

P 420

DC 12 06/14/15, DT 12.11/12

11700

309

420

06/2004 → 05/2019

P 420

DC13 11-420 E5

12700

309

420

09/2007 → 05/2019

P 440

DC13 10/109-440 E5/6

12700

324

440

10/2007 → 05/2019

P 450

DC13 124-450 E6

12700

331

450

09/2012 → 05/2019

P 480

DT12 17-480 E4

11700

353

480

09/2006 → 05/2019

P 480

DC13 07-480 E5

12700

353

480

10/2007 → 05/2019

P 490

DC13 125-490 E6

12700

360

490

10/2013 →

P 550

DC13 119-550

12742

404

549

01/2012 → 05/2019

R (R230 - R730) | 04-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
R 230	DC9 13/16/19	9000	169	230	06/2004 → 05/2019	i Filtration system Donaldson. Use for OE no. 186 9993 01/2009 ->	R 230 ENGINE CODE: DC9 13/16/19 CC: 9000 kW: 169 HP: 230 YEAR OF MANUFACTURE: 06/2004 → 05/2019 i Filtration system Donaldson. Use for OE no. 186 9993 01/2009 ->
R 230	DC9 29/30/35/39-230 E5/EEV	9300	169	230	10/2007 → 05/2019	i Filtration system Donaldson. Use for OE no. 186 9993 01/2009 ->	R 230 ENGINE CODE: DC9 29/30/35/39-230 E5/EEV CC: 9300 kW: 169 HP: 230 YEAR OF MANUFACTURE: 10/2007 → 05/2019 i Filtration system Donaldson. Use for OE no. 186 9993 01/2009 ->
R 250	DC09 111-250 E6	9300	184	250	10/2013 →	i Use for OE no. 186 9993	R 250 ENGINE CODE: DC09 111-250 E6 CC: 9300 kW: 184 HP: 250 YEAR OF MANUFACTURE: 10/2013 → i Use for OE no. 186 9993
R 270	DC9 17-270 E4	8900	198	270	10/2005 → 05/2019	i Filtration system Donaldson. Use for OE no. 186 9993 01/2009 ->	R 270 ENGINE CODE: DC9 17-270 E4 CC: 8900 kW: 198 HP: 270 YEAR OF MANUFACTURE: 10/2005 → 05/2019 i Filtration system Donaldson. Use for OE no. 186 9993 01/2009 ->
R 270	DC9 12/DC9 20 E3	9000	198	270	06/2004 → 05/2019	i Filtration system Donaldson. Use for OE no. 186 9993 01/2009 ->	R 270 ENGINE CODE: DC9 12/DC9 20 E3 CC: 9000 kW: 198 HP: 270 YEAR OF MANUFACTURE: 06/2004 → 05/2019 i Filtration system Donaldson. Use for OE no. 186 9993 01/2009 ->
R 270 Ethanol	DC 9E 02	8867	199	271	05/2008 → 05/2019	i Filtration system Donaldson. Use for OE no. 186 9993 01/2009 ->	R 270 Ethanol ENGINE CODE: DC 9E 02 CC: 8867 kW: 199 HP: 271 YEAR OF MANUFACTURE: 05/2008 → 05/2019 i Filtration system Donaldson. Use for OE no. 186 9993 01/2009 ->
R 280	DC09 113-280 E6	9300	206	280	10/2013 →	i Use for OE no. 186 9993	R 280 ENGINE CODE: DC09 113-280 E6 CC: 9300 kW: 206 HP: 280 YEAR OF MANUFACTURE: 10/2013 → i Use for OE no. 186 9993
R 310	DC9 11/21/18-310 E4	8900	228	310	04/2004 → 05/2019	i Filtration system Donaldson. Use for OE no. 186 9993 01/2009 ->	R 310 ENGINE CODE: DC9 11/21/18-310 E4 CC: 8900 kW: 228 HP: 310 YEAR OF MANUFACTURE: 04/2004 → 05/2019 i Filtration system Donaldson. Use for OE no. 186 9993 01/2009 ->
R 320	DC09 108-320 E6	9300	235	320	10/2013 →	i Use for OE no. 186 9993	R 320 ENGINE CODE: DC09 108-320 E6 CC: 9300 kW: 235 HP: 320 YEAR OF MANUFACTURE: 10/2013 → i Use for OE no. 186 9993
R 340	DC12 10-340 E4	11700	250	340	10/2005 → 05/2019	i Filtration system Donaldson. Use for OE no. 186 9993 01/2009 ->	R 340 ENGINE CODE: DC12 10-340 E4 CC: 11700 kW: 250 HP: 340 YEAR OF MANUFACTURE: 10/2005 → 05/2019 i Filtration system Donaldson. Use for OE no. 186 9993 01/2009 ->
R 340	DC11 08-340 E3	10600	250	340	06/2004 → 05/2019	i Filtration system Donaldson. Use for OE no. 186 9993 01/2009 ->	R 340 ENGINE CODE: DC11 08-340 E3 CC: 10600 kW: 250 HP: 340 YEAR OF MANUFACTURE: 06/2004 → 05/2019 i Filtration system Donaldson. Use for OE no. 186 9993 01/2009 ->
R 360	DC13 06-360 E5	12700	265	360	10/2007 → 05/2019	i Filtration system Donaldson. Use for OE no. 186 9993 01/2009 ->	R 360 ENGINE CODE: DC13 06-360 E5 CC: 12700 kW: 265 HP: 360 YEAR OF MANUFACTURE: 10/2007 → 05/2019 i Filtration system Donaldson. Use for OE no. 186 9993 01/2009 ->
R 360	DC09 112-360 E6	9300	265	360	10/2013 →	i Use for OE no. 186 9993	R 360 ENGINE CODE: DC09 112-360 E6 CC: 9300 kW: 265 HP: 360 YEAR OF MANUFACTURE: 10/2013 → i Use for OE no. 186 9993
R 370	DC13 116-370 E6	12700	272	370	09/2012 → 05/2019	i Use for OE no. 186 9993	R 370 ENGINE CODE: DC13 116-370 E6 CC: 12700 kW: 272 HP: 370 YEAR OF MANUFACTURE: 09/2012 → 05/2019 i Use for OE no. 186 9993
R 380	DC11 09-380 E3	10600	279	380	06/2004 → 05/2019	i Filtration system Donaldson. Use for OE no. 186 9993 01/2009 ->	R 380 ENGINE CODE: DC11 09-380 E3 CC: 10600 kW: 279 HP: 380 YEAR OF MANUFACTURE: 06/2004 → 05/2019 i Filtration system Donaldson. Use for OE no. 186 9993 01/2009 ->
R 380	DC 12 13, DC 12 17, DC 12 18	11700	280	381	04/2004 → 05/2019	i Filtration system Donaldson. Use for OE no. 186 9993 01/2009 ->	R 380 ENGINE CODE: DC 12 13, DC 12 17, DC 12 18 CC: 11700 kW: 280 HP: 381 YEAR OF MANUFACTURE: 04/2004 → 05/2019 i Filtration system Donaldson. Use for OE no. 186 9993 01/2009 ->
R 400	DC13 05-400 E5	12700	294	400	10/2007 → 05/2019	i Filtration system Donaldson. Use for OE no. 186 9993 01/2009 ->	R 400 ENGINE CODE: DC13 05-400 E5 CC: 12700 kW: 294 HP: 400 YEAR OF MANUFACTURE: 10/2007 → 05/2019 i Filtration system Donaldson. Use for OE no. 186 9993 01/2009 ->
R 410	DC13 115-410 E6	12700	302	410	09/2012 → 05/2019	i Use for OE no. 186 9993	R 410 ENGINE CODE: DC13 115-410 E6 CC: 12700 kW: 302 HP: 410 YEAR OF MANUFACTURE: 09/2012 → 05/2019 i Use for OE no. 186 9993
R 420	DC12 06/14/15/... DT12 11/12/.	11700	309	420	06/2004 → 05/2019	i Filtration system Donaldson. Use for OE no. 186 9993 01/2009 ->	R 420 ENGINE CODE: DC12 06/14/15/... DT12 11/12/. CC: 11700 kW: 309 HP: 420 YEAR OF MANUFACTURE: 06/2004 → 05/2019 i Filtration system Donaldson. Use for OE no. 186 9993 01/2009 ->
R 420	DC13 11-420 E5	12700	309	420	09/2007 →	i Filtration system Donaldson. Use for OE no. 186 9993 01/2009 ->	R 420 ENGINE CODE: DC13 11-420 E5 CC: 12700 kW: 309 HP: 420 YEAR OF MANUFACTURE: 09/2007 → i Filtration system Donaldson. Use for OE no. 186 9993 01/2009 ->
R 440	DC13 10/109-440 E5/6	12700	324	440	10/2007 → 05/2019	i Filtration system Donaldson. Use for OE no. 186 9993 01/2009 ->	R 440 ENGINE CODE: DC13 10/109-440 E5/6 CC: 12700 kW: 324 HP: 440 YEAR OF MANUFACTURE: 10/2007 → 05/2019 i Filtration system Donaldson. Use for OE no. 186 9993 01/2009 ->
R 440	DT12 18-440	11700	324	441	06/2004 → 05/2019	i Filtration system Donaldson. Use for OE no. 186 9993 01/2009 ->	R 440 ENGINE CODE: DT12 18-440 CC: 11700 kW: 324 HP: 441 YEAR OF MANUFACTURE: 06/2004 → 05/2019 i Filtration system Donaldson. Use for OE no. 186 9993 01/2009 ->
R 450	DC13 124/147-450 E6	12700	331	450	09/2012 → 05/2019	i Use for OE no. 186 9993	R 450 ENGINE CODE: DC13 124/147-450 E6 CC: 12700 kW: 331 HP: 450 YEAR OF MANUFACTURE: 09/2012 → 05/2019 i Use for OE no. 186 9993
R 460	DC13 106	12742	338	460	01/2011 → 05/2019	i Use for OE no. 186 9993	R 460 ENGINE CODE: DC13 106 CC: 12742 kW: 338 HP: 460 YEAR OF MANUFACTURE: 01/2011 → 05/2019 i Use for OE no. 186 9993
R 470	DT12 03/06-470	11700	345	470	03/2004 → 05/2019	i Filtration system Donaldson. Use for OE no. 186 9993 01/2009 ->	R 470 ENGINE CODE: DT12 03/06-470 CC: 11700 kW: 345 HP: 470 YEAR OF MANUFACTURE: 03/2004 → 05/2019 i Filtration system Donaldson. Use for OE no. 186 9993 01/2009 ->
R 470	DC13 08-470 E5	12700	346	470	09/2007 →	i Filtration system Donaldson. Use for OE no. 186 9993 01/2009 ->	R 470 ENGINE CODE: DC13 08-470 E5 CC: 12700 kW: 346 HP: 470 YEAR OF MANUFACTURE: 09/2007 → i Filtration system Donaldson. Use for OE no. 186 9993 01/2009 ->
R 480	DT12 17-480 E4	11700	353	480	09/2006 → 05/2019	i Filtration system Donaldson. Use for OE no. 186 9993 01/2009 ->	R 480 ENGINE CODE: DT12 17-480 E4 CC: 11700 kW: 353 HP: 480 YEAR OF MANUFACTURE: 09/2006 → 05/2019 i Filtration system Donaldson. Use for OE no. 186 9993 01/2009 ->
R 480	DC13 07/111-480	12700	353	480	04/2004 → 05/2019	i Filtration system Donaldson. Use for OE no. 186 9993 01/2009 ->	R 480 ENGINE CODE: DC13 07/111-480 CC: 12700 kW: 353 HP: 480 YEAR OF MANUFACTURE: 04/2004 → 05/2019 i Filtration system Donaldson. Use for OE no. 186 9993 01/2009 ->
R 490	DC13 125-490 E6	12700	360	490	09/2012 → 05/2019	i Use for OE no. 186 9993	R 490 ENGINE CODE: DC13 125-490 E6 CC: 12700 kW: 360 HP: 490 YEAR OF MANUFACTURE: 09/2012 → 05/2019 i Use for OE no. 186 9993

ENGINE CODE

YEAR OF MANUFACTURE

R 230

DC9 13/16/19

9000

169

230

06/2004 → 05/2019

R 230

DC9 29/30/35/39-230 E5/EEV

9300

169

230

10/2007 → 05/2019

R 250

DC09 111-250 E6

9300

184

250

10/2013 →

R 270

DC9 17-270 E4

8900

198

270

10/2005 → 05/2019

R 270

DC9 12/DC9 20 E3

9000

198

270

06/2004 → 05/2019

R 270 Ethanol

DC 9E 02

8867

199

271

05/2008 → 05/2019

R 280

DC09 113-280 E6

9300

206

280

10/2013 →

R 310

DC9 11/21/18-310 E4

8900

228

310

04/2004 → 05/2019

R 320

DC09 108-320 E6

9300

235

320

10/2013 →

R 340

DC12 10-340 E4

11700

250

340

10/2005 → 05/2019

R 340

DC11 08-340 E3

10600

250

340

06/2004 → 05/2019

R 360

DC13 06-360 E5

12700

265

360

10/2007 → 05/2019

R 360

DC09 112-360 E6

9300

265

360

10/2013 →

R 370

DC13 116-370 E6

12700

272

370

09/2012 → 05/2019

R 380

DC11 09-380 E3

10600

279

380

06/2004 → 05/2019

R 380

DC 12 13, DC 12 17, DC 12 18

11700

280

381

04/2004 → 05/2019

R 400

DC13 05-400 E5

12700

294

400

10/2007 → 05/2019

R 410

DC13 115-410 E6

12700

302

410

09/2012 → 05/2019

R 420

DC12 06/14/15/... DT12 11/12/.

11700

309

420

06/2004 → 05/2019

R 420

DC13 11-420 E5

12700

309

420

09/2007 →

R 440

DC13 10/109-440 E5/6

12700

324

440

10/2007 → 05/2019

R 440

DT12 18-440

11700

324

441

06/2004 → 05/2019

R 450

DC13 124/147-450 E6

12700

331

450

09/2012 → 05/2019

R 460

DC13 106

12742

338

460

01/2011 → 05/2019

R 470

DT12 03/06-470

11700

345

470

03/2004 → 05/2019

R 470

DC13 08-470 E5

12700

346

470

09/2007 →

R 480

DT12 17-480 E4

11700

353

480

09/2006 → 05/2019

R 480

DC13 07/111-480

12700

353

480

04/2004 → 05/2019

R 490

DC13 125-490 E6

12700

360

490

09/2012 → 05/2019

T (T230 - T580) | 04-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
T 230	DC9 29/30/35/39-230 E5/EEV	9300	169	230	10/2007 →	i Filtration system Donaldson. Use for OE no. 186 9993 01/2009 ->	T 230 ENGINE CODE: DC9 29/30/35/39-230 E5/EEV CC: 9300 kW: 169 HP: 230 YEAR OF MANUFACTURE: 10/2007 → i Filtration system Donaldson. Use for OE no. 186 9993 01/2009 ->
T 230	DC 9 13/DC 9 16	9000	169	230	06/2004 → 05/2019	i Filtration system Donaldson. Use for OE no. 186 9993 01/2009 ->	T 230 ENGINE CODE: DC 9 13/DC 9 16 CC: 9000 kW: 169 HP: 230 YEAR OF MANUFACTURE: 06/2004 → 05/2019 i Filtration system Donaldson. Use for OE no. 186 9993 01/2009 ->
T 270	DC9 12/DC9 20 E3	9000	198	270	06/2004 →	i Filtration system Donaldson. Use for OE no. 186 9993 01/2009 ->	T 270 ENGINE CODE: DC9 12/DC9 20 E3 CC: 9000 kW: 198 HP: 270 YEAR OF MANUFACTURE: 06/2004 → i Filtration system Donaldson. Use for OE no. 186 9993 01/2009 ->
T 270	DC9 17-270 E4	8900	198	270	10/2005 →	i Filtration system Donaldson. Use for OE no. 186 9993 01/2009 ->	T 270 ENGINE CODE: DC9 17-270 E4 CC: 8900 kW: 198 HP: 270 YEAR OF MANUFACTURE: 10/2005 → i Filtration system Donaldson. Use for OE no. 186 9993 01/2009 ->
T 270 Ethanol	DC 9E 02	8867	199	271	05/2008 → 05/2019	i Filtration system Donaldson. Use for OE no. 186 9993 01/2009 ->	T 270 Ethanol ENGINE CODE: DC 9E 02 CC: 8867 kW: 199 HP: 271 YEAR OF MANUFACTURE: 05/2008 → 05/2019 i Filtration system Donaldson. Use for OE no. 186 9993 01/2009 ->
T 310	DC9 11/18	8900	228	310	04/2004 → 05/2019	i Filtration system Donaldson. Use for OE no. 186 9993 01/2009 ->	T 310 ENGINE CODE: DC9 11/18 CC: 8900 kW: 228 HP: 310 YEAR OF MANUFACTURE: 04/2004 → 05/2019 i Filtration system Donaldson. Use for OE no. 186 9993 01/2009 ->
T 340	DC12 10-340 E4	11700	250	340	10/2005 →	i Filtration system Donaldson. Use for OE no. 186 9993 01/2009 ->	T 340 ENGINE CODE: DC12 10-340 E4 CC: 11700 kW: 250 HP: 340 YEAR OF MANUFACTURE: 10/2005 → i Filtration system Donaldson. Use for OE no. 186 9993 01/2009 ->
T 380	DC12 13, DC12 17, DC12 18	11700	280	381	04/2004 → 05/2019	i Filtration system Donaldson. Use for OE no. 186 9993 01/2009 ->	T 380 ENGINE CODE: DC12 13, DC12 17, DC12 18 CC: 11700 kW: 280 HP: 381 YEAR OF MANUFACTURE: 04/2004 → 05/2019 i Filtration system Donaldson. Use for OE no. 186 9993 01/2009 ->

ENGINE CODE

YEAR OF MANUFACTURE

T 230

DC9 29/30/35/39-230 E5/EEV

9300

169

230

10/2007 →

T 230

DC 9 13/DC 9 16

9000

169

230

06/2004 → 05/2019

T 270

DC9 12/DC9 20 E3

9000

198

270

06/2004 →

T 270

DC9 17-270 E4

8900

198

270

10/2005 →

T 270 Ethanol

DC 9E 02

8867

199

271

05/2008 → 05/2019

T 310

DC9 11/18

8900

228

310

04/2004 → 05/2019

T 340

DC12 10-340 E4

11700

250

340

10/2005 →

T 380

DC12 13, DC12 17, DC12 18

11700

280

381

04/2004 → 05/2019

SCANIA

186 9993
187 0002

Date of last data update: 2025-06-30 Print Report now

DIMENSIONS NEW FILTERS AND CHANGES SPECIAL FILTERS

FILTER CATALOGUE

Search results

Find a filter

REACH-Information

AM 416/8

CLIPBOARD

Filtry Filtron
