Produkt: AM 419/2 - FILTRON

MANN+HUMMEL is well aware of REACH and meet all legal obligations under this regulation.

MANN+HUMMEL has established internal processes to ensure implementation and compliance with the REACH Regulation. Especially, we continuously work on the assessment of presence of SVHC (Substances of Very High Concern).

We may inform you that according to present level of information and best knowledge, this product does not contain any SVHC listed on the Candidate List in concentration above 0,1% (w/w).

Last update: 2024-09-19

Back

AIR FILTERS

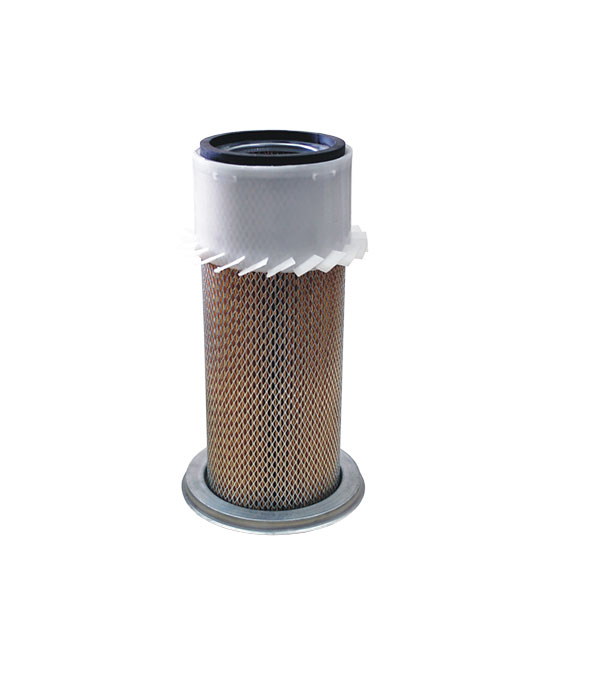

AM 419/2

EAN CODE: 5904608034199

REACH information

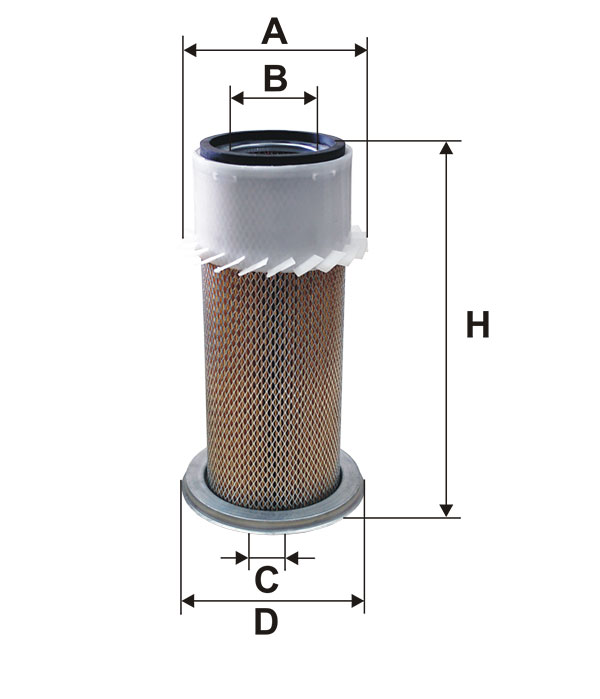

DIMENSIONS (mm):

195

212

394

APPLICATION
SUBSTITUTES

AMMANN

ASC-Series | 05-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
ASC 70	Cummins B4.5 Tier 3		74	101			ASC 70 ENGINE CODE: Cummins B4.5 Tier 3 CC: kW: 74 HP: 101

ENGINE CODE

YEAR OF MANUFACTURE

ASC 70

Cummins B4.5 Tier 3

101

ATLAS (WEYHAUSEN)

AR (Radlader / Wheel Loaders) | 70-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
AR 72 C	Deutz F4L 912		49	67	01/1988 →		AR 72 C ENGINE CODE: Deutz F4L 912 CC: kW: 49 HP: 67 YEAR OF MANUFACTURE: 01/1988 →

ENGINE CODE

YEAR OF MANUFACTURE

AR 72 C

Deutz F4L 912

01/1988 →

BRAUD

1000-Serie

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
1620							1620 ENGINE CODE: CC: kW: HP:
2620							2620 ENGINE CODE: CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

1620

2620

DEUTZ-FAHR (SAME DEUTZ-FAHR)

Agroclimber | 07-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
F 100 M-N	Lamborghini, Typ: 1000.4 WT	4000	70	95	01/2007 →		F 100 M-N ENGINE CODE: Lamborghini, Typ: 1000.4 WT CC: 4000 kW: 70 HP: 95 YEAR OF MANUFACTURE: 01/2007 →
F 90 M-N-C	Lamborghini, Typ: 1000.4 WT	4000	64	87	01/2007 →		F 90 M-N-C ENGINE CODE: Lamborghini, Typ: 1000.4 WT CC: 4000 kW: 64 HP: 87 YEAR OF MANUFACTURE: 01/2007 →

ENGINE CODE

YEAR OF MANUFACTURE

F 100 M-N

Lamborghini, Typ: 1000.4 WT

4000

01/2007 →

F 90 M-N-C

Lamborghini, Typ: 1000.4 WT

4000

01/2007 →

Agrocompact | 87-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
70 F3/4	1000.3WT	3000	52	71	02/1998 → 12/2006	70 F3/4 ENGINE CODE: 1000.3WT CC: 3000 kW: 52 HP: 71 YEAR OF MANUFACTURE: 02/1998 → 12/2006
80 F, 80 V, 80 AF	Same 1000.4 W	4000	59	80	02/1998 → 12/2003	80 F, 80 V, 80 AF ENGINE CODE: Same 1000.4 W CC: 4000 kW: 59 HP: 80 YEAR OF MANUFACTURE: 02/1998 → 12/2003
90 F, 90 V, 90 AF	Same 1000.4 WT	4000	65	89	02/1998 →	90 F, 90 V, 90 AF ENGINE CODE: Same 1000.4 WT CC: 4000 kW: 65 HP: 89 YEAR OF MANUFACTURE: 02/1998 →

ENGINE CODE

YEAR OF MANUFACTURE

70 F3/4

1000.3WT

3000

02/1998 → 12/2006

80 F, 80 V, 80 AF

Same 1000.4 W

4000

02/1998 → 12/2003

90 F, 90 V, 90 AF

Same 1000.4 WT

4000

02/1998 →

Agrolux F | 00-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
F 50							F 50 ENGINE CODE: CC: kW: HP:
F 60	Deutz F3L913	3236	41	56	01/2001 → 12/2005	i Partly/or	F 60 ENGINE CODE: Deutz F3L913 CC: 3236 kW: 41 HP: 56 YEAR OF MANUFACTURE: 01/2001 → 12/2005 i Partly/or
F 70	Deutz F3L913	4314	51	70	01/2001 → 12/2005		F 70 ENGINE CODE: Deutz F3L913 CC: 4314 kW: 51 HP: 70 YEAR OF MANUFACTURE: 01/2001 → 12/2005
F 80	Deutz F4L913	4314	57	77	01/2000 → 12/2005		F 80 ENGINE CODE: Deutz F4L913 CC: 4314 kW: 57 HP: 77 YEAR OF MANUFACTURE: 01/2000 → 12/2005

ENGINE CODE

YEAR OF MANUFACTURE

F 50

F 60

Deutz F3L913

3236

01/2001 → 12/2005

F 70

Deutz F3L913

4314

01/2001 → 12/2005

F 80

Deutz F4L913

4314

01/2000 → 12/2005

Agrolux | 01-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
60, 60 A	F3L 913	3064	44	60	02/2001 → 12/2005	i Use for OE no. 2.4249.131.0	60, 60 A ENGINE CODE: F3L 913 CC: 3064 kW: 44 HP: 60 YEAR OF MANUFACTURE: 02/2001 → 12/2005 i Use for OE no. 2.4249.131.0

ENGINE CODE

YEAR OF MANUFACTURE

60, 60 A

F3L 913

3064

02/2001 → 12/2005

Agroplus | 97-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
60, 60 A	F3L 913	3064	44	60	03/1997 → 12/2005	i Use for OE no. 2.4249.131.0	60, 60 A ENGINE CODE: F3L 913 CC: 3064 kW: 44 HP: 60 YEAR OF MANUFACTURE: 03/1997 → 12/2005 i Use for OE no. 2.4249.131.0
67	1000.3 WT Euro II	3000	51	70	01/2006 → 12/2009		67 ENGINE CODE: 1000.3 WT Euro II CC: 3000 kW: 51 HP: 70 YEAR OF MANUFACTURE: 01/2006 → 12/2009
70, 70 A	F4L 913	4086	52	71	03/1997 → 12/2005		70, 70 A ENGINE CODE: F4L 913 CC: 4086 kW: 52 HP: 71 YEAR OF MANUFACTURE: 03/1997 → 12/2005
77	1000.4 W Euro II	4000	54	74	01/2006 → 12/2009		77 ENGINE CODE: 1000.4 W Euro II CC: 4000 kW: 54 HP: 74 YEAR OF MANUFACTURE: 01/2006 → 12/2009
87	1000.4 WT Euro II	4000	64	87	01/2006 → 12/2009		87 ENGINE CODE: 1000.4 WT Euro II CC: 4000 kW: 64 HP: 87 YEAR OF MANUFACTURE: 01/2006 → 12/2009
95 NEW							95 NEW ENGINE CODE: CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

60, 60 A

F3L 913

3064

03/1997 → 12/2005

1000.3 WT Euro II

3000

01/2006 → 12/2009

70, 70 A

F4L 913

4086

03/1997 → 12/2005

1000.4 W Euro II

4000

01/2006 → 12/2009

1000.4 WT Euro II

4000

01/2006 → 12/2009

95 NEW

DOOSAN COMPRESSORS

P-Serie | 86-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
260 WD	Deutz BF4L 1011		55	75			260 WD ENGINE CODE: Deutz BF4L 1011 CC: kW: 55 HP: 75
30							30 ENGINE CODE: CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

260 WD

Deutz BF4L 1011

DOPPSTADT

Trac | 94-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
100	Deutz BF4M 1012EC		68	93	01/1995 → 12/1999		100 ENGINE CODE: Deutz BF4M 1012EC CC: kW: 68 HP: 93 YEAR OF MANUFACTURE: 01/1995 → 12/1999
500							500 ENGINE CODE: CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

100

Deutz BF4M 1012EC

01/1995 → 12/1999

500

FIAT-ALLIS/GEOTECH/HITACHI

FB-Serie

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
100							100 ENGINE CODE: CC: kW: HP:
110							110 ENGINE CODE: CC: kW: HP:
200							200 ENGINE CODE: CC: kW: HP:
90							90 ENGINE CODE: CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

100

110

200

HUERLIMANN TRAKTOREN

ELITE XB-Serie | 97-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
6115-XB	1000.6W		85	115	01/1997 →		6115-XB ENGINE CODE: 1000.6W CC: kW: 85 HP: 115 YEAR OF MANUFACTURE: 01/1997 →

ENGINE CODE

YEAR OF MANUFACTURE

6115-XB

1000.6W

115

01/1997 →

H300-Serie | 83-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
307 XE	1000.3AT	3000	51	70	01/1993 → 12/1996		307 XE ENGINE CODE: 1000.3AT CC: 3000 kW: 51 HP: 70 YEAR OF MANUFACTURE: 01/1993 → 12/1996
362, 372	Perkins H-1000.3 AT				01/1989 →	i Filter for: use with CF 922	362, 372 ENGINE CODE: Perkins H-1000.3 AT CC: kW: HP: YEAR OF MANUFACTURE: 01/1989 → i Filter for: use with CF 922
365 F-XE							365 F-XE ENGINE CODE: CC: kW: HP:
375 F-XE							375 F-XE ENGINE CODE: CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

307 XE

1000.3AT

3000

01/1993 → 12/1996

362, 372

Perkins H-1000.3 AT

01/1989 →

365 F-XE

375 F-XE

H400-Serie | 82-

	ENGINE CODE	kW	HP	YEAR OF MANUFACTURE
478, 478.4	Perkins H-1000.4 W1	65	88	01/1986 →	478, 478.4 ENGINE CODE: Perkins H-1000.4 W1 CC: kW: 65 HP: 88 YEAR OF MANUFACTURE: 01/1986 →
488 Turbo	Perkins H-1000.4 WT	65	88	01/1985 →	488 Turbo ENGINE CODE: Perkins H-1000.4 WT CC: kW: 65 HP: 88 YEAR OF MANUFACTURE: 01/1985 →
H-478-4					H-478-4 ENGINE CODE: CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

478, 478.4

Perkins H-1000.4 W1

01/1986 →

488 Turbo

Perkins H-1000.4 WT

01/1985 →

H-478-4

PRESTIGE Tradition

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
95	1000.4 WT EURO II	4000	70	95			95 ENGINE CODE: 1000.4 WT EURO II CC: 4000 kW: 70 HP: 95

ENGINE CODE

YEAR OF MANUFACTURE

1000.4 WT EURO II

4000

XA-Serie | 97-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
XA-56, Tradition	1000.3 W EURO II	3000	40	55		XA-56, Tradition ENGINE CODE: 1000.3 W EURO II CC: 3000 kW: 40 HP: 55
XA-606	Perkins H-1000.3 W1		44	60	01/1997 →	XA-606 ENGINE CODE: Perkins H-1000.3 W1 CC: kW: 44 HP: 60 YEAR OF MANUFACTURE: 01/1997 →
XA-607	Perkins H-1000.4 W4		59	80	01/1997 →	XA-607 ENGINE CODE: Perkins H-1000.4 W4 CC: kW: 59 HP: 80 YEAR OF MANUFACTURE: 01/1997 →
XA-657	Perkins 1000.4-A	4000	53	72	01/2000 → 12/2004	XA-657 ENGINE CODE: Perkins 1000.4-A CC: 4000 kW: 53 HP: 72 YEAR OF MANUFACTURE: 01/2000 → 12/2004
XA-658	1000.4 WT 4	4000	61	83	01/2000 →	XA-658 ENGINE CODE: 1000.4 WT 4 CC: 4000 kW: 61 HP: 83 YEAR OF MANUFACTURE: 01/2000 →
XA-66, Tradition	1000.3 WT EURO II	3000	49	67		XA-66, Tradition ENGINE CODE: 1000.3 WT EURO II CC: 3000 kW: 49 HP: 67
XA-76, Tradition	1000.4 W EURO II	4000	51	70		XA-76, Tradition ENGINE CODE: 1000.4 W EURO II CC: 4000 kW: 51 HP: 70
XA-86, Tradition	1000.4 WT 6 E	4000	61	83	01/2004 → 12/2009	XA-86, Tradition ENGINE CODE: 1000.4 WT 6 E CC: 4000 kW: 61 HP: 83 YEAR OF MANUFACTURE: 01/2004 → 12/2009

ENGINE CODE

YEAR OF MANUFACTURE

XA-56, Tradition

1000.3 W EURO II

3000

XA-606

Perkins H-1000.3 W1

01/1997 →

XA-607

Perkins H-1000.4 W4

01/1997 →

XA-657

Perkins 1000.4-A

4000

01/2000 → 12/2004

XA-658

1000.4 WT 4

4000

01/2000 →

XA-66, Tradition

1000.3 WT EURO II

3000

XA-76, Tradition

1000.4 W EURO II

4000

XA-86, Tradition

1000.4 WT 6 E

4000

01/2004 → 12/2009

XF / XF COM 3

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
H 476 XF							H 476 XF ENGINE CODE: CC: kW: HP:
H 481 XF							H 481 XF ENGINE CODE: CC: kW: HP:
H 491 XF							H 491 XF ENGINE CODE: CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

H 476 XF

H 481 XF

H 491 XF

XS-Serie

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
100							100 ENGINE CODE: CC: kW: HP:
75							75 ENGINE CODE: CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

100

XT-Serie | 97-09

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
105	Perkins 1000.6-W4				01/2005 → 12/2009	105 ENGINE CODE: Perkins 1000.6-W4 CC: kW: HP: YEAR OF MANUFACTURE: 01/2005 → 12/2009
110	TCD 2012 L04 2V / 1000.4-WTI1	4038	75	102	01/2005 → 12/2009	110 ENGINE CODE: TCD 2012 L04 2V / 1000.4-WTI1 CC: 4038 kW: 75 HP: 102 YEAR OF MANUFACTURE: 01/2005 → 12/2009
110	SLH 1000.4WT8	4000	81	110	01/2000 → 12/2003	110 ENGINE CODE: SLH 1000.4WT8 CC: 4000 kW: 81 HP: 110 YEAR OF MANUFACTURE: 01/2000 → 12/2003
85 (Perkins 1000.4-WT9)			63	85	01/2005 → 12/2009	85 (Perkins 1000.4-WT9) ENGINE CODE: CC: kW: 63 HP: 85 YEAR OF MANUFACTURE: 01/2005 → 12/2009
908	Perkins 1000.4-WT3	4000	63	85	01/1997 → 12/2004	908 ENGINE CODE: Perkins 1000.4-WT3 CC: 4000 kW: 63 HP: 85 YEAR OF MANUFACTURE: 01/1997 → 12/2004
910.4	Perkins 1000.4-WT1		76	103	01/1997 → 12/2004	910.4 ENGINE CODE: Perkins 1000.4-WT1 CC: kW: 76 HP: 103 YEAR OF MANUFACTURE: 01/1997 → 12/2004
910.6	Perkins 1000.6-W1		77	105	01/1997 → 12/2004	910.6 ENGINE CODE: Perkins 1000.6-W1 CC: kW: 77 HP: 105 YEAR OF MANUFACTURE: 01/1997 → 12/2004
95	1000.4 WT 8	4000	67	91	01/2005 → 12/2009	95 ENGINE CODE: 1000.4 WT 8 CC: 4000 kW: 67 HP: 91 YEAR OF MANUFACTURE: 01/2005 → 12/2009

ENGINE CODE

YEAR OF MANUFACTURE

105

Perkins 1000.6-W4

01/2005 → 12/2009

110

TCD 2012 L04 2V / 1000.4-WTI1

4038

102

01/2005 → 12/2009

110

SLH 1000.4WT8

4000

110

01/2000 → 12/2003

85 (Perkins 1000.4-WT9)

01/2005 → 12/2009

908

Perkins 1000.4-WT3

4000

01/1997 → 12/2004

910.4

Perkins 1000.4-WT1

103

01/1997 → 12/2004

910.6

Perkins 1000.6-W1

105

01/1997 → 12/2004

1000.4 WT 8

4000

01/2005 → 12/2009

INGERSOLL-RAND

P- Series | 87-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
P 260							P 260 ENGINE CODE: CC: kW: HP:
P 260 WD	Deutz BF4L1011				01/1993 →		P 260 WD ENGINE CODE: Deutz BF4L1011 CC: kW: HP: YEAR OF MANUFACTURE: 01/1993 →

ENGINE CODE

YEAR OF MANUFACTURE

P 260

P 260 WD

Deutz BF4L1011

01/1993 →

JCB (J.C. BAMFORD)

1000-Serie | 01-08

	ENGINE CODE
1400B-2/4 TURBO	1000.4 Mfr Perkins	i Use for OE no. 32903601	1400B-2/4 TURBO ENGINE CODE: 1000.4 Mfr Perkins CC: kW: HP: i Use for OE no. 32903601
1550B-2/4 TURBO	1000.4 Mfr Perkins	i Use for OE no. 32903601	1550B-2/4 TURBO ENGINE CODE: 1000.4 Mfr Perkins CC: kW: HP: i Use for OE no. 32903601
1600B-2/4 TURBO	1000.4 Mfr Perkins	i Use for OE no. 32903601	1600B-2/4 TURBO ENGINE CODE: 1000.4 Mfr Perkins CC: kW: HP: i Use for OE no. 32903601
1700B-2/4 TURBO	1000.4 Mfr Perkins	i Use for OE no. 32903601	1700B-2/4 TURBO ENGINE CODE: 1000.4 Mfr Perkins CC: kW: HP: i Use for OE no. 32903601

ENGINE CODE

YEAR OF MANUFACTURE

1400B-2/4 TURBO

1000.4 Mfr Perkins

1550B-2/4 TURBO

1000.4 Mfr Perkins

1600B-2/4 TURBO

1000.4 Mfr Perkins

1700B-2/4 TURBO

1000.4 Mfr Perkins

200-Serie | 13-

	ENGINE CODE
214 SITE MASTER	1004THR Mfr Perkins	214 SITE MASTER ENGINE CODE: 1004THR Mfr Perkins CC: kW: HP:
214 WHEEL DRIVE	1004THR Mfr Perkins	214 WHEEL DRIVE ENGINE CODE: 1004THR Mfr Perkins CC: kW: HP:
216-2/4 TURBO	1004.40T Mfr Perkins	216-2/4 TURBO ENGINE CODE: 1004.40T Mfr Perkins CC: kW: HP:
217	1004.40T Mfr Perkins	217 ENGINE CODE: 1004.40T Mfr Perkins CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

214 SITE MASTER

1004THR Mfr Perkins

214 WHEEL DRIVE

1004THR Mfr Perkins

216-2/4 TURBO

1004.40T Mfr Perkins

217

1004.40T Mfr Perkins

400-Serie (Radlader / Wheel Loader) | 87-

	ENGINE CODE	kW	HP	YEAR OF MANUFACTURE
411	1000.4 Perkins				i Use for OE no. 32903601	411 ENGINE CODE: 1000.4 Perkins CC: kW: HP: i Use for OE no. 32903601
411B / 411B LE	1000.4 Perkins				i Use for OE no. 32903601	411B / 411B LE ENGINE CODE: 1000.4 Perkins CC: kW: HP: i Use for OE no. 32903601
416	1000.4 Perkins				i Use for OE no. 32903601	416 ENGINE CODE: 1000.4 Perkins CC: kW: HP: i Use for OE no. 32903601
416 BHT	Perkins 1004-4THR	71	97	01/1997 → 12/2001	i Use for OE no. 32/903601	416 BHT ENGINE CODE: Perkins 1004-4THR CC: kW: 71 HP: 97 YEAR OF MANUFACTURE: 01/1997 → 12/2001 i Use for OE no. 32/903601
416B	1000.4 Perkins				i Use for OE no. 32903601	416B ENGINE CODE: 1000.4 Perkins CC: kW: HP: i Use for OE no. 32903601

ENGINE CODE

YEAR OF MANUFACTURE

411

1000.4 Perkins

411B / 411B LE

1000.4 Perkins

416

1000.4 Perkins

416 BHT

Perkins 1004-4THR

01/1997 → 12/2001

416B

1000.4 Perkins

CX (Baggerlader / Backhoe Loaders) | 87-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
3CX SITEMASTER	1000.4 Mfr Perkins					i Use for OE no. 32903601	3CX SITEMASTER ENGINE CODE: 1000.4 Mfr Perkins CC: kW: HP: i Use for OE no. 32903601
4CX TURBO/4CX TURBO SERVO PLUS	1000.3 Perkins						4CX TURBO/4CX TURBO SERVO PLUS ENGINE CODE: 1000.3 Perkins CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

3CX SITEMASTER

1000.4 Mfr Perkins

4CX TURBO/4CX TURBO SERVO PLUS

1000.3 Perkins

JS / JZ (Hydraulikbagger / Hydraulic Excavators) |

	ENGINE CODE	kW	HP	YEAR OF MANUFACTURE
JS110/130/130W/150/150LC/150W	4BD1 Isuzu				i Use for OE no. JLH0100	JS110/130/130W/150/150LC/150W ENGINE CODE: 4BD1 Isuzu CC: kW: HP: i Use for OE no. JLH0100
JS130	Isuzu 4BD1PTA	62	85	01/1990 →		JS130 ENGINE CODE: Isuzu 4BD1PTA CC: kW: 62 HP: 85 YEAR OF MANUFACTURE: 01/1990 →
JS130 W	Isuzu 4B01PTA0	62	85	01/1993 → 12/1999		JS130 W ENGINE CODE: Isuzu 4B01PTA0 CC: kW: 62 HP: 85 YEAR OF MANUFACTURE: 01/1993 → 12/1999
JS150 W	Isuzu 4BD1PTA1	72	98	01/1993 → 12/1998		JS150 W ENGINE CODE: Isuzu 4BD1PTA1 CC: kW: 72 HP: 98 YEAR OF MANUFACTURE: 01/1993 → 12/1998

ENGINE CODE

YEAR OF MANUFACTURE

JS110/130/130W/150/150LC/150W

4BD1 Isuzu

JS130

Isuzu 4BD1PTA

01/1990 →

JS130 W

Isuzu 4B01PTA0

01/1993 → 12/1999

JS150 W

Isuzu 4BD1PTA1

01/1993 → 12/1998

TM (Teleskopstapler / Telescopic Forklifts) | 09-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
TM 270	Perkins A4.236						TM 270 ENGINE CODE: Perkins A4.236 CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

TM 270

Perkins A4.236

KOMATSU

800-Series (Forest)

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
828	IVECO						828 ENGINE CODE: IVECO CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

828

IVECO

Forestry | 11-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
828	IVECO						828 ENGINE CODE: IVECO CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

828

IVECO

PC (Kettenbagger / Crawler Excavators) | 80-

	ENGINE CODE	kW	HP
PC 120-5	Perkins 6.354.1			PC 120-5 ENGINE CODE: Perkins 6.354.1 CC: kW: HP:
PC 130-5 / 130-5K	Komatsu S4D102E	64	87	PC 130-5 / 130-5K ENGINE CODE: Komatsu S4D102E CC: kW: 64 HP: 87
PC 150 LC-6 / 150 LC-6K	SA4D102E-1	79	107	PC 150 LC-6 / 150 LC-6K ENGINE CODE: SA4D102E-1 CC: kW: 79 HP: 107
PC 150-5	Perkins 1004.4THR			PC 150-5 ENGINE CODE: Perkins 1004.4THR CC: kW: HP:
PC 150-6	SA4D102E-1	79	107	PC 150-6 ENGINE CODE: SA4D102E-1 CC: kW: 79 HP: 107
PC 160-6 / 160-6K	Komatsu SA4D102E	85	116	PC 160-6 / 160-6K ENGINE CODE: Komatsu SA4D102E CC: kW: 85 HP: 116
PC 180	SA 4 D 102			PC 180 ENGINE CODE: SA 4 D 102 CC: kW: HP:
PC 180 LC-5	Perkins 1006.6T			PC 180 LC-5 ENGINE CODE: Perkins 1006.6T CC: kW: HP:
PC 180-5K				PC 180-5K ENGINE CODE: CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

PC 120-5

Perkins 6.354.1

PC 130-5 / 130-5K

Komatsu S4D102E

PC 150 LC-6 / 150 LC-6K

SA4D102E-1

107

PC 150-5

Perkins 1004.4THR

PC 150-6

SA4D102E-1

107

PC 160-6 / 160-6K

Komatsu SA4D102E

116

PC 180

SA 4 D 102

PC 180 LC-5

Perkins 1006.6T

PC 180-5K

PW (Mobilbagger / Wheeled Excavators) | 87-

	ENGINE CODE	kW	HP	YEAR OF MANUFACTURE
PW 130-7K	Komatsu SA4D102			01/2000 → 12/2004	PW 130-7K ENGINE CODE: Komatsu SA4D102 CC: kW: HP: YEAR OF MANUFACTURE: 01/2000 → 12/2004
PW 150-6	Komatsu SA4D 102 E-1	84	114	01/2000 → 12/2004	PW 150-6 ENGINE CODE: Komatsu SA4D 102 E-1 CC: kW: 84 HP: 114 YEAR OF MANUFACTURE: 01/2000 → 12/2004
PW 170 ES-6	Komatsu SA4D102E-1	92	125	01/2000 → 12/2004	PW 170 ES-6 ENGINE CODE: Komatsu SA4D102E-1 CC: kW: 92 HP: 125 YEAR OF MANUFACTURE: 01/2000 → 12/2004
PW 170-SK					PW 170-SK ENGINE CODE: CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

PW 130-7K

Komatsu SA4D102

01/2000 → 12/2004

PW 150-6

Komatsu SA4D 102 E-1

114

01/2000 → 12/2004

PW 170 ES-6

Komatsu SA4D102E-1

125

01/2000 → 12/2004

PW 170-SK

LAMBORGHINI

100-Serie | 91-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
105							105 ENGINE CODE: CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

105

1000-Serie | 97-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
1060 PREMIUM	SLH 1000.6 A	6000	78	106	01/1997 →		1060 PREMIUM ENGINE CODE: SLH 1000.6 A CC: 6000 kW: 78 HP: 106 YEAR OF MANUFACTURE: 01/1997 →

ENGINE CODE

YEAR OF MANUFACTURE

1060 PREMIUM

SLH 1000.6 A

6000

106

01/1997 →

1100-Serie | 99-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
1106							1106 ENGINE CODE: CC: kW: HP:
1306							1306 ENGINE CODE: CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

1106

1306

700-Serie | 99-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
774							774 ENGINE CODE: CC: kW: HP:
774-80							774-80 ENGINE CODE: CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

774

774-80

800-Serie | 86-03

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
874-90						874-90 ENGINE CODE: CC: kW: HP:
874-90 DT (Grand Prix LS)	1000.4WT	4000	65	88	01/1998 → 12/2003	874-90 DT (Grand Prix LS) ENGINE CODE: 1000.4WT CC: 4000 kW: 65 HP: 88 YEAR OF MANUFACTURE: 01/1998 → 12/2003
874-90T	1000.4 WT	4000			01/1986 → 12/1990	874-90T ENGINE CODE: 1000.4 WT CC: 4000 kW: HP: YEAR OF MANUFACTURE: 01/1986 → 12/1990

ENGINE CODE

YEAR OF MANUFACTURE

874-90

874-90 DT (Grand Prix LS)

1000.4WT

4000

01/1998 → 12/2003

874-90T

1000.4 WT

4000

01/1986 → 12/1990

900-Serie

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
956							956 ENGINE CODE: CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

956

Agile-Serie


660-s		660-s ENGINE CODE: CC: kW: HP:
660-v		660-v ENGINE CODE: CC: kW: HP:
XAG770-s	i Use for OE no. 2.4249.131.0	XAG770-s ENGINE CODE: CC: kW: HP: i Use for OE no. 2.4249.131.0
XAG775-v		XAG775-v ENGINE CODE: CC: kW: HP:
XAG880-s		XAG880-s ENGINE CODE: CC: kW: HP:
XAG990-s		XAG990-s ENGINE CODE: CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

660-s

660-v

XAG770-s

XAG775-v

XAG880-s

XAG990-s

C Ergomatic

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
674-70							674-70 ENGINE CODE: CC: kW: HP:
774-80							774-80 ENGINE CODE: CC: kW: HP:
874-90 Turbo							874-90 Turbo ENGINE CODE: CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

674-70

774-80

874-90 Turbo

F Plus-Serie


775FPL		775FPL ENGINE CODE: CC: kW: HP:
880FPL	i Use for OE no. 2.4249.131.0	880FPL ENGINE CODE: CC: kW: HP: i Use for OE no. 2.4249.131.0
990FPL		990FPL ENGINE CODE: CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

775FPL

880FPL

990FPL

Grand Prix-Serie

	ENGINE CODE
674-70	L1000 4W	674-70 ENGINE CODE: L1000 4W CC: kW: HP:
774-80	L1000 4W	774-80 ENGINE CODE: L1000 4W CC: kW: HP:
874-90	L1000 4WT	874-90 ENGINE CODE: L1000 4WT CC: kW: HP:
95 TARGET		95 TARGET ENGINE CODE: CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

674-70

L1000 4W

774-80

L1000 4W

874-90

L1000 4WT

95 TARGET

N-Serie

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
774-80N							774-80N ENGINE CODE: CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

774-80N

Premium-Serie

	ENGINE CODE
1050	Perkins 1000.4-WT1	i Use for OE no. 2.4249.131.0	1050 ENGINE CODE: Perkins 1000.4-WT1 CC: kW: HP: i Use for OE no. 2.4249.131.0
1060	Perkins 1000.6-W1	i Use for OE no. 2.4249.131.0	1060 ENGINE CODE: Perkins 1000.6-W1 CC: kW: HP: i Use for OE no. 2.4249.131.0
850	Perkins 1000.4-WT3	i Use for OE no. 2.4249.131.0	850 ENGINE CODE: Perkins 1000.4-WT3 CC: kW: HP: i Use for OE no. 2.4249.131.0
950	Perkins 1000.4-WT2	i Use for OE no. 2.4249.131.0	950 ENGINE CODE: Perkins 1000.4-WT2 CC: kW: HP: i Use for OE no. 2.4249.131.0

ENGINE CODE

YEAR OF MANUFACTURE

1050

Perkins 1000.4-WT1

1060

Perkins 1000.6-W1

850

Perkins 1000.4-WT3

950

Perkins 1000.4-WT2

R2-Serie

	ENGINE CODE	CC	kW	HP
R2.56	Lamborghini 1000.3W	3000	41	54	i Use for OE no. 2.4249.131.0	R2.56 ENGINE CODE: Lamborghini 1000.3W CC: 3000 kW: 41 HP: 54 i Use for OE no. 2.4249.131.0
R2.66	Lamborghini 1000.3WT	3000	52	69		R2.66 ENGINE CODE: Lamborghini 1000.3WT CC: 3000 kW: 52 HP: 69
R2.76	Lamborghini 1000.4W	4000	55	73		R2.76 ENGINE CODE: Lamborghini 1000.4W CC: 4000 kW: 55 HP: 73
R2.86	Lamborghini 1000.4WT	4000	64	87		R2.86 ENGINE CODE: Lamborghini 1000.4WT CC: 4000 kW: 64 HP: 87

ENGINE CODE

YEAR OF MANUFACTURE

R2.56

Lamborghini 1000.3W

3000

R2.66

Lamborghini 1000.3WT

3000

R2.76

Lamborghini 1000.4W

4000

R2.86

Lamborghini 1000.4WT

4000

R4-Serie | 04-07

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
R4.105	Lamborghini 1000.6W	6000	76	102		i Use for OE no. 2.4249.131.0	R4.105 ENGINE CODE: Lamborghini 1000.6W CC: 6000 kW: 76 HP: 102 i Use for OE no. 2.4249.131.0
R4.110	Lamborgh. 1000.4WTI	4000	84	114	01/2004 → 01/2007	i Use for OE no. 2.4249.131.0	R4.110 ENGINE CODE: Lamborgh. 1000.4WTI CC: 4000 kW: 84 HP: 114 YEAR OF MANUFACTURE: 01/2004 → 01/2007 i Use for OE no. 2.4249.131.0
R4.85	Lamborghini 1000.4WT	4000	66	90		i Use for OE no. 2.4249.131.0	R4.85 ENGINE CODE: Lamborghini 1000.4WT CC: 4000 kW: 66 HP: 90 i Use for OE no. 2.4249.131.0
R4.95	Lamborghini 1000.4WT	4000	71	95		i Use for OE no. 2.4249.131.0	R4.95 ENGINE CODE: Lamborghini 1000.4WT CC: 4000 kW: 71 HP: 95 i Use for OE no. 2.4249.131.0

ENGINE CODE

YEAR OF MANUFACTURE

R4.105

Lamborghini 1000.6W

6000

102

R4.110

Lamborgh. 1000.4WTI

4000

114

01/2004 → 01/2007

R4.85

Lamborghini 1000.4WT

4000

R4.95

Lamborghini 1000.4WT

4000

Triump-Serie

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
Triump100						i Use for OE no. 2.4249.131.0	Triump100 ENGINE CODE: CC: kW: HP: i Use for OE no. 2.4249.131.0
Triump80							Triump80 ENGINE CODE: CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

Triump100

Triump80

LANDINI (ARGO)

10000-Serie | 78-93

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
10000	Perkins A6.354.1	5800	74	100	01/1978 → 12/1987		10000 ENGINE CODE: Perkins A6.354.1 CC: 5800 kW: 74 HP: 100 YEAR OF MANUFACTURE: 01/1978 → 12/1987
10000 S2/S4	Perkins A6.354.4	5800	76	103	01/1987 → 12/1993		10000 S2/S4 ENGINE CODE: Perkins A6.354.4 CC: 5800 kW: 76 HP: 103 YEAR OF MANUFACTURE: 01/1987 → 12/1993

ENGINE CODE

YEAR OF MANUFACTURE

10000

Perkins A6.354.1

5800

100

01/1978 → 12/1987

10000 S2/S4

Perkins A6.354.4

5800

103

01/1987 → 12/1993

13000-Serie | 84-87

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
13000C	Perkins A6.354.4	5800	81	110	01/1984 → 12/1987		13000C ENGINE CODE: Perkins A6.354.4 CC: 5800 kW: 81 HP: 110 YEAR OF MANUFACTURE: 01/1984 → 12/1987

ENGINE CODE

YEAR OF MANUFACTURE

13000C

Perkins A6.354.4

5800

110

01/1984 → 12/1987

9000-Serie | 73-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
9080 / HC (4070)	Perkins AT4.236C	3860	63	86	01/1993 → 12/1999		9080 / HC (4070) ENGINE CODE: Perkins AT4.236C CC: 3860 kW: 63 HP: 86 YEAR OF MANUFACTURE: 01/1993 → 12/1999
9880 / HC (4070)	Perkins AT4.236C	3860	68	93	01/1987 → 12/1999		9880 / HC (4070) ENGINE CODE: Perkins AT4.236C CC: 3860 kW: 68 HP: 93 YEAR OF MANUFACTURE: 01/1987 → 12/1999

ENGINE CODE

YEAR OF MANUFACTURE

9080 / HC (4070)

Perkins AT4.236C

3860

01/1993 → 12/1999

9880 / HC (4070)

Perkins AT4.236C

3860

01/1987 → 12/1999

Legend I | 93-01

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
105 (Legend)	Perkins 1006.6HR4	6000	76	104	01/1995 → 12/2001	105 (Legend) ENGINE CODE: Perkins 1006.6HR4 CC: 6000 kW: 76 HP: 104 YEAR OF MANUFACTURE: 01/1995 → 12/2001
115	Perkins 1006.6HR3	6000	81	110	01/1993 → 12/1997	115 ENGINE CODE: Perkins 1006.6HR3 CC: 6000 kW: 81 HP: 110 YEAR OF MANUFACTURE: 01/1993 → 12/1997
115 (Legend)	Perkins 1006.6HR3	6000	81	110	01/1997 → 12/2001	115 (Legend) ENGINE CODE: Perkins 1006.6HR3 CC: 6000 kW: 81 HP: 110 YEAR OF MANUFACTURE: 01/1997 → 12/2001

ENGINE CODE

YEAR OF MANUFACTURE

105 (Legend)

Perkins 1006.6HR4

6000

104

01/1995 → 12/2001

115

Perkins 1006.6HR3

6000

110

01/1993 → 12/1997

115 (Legend)

Perkins 1006.6HR3

6000

110

01/1997 → 12/2001

MASSEY-FERGUSON BAUMASCHINEN

MF10-Serie | 94-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
64V							64V ENGINE CODE: CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

64V

MASSEY-FERGUSON TRAKTOREN (AGCO)

1000-Serie | 64-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
1114	A6.354.4		81	110			1114 ENGINE CODE: A6.354.4 CC: kW: 81 HP: 110

ENGINE CODE

YEAR OF MANUFACTURE

1114

A6.354.4

110

3-Serie

	ENGINE CODE
3315	903.27		3315 ENGINE CODE: 903.27 CC: kW: HP:
3325	903.27T		3325 ENGINE CODE: 903.27T CC: kW: HP:
3330	1004.4	i Use for OE no. 3909235M1	3330 ENGINE CODE: 1004.4 CC: kW: HP: i Use for OE no. 3909235M1
3340	1004.42		3340 ENGINE CODE: 1004.42 CC: kW: HP:
342	AD3.152		342 ENGINE CODE: AD3.152 CC: kW: HP:
3435	1104C-44		3435 ENGINE CODE: 1104C-44 CC: kW: HP:
3445	1104C-44T		3445 ENGINE CODE: 1104C-44T CC: kW: HP:
3455	1104C-44T		3455 ENGINE CODE: 1104C-44T CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

3315

903.27

3325

903.27T

3330

1004.4

3340

1004.42

342

AD3.152

3435

1104C-44

3445

1104C-44T

3455

1104C-44T

3000-Serie | 86-94

	ENGINE CODE	kW	HP
3050	A4.236	59	80		3050 ENGINE CODE: A4.236 CC: kW: 59 HP: 80
3055/3065E/3065S/3060E	Perkins A4.248			i Use for OE no. 3310355M91	3055/3065E/3065S/3060E ENGINE CODE: Perkins A4.248 CC: kW: HP: i Use for OE no. 3310355M91
3060	A4.248	63	86		3060 ENGINE CODE: A4.248 CC: kW: 63 HP: 86
3065	AT4.236	66	90		3065 ENGINE CODE: AT4.236 CC: kW: 66 HP: 90

ENGINE CODE

YEAR OF MANUFACTURE

3050

A4.236

3055/3065E/3065S/3060E

Perkins A4.248

3060

A4.248

3065

AT4.236

3300-Serie | 01-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
3315F/FE/GE/S	Perkins 903-27					i Use for OE no. 72270878	3315F/FE/GE/S ENGINE CODE: Perkins 903-27 CC: kW: HP: i Use for OE no. 72270878
3315V/3325/3330/3340	Perkins903-27/-27T/1004-40/-42					i Use for OE no. 72270878	3315V/3325/3330/3340 ENGINE CODE: Perkins903-27/-27T/1004-40/-42 CC: kW: HP: i Use for OE no. 72270878
3325F/FE/GE/S	Perkins 903.27T					i Use for OE no. 72270878	3325F/FE/GE/S ENGINE CODE: Perkins 903.27T CC: kW: HP: i Use for OE no. 72270878
3330F/FE/GE/S	Perkins 1004-40					i Use for OE no. 72270878	3330F/FE/GE/S ENGINE CODE: Perkins 1004-40 CC: kW: HP: i Use for OE no. 72270878
3340/F/FE/GE/S	1004.42	4200	57	78	01/2001 →	i Use for OE no. 72270878	3340/F/FE/GE/S ENGINE CODE: 1004.42 CC: 4200 kW: 57 HP: 78 YEAR OF MANUFACTURE: 01/2001 → i Use for OE no. 72270878
3350F/FE/GE/S/V	Perkins 1004-40T					i Use for OE no. 72270878	3350F/FE/GE/S/V ENGINE CODE: Perkins 1004-40T CC: kW: HP: i Use for OE no. 72270878
3355F/FE/GE/S/V	Perkins 1004-40T					i Use for OE no. 72270878	3355F/FE/GE/S/V ENGINE CODE: Perkins 1004-40T CC: kW: HP: i Use for OE no. 72270878

ENGINE CODE

YEAR OF MANUFACTURE

3315F/FE/GE/S

Perkins 903-27

3315V/3325/3330/3340

Perkins903-27/-27T/1004-40/-42

3325F/FE/GE/S

Perkins 903.27T

3330F/FE/GE/S

Perkins 1004-40

3340/F/FE/GE/S

1004.42

4200

01/2001 →

3350F/FE/GE/S/V

Perkins 1004-40T

3355F/FE/GE/S/V

Perkins 1004-40T

3400-Serie | 02-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
3425/F/GE/GEV/S/V	Perkins 1103C-33T	3300	46	64	01/2005 →		3425/F/GE/GEV/S/V ENGINE CODE: Perkins 1103C-33T CC: 3300 kW: 46 HP: 64 YEAR OF MANUFACTURE: 01/2005 →
3435/F/GE/GEV/S/V	Perkins 1104C-44	4400	60	80	01/2002 →		3435/F/GE/GEV/S/V ENGINE CODE: Perkins 1104C-44 CC: 4400 kW: 60 HP: 80 YEAR OF MANUFACTURE: 01/2002 →
3445	Perkins 1104C-44T	4400	67	90	01/2002 →		3445 ENGINE CODE: Perkins 1104C-44T CC: 4400 kW: 67 HP: 90 YEAR OF MANUFACTURE: 01/2002 →
3445F/GE/GEV/S	Perkins 1104C-44T					i Use for OE no. 72281455	3445F/GE/GEV/S ENGINE CODE: Perkins 1104C-44T CC: kW: HP: i Use for OE no. 72281455
3455/F/GE/GEV	Perkins 1104C-44T	4400	72	98	01/2002 →		3455/F/GE/GEV ENGINE CODE: Perkins 1104C-44T CC: 4400 kW: 72 HP: 98 YEAR OF MANUFACTURE: 01/2002 →

ENGINE CODE

YEAR OF MANUFACTURE

3425/F/GE/GEV/S/V

Perkins 1103C-33T

3300

01/2005 →

3435/F/GE/GEV/S/V

Perkins 1104C-44

4400

01/2002 →

3445

Perkins 1104C-44T

4400

01/2002 →

3445F/GE/GEV/S

Perkins 1104C-44T

3455/F/GE/GEV

Perkins 1104C-44T

4400

01/2002 →

6100-Serie | 95-99

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
6110	Perkins 1004.4		52	71	01/1995 → 12/1999	i Partly/or	6110 ENGINE CODE: Perkins 1004.4 CC: kW: 52 HP: 71 YEAR OF MANUFACTURE: 01/1995 → 12/1999 i Partly/or

ENGINE CODE

YEAR OF MANUFACTURE

6110

Perkins 1004.4

01/1995 → 12/1999

NEW HOLLAND CONSTRUCTION

500-Serie (Baggerlader / Backhoe Loaders)

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
555 E							555 E ENGINE CODE: CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

555 E

600-Serie (Baggerlader / Backhoe Loaders)

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
655 E							655 E ENGINE CODE: CC: kW: HP:
675 E							675 E ENGINE CODE: CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

655 E

675 E

B / LB (Baggerlader / Backhoe Loaders) | 95-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
LB 110 B					04/2003 →	LB 110 B ENGINE CODE: CC: kW: HP: YEAR OF MANUFACTURE: 04/2003 →
LB 115	PowerStar Turbo	5000	79	108	01/1995 →	LB 115 ENGINE CODE: PowerStar Turbo CC: 5000 kW: 79 HP: 108 YEAR OF MANUFACTURE: 01/1995 →
LB 115	CNH F4GE0484G*D	5000	81	108	05/1998 → 12/2003	LB 115 ENGINE CODE: CNH F4GE0484G*D CC: 5000 kW: 81 HP: 108 YEAR OF MANUFACTURE: 05/1998 → 12/2003
LB 115 B					10/2000 →	LB 115 B ENGINE CODE: CC: kW: HP: YEAR OF MANUFACTURE: 10/2000 →
LB 75 B	CNH 445T/M2				01/2001 →	LB 75 B ENGINE CODE: CNH 445T/M2 CC: kW: HP: YEAR OF MANUFACTURE: 01/2001 →
LB 90					09/2000 → 12/2003	LB 90 ENGINE CODE: CC: kW: HP: YEAR OF MANUFACTURE: 09/2000 → 12/2003
LB 95 B	CNH F4GE0454D		97	132	01/1996 → 12/2000	LB 95 B ENGINE CODE: CNH F4GE0454D CC: kW: 97 HP: 132 YEAR OF MANUFACTURE: 01/1996 → 12/2000

ENGINE CODE

YEAR OF MANUFACTURE

LB 110 B

04/2003 →

LB 115

PowerStar Turbo

5000

108

01/1995 →

LB 115

CNH F4GE0484G*D

5000

108

05/1998 → 12/2003

LB 115 B

10/2000 →

LB 75 B

CNH 445T/M2

01/2001 →

LB 90

09/2000 → 12/2003

LB 95 B

CNH F4GE0454D

132

01/1996 → 12/2000

POCLAIN

1000-Serie

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
1088	Case 6T5.9						1088 ENGINE CODE: Case 6T5.9 CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

1088

Case 6T5.9

60-Serie

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
61 CK/P/PL	Deutz F4L 912/913						61 CK/P/PL ENGINE CODE: Deutz F4L 912/913 CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

61 CK/P/PL

Deutz F4L 912/913

600-Serie

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
688	Case 4T390						688 ENGINE CODE: Case 4T390 CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

688

Case 4T390

80-Serie | 75-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
81	BF4L913						81 ENGINE CODE: BF4L913 CC: kW: HP:
81 CK/P	Case 4T390				01/1985 →		81 CK/P ENGINE CODE: Case 4T390 CC: kW: HP: YEAR OF MANUFACTURE: 01/1985 →

ENGINE CODE

YEAR OF MANUFACTURE

BF4L913

81 CK/P

Case 4T390

01/1985 →

800-Serie

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
888	Case 6T590						888 ENGINE CODE: Case 6T590 CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

888

Case 6T590

SAME (SAME DEUTZ-FAHR)

Antares-Serie

	ENGINE CODE
100	Perkins 1000.4-ATI	100 ENGINE CODE: Perkins 1000.4-ATI CC: kW: HP:
100 T		100 T ENGINE CODE: CC: kW: HP:
110	Perkins 1000.6-A	110 ENGINE CODE: Perkins 1000.6-A CC: kW: HP:
130	Perkins 1000.6-AT	130 ENGINE CODE: Perkins 1000.6-AT CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

100

Perkins 1000.4-ATI

100 T

110

Perkins 1000.6-A

130

Perkins 1000.6-AT

Argon-Serie | 93-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
65F						65F ENGINE CODE: CC: kW: HP:
70 Classic	1000.3AT	3000	52	70	01/2005 → 12/2009	70 Classic ENGINE CODE: 1000.3AT CC: 3000 kW: 52 HP: 70 YEAR OF MANUFACTURE: 01/2005 → 12/2009
70, 70 DTA	1000.3 AT		52	71	01/1993 →	70, 70 DTA ENGINE CODE: 1000.3 AT CC: kW: 52 HP: 71 YEAR OF MANUFACTURE: 01/1993 →
75F			55	75		75F ENGINE CODE: CC: kW: 55 HP: 75

ENGINE CODE

YEAR OF MANUFACTURE

65F

70 Classic

1000.3AT

3000

01/2005 → 12/2009

70, 70 DTA

1000.3 AT

01/1993 →

75F

Argon³ COM 3 | 09-17

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
75	1000.3 WT Tier 3	3000	54	73	01/2009 → 12/2017		75 ENGINE CODE: 1000.3 WT Tier 3 CC: 3000 kW: 54 HP: 73 YEAR OF MANUFACTURE: 01/2009 → 12/2017

ENGINE CODE

YEAR OF MANUFACTURE

1000.3 WT Tier 3

3000

01/2009 → 12/2017

Aster-Serie | 89-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
670 Turbo							670 Turbo ENGINE CODE: CC: kW: HP:
70	Perkins 1000.3-A				01/1989 →		70 ENGINE CODE: Perkins 1000.3-A CC: kW: HP: YEAR OF MANUFACTURE: 01/1989 →

ENGINE CODE

YEAR OF MANUFACTURE

670 Turbo

Perkins 1000.3-A

01/1989 →

Buffalo-Serie

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
120							120 ENGINE CODE: CC: kW: HP:
130							130 ENGINE CODE: CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

120

130

Dorado Classic | 05-09

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
86	1000.4 WT	4000	61	83	01/2005 → 12/2009		86 ENGINE CODE: 1000.4 WT CC: 4000 kW: 61 HP: 83 YEAR OF MANUFACTURE: 01/2005 → 12/2009

ENGINE CODE

YEAR OF MANUFACTURE

1000.4 WT

4000

01/2005 → 12/2009

Dorado F-Serie | 08-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
F100	1000.4 WT		74	100	01/2008 →	i Use for OE no. 2.4249.131.0	F100 ENGINE CODE: 1000.4 WT CC: kW: 74 HP: 100 YEAR OF MANUFACTURE: 01/2008 → i Use for OE no. 2.4249.131.0
F55			40	55		i Use for OE no. 2.4249.131.0	F55 ENGINE CODE: CC: kW: 40 HP: 55 i Use for OE no. 2.4249.131.0
F70			51	70		i Use for OE no. 2.4249.131.0	F70 ENGINE CODE: CC: kW: 51 HP: 70 i Use for OE no. 2.4249.131.0
F75			55	75		i Use for OE no. 2.4249.131.0	F75 ENGINE CODE: CC: kW: 55 HP: 75 i Use for OE no. 2.4249.131.0
F90	1000.4 WT	2887	66	90	01/2008 →	i Use for OE no. 2.4249.131.0	F90 ENGINE CODE: 1000.4 WT CC: 2887 kW: 66 HP: 90 YEAR OF MANUFACTURE: 01/2008 → i Use for OE no. 2.4249.131.0

ENGINE CODE

YEAR OF MANUFACTURE

F100

1000.4 WT

100

01/2008 →

F55

F70

F75

F90

1000.4 WT

2887

01/2008 →

Dorado S-Serie | 06-07

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
S100	1000.4 WT EURO II	4000	70	95		i Use for OE no. 2.4249.131.0	S100 ENGINE CODE: 1000.4 WT EURO II CC: 4000 kW: 70 HP: 95 i Use for OE no. 2.4249.131.0
S70	1000.3 WT EURO II	3000	51	70		i Use for OE no. 2.4249.131.0	S70 ENGINE CODE: 1000.3 WT EURO II CC: 3000 kW: 51 HP: 70 i Use for OE no. 2.4249.131.0
S75	1000.4 W EURO II	4000	54	74		i Use for OE no. 2.4249.131.0	S75 ENGINE CODE: 1000.4 W EURO II CC: 4000 kW: 54 HP: 74 i Use for OE no. 2.4249.131.0
S90	1000.4 WT EURO II	4000	64	87	01/2006 → 12/2007	i Use for OE no. 2.4249.131.0	S90 ENGINE CODE: 1000.4 WT EURO II CC: 4000 kW: 64 HP: 87 YEAR OF MANUFACTURE: 01/2006 → 12/2007 i Use for OE no. 2.4249.131.0

ENGINE CODE

YEAR OF MANUFACTURE

S100

1000.4 WT EURO II

4000

S70

1000.3 WT EURO II

3000

S75

1000.4 W EURO II

4000

S90

1000.4 WT EURO II

4000

01/2006 → 12/2007

Dorado-Serie | 04-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
55	Perkins 1000.3-A					i Partly/or	55 ENGINE CODE: Perkins 1000.3-A CC: kW: HP: i Partly/or
56	Perkins 1000.3-W	3000	52	71	10/2004 → 12/2007	i Partly/or	56 ENGINE CODE: Perkins 1000.3-W CC: 3000 kW: 52 HP: 71 YEAR OF MANUFACTURE: 10/2004 → 12/2007 i Partly/or
60	1000.3WT	3000	46	63	09/2009 →	i Partly/or	60 ENGINE CODE: 1000.3WT CC: 3000 kW: 46 HP: 63 YEAR OF MANUFACTURE: 09/2009 → i Partly/or
65	Perkins 1000.3-AT						65 ENGINE CODE: Perkins 1000.3-AT CC: kW: HP:
66	Perkins 1000.3-WT	3000	52	71	10/2004 → 12/2007		66 ENGINE CODE: Perkins 1000.3-WT CC: 3000 kW: 52 HP: 71 YEAR OF MANUFACTURE: 10/2004 → 12/2007
70							70 ENGINE CODE: CC: kW: HP:
75	Perkins 1000.4-A5						75 ENGINE CODE: Perkins 1000.4-A5 CC: kW: HP:
76		4000	55	75	10/2004 → 12/2009		76 ENGINE CODE: CC: 4000 kW: 55 HP: 75 YEAR OF MANUFACTURE: 10/2004 → 12/2009
85	Perkins 1000.4-AT5						85 ENGINE CODE: Perkins 1000.4-AT5 CC: kW: HP:
86	Perkins 1000.4-WT	4000	64	87	10/2004 → 12/2009		86 ENGINE CODE: Perkins 1000.4-WT CC: 4000 kW: 64 HP: 87 YEAR OF MANUFACTURE: 10/2004 → 12/2009

ENGINE CODE

YEAR OF MANUFACTURE

Perkins 1000.3-A

Perkins 1000.3-W

3000

10/2004 → 12/2007

1000.3WT

3000

09/2009 →

Perkins 1000.3-AT

Perkins 1000.3-WT

3000

10/2004 → 12/2007

Perkins 1000.4-A5

4000

10/2004 → 12/2009

Perkins 1000.4-AT5

Perkins 1000.4-WT

4000

10/2004 → 12/2009

Drago-Serie

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
120							120 ENGINE CODE: CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

120

Explorer I-Serie | 83-

	ENGINE CODE	kW	HP	YEAR OF MANUFACTURE
55	916.3A	40	55	01/1983 →		55 ENGINE CODE: 916.3A CC: kW: 40 HP: 55 YEAR OF MANUFACTURE: 01/1983 →
60						60 ENGINE CODE: CC: kW: HP:
65 SP						65 SP ENGINE CODE: CC: kW: HP:
65, 65 C	916.4A	48	65	03/1983 →		65, 65 C ENGINE CODE: 916.4A CC: kW: 48 HP: 65 YEAR OF MANUFACTURE: 03/1983 →
70 C						70 C ENGINE CODE: CC: kW: HP:
75 SP						75 SP ENGINE CODE: CC: kW: HP:
75, 75 C	916.4A	55	75	01/1984 →	i Some models: Explorer 75 NEW. Use for OE no. 2.4249.340.1	75, 75 C ENGINE CODE: 916.4A CC: kW: 55 HP: 75 YEAR OF MANUFACTURE: 01/1984 → i Some models: Explorer 75 NEW. Use for OE no. 2.4249.340.1
80 C						80 C ENGINE CODE: CC: kW: HP:
80, 80 Export/Special	10004.A	59	80	01/1986 →		80, 80 Export/Special ENGINE CODE: 10004.A CC: kW: 59 HP: 80 YEAR OF MANUFACTURE: 01/1986 →
85					i Use for OE no. 2.4249.131.0	85 ENGINE CODE: CC: kW: HP: i Use for OE no. 2.4249.131.0
90						90 ENGINE CODE: CC: kW: HP:
90 C						90 C ENGINE CODE: CC: kW: HP:
90 SP						90 SP ENGINE CODE: CC: kW: HP:
90 Turbo		66	90	01/1987 →		90 Turbo ENGINE CODE: CC: kW: 66 HP: 90 YEAR OF MANUFACTURE: 01/1987 →
95					i Use for OE no. 2.4249.131.0	95 ENGINE CODE: CC: kW: HP: i Use for OE no. 2.4249.131.0

ENGINE CODE

YEAR OF MANUFACTURE

916.3A

01/1983 →

65 SP

65, 65 C

916.4A

03/1983 →

70 C

75 SP

75, 75 C

916.4A

01/1984 →

80 C

80, 80 Export/Special

10004.A

01/1986 →

90 C

90 SP

90 Turbo

01/1987 →

Explorer II / Special / C-Serie

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
80							80 ENGINE CODE: CC: kW: HP:
80 SP							80 SP ENGINE CODE: CC: kW: HP:
90							90 ENGINE CODE: CC: kW: HP:
Special 80							Special 80 ENGINE CODE: CC: kW: HP:
Special 90							Special 90 ENGINE CODE: CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

80 SP

Special 80

Special 90

Explorer | 83-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
85	1000.4 WT	4000	63	86	10/2004 → 12/2007		85 ENGINE CODE: 1000.4 WT CC: 4000 kW: 63 HP: 86 YEAR OF MANUFACTURE: 10/2004 → 12/2007
95	Lamborghini 1000.4 WT10	4000	70	95	10/2004 → 12/2007		95 ENGINE CODE: Lamborghini 1000.4 WT10 CC: 4000 kW: 70 HP: 95 YEAR OF MANUFACTURE: 10/2004 → 12/2007

ENGINE CODE

YEAR OF MANUFACTURE

1000.4 WT

4000

10/2004 → 12/2007

Lamborghini 1000.4 WT10

4000

10/2004 → 12/2007

Frutteto II-Serie

	ENGINE CODE	CC	kW	HP
100	1000.4 WT EURO II	4000	70	95	100 ENGINE CODE: 1000.4 WT EURO II CC: 4000 kW: 70 HP: 95
55	1000.3 W EURO II	3000	40	55	55 ENGINE CODE: 1000.3 W EURO II CC: 3000 kW: 40 HP: 55
60					60 ENGINE CODE: CC: kW: HP:
70	1000.3 WT EURO II	3000	51	70	70 ENGINE CODE: 1000.3 WT EURO II CC: 3000 kW: 51 HP: 70
75	1000.4 W EURO II	4000	54	74	75 ENGINE CODE: 1000.4 W EURO II CC: 4000 kW: 54 HP: 74
85					85 ENGINE CODE: CC: kW: HP:
90	1000.4 WT EURO II	4000	64	87	90 ENGINE CODE: 1000.4 WT EURO II CC: 4000 kW: 64 HP: 87

ENGINE CODE

YEAR OF MANUFACTURE

100

1000.4 WT EURO II

4000

1000.3 W EURO II

3000

1000.3 WT EURO II

3000

1000.4 W EURO II

4000

1000.4 WT EURO II

4000

Frutteto-Serie

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
75							75 ENGINE CODE: CC: kW: HP:
85 (Frutteto II)							85 (Frutteto II) ENGINE CODE: CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

85 (Frutteto II)

Golden-Serie

	ENGINE CODE	kW	HP
60	1000.3 A	44	60	60 ENGINE CODE: 1000.3 A CC: kW: 44 HP: 60
65	1000.3 AT	49	67	65 ENGINE CODE: 1000.3 AT CC: kW: 49 HP: 67
75	1000.4 A	55	75	75 ENGINE CODE: 1000.4 A CC: kW: 55 HP: 75
85	1000.4 AT	62	85	85 ENGINE CODE: 1000.4 AT CC: kW: 62 HP: 85

ENGINE CODE

YEAR OF MANUFACTURE

1000.3 A

1000.3 AT

1000.4 A

1000.4 AT

Jaguar-Serie

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
100							100 ENGINE CODE: CC: kW: HP:
95							95 ENGINE CODE: CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

100

Laser-Serie | 86-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
100	Same 1055P	5200	73	99	01/1986 → 12/1991	100 ENGINE CODE: Same 1055P CC: 5200 kW: 73 HP: 99 YEAR OF MANUFACTURE: 01/1986 → 12/1991
110	Same 1006P					110 ENGINE CODE: Same 1006P CC: kW: HP:
130	Same 1056P					130 ENGINE CODE: Same 1056P CC: kW: HP:
85						85 ENGINE CODE: CC: kW: HP:
90						90 ENGINE CODE: CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

100

Same 1055P

5200

01/1986 → 12/1991

110

Same 1006P

130

Same 1056P

Leopard-Serie | 80-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
90 Turbo	105.4PT		61	83	01/1982 →		90 Turbo ENGINE CODE: 105.4PT CC: kW: 61 HP: 83 YEAR OF MANUFACTURE: 01/1982 →

ENGINE CODE

YEAR OF MANUFACTURE

90 Turbo

105.4PT

01/1982 →

Panther-Serie

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
95							95 ENGINE CODE: CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

Row Crop-Serie

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
90							90 ENGINE CODE: CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

Silver-Serie | 99-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
100.4	Perkins 1000.4-AT2					i Use for OE no. 2.4249.131.0	100.4 ENGINE CODE: Perkins 1000.4-AT2 CC: kW: HP: i Use for OE no. 2.4249.131.0
100.6	Perkins 1000.6-AT1					i Partly/or. Use for OE no. 2.4249.131.0	100.6 ENGINE CODE: Perkins 1000.6-AT1 CC: kW: HP: i Partly/or. Use for OE no. 2.4249.131.0
105	Perkins 1000.6-W					i Use for OE no. 2.4249.131.0	105 ENGINE CODE: Perkins 1000.6-W CC: kW: HP: i Use for OE no. 2.4249.131.0
110, 110DTA	1000.6 WT	6000	81	110	06/1999 →	i Partly/or	110, 110DTA ENGINE CODE: 1000.6 WT CC: 6000 kW: 81 HP: 110 YEAR OF MANUFACTURE: 06/1999 → i Partly/or
80	Perkins 1000.4-A4						80 ENGINE CODE: Perkins 1000.4-A4 CC: kW: HP:
85						i Use for OE no. 2.4249.131.0	85 ENGINE CODE: CC: kW: HP: i Use for OE no. 2.4249.131.0
90	Perkins 1000.4-AT2						90 ENGINE CODE: Perkins 1000.4-AT2 CC: kW: HP:
90	Perkins 1000.4-AT2					i Use for OE no. 2.4249.131.0. Partly/or	90 ENGINE CODE: Perkins 1000.4-AT2 CC: kW: HP: i Use for OE no. 2.4249.131.0. Partly/or
95	Perkins 1000.4-WT EURO 2					i Use for OE no. 2.4249.131.0	95 ENGINE CODE: Perkins 1000.4-WT EURO 2 CC: kW: HP: i Use for OE no. 2.4249.131.0

ENGINE CODE

YEAR OF MANUFACTURE

100.4

Perkins 1000.4-AT2

100.6

Perkins 1000.6-AT1

105

Perkins 1000.6-W

110, 110DTA

1000.6 WT

6000

110

06/1999 →

Perkins 1000.4-A4

Perkins 1000.4-AT2

Perkins 1000.4-WT EURO 2

Tiger-Serie

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
Six 105							Six 105 ENGINE CODE: CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

Six 105

Trident-Serie | 81-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
130, 130 Export	105.6P		92	125	06/1981 →		130, 130 Export ENGINE CODE: 105.6P CC: kW: 92 HP: 125 YEAR OF MANUFACTURE: 06/1981 →

ENGINE CODE

YEAR OF MANUFACTURE

130, 130 Export

105.6P

125

06/1981 →

AGCO

72281455

AMMANN

4-5358520084

CATERPILLAR

1006845

DEUTZ AG / DEUTZ-FAHR (KHD)

2.4249.131.0

FIAT-ALLIS

1930765

HUERLIMANN

2.4249.131.0

INGERSOLL-RAND

93158624

INGERSOLL-RAND/DOOSAN

93158624

IVECO

79067204
920015933

J.C.BAMFORD

32/903601
JLH0100
JLH100

KOMATSU

203-01-K1130

LAMBORGHINI

2.4249.131.0
2.4249.310.4

LANDINI

3310355 M91
3540418M91

MASSEY-FERGUSON

1 031 690
3310355M91
3909235M1

NEW HOLLAND (CNH)

T1950555

POCLAIN

T 19505-55

SAME

2.4249.131.0

VM (MOTORI VM)

4.113.2008A

Date of last data update: 2025-05-29 Print Report now

DIMENSIONS NEW FILTERS AND CHANGES SPECIAL FILTERS

FILTER CATALOGUE

Search results

Find a filter

REACH-Information

AM 419/2

CLIPBOARD

Filtry Filtron
