Produkt: AM 455/6 - FILTRON

MANN+HUMMEL is well aware of REACH and meet all legal obligations under this regulation.

MANN+HUMMEL has established internal processes to ensure implementation and compliance with the REACH Regulation. Especially, we continuously work on the assessment of presence of SVHC (Substances of Very High Concern).

We may inform you that according to present level of information and best knowledge, this product does not contain any SVHC listed on the Candidate List in concentration above 0,1% (w/w).

Last update: 2024-09-19

Back

AIR FILTERS

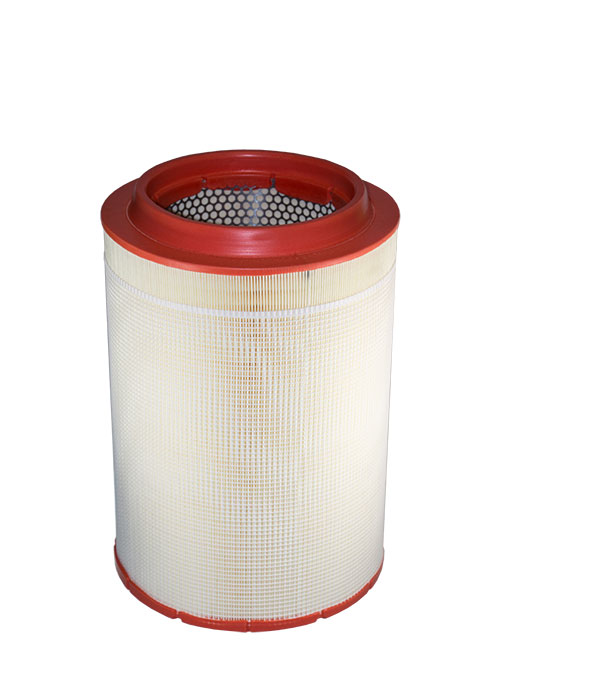

AM 455/6

EAN CODE: 5904608074553

REACH information

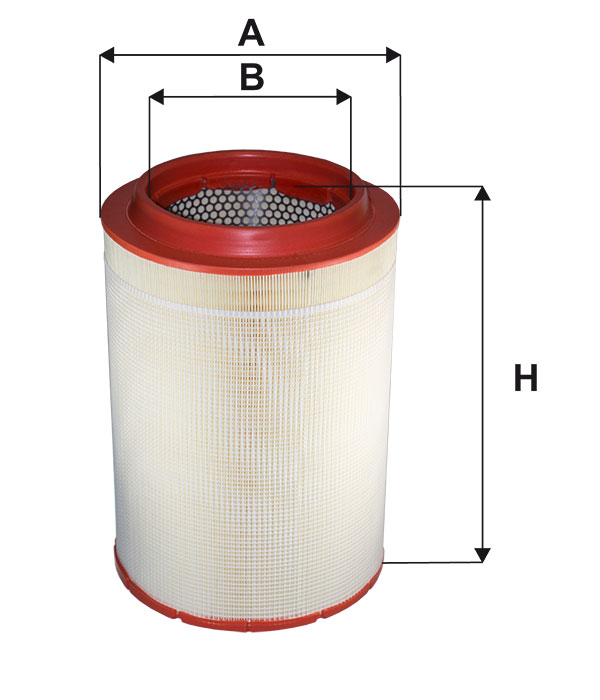

DIMENSIONS (mm):

313

217

461

NOVEMBER 2022 Note: change in filter design

Note: change in filter design

APPLICATION
SUBSTITUTES

IVECO

S-Way | 19-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
270 NP (190S27P, 260S27P)	Cursor 9 NP (F2CFE601F)	8709	200	272	07/2019 →		270 NP (190S27P, 260S27P) ENGINE CODE: Cursor 9 NP (F2CFE601F) CC: 8709 kW: 200 HP: 272 YEAR OF MANUFACTURE: 07/2019 →
330 (190S33, 260S33)	Cursor 9 (F2CFE611C)		243	330	07/2019 →	i Filtration system Mann + Hummel	330 (190S33, 260S33) ENGINE CODE: Cursor 9 (F2CFE611C) CC: kW: 243 HP: 330 YEAR OF MANUFACTURE: 07/2019 → i Filtration system Mann + Hummel
340 (190S34, 260S34)	Cursor 9 (F2CGE611J)		251	340	07/2019 →		340 (190S34, 260S34) ENGINE CODE: Cursor 9 (F2CGE611J) CC: kW: 251 HP: 340 YEAR OF MANUFACTURE: 07/2019 →
340 NP (190S34 NP, 260S34 NP)	Cursor 9NP (F2CFE601,F2CGE601)		250	340	07/2019 →		340 NP (190S34 NP, 260S34 NP) ENGINE CODE: Cursor 9NP (F2CFE601,F2CGE601) CC: kW: 250 HP: 340 YEAR OF MANUFACTURE: 07/2019 →
360 (190S36, 260S36, 280S36, 300S36)	Cursor 9 (F2CFE611, F2CGE611)		265	360	07/2019 →		360 (190S36, 260S36, 280S36, 300S36) ENGINE CODE: Cursor 9 (F2CFE611, F2CGE611) CC: kW: 265 HP: 360 YEAR OF MANUFACTURE: 07/2019 →
400 (190S40, 260S40)	Cursor 9 (F2CFE611, F2CGE611)		294	400	07/2019 →		400 (190S40, 260S40) ENGINE CODE: Cursor 9 (F2CFE611, F2CGE611) CC: kW: 294 HP: 400 YEAR OF MANUFACTURE: 07/2019 →
400 NP (190S40 NP, 260S40 NP)	Cursor 9NP (F2CFE601,F2CGE601)		294	400	07/2019 →		400 NP (190S40 NP, 260S40 NP) ENGINE CODE: Cursor 9NP (F2CFE601,F2CGE601) CC: kW: 294 HP: 400 YEAR OF MANUFACTURE: 07/2019 →
420 (190S42, 260S42)	Cursor 11 (F3GFE611)		309	420	07/2019 →	i Series AD, AT	420 (190S42, 260S42) ENGINE CODE: Cursor 11 (F3GFE611) CC: kW: 309 HP: 420 YEAR OF MANUFACTURE: 07/2019 → i Series AD, AT
430 (200S43, 280S43, 300S43, 440S43)	Cursor 13 (F3HGE611X)	12882	316	430	07/2019 →		430 (200S43, 280S43, 300S43, 440S43) ENGINE CODE: Cursor 13 (F3HGE611X) CC: 12882 kW: 316 HP: 430 YEAR OF MANUFACTURE: 07/2019 →
460 (190S46, 260S46)	Cursor 11 (F3GFE611)		338	460	07/2019 →	i Series AD, AT	460 (190S46, 260S46) ENGINE CODE: Cursor 11 (F3GFE611) CC: kW: 338 HP: 460 YEAR OF MANUFACTURE: 07/2019 → i Series AD, AT
460 (190S46, 260S46)	Cursor XC13 (F3XGE611)	12999	338	460	01/2024 →	i Series AD, AT	460 (190S46, 260S46) ENGINE CODE: Cursor XC13 (F3XGE611) CC: 12999 kW: 338 HP: 460 YEAR OF MANUFACTURE: 01/2024 → i Series AD, AT
460 NP (190S46 NP, 260S46 NP, 440S46 NP)	Cursor 13 NP (F3HFE601A)	12882	338	460	07/2019 →	i Series AD	460 NP (190S46 NP, 260S46 NP, 440S46 NP) ENGINE CODE: Cursor 13 NP (F3HFE601A) CC: 12882 kW: 338 HP: 460 YEAR OF MANUFACTURE: 07/2019 → i Series AD
470 (440S47)	Cursor 13 (F3HGE611Y)1)	12882	349	475	07/2019 →		470 (440S47) ENGINE CODE: Cursor 13 (F3HGE611Y)1) CC: 12882 kW: 349 HP: 475 YEAR OF MANUFACTURE: 07/2019 →
480 (190S48, 260S48)	Cursor 11 (F3GFE611)		353	480	07/2019 →	i Series AD, AT	480 (190S48, 260S48) ENGINE CODE: Cursor 11 (F3GFE611) CC: kW: 353 HP: 480 YEAR OF MANUFACTURE: 07/2019 → i Series AD, AT
480 (440S48)	Cursor 13 (F3HGE611W	12882	353	480	07/2019 →		480 (440S48) ENGINE CODE: Cursor 13 (F3HGE611W CC: 12882 kW: 353 HP: 480 YEAR OF MANUFACTURE: 07/2019 →
500 (190S50, 260S50)	Cursor XC13 (F3XGE611)	12999	368	500	01/2024 →	i Series AT	500 (190S50, 260S50) ENGINE CODE: Cursor XC13 (F3XGE611) CC: 12999 kW: 368 HP: 500 YEAR OF MANUFACTURE: 01/2024 → i Series AT
540 (260S54)	Cursor XC13 (F3XGE611)	12999	397	540	01/2024 →		540 (260S54) ENGINE CODE: Cursor XC13 (F3XGE611) CC: 12999 kW: 397 HP: 540 YEAR OF MANUFACTURE: 01/2024 →

ENGINE CODE

YEAR OF MANUFACTURE

270 NP (190S27P, 260S27P)

Cursor 9 NP (F2CFE601F)

8709

200

272

07/2019 →

330 (190S33, 260S33)

Cursor 9 (F2CFE611C)

243

330

07/2019 →

340 (190S34, 260S34)

Cursor 9 (F2CGE611J)

251

340

07/2019 →

340 NP (190S34 NP, 260S34 NP)

Cursor 9NP (F2CFE601,F2CGE601)

250

340

07/2019 →

360 (190S36, 260S36, 280S36, 300S36)

Cursor 9 (F2CFE611, F2CGE611)

265

360

07/2019 →

400 (190S40, 260S40)

Cursor 9 (F2CFE611, F2CGE611)

294

400

07/2019 →

400 NP (190S40 NP, 260S40 NP)

Cursor 9NP (F2CFE601,F2CGE601)

294

400

07/2019 →

420 (190S42, 260S42)

Cursor 11 (F3GFE611)

309

420

07/2019 →

430 (200S43, 280S43, 300S43, 440S43)

Cursor 13 (F3HGE611X)

12882

316

430

07/2019 →

460 (190S46, 260S46)

Cursor 11 (F3GFE611)

338

460

07/2019 →

460 (190S46, 260S46)

Cursor XC13 (F3XGE611)

12999

338

460

01/2024 →

460 NP (190S46 NP, 260S46 NP, 440S46 NP)

Cursor 13 NP (F3HFE601A)

12882

338

460

07/2019 →

470 (440S47)

Cursor 13 (F3HGE611Y)1)

12882

349

475

07/2019 →

480 (190S48, 260S48)

Cursor 11 (F3GFE611)

353

480

07/2019 →

480 (440S48)

Cursor 13 (F3HGE611W

12882

353

480

07/2019 →

500 (190S50, 260S50)

Cursor XC13 (F3XGE611)

12999

368

500

01/2024 →

540 (260S54)

Cursor XC13 (F3XGE611)

12999

397

540

01/2024 →

Stralis II / Stralis XP | 16-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
310 (190S31, 260S31, 440S31)	Cursor 9 (F2CFE611D)	8708	228	310	06/2016 →	i Height: 461 mm	310 (190S31, 260S31, 440S31) ENGINE CODE: Cursor 9 (F2CFE611D) CC: 8708 kW: 228 HP: 310 YEAR OF MANUFACTURE: 06/2016 → i Height: 461 mm
330 (190S33, 260S33, 440S33)	Cursor 9 (F2CFE611C)	8708	243	330	06/2016 →	i Height: 461 mm	330 (190S33, 260S33, 440S33) ENGINE CODE: Cursor 9 (F2CFE611C) CC: 8708 kW: 243 HP: 330 YEAR OF MANUFACTURE: 06/2016 → i Height: 461 mm
360 (190S36, 260S36, 440S36)	Cursor 9 (F2CFE611B)	8708	265	360	06/2016 →	i Height: 461 mm	360 (190S36, 260S36, 440S36) ENGINE CODE: Cursor 9 (F2CFE611B) CC: 8708 kW: 265 HP: 360 YEAR OF MANUFACTURE: 06/2016 → i Height: 461 mm
400 (190S40, 260S40, 440S40) (190S40, 260S40, 440S	Cursor 9 (F2CFE611A)	8708	294	400	06/2016 →	i Height: 461 mm	400 (190S40, 260S40, 440S40) (190S40, 260S40, 440S ENGINE CODE: Cursor 9 (F2CFE611A) CC: 8708 kW: 294 HP: 400 YEAR OF MANUFACTURE: 06/2016 → i Height: 461 mm
420 (190S42, 260S42, 440S42)	Cursor 11 (F3GFE611F)	11118	309	420	06/2016 →	i Height: 461 mm	420 (190S42, 260S42, 440S42) ENGINE CODE: Cursor 11 (F3GFE611F) CC: 11118 kW: 309 HP: 420 YEAR OF MANUFACTURE: 06/2016 → i Height: 461 mm
460 (190S46, 260S46, 440S46)	Cursor 11 (F3GFE611E)	11118	338	460	06/2016 →	i Height: 461 mm	460 (190S46, 260S46, 440S46) ENGINE CODE: Cursor 11 (F3GFE611E) CC: 11118 kW: 338 HP: 460 YEAR OF MANUFACTURE: 06/2016 → i Height: 461 mm
480 (190S48, 260S48, 440S48)	Cursor 11 (F3GFE611G)	11118	353	480	06/2016 →	i Height: 461 mm	480 (190S48, 260S48, 440S48) ENGINE CODE: Cursor 11 (F3GFE611G) CC: 11118 kW: 353 HP: 480 YEAR OF MANUFACTURE: 06/2016 → i Height: 461 mm
510 (260S51, 320S51, 440S51)	Cursor 13 (F3HFE611G)	12882	375	510	06/2016 →	i Height: 461 mm	510 (260S51, 320S51, 440S51) ENGINE CODE: Cursor 13 (F3HFE611G) CC: 12882 kW: 375 HP: 510 YEAR OF MANUFACTURE: 06/2016 → i Height: 461 mm
570 (260S57, 320S57, 440S57)	Cursor 13 (F3HFE611F)	12882	420	570	06/2016 →	i Height: 461 mm	570 (260S57, 320S57, 440S57) ENGINE CODE: Cursor 13 (F3HFE611F) CC: 12882 kW: 420 HP: 570 YEAR OF MANUFACTURE: 06/2016 → i Height: 461 mm

ENGINE CODE

YEAR OF MANUFACTURE

310 (190S31, 260S31, 440S31)

Cursor 9 (F2CFE611D)

8708

228

310

06/2016 →

330 (190S33, 260S33, 440S33)

Cursor 9 (F2CFE611C)

8708

243

330

06/2016 →

360 (190S36, 260S36, 440S36)

Cursor 9 (F2CFE611B)

8708

265

360

06/2016 →

400 (190S40, 260S40, 440S40) (190S40, 260S40, 440S

Cursor 9 (F2CFE611A)

8708

294

400

06/2016 →

420 (190S42, 260S42, 440S42)

Cursor 11 (F3GFE611F)

11118

309

420

06/2016 →

460 (190S46, 260S46, 440S46)

Cursor 11 (F3GFE611E)

11118

338

460

06/2016 →

480 (190S48, 260S48, 440S48)

Cursor 11 (F3GFE611G)

11118

353

480

06/2016 →

510 (260S51, 320S51, 440S51)

Cursor 13 (F3HFE611G)

12882

375

510

06/2016 →

570 (260S57, 320S57, 440S57)

Cursor 13 (F3HFE611F)

12882

420

570

06/2016 →

Stralis II X-Way | 17-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
310 (190X31, 260X31)	Cursor 9 (F2CFE611)	8710	228	310	05/2017 →		310 (190X31, 260X31) ENGINE CODE: Cursor 9 (F2CFE611) CC: 8710 kW: 228 HP: 310 YEAR OF MANUFACTURE: 05/2017 →
330 (190X33, 260X33)	Cursor 9 (F2CFE611)	8710	243	330	05/2017 →		330 (190X33, 260X33) ENGINE CODE: Cursor 9 (F2CFE611) CC: 8710 kW: 243 HP: 330 YEAR OF MANUFACTURE: 05/2017 →
360 (190X36, 260X36, 320X36, 340X36)	Cursor 9 (F2CFE611)	8710	265	360	05/2017 →		360 (190X36, 260X36, 320X36, 340X36) ENGINE CODE: Cursor 9 (F2CFE611) CC: 8710 kW: 265 HP: 360 YEAR OF MANUFACTURE: 05/2017 →
400 (190X40, 260X40, 320X40, 340X40)	Cursor 9 (F2CFE611)	8710	294	400	05/2017 →		400 (190X40, 260X40, 320X40, 340X40) ENGINE CODE: Cursor 9 (F2CFE611) CC: 8710 kW: 294 HP: 400 YEAR OF MANUFACTURE: 05/2017 →
420 (260X42, 440X42)	Cursor 11 (F3GFE611F)	11118	309	420	07/2017 →	i Height: 461 mm	420 (260X42, 440X42) ENGINE CODE: Cursor 11 (F3GFE611F) CC: 11118 kW: 309 HP: 420 YEAR OF MANUFACTURE: 07/2017 → i Height: 461 mm
420 (340X42)	Cursor 11 (F3GFE611)	11118	309	420	05/2017 →		420 (340X42) ENGINE CODE: Cursor 11 (F3GFE611) CC: 11118 kW: 309 HP: 420 YEAR OF MANUFACTURE: 05/2017 →
460 (260X46, 440X46)	Cursor 11 (F3GFE611E)	11118	338	460	07/2017 →	i Series AD, AT	460 (260X46, 440X46) ENGINE CODE: Cursor 11 (F3GFE611E) CC: 11118 kW: 338 HP: 460 YEAR OF MANUFACTURE: 07/2017 → i Series AD, AT
460 (340X46)	Cursor 11 (F3GFE611)	11118	338	460	05/2017 →		460 (340X46) ENGINE CODE: Cursor 11 (F3GFE611) CC: 11118 kW: 338 HP: 460 YEAR OF MANUFACTURE: 05/2017 →
480 (260X48, 440X48)	Cursor 11 (F3GFE611G)	11118	353	480	07/2017 →	i Series AD, AT	480 (260X48, 440X48) ENGINE CODE: Cursor 11 (F3GFE611G) CC: 11118 kW: 353 HP: 480 YEAR OF MANUFACTURE: 07/2017 → i Series AD, AT
480 (320X48, 340X48)	Cursor 11 (F3GFE611)	11118	353	480	05/2017 →		480 (320X48, 340X48) ENGINE CODE: Cursor 11 (F3GFE611) CC: 11118 kW: 353 HP: 480 YEAR OF MANUFACTURE: 05/2017 →

ENGINE CODE

YEAR OF MANUFACTURE

310 (190X31, 260X31)

Cursor 9 (F2CFE611)

8710

228

310

05/2017 →

330 (190X33, 260X33)

Cursor 9 (F2CFE611)

8710

243

330

05/2017 →

360 (190X36, 260X36, 320X36, 340X36)

Cursor 9 (F2CFE611)

8710

265

360

05/2017 →

400 (190X40, 260X40, 320X40, 340X40)

Cursor 9 (F2CFE611)

8710

294

400

05/2017 →

420 (260X42, 440X42)

Cursor 11 (F3GFE611F)

11118

309

420

07/2017 →

420 (340X42)

Cursor 11 (F3GFE611)

11118

309

420

05/2017 →

460 (260X46, 440X46)

Cursor 11 (F3GFE611E)

11118

338

460

07/2017 →

460 (340X46)

Cursor 11 (F3GFE611)

11118

338

460

05/2017 →

480 (260X48, 440X48)

Cursor 11 (F3GFE611G)

11118

353

480

07/2017 →

480 (320X48, 340X48)

Cursor 11 (F3GFE611)

11118

353

480

05/2017 →

Stralis/EcoStralis/StralisHi-Road/Hi-Street/Hi-Way

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
270 (190S27, 260S27)	Cursor 8 (F2BE0681C/F)	7798	200	272	06/2003 →	i 10/2004 ->	270 (190S27, 260S27) ENGINE CODE: Cursor 8 (F2BE0681C/F) CC: 7798 kW: 200 HP: 272 YEAR OF MANUFACTURE: 06/2003 →
270 CNG (190S27CNG, 260S27CNG)	C78 ENT CNG (F2B, F2GE0682A)	7798	200	272	01/2008 →		270 CNG (190S27CNG, 260S27CNG) ENGINE CODE: C78 ENT CNG (F2B, F2GE0682A) CC: 7798 kW: 200 HP: 272 YEAR OF MANUFACTURE: 01/2008 →
300 (190S30, 260S30, 440S30)	Cursor 8 (F2BE0681B/C/E)	7798	218	296	06/2003 →	i 10/2004 ->	300 (190S30, 260S30, 440S30) ENGINE CODE: Cursor 8 (F2BE0681B/C/E) CC: 7798 kW: 218 HP: 296 YEAR OF MANUFACTURE: 06/2003 →
300 CNG (190S30CNG, 260S30CNG)	C78 ENT CNG (F2GE0682A)	7798	221	300	01/2013 →		300 CNG (190S30CNG, 260S30CNG) ENGINE CODE: C78 ENT CNG (F2GE0682A) CC: 7798 kW: 221 HP: 300 YEAR OF MANUFACTURE: 01/2013 →
310 (190S31, 260S31, 440S31)	Cursor 8 (F2BE3681C)	7798	228	310	06/2003 →	i 10/2004 ->	310 (190S31, 260S31, 440S31) ENGINE CODE: Cursor 8 (F2BE3681C) CC: 7798 kW: 228 HP: 310 YEAR OF MANUFACTURE: 06/2003 →
310 (190S31, 260S31, 440S31)	Cursor 9 (F2CFE611)	8700	228	310	09/2012 →	i Series Hi-Road + Hi-Street	310 (190S31, 260S31, 440S31) ENGINE CODE: Cursor 9 (F2CFE611) CC: 8700 kW: 228 HP: 310 YEAR OF MANUFACTURE: 09/2012 → i Series Hi-Road + Hi-Street
330 (190S33, 260S33, 440S33)	Cursor 8 (F2BE3681B)	7798	243	330	03/2006 →		330 (190S33, 260S33, 440S33) ENGINE CODE: Cursor 8 (F2BE3681B) CC: 7798 kW: 243 HP: 330 YEAR OF MANUFACTURE: 03/2006 →
330 (190S33, 260S33, 440S33)	Cursor 9 (F2CFE611)	8700	243	330	09/2012 →	i Series Hi-Road + Hi-Street	330 (190S33, 260S33, 440S33) ENGINE CODE: Cursor 9 (F2CFE611) CC: 8700 kW: 243 HP: 330 YEAR OF MANUFACTURE: 09/2012 → i Series Hi-Road + Hi-Street
330 CNG (190/260/440S33CNG)	C78 ENT CNG (F2GE0682A)	7798	243	330	01/2013 →		330 CNG (190/260/440S33CNG) ENGINE CODE: C78 ENT CNG (F2GE0682A) CC: 7798 kW: 243 HP: 330 YEAR OF MANUFACTURE: 01/2013 →
350 (190S35, 260S35, 440S35)	Cursor 8 (F2BE0681A/3681A)	7798	259	352	06/2003 →	i 10/2004 ->	350 (190S35, 260S35, 440S35) ENGINE CODE: Cursor 8 (F2BE0681A/3681A) CC: 7798 kW: 259 HP: 352 YEAR OF MANUFACTURE: 06/2003 →
360 (190S36, 260S36, 320S36, 440S36)	Cursor 8 (F2BE3681B)	7798	265	360	03/2006 →		360 (190S36, 260S36, 320S36, 440S36) ENGINE CODE: Cursor 8 (F2BE3681B) CC: 7798 kW: 265 HP: 360 YEAR OF MANUFACTURE: 03/2006 →
360 (190S36, 260S36, 440S36)	Cursor 9 (F2CFE611)	8700	265	360	09/2012 →	i Series Hi-Road + Hi-Street	360 (190S36, 260S36, 440S36) ENGINE CODE: Cursor 9 (F2CFE611) CC: 8700 kW: 265 HP: 360 YEAR OF MANUFACTURE: 09/2012 → i Series Hi-Road + Hi-Street
400 (190S40, 260S40, 440S40)	Cursor 9 (F2CFE611)	8700	294	400	01/2013 →	i Series Hi-Road + Hi-Street	400 (190S40, 260S40, 440S40) ENGINE CODE: Cursor 9 (F2CFE611) CC: 8700 kW: 294 HP: 400 YEAR OF MANUFACTURE: 01/2013 → i Series Hi-Road + Hi-Street
400 (190S40, 260S40, 440S40)	Cursor 10 (F3AE0681B/H)	10308	294	400	01/2002 →	i 10/2004 ->	400 (190S40, 260S40, 440S40) ENGINE CODE: Cursor 10 (F3AE0681B/H) CC: 10308 kW: 294 HP: 400 YEAR OF MANUFACTURE: 01/2002 →
410 (190S41, 260S41, 440S41)	Cursor 13 (F3B, F3H)	12882	302	411	01/2013 →	i Series Hi-Road + Hi-Street	410 (190S41, 260S41, 440S41) ENGINE CODE: Cursor 13 (F3B, F3H) CC: 12882 kW: 302 HP: 411 YEAR OF MANUFACTURE: 01/2013 → i Series Hi-Road + Hi-Street
420 (190S42, 260S42, 320S42, 440S42)	Cursor 11 (F3GFE611, F3HFE611)	11118	309	420	09/2012 →	i Series Hi-Road + Hi-Street	420 (190S42, 260S42, 320S42, 440S42) ENGINE CODE: Cursor 11 (F3GFE611, F3HFE611) CC: 11118 kW: 309 HP: 420 YEAR OF MANUFACTURE: 09/2012 → i Series Hi-Road + Hi-Street
420 (190S42, 260S42, 320S42, 440S42)	Cursor 10 (F3AE3681B)	10308	310	420	03/2006 →		420 (190S42, 260S42, 320S42, 440S42) ENGINE CODE: Cursor 10 (F3AE3681B) CC: 10308 kW: 310 HP: 420 YEAR OF MANUFACTURE: 03/2006 →
430 (190S43, 260S43, 440S43)	Cursor 10 (F3AE0681D)	10308	316	430	01/2002 →	i 10/2004 ->	430 (190S43, 260S43, 440S43) ENGINE CODE: Cursor 10 (F3AE0681D) CC: 10308 kW: 316 HP: 430 YEAR OF MANUFACTURE: 01/2002 →
450 (190S45, 260S45, 440S45)	Cursor 10 (F3AE3681A)	10308	331	450	03/2006 →		450 (190S45, 260S45, 440S45) ENGINE CODE: Cursor 10 (F3AE3681A) CC: 10308 kW: 331 HP: 450 YEAR OF MANUFACTURE: 03/2006 →
450 (190S45, 260S45, 440S45)	Cursor 13 (F3B, F3H)	12882	331	450	01/2013 →	i Series Hi-Road + Hi-Street	450 (190S45, 260S45, 440S45) ENGINE CODE: Cursor 13 (F3B, F3H) CC: 12882 kW: 331 HP: 450 YEAR OF MANUFACTURE: 01/2013 → i Series Hi-Road + Hi-Street
460 ((190S46, 260S46, 320S46, 440S46))	Cursor 11 (F3G, F3H)	11118	338	460	09/2012 →	i Series Hi-Road + Hi-Street	460 ((190S46, 260S46, 320S46, 440S46)) ENGINE CODE: Cursor 11 (F3G, F3H) CC: 11118 kW: 338 HP: 460 YEAR OF MANUFACTURE: 09/2012 → i Series Hi-Road + Hi-Street
460 (190S46, 260S46, 320S46, 440S46)	Cursor 10 (F3AE3681Y)	10308	338	460	07/2011 →		460 (190S46, 260S46, 320S46, 440S46) ENGINE CODE: Cursor 10 (F3AE3681Y) CC: 10308 kW: 338 HP: 460 YEAR OF MANUFACTURE: 07/2011 →
480 ( (190S48, 260S48, 320S48, 440S48))	Cursor 11 (F3G, F3H)	11118	353	480	09/2012 →	i Series Hi-Road + Hi-Street	480 ( (190S48, 260S48, 320S48, 440S48)) ENGINE CODE: Cursor 11 (F3G, F3H) CC: 11118 kW: 353 HP: 480 YEAR OF MANUFACTURE: 09/2012 → i Series Hi-Road + Hi-Street
480 (190S48, 260S48, 440S48)	Cursor 13 (F3BE0681E/3681H)	12882	353	480	01/2002 →	i 10/2004 ->	480 (190S48, 260S48, 440S48) ENGINE CODE: Cursor 13 (F3BE0681E/3681H) CC: 12882 kW: 353 HP: 480 YEAR OF MANUFACTURE: 01/2002 →
500 (190S50, 260S50, 320S50, 440S50)	Cursor 13 (F3B, F3H)	12882	368	500	03/2006 →	i Series AD, AS, AT, Hi-Road, Hi-Street	500 (190S50, 260S50, 320S50, 440S50) ENGINE CODE: Cursor 13 (F3B, F3H) CC: 12882 kW: 368 HP: 500 YEAR OF MANUFACTURE: 03/2006 → i Series AD, AS, AT, Hi-Road, Hi-Street
540 (260S54, 440S54)	Cursor 13 (F3BE0681A)	12882	397	540	01/2002 →	i 10/2004 ->	540 (260S54, 440S54) ENGINE CODE: Cursor 13 (F3BE0681A) CC: 12882 kW: 397 HP: 540 YEAR OF MANUFACTURE: 01/2002 →
560 (260S56, 320S56, 440S56)	Cursor 13 (F3B, F3H)	12882	412	560	03/2006 →	i Series AD, AS, AT, Hi-Road, Hi-Street	560 (260S56, 320S56, 440S56) ENGINE CODE: Cursor 13 (F3B, F3H) CC: 12882 kW: 412 HP: 560 YEAR OF MANUFACTURE: 03/2006 → i Series AD, AS, AT, Hi-Road, Hi-Street

ENGINE CODE

YEAR OF MANUFACTURE

270 (190S27, 260S27)

Cursor 8 (F2BE0681C/F)

7798

200

272

06/2003 →

270 CNG (190S27CNG, 260S27CNG)

C78 ENT CNG (F2B, F2GE0682A)

7798

200

272

01/2008 →

300 (190S30, 260S30, 440S30)

Cursor 8 (F2BE0681B/C/E)

7798

218

296

06/2003 →

300 CNG (190S30CNG, 260S30CNG)

C78 ENT CNG (F2GE0682A)

7798

221

300

01/2013 →

310 (190S31, 260S31, 440S31)

Cursor 8 (F2BE3681C)

7798

228

310

06/2003 →

310 (190S31, 260S31, 440S31)

Cursor 9 (F2CFE611)

8700

228

310

09/2012 →

330 (190S33, 260S33, 440S33)

Cursor 8 (F2BE3681B)

7798

243

330

03/2006 →

330 (190S33, 260S33, 440S33)

Cursor 9 (F2CFE611)

8700

243

330

09/2012 →

330 CNG (190/260/440S33CNG)

C78 ENT CNG (F2GE0682A)

7798

243

330

01/2013 →

350 (190S35, 260S35, 440S35)

Cursor 8 (F2BE0681A/3681A)

7798

259

352

06/2003 →

360 (190S36, 260S36, 320S36, 440S36)

Cursor 8 (F2BE3681B)

7798

265

360

03/2006 →

360 (190S36, 260S36, 440S36)

Cursor 9 (F2CFE611)

8700

265

360

09/2012 →

400 (190S40, 260S40, 440S40)

Cursor 9 (F2CFE611)

8700

294

400

01/2013 →

400 (190S40, 260S40, 440S40)

Cursor 10 (F3AE0681B/H)

10308

294

400

01/2002 →

410 (190S41, 260S41, 440S41)

Cursor 13 (F3B, F3H)

12882

302

411

01/2013 →

420 (190S42, 260S42, 320S42, 440S42)

Cursor 11 (F3GFE611, F3HFE611)

11118

309

420

09/2012 →

420 (190S42, 260S42, 320S42, 440S42)

Cursor 10 (F3AE3681B)

10308

310

420

03/2006 →

430 (190S43, 260S43, 440S43)

Cursor 10 (F3AE0681D)

10308

316

430

01/2002 →

450 (190S45, 260S45, 440S45)

Cursor 10 (F3AE3681A)

10308

331

450

03/2006 →

450 (190S45, 260S45, 440S45)

Cursor 13 (F3B, F3H)

12882

331

450

01/2013 →

460 ((190S46, 260S46, 320S46, 440S46))

Cursor 11 (F3G, F3H)

11118

338

460

09/2012 →

460 (190S46, 260S46, 320S46, 440S46)

Cursor 10 (F3AE3681Y)

10308

338

460

07/2011 →

480 ( (190S48, 260S48, 320S48, 440S48))

Cursor 11 (F3G, F3H)

11118

353

480

09/2012 →

480 (190S48, 260S48, 440S48)

Cursor 13 (F3BE0681E/3681H)

12882

353

480

01/2002 →

500 (190S50, 260S50, 320S50, 440S50)

Cursor 13 (F3B, F3H)

12882

368

500

03/2006 →

540 (260S54, 440S54)

Cursor 13 (F3BE0681A)

12882

397

540

01/2002 →

560 (260S56, 320S56, 440S56)

Cursor 13 (F3B, F3H)

12882

412

560

03/2006 →

T-Way | 21-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
410 (190T41, 380T41, 400T41, 410T41, 720T41)	Cursor 13 (F3HGE611)	13000	301	410	04/2021 →	i Housing 41226559	410 (190T41, 380T41, 400T41, 410T41, 720T41) ENGINE CODE: Cursor 13 (F3HGE611) CC: 13000 kW: 301 HP: 410 YEAR OF MANUFACTURE: 04/2021 → i Housing 41226559
450 (190T45, 260T45, 380T45, 400T45, 410T45, 720T4	Cursor 13 (F3HGE611)	12882	331	450	04/2021 →	i Height: 461 mm	450 (190T45, 260T45, 380T45, 400T45, 410T45, 720T4 ENGINE CODE: Cursor 13 (F3HGE611) CC: 12882 kW: 331 HP: 450 YEAR OF MANUFACTURE: 04/2021 → i Height: 461 mm
460 (190T46, 260T46, 380T46, 400T46, 410T46)	Cursor XC13 (F3XGE611)	13000	338	460	10/2024 →	i Additionally for 380T46 AD	460 (190T46, 260T46, 380T46, 400T46, 410T46) ENGINE CODE: Cursor XC13 (F3XGE611) CC: 13000 kW: 338 HP: 460 YEAR OF MANUFACTURE: 10/2024 → i Additionally for 380T46 AD
500 (380T50, 410T50, 720T50)	Cursor XC13 (F3XGE611)	13000	368	500	10/2024 →	i Series 380T50, 720T50	500 (380T50, 410T50, 720T50) ENGINE CODE: Cursor XC13 (F3XGE611) CC: 13000 kW: 368 HP: 500 YEAR OF MANUFACTURE: 10/2024 → i Series 380T50, 720T50
510 (380T51, 410T51, 720T51)	Cursor 13 (F3HGE611, F3HFE611)	13000	375	510	04/2021 →		510 (380T51, 410T51, 720T51) ENGINE CODE: Cursor 13 (F3HGE611, F3HFE611) CC: 13000 kW: 375 HP: 510 YEAR OF MANUFACTURE: 04/2021 →
540 (380T54, 410T54, 720T54)	Cursor XC13 (F3XGE611)	13000	397	540	10/2024 →	i Series 380T54, 720T54	540 (380T54, 410T54, 720T54) ENGINE CODE: Cursor XC13 (F3XGE611) CC: 13000 kW: 397 HP: 540 YEAR OF MANUFACTURE: 10/2024 → i Series 380T54, 720T54

ENGINE CODE

YEAR OF MANUFACTURE

410 (190T41, 380T41, 400T41, 410T41, 720T41)

Cursor 13 (F3HGE611)

13000

301

410

04/2021 →

450 (190T45, 260T45, 380T45, 400T45, 410T45, 720T4

Cursor 13 (F3HGE611)

12882

331

450

04/2021 →

460 (190T46, 260T46, 380T46, 400T46, 410T46)

Cursor XC13 (F3XGE611)

13000

338

460

10/2024 →

500 (380T50, 410T50, 720T50)

Cursor XC13 (F3XGE611)

13000

368

500

10/2024 →

510 (380T51, 410T51, 720T51)

Cursor 13 (F3HGE611, F3HFE611)

13000

375

510

04/2021 →

540 (380T54, 410T54, 720T54)

Cursor XC13 (F3XGE611)

13000

397

540

10/2024 →

Trakker | 04-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
270	Cursor 8	7798	201	273	09/2004 →	270 ENGINE CODE: Cursor 8 CC: 7798 kW: 201 HP: 273 YEAR OF MANUFACTURE: 09/2004 →
310	Cursor 8	7798	228	310	09/2004 →	310 ENGINE CODE: Cursor 8 CC: 7798 kW: 228 HP: 310 YEAR OF MANUFACTURE: 09/2004 →
310	Cursor 9 (F2CFE611)	8700	228	310	09/2012 →	310 ENGINE CODE: Cursor 9 (F2CFE611) CC: 8700 kW: 228 HP: 310 YEAR OF MANUFACTURE: 09/2012 →
330	Cursor 8	7798	243	330	11/2004 →	330 ENGINE CODE: Cursor 8 CC: 7798 kW: 243 HP: 330 YEAR OF MANUFACTURE: 11/2004 →
330	Cursor 9 (F2CFE611)	8700	243	330	09/2012 →	330 ENGINE CODE: Cursor 9 (F2CFE611) CC: 8700 kW: 243 HP: 330 YEAR OF MANUFACTURE: 09/2012 →
350	Cursor 8	7798	259	351	09/2004 →	350 ENGINE CODE: Cursor 8 CC: 7798 kW: 259 HP: 351 YEAR OF MANUFACTURE: 09/2004 →
360	Cursor 8	7798	265	360	09/2004 →	360 ENGINE CODE: Cursor 8 CC: 7798 kW: 265 HP: 360 YEAR OF MANUFACTURE: 09/2004 →
360	Cursor 9 (F2CFE611)	8700	265	360	11/2013 →	360 ENGINE CODE: Cursor 9 (F2CFE611) CC: 8700 kW: 265 HP: 360 YEAR OF MANUFACTURE: 11/2013 →
380	Cursor 13	12882	280	381	09/2004 →	380 ENGINE CODE: Cursor 13 CC: 12882 kW: 280 HP: 381 YEAR OF MANUFACTURE: 09/2004 →
410	Cursor 13	12882	302	410	04/2006 →	410 ENGINE CODE: Cursor 13 CC: 12882 kW: 302 HP: 410 YEAR OF MANUFACTURE: 04/2006 →
420	Cursor 13	12882	309	420	04/2006 →	420 ENGINE CODE: Cursor 13 CC: 12882 kW: 309 HP: 420 YEAR OF MANUFACTURE: 04/2006 →
440	Cursor 13	12882	324	441	09/2004 →	440 ENGINE CODE: Cursor 13 CC: 12882 kW: 324 HP: 441 YEAR OF MANUFACTURE: 09/2004 →
450	Cursor 13	12882	331	450	04/2006 →	450 ENGINE CODE: Cursor 13 CC: 12882 kW: 331 HP: 450 YEAR OF MANUFACTURE: 04/2006 →
480	Cursor 13	12882	353	480	09/2004 →	480 ENGINE CODE: Cursor 13 CC: 12882 kW: 353 HP: 480 YEAR OF MANUFACTURE: 09/2004 →
500	Cursor 13	12882	368	500	04/2006 →	500 ENGINE CODE: Cursor 13 CC: 12882 kW: 368 HP: 500 YEAR OF MANUFACTURE: 04/2006 →

ENGINE CODE

YEAR OF MANUFACTURE

270

Cursor 8

7798

201

273

09/2004 →

310

Cursor 8

7798

228

310

09/2004 →

310

Cursor 9 (F2CFE611)

8700

228

310

09/2012 →

330

Cursor 8

7798

243

330

11/2004 →

330

Cursor 9 (F2CFE611)

8700

243

330

09/2012 →

350

Cursor 8

7798

259

351

09/2004 →

360

Cursor 8

7798

265

360

09/2004 →

360

Cursor 9 (F2CFE611)

8700

265

360

11/2013 →

380

Cursor 13

12882

280

381

09/2004 →

410

Cursor 13

12882

302

410

04/2006 →

420

Cursor 13

12882

309

420

04/2006 →

440

Cursor 13

12882

324

441

09/2004 →

450

Cursor 13

12882

331

450

04/2006 →

480

Cursor 13

12882

353

480

09/2004 →

500

Cursor 13

12882

368

500

04/2006 →

X-Way (MY2019, MY2024) | 19-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
330 (200X33, 280X33)	Cursor 9	8710	243	330	07/2019 →	i Filtration system Mann + Hummel	330 (200X33, 280X33) ENGINE CODE: Cursor 9 CC: 8710 kW: 243 HP: 330 YEAR OF MANUFACTURE: 07/2019 → i Filtration system Mann + Hummel
340 (200X34, 280X34)	Cursor 9 (F2CGE611)	8710	251	340	07/2019 →	i Filtration system Mann + Hummel	340 (200X34, 280X34) ENGINE CODE: Cursor 9 (F2CGE611) CC: 8710 kW: 251 HP: 340 YEAR OF MANUFACTURE: 07/2019 → i Filtration system Mann + Hummel
360 (200X36, 280X36, 300X36, 350X36)	Cursor 9 (F2CFE611, F2CGE611)	8710	265	360	07/2019 →	i Filtration system Mann + Hummel	360 (200X36, 280X36, 300X36, 350X36) ENGINE CODE: Cursor 9 (F2CFE611, F2CGE611) CC: 8710 kW: 265 HP: 360 YEAR OF MANUFACTURE: 07/2019 → i Filtration system Mann + Hummel
400 (200X40, 280X40, 300X40, 350X40, 360X40)	Cursor 9 (F2CFE611, F2CGE611)	8710	294	400	07/2019 →		400 (200X40, 280X40, 300X40, 350X40, 360X40) ENGINE CODE: Cursor 9 (F2CFE611, F2CGE611) CC: 8710 kW: 294 HP: 400 YEAR OF MANUFACTURE: 07/2019 →
420 (200X42, 280X42, 300X42, 350X42, 360X42)	Cursor 11 (F3GFE611)	11118	309	420	07/2019 →		420 (200X42, 280X42, 300X42, 350X42, 360X42) ENGINE CODE: Cursor 11 (F3GFE611) CC: 11118 kW: 309 HP: 420 YEAR OF MANUFACTURE: 07/2019 →
460 (200X46, 280X46, 300X46)	Cursor 11 (F3GFE611)	11118	338	460	07/2019 →		460 (200X46, 280X46, 300X46) ENGINE CODE: Cursor 11 (F3GFE611) CC: 11118 kW: 338 HP: 460 YEAR OF MANUFACTURE: 07/2019 →
460 (200X46, 280X46, 300X46, 350X46)	Cursor XC13 (F3XGE611)	12999	338	460	01/2024 →	i Series AD, AT	460 (200X46, 280X46, 300X46, 350X46) ENGINE CODE: Cursor XC13 (F3XGE611) CC: 12999 kW: 338 HP: 460 YEAR OF MANUFACTURE: 01/2024 → i Series AD, AT
460 (350X46, 360X46)	Cursor 11 (F3GFE611)	11118	338	460	07/2019 →		460 (350X46, 360X46) ENGINE CODE: Cursor 11 (F3GFE611) CC: 11118 kW: 338 HP: 460 YEAR OF MANUFACTURE: 07/2019 →
480 (200X48, 280X48, 300X48)	Cursor 11 (F3GFE611)	11118	353	480	07/2019 →		480 (200X48, 280X48, 300X48) ENGINE CODE: Cursor 11 (F3GFE611) CC: 11118 kW: 353 HP: 480 YEAR OF MANUFACTURE: 07/2019 →
480 (350X48, 360X48)	Cursor 11 (F3GFE611)	11118	353	480	07/2019 →		480 (350X48, 360X48) ENGINE CODE: Cursor 11 (F3GFE611) CC: 11118 kW: 353 HP: 480 YEAR OF MANUFACTURE: 07/2019 →
500 (200X50, 280X50, 300X50)	Cursor XC13 (F3XGE611)	12999	368	500	01/2024 →	i Series AD, AT	500 (200X50, 280X50, 300X50) ENGINE CODE: Cursor XC13 (F3XGE611) CC: 12999 kW: 368 HP: 500 YEAR OF MANUFACTURE: 01/2024 → i Series AD, AT
500 (350X50, 360X50, 400X50)	Cursor XC13 (F3XGE611)	12999	368	500	01/2024 →	i Partly/or	500 (350X50, 360X50, 400X50) ENGINE CODE: Cursor XC13 (F3XGE611) CC: 12999 kW: 368 HP: 500 YEAR OF MANUFACTURE: 01/2024 → i Partly/or
540 (200X54, 280X54, 300X54, 350X54, 360X54)	Cursor XC13 (F3XGE611)	12999	397	540	01/2024 →		540 (200X54, 280X54, 300X54, 350X54, 360X54) ENGINE CODE: Cursor XC13 (F3XGE611) CC: 12999 kW: 397 HP: 540 YEAR OF MANUFACTURE: 01/2024 →

ENGINE CODE

YEAR OF MANUFACTURE

330 (200X33, 280X33)

Cursor 9

8710

243

330

07/2019 →

340 (200X34, 280X34)

Cursor 9 (F2CGE611)

8710

251

340

07/2019 →

360 (200X36, 280X36, 300X36, 350X36)

Cursor 9 (F2CFE611, F2CGE611)

8710

265

360

07/2019 →

400 (200X40, 280X40, 300X40, 350X40, 360X40)

Cursor 9 (F2CFE611, F2CGE611)

8710

294

400

07/2019 →

420 (200X42, 280X42, 300X42, 350X42, 360X42)

Cursor 11 (F3GFE611)

11118

309

420

07/2019 →

460 (200X46, 280X46, 300X46)

Cursor 11 (F3GFE611)

11118

338

460

07/2019 →

460 (200X46, 280X46, 300X46, 350X46)

Cursor XC13 (F3XGE611)

12999

338

460

01/2024 →

460 (350X46, 360X46)

Cursor 11 (F3GFE611)

11118

338

460

07/2019 →

480 (200X48, 280X48, 300X48)

Cursor 11 (F3GFE611)

11118

353

480

07/2019 →

480 (350X48, 360X48)

Cursor 11 (F3GFE611)

11118

353

480

07/2019 →

500 (200X50, 280X50, 300X50)

Cursor XC13 (F3XGE611)

12999

368

500

01/2024 →

500 (350X50, 360X50, 400X50)

Cursor XC13 (F3XGE611)

12999

368

500

01/2024 →

540 (200X54, 280X54, 300X54, 350X54, 360X54)

Cursor XC13 (F3XGE611)

12999

397

540

01/2024 →

IVECO

299 6126
412 70082
412 72124
500041209
5801 313604

KNORR-BREMSE

K117835N50

RENAULT TRUCKS (OKELIA)

50 21 192 694
74 24 991 300

Date of last data update: 2025-03-31 Print Report now

DIMENSIONS NEW FILTERS AND CHANGES SPECIAL FILTERS

FILTER CATALOGUE

Search results

Find a filter

REACH-Information

AM 455/6

CLIPBOARD

Filtry Filtron
