REACH-Information

SVHC declaration according to the regulation EC 1907/2006 concerning the Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH).

Produkt: AM 471/1 - FILTRON

MANN+HUMMEL is well aware of REACH and meet all legal obligations under this regulation.

MANN+HUMMEL has established internal processes to ensure implementation and compliance with the REACH Regulation. Especially, we continuously work on the assessment of presence of SVHC (Substances of Very High Concern).

We may inform you that according to present level of information and best knowledge, this product does not contain any SVHC listed on the Candidate List in concentration above 0,1% (w/w).

Last update: 2024-09-19

Back

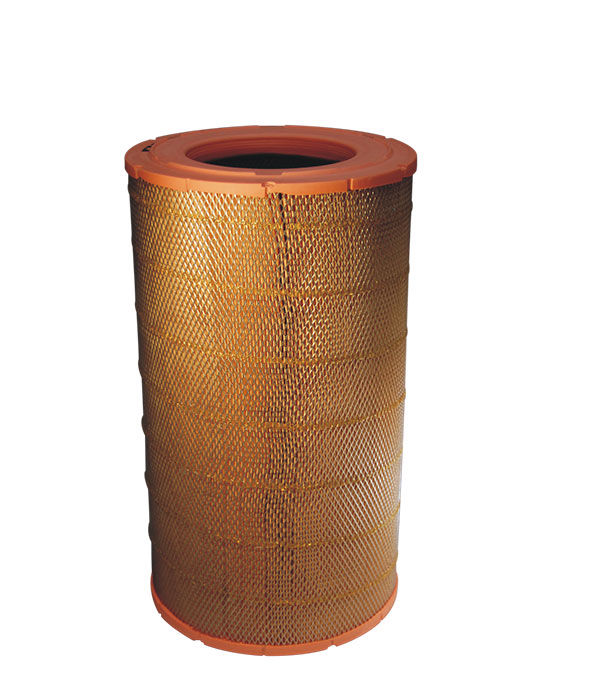

AIR FILTERS

AM 471/1

EAN CODE: 5904608024718

REACH information

DIMENSIONS (mm):

313

178

557

APPLICATION
SUBSTITUTES

FAST CONCEPT CAR

Fast Sampler

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
Fast Sampler	Renault Euro 3						Fast Sampler ENGINE CODE: Renault Euro 3 CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

Fast Sampler

Renault Euro 3

RENAULT BUS (IRISBUS/RVI)

Ares | 97-

	ENGINE CODE	kW	HP	YEAR OF MANUFACTURE
300	MIDR 06.20.45 R41	222	302	09/1997 →	300 ENGINE CODE: MIDR 06.20.45 R41 CC: kW: 222 HP: 302 YEAR OF MANUFACTURE: 09/1997 →
340	MIDR 06.20.45	249	340	09/1997 →	340 ENGINE CODE: MIDR 06.20.45 CC: kW: 249 HP: 340 YEAR OF MANUFACTURE: 09/1997 →
380	MIDR 06.23.56	280	381	07/2000 →	380 ENGINE CODE: MIDR 06.23.56 CC: kW: 280 HP: 381 YEAR OF MANUFACTURE: 07/2000 →

ENGINE CODE

YEAR OF MANUFACTURE

300

MIDR 06.20.45 R41

222

302

09/1997 →

340

MIDR 06.20.45

249

340

09/1997 →

380

MIDR 06.23.56

280

381

07/2000 →

Iliade | 96-07

	ENGINE CODE	YEAR OF MANUFACTURE
300	MIDR 06.20.45	02/1996 → 03/2007	300 ENGINE CODE: MIDR 06.20.45 CC: kW: HP: YEAR OF MANUFACTURE: 02/1996 → 03/2007
340	MIDR 06.20.45	02/1996 → 03/2007	340 ENGINE CODE: MIDR 06.20.45 CC: kW: HP: YEAR OF MANUFACTURE: 02/1996 → 03/2007
385	MIDR 06.23.56	02/1996 → 03/2007	385 ENGINE CODE: MIDR 06.23.56 CC: kW: HP: YEAR OF MANUFACTURE: 02/1996 → 03/2007

ENGINE CODE

YEAR OF MANUFACTURE

300

MIDR 06.20.45

02/1996 → 03/2007

340

MIDR 06.20.45

02/1996 → 03/2007

385

MIDR 06.23.56

02/1996 → 03/2007

RENAULT TRUCKS (RVI)

Kerax | 97-14

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
260	MIDR 06.20.45	9800	188	256	09/1997 → 12/2001	260 ENGINE CODE: MIDR 06.20.45 CC: 9800 kW: 188 HP: 256 YEAR OF MANUFACTURE: 09/1997 → 12/2001
270 dCi	dCi11-270	11000	195	265	11/2001 → 12/2014	270 dCi ENGINE CODE: dCi11-270 CC: 11000 kW: 195 HP: 265 YEAR OF MANUFACTURE: 11/2001 → 12/2014
300	MIDR 06.20.45	9800	219	299	09/1997 → 12/2001	300 ENGINE CODE: MIDR 06.20.45 CC: 9800 kW: 219 HP: 299 YEAR OF MANUFACTURE: 09/1997 → 12/2001
320 dCi	dCi11-320	11000	229	311	11/2001 → 12/2014	320 dCi ENGINE CODE: dCi11-320 CC: 11000 kW: 229 HP: 311 YEAR OF MANUFACTURE: 11/2001 → 12/2014
330 DXi	DXi 11 Euro 4/5	10837	243	330	10/2005 → 08/2009	330 DXi ENGINE CODE: DXi 11 Euro 4/5 CC: 10837 kW: 243 HP: 330 YEAR OF MANUFACTURE: 10/2005 → 08/2009
340	MIDR 06.20.45	9800	249	340	09/1997 → 12/2001	340 ENGINE CODE: MIDR 06.20.45 CC: 9800 kW: 249 HP: 340 YEAR OF MANUFACTURE: 09/1997 → 12/2001
350 (350.34 6x4)	MIDR 06.23.56	9900	250	340	09/1999 → 12/2014	350 (350.34 6x4) ENGINE CODE: MIDR 06.23.56 CC: 9900 kW: 250 HP: 340 YEAR OF MANUFACTURE: 09/1999 → 12/2014
370 dCi	dCi11-370	11000	266	361	11/2001 → 12/2014	370 dCi ENGINE CODE: dCi11-370 CC: 11000 kW: 266 HP: 361 YEAR OF MANUFACTURE: 11/2001 → 12/2014
370 DXi	DXi 11 Euro 4/5	10800	272	370	05/2006 → 12/2014	370 DXi ENGINE CODE: DXi 11 Euro 4/5 CC: 10800 kW: 272 HP: 370 YEAR OF MANUFACTURE: 05/2006 → 12/2014
380 DXi	DXi 11 Euro 5	10800	280	380	06/2009 → 12/2014	380 DXi ENGINE CODE: DXi 11 Euro 5 CC: 10800 kW: 280 HP: 380 YEAR OF MANUFACTURE: 06/2009 → 12/2014
385	MIDR 06.23.56	11100	280	382	09/1998 → 12/2001	385 ENGINE CODE: MIDR 06.23.56 CC: 11100 kW: 280 HP: 382 YEAR OF MANUFACTURE: 09/1998 → 12/2001
400	MIDR 06.23.56	11100	288	393	09/1998 → 12/2001	400 ENGINE CODE: MIDR 06.23.56 CC: 11100 kW: 288 HP: 393 YEAR OF MANUFACTURE: 09/1998 → 12/2001
410 DXi	DXi 11 Euro 4/5	10800	302	410	05/2006 → 12/2014	410 DXi ENGINE CODE: DXi 11 Euro 4/5 CC: 10800 kW: 302 HP: 410 YEAR OF MANUFACTURE: 05/2006 → 12/2014
420 dCi	dCi11-420	11000	303	412	11/2001 → 12/2014	420 dCi ENGINE CODE: dCi11-420 CC: 11000 kW: 303 HP: 412 YEAR OF MANUFACTURE: 11/2001 → 12/2014
430 DXi	DXi 11 Euro 5	10800	316	430	06/2009 → 12/2014	430 DXi ENGINE CODE: DXi 11 Euro 5 CC: 10800 kW: 316 HP: 430 YEAR OF MANUFACTURE: 06/2009 → 12/2014
440 DXi	DXi 11 Euro 4/5	10800	324	440	05/2006 → 12/2014	440 DXi ENGINE CODE: DXi 11 Euro 4/5 CC: 10800 kW: 324 HP: 440 YEAR OF MANUFACTURE: 05/2006 → 12/2014
450 DXi	DXi 11 Euro 4/5	10800	331	450	05/2006 → 12/2014	450 DXi ENGINE CODE: DXi 11 Euro 4/5 CC: 10800 kW: 331 HP: 450 YEAR OF MANUFACTURE: 05/2006 → 12/2014
460 DXi	DXi 13 Euro 4/5	12800	339	460	02/2008 → 05/2009	460 DXi ENGINE CODE: DXi 13 Euro 4/5 CC: 12800 kW: 339 HP: 460 YEAR OF MANUFACTURE: 02/2008 → 05/2009
460 DXi	DXi 11 Euro 5	10800	338	460	06/2009 → 12/2014	460 DXi ENGINE CODE: DXi 11 Euro 5 CC: 10800 kW: 338 HP: 460 YEAR OF MANUFACTURE: 06/2009 → 12/2014
480 DXi	DXi 13 Euro 4/5	12800	353	480	02/2008 → 12/2014	480 DXi ENGINE CODE: DXi 13 Euro 4/5 CC: 12800 kW: 353 HP: 480 YEAR OF MANUFACTURE: 02/2008 → 12/2014
500 DXi	DXi 13 Euro 4/5	12800	368	500	02/2008 → 12/2014	500 DXi ENGINE CODE: DXi 13 Euro 4/5 CC: 12800 kW: 368 HP: 500 YEAR OF MANUFACTURE: 02/2008 → 12/2014
520 DXi	DXi 13 Euro 4/5	12800	382	520	02/2008 → 12/2014	520 DXi ENGINE CODE: DXi 13 Euro 4/5 CC: 12800 kW: 382 HP: 520 YEAR OF MANUFACTURE: 02/2008 → 12/2014

ENGINE CODE

YEAR OF MANUFACTURE

260

MIDR 06.20.45

9800

188

256

09/1997 → 12/2001

270 dCi

dCi11-270

11000

195

265

11/2001 → 12/2014

300

MIDR 06.20.45

9800

219

299

09/1997 → 12/2001

320 dCi

dCi11-320

11000

229

311

11/2001 → 12/2014

330 DXi

DXi 11 Euro 4/5

10837

243

330

10/2005 → 08/2009

340

MIDR 06.20.45

9800

249

340

09/1997 → 12/2001

350 (350.34 6x4)

MIDR 06.23.56

9900

250

340

09/1999 → 12/2014

370 dCi

dCi11-370

11000

266

361

11/2001 → 12/2014

370 DXi

DXi 11 Euro 4/5

10800

272

370

05/2006 → 12/2014

380 DXi

DXi 11 Euro 5

10800

280

380

06/2009 → 12/2014

385

MIDR 06.23.56

11100

280

382

09/1998 → 12/2001

400

MIDR 06.23.56

11100

288

393

09/1998 → 12/2001

410 DXi

DXi 11 Euro 4/5

10800

302

410

05/2006 → 12/2014

420 dCi

dCi11-420

11000

303

412

11/2001 → 12/2014

430 DXi

DXi 11 Euro 5

10800

316

430

06/2009 → 12/2014

440 DXi

DXi 11 Euro 4/5

10800

324

440

05/2006 → 12/2014

450 DXi

DXi 11 Euro 4/5

10800

331

450

05/2006 → 12/2014

460 DXi

DXi 13 Euro 4/5

12800

339

460

02/2008 → 05/2009

460 DXi

DXi 11 Euro 5

10800

338

460

06/2009 → 12/2014

480 DXi

DXi 13 Euro 4/5

12800

353

480

02/2008 → 12/2014

500 DXi

DXi 13 Euro 4/5

12800

368

500

02/2008 → 12/2014

520 DXi

DXi 13 Euro 4/5

12800

382

520

02/2008 → 12/2014

Premium Distribution/Route | 96-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
HD 220 dCi	dCi 6-220	6200	158	215	11/2001 → 05/2006	i For use in dusty environments. Height: 557 mm	HD 220 dCi ENGINE CODE: dCi 6-220 CC: 6200 kW: 158 HP: 215 YEAR OF MANUFACTURE: 11/2001 → 05/2006 i For use in dusty environments. Height: 557 mm
HD 240 DXi	DXi7	7200	177	241	05/2006 →	i Height: 557 mm	HD 240 DXi ENGINE CODE: DXi7 CC: 7200 kW: 177 HP: 241 YEAR OF MANUFACTURE: 05/2006 → i Height: 557 mm
HD 270 dCi	dCi 6-270	6200	195	265	11/2001 → 09/2006	i For use in dusty environments. Height: 557 mm	HD 270 dCi ENGINE CODE: dCi 6-270 CC: 6200 kW: 195 HP: 265 YEAR OF MANUFACTURE: 11/2001 → 09/2006 i For use in dusty environments. Height: 557 mm
HD 270 DXi	DXi7	7200	194	264	05/2006 →	i Height: 557 mm	HD 270 DXi ENGINE CODE: DXi7 CC: 7200 kW: 194 HP: 264 YEAR OF MANUFACTURE: 05/2006 → i Height: 557 mm
HD 280 DXi	DXi7	7146	206	280	10/2005 → 10/2009	i Height: 557 mm	HD 280 DXi ENGINE CODE: DXi7 CC: 7146 kW: 206 HP: 280 YEAR OF MANUFACTURE: 10/2005 → 10/2009 i Height: 557 mm
HD 310 DXi	DXi7	7200	224	305	05/2006 →	i Height: 557 mm	HD 310 DXi ENGINE CODE: DXi7 CC: 7200 kW: 224 HP: 305 YEAR OF MANUFACTURE: 05/2006 → i Height: 557 mm
HD 320 dCi	dCi 11-320	11000	229	311	11/2001 → 09/2006	i For use in dusty environments. Height: 557 mm	HD 320 dCi ENGINE CODE: dCi 11-320 CC: 11000 kW: 229 HP: 311 YEAR OF MANUFACTURE: 11/2001 → 09/2006 i For use in dusty environments. Height: 557 mm
HD 320 DXi	DXi7	7146	235	320	10/2005 → 10/2009	i Height: 557 mm	HD 320 DXi ENGINE CODE: DXi7 CC: 7146 kW: 235 HP: 320 YEAR OF MANUFACTURE: 10/2005 → 10/2009 i Height: 557 mm
HD 340 DXi	DXi7	7200	247	336	05/2006 →	i Height: 557 mm	HD 340 DXi ENGINE CODE: DXi7 CC: 7200 kW: 247 HP: 336 YEAR OF MANUFACTURE: 05/2006 → i Height: 557 mm
HD 370 dCi	dCi 11-370	11100	266	361	11/2001 → 05/2006	i For use in dusty environments. Height: 557 mm	HD 370 dCi ENGINE CODE: dCi 11-370 CC: 11100 kW: 266 HP: 361 YEAR OF MANUFACTURE: 11/2001 → 05/2006 i For use in dusty environments. Height: 557 mm
HR 320 dCi	dCi 11-320	11000	229	311	11/2001 → 05/2006	i For use in dusty environments. Height: 557 mm	HR 320 dCi ENGINE CODE: dCi 11-320 CC: 11000 kW: 229 HP: 311 YEAR OF MANUFACTURE: 11/2001 → 05/2006 i For use in dusty environments. Height: 557 mm
HR 370 dCi	dCi 11-370	11000	266	361	11/2001 → 05/2006	i For use in dusty environments. Height: 557 mm	HR 370 dCi ENGINE CODE: dCi 11-370 CC: 11000 kW: 266 HP: 361 YEAR OF MANUFACTURE: 11/2001 → 05/2006 i For use in dusty environments. Height: 557 mm
HR 400	MIDR 06.23.56	11100	287	392	01/1999 → 12/2001		HR 400 ENGINE CODE: MIDR 06.23.56 CC: 11100 kW: 287 HP: 392 YEAR OF MANUFACTURE: 01/1999 → 12/2001
HR 420	MIDR 06.23.56	11123	309	420	02/1996 → 09/2001		HR 420 ENGINE CODE: MIDR 06.23.56 CC: 11123 kW: 309 HP: 420 YEAR OF MANUFACTURE: 02/1996 → 09/2001

ENGINE CODE

YEAR OF MANUFACTURE

HD 220 dCi

dCi 6-220

6200

158

215

11/2001 → 05/2006

HD 240 DXi

DXi7

7200

177

241

05/2006 →

HD 270 dCi

dCi 6-270

6200

195

265

11/2001 → 09/2006

HD 270 DXi

DXi7

7200

194

264

05/2006 →

HD 280 DXi

DXi7

7146

206

280

10/2005 → 10/2009

HD 310 DXi

DXi7

7200

224

305

05/2006 →

HD 320 dCi

dCi 11-320

11000

229

311

11/2001 → 09/2006

HD 320 DXi

DXi7

7146

235

320

10/2005 → 10/2009

HD 340 DXi

DXi7

7200

247

336

05/2006 →

HD 370 dCi

dCi 11-370

11100

266

361

11/2001 → 05/2006

HR 320 dCi

dCi 11-320

11000

229

311

11/2001 → 05/2006

HR 370 dCi

dCi 11-370

11000

266

361

11/2001 → 05/2006

HR 400

MIDR 06.23.56

11100

287

392

01/1999 → 12/2001

HR 420

MIDR 06.23.56

11123

309

420

02/1996 → 09/2001

Premium Lander | 04-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
HL 240 DXi	DXi7	7146	176	239	10/2005 → 10/2009	i Height: 557 mm	HL 240 DXi ENGINE CODE: DXi7 CC: 7146 kW: 176 HP: 239 YEAR OF MANUFACTURE: 10/2005 → 10/2009 i Height: 557 mm
HL 270 dCi	dCi 6-270	6200	194	264	02/2004 →	i For use in dusty environments. Height: 557 mm	HL 270 dCi ENGINE CODE: dCi 6-270 CC: 6200 kW: 194 HP: 264 YEAR OF MANUFACTURE: 02/2004 → i For use in dusty environments. Height: 557 mm
HL 270 DXi	DXi7	7200	194	264	05/2006 →	i Height: 557 mm	HL 270 DXi ENGINE CODE: DXi7 CC: 7200 kW: 194 HP: 264 YEAR OF MANUFACTURE: 05/2006 → i Height: 557 mm
HL 280 DXi	DXi7	7146	206	280	10/2005 → 10/2009	i Height: 557 mm	HL 280 DXi ENGINE CODE: DXi7 CC: 7146 kW: 206 HP: 280 YEAR OF MANUFACTURE: 10/2005 → 10/2009 i Height: 557 mm
HL 310 DXi	DXi7	7200	224	305	05/2006 →	i Height: 557 mm	HL 310 DXi ENGINE CODE: DXi7 CC: 7200 kW: 224 HP: 305 YEAR OF MANUFACTURE: 05/2006 → i Height: 557 mm
HL 320 dCi	dCi 11-320	11000	229	311	02/2004 →	i For use in dusty environments. Height: 557 mm	HL 320 dCi ENGINE CODE: dCi 11-320 CC: 11000 kW: 229 HP: 311 YEAR OF MANUFACTURE: 02/2004 → i For use in dusty environments. Height: 557 mm
HL 320 DXi	DXi7	7146	235	320	10/2005 → 10/2009	i Height: 557 mm	HL 320 DXi ENGINE CODE: DXi7 CC: 7146 kW: 235 HP: 320 YEAR OF MANUFACTURE: 10/2005 → 10/2009 i Height: 557 mm
HL 340 DXi	DXi7	7200	247	336	05/2006 →	i Height: 557 mm	HL 340 DXi ENGINE CODE: DXi7 CC: 7200 kW: 247 HP: 336 YEAR OF MANUFACTURE: 05/2006 → i Height: 557 mm
HL 370 dCi	dCi 11-370	11000	266	361	02/2004 →	i For use in dusty environments. Height: 557 mm	HL 370 dCi ENGINE CODE: dCi 11-370 CC: 11000 kW: 266 HP: 361 YEAR OF MANUFACTURE: 02/2004 → i For use in dusty environments. Height: 557 mm

ENGINE CODE

YEAR OF MANUFACTURE

HL 240 DXi

DXi7

7146

176

239

10/2005 → 10/2009

HL 270 dCi

dCi 6-270

6200

194

264

02/2004 →

HL 270 DXi

DXi7

7200

194

264

05/2006 →

HL 280 DXi

DXi7

7146

206

280

10/2005 → 10/2009

HL 310 DXi

DXi7

7200

224

305

05/2006 →

HL 320 dCi

dCi 11-320

11000

229

311

02/2004 →

HL 320 DXi

DXi7

7146

235

320

10/2005 → 10/2009

HL 340 DXi

DXi7

7200

247

336

05/2006 →

HL 370 dCi

dCi 11-370

11000

266

361

02/2004 →

SISU AUTO

R-Serie | 69-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
R 400 (400-310)	Renault dCi 11-320	11000	229	311	03/2005 →	i For use in dusty environments	R 400 (400-310) ENGINE CODE: Renault dCi 11-320 CC: 11000 kW: 229 HP: 311 YEAR OF MANUFACTURE: 03/2005 → i For use in dusty environments
R 400 (400-360)	Renault dCi 11-370	11000	266	361	03/2005 →	i For use in dusty environments	R 400 (400-360) ENGINE CODE: Renault dCi 11-370 CC: 11000 kW: 266 HP: 361 YEAR OF MANUFACTURE: 03/2005 → i For use in dusty environments
R 400 (400-420)	Renault dCi 11B/43	11100	303	412	03/2005 →	i For use in dusty environments	R 400 (400-420) ENGINE CODE: Renault dCi 11B/43 CC: 11100 kW: 303 HP: 412 YEAR OF MANUFACTURE: 03/2005 → i For use in dusty environments

ENGINE CODE

YEAR OF MANUFACTURE

R 400 (400-310)

Renault dCi 11-320

11000

229

311

03/2005 →

R 400 (400-360)

Renault dCi 11-370

11000

266

361

03/2005 →

R 400 (400-420)

Renault dCi 11B/43

11100

303

412

03/2005 →

VOLVO TRUCKS

FE II | 06-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
FE 260	D7F-260	7150	191	260	04/2009 →	FE 260 ENGINE CODE: D7F-260 CC: 7150 kW: 191 HP: 260 YEAR OF MANUFACTURE: 04/2009 →
FE 300	D7F-300	7150	221	300	04/2009 →	FE 300 ENGINE CODE: D7F-300 CC: 7150 kW: 221 HP: 300 YEAR OF MANUFACTURE: 04/2009 →
FE 320	D7E-320	7150	235	320	07/2006 →	FE 320 ENGINE CODE: D7E-320 CC: 7150 kW: 235 HP: 320 YEAR OF MANUFACTURE: 07/2006 →
FE 340	D7F-340	7150	250	340	04/2009 →	FE 340 ENGINE CODE: D7F-340 CC: 7150 kW: 250 HP: 340 YEAR OF MANUFACTURE: 04/2009 →

ENGINE CODE

YEAR OF MANUFACTURE

FE 260

D7F-260

7150

191

260

04/2009 →

FE 300

D7F-300

7150

221

300

04/2009 →

FE 320

D7E-320

7150

235

320

07/2006 →

FE 340

D7F-340

7150

250

340

04/2009 →

IVECO

299 2384

KNORR-BREMSE

K117852N50

RENAULT TRUCKS (RVI)

50 01 865 725
50 10 230 916

VOLVO (TRUCKS/VCE/VME/PENTA)

20732733

Date of last data update: 2025-05-29 Print Report now
