REACH-Information

SVHC declaration according to the regulation EC 1907/2006 concerning the Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH).

Produkt: AR 226 - FILTRON

MANN+HUMMEL is well aware of REACH and meet all legal obligations under this regulation.

MANN+HUMMEL has established internal processes to ensure implementation and compliance with the REACH Regulation. Especially, we continuously work on the assessment of presence of SVHC (Substances of Very High Concern).

We may inform you that according to present level of information and best knowledge, this product does not contain any SVHC listed on the Candidate List in concentration above 0,1% (w/w).

Last update: 2024-09-19

Back

AIR FILTERS

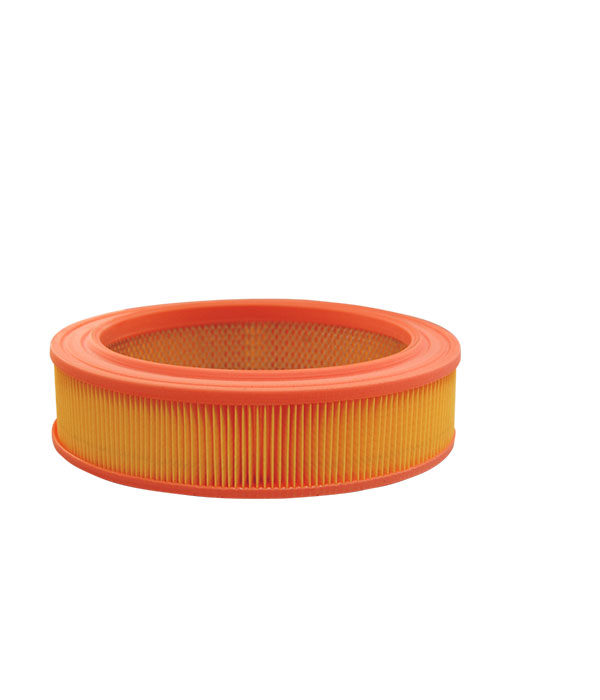

AR 226

EAN CODE: 5904608002266

REACH information

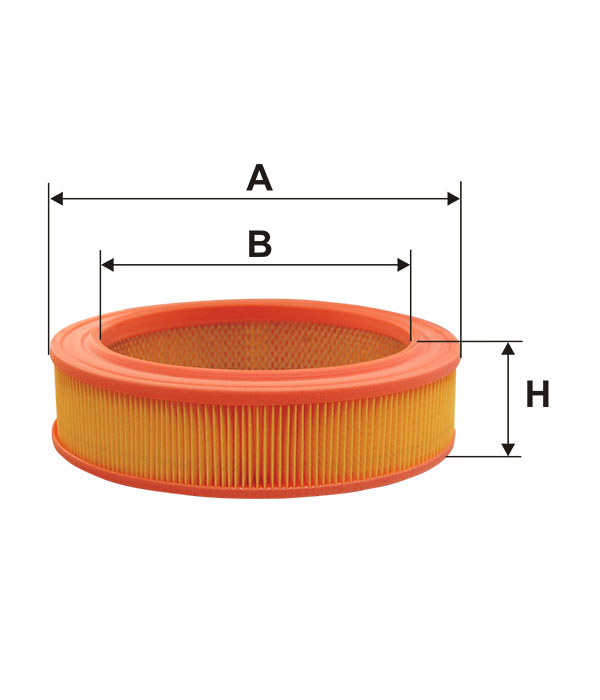

DIMENSIONS (mm):

247

187

APPLICATION
SUBSTITUTES

FORD

Capri | 68-87

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
2.0		1985	63	86	02/1969 → 06/1971	2.0 ENGINE CODE: CC: 1985 kW: 63 HP: 86 YEAR OF MANUFACTURE: 02/1969 → 06/1971
2.0		1981	66	90	02/1969 → 04/1974	2.0 ENGINE CODE: CC: 1981 kW: 66 HP: 90 YEAR OF MANUFACTURE: 02/1969 → 04/1974
2.0	NYL	1999	66	90	04/1976 → 12/1977	2.0 ENGINE CODE: NYL CC: 1999 kW: 66 HP: 90 YEAR OF MANUFACTURE: 04/1976 → 12/1977
2.0 (GECP)		1999	66	90	01/1978 → 12/1982	2.0 (GECP) ENGINE CODE: CC: 1999 kW: 66 HP: 90 YEAR OF MANUFACTURE: 01/1978 → 12/1982
2.3		2274	79	107	02/1969 → 04/1974	2.3 ENGINE CODE: CC: 2274 kW: 79 HP: 107 YEAR OF MANUFACTURE: 02/1969 → 04/1974
2.3		2274	92	125	08/1969 → 04/1974	2.3 ENGINE CODE: CC: 2274 kW: 92 HP: 125 YEAR OF MANUFACTURE: 08/1969 → 04/1974
2.3	YYE	2293	79	107	01/1974 → 12/1977	2.3 ENGINE CODE: YYE CC: 2293 kW: 79 HP: 107 YEAR OF MANUFACTURE: 01/1974 → 12/1977
2.3 Super	YYN	2293	84	114	06/1979 → 12/1985	2.3 Super ENGINE CODE: YYN CC: 2293 kW: 84 HP: 114 YEAR OF MANUFACTURE: 06/1979 → 12/1985
2.6		2520	92	125	08/1970 → 04/1974	2.6 ENGINE CODE: CC: 2520 kW: 92 HP: 125 YEAR OF MANUFACTURE: 08/1970 → 04/1974

ENGINE CODE

YEAR OF MANUFACTURE

2.0

1985

02/1969 → 06/1971

2.0

1981

02/1969 → 04/1974

2.0

NYL

1999

04/1976 → 12/1977

2.0 (GECP)

1999

01/1978 → 12/1982

2.3

2274

107

02/1969 → 04/1974

2.3

2274

125

08/1969 → 04/1974

2.3

YYE

2293

107

01/1974 → 12/1977

2.3 Super

YYN

2293

114

06/1979 → 12/1985

2.6

2520

125

08/1970 → 04/1974

Consul | 72-76

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
1.7		1680	55	75	01/1972 → 02/1976		1.7 ENGINE CODE: CC: 1680 kW: 55 HP: 75 YEAR OF MANUFACTURE: 01/1972 → 02/1976
2.3		2296	79	107	01/1972 → 02/1976		2.3 ENGINE CODE: CC: 2296 kW: 79 HP: 107 YEAR OF MANUFACTURE: 01/1972 → 02/1976

ENGINE CODE

YEAR OF MANUFACTURE

1.7

1680

01/1972 → 02/1976

2.3

2296

107

01/1972 → 02/1976

Cortina | 70-82

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
2.3	V6	2293			08/1977 → 09/1982		2.3 ENGINE CODE: V6 CC: 2293 kW: HP: YEAR OF MANUFACTURE: 08/1977 → 09/1982

ENGINE CODE

YEAR OF MANUFACTURE

2.3

2293

08/1977 → 09/1982

Granada | 72-92

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
1.7	MY	1699	54	73	08/1977 → 06/1979	1.7 ENGINE CODE: MY CC: 1699 kW: 54 HP: 73 YEAR OF MANUFACTURE: 08/1977 → 06/1979
1.7	TV 17 H	1699	55	75	03/1972 → 02/1975	1.7 ENGINE CODE: TV 17 H CC: 1699 kW: 55 HP: 75 YEAR OF MANUFACTURE: 03/1972 → 02/1975
1.7 (GGTL/GGFL/GGNL)	MWB	1699	51	69	12/1974 → 08/1977	1.7 (GGTL/GGFL/GGNL) ENGINE CODE: MWB CC: 1699 kW: 51 HP: 69 YEAR OF MANUFACTURE: 12/1974 → 08/1977
1.7 (GNU)		1699	54	74	08/1977 → 12/1982	1.7 (GNU) ENGINE CODE: CC: 1699 kW: 54 HP: 74 YEAR OF MANUFACTURE: 08/1977 → 12/1982
2.0	NYP	1998	66	90	08/1977 → 08/1985	2.0 ENGINE CODE: NYP CC: 1998 kW: 66 HP: 90 YEAR OF MANUFACTURE: 08/1977 → 08/1985
2.0	NY	1998	66	90	01/1975 → 08/1977	2.0 ENGINE CODE: NY CC: 1998 kW: 66 HP: 90 YEAR OF MANUFACTURE: 01/1975 → 08/1977
2.3	YYH	2294	79	107	01/1975 → 06/1979	2.3 ENGINE CODE: YYH CC: 2294 kW: 79 HP: 107 YEAR OF MANUFACTURE: 01/1975 → 06/1979
2.3	YYP	2294	84	114	06/1979 → 08/1985	2.3 ENGINE CODE: YYP CC: 2294 kW: 84 HP: 114 YEAR OF MANUFACTURE: 06/1979 → 08/1985
2.3	YYU	2294	82	112	06/1981 → 08/1985	2.3 ENGINE CODE: YYU CC: 2294 kW: 82 HP: 112 YEAR OF MANUFACTURE: 06/1981 → 08/1985
2.3		2274	79	107	01/1972 → 02/1976	2.3 ENGINE CODE: CC: 2274 kW: 79 HP: 107 YEAR OF MANUFACTURE: 01/1972 → 02/1976

ENGINE CODE

YEAR OF MANUFACTURE

1.7

1699

08/1977 → 06/1979

1.7

TV 17 H

1699

03/1972 → 02/1975

1.7 (GGTL/GGFL/GGNL)

MWB

1699

12/1974 → 08/1977

1.7 (GNU)

1699

08/1977 → 12/1982

2.0

NYP

1998

08/1977 → 08/1985

2.0

1998

01/1975 → 08/1977

2.3

YYH

2294

107

01/1975 → 06/1979

2.3

YYP

2294

114

06/1979 → 08/1985

2.3

YYU

2294

112

06/1981 → 08/1985

2.3

2274

107

01/1972 → 02/1976

Sierra I (Sapphire) | 82-86

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
2.0	NYT	1999	66	90	08/1982 → 10/1984		2.0 ENGINE CODE: NYT CC: 1999 kW: 66 HP: 90 YEAR OF MANUFACTURE: 08/1982 → 10/1984
2.3	YYT	2294	84	114	08/1982 → 12/1986		2.3 ENGINE CODE: YYT CC: 2294 kW: 84 HP: 114 YEAR OF MANUFACTURE: 08/1982 → 12/1986

ENGINE CODE

YEAR OF MANUFACTURE

2.0

NYT

1999

08/1982 → 10/1984

2.3

YYT

2294

114

08/1982 → 12/1986

Taunus 15M | 54-71

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
1.7 XL/RS		1688	55	75	07/1968 → 06/1971		1.7 XL/RS ENGINE CODE: CC: 1688 kW: 55 HP: 75 YEAR OF MANUFACTURE: 07/1968 → 06/1971

ENGINE CODE

YEAR OF MANUFACTURE

1.7 XL/RS

1688

07/1968 → 06/1971

Taunus 17M | 57-74

	CC	kW	HP	YEAR OF MANUFACTURE
1.7	1688	48	65	09/1964 → 10/1968	1.7 ENGINE CODE: CC: 1688 kW: 48 HP: 65 YEAR OF MANUFACTURE: 09/1964 → 10/1968
1.8	1797	60	82	12/1967 → 04/1974	1.8 ENGINE CODE: CC: 1797 kW: 60 HP: 82 YEAR OF MANUFACTURE: 12/1967 → 04/1974
2.0	1985	63	86	12/1967 → 04/1974	2.0 ENGINE CODE: CC: 1985 kW: 63 HP: 86 YEAR OF MANUFACTURE: 12/1967 → 04/1974
2.0	1985	66	90	12/1967 → 04/1974	2.0 ENGINE CODE: CC: 1985 kW: 66 HP: 90 YEAR OF MANUFACTURE: 12/1967 → 04/1974

ENGINE CODE

YEAR OF MANUFACTURE

1.7

1688

09/1964 → 10/1968

1.8

1797

12/1967 → 04/1974

2.0

1985

12/1967 → 04/1974

2.0

1985

12/1967 → 04/1974

Taunus 20M | 64-74

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
2.0		1985	63	86	11/1964 → 10/1968		2.0 ENGINE CODE: CC: 1985 kW: 63 HP: 86 YEAR OF MANUFACTURE: 11/1964 → 10/1968
2.3		2274	79	107	07/1967 → 04/1974		2.3 ENGINE CODE: CC: 2274 kW: 79 HP: 107 YEAR OF MANUFACTURE: 07/1967 → 04/1974

ENGINE CODE

YEAR OF MANUFACTURE

2.0

1985

11/1964 → 10/1968

2.3

2274

107

07/1967 → 04/1974

Taunus 26M | 69-74

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
2.6 XL		2520	92	125	10/1969 → 04/1974		2.6 XL ENGINE CODE: CC: 2520 kW: 92 HP: 125 YEAR OF MANUFACTURE: 10/1969 → 04/1974

ENGINE CODE

YEAR OF MANUFACTURE

2.6 XL

2520

125

10/1969 → 04/1974

Taunus | 51-82

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
2.0	NYR	1999	66	90	05/1975 → 05/1979		2.0 ENGINE CODE: NYR CC: 1999 kW: 66 HP: 90 YEAR OF MANUFACTURE: 05/1975 → 05/1979
2.0	NWR	1999	66	90	07/1979 → 07/1982		2.0 ENGINE CODE: NWR CC: 1999 kW: 66 HP: 90 YEAR OF MANUFACTURE: 07/1979 → 07/1982
2.3	YYF	2294	79	107	05/1975 → 05/1979	i 01/1976 ->	2.3 ENGINE CODE: YYF CC: 2294 kW: 79 HP: 107 YEAR OF MANUFACTURE: 05/1975 → 05/1979
2.3	YYR	2294	84	114	07/1979 → 07/1982		2.3 ENGINE CODE: YYR CC: 2294 kW: 84 HP: 114 YEAR OF MANUFACTURE: 07/1979 → 07/1982

ENGINE CODE

YEAR OF MANUFACTURE

2.0

NYR

1999

05/1975 → 05/1979

2.0

NWR

1999

07/1979 → 07/1982

2.3

YYF

2294

107

05/1975 → 05/1979

2.3

YYR

2294

114

07/1979 → 07/1982

CATERPILLAR

3I0990

FOMOCO

11-448231
85TF 9600 CA
85TF 9600 DA

FORD

0448 231
11448 231
11464 231
5004 880
5008 725
71 HF 9601 FA

GENERAL MOTORS (GM)

9974283

IPS

45017
45103

JOHN DEERE

TY15368

KUBOTA

70000-16880
7000014680

SEARS

45268
45479
DT8
T8
TPA-8

Date of last data update: 2025-05-29 Print Report now
