SVHC declaration according to the regulation EC 1907/2006 concerning the Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH).

Produkt: PE 817/6 - FILTRON

MANN+HUMMEL is well aware of REACH and meet all legal obligations under this regulation.

MANN+HUMMEL has established internal processes to ensure implementation and compliance with the REACH Regulation. Especially, we continuously work on the assessment of presence of SVHC (Substances of Very High Concern).

We may inform you that according to present level of information and best knowledge, this product does not contain any SVHC listed on the Candidate List in concentration above 0,1% (w/w).

Last update: 2024-09-19

Back

FUEL FILTERS

PE 817/6

EAN CODE: 5904608078179

REACH information

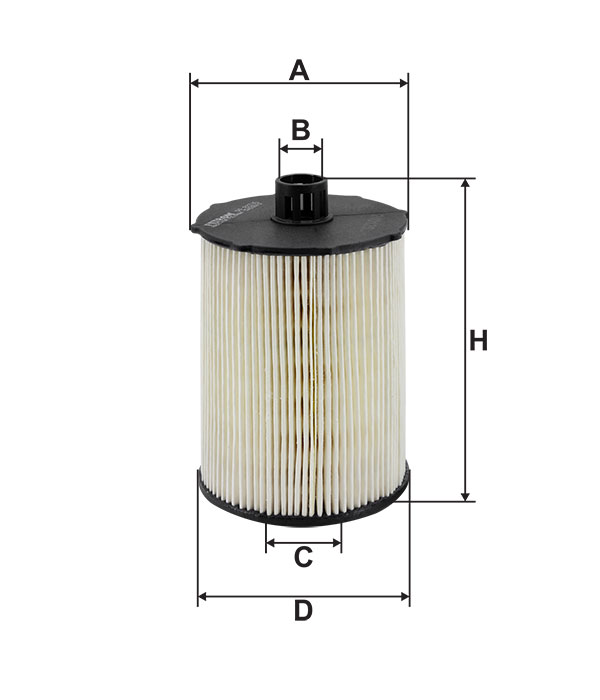

DIMENSIONS (mm):

11.5

20.5

123

APPLICATION
SUBSTITUTES

CITROEN

Jumpy III (Dispatch III) K0 | 16-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
1.5 BlueHDi 100 (K0)	DV5RUCD	1499	75	102	06/2018 →	i Emission standard Euro 6d	1.5 BlueHDi 100 (K0) ENGINE CODE: DV5RUCD CC: 1499 kW: 75 HP: 102 YEAR OF MANUFACTURE: 06/2018 → i Emission standard Euro 6d
1.5 BlueHDi 120 (K0)	DV5RUC	1499	88	120	06/2018 →	i Emission standard Euro 6d	1.5 BlueHDi 120 (K0) ENGINE CODE: DV5RUC CC: 1499 kW: 88 HP: 120 YEAR OF MANUFACTURE: 06/2018 → i Emission standard Euro 6d
2.0 BlueHDi 145 (K0)	DW10FDDU	1997	106	144	08/2021 →		2.0 BlueHDi 145 (K0) ENGINE CODE: DW10FDDU CC: 1997 kW: 106 HP: 144 YEAR OF MANUFACTURE: 08/2021 →

ENGINE CODE

YEAR OF MANUFACTURE

1.5 BlueHDi 100 (K0)

DV5RUCD

1499

102

06/2018 →

1.5 BlueHDi 120 (K0)

DV5RUC

1499

120

06/2018 →

2.0 BlueHDi 145 (K0)

DW10FDDU

1997

106

144

08/2021 →

Spacetourer | 16-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
2.0 BlueHDi 145	DW10FDDU	1997	106	144	09/2020 →		2.0 BlueHDi 145 ENGINE CODE: DW10FDDU CC: 1997 kW: 106 HP: 144 YEAR OF MANUFACTURE: 09/2020 →

ENGINE CODE

YEAR OF MANUFACTURE

2.0 BlueHDi 145

DW10FDDU

1997

106

144

09/2020 →

FIAT

Scudo III (506, 507) | 22-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
1.5 Multijet 100 (506)	DV5RUCD	1499	75	102	01/2022 →	i Emission standard Euro 6d	1.5 Multijet 100 (506) ENGINE CODE: DV5RUCD CC: 1499 kW: 75 HP: 102 YEAR OF MANUFACTURE: 01/2022 → i Emission standard Euro 6d
1.5 Multijet 120 (506)	DV5RUC	1499	88	120	01/2022 →	i Emission standard Euro 6d	1.5 Multijet 120 (506) ENGINE CODE: DV5RUC CC: 1499 kW: 88 HP: 120 YEAR OF MANUFACTURE: 01/2022 → i Emission standard Euro 6d
2.0 Multijet 145 (506)	DW10FDDU	1997	106	144	01/2022 →		2.0 Multijet 145 (506) ENGINE CODE: DW10FDDU CC: 1997 kW: 106 HP: 144 YEAR OF MANUFACTURE: 01/2022 →
2.0 Multijet 180 (506)	DW10FDCU	1997	130	177	01/2022 →		2.0 Multijet 180 (506) ENGINE CODE: DW10FDCU CC: 1997 kW: 130 HP: 177 YEAR OF MANUFACTURE: 01/2022 →

ENGINE CODE

YEAR OF MANUFACTURE

1.5 Multijet 100 (506)

DV5RUCD

1499

102

01/2022 →

1.5 Multijet 120 (506)

DV5RUC

1499

120

01/2022 →

2.0 Multijet 145 (506)

DW10FDDU

1997

106

144

01/2022 →

2.0 Multijet 180 (506)

DW10FDCU

1997

130

177

01/2022 →

Ulysse III (367) | 22-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
2.0 Multijet 180 (367)	DW10FDCU	1997	130	177	01/2022 →		2.0 Multijet 180 (367) ENGINE CODE: DW10FDCU CC: 1997 kW: 130 HP: 177 YEAR OF MANUFACTURE: 01/2022 →

ENGINE CODE

YEAR OF MANUFACTURE

2.0 Multijet 180 (367)

DW10FDCU

1997

130

177

01/2022 →

OPEL

Vivaro C (K0) | 19-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
1.5 (K0)	D 15 DT (DV5RUCD)	1499	75	102	03/2019 →	i Emission standard Euro 6d	1.5 (K0) ENGINE CODE: D 15 DT (DV5RUCD) CC: 1499 kW: 75 HP: 102 YEAR OF MANUFACTURE: 03/2019 → i Emission standard Euro 6d
1.5 (K0)	D 15 DTH (DV5RUC)	1499	88	120	03/2019 →	i Emission standard Euro 6d	1.5 (K0) ENGINE CODE: D 15 DTH (DV5RUC) CC: 1499 kW: 88 HP: 120 YEAR OF MANUFACTURE: 03/2019 → i Emission standard Euro 6d
2.0 (K0)	D 20 DTR (DW10FDCU)	1997	130	177	03/2019 →		2.0 (K0) ENGINE CODE: D 20 DTR (DW10FDCU) CC: 1997 kW: 130 HP: 177 YEAR OF MANUFACTURE: 03/2019 →
2.0 (K0)	DW10FDDU	1997	106	144	09/2020 →		2.0 (K0) ENGINE CODE: DW10FDDU CC: 1997 kW: 106 HP: 144 YEAR OF MANUFACTURE: 09/2020 →

ENGINE CODE

YEAR OF MANUFACTURE

1.5 (K0)

D 15 DT (DV5RUCD)

1499

102

03/2019 →

1.5 (K0)

D 15 DTH (DV5RUC)

1499

120

03/2019 →

2.0 (K0)

D 20 DTR (DW10FDCU)

1997

130

177

03/2019 →

2.0 (K0)

DW10FDDU

1997

106

144

09/2020 →

Zafira Life (K0) | 19-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
1.5 (K0)	D 15 DT (DV5RUCD)	1499	75	102	03/2019 →	i Emission standard Euro 6d	1.5 (K0) ENGINE CODE: D 15 DT (DV5RUCD) CC: 1499 kW: 75 HP: 102 YEAR OF MANUFACTURE: 03/2019 → i Emission standard Euro 6d
1.5 (K0)	D 15 DTH (DV5RUC)	1499	88	120	03/2019 →	i Emission standard Euro 6d	1.5 (K0) ENGINE CODE: D 15 DTH (DV5RUC) CC: 1499 kW: 88 HP: 120 YEAR OF MANUFACTURE: 03/2019 → i Emission standard Euro 6d
2.0 (K0)	D 20 DTR (DW10FDCU)	1997	130	177	03/2019 →		2.0 (K0) ENGINE CODE: D 20 DTR (DW10FDCU) CC: 1997 kW: 130 HP: 177 YEAR OF MANUFACTURE: 03/2019 →
2.0 (K0)	DW10FDDU	1997	106	144	09/2020 →		2.0 (K0) ENGINE CODE: DW10FDDU CC: 1997 kW: 106 HP: 144 YEAR OF MANUFACTURE: 09/2020 →

ENGINE CODE

YEAR OF MANUFACTURE

1.5 (K0)

D 15 DT (DV5RUCD)

1499

102

03/2019 →

1.5 (K0)

D 15 DTH (DV5RUC)

1499

120

03/2019 →

2.0 (K0)

D 20 DTR (DW10FDCU)

1997

130

177

03/2019 →

2.0 (K0)

DW10FDDU

1997

106

144

09/2020 →

PEUGEOT

Expert III (K0) | 16-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
1.5 BlueHDi 100 (K0)	DV5RUCD	1499	75	102	06/2018 →	i Emission standard Euro 6d	1.5 BlueHDi 100 (K0) ENGINE CODE: DV5RUCD CC: 1499 kW: 75 HP: 102 YEAR OF MANUFACTURE: 06/2018 → i Emission standard Euro 6d
1.5 BlueHDi 120 (K0)	DV5RUC	1499	88	120	06/2018 →	i Emission standard Euro 6d	1.5 BlueHDi 120 (K0) ENGINE CODE: DV5RUC CC: 1499 kW: 88 HP: 120 YEAR OF MANUFACTURE: 06/2018 → i Emission standard Euro 6d
2.0 BlueHDi 145 (K0)	DW10FDDU	1997	106	144	07/2021 →		2.0 BlueHDi 145 (K0) ENGINE CODE: DW10FDDU CC: 1997 kW: 106 HP: 144 YEAR OF MANUFACTURE: 07/2021 →
2.0 BlueHDi 180 (K0)	DW10FC, DW10FDCU	1997	130	177	04/2016 →	i Emission standard Euro 6.3. Emission standard Euro 6.4	2.0 BlueHDi 180 (K0) ENGINE CODE: DW10FC, DW10FDCU CC: 1997 kW: 130 HP: 177 YEAR OF MANUFACTURE: 04/2016 → i Emission standard Euro 6.3. Emission standard Euro 6.4

ENGINE CODE

YEAR OF MANUFACTURE

1.5 BlueHDi 100 (K0)

DV5RUCD

1499

102

06/2018 →

1.5 BlueHDi 120 (K0)

DV5RUC

1499

120

06/2018 →

2.0 BlueHDi 145 (K0)

DW10FDDU

1997

106

144

07/2021 →

2.0 BlueHDi 180 (K0)

DW10FC, DW10FDCU

1997

130

177

04/2016 →

Traveller | 16-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
2.0 BlueHDi 145	DW10FDDU	1997	106	144	09/2020 →		2.0 BlueHDi 145 ENGINE CODE: DW10FDDU CC: 1997 kW: 106 HP: 144 YEAR OF MANUFACTURE: 09/2020 →

ENGINE CODE

YEAR OF MANUFACTURE

2.0 BlueHDi 145

DW10FDDU

1997

106

144

09/2020 →

TOYOTA

Proace II / Proace City / Proace Verso | 16-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
1.5 D-4D	5WZ-HV (DV5RUC)	1499	88	120	08/2018 →	i Emission standard Euro 6d	1.5 D-4D ENGINE CODE: 5WZ-HV (DV5RUC) CC: 1499 kW: 88 HP: 120 YEAR OF MANUFACTURE: 08/2018 → i Emission standard Euro 6d
1.5 D-4D	5WZ-TV (DV5RUCd)	1499	75	102	06/2018 →	i Emission standard Euro 6d	1.5 D-4D ENGINE CODE: 5WZ-TV (DV5RUCd) CC: 1499 kW: 75 HP: 102 YEAR OF MANUFACTURE: 06/2018 → i Emission standard Euro 6d
2.0 D4d	4WZ-FTV ((DW10...)	1997	106	144	08/2021 →		2.0 D4d ENGINE CODE: 4WZ-FTV ((DW10...) CC: 1997 kW: 106 HP: 144 YEAR OF MANUFACTURE: 08/2021 →

ENGINE CODE

YEAR OF MANUFACTURE

1.5 D-4D

5WZ-HV (DV5RUC)

1499

120

08/2018 →

1.5 D-4D

5WZ-TV (DV5RUCd)

1499

102

06/2018 →

2.0 D4d

4WZ-FTV ((DW10...)

1997

106

144

08/2021 →

VAUXHALL

Vivaro Life (K0) | 19-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
2.0 (K0)	D 20 DTR (DW10FDCU)	1997	130	177	03/2019 →		2.0 (K0) ENGINE CODE: D 20 DTR (DW10FDCU) CC: 1997 kW: 130 HP: 177 YEAR OF MANUFACTURE: 03/2019 →
2.0 (K0)	DW10FDDU	1997	106	144	09/2020 →		2.0 (K0) ENGINE CODE: DW10FDDU CC: 1997 kW: 106 HP: 144 YEAR OF MANUFACTURE: 09/2020 →

ENGINE CODE

YEAR OF MANUFACTURE

2.0 (K0)

D 20 DTR (DW10FDCU)

1997

130

177

03/2019 →

2.0 (K0)

DW10FDDU

1997

106

144

09/2020 →

VAUXHALL-BEDFORD (LCV)

Vivaro C (K0) | 19-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
1.5 (K0)	D 15 DT (DV5RUCD)	1499	75	102	03/2019 →	i Emission standard Euro 6d	1.5 (K0) ENGINE CODE: D 15 DT (DV5RUCD) CC: 1499 kW: 75 HP: 102 YEAR OF MANUFACTURE: 03/2019 → i Emission standard Euro 6d
1.5 (K0)	D 15 DTH (DV5RUC)	1499	88	120	03/2019 →	i Emission standard Euro 6d	1.5 (K0) ENGINE CODE: D 15 DTH (DV5RUC) CC: 1499 kW: 88 HP: 120 YEAR OF MANUFACTURE: 03/2019 → i Emission standard Euro 6d
2.0 (K0)	D 20 DTR (DW10FDCU)	1997	130	177	03/2019 →		2.0 (K0) ENGINE CODE: D 20 DTR (DW10FDCU) CC: 1997 kW: 130 HP: 177 YEAR OF MANUFACTURE: 03/2019 →
2.0 (K0)	DW10FDDU	1997	106	144	09/2020 →		2.0 (K0) ENGINE CODE: DW10FDDU CC: 1997 kW: 106 HP: 144 YEAR OF MANUFACTURE: 09/2020 →

ENGINE CODE

YEAR OF MANUFACTURE

1.5 (K0)

D 15 DT (DV5RUCD)

1499

102

03/2019 →

1.5 (K0)

D 15 DTH (DV5RUC)

1499

120

03/2019 →

2.0 (K0)

D 20 DTR (DW10FDCU)

1997

130

177

03/2019 →

2.0 (K0)

DW10FDDU

1997

106

144

09/2020 →

CITROEN

16 742 134 80
98 301 301 80

OPEL

1674213480
9830130180

PEUGEOT

16 742 134 80
98 301 301 80

TOYOTA

SU001-B3209

VAUXHALL

1674213480
9830130180

Date of last data update: 2025-05-29 Print Report now
