REACH-Information

SVHC declaration according to the regulation EC 1907/2006 concerning the Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH).

Produkt: PE 983 - FILTRON

MANN+HUMMEL is well aware of REACH and meet all legal obligations under this regulation.

MANN+HUMMEL has established internal processes to ensure implementation and compliance with the REACH Regulation. Especially, we continuously work on the assessment of presence of SVHC (Substances of Very High Concern).

We may inform you that according to present level of information and best knowledge, this product does not contain any SVHC listed on the Candidate List in concentration above 0,1% (w/w).

Last update: 2024-09-19

Back

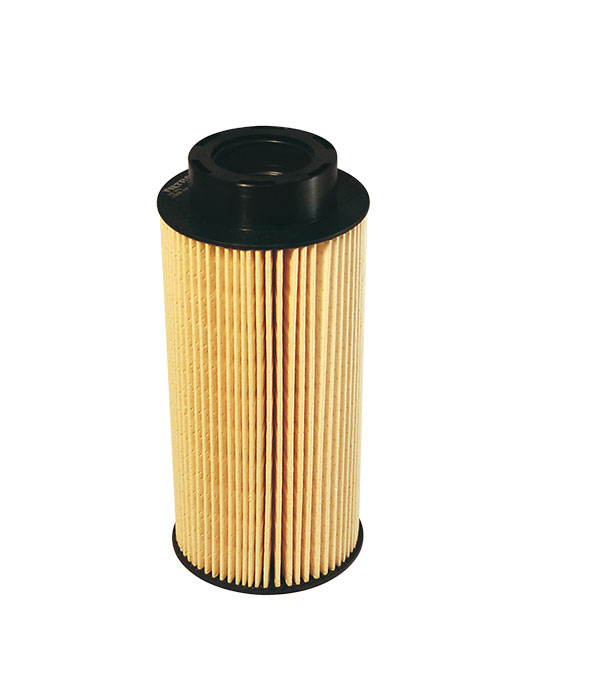

FUEL FILTERS

PE 983

EAN CODE: 5904608009838

REACH information

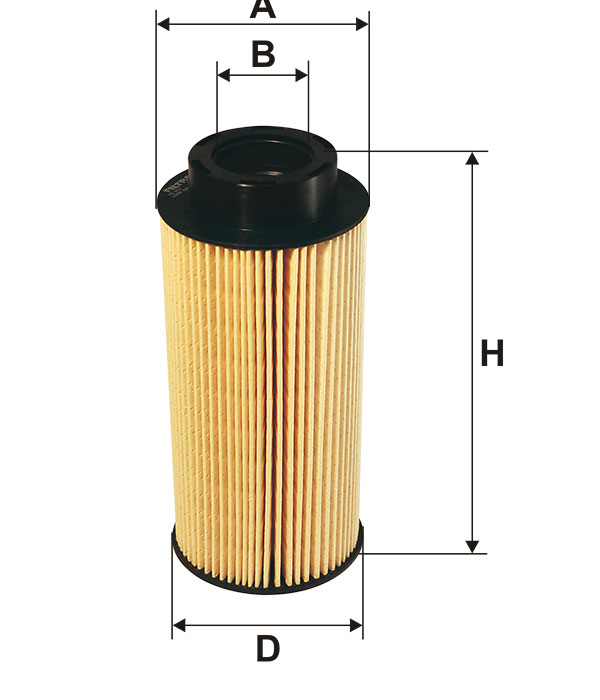

DIMENSIONS (mm):

183

APPLICATION
SUBSTITUTES

SCANIA

4 (94-164) | 95-08

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
R 164 V8 (164-480)	DC 16.02	15600	353	480	06/2000 → 10/2004	R 164 V8 (164-480) ENGINE CODE: DC 16.02 CC: 15600 kW: 353 HP: 480 YEAR OF MANUFACTURE: 06/2000 → 10/2004
R 164 V8 (164-580)	DC 16.01	15600	426	580	06/2000 → 10/2004	R 164 V8 (164-580) ENGINE CODE: DC 16.01 CC: 15600 kW: 426 HP: 580 YEAR OF MANUFACTURE: 06/2000 → 10/2004
T 164 V8 (164-480)	DC 16.02	15600	353	480	06/2000 → 10/2004	T 164 V8 (164-480) ENGINE CODE: DC 16.02 CC: 15600 kW: 353 HP: 480 YEAR OF MANUFACTURE: 06/2000 → 10/2004
T 164 V8 (164-580)	DC 16.01	15600	426	580	06/2000 → 10/2004	T 164 V8 (164-580) ENGINE CODE: DC 16.01 CC: 15600 kW: 426 HP: 580 YEAR OF MANUFACTURE: 06/2000 → 10/2004

ENGINE CODE

YEAR OF MANUFACTURE

R 164 V8 (164-480)

DC 16.02

15600

353

480

06/2000 → 10/2004

R 164 V8 (164-580)

DC 16.01

15600

426

580

06/2000 → 10/2004

T 164 V8 (164-480)

DC 16.02

15600

353

480

06/2000 → 10/2004

T 164 V8 (164-580)

DC 16.01

15600

426

580

06/2000 → 10/2004

G (G230 - G490) | 04-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
G 270 Ethanol	DC 9E 02	8867	199	271	05/2008 → 05/2019		G 270 Ethanol ENGINE CODE: DC 9E 02 CC: 8867 kW: 199 HP: 271 YEAR OF MANUFACTURE: 05/2008 → 05/2019

ENGINE CODE

YEAR OF MANUFACTURE

G 270 Ethanol

DC 9E 02

8867

199

271

05/2008 → 05/2019

P (P230 - P620) | 03-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
P 270 Ethanol	DC 9E 02	8867	199	271	05/2008 → 05/2019		P 270 Ethanol ENGINE CODE: DC 9E 02 CC: 8867 kW: 199 HP: 271 YEAR OF MANUFACTURE: 05/2008 → 05/2019
P 310	DC9 11/18/110-310 E 3/4/5	9300	228	310	09/2004 → 05/2019	i Filter element. Injection system PDE. Emission standard Euro 4/5	P 310 ENGINE CODE: DC9 11/18/110-310 E 3/4/5 CC: 9300 kW: 228 HP: 310 YEAR OF MANUFACTURE: 09/2004 → 05/2019 i Filter element. Injection system PDE. Emission standard Euro 4/5
P 500	DC16 04/06/09/19/22	15600	368	500	04/2004 → 05/2019		P 500 ENGINE CODE: DC16 04/06/09/19/22 CC: 15600 kW: 368 HP: 500 YEAR OF MANUFACTURE: 04/2004 → 05/2019
P 560	DC16 05/18-560	15600	412	560	06/2004 → 05/2019		P 560 ENGINE CODE: DC16 05/18-560 CC: 15600 kW: 412 HP: 560 YEAR OF MANUFACTURE: 06/2004 → 05/2019
P 580	DC16 03-580 E3	15600	426	580	06/2004 → 05/2019		P 580 ENGINE CODE: DC16 03-580 E3 CC: 15600 kW: 426 HP: 580 YEAR OF MANUFACTURE: 06/2004 → 05/2019
P 620	DC16 08-620 E4, DC16 17-620 E5	15600	456	620	08/2006 → 05/2019		P 620 ENGINE CODE: DC16 08-620 E4, DC16 17-620 E5 CC: 15600 kW: 456 HP: 620 YEAR OF MANUFACTURE: 08/2006 → 05/2019

ENGINE CODE

YEAR OF MANUFACTURE

P 270 Ethanol

DC 9E 02

8867

199

271

05/2008 → 05/2019

P 310

DC9 11/18/110-310 E 3/4/5

9300

228

310

09/2004 → 05/2019

P 500

DC16 04/06/09/19/22

15600

368

500

04/2004 → 05/2019

P 560

DC16 05/18-560

15600

412

560

06/2004 → 05/2019

P 580

DC16 03-580 E3

15600

426

580

06/2004 → 05/2019

P 620

DC16 08-620 E4, DC16 17-620 E5

15600

456

620

08/2006 → 05/2019

R (R230 - R730) | 04-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
R 230	DC9 13/16/19	9000	169	230	06/2004 → 05/2019	i Engine code DC9 16, DC9 19	R 230 ENGINE CODE: DC9 13/16/19 CC: 9000 kW: 169 HP: 230 YEAR OF MANUFACTURE: 06/2004 → 05/2019 i Engine code DC9 16, DC9 19
R 270	DC9 12/DC9 20 E3	9000	198	270	06/2004 → 05/2019	i Engine code DC9 20	R 270 ENGINE CODE: DC9 12/DC9 20 E3 CC: 9000 kW: 198 HP: 270 YEAR OF MANUFACTURE: 06/2004 → 05/2019 i Engine code DC9 20
R 270 Ethanol	DC 9E 02	8867	199	271	05/2008 → 05/2019		R 270 Ethanol ENGINE CODE: DC 9E 02 CC: 8867 kW: 199 HP: 271 YEAR OF MANUFACTURE: 05/2008 → 05/2019
R 310	DC9 11/21/18-310 E4	8900	228	310	04/2004 → 05/2019	i Injection system PDE. Filter element. Emission standard Euro 4	R 310 ENGINE CODE: DC9 11/21/18-310 E4 CC: 8900 kW: 228 HP: 310 YEAR OF MANUFACTURE: 04/2004 → 05/2019 i Injection system PDE. Filter element. Emission standard Euro 4
R 500	DC16 04/06/09/19/22	15600	368	500	03/2004 → 05/2019		R 500 ENGINE CODE: DC16 04/06/09/19/22 CC: 15600 kW: 368 HP: 500 YEAR OF MANUFACTURE: 03/2004 → 05/2019
R 560	DC16 05/18-560	15600	412	560	06/2004 → 05/2019		R 560 ENGINE CODE: DC16 05/18-560 CC: 15600 kW: 412 HP: 560 YEAR OF MANUFACTURE: 06/2004 → 05/2019
R 580	DC16 03-580 E3	15600	426	580	06/2004 → 05/2019		R 580 ENGINE CODE: DC16 03-580 E3 CC: 15600 kW: 426 HP: 580 YEAR OF MANUFACTURE: 06/2004 → 05/2019
R 620	DC16 08-620 E4, DC16 17-620 E5	15600	456	620	05/2006 → 05/2019		R 620 ENGINE CODE: DC16 08-620 E4, DC16 17-620 E5 CC: 15600 kW: 456 HP: 620 YEAR OF MANUFACTURE: 05/2006 → 05/2019

ENGINE CODE

YEAR OF MANUFACTURE

R 230

DC9 13/16/19

9000

169

230

06/2004 → 05/2019

R 270

DC9 12/DC9 20 E3

9000

198

270

06/2004 → 05/2019

R 270 Ethanol

DC 9E 02

8867

199

271

05/2008 → 05/2019

R 310

DC9 11/21/18-310 E4

8900

228

310

04/2004 → 05/2019

R 500

DC16 04/06/09/19/22

15600

368

500

03/2004 → 05/2019

R 560

DC16 05/18-560

15600

412

560

06/2004 → 05/2019

R 580

DC16 03-580 E3

15600

426

580

06/2004 → 05/2019

R 620

DC16 08-620 E4, DC16 17-620 E5

15600

456

620

05/2006 → 05/2019

T (T230 - T580) | 04-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
T 230	DC 9 13/DC 9 16	9000	169	230	06/2004 → 05/2019	i Engine code DC9 16	T 230 ENGINE CODE: DC 9 13/DC 9 16 CC: 9000 kW: 169 HP: 230 YEAR OF MANUFACTURE: 06/2004 → 05/2019 i Engine code DC9 16
T 270	DC9 12/DC9 20 E3	9000	198	270	06/2004 →	i Engine code DC9 20	T 270 ENGINE CODE: DC9 12/DC9 20 E3 CC: 9000 kW: 198 HP: 270 YEAR OF MANUFACTURE: 06/2004 → i Engine code DC9 20
T 270 Ethanol	DC 9E 02	8867	199	271	05/2008 → 05/2019		T 270 Ethanol ENGINE CODE: DC 9E 02 CC: 8867 kW: 199 HP: 271 YEAR OF MANUFACTURE: 05/2008 → 05/2019
T 310	DC9 11/18	8900	228	310	04/2004 → 05/2019	i Injection system . Filter element. Emission standard	T 310 ENGINE CODE: DC9 11/18 CC: 8900 kW: 228 HP: 310 YEAR OF MANUFACTURE: 04/2004 → 05/2019 i Injection system . Filter element. Emission standard
T 500	DC16 04	15600	368	500	09/2004 → 05/2019		T 500 ENGINE CODE: DC16 04 CC: 15600 kW: 368 HP: 500 YEAR OF MANUFACTURE: 09/2004 → 05/2019
T 580	DC16 03-580 Euro3	15600	426	580	09/2004 → 05/2019		T 580 ENGINE CODE: DC16 03-580 Euro3 CC: 15600 kW: 426 HP: 580 YEAR OF MANUFACTURE: 09/2004 → 05/2019

ENGINE CODE

YEAR OF MANUFACTURE

T 230

DC 9 13/DC 9 16

9000

169

230

06/2004 → 05/2019

T 270

DC9 12/DC9 20 E3

9000

198

270

06/2004 →

T 270 Ethanol

DC 9E 02

8867

199

271

05/2008 → 05/2019

T 310

DC9 11/18

8900

228

310

04/2004 → 05/2019

T 500

DC16 04

15600

368

500

09/2004 → 05/2019

T 580

DC16 03-580 Euro3

15600

426

580

09/2004 → 05/2019

SCANIA BUS / SCANIA-IRIZAR

K94/114/124 | 97-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
K 94 EB/IB/UB	DC9 16 230 (Euro 4)	8900	169	230	11/2005 →	i For ethanol operation	K 94 EB/IB/UB ENGINE CODE: DC9 16 230 (Euro 4) CC: 8900 kW: 169 HP: 230 YEAR OF MANUFACTURE: 11/2005 → i For ethanol operation
K 94 EB/IB/UB	DC9 18 310 (Euro 4)	8900	228	310	11/2005 →	i For ethanol operation	K 94 EB/IB/UB ENGINE CODE: DC9 18 310 (Euro 4) CC: 8900 kW: 228 HP: 310 YEAR OF MANUFACTURE: 11/2005 → i For ethanol operation
K 94 EB/IB/UB	DC9 17 270 (Euro 4)	8900	198	270	11/2005 →	i For ethanol operation	K 94 EB/IB/UB ENGINE CODE: DC9 17 270 (Euro 4) CC: 8900 kW: 198 HP: 270 YEAR OF MANUFACTURE: 11/2005 → i For ethanol operation

ENGINE CODE

YEAR OF MANUFACTURE

K 94 EB/IB/UB

DC9 16 230 (Euro 4)

8900

169

230

11/2005 →

K 94 EB/IB/UB

DC9 18 310 (Euro 4)

8900

228

310

11/2005 →

K 94 EB/IB/UB

DC9 17 270 (Euro 4)

8900

198

270

11/2005 →

JCB (J.C. BAMFORD)

G (Generatoren / Generators)

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
G 550	Scania DC16						G 550 ENGINE CODE: Scania DC16 CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

G 550

Scania DC16

SCANIA ENGINES

DI-Series | 99-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
DI16M (V8)					01/2002 →		DI16M (V8) ENGINE CODE: CC: kW: HP: YEAR OF MANUFACTURE: 01/2002 →

ENGINE CODE

YEAR OF MANUFACTURE

DI16M (V8)

01/2002 →

TEREX

TDS-Serie (Shredder)

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
TDS 820	Scania DC13 071A		331	450			TDS 820 ENGINE CODE: Scania DC13 071A CC: kW: 331 HP: 450

ENGINE CODE

YEAR OF MANUFACTURE

TDS 820

Scania DC13 071A

331

450

CASE CONSTRUCTION

87696188

CASE-INTERNATIONAL/CASE-IH

87696188

DOOSAN

400504-00119
400504-00157
MX 516406

J.C.BAMFORD

SC1117285
SC1873018

KNORR-BREMSE

K117896N50

RENAULT TRUCKS (OKELIA)

50 21 185 605

SCANIA

142 9059
144 6432
187 3018

TEREX

1550 4895
4752 0212

Date of last data update: 2025-05-29 Print Report now
