REACH-Information

SVHC declaration according to the regulation EC 1907/2006 concerning the Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH).

Produkt: PM 802 - FILTRON

MANN+HUMMEL is well aware of REACH and meet all legal obligations under this regulation.

MANN+HUMMEL has established internal processes to ensure implementation and compliance with the REACH Regulation. Especially, we continuously work on the assessment of presence of SVHC (Substances of Very High Concern).

We may inform you that according to present level of information and best knowledge, this product does not contain any SVHC listed on the Candidate List in concentration above 0,1% (w/w).

Last update: 2024-09-19

Back

FUEL FILTERS

PM 802

EAN CODE: 5904608008022

REACH information

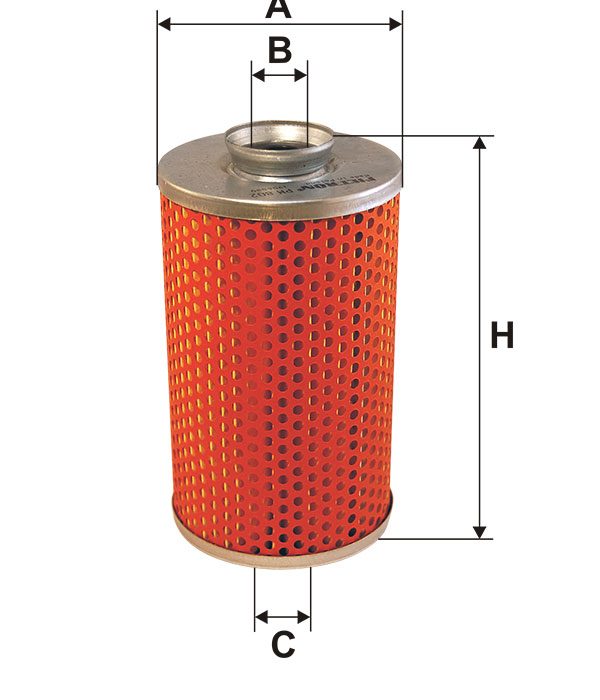

DIMENSIONS (mm):

13.5

152

MARCH 2019 Note: change in filter design

Removing the protective paper does not affect the filter's functionality.

The change is planned for the following numbers:
OM 500/1, OM 516/1, PM 801, OM 500, OM 516/2, PM 802, OM 501, OM 516, PM 803, OM 502, OM 522/1, PM 804A, OM 503, OM 523/1, PM 805, OM 504A, OM 524, PM 806, OM 504, OM 529, PM 807, OM 505, OM 585H, PM 808, OM 506, OM 590, PM 810/1, OM 507, OM 591/1, PM 810, OM 508, OC 601, PM 811, OM 509, OC 601/1, PM 812, OM 510, OC 602, PM 813/1, OM 511, OM 610, PM 815, OM 512/3, OM 614, PM 816, OM 513/1-2x, OM 659/2, PM 818, OM 513/2, OM 659, PM 819/1, OM 513, OM 661H, PM 948/1, OM 515/1, PM 800/2, PM 948, OM 515, PM 800

APPLICATION
SUBSTITUTES

IVECO BUS

C 734 (Karosa) | 93-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
C 734.1340	Liaz	11940	112	152	08/1993 →		C 734.1340 ENGINE CODE: Liaz CC: 11940 kW: 112 HP: 152 YEAR OF MANUFACTURE: 08/1993 →

ENGINE CODE

YEAR OF MANUFACTURE

C 734.1340

Liaz

11940

112

152

08/1993 →

LC (Karosa-Irisbus) | 91-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
LC 735	Liaz	11940	139	189	01/1991 → 12/1991	LC 735 ENGINE CODE: Liaz CC: 11940 kW: 139 HP: 189 YEAR OF MANUFACTURE: 01/1991 → 12/1991
LC 735.1031	Liaz	11940	139	189	03/1993 →	LC 735.1031 ENGINE CODE: Liaz CC: 11940 kW: 139 HP: 189 YEAR OF MANUFACTURE: 03/1993 →
LC 736	Liaz	11940	139	189	01/1991 → 12/1991	LC 736 ENGINE CODE: Liaz CC: 11940 kW: 139 HP: 189 YEAR OF MANUFACTURE: 01/1991 → 12/1991
LC 736.1022	Liaz	11940	139	189	12/1991 →	LC 736.1022 ENGINE CODE: Liaz CC: 11940 kW: 139 HP: 189 YEAR OF MANUFACTURE: 12/1991 →
LC 736.1024	Liaz	11940	139	189	12/1991 →	LC 736.1024 ENGINE CODE: Liaz CC: 11940 kW: 139 HP: 189 YEAR OF MANUFACTURE: 12/1991 →
LC 736.1030	Liaz	11940	139	189	06/1992 →	LC 736.1030 ENGINE CODE: Liaz CC: 11940 kW: 139 HP: 189 YEAR OF MANUFACTURE: 06/1992 →

ENGINE CODE

YEAR OF MANUFACTURE

LC 735

Liaz

11940

139

189

01/1991 → 12/1991

LC 735.1031

Liaz

11940

139

189

03/1993 →

LC 736

Liaz

11940

139

189

01/1991 → 12/1991

LC 736.1022

Liaz

11940

139

189

12/1991 →

LC 736.1024

Liaz

11940

139

189

12/1991 →

LC 736.1030

Liaz

11940

139

189

06/1992 →

LIAZ (CZ)

100-300 Serie | 87-03

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
100.55p		11900	257	350	03/1987 → 12/2003	i -> 05/1994	100.55p ENGINE CODE: CC: 11900 kW: 257 HP: 350 YEAR OF MANUFACTURE: 03/1987 → 12/2003
110	MS 636	11940	224	305	06/1991 → 12/2003	i -> 05/1994	110 ENGINE CODE: MS 636 CC: 11940 kW: 224 HP: 305 YEAR OF MANUFACTURE: 06/1991 → 12/2003
110	MS 640	11940	236	320	06/1991 → 12/2003	i -> 05/1994	110 ENGINE CODE: MS 640 CC: 11940 kW: 236 HP: 320 YEAR OF MANUFACTURE: 06/1991 → 12/2003
110	MS 640F	11940	243	330	06/1991 → 12/2003	i -> 05/1994	110 ENGINE CODE: MS 640F CC: 11940 kW: 243 HP: 330 YEAR OF MANUFACTURE: 06/1991 → 12/2003

ENGINE CODE

YEAR OF MANUFACTURE

100.55p

11900

257

350

03/1987 → 12/2003

110

MS 636

11940

224

305

06/1991 → 12/2003

110

MS 640

11940

236

320

06/1991 → 12/2003

110

MS 640F

11940

243

330

06/1991 → 12/2003

18t - 33,5t - Serie | 88-00

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
18.23 KB 05	M1.2CM636S	11940	170	230	01/1988 → 12/2000	i -> 05/1994	18.23 KB 05 ENGINE CODE: M1.2CM636S CC: 11940 kW: 170 HP: 230 YEAR OF MANUFACTURE: 01/1988 → 12/2000
19.38 TBV	M1.2CM640T	11940	280	380	01/1988 → 12/2000	i -> 05/1994	19.38 TBV ENGINE CODE: M1.2CM640T CC: 11940 kW: 280 HP: 380 YEAR OF MANUFACTURE: 01/1988 → 12/2000
34.33 SD/S3	M1.2CM640S	11940	243	330	01/1988 → 12/2000	i -> 05/1994	34.33 SD/S3 ENGINE CODE: M1.2CM640S CC: 11940 kW: 243 HP: 330 YEAR OF MANUFACTURE: 01/1988 → 12/2000

ENGINE CODE

YEAR OF MANUFACTURE

18.23 KB 05

M1.2CM636S

11940

170

230

01/1988 → 12/2000

19.38 TBV

M1.2CM640T

11940

280

380

01/1988 → 12/2000

34.33 SD/S3

M1.2CM640S

11940

243

330

01/1988 → 12/2000

RENAULT BUS (IRISBUS/RVI)

Recreo | 96-07

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
Recreo (C935)	MIHR 06.20.45	10000	188	256	09/1996 → 03/2007	i Filter element	Recreo (C935) ENGINE CODE: MIHR 06.20.45 CC: 10000 kW: 188 HP: 256 YEAR OF MANUFACTURE: 09/1996 → 03/2007 i Filter element

ENGINE CODE

YEAR OF MANUFACTURE

Recreo (C935)

MIHR 06.20.45

10000

188

256

09/1996 → 03/2007

Tracer | 92-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
Tracer	MIHR 06.20.45	9840	186	253	09/1992 →	i Filter element	Tracer ENGINE CODE: MIHR 06.20.45 CC: 9840 kW: 186 HP: 253 YEAR OF MANUFACTURE: 09/1992 → i Filter element

ENGINE CODE

YEAR OF MANUFACTURE

Tracer

MIHR 06.20.45

9840

186

253

09/1992 →

TATRA

JAMAL | 98-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
270 (T163)	T3B 928-40, T3C 928-81	12667	270	367	01/1998 →	270 (T163) ENGINE CODE: T3B 928-40, T3C 928-81 CC: 12667 kW: 270 HP: 367 YEAR OF MANUFACTURE: 01/1998 →
280 (T163)	T3D 928-20	12667	280	381	01/2006 →	280 (T163) ENGINE CODE: T3D 928-20 CC: 12667 kW: 280 HP: 381 YEAR OF MANUFACTURE: 01/2006 →
300 (T163)	T3B 928-70, T3C 928-90	12667	300	408	01/1998 →	300 (T163) ENGINE CODE: T3B 928-70, T3C 928-90 CC: 12667 kW: 300 HP: 408 YEAR OF MANUFACTURE: 01/1998 →
320 (T163)	T3D 928-30	12667	320	435	01/2006 →	320 (T163) ENGINE CODE: T3D 928-30 CC: 12667 kW: 320 HP: 435 YEAR OF MANUFACTURE: 01/2006 →
325 (T163)	T3D 928-30	12667	325	442	01/2008 →	325 (T163) ENGINE CODE: T3D 928-30 CC: 12667 kW: 325 HP: 442 YEAR OF MANUFACTURE: 01/2008 →

ENGINE CODE

YEAR OF MANUFACTURE

270 (T163)

T3B 928-40, T3C 928-81

12667

270

367

01/1998 →

280 (T163)

T3D 928-20

12667

280

381

01/2006 →

300 (T163)

T3B 928-70, T3C 928-90

12667

300

408

01/1998 →

320 (T163)

T3D 928-30

12667

320

435

01/2006 →

325 (T163)

T3D 928-30

12667

325

442

01/2008 →

T815 / T815-2 / T815-7 | 83-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
T 815-2	T3B 928-10/50	12667	230	313	01/1989 →	T 815-2 ENGINE CODE: T3B 928-10/50 CC: 12667 kW: 230 HP: 313 YEAR OF MANUFACTURE: 01/1989 →
T 815-2	T3B 928-40, T3C 928-81	12667	270	367	01/1989 →	T 815-2 ENGINE CODE: T3B 928-40, T3C 928-81 CC: 12667 kW: 270 HP: 367 YEAR OF MANUFACTURE: 01/1989 →
T 815-2	T3B 928-70, T3C 928-90	12667	300	408	01/1989 →	T 815-2 ENGINE CODE: T3B 928-70, T3C 928-90 CC: 12667 kW: 300 HP: 408 YEAR OF MANUFACTURE: 01/1989 →
T 815-2	T3D 928-20	12667	280	381	01/2006 →	T 815-2 ENGINE CODE: T3D 928-20 CC: 12667 kW: 280 HP: 381 YEAR OF MANUFACTURE: 01/2006 →
T 815-2	T3D 928-30	12667	320	435	01/2006 →	T 815-2 ENGINE CODE: T3D 928-30 CC: 12667 kW: 320 HP: 435 YEAR OF MANUFACTURE: 01/2006 →
T 815-2	T3D 928-30	12667	325	442	01/2008 →	T 815-2 ENGINE CODE: T3D 928-30 CC: 12667 kW: 325 HP: 442 YEAR OF MANUFACTURE: 01/2008 →
T 815-2	T3B 928-60	12667	255	347	01/1989 →	T 815-2 ENGINE CODE: T3B 928-60 CC: 12667 kW: 255 HP: 347 YEAR OF MANUFACTURE: 01/1989 →
T 815-7 (T815-732R90 50 325 8x8)	T3D 928-30	12667	325	442	01/2013 →	T 815-7 (T815-732R90 50 325 8x8) ENGINE CODE: T3D 928-30 CC: 12667 kW: 325 HP: 442 YEAR OF MANUFACTURE: 01/2013 →

ENGINE CODE

YEAR OF MANUFACTURE

T 815-2

T3B 928-10/50

12667

230

313

01/1989 →

T 815-2

T3B 928-40, T3C 928-81

12667

270

367

01/1989 →

T 815-2

T3B 928-70, T3C 928-90

12667

300

408

01/1989 →

T 815-2

T3D 928-20

12667

280

381

01/2006 →

T 815-2

T3D 928-30

12667

320

435

01/2006 →

T 815-2

T3D 928-30

12667

325

442

01/2008 →

T 815-2

T3B 928-60

12667

255

347

01/1989 →

T 815-7 (T815-732R90 50 325 8x8)

T3D 928-30

12667

325

442

01/2013 →

TERRNo1 | 97-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
270 (T815)	T3B 928-40, T3C 928-81	12667	270	367	01/1997 →	270 (T815) ENGINE CODE: T3B 928-40, T3C 928-81 CC: 12667 kW: 270 HP: 367 YEAR OF MANUFACTURE: 01/1997 →
280 (T815)	T3D 928-20	12667	280	381	01/2006 →	280 (T815) ENGINE CODE: T3D 928-20 CC: 12667 kW: 280 HP: 381 YEAR OF MANUFACTURE: 01/2006 →
300 (T815)	T3B 928-70, T3C 928-90	12667	300	408	01/1997 →	300 (T815) ENGINE CODE: T3B 928-70, T3C 928-90 CC: 12667 kW: 300 HP: 408 YEAR OF MANUFACTURE: 01/1997 →
320 (T815)	T3D 928-30	12667	320	435	01/2006 →	320 (T815) ENGINE CODE: T3D 928-30 CC: 12667 kW: 320 HP: 435 YEAR OF MANUFACTURE: 01/2006 →
325 (T815)	T3D 928-30	12667	325	442	01/2008 →	325 (T815) ENGINE CODE: T3D 928-30 CC: 12667 kW: 325 HP: 442 YEAR OF MANUFACTURE: 01/2008 →

ENGINE CODE

YEAR OF MANUFACTURE

270 (T815)

T3B 928-40, T3C 928-81

12667

270

367

01/1997 →

280 (T815)

T3D 928-20

12667

280

381

01/2006 →

300 (T815)

T3B 928-70, T3C 928-90

12667

300

408

01/1997 →

320 (T815)

T3D 928-30

12667

320

435

01/2006 →

325 (T815)

T3D 928-30

12667

325

442

01/2008 →

RENAULT TRUCKS (RVI)

50 01 835 304

Date of last data update: 2025-05-29 Print Report now
