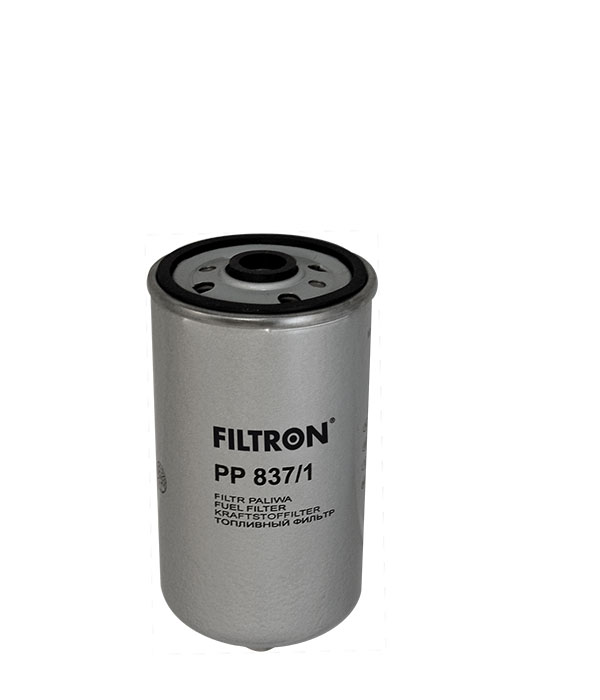

Produkt: PP 837/1 - FILTRON
MANN+HUMMEL is well aware of REACH and meet all legal obligations under this regulation.
MANN+HUMMEL has established internal processes to ensure implementation and compliance with the REACH Regulation. Especially, we continuously work on the assessment of presence of SVHC (Substances of Very High Concern).
We may inform you that according to present level of information and best knowledge, this product does not contain any SVHC listed on the Candidate List in concentration above 0,1% (w/w).
Last update: 2024-09-19
Back
REACH information

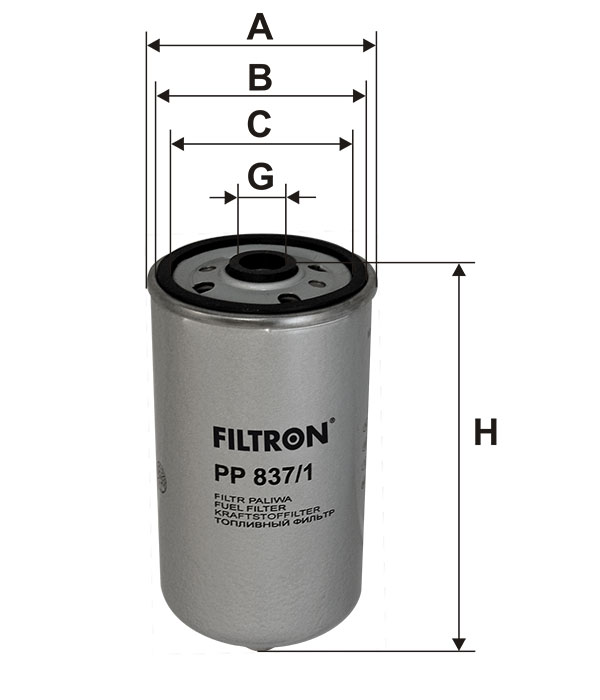

DIMENSIONS (mm):
A
79
B
71
C
62
G
M16x1.5
H
153
ASKAM
Fargo Hi-Ex Series | 03-
ENGINE CODE
CC
kW
HP
YEAR OF MANUFACTURE
AS 19.300
MAN D0836 LFL01
6871
215
292
09/2003 →
AS 26.300
MAN D0836 LFL01
6871
215
292
09/2003 →
AS 32.300
MAN D0836 LFL01
6871
215
292
09/2003 →
AYATS BUSES
BRAVO | 01-
ENGINE CODE
CC
kW
HP
YEAR OF MANUFACTURE
BRAVO (A34)
MAN D 2866 LUH20
11967
228
310
09/2001 →
BRAVO (A34)
MAN D 2866 LUH25
11967
265
360
09/2001 →
DROEGMOELLER (VOLVO BUS)
E-Serie | 80-01
ENGINE CODE
CC
kW
HP
YEAR OF MANUFACTURE
E 320 Europullman
MAN-D 2866 LXOH
11967
265
360
02/1989 → 05/2001
ERF (E.R.F.)
ECL-Serie | 00-
ENGINE CODE
CC
kW
HP
YEAR OF MANUFACTURE
7.28 RD3/TP3
MAN D0836
6871
205
280
09/2000 →
ECM-Serie | 00-
ENGINE CODE
CC
kW
HP
YEAR OF MANUFACTURE
7.28 RD2/RR3/RDRS3
MAN D0836
6871
205
280
09/2000 →
EVOBUS (MERCEDES-BENZ/SETRA)
Citaro K (O 530 / 628) | 06-
ENGINE CODE
CC
kW
HP
YEAR OF MANUFACTURE
K (628.483)
OM 906/926 LA Euro 4/5/EEV
6370
210
286
09/2006 →
Integro I (O 550 / 627) | 97-06
ENGINE CODE
CC
kW
HP
YEAR OF MANUFACTURE
O 550 Integro (627)
OM 447 hLA
01/1997 → 03/2006
Integro II (633) | 06-
ENGINE CODE
CC
kW
HP
YEAR OF MANUFACTURE
Integro, Integro M, Integro L (633.001/002/004)
OM 457 hLA Euro4/5/EEV
11967
220
299
03/2006 →
Integro, Integro M, Integro L (633.001/002/004)
OM 457 hLA Euro4/5/EEV
11967
260
353
03/2006 →
Integro, Integro M, Integro L (633.001/002/004)
OM 457 hLA Euro4/5/EEV
11967
300
408
03/2006 →
Integro, Integro M, Integro L (633.001/002/004)
OM 926 LA (OM 926.939)
7201
210
286
03/2006 →
Intouro I (O 560 / 613) | 00-07
ENGINE CODE
CC
kW
HP
YEAR OF MANUFACTURE
Intouro RH/RHD (613.364/365/367/368)
OM 441 LA
10964
250
340
02/2000 → 03/2007
Intouro II (633) | 07-
ENGINE CODE
CC
kW
HP
YEAR OF MANUFACTURE
Intouro, Intouro E, M, ME (633)
OM 926.939 Euro4/5/EEV
7200
210
285
03/2007 →
Intouro, Intouro E, M, ME (633)
OM 457 hLA E4/E5/EEV
11967
220
299
03/2007 →
Intouro, Intouro E, M, ME (633)
OM 457 hLA E4/E5/EEV
11967
260
353
03/2007 →
Intouro, Intouro E, M, ME (633)
OM 457 hLA E4/E5/EEV
11967
300
408
03/2007 →
Setra S 400 | 01-
ENGINE CODE
CC
kW
HP
YEAR OF MANUFACTURE
S 411 HD (Top Class / 629.410)
OM 501 LA
11950
260
354
09/2001 → 12/2007
S 411 HD (Top Class / 629.410/610)
OM 501LA (541.950/959)
11950
300
408
11/2007 →
S 412 HD (Multi Class / 633)
OM 457 hLA Euro5/EEV
11967
220
299
03/2010 →
S 412 UL (Multi Class / 633)
OM 457 hLA Euro4/5/EEV
11967
220
299
01/2005 →
S 412 UL (Multi Class / 633)
OM 457 hLA Euro4/5/EEV
12000
260
353
01/2005 →
S 412 UL (Multi Class / 633)
OM 457 hLA Euro4/5/EEV
12000
299
407
01/2005 →
S 412 UL (Multi Class / 633)
OM 936 LA Euro6
7700
260
353
10/2012 →
S 412 UL (Multi Class / 633)
OM 936 LA Euro6
7700
220
299
10/2012 →
S 415 GT (Comfort Class / 632.121)
OM 457 hLA Euro4/5/EEV
12000
220
299
10/2003 →
S 415 GT-HD (Comfort Class / 632.131)
OM 457 LA Euro4/5/EEV
12000
310
420
10/2003 →
S 415 GT-HD (Comfort Class / 632.131)
OM 457 LA Euro4/5/EEV
12000
260
353
10/2003 →
S 415 GT-HD (Comfort Class / 632.131)
OM 457 LA Euro 5/EEV
11967
335
455
04/2010 →
S 415 H (Multi Class / 633.121)
OM 457 hLA Euro5/EEV
11967
220
299
03/2010 →
S 415 H (Multi Class / 633.350)
OM 470 LA Euro 6
10677
265
360
09/2013 →
S 415 H (Multi Class / 633.350)
OM 470 LA Euro 6
10677
290
394
09/2013 →
S 415 HD (Top Class / 629.411)
OM 457 LA
12000
260
354
03/2001 → 12/2007
S 415 HD/HDH (Top Class / 629.411/421)
OM 502 LA
15930
350
477
09/2001 → 12/2007
S 415 HD/HDH (Top Class / 629.411/612/623)
OM 457LA (457.944)
11967
315
428
11/2007 →
S 415 HD/HDH (Top Class / 629.411/612/623)
OM 457LA (457.953)
11967
335
456
11/2007 →
S 415 HDH (Top Class / 629.421)
OM 457 LA
12000
310
422
03/2001 → 12/2007
S 415 HDH (Top Class / 629.421/623)
OM 502LA (542.948/966)
15928
370
503
11/2007 →
S 415 LE business (Multi Class / 633)
OM 936 LA Euro6
7700
220
299
05/2014 →
S 415 LE business (Multi Class / 633)
OM 936 LA Euro6
7700
260
353
05/2014 →
S 415 NF (MultiClass / 628.787/788)
OM 457 hLA Euro4/5/EEV
11967
220
299
09/2006 →
S 415 NF (MultiClass / 628.787/788)
OM 906 hLA Euro4/5/EEV
6374
210
286
09/2006 →
S 415 UL (Multi Class / 633)
OM 457 hLA Euro4/5/EEV
11967
220
299
01/2006 →
S 415 UL (Multi Class / 633)
OM 457 hLA Euro4/5/EEV
11967
260
353
01/2006 →
S 415 UL (Multi Class / 633)
OM 457 hLA Euro4/5/EEV
11967
299
407
01/2006 →
S 415 UL, UL business (Multi Class / 633)
OM 936 LA Euro6
7700
220
299
10/2012 →
S 415 UL, UL business (Multi Class / 633)
OM 936 LA Euro6
7700
260
353
10/2012 →
S 416 GT (Comfort Class / 632.125)
OM 457 hLA Euro4/5/EEV
12000
220
299
10/2003 →
S 416 GT (Comfort Class / 632.125)
OM 457 hLA Euro4/5/EEV
11967
260
354
10/2003 →
S 416 GT-HD (Comfort Class / 632.134)
OM 457 LA Euro4/5/EEV
11967
310
422
10/2003 →
S 416 GT-HD (Comfort Class / 632.134)
OM 457 LA Euro 5/EEV
11967
335
455
04/2010 →
S 416 GT-HD2 (Comfort Class / 632.139)
OM 457 LA Euro4/5/EEV
12000
315
428
10/2003 →
S 416 GT-HD2 (Comfort Class / 632.139)
OM 457 LA Euro 5/EEV
11967
335
455
04/2010 →
S 416 H (Multi Class / 633.122)
OM 457 hLA Euro5/EEV
11967
220
299
03/2010 →
S 416 H (Multi Class / 633.360)
OM 470 LA Euro 6
10677
265
360
09/2013 →
S 416 H (Multi Class / 633.360)
OM 470 LA Euro 6
10677
290
394
09/2013 →
S 416 HDH (Top Class / 629)
OM 502 LA
15930
320
435
10/2003 → 12/2007
S 416 HDH (Top Class / 629)
OM 502 LA
15930
350
476
10/2004 → 12/2007
S 416 HDH (Top Class / 629.425/625)
OM 502LA (542.948/966)
15930
370
503
11/2007 →
S 416 HDH (Top Class / 629.425/625)
OM 457LA (457.944)
11967
315
428
11/2007 →
S 416 HDH (Top Class / 629.425/625)
OM 457LA (457.953)
11967
335
456
11/2007 →
S 416 HDH (Top Class / 629.425/625)
OM 457LA (457.952)
11967
260
353
11/2007 →
S 416 LE business (Multi Class / 633)
OM 936 LA Euro6
7700
220
299
05/2014 →
S 416 LE business (Multi Class / 633)
OM 936 LA Euro6
7700
260
353
05/2014 →
S 416 NF (MultiClass / 628.787/788)
OM 906 hLA Euro4/5/EEV
6374
210
286
09/2006 →
S 416 NF (MultiClass / 628.887)
OM 457 hLA Euro4/5/EEV
11967
220
299
09/2006 →
S 416 UL (Multi Class / 633)
OM 457 hLA Euro4/5/EEV
11967
220
299
01/2006 →
S 416 UL (Multi Class / 633)
OM 457 hLA Euro4/5/EEV
11967
300
408
01/2006 →
S 416 UL, UL business (Multi Class / 633)
OM 936 LA Euro6
7700
260
353
10/2012 →
S 416 UL, UL business (Multi Class / 633)
OM 936 LA Euro6
7700
220
299
10/2012 →
S 417 GT-HD (Comfort Class / 632.133)
OM 457 LA Euro4/5/EEV
12000
315
428
10/2003 →
S 417 GT-HD (Comfort Class / 632.133)
OM 457 LA Euro 5/EEV
11967
335
455
04/2010 →
S 417 HDH (Top Class / 629)
OM 502 LA
15930
320
435
03/2001 → 12/2007
S 417 HDH (Top Class / 629)
OM 502 LA
15930
350
477
09/2001 → 12/2007
S 417 HDH (Top Class / 629.422/627)
OM 457LA (457.944)
11967
315
428
11/2007 →
S 417 HDH (Top Class / 629.422/627)
OM 502LA (542.948/966)
15930
370
503
11/2007 →
S 417 HDH (Top Class / 629.422/627)
OM 457LA (457.953)
11967
335
456
11/2007 →
S 417 UL (Multi Class / 633)
OM 457 hLA Euro4/5/EEV
11967
220
299
01/2006 →
S 417 UL (Multi Class / 633)
OM 457 hLA Euro4/5/EEV
11967
260
353
01/2006 →
S 417 UL (Multi Class / 633)
OM 457 hLA Euro4/5/EEV
11967
300
408
01/2006 →
S 417 UL (Multi Class / 633.330)
OM 470 LA Euro 6
10677
265
360
09/2013 →
S 417 UL (Multi Class / 633.330)
OM 470 LA Euro 6
10677
290
394
09/2013 →
S 417 UL (Multi Class / 633.340)
OM 470 LA Euro 6
10677
265
360
09/2013 →
S 417 UL, UL business (Multi Class / 633)
OM 936 LA Euro6
7700
260
353
01/2014 →
S 417 UL, UL business (Multi Class / 633)
OM 936 LA Euro6
7700
220
299
01/2014 →
S 418 LE business (Multi Class / 633.396)
OM 470 LA Euro 6
10677
265
360
09/2016 →
S 418 LE business (Multi Class / 633.396)
OM 470 LA Euro 6
10677
290
394
09/2016 →
S 419 GT-HD (Comfort Class 632.138)
OM 502 LA Euro5/EEV
15928
350
476
09/2008 →
S 419 UL (Multi Class / 633)
OM 457 hLA Euro4/5/EEV
11967
300
408
01/2006 →
S 419 UL (Multi Class / 633)
OM 457 hLA Euro4/5/EEV
11967
260
353
01/2006 →
S 419 UL (Multi Class / 633)
OM 457 hLA Euro4/5/EEV
11967
220
299
01/2006 →
S 419 UL (Multi Class / 633.340)
OM 470 LA Euro 6
10677
290
394
09/2013 →
S 419 UL (Multi Class / 633.340)
OM 470 LA Euro 6
10677
265
360
09/2013 →
S 431 DT (Top Class / 410)
OM 502 LA
15930
350
475
06/2002 →
S 431 DT (Top Class / 410)
OM 502 LA
15930
320
435
06/2002 →
S 431 DT (Top Class / 410)
OM 502 LA
15930
370
503
06/2002 →
S 431 DT (Top Class / 410)
OM 471 LA
12809
375
510
03/2014 →
Setra S 500 | 12-
ENGINE CODE
CC
kW
HP
YEAR OF MANUFACTURE
S 511 HD ComfortClass (410.200)
OM 470 LA
10677
290
394
09/2014 →
S 515 HD ComfortClass (410.210)
OM 470 LA (470.906)
10677
335
455
08/2016 →
S 515 HD ComfortClass (410.210)
OM 470 LA
10677
315
428
09/2012 →
S 515 HDH TopClass (410.120)
OM 471 LA
12809
350
476
09/2013 →
S 515 HDH TopClass (410.120)
OM 471 LA
12809
375
510
09/2013 →
S 515 MD ComfortClass (410.270)
OM 470 LA
10677
290
394
09/2014 →
S 515 MD ComfortClass (410.270)
OM 470 LA
10677
265
360
09/2014 →
S 515 MD ComfortClass (410.270)
OM 936 LA
7698
260
353
09/2014 →
S 516 HD ComfortClass (410)
OM 471 LA
12809
350
476
08/2016 →
S 516 HD ComfortClass (410.210)
OM 470 LA (470.906)
10677
335
455
08/2016 →
S 516 HD ComfortClass (410.210)
OM 470 LA
10677
315
428
09/2012 →
S 516 HD/HD2/HD3 ComfortClass (410.230/240)
OM 470 LA
10677
315
428
09/2012 →
S 516 HDH TopClass (410.130)
OM 471 LA
12809
350
476
09/2013 →
S 516 HDH TopClass (410.130)
OM 471 LA
12809
375
510
09/2013 →
S 516 MD ComfortClass (410.280)
OM 936 LA
7698
260
353
09/2014 →
S 516 MD ComfortClass (410.280)
OM 470 LA
10677
290
394
09/2014 →
S 516 MD ComfortClass (410.280)
OM 470 LA
10677
265
360
09/2014 →
S 517 HD ComfortClass (410)
OM 471 LA
12809
350
476
08/2016 →
S 517 HD ComfortClass (410.250)
OM 470 LA (470.906)
10677
335
455
08/2016 →
S 517 HD ComfortClass (410.250)
OM 470 LA
10677
315
428
09/2012 →
S 517 HDH TopClass (410.140)
OM 471 LA
12809
350
476
09/2013 →
S 517 HDH TopClass (410.140)
OM 471 LA
12809
375
510
09/2013 →
S 519 HD ComfortClass (410)
OM 471 LA
12809
350
476
08/2016 →
S 519 HD ComfortClass (410.250)
OM 470 LA
10677
315
428
09/2014 →
S 531 DT (410)
OM 471 LA
12809
376
510
07/2016 →
Setra S/SG 200 | 73-
ENGINE CODE
CC
kW
HP
YEAR OF MANUFACTURE
S 215 NR Setra
MB-OM 447 hA
11967
184
250
07/1992 → 09/1996
S 215 SL Setra
MB-OM 447 h.II
11967
177
240
09/1985 → 09/1994
S 215 SL, UL Setra
MB-OM 427 h
11967
213
290
09/1985 → 09/1995
S 215 SL, UL Setra
MB-OM 427 hA
11967
213
290
09/1985 → 09/1995
S 250 Spezial
MAN 2866 LOH 22
12000
272
370
07/1994 → 09/1997
Setra S/SG 300 | 89-
ENGINE CODE
CC
kW
HP
YEAR OF MANUFACTURE
S 300 N, NC (Multi Class)
MAN D 2866 OH
11967
177
240
01/1989 →
S 313 UL (Multi Class)
MB-OM 447 hLA
11967
220
300
03/1995 → 02/2002
S 313 UL (Multi Class)
MAN D2866 LUH
228
311
04/1995 → 09/1998
S 313 UL (Multi Class)
MAN D2866 LUH
257
350
04/1995 → 09/1998
S 313 UL (Multi Class)
MB OM 447 hLA
257
350
04/1995 →
S 315 GT-HD (Comfort Class)
MAN D2866 LOH
294
401
01/1992 →
S 315 H (Top Class)
MB OM 441 LA
280
382
01/1990 →
S 315 H (Top Class)
MB-OM 441 LA
10964
213
290
03/1995 →
S 315 HD, HDH (Top Class)
MB-OM 441 LA
10964
250
340
09/1991 →
S 315 HD, HDH (Top Class)
MB-OM 442
14618
280
381
09/1991 → 02/2002
S 315 HD, HDH (Top Class)
MB-OM 442 A
14618
280
381
09/1991 →
S 315 HD, HDH (Top Class)
Scania-DS 11.22
14618
280
381
09/1991 →
S 315 NF (Multi Class)
MB-OM 447 hLA
11967
184
250
03/1996 →
S 315 NF (Multi Class)
MB OM 447 hLA
257
350
04/1996 →
S 315 NF (Multi Class)
MB OM 447 hLA
220
300
05/1996 →
S 315 UL (Multi Class)
MB-OM 447 hLA
11967
184
250
03/1995 →
S 315 UL (Multi Class)
MB OM 447 hLA
220
300
04/1995 →
S 315 UL (Multi Class)
MAN D2866 LUH
228
311
04/1995 →
S 315 UL (Multi Class)
MAN D 2866 LUH
257
350
04/1995 →
S 315 UL (Multi Class)
MB OM 447 hLA
257
350
04/1995 →
S 317 GT-HD (Comfort Class)
MB OM 442 LA
14618
280
381
09/1999 →
S 317 GT-HD (Comfort Class)
MB OM 442 LA
14618
320
435
07/2000 →
S 317 HD-H3 (Top Class)
MB OM 502 LA
349
476
07/2000 →
S 319 GT-HD (Comfort Class)
MB OM 442 A
280
382
09/1998 →
S 319 GT-HD (Comfort Class)
MB OM 442 LA
320
436
09/1998 →
S 319 NF (Multi Class)
MB OM 447 hLA
184
251
04/1996 →
S 319 NF (Multi Class)
MB OM 447 hLA
220
300
04/1996 →
S 319 NF (Multi Class)
MB OM 447 hLA
257
350
04/1996 →
S 319 UL (Multi Class)
MB OM 447 hLA
184
251
04/1995 →
S 319 UL (Multi Class)
MB OM 447 hLA
220
300
04/1995 →
S 319 UL (Multi Class)
MAN D 2866 LUH
228
311
04/1995 →
S 319 UL (Multi Class)
MB OM 447 hLA
257
350
04/1995 →
S 319 UL (Multi Class)
MAN D 2866 LUH
257
350
04/1995 →
SG 321 UL (Multi Class)
MB-OM 447 hLA
11967
184
250
03/1995 → 09/2001
SG 321 UL (Multi Class)
MB OM 447 hLA
220
300
03/1995 → 09/2001
SG 321 UL (Multi Class)
MAN D 2866
228
311
03/1995 → 09/2001
SG 321 UL (Multi Class)
MB OM 447 hLA
257
350
03/1995 → 09/2001
SG 321 UL (Multi Class)
MAN D 2866 LUH
257
350
03/1995 → 09/2001
Tourino (O 510 / 444) | 03-
ENGINE CODE
CC
kW
HP
YEAR OF MANUFACTURE
Tourino (444)
OM 906 LA
6370
180
245
10/2003 →
Tourino (444)
OM 906 LA
6370
205
280
10/2003 →
Tourino (444.303)
OM 926.939 Euro4/5/EEV
7200
210
285
03/2007 →
Tourismo II (632) | 06-
ENGINE CODE
CC
kW
HP
YEAR OF MANUFACTURE
10M Tourismo K (632.460)
OM 936 LA Euro 6
7700
260
354
09/2013 →
12.1 (632)
OM 457 hLA Euro 4/5/EEV
11967
260
354
09/2006 →
M/2 13 (632)
OM 457 hLA Euro 4/5/EEV
11967
300
408
09/2006 →
M13 / L14 (632)
OM 457 LA Euro 4/5/EEV
12000
315
428
09/2006 →
RH, RH M, RHD, RHD M/M2, RHD L (632)
OM 470 LA Euro 6
10700
265
360
07/2013 →
RH, RH M, RHD, RHD M/M2, RHD L (632)
OM 470 LA Euro 6
10700
290
394
07/2013 →
RH, RH M, RHD, RHD M/M2, RHD L (632)
OM 470 LA Euro 6
10700
315
428
07/2013 →
RH, RH M, RHD, RHD M/M2, RHD L (632)
OM 470 LA Euro 6
10700
335
455
07/2013 →
Travego (O 580 / 629 + 632) | 99-
ENGINE CODE
CC
kW
HP
YEAR OF MANUFACTURE
12, 13 M, 14 L (632.400/430/450)
OM 471 LA Euro 6
12796
350
476
02/2012 →
12, 13 M, 14 L (632.400/430/450)
OM 470 LA Euro 6
10677
315
428
02/2012 →
15 RH/RHD (629)
OM 457 LA
12000
260
354
11/1999 → 12/2006
15 RH/RHD (629)
OM 457 LA
12000
300
408
11/1999 → 12/2006
15 RH/RHD (629)
OM 457 LA
11967
220
299
11/1999 → 12/2006
15 RHD (629)
OM 457 LA
12000
310
420
11/1999 → 12/2006
15 RHD, 16 RHD, 17 RHD (632.005-012)
OM 457 LA Euro 4/5/EEV
11967
315
428
09/2006 →
15 RHD, 16 RHD, 17 RHD (632.007, 632.247)
OM 457 LA Euro 4/5/EEV
11967
260
354
01/2006 →
16 RHD, 17 RHD (632.005-012)
OM 502 LA Euro 4/5/EEV
15930
350
476
09/2006 →
17 RHD (629)
OM 502 LA
15930
300
408
11/1999 → 12/2006
17 RHD (629)
OM 502 LA
15930
350
476
11/1999 → 12/2006
17 RHD (629)
OM 502 LA
15930
320
436
11/1999 → 11/2006
IKARUS
400-Serie | 84-
ENGINE CODE
CC
kW
HP
YEAR OF MANUFACTURE
411
MAN D 0826
198
270
01/1994 →
MAN BUS (NEOMAN)
Alé | 00-
ENGINE CODE
CC
kW
HP
YEAR OF MANUFACTURE
Alé Minibus
D 0834 LOH 01
4580
125
170
09/2000 →
F/FR/FRH (85-94) | 85-94
ENGINE CODE
CC
kW
HP
YEAR OF MANUFACTURE
362 (882)
D 2866 KUH/360
11967
265
360
05/1985 → 12/1994
HOCL/FOCL (Bus-Chassis) | 79-
ENGINE CODE
CC
kW
HP
YEAR OF MANUFACTURE
10.190 HOCL (469)
D 0826 LOH
6596
137
186
08/1987 → 04/2004
10.220 FOC/FOCL (L52/L53)
D 0826 LFL03
6871
162
220
02/1995 →
10.230 HOCL (469)
D 0826 LOH
6271
169
230
08/1991 → 06/2001
11.150 HOCL (469)
D 0826 OH02
6871
110
150
08/1987 → 04/2004
11.190 HOCL (469)
D 0826 LOH02
6871
140
190
08/1987 → 04/2004
11.220 HOCL (469)
D 0826 LOH/LUH
6200
162
221
10/1995 →
11.230 HOCL (469)
D 0826 LOH
6271
169
230
04/1993 → 06/2001
13.210 HOCL (A53)
D 0826 LUH
6871
157
213
07/1994 → 10/1997
13.220 HOCL (A53)
D 0826 LOH/LUH
6871
162
221
10/1995 →
13.230 HOCL (A53)
D 0826 LUH
6871
169
230
07/1994 → 10/1997
14.280 HOCL
D 0836 LOH02
6200
206
280
09/2001 →
16.310 HOCL (754)
D2866 LOH
11967
230
313
05/1991 → 01/1999
16.310 HOCL (A92)
D 2866 LOH
11967
230
313
05/2003 → 10/2006
16.360 HOCL (470,475)
D 2866 LOH
11967
265
360
01/1985 → 09/1996
16.370 HOCL, 16.372 HOCL (470,475)
D 2866 LOH07
11967
272
370
01/1995 →
16.420 HOCL (475, 754)
D2866 LOH
11967
309
420
04/1989 → 01/1999
16.420 HOCL (A82)
D 2866 LOH
11967
309
420
06/2002 → 10/2006
18.220 HOCL (A60)
D 0826 LOH/LUH
6871
162
221
08/1993 → 05/2001
18.255 FOC (A63)
D 0826 LFL
6871
188
256
01/1997 → 10/2001
18.260 FOC (A63)
D 0826 LFL
6871
191
260
01/1997 → 10/2001
18.260 HOCL (A82, A92)
D 2866 LOH
11967
191
260
06/2002 → 08/2009
18.310 HOCL (A51)
D 2866 LOH24/25/27
11967
228
310
01/1992 →
18.310 HOCL (A69)
D 2866 LUH 28
11967
228
310
05/2005 → 10/2006
18.310 HOCL (A82, A92)
D 2866 LOH
11967
228
310
06/2002 → 04/2013
18.320 HOCL (A51)
D 2865 LOH02
9973
235
320
02/1994 → 02/1995
18.350 HOCL (A82, A92)
D 2866 LOH
11967
257
349
06/2002 → 10/2006
18.360 HOCL (A82, A92)
D 2866 LOH
11967
265
360
06/2002 → 04/2013
18.360 HOCL (R33)
D 2866 LOH
11967
265
360
05/2004 → 10/2006
18.370 HOCL (A51)
D 2866 LOH07
11970
274
373
04/1993 →
18.400 HOCL (A82)
D 2866 LOH
11967
294
400
06/2002 → 08/2009
18.410 HOCL (A82)
D 2866 LOH
11967
301
409
06/2002 → 08/2009
18.410 HOCL (R33)
D 2866 LOH / D 2876 LOH
11967
301
409
05/2004 → 10/2006
18.420 HOCL (A51)
D 2866 LOH06
11970
309
420
04/1993 →
18.460 HOCL (A51)
D 2876 LOH
11967
338
460
09/2000 →
22.220 HOCL (474)
D 0836 LOH
6871
162
220
05/2000 → 08/2006
22.245 HOCL (474)
D 0836 LOH
6871
180
245
05/2004 → 08/2006
22.280 HOCL (474)
D 0836 LOH
6871
206
280
05/2000 → 08/2006
22.310 HOCL (474, A54, A59)
D 2866 LOH
11967
228
310
07/2000 → 08/2006
22.350 HOCL (474, A56, A59)
D 2866 LOH
11967
257
349
05/1995 → 10/2001
22.360 HOCL (474)
D 2866 KFZ/KH/KOH
11970
265
360
05/1986 → 10/1992
22.360 HOCLN (472, 474, A54, A59)
D 2866 LOH
11970
274
373
06/1986 → 08/2006
22.370 HOCLN (474)
D 2866 LOH07
11970
274
373
04/1993 →
22.400 HOCL (474, A54, A56, A59)
D 2866 LOH
11967
294
400
05/1999 → 08/2006
22.420 HOCL (474, A56, A59)
D 2866 LOH
11967
309
420
05/1991 → 10/1997
24.260 HOCL (A54, A56, A59)
D 2866 LOH
11967
191
260
06/1995 → 10/2006
24.310 HOCL (A54, A56, A59)
D 2866 LOH
11967
228
310
06/1995 → 10/2006
24.370 HOCL (A54, A56, A59)
D 2866 LOH
11967
272
370
06/1995 → 10/2006
24.410 HOCL (A54, A56, A59)
D 2866 LOH
11967
301
409
07/2000 → 09/2006
24.460 HOCLN (474, A54)
D 2876 LOH
11967
338
460
09/2000 →
28.310 HGOCL (A61)
D 2866 LOH/LUH
228
310
09/1999 →
8.170 FOC (563)
D 0226 MCFO/170
6871
128
174
09/1985 → 09/1989
8.170 FOC (L05)
D 0826
6871
128
174
10/1992 → 10/1993
8.190 FOC (563)
D 0226 MKF
5687
141
192
05/1983 → 06/1988
9.170 FOC (563)
D 0226 MCFO/170
6871
125
170
09/1985 → 09/1989
9.190 FOC (563)
D 0226 MKF
5687
141
192
05/1983 → 06/1988
Lion's City / City C / L / LL (NL-Series) | 89-
ENGINE CODE
CC
kW
HP
YEAR OF MANUFACTURE
NL 223 (A21)
D 0836 LOH
176
240
05/2004 →
NL 223 (A21)
D 0836 LOH
191
260
05/2007 →
NL 243 (A37)
D 0836 LOH
176
240
09/2002 →
NL 263 (A37)
D 0836 LOH 63 EEV
6871
191
260
09/2008 →
NL 263 (A47)
D 0836 LOH EEV
6871
191
260
09/2006 →
NL 283 (A21)
D 0836 LUH40
206
280
09/2002 →
NL 283 (A37)
D 0836 LOH40
206
280
09/2002 →
Lion's City / City M (NM-Series) | 87-
ENGINE CODE
CC
kW
HP
YEAR OF MANUFACTURE
NM 152 (A05)
D 0824 LOH01
4580
114
155
04/1992 →
NM 152 Midi (469)
D 0826 OH02
6871
112
152
05/1990 → 10/1993
NM 182 Midi (469)
D 0826 LOH
6870
138
188
05/1990 →
NM 192 Midi (469)
D 0826 LOH
6871
140
190
10/1993 →
NM 223 (469)
D 0826 LOH15
6871
162
221
08/1987 →
NM 223 Midi (A66/A76)
D 0836 LOH
6871
162
220
09/2000 →
NM 224 Lions Midi (A35)
D 0836 LOH
6871
162
220
03/2001 →
NM 243 (A47)
D 0836 LOH52
6871
177
240
11/2005 →
NM 253 (A35/A66)
D 0836 LOH61 EEV/Euro 6
6871
184
250
10/2009 →
NM 263 (A35/A47)
D 0836 LOH 62/63 EEV
6871
191
260
10/2006 →
NM 283 (A47)
D 0836 LOH 40/51
6871
206
280
11/2005 →
NM 283 Midi (A76)
D 0836 LOH
6871
206
280
09/2000 →
NM 284 Lions Midi (A35)
D 0836 LOH
6871
206
280
03/2001 →
NM 293 (A35/A60)
D 0836 LOH60 EEV/Euro 6
6871
213
290
10/2009 →
Lion's City DD (ND-Series) | 93-
ENGINE CODE
CC
kW
HP
YEAR OF MANUFACTURE
ND 232 (A14)
D0826 LUH
6871
169
230
04/1993 → 06/2000
ND 252 (A14)
D0826 LUH
6871
184
250
04/1993 → 06/2000
ND 272 (A14)
D0826 LUH
6871
198
269
04/1993 → 06/2000
ND 313 (A39)
D 2866 LUH24/51
11967
228
310
09/2004 → 02/2014
Lion's City G / GL / GLX (NG-Series) | 90-
ENGINE CODE
CC
kW
HP
YEAR OF MANUFACTURE
NG 262 (A11, A24)
D 2866 LUH
11967
191
260
07/1998 →
NG 262 (A19)
D 2865 LUH
9973
191
260
09/1994 → 05/1999
NG 272 (896, A11)
D 0826 LUH
6871
198
270
06/1990 → 09/1999
NG 272 (A19)
D 2865 LUH
9973
198
269
09/1994 → 10/1997
NG 312 (A11, A19)
D 2865 LUH07
9973
228
310
09/1995 →
NG 322 (A19)
D 2865 LUH
9973
235
320
09/1994 → 10/1997
NG 363 (A23)
D 2866 LUH25
265
361
02/2001 →
Lion's City LE/LEÜ/T/TÜ (EL/EM-Series) | 87-
ENGINE CODE
CC
kW
HP
YEAR OF MANUFACTURE
EL 202, EL 202F (A12)
D 0826 LUH
6871
11/1992 →
EL 222 F (A12)
D 0826 LUH12
162
221
05/1997 →
EL 223 (A78)
D 0836 LOH
162
220
09/2004 →
EL 252 (A12, A17)
D 0826 LUH 06
6871
184
250
10/1993 → 10/1997
EL 262, 262 F (A12)
D 0826 LUH13
191
260
01/1996 →
EL 263 EEV (A78)
D 0836 LOH63
6871
191
260
09/2007 →
EL 272 (A17)
D0826 LUH 10
6871
198
269
09/1994 → 10/1997
EL 283 (A78)
D 0836 LOH40
206
280
09/2004 →
EL 293 (A78)
D 0836 LOH 60 EEV / Euro 6
6871
213
290
09/2008 →
EM 192 Europa-Midi (469)
D 0826 LOH06
6871
140
190
10/1993 → 09/1997
EM 222 (469)
D 0826 LUH12
162
221
02/1996 →
EM 223 (469, A53)
D 0826 LOH15
162
221
08/1987 →
Lion's City UE / Lions City UELL (NUE-Series) | 98
ENGINE CODE
CC
kW
HP
YEAR OF MANUFACTURE
NUE 223 (A20/21)
D 0836 LUH02
162
220
05/2004 → 10/2006
NUE 363 (A25/A30)
D 2866 LUH25
265
361
04/1999 → 03/2006
Lion's Classic (SL-Series) | 71-14
ENGINE CODE
CC
kW
HP
YEAR OF MANUFACTURE
SL 223 (A60, A74)
D 0826 LOH/LUH
6871
162
221
05/1995 → 12/2004
SL 223 (A74)
D 0836
6871
162
220
03/2000 → 08/2004
SL 223 (A74)
D 0836 LOH
6871
162
220
09/2004 → 10/2010
SL 243 (A74)
D 0836 LOH
6871
176
239
09/2004 → 10/2010
SL 243 (A74)
D 0836
6871
176
239
03/2000 → 08/2004
SL 253 (A74)
D 0836 LOH
6871
184
250
09/2004 → 05/2014
SL 263 (A74)
D 0836
6871
191
260
03/2000 → 08/2004
SL 283 (A74)
D 0836
6871
206
280
03/2000 → 08/2004
SL 283 (A74)
D 0836 LOH
6871
206
280
09/2004 → 10/2010
SL 293 (A74)
D 0836 LOH
6871
213
290
09/2004 → 05/2014
SL 313 (A74)
E 2876 LUH
12816
228
310
10/2007 → 08/2010
Lion's Classic G (SG-Series) | 72-
ENGINE CODE
CC
kW
HP
YEAR OF MANUFACTURE
SG 242 (793)
D 2866 TUH/290
11967
189
257
09/1985 → 04/1994
SG 263 (A75)
D 2866
12000
191
260
09/1999 → 08/2004
SG 263 (A75)
D 2866 LUH23, 27
11967
191
260
09/2004 →
SG 292 (793)
D 2866
213
290
08/1985 → 04/1994
SG 313 (A75)
D 2866 Euro2
228
310
09/1999 → 08/2004
SG 313 (A75)
D 2866 LUH24/51
11967
228
310
09/2004 →
SG 322 (793)
D 2865 LUH08
9973
235
320
04/1994 → 08/1997
Lion's Classic UE (SUE-Series) | 72-
ENGINE CODE
CC
kW
HP
YEAR OF MANUFACTURE
SUE 223 (A72)
D 0826
6900
162
221
09/1999 →
SUE 242 (888,ST-LB)
D 2866 UH/240
01/1987 → 04/1993
SUE 263 (A72)
D 2866 LUH
12000
191
260
09/1999 →
SUE 272 (888,STUELP,VOEV)
D 2865 LUH02
04/1993 → 05/1995
SUE 283 (A72)
D 0836 LOH
206
280
09/2001 →
SUE 292 (888)
D 2866
11967
229
311
04/1992 → 04/1993
SUE 293 (A72)
D 0836 LOH60
6871
213
290
09/2003 →
SUE 313 (A72)
D 2866 Euro2
228
310
09/1999 → 08/2004
SUE 313 (A72)
D 2866 LUH Euro3
228
310
09/2001 →
SUE 322 (888,STUELP,VOEV)
D 2865 LUH08
05/1995 → 07/1997
SUE 363 (A72)
D 2866 LUH Euro3
265
360
09/2001 →
Lion's Coach /Supreme/TopCoach (FRH/RH/RHC-Series)
ENGINE CODE
CC
kW
HP
YEAR OF MANUFACTURE
352 (A13)
D 2866 LOH
11967
257
350
05/1996 → 08/2001
353 (A13)
D 2866 LOH
11967
265
360
05/1996 → 08/2001
402 (A32)
D 2866 LOH 23
11967
294
401
06/1999 → 03/2004
403 (A13)
D 2866 LOH
11967
301
410
09/1998 → 06/2005
403 (A32)
D 2866 LOH/LUH
11967
301
410
06/1999 → 03/2004
413 (R07, R08, R09)
D 2866 LOH29
11967
301
410
09/1999 → 09/2006
414 (R07, R08, R09)
D 2866 LOH34
11967
301
410
09/2002 → 09/2006
462 (A32)
D 2876 LOH23
12800
337
460
09/1998 → 03/2004
463 (A32)
D 2876 LOH
12816
338
460
09/1998 → 03/2004
Lion's Comfort (RN-Series) | 96-
ENGINE CODE
CC
kW
HP
YEAR OF MANUFACTURE
313 (A02)
D 2866 LUH20/26
11967
228
310
09/1996 →
353 (A02)
D 2866 LUH 21
11967
257
350
06/1997 →
363 (A02)
D 2866 LUH
11967
265
361
09/1998 →
Lion's Regio / Regio C/L (UEL-Series) | 89-
ENGINE CODE
CC
kW
HP
YEAR OF MANUFACTURE
UEL 242 (893)
D 2866 UH/240
177
241
09/1989 → 03/1993
UEL 272 (893)
D 2865 LUH02/05
198
270
03/1993 → 11/1995
UEL 292 (893)
D 2865/2866
04/1989 → 10/1995
UEL 312 (893)
D 2865 LUH07
228
311
09/1995 → 12/1997
UEL 363 (A01/A04)
D 2866 LUH25
265
361
02/2001 → 07/2004
Lion's Star / TopStar (FRH/RH//RHS-Series) | 94-07
ENGINE CODE
CC
kW
HP
YEAR OF MANUFACTURE
352 (A03)
D 2866 LOH
11967
257
350
09/1995 → 08/2001
353 (A03)
D 2866 LOH26
11967
257
350
09/1995 → 08/2001
403 (A03)
D 2866 LOH/LUH
11967
301
410
09/1998 → 08/2001
414 (R02)
D 2866 LOH29
11967
301
410
09/2001 → 08/2006
414 (R03)
D 2866 LOH34
11967
301
410
09/2001 → 08/2006
463 (A03)
D 2876 LOH
12816
338
460
09/1998 → 08/2001
464 (R02)
D 2876 LOH02
12816
338
460
04/2000 → 08/2006
Midi Beta | 93-95
ENGINE CODE
CC
kW
HP
YEAR OF MANUFACTURE
Midi Beta (11.190 HOCL) (469)
D 0826 LOH06
6871
140
190
03/1993 → 09/1995
Porto Star | 93-95
ENGINE CODE
CC
kW
HP
YEAR OF MANUFACTURE
Porto Star (22.370 HOCLN) (474)
D 2866 LOH07
11970
274
373
03/1993 → 02/1995
R | 92-93
ENGINE CODE
CC
kW
HP
YEAR OF MANUFACTURE
R 292 (880)
D 2866
11967
229
311
04/1992 → 01/1993
SD | 74-93
ENGINE CODE
CC
kW
HP
YEAR OF MANUFACTURE
SD 202
D 2566 UH
11413
155
211
10/1985 → 10/1993
SL II | 84-94
ENGINE CODE
CC
kW
HP
YEAR OF MANUFACTURE
SL 202 (791)
D 2866 UH/240
11967
229
311
06/1984 → 04/1994
SM (Midi) | 87-95
ENGINE CODE
CC
kW
HP
YEAR OF MANUFACTURE
SM 152 Midi (469)
D 0826 OH02
6871
97
132
11/1987 → 04/1994
SM 182 Midi (469)
D 0826 TOH
6871
132
180
11/1987 → 04/1991
SM 192 Midi (469)
D 0826 TOH
6871
137
186
05/1988 → 02/1995
MAN TRUCK
CLA Cargo Line A | 06-
ENGINE CODE
CC
kW
HP
YEAR OF MANUFACTURE
14.160 (16D08)
D0834
4580
114
155
10/2006 →
15.220 (18D08)
D0836
6871
162
220
10/2006 →
16.220 (18D08)
D0836
6871
162
220
10/2006 →
18.160 (18D08)
D0834
4580
114
155
10/2006 →
18.180 (18D08)
D0834
4580
132
179
10/2006 →
18.220 (18D08)
D0836
6871
162
220
10/2006 →
18.280 (18D08)
D0836
6871
206
280
10/2006 →
20.280 (26D08)
D0836
6871
206
280
10/2006 →
25.280 (26D08)
D0836
6871
206
280
10/2006 →
26.220 (18D08)
D0836
6871
162
220
10/2006 →
26.280 (26D08)
D0836
6871
206
280
10/2006 →
31.280 (26D08)
D0836
6871
206
280
10/2006 →
F2000, E2000 + F2000 Evolution | 94-
ENGINE CODE
CC
kW
HP
YEAR OF MANUFACTURE
18.273 F (E/F2000)
D 2865 LF22
9973
198
270
06/1994 → 02/2000
18.293 F (E/F2000)
D 2865 LF24
9973
213
290
06/1994 → 02/2000
18.314 F (F2000)
D 2866 LF23/34
11967
228
310
06/1994 → 05/2002
18.323 F (E/F2000)
D 2865 LF23
9973
235
320
06/1994 → 02/2000
18.343 F (E/F2000)
D 2865 LF21
9973
250
340
06/1994 → 02/2000
18.364 F (F2000)
D 2866 LF24/35/39
11967
265
360
06/1994 → 05/2002
18.373 F (F2000)
D 2866 LF21
11967
272
370
06/1994 → 08/1999
18.403 F (F2000)
D 2866 LF20/29
11967
294
400
06/1994 → 08/1999
18.414 F (F2000)
D 2876 LF08
12816
301
409
06/1994 → 05/2002
18.414 F (F2000)
D 2866 LF25/30/...
11967
301
409
06/1994 → 05/2002
18.423 F (F2000)
D 2866 LF22
11967
309
420
06/1994 → 08/1999
18.463 F (F2000)
D 2876 LF02
12816
338
460
06/1994 → 08/1999
18.464 F (F2000)
D 2876 LF06
12816
338
460
06/1994 → 05/2002
19.273 F (E/F2000)
D 2865 LF22
9973
198
270
01/1994 → 02/2000
19.293 F (E/F2000)
D 2865 LF20/24
9973
213
290
01/1994 → 02/2000
19.314 F (F2000)
D 2866 LF34
11967
228
310
09/1998 →
19.323 F (E/F2000)
D 2865 LF23
9973
235
320
01/1994 → 02/2000
19.343 F (E/F2000)
D 2865 LF21
9973
250
340
01/1994 →
19.364 F (F2000)
D 2866 LF35
11967
265
360
09/1998 →
19.373 F (F2000 / T31)
D 2866 LF21
11967
272
370
01/1994 → 12/1995
19.403 F (F2000 / T31)
D 2866 LF20
11967
294
400
01/1994 →
19.414 F (F2000)
D 2866 LF1
11967
301
410
09/1998 →
19.414 F (F2000)
D 2876 LF08
12816
301
409
06/1994 → 01/2003
19.423 F (F2000 / T31)
D 2866 LF22
11967
309
420
01/1994 → 12/1995
19.463 F (F2000 / T31)
D 2876 LF02
11967
338
460
01/1994 →
19.464 F (F2000)
D 2876 LF06
12816
338
460
09/1998 →
19.603 FL (F2000 / T62)
D 2840 LF20
18273
441
600
04/1996 →
19.604 FLS (F2000)
D 2840 LF21
18273
441
601
07/1999 →
21.273 F (E/F2000)
D 2865 LF22
9973
198
270
08/1994 → 01/2000
21.293 F (E/F2000)
D 2865 LF24
9973
213
290
08/1994 → 02/2000
21.323 F (E/F2000)
D 2865 LF23
9973
235
320
08/1994 → 02/2000
21.343 F (E/F2000)
D 2865 LF21
9973
250
340
08/1994 → 02/2000
22.273 F (F2000)
D 2865 LF22
9973
198
270
07/1994 → 01/2000
22.293 F (E/F2000)
D 2865 LF24
9973
213
290
07/1994 → 01/2000
22.314 BL (F2000)
D 2866 LF23/34
11967
228
310
07/1994 → 02/2005
22.323 F (F2000)
D 2865 LF23
9973
235
320
07/1994 → 01/2000
22.343 F (F2000)
D 2865 LF21
9973
250
340
07/1994 → 01/2000
22.364 F (F2000)
D 2866 LF24/35/39
11967
265
360
07/1994 → 02/2005
22.373 F (F2000)
D 2866 LF21
11967
272
370
07/1994 → 02/2005
22.403 F (F2000)
D 2866 LF20/29
11967
294
400
07/1994 → 02/2005
22.414 BL (F2000)
D 2876 LF08
12816
301
409
07/1994 → 02/2005
22.414 BL (F2000)
D 2866 LF25/30/...
11967
301
409
07/1994 → 02/2005
22.423 BL (F2000)
D 2866 LF22
11967
309
420
07/1994 → 02/2005
22.463 BL (F2000)
D 2876 LF02
12816
338
460
07/1994 → 02/2005
22.464 BL (F2000)
D 2876 LF06
12816
338
460
07/1994 → 02/2005
23.273 F (F2000)
D 2865 LF22
9973
198
270
06/1994 → 01/2000
23.293 FNL (F2000 / T05)
D 2865 LF20
9973
213
290
01/1994 → 04/1995
23.314 F (F2000)
D 2866 LF34
11967
228
310
09/1998 →
23.323 FNL (F2000)
D 2865 LF23
9973
235
320
06/1994 → 01/2000
23.343 FNL (F2000 / T05)
D 2865 LF21
9973
250
340
01/1994 →
23.364 F (F2000)
D 2866 LF35
11967
265
360
09/1998 →
23.403 FNL (F2000 / T35)
D 2866 LF20
11967
294
400
01/1994 →
23.414 F (F2000)
D 2866 LF31
11967
301
410
09/1998 →
23.414 F (F2000)
D 2876 LF08
12816
301
409
06/1994 → 02/2004
23.463 FNL (F2000)
D 2876 LF02
11967
338
460
01/1994 →
23.464 F (F2000)
D 2876 LF06
12816
338
460
09/1998 →
24.273 FNL (E2000)
D 2865 LF22
9973
198
270
06/1995 → 02/2000
24.293 FNL (E/F2000)
D 2865 LF24
9973
213
290
01/1994 → 02/2000
24.314 F, BL,LL (F2000)
D 2866 LF23/34
11967
228
310
06/1994 → 02/2005
24.323 FNL (E/F2000)
D 2865 LF23
9973
235
320
01/1994 → 02/2000
24.343 FNL (E/F2000)
D 2865 LF21
9973
250
340
01/1994 →
24.364 F (F2000)
D 2866 LF24/35/39
11967
265
360
06/1994 →
24.373 FNL (F2000 / T37)
D 2866 LF21
11967
272
370
01/1994 → 02/2005
24.403 FNL (F2000 / T37)
D 2866 LF20
11967
294
400
01/1994 →
24.414 F (F2000)
D 2866 LF25/30/...
11967
301
410
06/1994 → 02/2005
24.414 F (F2000)
D 2876 LF08
12816
301
409
06/1994 → 02/2005
24.423 FNL (F2000)
D 2866 LF22
11967
309
420
01/1994 → 02/2005
24.463 FNL (F2000 / T37)
D 2876 LF02
11967
338
460
01/1994 →
24.464 F (F2000)
D 2876 LF06
12816
338
460
06/1994 → 02/2005
26.273 DF, FANL, FNL (E/F2000)
D 2865 LF22
9973
198
270
01/1994 → 02/2000
26.293 DF, F (E/F2000)
D 2865 LF20/24
9973
213
290
01/1994 → 02/2000
26.293 FNL (E2000)
D 2866 LF07
11967
213
290
05/1996 → 02/2000
26.314 F (F2000)
D 2866 LF34
11967
228
310
09/1998 →
26.323 DF (E/F2000)
D 2865 LF23
9973
235
320
01/1994 → 02/2000
26.343 DF, FNL (E/F2000)
D 2865 LF21
9973
250
340
01/1994 →
26.343 DF, FNL (E2000)
D 2866 LF02
11967
250
340
05/1996 → 02/2000
26.364 F (F2000)
D 2866 LF35
11967
265
360
09/1998 →
26.373 DF (F2000 / T39)
D 2866 LF21
11967
272
370
01/1994 → 12/1995
26.403 DF (F2000 / T37/39)
D 2866 LF20
11967
294
400
01/1994 →
26.414 DF (F2000)
D 2876 LF08
12816
301
409
06/1994 → 02/2005
26.414 F (E/F2000)
D 2866 LF25/31
11967
301
410
01/1997 →
26.423 DF (F2000 / T39)
D 2866 LF22
11967
309
420
01/1994 → 12/1995
26.463 DF (F2000 / T39)
D 2876 LF02
11967
338
460
01/1994 →
26.464 F, BL, BB (E/F2000)
D 2876 LF03/06
12816
338
460
01/1997 →
26.603 DF (F2000 / T70,78)
D 2840 LF20
18237
441
600
06/1996 →
26.604 DF (F2000)
D 2840 LF21
18273
441
601
07/1999 →
27.273 DF, FANL, FNL (E/F2000)
D 2865 LF22
9973
198
269
07/1994 → 02/2000
27.293 DF, F (E/F2000)
D 2865 LF20/24
9973
213
290
01/1994 → 01/2000
27.293 FNL (E2000)
D 2866 LF07
11967
213
290
05/1996 → 02/2000
27.314 F (F2000)
D 2866 LF34
11967
228
310
09/1998 →
27.323 DF, F (E/F2000)
D 2865 LF23
9973
235
320
01/1994 → 02/2000
27.343 DF, FNL (E/F2000)
D 2865 LF21
9973
250
340
01/1994 →
27.343 DF, FNL (E2000)
D 2866 LF02
11967
250
340
05/1996 → 02/2000
27.364 F (F2000)
D 2866 LF35
11967
265
360
09/1998 →
27.373 DF (F2000 / T48)
D 2866 LF21
11967
272
370
01/1994 → 12/1995
27.403 DF (F2000 / T48)
D 2866 LF20
11967
294
400
01/1994 →
27.414 DF (F2000)
D 2876 LF08
12816
301
409
07/1994 → 02/2005
27.414 F (F2000)
D 2866 LF31
11967
301
410
09/1998 →
27.423 DF (F2000 / T48)
D 2866 LF22
11967
309
420
01/1994 → 12/1995
27.463 DF (F2000 / T48)
D 2876 LF02
11967
338
460
01/1994 →
27.464 F (F2000)
D 2876 LF06
12816
338
460
09/1998 →
27.603 DF (F2000 / T72)
D 2840 LF20
18273
441
600
06/1996 →
27.604 DF (F2000)
D 2840 LF21
18273
441
601
07/1999 →
28.273 F (E/F2000)
D 2865 LF22
9973
198
269
07/1994 → 02/2000
28.293 FNL (E2000)
D 2866 LF07
11967
213
290
05/1996 → 02/2000
28.293 FNL, FVL (E/F2000)
D 2865 LF 24
10000
213
290
07/1994 → 01/2000
28.314 DF, FNLC (E/F2000)
D 2866 LF23/34
11967
228
311
07/1994 →
28.323 DF, F (E/F2000)
D 2865 LF23
9973
235
320
07/1994 → 02/2000
28.343 DF, FNL (E2000)
D 2866 LF02
11967
250
340
05/1996 → 02/2000
28.343 FA/FN/FV (E/F2000)
D 2865 LF21
10000
250
341
07/1994 →
28.364 DF (F2000)
D 2866 LF24/35/39
11967
265
360
07/1994 → 03/2001
28.403 FA/FN (E2000)
D 2866 LF 20
11967
294
401
09/1996 →
28.414 DF (F2000)
D 2876 LF08
12816
301
409
07/1994 → 03/2001
28.414 DF (F2000)
D 2866 LF25/31
12816
301
409
07/1994 → 03/2001
28.463 FA/FN (E2000)
D 2876 LF02
11967
338
461
09/1996 →
28.464 DF, F/FL (E/F2000)
D 2876 LF06
11967
338
461
07/1994 → 03/2001
28.603 DF (F2000)
D 2840 LF20
18273
441
600
03/1996 → 08/2001
29.414 FV (E2000)
D 2866 LF31
11967
301
410
07/1999 →
29.464 FV (E2000)
D 2876 LF06
11967
338
461
07/1999 →
30.293 FNL (E2000)
D 2865 LF24
10000
213
290
03/1997 →
30.314 FN (E2000)
D 2866 LF23/34
11967
228
311
08/1997 → 03/2005
30.343 FA/FN (E2000)
D 2866 LF35
11967
250
341
03/1997 →
30.364 FN (E2000)
D 2866 LF24/35
11967
265
361
07/1997 → 03/2005
30.403 FA/FN (E2000)
D 2866 LF20
11967
294
401
03/1997 →
30.414 FN (E2000)
D 2866 LF25/31
11967
301
410
07/1997 → 03/2005
30.463 FA/FN (E2000)
D 2876 LF02
11967
338
461
03/1997 →
30.464 FA/FN (E2000)
D 2876 LF06
11967
338
461
07/1997 → 03/2005
32.293 VF (F2000)
D 2865 LF24
9973
213
290
04/1995 → 01/2000
32.314 F/VF (F2000)
D 2866 LF34
9167
228
310
09/1998 →
32.323 VF (F2000)
D 2865 LF23
9973
235
320
04/1995 → 08/2001
32.343 VF (F2000 / T15)
D 2865 LF21
9973
250
340
08/1995 →
32.364 F/VF (F2000)
D 2866 LF35
11967
265
360
09/1998 →
32.373 VF (F2000)
D 2866 LF21
11967
272
370
03/1997 → 08/2001
32.403 VF (F2000 / T45)
D 2866 LF20
11967
294
400
08/1995 →
32.414 F/VF (E/F2000)
D 2866 LF25/31
11967
301
410
07/1997 → 03/2005
32.414 VF (F2000)
D 2876 LF08
12816
301
409
04/1995 → 03/2003
32.423 VF (F2000)
D 2866 LF22
11967
309
420
03/1997 → 08/2001
32.463 VF (F2000 / T45)
D 2876 LF02
11967
338
460
08/1995 →
32.464 F/VF (E/F2000)
D 2876 LF06
12816
338
460
07/1997 → 03/2005
33.273 DF, F (E/F2000)
D 2865 LF22
9973
198
269
08/1994 → 02/2000
33.293 DF, F (E/F2000)
DF 2865 LF24
9973
213
290
08/1994 → 02/2000
33.293 FNL (E2000)
D 2866 LF07
11967
213
290
05/1996 → 02/2000
33.323 DF, FNL (E/F2000)
D 2865 LF23
9973
235
320
01/1994 → 02/2000
33.343 DF, FNL (E/F2000)
D 2865 LF21
9973
250
340
01/1994 →
33.343 DF, FNL (E2000)
D 2866 LF02
11967
250
340
05/1996 → 02/2000
33.364 DF (E/F2000)
D 2866 LF35
11967
265
361
09/1997 →
33.373 DF (F2000 / T48)
D 2866 LF21
11967
272
370
01/1994 → 12/1995
33.403 DF (F2000 / T48)
D 2866 LF20
11967
294
400
01/1994 →
33.414 DF (F2000)
D 2876 LF08
12816
301
409
08/1994 → 02/2005
33.414 F/VF (F2000)
D 2866 LF31
11967
301
410
09/1998 →
33.423 DF (F2000 / T48)
D 2866 LF22
11967
309
420
01/1994 → 12/1995
33.463 DF (F2000 / T48)
D 2876 LF02
11967
338
460
01/1994 →
33.464 DF (E/F2000)
D 2876 LF02/06
12816
338
460
09/1998 →
33.603 DF (F2000)
D 2840 LF20
18273
441
601
09/1997 →
33.604 DF (E/F2000)
D 2840 LF21
18273
441
601
08/1997 →
35.293 VF (F2000)
D 2865 LF24
9973
213
290
04/1995 → 01/2000
35.314 BB (F2000)
D 2866 LF23/34
11967
228
311
04/1995 → 02/2005
35.323 VF (E/F2000)
D 2865 LF23
9973
235
320
04/1995 → 02/2000
35.343 VF (F2000 / T16)
D 2865 LF21
9973
250
340
08/1995 →
35.343 VFA (E2000)
D 2866 LF02
11967
250
340
09/1995 → 02/2000
35.364 F/VF (F2000)
D 2866 LF35
11967
265
360
09/1998 →
35.403 VF (F2000 / T46)
D 2866 LF20
11967
294
400
08/1995 →
35.414 F/VF (E/F2000)
D 2866 LF25/31
11967
301
410
05/1996 → 03/2005
35.414 VF (F2000)
D 2876 LF08
12816
301
409
04/1995 → 02/2005
35.463 VF (F2000 / T46)
D 2876 LF02
11967
338
460
08/1995 →
35.464 F/VF (E/F2000)
D 2876 LF06
12816
338
460
05/1996 → 03/2005
36.604 DF (E2000)
D 2840 LF21
18273
441
601
08/1998 →
37.314 BB (F2000)
D 2866 LF23/34
11967
228
311
04/1995 → 03/2003
37.323 VF (E/F2000)
D 2865 LF23
9973
235
320
05/1995 → 02/2000
37.343 VF (E2000)
D 2866 LF02
11967
250
340
09/1995 → 02/2000
37.343 VF (F2000)
D 2865 LF21
9973
250
340
05/1995 → 01/2000
37.364 F (F2000)
D 2866 LF24/35/39
11967
265
360
04/1995 → 03/2003
37.373 VFA (E2000)
D 2866 LF21
11967
272
370
06/1995 → 01/2002
37.403 VFA (E2000)
D 2866 LF29
11967
294
400
06/1995 → 01/2002
37.414 VF (F2000)
D 2876 LF08
12816
301
409
04/1995 → 03/2003
37.414 VF (F2000)
D 2866 LF25/30/...
11967
301
410
04/1995 → 03/2003
37.423 VFA (E2000)
D 2866 LF22
11967
309
420
06/1995 → 01/2002
37.463 VFA (E2000)
D 2876 LF02
12816
338
460
06/1995 → 01/2002
37.464 BB (F2000)
D 2876 LF06
12816
338
460
04/1995 → 03/2003
38.364 DF (F2000)
D 2866 LF24/35/39
11967
265
360
08/1994 → 02/2005
38.414 VF (F2000)
D 2876 LF08
12816
301
409
08/1994 → 02/2005
38.414 VF (F2000)
D 2866 LF25/30/...
11967
301
409
08/1994 → 02/2005
38.423 VF (F2000)
D 2866 LF22
11967
309
420
08/1994 → 02/2005
38.463 BB (F2000)
D 2876 LF02
12816
338
460
08/1994 → 02/2005
38.464 BB (F2000)
D 2876 LF06
12816
338
460
08/1994 → 02/2005
40.373 DF (F2000)
D 2866 LF21
11967
272
370
05/1997 → 02/2005
40.403 DF (E/F2000)
D 2866 LF20
294
401
01/1994 →
40.414 DF (E/F2000)
D 2866 LF25/30/...
11967
301
410
05/1997 → 02/2005
40.414 DF (F2000)
D 2876 LF08
12816
301
409
05/1997 → 02/2005
40.423 DF (F2000)
D 2866 LF22
11967
309
420
05/1997 → 02/2005
40.463 VFC/VFK (F2000)
D 2876 LF02
338
460
08/1995 →
40.464 DF (E2000)
D 2876 LF06
338
461
08/1999 →
40.603 DF (F2000)
D 2840 LF20
18273
441
601
09/1997 →
40.604 DF (E/F2000)
D 2840 LF21
18273
441
601
08/1997 →
41.323 VF (E/F2000)
D 2865 LF23
9973
235
320
05/1995 → 02/2000
41.343 VF (E2000)
D 2866 LF02
11967
250
340
09/1995 → 02/2000
41.343 VF (F2000 / T16)
D 2865 LF21
9973
250
340
08/1995 →
41.364 VF (E2000)
D 2866 LF35
11967
265
361
07/1998 →
41.373 VFA (E2000)
D 2866 LF21
11967
272
370
06/1995 → 01/2002
41.403 VF (E/F2000)
D 2866 LF20
11967
294
400
06/1995 →
41.414 VF (E2000)
D 2866 LF31
11967
301
410
07/1998 →
41.414 VF (F2000)
D 2876 LF08
12816
301
409
05/1995 → 02/2005
41.423 VF (E2000)
D 2866 LF22
11967
309
420
06/1995 → 01/2002
41.463 VF (E/F2000)
D 2876 LF02
11967
338
460
06/1995 →
41.603 DF (F2000)
D 2840 LF20
18273
441
601
09/1997 →
41.604 DF (E2000)
D 2840 LF21
18273
441
601
02/1997 →
42.373 VFA (E2000)
D 2866 LF21
11967
272
370
06/1995 → 01/2002
42.403 VFA (E2000)
D 2866 LF29
11967
294
400
06/1995 → 01/2002
42.414 VFAK (E2000)
D 2866 LF31
11967
301
410
07/1998 →
42.423 VFA (E2000)
D 2866 LF22
11967
309
420
06/1995 → 01/2002
42.463 VFA (E2000)
D 2876 LF06
12816
338
460
06/1995 → 01/2002
42.464 VFK/AK (E2000)
D 2876 LF06
11967
338
461
07/1998 →
50.373 VFK (E2000)
D 2866 LF
11967
271
370
06/1998 →
50.403 VF (E2000)
D 2866 LF20
11967
294
401
06/1998 →
50.414 VF/VFA (E2000)
D 2866 LF25/31
11967
301
410
03/1996 → 03/2004
50.463 VF/VFA (E2000)
D 2876 LF02
11967
338
460
06/1997 →
50.464 VF (E2000)
D 2876 LF06
12816
338
461
03/1996 → 03/2005
50.603 DF, VF (E/F2000)
D 2840 LF20
18273
441
601
09/1997 →
50.604 VF (E2000)
D 2840 LF21
18273
441
601
02/1999 →
F7/F8/F9 | 67-93
ENGINE CODE
CC
kW
HP
YEAR OF MANUFACTURE
17.241 HA (529)
D 2566 M
11413
177
240
05/1990 → 06/1991
18.241 HA (529)
D 2566 M
11413
177
240
09/1990 → 10/1993
22.332 FNL (F05)
D 2866 LF/330
11967
243
330
07/1986 → 10/1986
24.192 FVL (551)
D 0226 MKF
9510
141
192
05/1987 → 08/1988
F90 | 85-98
ENGINE CODE
CC
kW
HP
YEAR OF MANUFACTURE
16.242 F (F01)
D 2866 F/240
11967
177
240
06/1985 → 04/1996
16.262 F (F01)
D 2865 LF/260
11967
191
260
06/1985 → 06/1997
16.272 F (F01, F02, F03, F51, F52)
D 2865 LF01, LF02, LF05
9973
198
270
02/1990 → 06/1997
16.292 F (F01, F02, F03, F52)
D 2866 LF/290
11967
213
290
07/1986 → 06/1992
16.302 F (F01, F02, F03, F52)
D 2866 LF04
11967
220
300
02/1990 → 06/1992
16.302 F (F01, F02, F03, F52)
D 2865 LF04
9973
220
300
02/1990 → 06/1992
16.322 F, U (F01, F02, F03, F51, F52)
D 2865 LF03
9973
235
320
02/1990 → 06/1997
16.332 F, FR, U (F01, F02, F03, F51, F52, U01, U03
D 2866 LF/330
11967
243
330
06/1985 → 01/1995
16.342 F (F01, F02, F03)
D 2866 LF
11967
250
340
02/1994 → 06/1997
16.342 F (F01, F02, F03)
D 2865 LF09
9973
250
340
02/1994 → 06/1997
16.362 F, U (F01, F02, F03, F51, F54, U01, U03, U1
D 2866 KF, LXF
11967
265
360
06/1985 → 01/1995
16.372 F, U (F01, F02, F03, F51, F52, U11, U13)
D 2866 LF03
11967
272
370
06/1989 → 06/1997
16.402 F (F01, F02, F03)
D 2866 LF14/16
11967
294
400
02/1994 → 06/1997
16.422 F (F01, F02)
D 2840 LF/420
18273
309
420
02/1990 → 06/1997
16.422 F, U (F01, F02, F03, F51, F52)
D 2866 LF/LU
11967
309
420
02/1990 → 06/1997
16.462 FLR (F72)
D 2840 LF/460
18273
338
460
01/1989 → 05/1991
16.502 FLR (F72)
D 2840 LF01/04/06
18273
368
500
05/1990 → 01/1997
17.242 F (F52, F53)
D 2866 F/240
11967
177
240
06/1986 → 05/1991
17.262 F (F51, F52)
D 2865 LF/260
11967
191
260
06/1986 → 06/1992
17.272 F (F51, F52)
D 2865 LF01, LF02, LF05
9973
198
270
02/1990 → 05/1996
17.292 F (F01, F02, F03, F52)
D 2866 LF/290
11967
213
290
07/1986 → 06/1992
17.302 F (F51, F52)
D 2866 LF04
11967
220
300
02/1990 → 06/1992
17.302 F (F51, F52)
D 2865 LF04
9973
220
300
02/1990 → 06/1992
17.322 F (F51, F52)
D 2865 LF03
9973
235
320
02/1990 → 05/1996
17.332 FR, FLR (F51, F52)
D 2866 LF/330
11967
243
330
06/1986 → 06/1992
17.362 FR, FLR (F51, F52)
D 2866 LXF
11967
265
360
06/1986 → 06/1992
17.372 FR, FLR (F51, F52)
D 2866 LF03
11967
272
370
02/1990 → 05/1996
17.422 FR, FLR (F51, F52)
D 2866 LF06/09/10
11967
309
420
02/1990 → 05/1996
17.462 FLR (F72)
D 2840 LF/460
18273
338
460
01/1989 → 06/1992
17.502 FLR (F72)
D 2840 LF01/04/06
18273
368
500
05/1990 → 01/1997
19.242 F (F01)
D 2866 F/240
11967
177
240
01/1988 → 02/1989
19.262 F (F01)
D 2865 LF/260
9973
191
260
01/1988 → 02/1990
19.272 F (F01)
D 2865 LF02
9973
198
270
02/1990 → 10/1992
19.292 F (F01)
D 2866 LF/290
11967
213
290
07/1986 → 02/1990
19.302 F (F01)
D 2866 LF04
11967
220
300
02/1990 → 09/1991
19.302 F (F01, F02, F03, F04, F51, F52)
D 2865 LF04
9973
220
300
02/1990 → 06/1992
19.322 F, U (F01)
D 2865 LF03
9973
235
320
02/1990 → 06/1994
19.332 F, U (F01)
D 2866 LF/330
11967
243
330
07/1986 → 02/1990
19.342 F (F01, F02, F03, F04)
D 2865 LF09
9973
250
340
05/1994 → 06/1996
19.342 F (F01, F02, F03, F04)
D 2866 LF
11967
250
340
07/1993 → 06/1997
19.362 F, U (F01)
D 2866 KF, LXF
11967
265
360
07/1986 → 01/1991
19.372 F, U (F01)
D 2866 LF03
11967
272
370
02/1990 → 06/1997
19.402 F (F01)
D 2866 LF16
11967
294
400
05/1994 → 05/1995
19.422 F (F01, F02)
D 2840 LF/420
18273
309
420
02/1990 → 06/1997
19.422 F, U (F01)
D 2866 LF06
11967
309
420
02/1990 → 05/1994
19.462 F (F01)
D 2840 LF/460
18273
338
460
05/1987 → 02/1990
19.502 F (F21)
D 2840 LF01
18273
368
500
02/1990 → 10/1992
22.242 F (F05, F06, F07, F08, F16, F53)
D 2866 F/240
11967
177
240
01/1986 → 02/1992
22.262 F (F05, F06, F07, F08, F16, F53)
D 2865 LF/260
11967
191
260
01/1986 → 06/1992
22.272 F (F51, F52)
D 2865 LF01, LF02, LF05
9973
198
270
07/1989 → 06/1997
22.292 FNL (F05)
D 2866 LF/290
11967
213
290
07/1986 → 06/1992
22.302 F, DF (F05, F06, F07, F08, F16, F53)
D 2866 LF04
11967
220
300
07/1989 → 06/1992
22.302 F, DF (F05, F06, F07, F08, F16, F53)
D 2865 LF04
9973
220
300
07/1989 → 06/1992
22.322 F, DF, U (F05, F06, F07, F08, F16, F53)
D 2865 LF03
9973
235
320
07/1989 → 06/1997
22.332 FN, FV, DF, U (F05, F06, F07, F08, F16, F53
D 2866 LF
11967
243
330
01/1986 → 01/1995
22.342 DF, DFL, FVL (F07, F08, F16)
D 2866 LF
11967
250
340
02/1994 → 06/1997
22.342 FVL, DF, DFL (F07, F08, F16)
D 2865 LF09
9973
250
340
02/1994 → 06/1997
22.362 FNL, DF, U (F05, F06, F07, F08, F16, F53, U
D 2866 KF, LXF
11967
265
360
01/1986 → 01/1995
22.372 F, D, U (F05, F07, F08, F16, F53, U15, U16)
D 2866 LF03, 05, 15
11967
272
370
06/1989 → 06/1997
22.402 DF, DFL, FVL (F07, F08, F16)
D 2866 LF14/16
11967
294
400
02/1994 → 06/1997
22.422 DF, F, U (F05, F06, F07, F08, F16, F53, U16
D 2866 LF/LU
11967
309
420
07/1989 → 06/1997
22.462 DF, FNL (F25, F28)
D 2840 LF/460
18273
338
460
01/1989 → 06/1992
22.502 DF, FNL (F25, F28, F36)
D 2840 LF01/04/06
18273
368
500
04/1990 → 03/1997
23.272 FNL (F20)
D 2865 LF05
9973
198
270
10/1992 → 05/1995
23.322 FNL (F20)
D 2865 LF06
9973
235
320
10/1992 → 05/1995
23.342 FNL (F20)
D 2865 LF09
9973
250
340
02/1994 → 03/1997
23.342 FNLL (F20)
D 2866 LF
11967
250
340
02/1994 → 03/1997
23.362 U (U07)
D 2866 KU, D 2866 KUL, D 2866
11967
265
360
01/1988 → 04/1992
23.372 FNL, U (F20, U07)
D 2866 LF03, 05, 15
11967
272
370
01/1988 → 03/1997
23.402 FNL (F20)
D 2866 LF14/16
11967
294
400
02/1994 → 03/1997
23.422 FNL (F20)
D 2866 LF06/09/10
11967
309
420
06/1992 → 03/1997
24.242 DF (F08)
D 2866 F/240
11967
177
240
01/1988 → 07/1989
24.262 DF (F08)
D 2865 LF/260
9973
191
260
01/1988 → 02/1990
24.272 DF (F08)
D 2865 LF02
9973
198
270
02/1990 → 06/1997
24.273 FNL (T07)
D 2865 LF22
9973
198
270
01/1994 → 12/1995
24.292 DF (F08)
D 2866 LF/290
11967
213
290
04/1987 → 02/1990
24.302 DF (F05, F06, F07, F08, F16, F53)
D 2865 LF04
9973
220
300
07/1989 → 06/1992
24.302 DF (F08)
D 2866 LF04
11967
220
300
05/1990 → 12/1990
24.322 DF, UNL (F08)
D 2865 LF03/06
9973
235
320
02/1990 → 05/1995
24.332 DF, UNL (F08)
D 2866 LF/LUL330
11967
243
330
10/1986 → 02/1990
24.342 DF, DFL, FNL, FVL (F07, F08, F16, F18, F19,
D 2866 LF
11967
250
340
02/1994 → 06/1997
24.342 FNL, FVL, DF, DFL (F07, F08, F16, F18,F19)
D 2865 LF09
9973
250
340
02/1994 → 06/1997
24.362 DF, UNL (F08)
D 2866 KF, LXF, KUL
11967
265
360
10/1986 → 02/1990
24.372 DF, UNL (F08)
D 2866 LF03/15, LXF
11967
272
370
02/1990 → 06/1997
24.402 DFL, FNL, FVL (F07, F08, F16, F18,F19)
D 2866 LF14/16
11967
294
400
05/1994 → 05/1995
24.422 DF, UNL (F08)
D 2866 LF06/09/10
11967
309
420
02/1990 → 06/1997
24.462 DF (F28)
D 2840 LF/460
18273
338
460
02/1989 → 02/1990
24.502 DF (F28)
D 2840 LF01
18273
368
500
02/1990 → 12/1990
25.242 DF (F08)
D 2866 F/240
11967
177
240
01/1986 → 02/1992
25.262 DF (F08)
D 2865 LF/260
9973
191
260
08/1986 → 06/1992
25.272 DF (F08)
D 2865 LF02
9973
198
270
09/1990 → 10/1992
25.292 DF (F08)
D 2866 LF/290
11967
213
290
08/1986 → 06/1992
25.302 DF (F05, F06, F07, F08, F16, F53)
D 2865 LF04
9973
220
300
07/1989 → 06/1992
25.302 DF (F08)
D 2866 LF04
11967
220
300
09/1990 → 12/1991
25.322 DF, UNL (F08)
D 2865 LF03/06
9973
235
320
09/1990 → 10/1993
25.332 FN, FV, DF, UNL (F05, F06, F07, F08, F16, F
D 2866 LF/LUL330
11967
243
330
01/1986 → 01/1995
25.342 FVL, DF, DFL (F07, F08, F16)
D 2865 LF09
9973
250
340
02/1994 → 06/1997
25.342 DF, DFL, FVL (F07, F08, F16)
D 2866 LF
11967
250
340
02/1994 → 06/1997
25.362 FNL, DF, U (F05, F06, F07, F08, F16, F53, U
D 2866 KF, LXF
11967
265
360
01/1986 → 01/1995
25.372 DF, UNL (F08)
D 2866 LF03/05
11967
272
370
09/1990 → 06/1997
25.402 DF, FVL (F07, F08, F16)
D 2866 LF14/16
11967
294
400
02/1994 → 06/1997
25.422 F, DF, UNL (F07, F08, F53)
D 2866 LF06/09/10
11967
309
420
09/1990 → 12/1992
25.462 DF, FNL (F25, F28)
D 2840 LF/460
18273
338
460
04/1989 → 06/1992
25.502 DF (F28)
D 2840 LF01
18373
368
500
09/1990 → 11/1992
26.242 DF (F09)
D 2866 F/240
11967
177
240
01/1988 → 07/1989
26.262 DF (F09)
D 2865 LF/260
9973
191
260
01/1988 → 02/1990
26.272 DF (F09)
D 2865 LF02
9973
198
270
02/1990 → 10/1992
26.292 DF (F09)
D 2866 LF/290
11967
213
290
09/1987 → 02/1990
26.302 DF (F06, F06, F07, F08, F09, F16, F18, F19)
D 2865 LF04
9973
220
300
07/1989 → 06/1992
26.302 DF (F09)
D 2866 LF04
11967
220
300
05/1990 → 12/1991
26.322 DF, UNL (F09)
D 2865 LF03/06
9973
235
320
02/1990 → 06/1996
26.332 DF, U (F09)
D 2866 LF / LU 330
11967
243
330
09/1987 → 02/1990
26.342 DF, DFL, FVL (F07, F08, F09, F16)
D 2866 LF
11967
250
340
07/1993 → 06/1997
26.342 FVL, FNL, DF, DFA, DFL (F07, F08, F10, F16,
D 2865 LF09
9973
250
340
07/1993 → 06/1997
26.362 FNL, DF, U (F05, F06, F07, F08, F16, F53, U
D 2866 KF, LXF
11967
265
360
01/1986 → 06/1992
26.372 F, DF, UNL (F09, F90)
D 2866 LF03/05/15
11967
272
370
02/1990 → 06/1997
26.402 DF (F08, F09, F10)
D 2866 LF14/16
11967
294
400
07/1993 → 06/1997
26.422 DF (F09)
D 2840 LF/420
18273
309
420
02/1990 → 06/1997
26.422 DF, UNL (F08, F09)
D 2866 LF06/09/10
11967
309
420
02/1990 → 06/1997
26.462 DF, FNL (F25, F29)
D 2840 LF/460
18273
338
460
02/1989 → 06/1992
26.502 DF (F29)
D 2840 LF01
18273
368
500
02/1990 → 10/1992
27.242 DFA (F10)
D 2866 F/240
11967
177
240
01/1990 → 01/1992
27.262 DFA (F10)
D 2865 LF/260
9973
191
260
01/1990 → 05/1991
27.272 DF (F09)
D 2865 LF05
9973
198
270
01/1993 → 06/1996
27.292 DF (F09)
D 2866 LF/290
11967
213
290
02/1989 → 05/1991
27.302 DFA (F10)
D 2866 LF04
11967
220
300
02/1990 → 06/1992
27.302 DFA (F10)
D 2865 LF04
9973
220
300
02/1990 → 06/1992
27.322 DF (F09)
D 2865 LF06
9973
235
320
01/1993 → 06/1996
27.332 DFA (F10)
D 2866 LF
11967
243
330
02/1989 → 06/1992
27.342 DF, DFA (F09, F10)
D 2865 LF09
9973
250
340
05/1994 → 06/1996
27.342 DF, DFA (F09, F10)
D 2866 LF
11967
250
340
05/1987 → 06/1997
27.362 DFA (F10)
D 2866 KF, LXF
11967
265
360
02/1989 → 06/1992
27.372 DF (F09, F10)
D 2866 LF05
11967
272
370
02/1990 → 06/1997
27.402 DF (F09, F10)
D 2866 LF14/16
11967
294
400
05/1987 → 06/1997
27.422 DF (F08, F09, F10)
D 2866 LF06/09/10
11967
309
420
02/1990 → 06/1997
27.422 DF (F09)
D 2840 LF/420
18273
309
420
03/1993 → 06/1997
27.462 DFA (F30)
D 2840 LF/460
18273
338
460
07/1989 → 05/1991
27.502 DF (F29, F30)
D 2840 LF01/04/06
18273
368
500
04/1990 → 06/1997
28.242 DF (F09)
D 2866 F/240
11967
177
240
02/1990 → 06/1997
28.262 DF (F09)
D 2865 LF/260
9973
191
260
04/1989 → 06/1992
28.272 DF, VF (F09, F13, F14)
D 2865 LF01, LF02, LF05
9973
198
270
02/1990 → 06/1997
28.292 DF (F09)
D 2866 LF/290
11967
213
290
08/1988 → 06/1992
28.302 DF, VF (F09, F13, F14, F55)
D 2866 LF04
11967
220
300
02/1990 → 06/1992
28.302 DF, VF (F09, F13, F14, F55)
D 2865 LF04
9973
220
300
02/1990 → 06/1992
28.322 DF, VF (F09, F13, F14)
D 2865 LF06
9973
235
320
02/1990 → 06/1997
28.332 DF, VF (F09, F13, F14, F55)
D 2866 LF
11967
243
330
08/1988 → 05/1991
28.342 DF, DFA, VF (F09, F10, F13, F14)
D 2865 LF09
9973
250
340
02/1994 → 06/1997
28.342 DF, DFA, VF (F09, F10, F13, F14)
D 2866 LF
11967
250
340
02/1994 → 06/1997
28.362 DF, DFR, VF (F09, F13, F14, F55)
D 2866 KF, LXF
11967
265
360
08/1988 → 05/1991
28.372 DF, VF (F09, F13, F14, F55)
D 2866 LF03, 05, 15
11967
272
370
01/1990 → 06/1997
28.402 DF, VF (F09, F10, F13, F14)
D 2866 LF14/16
11967
294
400
02/1994 → 06/1997
28.422 DF (F09)
D 2840 LF/420
18273
309
420
02/1990 → 06/1997
28.422 DF, VF (F09, F13, F14, F55)
D 2866 LF06/09/10
11967
309
420
01/1990 → 06/1997
30.242 VFR (F54)
D 2866 F/240
11967
177
240
01/1989 → 05/1991
30.262 VF (F13, F14)
D 2865 LF/260
9973
191
260
01/1989 → 06/1992
30.272 DF, VF (F09, F13, F14)
D 2865 LF01, LF02, LF05
9973
198
270
02/1990 → 06/1997
30.292 VF (F13, F14)
D 2866 LF/290
11967
213
290
01/1989 → 06/1992
30.302 VF (F13, F14, F54)
D 2866 LF04
11967
220
300
02/1990 → 06/1992
30.302 VF (F13, F14, F54)
D 2865 LF04
9973
220
300
02/1990 → 06/1992
30.322 VF (F13, F14)
D 2865 LF06
9973
235
320
02/1990 → 06/1997
30.332 VF (F13, F14, F54)
D 2866 LF
11967
243
330
01/1989 → 06/1992
30.342 VF (F13, F14)
D 2865 LF09
9973
250
340
02/1994 → 06/1997
30.342 VF (F13, F14)
D 2866 LF
11967
250
340
02/1994 → 06/1997
30.362 VF, VFR (F09, F13, F14, F54)
D 2866 KF, LXF
11967
265
360
01/1989 → 06/1992
30.372 VF (F13, F14, F54)
D 2866 LF03, 05, 15
11967
272
370
02/1990 → 06/1997
30.402 VF (F13, F14)
D 2866 LF14/16
11967
294
400
02/1994 → 06/1997
30.422 VF (F13, F14, F54)
D 2866 LF06/09/10
11967
309
420
02/1990 → 06/1997
31.262 VF (F13, F14)
D 2865 LF/260
9973
191
260
04/1989 → 05/1991
31.272 VF (F13, F14)
D 2865 LF01, LF02, LF05
9973
198
270
02/1990 → 06/1997
31.292 VF (F13, F14)
D 2866 LF/290
11967
213
290
04/1989 → 05/1991
31.302 VF (F13, F14)
D 2866 LF04
11967
220
300
02/1990 → 06/1992
31.302 VF (F13, F14)
D 2865 LF04
9973
220
300
02/1990 → 06/1992
31.322 VF (F13, F14)
D 2865 LF06
9973
235
320
02/1990 → 06/1997
31.332 VF (F13, F14)
D 2866 LF
11967
243
330
04/1989 → 05/1991
31.342 VF (F13, F14)
D 2865 LF09
9973
250
340
02/1994 → 06/1997
31.342 VF (F13, F14)
D 2866 LF
11967
250
340
02/1994 → 06/1997
31.362 VF (F13, F14)
D 2866 KF, LXF
11967
265
360
04/1989 → 05/1991
31.372 VF (F13, F14)
D 2866 LF03, 05, 15
11967
272
370
02/1990 → 06/1997
31.402 VF (F13, F14)
D 2866 LF14/16
11967
294
400
02/1994 → 06/1997
31.422 VF (F13, F14)
D 2866 LF06/09/10
11967
309
420
02/1990 → 06/1997
32.242 F (F09, F10, F54)
D 2866 F/240
11967
177
240
01/1989 → 02/1992
32.262 VF (F13)
D 2865 LF/260
9973
191
260
02/1989 → 02/1990
32.272 VF (F13)
D 2865 LF02
9973
198
270
02/1990 → 05/1994
32.292 VF (F13)
D 2866 LF/290
11967
213
290
03/1988 → 02/1990
32.302 VF (F10, F13, F14, F54)
D 2865 LF04
9973
220
300
01/1990 → 06/1992
32.302 VF (F13)
D 2866 LF04
11967
220
300
05/1990 → 09/1991
32.322 VF (F13)
D 2865 LF03
9973
235
320
02/1990 → 05/1994
32.332 DF, VF (F09, F10, F13, E15)
D 2866 LF/330
11967
243
330
03/1988 → 06/1997
32.342 DFA, VF, VFA (E15, F10, F13, F14)
D 2866 LF
11967
250
340
01/1989 → 06/1997
32.342 VF (F13)
D 2865 LF09
9973
250
340
05/1994 → 06/1996
32.362 DF, DFA, VF (F09, F10, F13)
D 2866 LXF
11967
265
360
05/1987 → 06/1992
32.372 DF, VF (F09, F10, F13, F55)
D 2866 LF03, 05, 15
11967
272
370
02/1990 → 06/1997
32.402 DF, VF (E15, F09, F10, F13, F14)
D 2866 LF14/16
11967
294
400
05/1994 → 06/1997
32.422 DF (F09)
D 2840 LF/420
18273
309
420
05/1994 → 06/1997
32.422 DF, VF (E15, F09, F10, F55)
D 2866 LF06/09/10
11967
309
420
02/1990 → 06/1997
32.462 DF (F29, F30)
D 2840 LF/460
18273
338
460
08/1988 → 05/1991
32.502 DF (F29, F30)
D 2840 LF01/04/06
18273
368
500
04/1990 → 06/1997
33.242 DF (F09)
D 2866 F/240
11967
177
240
01/1988 → 08/1988
33.262 DF (F09)
D 2865 LF/260
9973
191
260
01/1988 → 02/1990
33.272 DF (F09)
D 2865 LF05
9973
198
270
10/1992 → 06/1997
33.292 DF (F09)
D 2866 LF/290
11967
213
290
09/1987 → 02/1990
33.302 DF, VF (F10, F13, F14)
D 2866 LF04
11967
220
300
02/1990 → 06/1992
33.302 DF, VF (F10, F13, F14)
D 2865 LF04
9973
220
300
02/1990 → 06/1992
33.322 DF (F09)
D 2865 LF03
9973
235
320
09/1991 → 10/1992
33.332 DF, VF (F09, F13, F14, F55)
D 2866 LF/330
11967
243
330
09/1987 → 06/1992
33.342 DF (F09)
D 2865 LF09
9973
250
340
05/1994 → 06/1996
33.342 DF, VF (F09, F10, F13)
D 2866 LF
11967
250
340
02/1994 → 06/1997
33.362 DF, VF (F09, F13, F14)
D 2866 KF, LXF
11967
265
360
05/1987 → 06/1992
33.372 DF, VF (F09, F10, F13, F14)
D 2866 LF03, 05, 15
11967
272
370
05/1987 → 06/1997
33.402 DF, VF (F09, F10, F13)
D 2866 LF14/16
11967
294
400
05/1994 → 06/1997
33.422 DF (F09)
D 2840 LF/420
18273
309
420
05/1994 → 06/1997
33.422 DF, VF (F09, F10, F13, F14)
D 2866 LF06/09/10
11967
309
420
02/1990 → 06/1997
33.462 DF (F29, F30)
D 2840 LF/460
18273
338
460
08/1988 → 06/1992
33.502 DF (F29, F30)
D 2840 LF01/04/06
18273
368
500
04/1990 → 06/1997
34.342 VF (F14)
D 2865 LF09
9973
250
340
02/1994 → 06/1997
34.342 VF (F14)
D 2866 LF
11967
250
340
02/1994 → 06/1997
34.372 VF (F14)
D 2866 LF03, 05, 15
11967
272
370
04/1991 → 06/1997
34.402 VF (F14)
D 2866 LF14/16
11967
294
400
05/1994 → 06/1997
35.262 VF (F14)
D 2865 LF/260
9973
191
260
02/1989 → 02/1990
35.272 VF (F14)
D 2865 LF02
9973
198
270
02/1990 → 12/1991
35.292 VF (F14,E15)
D 2866 LFZ/290
11967
213
290
10/1988 → 04/1995
35.302 VF (F14, E15)
D 2865 LF04
9973
220
300
03/1990 → 06/1992
35.302 VF (F14,E15)
D 2866 LF04
11967
220
300
05/1990 → 09/1991
35.322 VF (F14,E15)
D 2865 LF03
9973
235
320
02/1990 → 05/1994
35.332 VF (F14,E15)
D 2866 LFZ/330
11967
243
330
10/1988 → 06/1997
35.342 VF (F14,E15)
D 2865 LF09
9973
250
340
05/1994 → 06/1996
35.342 VF, VFA (E15, F14)
D 2866 LF
11967
250
340
01/1989 → 06/1997
35.362 VF (F14, E15)
D 2866 LXF
11967
265
360
10/1988 → 02/1990
35.372 VF (F14, E15)
D 2866 LF03, 05, 15
11967
272
370
01/1989 → 06/1997
35.402 VF (F14,E15)
D 2866 LF14/16
11967
294
400
01/1989 → 06/1997
35.422 VF (F14,E15)
D 2866 LF06/09/10
11967
309
420
01/1989 → 06/1997
36.262 VF (F14)
D 2865 LF/260
9973
191
260
04/1989 → 05/1991
36.272 VF (F14)
D 2865 LF01, LF02, LF05
9973
198
270
02/1990 → 06/1992
36.292 VF (F14)
D 2866 LF/290, D 2866 LF07
11967
213
290
08/1988 → 05/1991
36.302 VF (F14)
D 2866 LF04
11967
220
300
02/1990 → 06/1992
36.302 VF (F14)
D 2865 LF04
9973
220
300
02/1990 → 06/1992
36.322 VF (F14)
D 2865 LF03
9973
235
320
02/1990 → 06/1997
36.332 VF (F14)
D 2866 LF
11967
243
330
08/1988 → 05/1991
36.342 VF (F14)
D 2865 LF09
9973
250
340
02/1994 → 06/1997
36.342 VF (F14)
D 2866 LF
11967
250
340
02/1994 → 06/1997
36.362 VF (F14)
D 2866 LXF
11967
265
360
08/1988 → 05/1991
36.372 VF (F14, E26)
D 2866 LF03, 05, 15
11967
272
370
06/1989 → 06/1997
36.402 VF (F14)
D 2866 LF14/16
11967
294
400
02/1994 → 06/1997
36.422 VF (F14, E26)
D 2866 LF06/09/10
11967
309
420
06/1989 → 06/1997
38.292 VFNL (F17)
D 2866 LF/290, D 2866 LF07
11967
213
290
07/1989 → 06/1992
38.302 VFNL (F17)
D 2866 LF04
11967
220
300
02/1990 → 06/1992
38.332 VFNL (F17)
D 2866 LF08
11967
243
330
07/1989 → 06/1992
38.362 VFNL (F17)
D 2866 LXF
11967
265
360
07/1989 → 06/1992
38.372 DF, VF (F12, F17)
D 2866 LF03, 05, 15
11967
272
370
07/1989 → 06/1998
38.422 VFNL (F17)
D 2866 LF06/09/10
11967
309
420
07/1989 → 05/1996
40.362 DFA (F12)
D 2866 LXF
11967
265
360
03/1990 → 03/1990
40.372 DF (F11, F12)
D 2866 LF03, 05, 15
11967
272
370
02/1990 → 06/1998
40.402 DF (F11)
D 2866 LF16
11967
294
400
05/1995 → 06/1996
40.422 DF (F11, F12)
D 2866 LF06/09/10
11967
309
420
02/1990 → 06/1998
40.462 DFA (F32)
D 2840 LF/460
18273
338
460
07/1989 → 05/1991
40.502 DFA (F32)
D 2840 LF01/04/06
18273
368
500
01/1990 → 06/1997
41.262 VF (F14,E15)
D 2865 LF/260
9973
191
260
07/1989 → 02/1990
41.272 VF (F14,E15)
D 2865 LF02
9973
198
270
02/1990 → 12/1991
41.292 VF (F14,E15)
D 2866 LF/290
11967
213
290
10/1988 → 02/1990
41.302 VF (F14)
D 2866 LF04
11967
220
300
02/1990 → 06/1992
41.302 VF (F14)
D 2865 LF04
9973
220
300
02/1990 → 06/1992
41.322 VF (F14,E15)
D 2865 LF03
9973
235
320
02/1990 → 05/1994
41.332 VF (F14, E15, E26)
D 2866 LF/330
11967
243
330
01/1989 → 06/1997
41.342 VF (F14,E15)
D 2865 LF09
9973
250
340
05/1994 → 06/1996
41.342 VF, VFA (E15, F14)
D 2866 LF
11967
250
340
01/1989 → 06/1997
41.362 VF (F14,E15)
D 2866 LXF
11967
265
360
10/1988 → 02/1990
41.372 VF (F14, E12, E15, E26)
D 2866 LF03, 05, 15
11967
272
370
01/1989 → 06/1997
41.402 VF (F14,E15)
D 2866 LF14/16
11967
294
400
01/1989 → 06/1997
41.422 VF (F14, E12, E15, E26)
D 2866 LF06/09/10
11967
309
420
01/1989 → 06/1997
41.462 VFS (E12)
D 2840 LF/460
18273
338
460
03/1990 → 06/1997
41.502 VFS (E12)
D 2840 LF01/04/06
18273
368
500
03/1990 → 06/1997
47.292 VF (E17, E18)
D 2866 LF/290
11967
213
290
01/1989 → 06/1997
47.332 VFA (E17, E18)
D 2866 LF/330
11967
243
330
01/1989 → 06/1997
47.362 VFVA (E17, E18)
D 2866 LXF
11967
265
360
01/1989 → 06/1997
48.292 VF (F15)
D 2866 LF/290
11967
213
290
07/1989 → 02/1990
48.332 VF (F15)
D 2866 LF/330
11967
243
330
07/1989 → 02/1990
48.362 VF (F15)
D 2866 LXF
11967
265
360
07/1989 → 02/1990
48.372 VF (E17, E18)
D 2866 LF03, 05, 15
11967
272
370
01/1989 → 06/1997
48.402 VF (E18)
D 2866 LF14/16
11967
294
400
01/1989 → 06/1997
48.422 VF (E17, E18)
D 2866 LF06/09/10
11967
309
420
01/1989 → 06/1997
48.462 VF (F15)
D 2840 LF/460
18273
338
460
07/1989 → 02/1990
FE | 00-
ENGINE CODE
CC
kW
HP
YEAR OF MANUFACTURE
FE 310 A (F2000 Evolution)
D 2866
11967
228
310
09/2000 →
FE 360 A (F2000 Evolution)
D 2866
11967
265
360
09/2000 →
FE 410 A (F2000 Evolution)
D 2866
11967
301
410
09/2000 →
FE 460 A (F2000 Evolution)
D 2876
12816
338
460
09/2000 →
FE 600 A (F2000 Evolution)
D 2840 LF21
18273
441
601
09/2000 →
G-Serie | 79-87
ENGINE CODE
CC
kW
HP
YEAR OF MANUFACTURE
10.136 F (491,562)
D 0226 MF
5687
100
136
09/1981 → 09/1987
6. 90 F (560)
D 0224 MF
3790
66
90
10/1979 → 09/1987
8. 90 F (560)
D 0224 MF
3790
66
90
10/1979 → 09/1987
8.136 F (561)
D 0226 MF
5687
100
136
10/1979 → 09/1987
9.136 F (561)
D 0226 MF
5687
100
136
10/1979 → 09/1987
G90 | 87-95
ENGINE CODE
CC
kW
HP
YEAR OF MANUFACTURE
10.150 F (L04)
D 0826 GF01
6871
110
150
09/1987 → 12/1992
10.150 F (L04)
D 0226 MF
6871
110
150
05/1990 → 10/1993
10.153 F (L24)
D 0824 LFL01
4580
114
155
10/1993 → 01/1995
10.223 F (L25)
D 0826 LFL02
6871
169
230
10/1993 → 05/1994
6.100 F (L01)
D 0824 GF, GF01
4580
75
102
09/1987 → 12/1992
8.100 F (L01)
D 0824 GF, GF01
4580
75
102
09/1987 → 12/1992
8.103 F (L20)
D 0824 FL01
4580
75
102
10/1993 → 01/1995
8.150 F (L02)
D 0826 GF
6871
110
150
09/1987 → 12/1992
8.150 F (L02)
D 0226 MF
6871
110
150
05/1990 → 10/1993
8.153 F (L20)
D 0824 LFL01
4580
114
155
10/1993 → 01/1995
8.223 F (L21)
D 0826 LFL02
6871
169
230
10/1993 → 05/1994
9.150 F (L02)
D 0826 GF
6871
110
150
09/1987 → 12/1992
9.150 F (L02)
D 0226 MF
6871
110
150
05/1990 → 10/1993
9.153 F (L20)
D 0824 LFL01
4580
114
155
10/1993 → 01/1995
9.223 F (L21)
D 0826 LFL02
6871
162
220
10/1993 → 05/1994
KAT (HX-Serie) | 03-15
ENGINE CODE
CC
kW
HP
YEAR OF MANUFACTURE
18.330 (HX)
D0836 LFG
243
330
01/2003 → 12/2015
22.330 (HX)
D0836 LFG
243
330
01/2003 → 12/2015
L2000 + L2000 Evolution | 93-
ENGINE CODE
CC
kW
HP
YEAR OF MANUFACTURE
10.145 L (L2000)
D 0834
4580
103
140
05/2001 →
10.145 L (L2000)
D 0824 LFL07
4580
104
141
06/1993 → 04/2006
10.150 FOC (L2000 / L50)
D 0824 LFO
4580
118
160
04/1995 →
10.153 L (L2000)
D 0834
4580
110
150
07/1999 → 08/2006
10.163 F (L2000 / L24)
D 0824 LFL02
4580
118
160
05/1994 →
10.174 L (L2000)
D 0834
4580
125
170
06/2000 → 01/2004
10.185 L (L2000)
D 0834
4580
132
180
05/2001 →
10.224 F (L2000 / L25)
D 0826 LFL03
6871
162
220
05/1994 →
10.225 L (L2000)
D 0836
6871
162
220
05/2001 →
6.103 L (L2000 / L20)
D 0824 FL01
4580
75
102
06/1993 → 08/2006
6.113 L (L2000 / L20)
D 0824 LFL04
4580
81
110
06/1993 → 08/2006
6.145 L (L2000 / L20)
D 0824 LFL07
4580
104
141
06/2000 → 10/2001
6.145 L (L2000)
D 0834
4580
103
140
06/2000 → 01/2004
6.153 L (L2000 / L20)
D 0824 LFL
4580
114
155
06/1993 → 08/2006
6.153 L (L2000)
D 0834
4580
110
150
07/1999 → 08/2006
6.163 F (L2000 / L20)
D 0824 LFL02
4580
118
160
06/1993 → 08/2006
6.174 L (L2000)
D 0834
4580
125
170
07/1999 → 08/2006
6.185 L (L2000)
D 0834
4580
132
180
06/2000 → 01/2004
7.103 L (L2000 / L20)
D 0824 FL01
4580
75
102
06/1993 → 08/2006
7.113 L (L2000 / L20)
D 0824 LFL04
4580
81
110
06/1993 → 08/2006
7.145 L (L2000 / L20)
D 0824 LFL07
4580
104
141
06/2000 → 10/2001
7.145 L (L2000)
D 0834
4580
103
140
06/2000 → 01/2004
7.153 L (L2000 / L20)
D 0824 LFL
4580
114
155
06/1993 → 08/2006
7.153 L (L2000)
D 0834
4580
110
150
07/1999 → 08/2006
7.163 F (L2000 / L20)
D 0824 LFL02
4580
118
160
06/1993 → 08/2006
7.174 L (L2000)
D 0834
4580
125
170
07/1999 → 08/2006
7.185 L (L2000)
D 0834
4580
132
180
06/2000 → 01/2004
8.103 L (L2000 / L20)
D 0824 FL01
4580
75
102
06/1993 → 08/2006
8.113 L (L2000 / L20)
D 0824 LFL04
4580
81
110
08/1995 →
8.145 L (L2000)
D 0834
4580
103
140
05/2001 →
8.145 L (L2000)
D 0824 LFL07
4580
104
141
06/1993 → 08/2006
8.150 FOC (L2000 / L50)
D 0824 LFO
4580
118
160
04/1995 →
8.153 L (L2000)
D 0834
4580
110
150
07/1999 → 08/2006
8.163 F (L2000 / L20)
D 0824 LFL02
4580
118
160
05/1994 →
8.174 L (L2000)
D 0834
4580
125
170
06/2000 → 01/2004
8.185 L (L2000)
D 0834
4580
132
180
05/2001 →
8.220 FOC (L2000 / L52)
D 0826 LFL03/06/10
6871
162
220
04/1995 →
8.223 L (L2000 / LAEC)
D 0826 LFL06
6871
162
220
05/1994 →
8.224 F (L2000 / L21)
D 0826 LFL03/06/10
6871
162
220
05/1994 →
8.225 L (L2000)
D 0836
6871
162
220
05/2001 →
9.113 L (L2000 / L20)
D 0824 LFL04
4580
81
110
06/2000 → 10/2001
9.145 L (L2000)
D 0834
4580
103
140
05/2001 →
9.145 L (L2000)
D 0824 LFL07
4580
104
141
06/1993 → 08/2006
9.153 L (L2000)
D 0834
4580
110
150
07/1999 → 08/2006
9.163 F (L2000 / L20)
D 0824 LFL02
4580
118
160
05/1994 →
9.174 L (L2000)
D 0834
4580
125
170
06/2000 → 01/2004
9.185 L (L2000)
D 0834
4580
132
180
05/2001 →
9.224 F (L2000 / L21)
D 0826 LFL03/06/10
6871
162
220
05/1994 →
9.225 L (L2000)
D 0836
6871
162
220
05/2001 →
LE | 00-07
ENGINE CODE
CC
kW
HP
YEAR OF MANUFACTURE
LE 110 C (L2000)
D 0824 LFL06
4580
83
113
08/2000 → 04/2007
LE 140 C (L2000)
D 0834
4580
103
140
01/2001 → 04/2007
LE 160 C (L2000)
D 0824 LFL08
4580
114
155
08/2000 → 04/2007
LE 180 C (L2000)
D 0834
4580
132
180
01/2001 → 04/2007
LE 220 B (M2000)
D 0826 LFL10
6871
162
220
09/2000 → 04/2007
LE 220 B (M2000)
D 0836
6871
162
220
01/2001 → 04/2007
LE 220 C (L2000)
D 0836
6871
162
220
01/2001 → 04/2007
LE 220 C (L2000)
D 0826 LFL10
6871
162
220
08/2000 → 04/2007
LE 250 B (M2000)
D 0836
6871
180
245
01/2001 → 04/2007
LE 280 B (M2000)
D 0836
6871
206
280
01/2001 → 04/2007
M-Serie | 83-89
ENGINE CODE
CC
kW
HP
YEAR OF MANUFACTURE
12.136 F (492)
D 0226 MF
5687
100
136
09/1983 → 01/1988
12.170 F (493)
D 0226 MKF/170
5687
125
170
04/1983 → 02/1989
12.192 F (493)
D 0226 MKF
10300
141
192
09/1983 → 02/1989
14.136 F (494)
D 0226 MF
5687
100
136
09/1983 → 02/1989
14.170 F (495)
D 0226 MKF/170
5687
125
170
04/1983 → 02/1989
14.192 F (495)
D 0226 MKF
9510
141
192
09/1983 → 02/1989
16.136 F (497)
D 0226 MF
5687
100
136
04/1984 → 11/1986
16.170 F (498)
D 0226 MKF/170
5687
125
170
03/1984 → 11/1986
16.192 F (498)
D 0226 MKF
9510
141
192
03/1984 → 11/1986
17.136 F (497)
D 0226 MF
5687
100
136
11/1986 → 08/1988
17.170 F (498)
D 0226 MKF/170
5687
125
170
11/1986 → 08/1988
17.192 F (498)
D 0226 MKF
6871
141
192
11/1986 → 08/1988
M2000 + M2000 Evolution | 94-
ENGINE CODE
CC
kW
HP
YEAR OF MANUFACTURE
11.145 L (M2000 / L70)
D 0824 LFL07
4580
104
141
05/1995 → 08/2006
11.163 L (M2000 / L70)
D 0824 LFL02
4580
118
160
05/1995 → 08/2006
11.223 L (M2000)
D0826 LFL03/10/15/18
6871
162
220
04/1995 → 08/2006
11.224 L (M2000)
D0826 LFL03/10/15/18
6871
162
220
04/1995 → 08/2006
11.225 L (M2000)
D0826 LFL03/10/15/18
6871
162
220
04/1995 → 08/2006
12.145 L (M2000)
D 0834
4580
103
140
05/2001 →
12.163 L (M2000 / L70)
D 0824 LFL06
4580
114
155
08/1995 →
12.185 L (M2000)
D 0834
4580
132
180
05/2001 →
12.224 L (M2000)
D 0826 LFL03/06/10
6871
162
220
05/1994 →
12.225 L (M2000)
D 0836
6871
162
220
05/2001 →
12.255 L (M2000)
D 0836
6871
180
245
05/2001 →
12.255 L (M2000)
D 0826 LFL07
6871
188
256
05/1995 → 02/2007
12.264 (M2000)
D 0826 LF17
6871
191
260
11/1998 →
12.264 M (M2000)
D 0836 LF 02
6871
196
266
06/1995 → 07/2005
12.284 (M2000)
D 0836LF
6871
206
281
11/1998 →
13.163 L (M2000 / L74)
D 0824 LFL02
4580
118
160
04/1995 → 08/2001
13.185 L (M2000)
D 0834 LFL03
4580
132
180
07/1999 → 08/2001
13.224 L/M (M2000)
D 0826 LFL03/06/10
6871
162
220
06/1995 → 02/2007
13.225 L/M (M2000)
D 0826 LFL03/06/10
6871
162
220
05/1995 → 07/2005
13.255 L (M2000)
D 0826 LFL07
6871
188
256
05/1995 → 04/2002
13.255 L/M (M2000)
D 0836 LFL05
6871
180
245
05/1995 → 04/2002
13.263 L (M2000)
D 0836 LFL04
6871
196
266
01/1996 → 02/2007
13.263 L (M2000)
D 0826 LFL09
6871
191
260
01/1996 → 02/2007
13.264 L/M (M2000)
D 0836 LFL04
6871
196
266
06/1995 → 02/2007
13.264 L/M (M2000)
D 0826 LFL09/LF17
6871
191
260
06/1995 → 02/2007
13.284 L/M (M2000)
D 0836 LFL01/03/06
6871
206
280
06/1995 → 04/2002
13.285 L/M (M2000)
D 0836 LFL01/03/06
6871
206
280
05/1995 → 07/2005
14.163 L (M2000 / L74)
D 0824 LFL06
4580
114
155
08/1995 →
14.185 L/M (M2000)
D 0834
4580
132
180
05/2001 →
14.224 L/M (M2000)
D0826 LFL03/10/15/18
6871
162
220
08/1995 →
14.225 L/M (M2000)
D 0836
6871
162
220
05/2001 →
14.255 L (M2000)
D 0836
6871
180
245
05/2001 →
14.255 L (M2000)
D 0826 LFL07
6871
188
256
05/1995 → 02/2007
14.263 L (M2000)
D 0836 LFL04
6871
196
266
04/1995 → 02/2007
14.264 L/M (M2000)
D 0826 LFL09/17
6871
191
260
08/1995 →
14.264 L/M (M2000)
D 0836 LFL04/LF02
6871
196
266
04/1995 → 02/2007
14.284 L/M (M2000)
D 0836 LFL01
6871
206
280
11/1998 →
14.285 L/M (M2000)
D 0836
6871
206
280
05/2001 →
15.163 L (M2000 / L81)
D 0824 LFL06
4580
114
155
08/1995 →
15.185 L (M2000)
D 0834
4580
103
140
05/2001 →
15.224 L (M 2000 / L82)
D 0826 LFL03/10
6871
162
220
08/1995 →
15.225 L (M2000)
D 0836
6871
162
220
05/2001 →
15.255 L (M2000)
D 0836
6871
180
245
05/2001 →
15.255 L (M2000)
D 0826 LFL07
6871
188
256
04/1995 → 08/2006
15.263 L (M2000)
D 0836 LFL04
6871
196
266
04/1995 → 08/2006
15.264 L (M2000 / L82)
D 0826 LFL09
6871
191
260
08/1995 →
15.264 L (M2000)
D 0836 LFL04
6871
196
266
04/1995 → 08/2006
15.284 L (M2000)
D 0836 LFL01
206
281
07/1998 →
15.285 L (M2000)
D 0836
6871
206
280
05/2001 →
18.224 L (M2000)
D 0826 LFL03/10
6871
162
220
08/1995 →
18.225 L/M (M2000)
D 0836
6871
162
220
05/2001 →
18.255 L (M2000)
D 0826 LFL07
6871
188
256
03/1995 → 03/2007
18.255 L/M (M2000)
D 0836
6871
180
245
05/2001 →
18.263 L (M2000)
D 0836 LFL04
6871
196
266
03/1995 → 04/2002
18.264 L (M2000 / L87)
D 0826 LFL09/LF17
6871
191
260
08/1995 →
18.264 L/M (M2000)
D 0836 LFL04/LF02
6871
196
266
03/1995 → 03/2007
18.284 L/M (M2000)
D 0836 LFL01
6871
206
280
11/1998 →
18.285 L/M (M2000)
D 0836
6871
206
280
05/2001 →
19.224 L (M2000)
D 0826 LFL02/03/06/08/10
6871
162
221
04/1995 → 08/2006
19.225 L (M2000)
D 0826 LFL02/03/06/08/10
6871
162
221
04/1995 → 08/2006
19.255 L (M2000)
D 0826 LFL07
6871
188
256
04/1995 → 08/2006
19.255 L (M2000)
D 0836 LFL05
6871
180
245
04/1995 → 08/2006
19.264 L (M2000)
D 0826 LFL09
6871
191
260
04/1995 → 08/2006
19.264 L (M2000)
D 0836 LFL04
6871
196
266
04/1995 → 08/2006
19.270 (M2000 / M92)
D 0826 LF04
198
269
01/2000 → 09/2004
19.284 L (M2000)
D 0836 LFL01/03/06
6871
206
280
04/1995 → 08/2006
19.285 L (M2000)
D 0836 LFL01/03/06
6871
206
280
04/1995 → 08/2006
20.224 L (M2000)
D 0826 LFL10
6871
162
221
09/1997 →
20.225 L (M2000)
D 0836
6871
162
220
05/2001 →
20.255 L (M2000)
D 0836
6871
180
245
05/2001 →
20.255 L (M2000)
D 0826 LFL07
6871
188
256
07/1995 → 08/2006
20.264 L (M2000)
D 0826 LFL09
6871
191
260
09/1997 →
20.264 L (M2000)
D 0836 LFL04
6871
196
266
07/1995 → 08/2006
20.284 L (M2000)
D 0836 LFL01
6871
206
280
11/1998 →
20.285 L (M2000)
D 0836
6871
206
280
05/2001 →
23.224 M (M2000)
D 0826 LF04/15/18
6871
162
220
05/1995 → 07/2005
23.225 M (M2000)
D 0826 LF04/15/18
6871
162
220
05/1995 → 07/2005
23.255 M (M2000)
D 0836 LF05
6871
180
245
05/1995 → 07/2005
23.264 M (M2000)
D 0826 LF17
6871
191
260
05/1995 → 07/2005
23.264 M (M2000)
D 0836 LF02
6871
196
266
05/1995 → 07/2005
23.284 L (M2000)
D 0836 LF
6871
206
284
11/1998 →
25.224 M (M2000 / M42)
D 0826 LF15/18
6871
162
220
08/1995 →
25.225 M (M2000)
D 0836
6871
162
220
05/2001 →
25.255 M (M2000)
D 0836
6871
180
245
05/2001 →
25.264 M (M2000 / M42)
D 0826 LF17
6871
191
260
08/1995 →
25.264 M (M2000)
D 0836 LF02
6871
196
266
05/1995 → 07/2005
25.270 (M2000 / M95)
D 0826 LF04
198
269
01/2000 → 09/2004
25.284 M (M2000)
D 0836 LF01
6871
206
280
11/1998 →
25.285 M (M2000)
D 0836
6871
206
280
05/2001 →
26.224 L (M2000)
D 0826 LF/LFL
6871
162
220
09/1997 →
26.225 L (M2000)
D 0836
6871
162
220
05/2001 →
26.255 L (M2000)
D 0836
6871
180
245
05/2001 →
26.255 L (M2000)
D 0826 LFL07
6871
188
256
01/1999 → 08/2006
26.270 (M2000 / M93)
D 0826 LF04
198
269
01/2000 → 09/2004
26.274 L (M2000)
D 0836
6871
196
266
05/2004 → 02/2007
26.275 L (M2000)
D 0836
6871
196
266
05/2004 → 02/2007
26.284 L (M2000)
D 0836 LFL01
6871
206
280
05/1999 →
26.285 L (M2000)
D 0836
6871
206
280
05/2001 →
M90 | 88-97
ENGINE CODE
CC
kW
HP
YEAR OF MANUFACTURE
12.152 F (M01)
D 0826 F01
6871
114
155
12/1988 → 10/1992
12.152 F (M01)
D 0824 LF01
6871
114
155
05/1994 → 06/1996
12.162 F (M01)
D 0824 LF02
4580
118
160
08/1995 → 06/1996
12.192 F (M01)
D 0826 LF01
10300
141
192
07/1990 → 10/1992
12.222 F (M01)
D 0826 LF11
6871
162
220
05/1994 → 06/1996
12.232 F (M01)
D 0826 LF02
6871
169
230
08/1988 → 10/1992
12.262 F (M01)
D 0826 LF13
6871
191
260
08/1995 → 06/1996
12.272 F (M01)
D 2865 LF02
9973
198
270
09/1991 → 10/1992
12.272 F (M01)
D 0826 LF04/08
9973
198
270
10/1992 → 06/1996
13.152 F (M01)
D 0824 LF01
6871
114
155
05/1994 → 06/1996
13.152 F (M01)
D 0826 F01
6871
114
155
12/1988 → 10/1992
13.162 F (M01)
D 0824 LF02
4580
118
160
08/1995 → 06/1996
13.192 F (M01)
D 0826 LF01
10300
141
192
07/1990 → 10/1992
13.222 F (M01)
D 0826 LF11
6871
162
220
05/1994 → 06/1996
13.232 F (M01)
D 0826 LF02
6871
169
230
08/1988 → 10/1992
13.272 F (M01)
D 0826 LF04/08
9973
198
270
10/1992 → 06/1996
14.152 F (M03)
D 0826 F01
6871
114
155
12/1988 → 12/1991
14.152 F (M03)
D 0824 LF01
6871
114
155
05/1994 → 06/1996
14.162 F (M03/M04)
D 0824 LF02
6871
118
160
08/1995 → 06/1996
14.192 F (M03)
D 0826 LF01
9510
141
192
07/1990 → 10/1992
14.222 F (M03)
D 0826 LF11
6871
162
220
05/1994 → 06/1996
14.232 F (M03)
D 0826 LF/217
6871
169
230
05/1990 → 04/1995
14.262 F (M03)
D 0826 LF13
6871
191
260
08/1995 → 06/1996
14.272 F (M03)
D 2865 LF02
9973
198
270
09/1991 → 10/1992
14.272 F (M03)
D 0826 LF04
9973
198
270
10/1992 → 06/1996
15.162 F (M03/M04)
D 0824 LF02
6871
118
160
08/1995 → 06/1996
15.192 F (M03)
D 0826 LF01
9510
141
192
07/1990 → 10/1992
15.222 F (M03)
D 0826 LF11
6871
162
220
05/1994 → 06/1996
15.232 F (M03)
D 0826 LF/217
6871
169
230
05/1990 → 04/1995
15.272 F (M03)
D 0826 LF04
9973
198
270
10/1992 → 06/1996
17.192 F (M05)
D 0826 LF01
6871
141
192
07/1990 → 01/1991
17.222 FA (M08)
D 0826 LF11
6871
162
220
05/1994 → 06/1996
17.232 F (M05)
D 0826 LF/217
6871
169
230
05/1990 → 01/1991
17.262 FA (M08)
D 0826 LF13
6871
191
260
01/1989 → 06/1997
17.272 FLS (M06)
D 2865 LF02
9973
198
270
09/1991 → 05/1995
17.272 FLS (M06)
D 0826 LF04
9973
198
270
10/1992 → 05/1995
18.192 F (M05)
D 0826 LF01
6871
140
190
09/1990 → 05/1994
18.222 F (M05)
D 0826 LF11
6871
162
220
05/1994 → 06/1996
18.232 F (M05)
D 0826 LF02
6871
169
230
09/1990 → 05/1994
18.262 F (M05)
D 0826 LF13
6871
191
260
08/1995 → 06/1996
18.272 F (M05)
D 2865 LF02
9973
198
270
09/1991 → 05/1994
18.272 F (M05)
D 0826 LF04
9973
198
270
10/1992 → 06/1996
24.192 FNL (M09)
D 0826 LF01
6871
140
190
07/1989 → 10/1992
24.222 FNL (M09,M19)
D 0826 LF11
6871
162
220
05/1994 → 06/1996
24.232 FNL (M09)
D 0826 LF/217
6871
169
230
05/1990 → 04/1995
24.262 FNL (M09,M19)
D 2826 LF13
9973
191
260
08/1995 → 06/1996
24.272 FNL (M09,M19)
D 0826 LF04
9973
198
270
10/1992 → 06/1996
ME | 00-07
ENGINE CODE
CC
kW
HP
YEAR OF MANUFACTURE
ME 220 B (M2000)
D 0836
6871
162
220
08/2000 → 04/2007
ME 250 B (M2000)
D 0836
6871
180
245
08/2000 → 04/2007
ME 260 B (M2000)
D 0836
6871
191
260
08/2000 → 04/2007
ME 280 B (M2000)
D 0836
6871
206
280
08/2000 → 04/2007
MAZ
100 - 1000 (Buses) | 95-
ENGINE CODE
CC
kW
HP
YEAR OF MANUFACTURE
251
MAN D2866LOH28
11967
265
360
01/2005 →
NEOPLAN (NEOMAN)
Airliner | 05-14
ENGINE CODE
CC
kW
HP
YEAR OF MANUFACTURE
N9112 / N9112 L
D0836 LOH03
6871
162
220
01/2005 → 12/2007
N9122 / N9122L
D0836 LOH03
6871
162
220
01/2005 → 12/2007
Centroliner / Centroliner Evolution | 98-
ENGINE CODE
CC
kW
HP
YEAR OF MANUFACTURE
N 4407
D 0826 LOH17
6871
162
220
10/1998 →
N 4411
D 0826 LOH17/LUH12
6871
162
220
10/1998 →
N 4411
D 0836 LOH03
6871
206
280
10/1998 →
N 4416
D 0826 LOH17/LUH12
6871
162
220
10/1998 →
N 4416
D 0836 LOH03
6871
206
280
10/1998 →
N 4416
D 0836 LUH13
6871
191
260
01/1999 → 12/2001
N 4416
D 2866 LUH
11967
191
260
01/1999 → 12/2001
N 4416
D 2866 LUH20
11967
228
310
01/1999 → 12/2001
N 4420
D 2866 LOH25/LUH20
11967
228
310
01/1999 →
N 4420
D 2866 LUH22
11967
191
260
01/1999 →
N 4420
D 2866 LUH21
11967
257
349
01/1999 →
N 4421
D 2866 LUH22
11967
191
260
01/1999 →
N 4421
D 2866 LOH25/LUH20
11967
228
310
01/1999 →
N 4421
D 2866 LUH21
11967
257
349
01/1999 →
N 4426/3
D 2866 LOH
11967
265
360
05/2002 →
N 4516
D 2866 LUH24
11967
228
310
03/2002 →
N 4521
D 2866 LUH25
11967
265
360
03/2002 →
Euroliner | 97-
ENGINE CODE
CC
kW
HP
YEAR OF MANUFACTURE
N 316/3 UEL
MAN D 2876 LUH01
294
400
01/1997 →
N 3316 K/UE
D 2866 LUH30
11967
301
410
09/1998 →
N 3316 KL/UEL
D 2866 LUH25
11967
265
360
09/1998 →
N 3318/3 UE
D 2866 LUH30
11967
301
410
09/1998 →
Jetliner | 81-
ENGINE CODE
CC
kW
HP
YEAR OF MANUFACTURE
Jetliner N 208
MAN D 0826 LOH2
6871
140
190
09/1992 →
Jetliner N 208
MAN D 0826 LOH3/4
6871
169
230
09/1990 →
Megashuttle | 94-
ENGINE CODE
CC
kW
HP
YEAR OF MANUFACTURE
N4032/4
MAN D 2865 LOH02
9973
235
320
01/1994 →
Sportliner | 90-
ENGINE CODE
CC
kW
HP
YEAR OF MANUFACTURE
N208
D0826 LOH15
6871
162
220
01/1990 →
Starliner I | 96-04
ENGINE CODE
CC
kW
HP
YEAR OF MANUFACTURE
N 516
MAN D2866 LOH23
11967
294
401
09/1996 → 12/2004
N 516
MAN D2876 LOH01
12816
338
461
09/1996 → 12/2004
N 516/3
MAN D2866 LOH23
11967
294
401
09/1996 → 12/2004
N 516/3
MAN D2876 LOH01
12816
338
461
09/1996 → 12/2004
N 516/3
MAN D2866 LOH 29
11967
301
410
09/2002 → 12/2004
Tourliner | 03-
ENGINE CODE
CC
kW
HP
YEAR OF MANUFACTURE
N 2216 SHD (P21)
MAN D 2866 LOH034
11967
301
410
09/2003 →
N 2216/3 SHD-L (P22)
MAN D 2866 LOH034
11967
301
410
09/2003 →
Transliner | 88-
ENGINE CODE
CC
kW
HP
YEAR OF MANUFACTURE
Transliner N 316 H
MAN D 2866
11970
199
271
12/1988 →
Transliner N 316 H
MAN D 2866 LOH
11970
294
400
12/1988 →
Transliner N 316 H
MAN D 2866
11970
221
300
12/1988 →
OEAF (OESTERR. AUTOMOBILFABR.)
E2000 | 94-02
ENGINE CODE
CC
kW
HP
YEAR OF MANUFACTURE
18.273 (E2000)
MAN D 2865 LF22
9973
198
270
05/1995 → 02/2000
18.293 (E2000)
MAN D 2865 LF24
9973
213
290
05/1995 → 02/2000
18.323 (E2000)
MAN D 2865 LF23
9973
235
320
05/1995 → 02/2000
18.343 (E2000)
MAN D 2865 LF21
9973
250
340
05/1995 → 02/2000
19.273 (E2000)
MAN D 2865 LF22
9973
198
270
05/1995 → 02/2000
19.293 (E2000)
MAN D 2865 LF24
9973
213
290
05/1995 → 02/2000
19.323 (E2000)
MAN D 2865 LF23
9973
235
320
05/1995 → 02/2000
19.343 (E2000)
MAN D 2865 LF21
9973
250
340
05/1995 → 02/2000
21.273 (E2000)
MAN D 2865 LF22
9973
198
270
05/1995 → 02/2000
21.293 (E2000)
MAN D 2865 LF24
9973
213
290
05/1995 → 02/2000
21.323 (E2000)
MAN D 2865 LF23
9973
235
320
05/1995 → 02/2000
21.343 (E2000)
MAN D 2865 LF21
9973
250
340
05/1995 → 02/2000
24.273 (E2000)
MAN D 2865 LF22
9973
198
270
06/1995 → 02/2000
24.293 (E2000)
MAN D 2865 LF24
9973
213
290
06/1995 → 02/2000
24.323 (E2000)
MAN D 2865 LF23
9973
235
320
06/1995 → 02/2000
24.343 (E2000)
MAN D 2865 LF21
9973
250
340
06/1995 → 02/2000
26.273 (E2000)
MAN D 2865 LF22
9973
198
270
01/1994 → 02/2000
26.293 (E2000)
MAN D 2865 LF24
9973
213
290
06/1995 → 02/2000
26.323 (E2000)
MAN D 2865 LF23
9973
235
320
06/1995 → 02/2000
26.343 (E2000)
MAN D 2865 LF21
9973
250
340
06/1995 → 02/2000
27.273 (E2000)
MAN D 2865 LF22
9973
198
269
06/1995 → 02/2000
27.293 (E2000)
MAN D 2865 LF24
9973
213
290
06/1995 → 02/2000
27.323 (E2000)
MAN D 2865 LF23
9973
235
320
06/1995 → 02/2000
27.343 (E2000)
MAN D 2865 LF21
9973
250
340
06/1995 → 02/2000
28.273 (E2000)
MAN D 2865 LF22
9973
198
269
08/1995 → 02/2000
28.293 (E2000)
MAN D 2865 LF 24
10000
213
290
08/1995 → 02/2000
28.323 (E2000)
MAN D 2865 LF23
9973
235
320
08/1995 → 02/2000
28.343 (E2000)
MAN D 2865 LF21
10000
250
341
06/1995 → 02/2000
33.273 (E2000)
MAN D 2865 LF22
9973
198
269
08/1995 → 02/2000
33.293 (E2000)
MAN DF 2865 LF24
9973
213
290
08/1995 → 02/2000
33.323 (E2000)
MAN D 2865 LF23
9973
235
320
08/1995 → 02/2000
33.343 (E2000)
MAN D 2865 LF21
9973
250
340
08/1995 → 02/2000
37.373 (E2000)
MAN D 2866 LF21
11967
272
370
06/1995 → 01/2002
37.403 (E2000)
MAN D 2866 LF29
11967
294
400
06/1995 → 01/2002
37.423 (E2000)
MAN D 2866 LF22
11967
309
420
06/1995 → 01/2002
37.463 (E2000)
MAN D 2876 LF02
12816
338
460
06/1995 → 01/2002
41.373 (E2000)
MAN D 2866 LF21
11967
272
370
06/1995 → 01/2002
41.403 (E2000)
MAN D 2866 LF29
11967
294
400
06/1995 → 01/2002
41.423 (E2000)
MAN D 2866 LF22
11967
309
420
06/1995 → 01/2002
41.463 (E2000)
MAN D 2876 LF02
11967
338
460
06/1995 → 01/2002
42.373 (E2000)
MAN D 2866 LF21
11967
272
370
06/1995 → 01/2002
42.403 (E2000)
MAN D 2866 LF29
11967
294
400
06/1995 → 01/2002
42.423 (E2000)
MAN D 2866 LF22
11967
309
420
06/1995 → 01/2002
42.463 (E2000)
MAN D 2876 LF06
12816
338
460
06/1995 → 01/2002
ROMAN S.A. (DAC)
16t-Serie | 90-
ENGINE CODE
CC
kW
HP
YEAR OF MANUFACTURE
16.245 F
MAN D0836 LFL05
6870
180
245
02/2005 →
18t-Serie | 05-
ENGINE CODE
CC
kW
HP
YEAR OF MANUFACTURE
18.245 FL
MAN D0836 LFL05
6870
180
245
02/2005 →
18.280 FL
MAN D0836 LFL03
6870
206
280
02/2005 →
18.310 FL
MAN D2866 LF23
11967
228
310
02/2005 →
18.360 FL
MAN D2866 LF24
11967
265
360
02/2005 →
26t-Serie | 90-
ENGINE CODE
CC
kW
HP
YEAR OF MANUFACTURE
26.280 DFAE
MAN D0836 LFL
206
281
01/1999 →
26.320 DFA
MAN D2866 LF34
220
300
01/1999 →
26.360 DFAE
MAN D2866 LF35
265
360
01/1999 →
32t-Serie | 80-
ENGINE CODE
CC
kW
HP
YEAR OF MANUFACTURE
32.360 DFAS
MAN D2866 LF35
265
360
01/1999 →
SOLARIS BUS
Urbino | 99-
ENGINE CODE
CC
kW
HP
YEAR OF MANUFACTURE
U 9
MAN D 0824 LOH05
4580
114
155
01/1999 →
U 12
MAN D 0824 LOH17
4580
162
221
01/1999 →
U 12
MAN D 0826 LOH18
6871
191
260
01/1999 →
U 15
MAN D 0826 LOH18
191
260
01/1999 →
U 18
MAN D 0824 LOH25
191
260
01/1999 →
U 18
MAN D 2866 LOH25
11967
228
310
01/1999 →
U 18
MAN D 2866 LOH26
11967
257
349
01/1999 →
STAR TRUCKS
10t-Serie | 01-
ENGINE CODE
CC
kW
HP
YEAR OF MANUFACTURE
10.157
D0824 LFL09
114
155
01/2001 →
12t-Serie | 98-
ENGINE CODE
CC
kW
HP
YEAR OF MANUFACTURE
12.155
D0824 LFL09
114
155
11/1998 →
12.157
D0824 LFL09
114
155
01/2001 →
12.227
D0826 LFL10
162
221
01/2001 →
1400-Serie | 98-
ENGINE CODE
CC
kW
HP
YEAR OF MANUFACTURE
1466
D0826 LFLG15
162
221
01/1998 →
15t-Serie | 01-
ENGINE CODE
CC
kW
HP
YEAR OF MANUFACTURE
15.227
D0826 LFL10
162
221
01/2001 →
8t-Serie | 98-
ENGINE CODE
CC
kW
HP
YEAR OF MANUFACTURE
8.117
D0824 LFL08
83
113
06/2000 → 10/2001
8.125
D0824 LFL10
92
155
11/1998 →
900-Serie | 98-
ENGINE CODE
CC
kW
HP
YEAR OF MANUFACTURE
944
D0824 LFL09
114
155
01/1998 →
STEYR (MAN-STEYR AG)
10 S | 86-
ENGINE CODE
CC
kW
HP
YEAR OF MANUFACTURE
10 S 14
MAN D 0834
4580
103
140
05/2001 →
10 S 15
MAN D 0834
4580
110
150
06/2000 → 01/2004
10 S 16
MAN D 0824
4580
114
155
09/1991 →
10 S 16 (L2000)
MAN D 0824 LFL02
4580
118
160
06/2000 → 10/2001
10 S 17 (L2000)
MAN D 0834 LFL01
4580
125
170
06/2000 → 01/2004
10 S 18
MAN D 0834
4580
132
180
05/2001 →
10 S 22
MAN 0826
6871
162
220
05/1994 →
11 S | 89-04
ENGINE CODE
CC
kW
HP
YEAR OF MANUFACTURE
11 S 16 (M2000)
MAN D 0824 LFL01/02/05/06/09
4580
118
160
06/2000 → 01/2004
11 S 22 (M2000)
MAN D0826 LFL03/10/15/18
6871
162
220
06/2000 → 01/2004
12 S | 86-
ENGINE CODE
CC
kW
HP
YEAR OF MANUFACTURE
12 S 14
MAN D 0834
4580
103
140
05/2001 →
12 S 16
MAN D 0824
4580
114
155
09/1991 →
12 S 18
MAN D 0834
4580
132
180
05/2001 →
12 S 22
MAN 0826
6871
162
220
05/1994 →
12 S 25
MAN D 0836
6871
180
245
05/2001 →
12 S 28
MAN D 0836
6871
206
280
11/1998 →
14 S | 86-
ENGINE CODE
CC
kW
HP
YEAR OF MANUFACTURE
14 S 16
MAN D 0824
4580
114
155
09/1991 →
14 S 18
MAN D 0834
4580
132
180
05/2001 →
14 S 22
MAN D 0826
6871
162
220
08/1995 →
14 S 25
MAN D 0836
6871
180
245
05/2001 →
14 S 26
MAN D 0826
6871
191
260
08/1995 →
14 S 28
MAN D 0836
6871
206
280
11/1998 →
15 S | 86-
ENGINE CODE
CC
kW
HP
YEAR OF MANUFACTURE
15 S 16
MAN D 0824
4580
114
155
09/1991 →
15 S 18
MAN D 0834
4580
132
180
05/2001 →
15 S 22
MAN D 0826
6871
162
220
05/1994 →
15 S 25
MAN D 0836
6871
180
245
05/2001 →
15 S 26
MAN D 0826
6871
191
260
08/1995 →
15 S 28
MAN D 0836
6871
206
280
11/1998 →
18 S | 94-
ENGINE CODE
CC
kW
HP
YEAR OF MANUFACTURE
18 S 22
MAN D 0826
6871
162
220
05/1994 →
18 S 25
MAN D 0836
6871
180
245
05/2001 →
18 S 28
MAN D 0836
6871
206
280
11/1998 →
19 S (F2000) | 94-
ENGINE CODE
CC
kW
HP
YEAR OF MANUFACTURE
19 S 29 (E/F2000)
MAN D 2865 LF24
9973
213
290
05/1995 → 02/2000
19 S 31 (F2000)
MAN D 2866
11967
228
310
09/1998 →
19 S 34 (E/F2000)
MAN D 2865 LF21
9973
250
340
05/1995 → 02/2000
19 S 36 (F2000)
MAN D 2866
11967
265
360
09/1998 →
19 S 37 (F2000)
MAN D 2866 LF21
11967
272
370
01/1994 → 12/1995
19 S 40 (F2000)
MAN D 2866 LF20
11967
294
400
01/1994 →
19 S 41 (F2000)
MAN D 2866 LF1
11967
301
410
09/1998 →
19 S 42 (F2000)
MAN D 2866 LF22
11967
309
420
01/1994 → 12/1995
19 S 46 (F2000)
MAN D 2876 LF06
12816
338
460
09/1998 →
19 S 46 (F2000)
MAN D 2876 LF02
11967
338
460
01/1994 → 12/2001
19 S 60 (F2000)
MAN D 2840 LF21
18273
441
601
07/1999 →
19 S | 87-
ENGINE CODE
CC
kW
HP
YEAR OF MANUFACTURE
19 S 22
MAN D 0826
6871
162
220
05/1994 →
19 S 25
MAN D 0836
6871
180
245
05/2001 →
19 S 28
MAN D 0836
6871
206
280
11/1998 →
20 S | 94-
ENGINE CODE
CC
kW
HP
YEAR OF MANUFACTURE
20 S 22
MAN D 0826
6871
162
220
05/1994 →
20 S 25
MAN D 0836
6871
180
245
05/2001 →
20 S 28
MAN D 0836
6871
206
280
11/1998 →
23 S | 94-
ENGINE CODE
CC
kW
HP
YEAR OF MANUFACTURE
23 S 31 (F2000)
MAN D 2866
11967
228
310
09/1998 →
23 S 34 (E/F2000)
MAN D 2865 LF21
9973
250
340
01/1994 →
23 S 36 (F2000)
MAN D 2866
11967
265
360
09/1998 →
23 S 41 (F2000)
MAN D 2866 LF1
11967
301
410
09/1998 →
23 S 46 (F2000)
MAN D 2876 LF02/06
11967
338
460
01/1994 →
24 S | 94-
ENGINE CODE
CC
kW
HP
YEAR OF MANUFACTURE
24 S 31 (F2000)
MAN D 2866
11967
228
310
09/1998 →
24 S 36 (F2000)
MAN D 2866
11967
265
360
09/1998 →
24 S 41 (F2000)
MAN D 2866 LF1
11967
301
410
09/1998 →
24 S 46 (F2000)
MAN D 2876 LF02/06
11967
338
460
01/1994 →
25 S | 94-
ENGINE CODE
CC
kW
HP
YEAR OF MANUFACTURE
25 S 22
MAN D 0826
6871
162
220
05/1994 →
25 S 25
MAN D 0836
6871
180
245
05/2001 →
25 S 28
MAN D 0836
6871
206
280
11/1998 →
26 S (F2000) | 94-
ENGINE CODE
CC
kW
HP
YEAR OF MANUFACTURE
26 S 27 (E/F2000)
MAN D 2865 LF22
9973
198
270
08/1995 → 02/2000
26 S 29 (D2865) (E/F2000)
MAN D 2865 LF20/24
9973
213
290
06/1995 → 02/2000
26 S 29 (D2866) (E2000)
MAN D 2866 LF07
11967
213
290
05/1996 → 02/2000
26 S 31 (E/F2000)
MAN D 2866
11967
228
310
09/1998 →
26 S 32 (E/F2000)
MAN D 2865 LF23
9973
235
320
08/1995 → 02/2000
26 S 34 (E/F2000)
D 2865 LF21
9973
250
340
06/1995 → 02/2000
26 S 36 (E/F2000)
MAN D 2866
11967
265
360
09/1998 →
26 S 41 (E/F2000)
MAN D 2866 LF1
11967
301
410
09/1998 →
26 S 46 (E/F2000)
MAN D 2876 LF02/06
11967
338
460
01/1994 →
26 S 60 (F2000)
MAN D 2840 LF21
18273
441
601
07/1999 →
26 S | 87-
ENGINE CODE
CC
kW
HP
YEAR OF MANUFACTURE
26 S 22
MAN D 0826
6871
162
220
05/1994 →
26 S 25
MAN D 0836
6871
180
245
05/2001 →
26 S 28
MAN D 0836
6871
206
280
11/1998 →
27 S | 94-
ENGINE CODE
CC
kW
HP
YEAR OF MANUFACTURE
27 S 27 (E/F2000)
MAN D 2865 LF22
9973
198
269
08/1995 → 02/2000
27 S 29 (D2865) (E/F2000)
MAN D 2865 LF20/24
9973
213
290
08/1995 → 01/2000
27 S 29 (D2866) (E2000)
MAN D 2866 LF07
11967
213
290
05/1996 → 02/2000
27 S 31 (F2000)
MAN D 2866
11967
228
310
09/1998 →
27 S 32 (E/F2000)
MAN D 2865 LF23
9973
235
320
08/1995 → 02/2000
27 S 34 (E/F2000)
MAN D 2865 LF21
9973
250
340
08/1995 → 02/2000
27 S 36 (F2000)
MAN D 2866
11967
265
360
09/1998 →
27 S 37 (F2000)
MAN D 2866 LF21
11967
272
370
01/1994 → 12/1995
27 S 41 (F2000)
MAN D 2866 LF1
11967
301
410
09/1998 →
27 S 42 (F2000)
MAN D 2866 LF22
11967
309
420
01/1994 → 12/1995
27 S 46 (F2000)
MAN D 2876 LF02/06
11967
338
460
01/1994 →
27 S 60 (F2000)
MAN D 2840 LF21
18273
441
601
07/1999 →
28 S (E2000) | 94-
ENGINE CODE
CC
kW
HP
YEAR OF MANUFACTURE
28 S 27 (E/F2000)
MAN D 2865 LF22
9973
198
269
08/1995 → 02/2000
28 S 29 (D2866) (E/F2000)
MAN D 2865 LF 24
10000
213
290
08/1995 → 02/2000
28 S 29 (D2866) (E2000)
MAN D 2866 LF07
11967
213
290
05/1996 → 02/2000
28 S 31 (E2000)
MAN D 2866
11967
228
310
09/1998 →
28 S 32 (E/F2000)
MAN D 2865 LF23
9973
235
320
08/1995 → 02/2000
28 S 34 (E/F2000)
MAN D 2865 LF21
10000
250
341
08/1995 → 02/2000
28 S 36 (E2000)
MAN D 2866
11967
265
360
09/1998 →
28 S 41 (E2000)
MAN D 2866 LF1
11967
301
410
09/1998 →
28 S 46 (E2000)
MAN D 2876 LF02/06
11967
338
460
01/1994 →
29 S | 94-
ENGINE CODE
CC
kW
HP
YEAR OF MANUFACTURE
29 S 41 (E2000)
MAN D 2866 LF1
11967
301
410
09/1998 →
29 S 46 (E2000)
MAN D 2876 LF02/06
11967
338
460
01/1994 →
30 S | 94-
ENGINE CODE
CC
kW
HP
YEAR OF MANUFACTURE
30 S 31 (E2000)
MAN D 2866
11967
228
310
09/1998 →
30 S 36 (E2000)
MAN D 2866
11967
265
360
09/1998 →
30 S 41 (E2000)
MAN D 2866 LF1
11967
301
410
09/1998 →
30 S 46 (E2000)
MAN D 2876 LF02/06
11967
338
460
01/1994 →
32 S (E/F2000) | 94-
ENGINE CODE
CC
kW
HP
YEAR OF MANUFACTURE
32 S 31 (E/F2000)
MAN D 2866
11967
228
310
09/1998 →
32 S 36 (E/F2000)
MAN D 2866
11967
265
360
09/1998 →
32 S 41 (E/F2000)
MAN D 2866 LF1
11967
301
410
09/1998 →
32 S 46 (E/F2000)
MAN D 2876 LF02/06
11967
338
460
01/1994 →
33 S (E/F2000) | 94-
ENGINE CODE
CC
kW
HP
YEAR OF MANUFACTURE
33 S 27 (E/F2000)
MAN D 2865 LF22
9973
198
269
08/1995 → 02/2000
33 S 29 (D2865) (E/F2000)
MAN D 2865 LF24
9973
213
290
08/1995 → 02/2000
33 S 29 (D2866) (E2000)
MAN D 2866 LF07
11967
213
290
05/1996 → 02/2000
33 S 32 (E/F2000)
MAN D 2865 LF23
9973
235
320
08/1995 → 02/2000
33 S 34 (E/F2000)
MAN D 2865 LF21
9973
250
340
08/1995 → 02/2000
33 S 36 (E/F2000)
MAN D 2866
11967
265
360
09/1998 →
33 S 37 (F2000)
MAN D 2866 LF21
11967
272
370
01/1994 → 12/1995
33 S 41 (E/F2000)
MAN D 2866 LF1
11967
301
410
09/1998 →
33 S 42 (F2000)
MAN D 2866 LF22
11967
309
420
01/1994 → 12/1995
33 S 46 (E/F2000)
MAN D 2876 LF02/06
11967
338
460
01/1994 →
33 S 60 (E/F2000)
MAN D 2840 LF21
18273
441
601
07/1999 →
35 S | 94-
ENGINE CODE
CC
kW
HP
YEAR OF MANUFACTURE
35 S 31 (F2000)
MAN D 2866
11967
228
310
09/1998 →
35 S 36 (E/F2000)
MAN D 2866
11967
265
360
09/1998 →
35 S 37 (F2000)
MAN D 2866 LF21
11967
272
370
01/1994 → 12/1995
35 S 41 (E/F2000)
MAN D 2866 LF1
11967
301
410
09/1998 →
35 S 42 (F2000)
MAN D 2866 LF22
11967
309
420
01/1994 → 12/1995
35 S 46 (E/F2000)
MAN D 2876 LF02/06
11967
338
460
01/1994 →
40 S (E/F2000) | 94-
ENGINE CODE
CC
kW
HP
YEAR OF MANUFACTURE
40 S 37 (E/F2000)
MAN D 2866 LF21
11967
272
370
01/1994 → 12/1995
40 S 41 (E/F2000)
MAN D 2866 LF1
11967
301
410
09/1998 →
40 S 42 (E/F2000)
MAN D 2866 LF22
11967
309
420
01/1994 → 12/1995
40 S 46 (E/F2000)
MAN D 2876 LF02/06
11967
338
460
01/1994 →
40 S 60 (E2000)
MAN D 2840 LF21
18273
441
601
07/1999 →
41 S (E/F2000) | 94-
ENGINE CODE
CC
kW
HP
YEAR OF MANUFACTURE
41 S 36 (E/F2000)
MAN D 2866
11967
265
360
09/1998 →
41 S 37 (F2000)
MAN D 2866 LF21
11967
272
370
01/1994 → 12/1995
41 S 41 (E/F2000)
MAN D 2866 LF1
11967
301
410
09/1998 →
41 S 42 (F2000)
MAN D 2866 LF22
11967
309
420
01/1994 → 12/1995
41 S 46 (E/F2000)
MAN D 2876 LF02/06
11967
338
460
01/1994 →
41 S 60 (E2000)
MAN D 2840 LF21
18273
441
601
07/1999 →
42 S | 95-
ENGINE CODE
CC
kW
HP
YEAR OF MANUFACTURE
42 S 40 (E2000)
MAN D 2866 LF29
11967
294
400
06/1995 → 01/2002
42 S 41 (E2000)
MAN D 2866 LF1
11967
301
410
09/1998 →
42 S 46 (E2000)
MAN D 2876 LF02/06
11967
338
460
09/1998 →
42 S 46 (E2000)
MAN D 2876 LF01/03/06/09/10/17
12816
338
460
06/1995 → 01/2002
50 S | 98-
ENGINE CODE
CC
kW
HP
YEAR OF MANUFACTURE
50 S 41 (E2000)
MAN D 2866 LF1
11967
301
410
09/1998 →
50 S 46 (E2000)
MAN D 2876 LF02/06
11967
338
460
09/1998 →
50 S 60 (E2000)
MAN D 2840 LF21
18273
441
601
07/1999 →
6 S | 91-04
ENGINE CODE
CC
kW
HP
YEAR OF MANUFACTURE
6 S 10
MAN D 0824
4580
75
102
09/1991 → 12/1993
6 S 16
MAN D 0824
4580
114
155
09/1991 → 12/1993
6 S 16 (L2000)
MAN D 0824 LFL02
4580
118
160
06/2000 → 10/2001
6 S 17 (L2000)
MAN D 0834
4580
125
170
06/2000 → 01/2004
8 S | 89-
ENGINE CODE
CC
kW
HP
YEAR OF MANUFACTURE
8 S 10
MAN D 0824
4580
75
102
09/1991 →
8 S 11
MAN D 0824
4580
81
110
08/1995 →
8 S 14
MAN D 0834
4580
103
140
05/2001 →
8 S 15
MAN D 0834
4580
110
150
06/2000 → 01/2004
8 S 15 (L2000)
MAN D 0824 LFL 06, 09
4580
114
155
06/2000 → 10/2001
8 S 16
MAN D 0824
4580
114
155
09/1991 →
8 S 16 (L2000)
MAN D 0824 LFL02
4580
118
160
06/2000 → 10/2001
8 S 17 (L2000)
MAN D 0834 LFL 01
4580
125
170
06/2000 → 01/2004
8 S 18
MAN D 0834
4580
132
180
05/2001 →
8 S 22
MAN 0826
6871
162
220
05/1994 →
9 S | 86-
ENGINE CODE
CC
kW
HP
YEAR OF MANUFACTURE
9 S 14
MAN D 0834
4580
103
140
05/2001 →
9 S 15
MAN D 0834
4580
110
150
06/2000 → 01/2004
9 S 16
MAN D 0824
4580
114
155
09/1991 →
9 S 16 (L2000)
MAN D 0824 LFL02
4580
118
160
06/2000 → 10/2001
9 S 17 (L2000)
MAN D 0834 LFL01
4580
125
170
06/2000 → 01/2004
9 S 18
MAN D 0834
4580
132
180
05/2001 →
9 S 22
MAN 0826
6871
162
220
05/1994 →
TEMSA BUS
Safari HD/IC/RD/STD | 01-
ENGINE CODE
CC
kW
HP
YEAR OF MANUFACTURE
10 M
MAN D 2866 LOH28
11967
265
361
01/2001 →
12 M
MAN D 2866 LOH28
11967
265
361
01/2001 →
Samba | 01-
ENGINE CODE
CC
kW
HP
YEAR OF MANUFACTURE
Samba
MAN D 0834 LFL03
4580
132
180
01/2001 →
TROUILLET
GT-Serie | 91-
ENGINE CODE
CC
kW
HP
YEAR OF MANUFACTURE
GT 36 (MAN 11.190 HOCL)
MAN-D 0826
6871
140
190
09/1991 →
VAN HOOL
A3, AG3, AGG3 | 92-
ENGINE CODE
CC
kW
HP
YEAR OF MANUFACTURE
A300, AG300
MAN D2866 LOH 25/27
11967
228
310
09/2003 →
A360
MAN D2866 LUH 22
11967
191
260
01/2004 →
AG300
MAN D2865 LOH
9973
235
320
07/1992 →
AGG300
MAN D2866 LOH
11967
265
360
05/2003 →
A500 | 85-
ENGINE CODE
CC
kW
HP
YEAR OF MANUFACTURE
A500 (A500/1)
MAN D0826 LOH04
6596
160
218
01/1985 →
A500 (A500/2)
MAN D0826 LOH217
6871
169
230
03/1996 →
A600 | 04-
ENGINE CODE
CC
kW
HP
YEAR OF MANUFACTURE
A600
MAN D2866 LUH 22
11967
191
260
01/2004 →
EOS | 92-
ENGINE CODE
CC
kW
HP
YEAR OF MANUFACTURE
100
MAN D2866 LOH 07
11967
272
370
01/1992 →
200, 200L
MAN D2866 LOH 07
11967
272
370
01/1997 →
233
MAN D2866 LOH 23
11967
294
370
01/1998 →
90, 90L
MAN D2866 LOH 07
11967
272
370
01/1992 →
T8, TD8, TG8 | 78-98
ENGINE CODE
CC
kW
HP
YEAR OF MANUFACTURE
T809 Alizee
D 0826 OH02
6871
97
132
10/1978 → 12/1996
T809 Alizee (New Look)
D 0826 LOH
6871
140
190
09/1990 → 12/1998
T812 Alizee
D 2865 LOH01
9973
198
269
10/1978 → 12/1998
T815 Acron, Alicron, Alizee
D 2866 LOH
11967
274
370
10/1978 → 12/1998
T9, TD9, TL9 | 96-
ENGINE CODE
CC
kW
HP
YEAR OF MANUFACTURE
T915, TL915
MAN D2866 LOH24
11970
230
313
09/1996 →
T915, TL915
MAN D2866 LOH07
11970
274
373
09/1996 →
T915, TL915
MAN D2866 LOH06
11970
309
420
09/1996 →
T917
MAN D2866 LOH 29
11967
301
410
09/2004 →
T917
MAN D2876 LOH02
11967
338
460
09/2004 →
TD924
MAN D2876 LOH02
11967
338
460
09/2004 →
WEBASTO - SPHEROS
Thermo-Serie
ENGINE CODE
CC
kW
HP
YEAR OF MANUFACTURE
230, 300, 350
DW230, DW300, DW350
S160, S230, S300, S350, S400
CASE-IH (CNH GLOBAL)
Quantum | 07-
ENGINE CODE
CC
kW
HP
YEAR OF MANUFACTURE
85 F Upgrade Special
01/2012 →
CASE-STEYR (CNH GLOBAL)
KOMPAKT-Serie | 03-
ENGINE CODE
CC
kW
HP
YEAR OF MANUFACTURE
4065
04/2008 →
4075
FPT F5C
3200
55
75
04/2008 →
CUMMINS
Generatoren / Gensets
ENGINE CODE
CC
kW
HP
YEAR OF MANUFACTURE
C 10 D5
X1.3 G1
1290
11
15
DEUTZ AG (ENGINES)
2011-Serie | 01-
ENGINE CODE
CC
kW
HP
YEAR OF MANUFACTURE
BF4L/M 2011
04/2001 →
FENDT (AGCO)
700 Vario-Serie | 06-
ENGINE CODE
CC
kW
HP
YEAR OF MANUFACTURE
716 NA Vario
Deutz
Farmer 300-Serie | 80-
ENGINE CODE
CC
kW
HP
YEAR OF MANUFACTURE
306 S/LS/LSA
MWM D 226-4
4154
50
68
01/1980 → 08/1993
307 S/LS/LSA
MWM TD226-4
3117
55
75
01/1980 → 08/1993
307 Turbo (T307.210)
MWM TD226-B3
55
75
09/1993 → 12/2001
308 S/LS/LSA
MWM D226-4
57
78
01/1980 → 08/1993
308 Turbo (T308.210)
MWM TD226-B4
63
86
08/1993 → 12/2001
309 S/LS/LSA
MWM TD226-4
4154
66
90
01/1980 → 08/1993
309 Turbo (T309.210)
MWM TD226-B4
70
95
08/1993 → 12/2001
310 LS/LSA
TD 226-4.2 ab 1990: TD 226 B-4
4160
70
95
01/1984 → 08/1993
310 Turbo (T310.210)
MWM TD226-B4
77
105
09/1993 → 12/2001
311 LS/LSA
D 226 - 6.2 ab 1990 TD 226 .B
6234
74
101
01/1984 → 08/1993
311 Turbo (T311.210)
MWM TD226-B6
85
116
09/1993 → 12/2001
312 LS/LSA
MWM D 226.B-6
6234
88
120
01/1987 → 08/1993
312 Turbo (T312.210)
MWM TD226-B6
92
125
09/1993 → 12/2001
Favorit 500-Serie | 93-
ENGINE CODE
CC
kW
HP
YEAR OF MANUFACTURE
509 C
TD 226.B4
4156
70
95
05/1993 →
510 C
TD 226.B4
4156
77
105
05/1993 →
511 C
TD 226.B6
6234
85
116
05/1993 →
512 C/CA
TD 226.B6
6234
92
125
05/1993 →
514 C/CA
TD 226.B6
6234
103
140
05/1993 →
515 C/CA
TD 226.B6
6234
110
150
06/1993 →
Favorit 600-Serie | 72-93
ENGINE CODE
CC
kW
HP
YEAR OF MANUFACTURE
611 LS/LSA
MWM D 226-6
6240
77
105
01/1976 → 12/1993
612 LS/LSA
MWM D 226-6
6192
88
120
01/1976 → 12/1993
614 LS/LSA
MWM TD 226-6
6240
99
135
01/1976 → 12/1993
615 LS/LSA
MWM TD 226-6
6240
136
185
01/1976 → 12/1993
622 LS/LSA
MWM D 2566 ME
11400
161
220
03/1981 → 10/1986
626 LSA
MWM D 2566 ME
11407
185
252
03/1981 → 10/1986
Favorit 800 / 800 Vario-Serie | 93-
ENGINE CODE
CC
kW
HP
YEAR OF MANUFACTURE
815 Vario TMS
Deutz BF6M 2013
5700
110
150
11/2002 →
816 Turbo
D 0826LE/TE
125
170
08/1993 → 02/2003
818, Turbo
D 0826LE
140
191
08/1993 → 02/2003
822, Turbo
D 0826LE
6056
154
210
08/1993 → 02/2003
824, Turbo
D 0826LE
6056
169
230
08/1993 → 02/2003
Favorit 900 / 900 Vario | 98-
ENGINE CODE
CC
kW
HP
YEAR OF MANUFACTURE
916 Vario
D 0826LE/0836LE
6870
146
198
01/1998 →
918 NA Favorit
920 Vario
D 0826LE/0836LE
6870
162
220
01/1998 →
924 Vario
D 0826LE/0836LE
186
253
01/1998 →
926 Vario
D 0826LE/0836LE
210
286
01/1998 →
926 Vario TMS
930 Vario
D 0836LE
228
310
03/2003 →
GT-Serie | 57-
ENGINE CODE
CC
kW
HP
YEAR OF MANUFACTURE
345 GT/GTM (T 345.010)
Deutz F3L912
33
45
01/1985 → 12/1992
350 GT
KHD F 3 L 912 H
2827
37
50
360 GT/GTF/GTH (T 360.010/020)
KHD F3L913H
3064
44
60
01/1991 → 12/1993
365 GT/GTA (T 365.220)
KHD F4L912
3770
48
65
01/1985 → 12/1996
370 GT/GTA (F148)
Deutz F4L 913H
4086
55
75
01/1998 →
380 GT/GTA/GTF (T 380.010/220)
KHD F4L913H
4086
59
80
01/1984 →
380 GTA Turbo (F149)
Deutz F4L 913H
70
95
01/1998 →
390 GTA (T 390.220)
KHD F6L912
6128
73
100
01/1985 → 12/1995
395 GTA/GHA (T 395.220/240)
Deutz F6L 913 / F6L912H
6128
88
120
01/1989 →
Xylon-Serie | 94-04
ENGINE CODE
CC
kW
HP
YEAR OF MANUFACTURE
520
D 0824LUE
4580
81
110
01/1994 → 12/2004
522
D 0824LUE
4580
92
125
01/1994 → 12/2004
524
D 0824LUE
4580
103
140
01/1994 → 12/2004
FUCHS (Terex)
Material handlers | 03-15
ENGINE CODE
CC
kW
HP
YEAR OF MANUFACTURE
MHL 350
Deutz BF6M1013EC
7200
142
193
01/2003 → 12/2006
MHL 360
Deutz BF6M1013
JOHN DEERE
(Planierraupen / Bulldozers)
ENGINE CODE
CC
kW
HP
YEAR OF MANUFACTURE
1050 C
Liebherr D 9406
243
330
655 C
Liebherr D 924 T-E
97
132
755 C
Liebherr D 926 T-E
132
179
950 C
Liebherr D 9306 T
173
235
KAELBLE
K/KK/KV-Serie
ENGINE CODE
CC
kW
HP
YEAR OF MANUFACTURE
35
MAN D2566MT
206
281
SL10-Serie | 87-
ENGINE CODE
CC
kW
HP
YEAR OF MANUFACTURE
14 B
MAN D0826
132
180
11/1992 →
KIOTI
NX-Serie | 14-
ENGINE CODE
CC
kW
HP
YEAR OF MANUFACTURE
5510
3F183T
1826
41
55
01/2014 →
LEITNER
H - Serie
ENGINE CODE
CC
kW
HP
YEAR OF MANUFACTURE
500
MAN D 2866 LE
LH - Serie
ENGINE CODE
CC
kW
HP
YEAR OF MANUFACTURE
500
LIEBHERR
HS (Hydro-Seilbagger / Hydraulic Rope Excavators)
ENGINE CODE
CC
kW
HP
YEAR OF MANUFACTURE
830
D 906T
132
180
01/1990 →
832
D 914TI
110
150
01/1990 →
832 HD, 832 HD Litro.
D 916TI/D926TI
01/1990 →
832 Litronic
D914TI/D926TI
01/1991 →
841
D 906T
132
180
01/1987 →
842, 842 HD
D 906T
132
180
01/1990 →
843 HD
D 916TI
170
232
01/1991 →
843 HD
D 9408TI
330
450
01/1995 →
852
D 9306TI
200
273
01/1991 →
853
Liebherr D 926TI-E
220
300
01/1995 → 12/2001
L 500 (Radlader / Wheel Loaders) | 84-
ENGINE CODE
CC
kW
HP
YEAR OF MANUFACTURE
L 504
Deutz F3L1011
29
39
01/1995 → 12/2000
L 506 (Type 1108)
Deutz D2011 L4 W Tier 3 A
3620
46
63
L 506 (Type 426)
Deutz BF4L1011FT
L 507
D2011L4W
48
65
L 507 (Typ 1109)
Deutz
L 507 (Typ 1110)
Deutz
L 507 (Typ 427)
Deutz BF4L1011FT
01/2000 →
L 508
Deutz BF4L1011F
49
67
01/2000 →
L 508
D2011L4W
48
65
L 508
Deutz BF4L1011
44
60
01/1987 →
L 508
Deutz F3L 913
L 508 (Type 1111)
L 508 (Type 428)
L 509
Deutz BF4L1011F
52
71
01/1995 →
L 509 (Type 1112 / 1113)
Deutz TD 2011L4 W
60
82
01/2009 → 12/2013
L 509 (Type 429)
L 510
Deutz F3L913
L 510 (Type 1114)
Deutz TD2011 L04 W
L 510 (Type 340)
Deutz BF4L913
59
80
L 511 (Typ 212)
Liebherr D904NA
62
85
L 512 (Type 430)
Deutz BF4L913
69
94
L 521
Liebherr D904TB
77
105
L 522
Deutz BF4L913
74
101
01/1991 →
L 522
Liebherr D904TB
77
105
L 531
Deutz BF6L913
97
132
L 531
Liebherr D904T
100
136
01/1986 →
L 531 (Type 210 / 279)
L 531B
Liebherr D904 T
100
136
01/1996 → 12/1998
L 541
Deutz BF6L913
103
140
L 541 B (Type 221 / 325)
Liebherr D906TB
118
161
01/1986 →
L 544 (Type 442 / 444 T / 443 / 445 T)
Liebherr D924T
121
165
01/1998 → 12/2006
L 551
Liebherr D916TI
173
236
01/1984 →
L 554 (Type 452 / 453)
Liebherr D924T
144
196
L 564 (Type 462 / 464 T / 463 / 465 T)
Liebherr D926TI
183
249
L 574 (Type 472 / 473)
Liebherr D926TI
195
265
L 580 (Type 475 / 458 / 459)
Liebherr D926TI
195
265
LR (Laderaupen / Track Loaders) | 85-
ENGINE CODE
CC
kW
HP
YEAR OF MANUFACTURE
LR 611 / LH-Motor
Mercedes OM 352
63
86
LR 611, LR 611 M
Liebherr D904 TB
66
90
01/1988 → 12/2002
LR 612 B
LR 612 C
LR 621 B / C / (LH-Motor)
LR 621 C/CM
Liebherr D904T
94
128
01/1988 → 12/1996
LR 621, LR 621 B/BM
Liebherr D904T
81
110
→ 02/1993
LR 622 / LR 622 B (LIEBHERR)
Liebherr D904T
LR 622 Li
Liebherr D924T-E
6700
97
132
01/1996 →
LR 632 / B
LR 632 Litronic
Liebherr D926T-E
10000
132
180
01/1996 →
LRB (Bohrgeräte / Drilling Rig) | 11-
ENGINE CODE
CC
kW
HP
YEAR OF MANUFACTURE
LRB 255 M
MAN D 2842 LE
670
911
01/2011 →
PR (Planierraupen / Bulldozers) | 88-
ENGINE CODE
CC
kW
HP
YEAR OF MANUFACTURE
712 / M
Liebherr D904TB
77
105
01/1988 →
721 C
Liebherr D904T
722 / M
Liebherr D904T
97
132
01/1988 →
732 / B
732 / L / M
Liebh. D9306TB
132
180
01/1990 →
742 / B
Liebherr D926TIE
742 / M
Liebherr D9306T
172
235
01/1991 →
751 / LH-Motor / -50C°
Cum. KT1150C/19C
243
331
PR 712/ PR 712 B
PR 722/PR 722 B
PR 732/ PR 732 B
D924 T-E
97
132
01/1996 →
PR 742 /PR 742B
D904T
PR 752
D9406 TI-E
243
330
01/1997 → 12/2006
R/A 300 (Hydraulikbagger / Hydraulic Excavators) |
ENGINE CODE
CC
kW
HP
YEAR OF MANUFACTURE
R 310 / A 310
Deutz BF4L 1011
52
71
01/1991 → 11/1995
R/A 900 (Hydraulikbagger / Hydraulic Excavators) |
ENGINE CODE
CC
kW
HP
YEAR OF MANUFACTURE
912 Litronic
Liebherr D 924 T-E
99
135
A 932 Li
A 934 B / A 944 B
A 954 / B
A 974 B
R 900 / A 900
Deutz F3/4L 912
R 900 / A 900
Deutz BF4L 913
59
80
01/1989 →
R 900 Li / A 900 Li
Deutz BF 4 L 913
59
80
R 902 / A 902
Deutz F5L 912
58
79
R 902 / A 902
Liebherr D904NA
60
82
R 902 / A 902
Liebh. D904TA
01/1990 →
R 902 Li / A 902 Li
Liebherr D924 TI-E
99
135
R 904 Li / A 904 Li
Liebherr D924T-E
85
116
01/1998 →
R 912 Li / A 912 Li
Liebherr D904T/D924TE
95
129
01/1984 → 11/1998
R 921 / A 921 B
Deutz F4L 912
R 921 / A 921 C
Deutz F4L 912
R 922 / A 922
Deutz F6L 912
R 922 / A 922
Deutz BF6L 913
R 922 Li / A 922 Li
Liebherr D904TI-E
100
136
01/1984 → 12/1998
R 924 Li / A 924 Li
Liebherr D924T-E
112
153
01/1998 →
R 932 / A 932
Deutz BF6L 913
112
153
01/1979 → 11/1987
R 932 / A 932
Liebherr D906 NA
112
153
01/1984 → 12/1990
R 932 / A 932
Liebherr D914 TI
124
169
01/1990 → 11/1998
R 932 Li / A 932 Li
Liebherr D924 TI-E
132
180
01/1996 →
R 934 / A 934 Typ 712/ 713
R 934 B / A 934 B
Liebherr D924 TI-E
145
197
01/2003 → 12/2006
R 934 C
Liebherr D934 L
150
204
01/2006 →
R 934 Li / A 934 Li
Liebherr D924 TI-E
137
187
01/1998 → 12/2002
R 941 B
Deutz F6L 912
R 941 B
Deutz BF6L 913
R 942
Deutz BF6L 913
125
170
01/1978 → 11/1987
R 942
Liebherr D906T
132
180
01/1984 → 11/1988
R 942 HD
Deutz BF6L 913C
125
170
01/1987 → 12/1990
R 942 HD
Liebherr D906/916/926T
150
205
01/1987 → 12/1997
R 942 Litronic
Liebherr D926 TI-E
150
204
01/1996 → 12/1998
R 944 / A 944 Typ 744/ 919
Liebherr D 926T-E
164
224
01/1998 → 12/2003
R 944 B / A 944 B
Liebherr D926 TI-E
180
245
01/2003 → 12/2006
R 954
R 954 / A 954
Liebherr D926 TI-E
222
302
R 954 / R 954 B
Liebherr D926 TI-E
222
302
R 964
→ 12/2001
R 964 / B / C / Litronic
R 964 B
LIEBHERR D9406TI-E
270
383
01/2007 → 12/2007
R 964 Litronic
LIEBHERR D936A7
200
272
01/2012 → 12/2013
R 974 B
Cummins NTA-855
R 974 B Litronic
D9408 TI-E
346
471
R 974 Litronic
Cummins NTA-855
R/A 912
Deutz F5/6L 912
R/A 921, 921 B/C
Deutz F6L 912
RL/SR (Rohrleger / Pipelayers)
ENGINE CODE
CC
kW
HP
YEAR OF MANUFACTURE
RL 42 B
RL 422
LIEBHERR-MOBILKRANE
LG-Serie | 93-
ENGINE CODE
CC
kW
HP
YEAR OF MANUFACTURE
LG 1550
D 9408 TI-E
420
573
01/1993 →
LTM-Serie | 90-
ENGINE CODE
CC
kW
HP
YEAR OF MANUFACTURE
LTM 1025
D 916T
LTM 1040/1
Liebherr D926 TI
230
314
01/1996 →
LTM 1050/1
Liebherr D926 TI-E
230
314
01/1995 →
LTM 1060
D 9306TI
LTM 1060/2
D 926 TI-EA4
270
368
01/1998 →
LTM 1160/1
D 9308TI
NEW HOLLAND
TD 4000-Serie | 11-
ENGINE CODE
CC
kW
HP
YEAR OF MANUFACTURE
TD4030F
F5C Tier 3 AN46FR
3200
57
78
10/2011 →
O&K ORENSTEIN + KOPPEL (CNH)
MH/RH-Serie | 70-
ENGINE CODE
CC
kW
HP
YEAR OF MANUFACTURE
12 PMS
MAN D0826L
154
210
01/1994 →
16 PMS
MAN D0826L
161
220
01/1991 →
SCHLUETER
Compact-Serie
ENGINE CODE
CC
kW
HP
YEAR OF MANUFACTURE
1050 V6
1150 TV6
1250 TV6
1350 TV6
950 V6
Euro Trac-Serie | 90-
ENGINE CODE
CC
kW
HP
YEAR OF MANUFACTURE
1000
01/1990 →
1150
01/1990 →
1300
01/1990 →
1400
MAN D0826 TUE501
6871
99
135
01/1997 →
1600
01/1990 →
1700
MAN D0826 LUE503
6871
124
169
01/1997 →
1900
01/1990 →
2000
MAN D0826 LUE501
6871
147
200
01/1997 →
800
01/1990 →
Super-Serie | 72-
ENGINE CODE
CC
kW
HP
YEAR OF MANUFACTURE
1900TVLS
WEIDEMANN (WACKER NEUSON)
4000-Serie | 96-
ENGINE CODE
CC
kW
HP
YEAR OF MANUFACTURE
4002 D/P
Deutz 1004-4
4004 D/P
Perkins 1004-40T
80
109
01/2000 →
4204 D/P
Perkins 1004-40T
80
109
01/2000 →
DEUTZ AG / DEUTZ-FAHR (KHD)
- 0118 2224
EVOBUS/SETRA
- 8.311.997.648.0
- 8.319.121.610
- 8.319.128.161.0
FENDT
- F 816 200 060 010
- F 816 200 060 020
- F 816 200 710 060
- G 311 200 060 010
- G 311 200 060 050
- X 810 190 165
KNORR-BREMSE
- K117964N50
LIEBHERR
- 700 0712
- 700 8775
- 701 2763
- 721 1230
- 738 2048
- 814 5894
- 914 5984
MAN
- 51.12503-0004
- 51.12503-0005
- 51.12503-0009
- 51.12503-0010
- 51.12503-0016
- 51.12503-0018
- 51.12503-0028
- 51.12503-0029
- 51.12503-0030
- 51.12503-0031
- 51.12503-0034
- 51.12503-0036
- 51.12503-0039
- 51.12503-0040
- 81.12503-0075
MERCEDES-BENZ (DAIMLER AG)
- 001 835 44 47
- A 001 835 44 47
MTU
- X50408300002
RENAULT TRUCKS (OKELIA)
- 50 21 149 087
SOLARIS BUS
- 0170152000
WEBASTO - SPHEROS
- 9001788A
- 9002976A
- 9002976B
