SVHC declaration according to the regulation EC 1907/2006 concerning the Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH).

Produkt: PP 861/5 - FILTRON

MANN+HUMMEL is well aware of REACH and meet all legal obligations under this regulation.

MANN+HUMMEL has established internal processes to ensure implementation and compliance with the REACH Regulation. Especially, we continuously work on the assessment of presence of SVHC (Substances of Very High Concern).

We may inform you that according to present level of information and best knowledge, this product does not contain any SVHC listed on the Candidate List in concentration above 0,1% (w/w).

Last update: 2024-09-19

Back

FUEL FILTERS

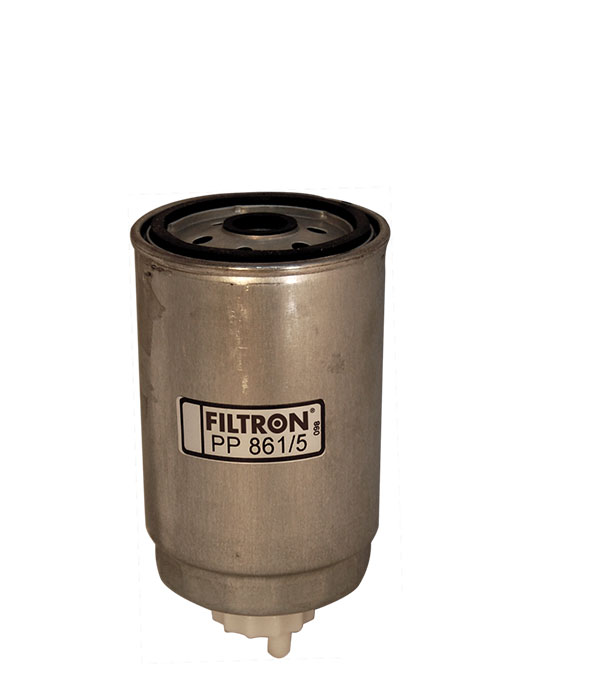

PP 861/5

EAN CODE: 5904608068613

REACH information

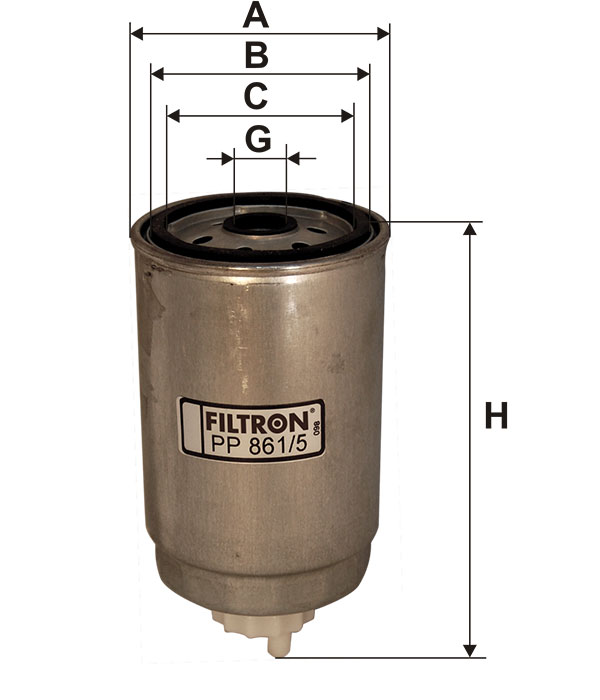

DIMENSIONS (mm):

M16x1.5

153

MAY 2019 Note: change in filter design

Due to the introduction of the new production technology for spin-on filters, the connection of the spin-on-element with the filter cover (the so-called "lock") is not painted. The change does not affect the filtering properties of the filters in any way.

The change is planned for the following numbers:
OP 519, OP 581, OP 620, PP 963, OP 545/2, OP 592/1, OP 619/1, OP 647/1, OP 536, OP 583, OP 621, PP 964, OP 554/1, OP 592/2, OP 619/2, PP 845/2, OP 539, OP 584, OP 626, PP 965, OP 564/1, OP 592/4, OP 626/1, PP 861/2, OP 544, OP 587, OP 631, PP 971, OP 567/2, OP 592/6, OP 626/2, PP 861/3, OP 557, OP 592, OP 635, PP 972, OP 570/2, OP 592/7, OP 626/4, PP 861/4, OP 558, OP 594, OP 636, PP 979, OP 574/1, OP 592/8, OP 626/6, PP 861/5, OP 564, OP 595, OP 641, AK 360/2, OP 574/2, OP 594/1, OP 629/2, PP 861/6, OP 569, OP 597, OP 668, OP 525/1, OP 575/1, OP 594/2, OP 632/4, PP 879/2, OP 572, OP 612, PP 840, OP 525/2, OP 580/5, OP 595/1, OP 632/5, PP 879/4, OP 574, OP 613, PP 845, OP 525/3, OP 580/8, OP 595/2, OP 642/2, PP 879/6, OP 575, OP 617, PP 879, OP 525/4, OP 584/1, OP 597/1, OP 642/3, PP 963/1, OP 577, OP 618, PP 922, OP 526/5, OP 584/2, OP 616/3, OP 643/1, PP 964/1, OP 578, OP 619, PP 944, OP 526/6, OP 587/3, OP 617/1, OP 643/6, PP 971/2

APPLICATION
SUBSTITUTES

DAF TRUCKS

45-Serie | 91-00

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
FA 45.120	CD 85	5880	85	116	05/1991 → 12/2000	FA 45.120 ENGINE CODE: CD 85 CC: 5880 kW: 85 HP: 116 YEAR OF MANUFACTURE: 05/1991 → 12/2000
FA 45.130	CN 95	5880	96	130	05/1991 → 12/2000	FA 45.130 ENGINE CODE: CN 95 CC: 5880 kW: 96 HP: 130 YEAR OF MANUFACTURE: 05/1991 → 12/2000
FA 45.150 Turbo	CB 107	5880	108	147	05/1991 → 12/2000	FA 45.150 Turbo ENGINE CODE: CB 107 CC: 5880 kW: 108 HP: 147 YEAR OF MANUFACTURE: 05/1991 → 12/2000
FA 45.160 Turbo	CT 119/119G	5880	120	163	05/1991 → 12/2000	FA 45.160 Turbo ENGINE CODE: CT 119/119G CC: 5880 kW: 120 HP: 163 YEAR OF MANUFACTURE: 05/1991 → 12/2000
FA 45.180 Turbo	CS134	5880	134	182	11/1995 → 12/2000	FA 45.180 Turbo ENGINE CODE: CS134 CC: 5880 kW: 134 HP: 182 YEAR OF MANUFACTURE: 11/1995 → 12/2000
FA 45.210 Turbo	CS156	5880	158	215	11/1995 → 12/2000	FA 45.210 Turbo ENGINE CODE: CS156 CC: 5880 kW: 158 HP: 215 YEAR OF MANUFACTURE: 11/1995 → 12/2000

ENGINE CODE

YEAR OF MANUFACTURE

FA 45.120

CD 85

5880

116

05/1991 → 12/2000

FA 45.130

CN 95

5880

130

05/1991 → 12/2000

FA 45.150 Turbo

CB 107

5880

108

147

05/1991 → 12/2000

FA 45.160 Turbo

CT 119/119G

5880

120

163

05/1991 → 12/2000

FA 45.180 Turbo

CS134

5880

134

182

11/1995 → 12/2000

FA 45.210 Turbo

CS156

5880

158

215

11/1995 → 12/2000

55-Serie | 95-00

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
FA 55.150	CS107M	5880	107	146	11/1995 → 12/2000	FA 55.150 ENGINE CODE: CS107M CC: 5880 kW: 107 HP: 146 YEAR OF MANUFACTURE: 11/1995 → 12/2000
FA 55.180	CS134	5880	134	182	11/1995 → 12/2000	FA 55.180 ENGINE CODE: CS134 CC: 5880 kW: 134 HP: 182 YEAR OF MANUFACTURE: 11/1995 → 12/2000
FA 55.230	CS174	5880	173	235	11/1995 → 12/2000	FA 55.230 ENGINE CODE: CS174 CC: 5880 kW: 173 HP: 235 YEAR OF MANUFACTURE: 11/1995 → 12/2000
FA/FAG 55.210	CS156	5880	156	215	11/1995 → 12/2000	FA/FAG 55.210 ENGINE CODE: CS156 CC: 5880 kW: 156 HP: 215 YEAR OF MANUFACTURE: 11/1995 → 12/2000

ENGINE CODE

YEAR OF MANUFACTURE

FA 55.150

CS107M

5880

107

146

11/1995 → 12/2000

FA 55.180

CS134

5880

134

182

11/1995 → 12/2000

FA 55.230

CS174

5880

173

235

11/1995 → 12/2000

FA/FAG 55.210

CS156

5880

156

215

11/1995 → 12/2000

F 1000 - 1900 | 69-95

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
F/FA 1000 CN	Cumm 6BT5.9 (CN96)	5880	96	130	12/1986 → 12/1992		F/FA 1000 CN ENGINE CODE: Cumm 6BT5.9 (CN96) CC: 5880 kW: 96 HP: 130 YEAR OF MANUFACTURE: 12/1986 → 12/1992

ENGINE CODE

YEAR OF MANUFACTURE

F/FA 1000 CN

Cumm 6BT5.9 (CN96)

5880

130

12/1986 → 12/1992

F 600 - 900 | 75-92

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
F 600	Cummins-6B5.9 (CD85)	5900	85	115	12/1986 → 12/1992	F 600 ENGINE CODE: Cummins-6B5.9 (CD85) CC: 5900 kW: 85 HP: 115 YEAR OF MANUFACTURE: 12/1986 → 12/1992
FA 800 CB	Cumm. 6BT5.9 (CB108)	5880	108	147	05/1987 → 08/1991	FA 800 CB ENGINE CODE: Cumm. 6BT5.9 (CB108) CC: 5880 kW: 108 HP: 147 YEAR OF MANUFACTURE: 05/1987 → 08/1991
FA 800 CN	Cumm. 6BT5.9 (CN96)	5880	96	130	12/1986 → 08/1991	FA 800 CN ENGINE CODE: Cumm. 6BT5.9 (CN96) CC: 5880 kW: 96 HP: 130 YEAR OF MANUFACTURE: 12/1986 → 08/1991

ENGINE CODE

YEAR OF MANUFACTURE

F 600

Cummins-6B5.9 (CD85)

5900

115

12/1986 → 12/1992

FA 800 CB

Cumm. 6BT5.9 (CB108)

5880

108

147

05/1987 → 08/1991

FA 800 CN

Cumm. 6BT5.9 (CN96)

5880

130

12/1986 → 08/1991

LEYLAND-DAF

45-Serie | 90-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
45.120	Cummins-CD	5880	85	115	05/1990 →	45.120 ENGINE CODE: Cummins-CD CC: 5880 kW: 85 HP: 115 YEAR OF MANUFACTURE: 05/1990 →
45.130	Cummins-CN	5880	96	130	05/1990 →	45.130 ENGINE CODE: Cummins-CN CC: 5880 kW: 96 HP: 130 YEAR OF MANUFACTURE: 05/1990 →
45.150 Turbo	Cummins-CB	5880	108	147	05/1990 →	45.150 Turbo ENGINE CODE: Cummins-CB CC: 5880 kW: 108 HP: 147 YEAR OF MANUFACTURE: 05/1990 →
45.160 Turbo	Cummins-CT	5880	120	163	05/1990 →	45.160 Turbo ENGINE CODE: Cummins-CT CC: 5880 kW: 120 HP: 163 YEAR OF MANUFACTURE: 05/1990 →

ENGINE CODE

YEAR OF MANUFACTURE

45.120

Cummins-CD

5880

115

05/1990 →

45.130

Cummins-CN

5880

130

05/1990 →

45.150 Turbo

Cummins-CB

5880

108

147

05/1990 →

45.160 Turbo

Cummins-CT

5880

120

163

05/1990 →

50-Serie | 90-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
50.160	CT		118	160	01/1990 →		50.160 ENGINE CODE: CT CC: kW: 118 HP: 160 YEAR OF MANUFACTURE: 01/1990 →

ENGINE CODE

YEAR OF MANUFACTURE

50.160

118

160

01/1990 →

CASE-IH (CNH GLOBAL)

MX-Serie | 97-02

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
MX 120	Cummins B6T-590	5883	88	120	01/1997 → 12/2002		MX 120 ENGINE CODE: Cummins B6T-590 CC: 5883 kW: 88 HP: 120 YEAR OF MANUFACTURE: 01/1997 → 12/2002

ENGINE CODE

YEAR OF MANUFACTURE

MX 120

Cummins B6T-590

5883

120

01/1997 → 12/2002

DAF

CBU 1251
CBU 1920

Date of last data update: 2025-05-29 Print Report now
