REACH-Information

SVHC declaration according to the regulation EC 1907/2006 concerning the Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH).

Produkt: PP 944 - FILTRON

MANN+HUMMEL is well aware of REACH and meet all legal obligations under this regulation.

MANN+HUMMEL has established internal processes to ensure implementation and compliance with the REACH Regulation. Especially, we continuously work on the assessment of presence of SVHC (Substances of Very High Concern).

We may inform you that according to present level of information and best knowledge, this product does not contain any SVHC listed on the Candidate List in concentration above 0,1% (w/w).

Last update: 2024-09-19

Back

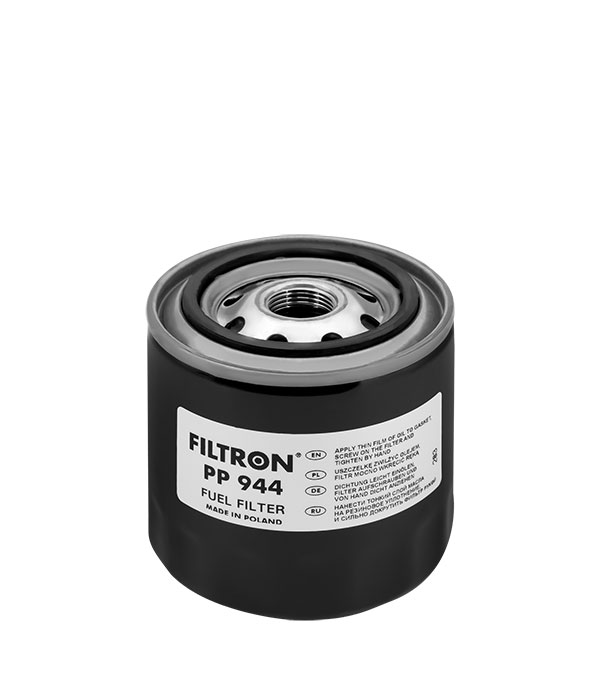

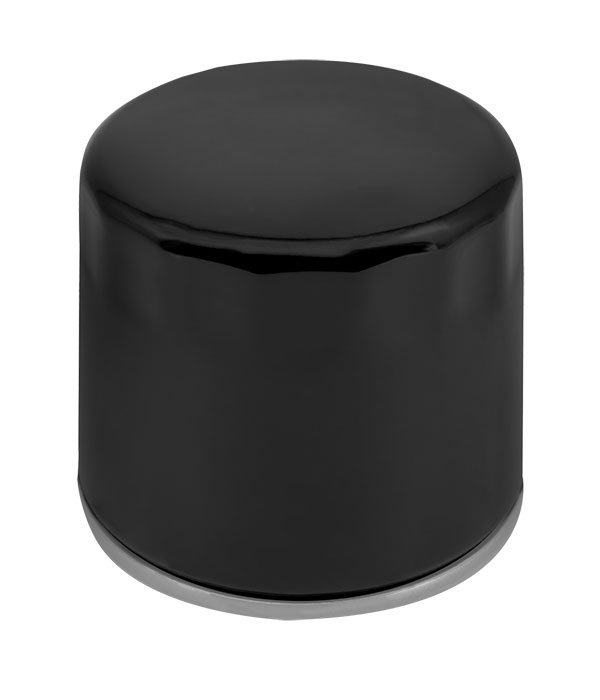

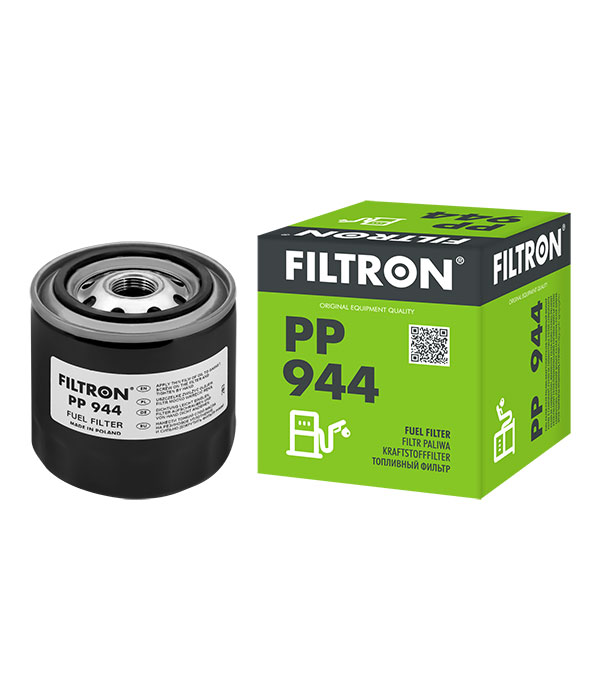

FUEL FILTERS

PP 944

EAN CODE: 5904608009449

REACH information

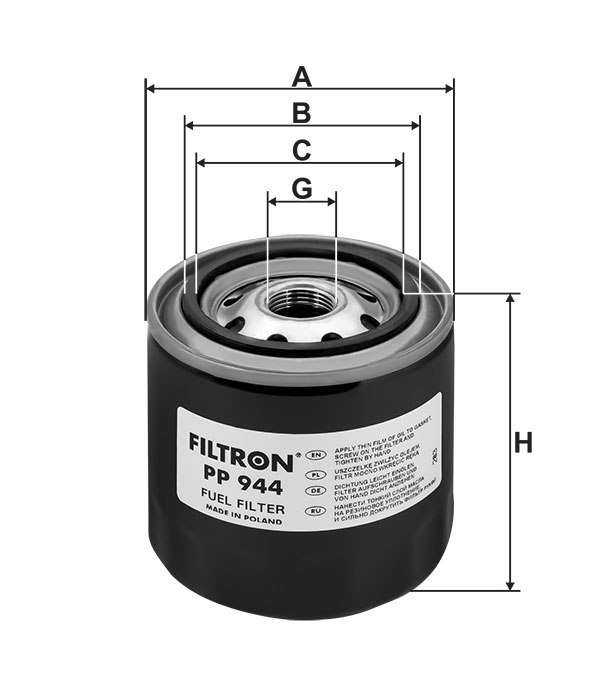

DIMENSIONS (mm):

62.5

55.5

3/4-16 UNF

81.5

MAY 2019 Note: change in filter design

Due to the introduction of the new production technology for spin-on filters, the connection of the spin-on-element with the filter cover (the so-called "lock") is not painted. The change does not affect the filtering properties of the filters in any way.

The change is planned for the following numbers:
OP 519, OP 581, OP 620, PP 963, OP 545/2, OP 592/1, OP 619/1, OP 647/1, OP 536, OP 583, OP 621, PP 964, OP 554/1, OP 592/2, OP 619/2, PP 845/2, OP 539, OP 584, OP 626, PP 965, OP 564/1, OP 592/4, OP 626/1, PP 861/2, OP 544, OP 587, OP 631, PP 971, OP 567/2, OP 592/6, OP 626/2, PP 861/3, OP 557, OP 592, OP 635, PP 972, OP 570/2, OP 592/7, OP 626/4, PP 861/4, OP 558, OP 594, OP 636, PP 979, OP 574/1, OP 592/8, OP 626/6, PP 861/5, OP 564, OP 595, OP 641, AK 360/2, OP 574/2, OP 594/1, OP 629/2, PP 861/6, OP 569, OP 597, OP 668, OP 525/1, OP 575/1, OP 594/2, OP 632/4, PP 879/2, OP 572, OP 612, PP 840, OP 525/2, OP 580/5, OP 595/1, OP 632/5, PP 879/4, OP 574, OP 613, PP 845, OP 525/3, OP 580/8, OP 595/2, OP 642/2, PP 879/6, OP 575, OP 617, PP 879, OP 525/4, OP 584/1, OP 597/1, OP 642/3, PP 963/1, OP 577, OP 618, PP 922, OP 526/5, OP 584/2, OP 616/3, OP 643/1, PP 964/1, OP 578, OP 619, PP 944, OP 526/6, OP 587/3, OP 617/1, OP 643/6, PP 971/2

APPLICATION
SUBSTITUTES

DAIHATSU

Delta | 72-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
3.0 Diesel	11B	2977	45	61	10/1986 →		3.0 Diesel ENGINE CODE: 11B CC: 2977 kW: 45 HP: 61 YEAR OF MANUFACTURE: 10/1986 →
3.0 Diesel (V10,12/V99BU)	B	2977	45	61	10/1977 → 10/1988	i Partly/or	3.0 Diesel (V10,12/V99BU) ENGINE CODE: B CC: 2977 kW: 45 HP: 61 YEAR OF MANUFACTURE: 10/1977 → 10/1988 i Partly/or
3.4 Diesel (V79BU)	13B	3431	49	66	10/1986 →		3.4 Diesel (V79BU) ENGINE CODE: 13B CC: 3431 kW: 49 HP: 66 YEAR OF MANUFACTURE: 10/1986 →

ENGINE CODE

YEAR OF MANUFACTURE

3.0 Diesel

11B

2977

10/1986 →

3.0 Diesel (V10,12/V99BU)

2977

10/1977 → 10/1988

3.4 Diesel (V79BU)

13B

3431

10/1986 →

ISUZU

Campo | 77-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
2.5 D (TRF/S 54/55)	4JA1		56	77	08/1986 →	i -> 07/1989	2.5 D (TRF/S 54/55) ENGINE CODE: 4JA1 CC: kW: 56 HP: 77 YEAR OF MANUFACTURE: 08/1986 →

ENGINE CODE

YEAR OF MANUFACTURE

2.5 D (TRF/S 54/55)

4JA1

08/1986 →

Pick-up | 78-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
2.0 D (KAD41/51)	C190	1987			01/1978 → 06/1984		2.0 D (KAD41/51) ENGINE CODE: C190 CC: 1987 kW: HP: YEAR OF MANUFACTURE: 01/1978 → 06/1984
2.5 D	4JA1	2499	59	80	06/1992 → 08/1996		2.5 D ENGINE CODE: 4JA1 CC: 2499 kW: 59 HP: 80 YEAR OF MANUFACTURE: 06/1992 → 08/1996

ENGINE CODE

YEAR OF MANUFACTURE

2.0 D (KAD41/51)

C190

1987

01/1978 → 06/1984

2.5 D

4JA1

2499

06/1992 → 08/1996

ELF | 86-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
2.5 Diesel (150)	4JA1	2499	37	50	10/1986 →		2.5 Diesel (150) ENGINE CODE: 4JA1 CC: 2499 kW: 37 HP: 50 YEAR OF MANUFACTURE: 10/1986 →
2.8 Diesel (250)	4JB1	2771	42	57	10/1986 →		2.8 Diesel (250) ENGINE CODE: 4JB1 CC: 2771 kW: 42 HP: 57 YEAR OF MANUFACTURE: 10/1986 →
3.3 Diesel (250)	4BC2	3268	48	65	10/1986 →	i Partly/or	3.3 Diesel (250) ENGINE CODE: 4BC2 CC: 3268 kW: 48 HP: 65 YEAR OF MANUFACTURE: 10/1986 → i Partly/or
3.9 Turbo Diesel (350)	4BD1T	3856	85	116	10/1986 →		3.9 Turbo Diesel (350) ENGINE CODE: 4BD1T CC: 3856 kW: 85 HP: 116 YEAR OF MANUFACTURE: 10/1986 →
4.3 Diesel (250/KC-VKR66)	4HF1	4300			11/1996 →		4.3 Diesel (250/KC-VKR66) ENGINE CODE: 4HF1 CC: 4300 kW: HP: YEAR OF MANUFACTURE: 11/1996 →
4.3 Diesel (250/U-NKR66)	4HF1	4300			07/1990 → 06/1995		4.3 Diesel (250/U-NKR66) ENGINE CODE: 4HF1 CC: 4300 kW: HP: YEAR OF MANUFACTURE: 07/1990 → 06/1995
4.3 Diesel (KC-NKR66)	4HF1	4300			04/1994 → 05/1997		4.3 Diesel (KC-NKR66) ENGINE CODE: 4HF1 CC: 4300 kW: HP: YEAR OF MANUFACTURE: 04/1994 → 05/1997
4.3 Diesel (KK-NKR66)	4HF1	4300			06/1997 →		4.3 Diesel (KK-NKR66) ENGINE CODE: 4HF1 CC: 4300 kW: HP: YEAR OF MANUFACTURE: 06/1997 →
4.6 Diesel (KC-NKR/NPR71)	4HG1	4600			04/1995 →		4.6 Diesel (KC-NKR/NPR71) ENGINE CODE: 4HG1 CC: 4600 kW: HP: YEAR OF MANUFACTURE: 04/1995 →
4.8 Turbo Diesel (350-450/U-NPR70)	4HE1T	4800			07/1993 →		4.8 Turbo Diesel (350-450/U-NPR70) ENGINE CODE: 4HE1T CC: 4800 kW: HP: YEAR OF MANUFACTURE: 07/1993 →
4.8 Turbo Diesel (KC-NPR70)	4HE1T	4800			04/1995 →		4.8 Turbo Diesel (KC-NPR70) ENGINE CODE: 4HE1T CC: 4800 kW: HP: YEAR OF MANUFACTURE: 04/1995 →
5.0 Diesel (KC-NPR72)	4HJ1	5000			04/1997 →		5.0 Diesel (KC-NPR72) ENGINE CODE: 4HJ1 CC: 5000 kW: HP: YEAR OF MANUFACTURE: 04/1997 →

ENGINE CODE

YEAR OF MANUFACTURE

2.5 Diesel (150)

4JA1

2499

10/1986 →

2.8 Diesel (250)

4JB1

2771

10/1986 →

3.3 Diesel (250)

4BC2

3268

10/1986 →

3.9 Turbo Diesel (350)

4BD1T

3856

116

10/1986 →

4.3 Diesel (250/KC-VKR66)

4HF1

4300

11/1996 →

4.3 Diesel (250/U-NKR66)

4HF1

4300

07/1990 → 06/1995

4.3 Diesel (KC-NKR66)

4HF1

4300

04/1994 → 05/1997

4.3 Diesel (KK-NKR66)

4HF1

4300

06/1997 →

4.6 Diesel (KC-NKR/NPR71)

4HG1

4600

04/1995 →

4.8 Turbo Diesel (350-450/U-NPR70)

4HE1T

4800

07/1993 →

4.8 Turbo Diesel (KC-NPR70)

4HE1T

4800

04/1995 →

5.0 Diesel (KC-NPR72)

4HJ1

5000

04/1997 →

NKR | 81-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
3.3 Diesel	4BC2	3268	65	88	07/1981 →		3.3 Diesel ENGINE CODE: 4BC2 CC: 3268 kW: 65 HP: 88 YEAR OF MANUFACTURE: 07/1981 →
4.3 D (66)	4HF1				12/1993 →		4.3 D (66) ENGINE CODE: 4HF1 CC: kW: HP: YEAR OF MANUFACTURE: 12/1993 →

ENGINE CODE

YEAR OF MANUFACTURE

3.3 Diesel

4BC2

3268

07/1981 →

4.3 D (66)

4HF1

12/1993 →

NKS | 95-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
4.6 D (71)	4HG1				04/1995 →		4.6 D (71) ENGINE CODE: 4HG1 CC: kW: HP: YEAR OF MANUFACTURE: 04/1995 →

ENGINE CODE

YEAR OF MANUFACTURE

4.6 D (71)

4HG1

04/1995 →

NPR | 81-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
3.3 Diesel	4BC2	3268	65	88	07/1981 →		3.3 Diesel ENGINE CODE: 4BC2 CC: 3268 kW: 65 HP: 88 YEAR OF MANUFACTURE: 07/1981 →
3.9 D	4BD1	3856	78	110	01/1981 →	i -> 04/1988	3.9 D ENGINE CODE: 4BD1 CC: 3856 kW: 78 HP: 110 YEAR OF MANUFACTURE: 01/1981 →
3.9 D Turbo	4BD1T	3856	85	116	10/1986 →		3.9 D Turbo ENGINE CODE: 4BD1T CC: 3856 kW: 85 HP: 116 YEAR OF MANUFACTURE: 10/1986 →
3.9 TD (59)	4BD1(T)				07/1984 → 06/1993		3.9 TD (59) ENGINE CODE: 4BD1(T) CC: kW: HP: YEAR OF MANUFACTURE: 07/1984 → 06/1993
4.3 D (61)	4BG1				09/1988 → 07/1990		4.3 D (61) ENGINE CODE: 4BG1 CC: kW: HP: YEAR OF MANUFACTURE: 09/1988 → 07/1990
4.3 D (66)	4HF1		88	120	12/1993 →		4.3 D (66) ENGINE CODE: 4HF1 CC: kW: 88 HP: 120 YEAR OF MANUFACTURE: 12/1993 →

ENGINE CODE

YEAR OF MANUFACTURE

3.3 Diesel

4BC2

3268

07/1981 →

3.9 D

4BD1

3856

110

01/1981 →

3.9 D Turbo

4BD1T

3856

116

10/1986 →

3.9 TD (59)

4BD1(T)

07/1984 → 06/1993

4.3 D (61)

4BG1

09/1988 → 07/1990

4.3 D (66)

4HF1

120

12/1993 →

NPS | 88-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
3.9 D (59)	4BD1				02/1988 →		3.9 D (59) ENGINE CODE: 4BD1 CC: kW: HP: YEAR OF MANUFACTURE: 02/1988 →
3.9 TD (59)	4BD(T)	3900			02/1988 → 07/1993		3.9 TD (59) ENGINE CODE: 4BD(T) CC: 3900 kW: HP: YEAR OF MANUFACTURE: 02/1988 → 07/1993
3.9 TD (59)	4BD1(T)				07/1988 →		3.9 TD (59) ENGINE CODE: 4BD1(T) CC: kW: HP: YEAR OF MANUFACTURE: 07/1988 →
4.3 D (66)	4HF1				12/1993 → 11/1995		4.3 D (66) ENGINE CODE: 4HF1 CC: kW: HP: YEAR OF MANUFACTURE: 12/1993 → 11/1995
4.6 D (71)	4HG1				04/1995 →		4.6 D (71) ENGINE CODE: 4HG1 CC: kW: HP: YEAR OF MANUFACTURE: 04/1995 →
4.8 Turbodiesel (NPS250, NPS300)	4HE1-XN	4751	103	140	06/1998 →	i -> 12/2002	4.8 Turbodiesel (NPS250, NPS300) ENGINE CODE: 4HE1-XN CC: 4751 kW: 103 HP: 140 YEAR OF MANUFACTURE: 06/1998 →

ENGINE CODE

YEAR OF MANUFACTURE

3.9 D (59)

4BD1

02/1988 →

3.9 TD (59)

4BD(T)

3900

02/1988 → 07/1993

3.9 TD (59)

4BD1(T)

07/1988 →

4.3 D (66)

4HF1

12/1993 → 11/1995

4.6 D (71)

4HG1

04/1995 →

4.8 Turbodiesel (NPS250, NPS300)

4HE1-XN

4751

103

140

06/1998 →

NQR (N75) | 95-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
4.6 D (71)	4HG1				04/1995 →		4.6 D (71) ENGINE CODE: 4HG1 CC: kW: HP: YEAR OF MANUFACTURE: 04/1995 →
4.8 Turbodiesel NQR70 (5KWYE/LXYEJ)	4HE1-TC	4751	107	145	06/1998 →		4.8 Turbodiesel NQR70 (5KWYE/LXYEJ) ENGINE CODE: 4HE1-TC CC: 4751 kW: 107 HP: 145 YEAR OF MANUFACTURE: 06/1998 →

ENGINE CODE

YEAR OF MANUFACTURE

4.6 D (71)

4HG1

04/1995 →

4.8 Turbodiesel NQR70 (5KWYE/LXYEJ)

4HE1-TC

4751

107

145

06/1998 →

NISSAN

Laurel | 77-89

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
2.0 D	SD20				03/1977 → 05/1983		2.0 D ENGINE CODE: SD20 CC: kW: HP: YEAR OF MANUFACTURE: 03/1977 → 05/1983

ENGINE CODE

YEAR OF MANUFACTURE

2.0 D

SD20

03/1977 → 05/1983

Patrol I | 79-89

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
3.3 D (K160/W160)	SD33	3246	70	95	11/1979 → 08/1988	i -> 06/1982	3.3 D (K160/W160) ENGINE CODE: SD33 CC: 3246 kW: 70 HP: 95 YEAR OF MANUFACTURE: 11/1979 → 08/1988

ENGINE CODE

YEAR OF MANUFACTURE

3.3 D (K160/W160)

SD33

3246

11/1979 → 08/1988

Pick Up / Navara (720, D21, D22) | 80-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
2.5 D 4WD (D21)	SD25	2494	55	75	03/1986 → 08/1991		2.5 D 4WD (D21) ENGINE CODE: SD25 CC: 2494 kW: 55 HP: 75 YEAR OF MANUFACTURE: 03/1986 → 08/1991

ENGINE CODE

YEAR OF MANUFACTURE

2.5 D 4WD (D21)

SD25

2494

03/1986 → 08/1991

TOYOTA

Coaster | 82-

	ENGINE CODE	YEAR OF MANUFACTURE
3.4 D (K/N/U-BB)	3B	04/1982 →	i 03/1983 -> 07/1984	3.4 D (K/N/U-BB) ENGINE CODE: 3B CC: kW: HP: YEAR OF MANUFACTURE: 04/1982 →
4.0 D (N-HB30/36)	2H	04/1982 → 03/1990		4.0 D (N-HB30/36) ENGINE CODE: 2H CC: kW: HP: YEAR OF MANUFACTURE: 04/1982 → 03/1990
4.0 D Turbo (P-HB31/32)	12HT	09/1985 → 03/1990		4.0 D Turbo (P-HB31/32) ENGINE CODE: 12HT CC: kW: HP: YEAR OF MANUFACTURE: 09/1985 → 03/1990

ENGINE CODE

YEAR OF MANUFACTURE

3.4 D (K/N/U-BB)

04/1982 →

4.0 D (N-HB30/36)

04/1982 → 03/1990

4.0 D Turbo (P-HB31/32)

12HT

09/1985 → 03/1990

Cressida | 77-88

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
2.2 D (LX60)	L	2173	49	67	09/1980 → 07/1984		2.2 D (LX60) ENGINE CODE: L CC: 2173 kW: 49 HP: 67 YEAR OF MANUFACTURE: 09/1980 → 07/1984
2.2 D Kombi (X6)		2173	49	67	06/1981 → 03/1985		2.2 D Kombi (X6) ENGINE CODE: CC: 2173 kW: 49 HP: 67 YEAR OF MANUFACTURE: 06/1981 → 03/1985

ENGINE CODE

YEAR OF MANUFACTURE

2.2 D (LX60)

2173

09/1980 → 07/1984

2.2 D Kombi (X6)

2173

06/1981 → 03/1985

HiLux / Fortuner | 71-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
2.4 D (LN5, LN6, LN8)	2L	2466	59	80	01/1984 → 03/1989	i -> 08/1985	2.4 D (LN5, LN6, LN8) ENGINE CODE: 2L CC: 2466 kW: 59 HP: 80 YEAR OF MANUFACTURE: 01/1984 → 03/1989

ENGINE CODE

YEAR OF MANUFACTURE

2.4 D (LN5, LN6, LN8)

2466

01/1984 → 03/1989

Land Cruiser | 69-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
3.4 TD (BJ71)	13BT	3431	91	124	10/1985 → 08/1986	3.4 TD (BJ71) ENGINE CODE: 13BT CC: 3431 kW: 91 HP: 124 YEAR OF MANUFACTURE: 10/1985 → 08/1986
4.0 D (HJ60)	2H	3953	76	103	01/1985 → 12/1987	4.0 D (HJ60) ENGINE CODE: 2H CC: 3953 kW: 76 HP: 103 YEAR OF MANUFACTURE: 01/1985 → 12/1987
4.0 D (HJ60/HJ47)	2H	3953	74	101	08/1980 → 12/1985	4.0 D (HJ60/HJ47) ENGINE CODE: 2H CC: 3953 kW: 74 HP: 101 YEAR OF MANUFACTURE: 08/1980 → 12/1985
4.0 D Wagon (HJ60)	2H	3953	77	105	10/1981 → 01/1988	4.0 D Wagon (HJ60) ENGINE CODE: 2H CC: 3953 kW: 77 HP: 105 YEAR OF MANUFACTURE: 10/1981 → 01/1988
4.0 TD (HJ61)	12HT	3953	100	136	08/1987 → 12/1989	4.0 TD (HJ61) ENGINE CODE: 12HT CC: 3953 kW: 100 HP: 136 YEAR OF MANUFACTURE: 08/1987 → 12/1989

ENGINE CODE

YEAR OF MANUFACTURE

3.4 TD (BJ71)

13BT

3431

124

10/1985 → 08/1986

4.0 D (HJ60)

3953

103

01/1985 → 12/1987

4.0 D (HJ60/HJ47)

3953

101

08/1980 → 12/1985

4.0 D Wagon (HJ60)

3953

105

10/1981 → 01/1988

4.0 TD (HJ61)

12HT

3953

100

136

08/1987 → 12/1989

ToyoAce | 71-11

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
2.2 Diesel (LY20)	L	2188	36	49	03/1979 → 01/1982		2.2 Diesel (LY20) ENGINE CODE: L CC: 2188 kW: 36 HP: 49 YEAR OF MANUFACTURE: 03/1979 → 01/1982

ENGINE CODE

YEAR OF MANUFACTURE

2.2 Diesel (LY20)

2188

03/1979 → 01/1982

VAUXHALL-BEDFORD (LCV)

Brava | 88-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
2.5 Diesel	Isuzu 4JA1	2499	56	75	01/1990 → 06/1994		2.5 Diesel ENGINE CODE: Isuzu 4JA1 CC: 2499 kW: 56 HP: 75 YEAR OF MANUFACTURE: 01/1990 → 06/1994

ENGINE CODE

YEAR OF MANUFACTURE

2.5 Diesel

Isuzu 4JA1

2499

01/1990 → 06/1994

BOGDAN BUSES

A-Series | 99-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
A-064 Mini City Bus	Isuzu 4HF1-2	4334	76	103	01/1999 →	A-064 Mini City Bus ENGINE CODE: Isuzu 4HF1-2 CC: 4334 kW: 76 HP: 103 YEAR OF MANUFACTURE: 01/1999 →
A-091 Mini City Bus	Isuzu 4HG1	4600	89	121	01/1999 →	A-091 Mini City Bus ENGINE CODE: Isuzu 4HG1 CC: 4600 kW: 89 HP: 121 YEAR OF MANUFACTURE: 01/1999 →
A-092/A-092.2	Isuzu 4HE1-TC	4751	107	146	01/1999 →	A-092/A-092.2 ENGINE CODE: Isuzu 4HE1-TC CC: 4751 kW: 107 HP: 146 YEAR OF MANUFACTURE: 01/1999 →

ENGINE CODE

YEAR OF MANUFACTURE

A-064 Mini City Bus

Isuzu 4HF1-2

4334

103

01/1999 →

A-091 Mini City Bus

Isuzu 4HG1

4600

121

01/1999 →

A-092/A-092.2

Isuzu 4HE1-TC

4751

107

146

01/1999 →

AIRMAN

PDS-Serie

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
PDS185S-6B4	Nissan Diesel TD27						PDS185S-6B4 ENGINE CODE: Nissan Diesel TD27 CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

PDS185S-6B4

Nissan Diesel TD27

CASE CONSTRUCTION

20-Serie | 98-

	ENGINE CODE	YEAR OF MANUFACTURE
23	Perkins	01/1998 →	23 ENGINE CODE: Perkins CC: kW: HP: YEAR OF MANUFACTURE: 01/1998 →
28	Perkins 103-16	01/1998 →	28 ENGINE CODE: Perkins 103-16 CC: kW: HP: YEAR OF MANUFACTURE: 01/1998 →
31	Perkins 103-16	01/1998 →	31 ENGINE CODE: Perkins 103-16 CC: kW: HP: YEAR OF MANUFACTURE: 01/1998 →
35	Perkins 103-16	01/1998 →	35 ENGINE CODE: Perkins 103-16 CC: kW: HP: YEAR OF MANUFACTURE: 01/1998 →

ENGINE CODE

YEAR OF MANUFACTURE

Perkins

01/1998 →

Perkins 103-16

01/1998 →

Perkins 103-16

01/1998 →

Perkins 103-16

01/1998 →

CX-Serie (Hydraulikbagger / Hydraulic Excavators)

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
CX 15	Perkins 103.10	1000	13	18	01/2002 → 12/2004	CX 15 ENGINE CODE: Perkins 103.10 CC: 1000 kW: 13 HP: 18 YEAR OF MANUFACTURE: 01/2002 → 12/2004
CX 16	Perkins 103.10	1000	13	18	01/2002 → 12/2004	CX 16 ENGINE CODE: Perkins 103.10 CC: 1000 kW: 13 HP: 18 YEAR OF MANUFACTURE: 01/2002 → 12/2004
CX 28	Perkins 103.13	1300	17	23	01/1996 →	CX 28 ENGINE CODE: Perkins 103.13 CC: 1300 kW: 17 HP: 23 YEAR OF MANUFACTURE: 01/1996 →
CX 31	Perkins 103.15	1500	23	31	01/2002 → 05/2004	CX 31 ENGINE CODE: Perkins 103.15 CC: 1500 kW: 23 HP: 31 YEAR OF MANUFACTURE: 01/2002 → 05/2004
CX 35	Perkins 103.15	1500	24	33	01/2002 → 12/2004	CX 35 ENGINE CODE: Perkins 103.15 CC: 1500 kW: 24 HP: 33 YEAR OF MANUFACTURE: 01/2002 → 12/2004
CX 75 SR	Isuzu CC-4JG1		39	53	01/2008 →	CX 75 SR ENGINE CODE: Isuzu CC-4JG1 CC: kW: 39 HP: 53 YEAR OF MANUFACTURE: 01/2008 →

ENGINE CODE

YEAR OF MANUFACTURE

CX 15

Perkins 103.10

1000

01/2002 → 12/2004

CX 16

Perkins 103.10

1000

01/2002 → 12/2004

CX 28

Perkins 103.13

1300

01/1996 →

CX 31

Perkins 103.15

1500

01/2002 → 05/2004

CX 35

Perkins 103.15

1500

01/2002 → 12/2004

CX 75 SR

Isuzu CC-4JG1

01/2008 →

CATERPILLAR

3000 (Motoren / Engines)

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
3011C							3011C ENGINE CODE: CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

3011C

C (Motoren / Engines) | 98-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
C1.5 (Industrial)						i For C5N1-, G7N1-, G7P1-	C1.5 (Industrial) ENGINE CODE: CC: kW: HP: i For C5N1-, G7N1-, G7P1-

ENGINE CODE

YEAR OF MANUFACTURE

C1.5 (Industrial)

DOOSAN

Solar - Hydraulikbagger / Hydraulic Excavators | 9

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
SOLAR 050 W-III	Isuzu						SOLAR 050 W-III ENGINE CODE: Isuzu CC: kW: HP:
SOLAR 055	Isuzu A4JB1	2770	40	54	01/1998 → 12/2003		SOLAR 055 ENGINE CODE: Isuzu A4JB1 CC: 2770 kW: 40 HP: 54 YEAR OF MANUFACTURE: 01/1998 → 12/2003

ENGINE CODE

YEAR OF MANUFACTURE

SOLAR 050 W-III

Isuzu

SOLAR 055

Isuzu A4JB1

2770

01/1998 → 12/2003

DYNAPAC-WINGET

CC-Serie | 04-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
CC 800	Perkins 403D-11	1130	17	24	01/2011 → 12/2014	CC 800 ENGINE CODE: Perkins 403D-11 CC: 1130 kW: 17 HP: 24 YEAR OF MANUFACTURE: 01/2011 → 12/2014
CC 800	Perkins 403C-11	1130	17	24	01/2004 → 12/2011	CC 800 ENGINE CODE: Perkins 403C-11 CC: 1130 kW: 17 HP: 24 YEAR OF MANUFACTURE: 01/2004 → 12/2011
CC 800	Perkins 403D-11		17	24	12/2009 →	CC 800 ENGINE CODE: Perkins 403D-11 CC: kW: 17 HP: 24 YEAR OF MANUFACTURE: 12/2009 →
CC 900	Perkins 403D-11	1130	17	24		CC 900 ENGINE CODE: Perkins 403D-11 CC: 1130 kW: 17 HP: 24

ENGINE CODE

YEAR OF MANUFACTURE

CC 800

Perkins 403D-11

1130

01/2011 → 12/2014

CC 800

Perkins 403C-11

1130

01/2004 → 12/2011

CC 800

Perkins 403D-11

12/2009 →

CC 900

Perkins 403D-11

1130

FURUKAWA

FH-Serie

	ENGINE CODE
10 A	2ABI	10 A ENGINE CODE: 2ABI CC: kW: HP:
115	H843-1K	115 ENGINE CODE: H843-1K CC: kW: HP:
30, 30A/AP	4BAI	30, 30A/AP ENGINE CODE: 4BAI CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

10 A

2ABI

115

H843-1K

30, 30A/AP

4BAI

GEHL

SL-Serie | 86-

	ENGINE CODE	kW	HP	YEAR OF MANUFACTURE
1620	Isuzu 3KC1	16	22		1620 ENGINE CODE: Isuzu 3KC1 CC: kW: 16 HP: 22
1625	Isuzu QT23	16	22	01/1992 →	1625 ENGINE CODE: Isuzu QT23 CC: kW: 16 HP: 22 YEAR OF MANUFACTURE: 01/1992 →
3610	Isuzu QT35	25	34		3610 ENGINE CODE: Isuzu QT35 CC: kW: 25 HP: 34
6610	Isuzu C240	44	60		6610 ENGINE CODE: Isuzu C240 CC: kW: 44 HP: 60

ENGINE CODE

YEAR OF MANUFACTURE

1620

Isuzu 3KC1

1625

Isuzu QT23

01/1992 →

3610

Isuzu QT35

6610

Isuzu C240

HITACHI

EX- Serie (Raupenbagger / Crawler Excavator) | 88-

	ENGINE CODE	kW	HP	YEAR OF MANUFACTURE
EX 100	Isuzu 4BD1	56	76	01/1988 →	EX 100 ENGINE CODE: Isuzu 4BD1 CC: kW: 56 HP: 76 YEAR OF MANUFACTURE: 01/1988 →
EX 60 UR	Isuzu 4BD1	40	55	01/1990 →	EX 60 UR ENGINE CODE: Isuzu 4BD1 CC: kW: 40 HP: 55 YEAR OF MANUFACTURE: 01/1990 →
EX 90, 90M	Isuzu 4 BD1	50	68	01/1988 →	EX 90, 90M ENGINE CODE: Isuzu 4 BD1 CC: kW: 50 HP: 68 YEAR OF MANUFACTURE: 01/1988 →

ENGINE CODE

YEAR OF MANUFACTURE

EX 100

Isuzu 4BD1

01/1988 →

EX 60 UR

Isuzu 4BD1

01/1990 →

EX 90, 90M

Isuzu 4 BD1

01/1988 →

ZX- Serie (Mobilbagger / Wheel Excavator) | 03-

	ENGINE CODE	kW	HP	YEAR OF MANUFACTURE
110	Isuzu 4BG1 TRG					110 ENGINE CODE: Isuzu 4BG1 TRG CC: kW: HP:
110-E	Isuzu 4BG1 TRG					110-E ENGINE CODE: Isuzu 4BG1 TRG CC: kW: HP:
110M	Isuzu 4BG1 TRG					110M ENGINE CODE: Isuzu 4BG1 TRG CC: kW: HP:
120/120-E/130/130H/130K/130LCN	Isuzu CC-4BG1T					120/120-E/130/130H/130K/130LCN ENGINE CODE: Isuzu CC-4BG1T CC: kW: HP:
125US(-E)	Isuzu 4BG1 T					125US(-E) ENGINE CODE: Isuzu 4BG1 T CC: kW: HP:
130W	Isuzu 4BG1 T					130W ENGINE CODE: Isuzu 4BG1 T CC: kW: HP:
135US	Isuzu 4BG1 TCG					135US ENGINE CODE: Isuzu 4BG1 TCG CC: kW: HP:
135US-E	Isuzu 4BG1 TCG					135US-E ENGINE CODE: Isuzu 4BG1 TCG CC: kW: HP:
135USK	Isuzu 4BG1 TCG					135USK ENGINE CODE: Isuzu 4BG1 TCG CC: kW: HP:
160W	Isuzu AA 4BG1 TC					160W ENGINE CODE: Isuzu AA 4BG1 TC CC: kW: HP:
180 W	Isuzu 4 BG 1 XABFA			01/2003 →	i Safety element	180 W ENGINE CODE: Isuzu 4 BG 1 XABFA CC: kW: HP: YEAR OF MANUFACTURE: 01/2003 → i Safety element
180LC(N)	Isuzu AA-4BG1 TCG02					180LC(N) ENGINE CODE: Isuzu AA-4BG1 TCG02 CC: kW: HP:
180W	Isuzu AA 4BG1					180W ENGINE CODE: Isuzu AA 4BG1 CC: kW: HP:
55	ISUZU 4JG1					55 ENGINE CODE: ISUZU 4JG1 CC: kW: HP:
70/70LC/80/80LCK/80SB/80SBLC						70/70LC/80/80LCK/80SB/80SBLC ENGINE CODE: CC: kW: HP:
70LC-3	ISUZU 4LE2-XYSA-01					70LC-3 ENGINE CODE: ISUZU 4LE2-XYSA-01 CC: kW: HP:
75US-3/75USK-3/80US-3	Isuzu AU-4LE2XYSA-01					75US-3/75USK-3/80US-3 ENGINE CODE: Isuzu AU-4LE2XYSA-01 CC: kW: HP:
75US-A	Isuzu AA-4JG1	41	56	01/2006 →		75US-A ENGINE CODE: Isuzu AA-4JG1 CC: kW: 41 HP: 56 YEAR OF MANUFACTURE: 01/2006 →
85USB-3/USBLC-3/USBLCN-3	ISUZU AU-42LE2XYSA-01					85USB-3/USBLC-3/USBLCN-3 ENGINE CODE: ISUZU AU-42LE2XYSA-01 CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

110

Isuzu 4BG1 TRG

110-E

Isuzu 4BG1 TRG

110M

Isuzu 4BG1 TRG

120/120-E/130/130H/130K/130LCN

Isuzu CC-4BG1T

125US(-E)

Isuzu 4BG1 T

130W

Isuzu 4BG1 T

135US

Isuzu 4BG1 TCG

135US-E

Isuzu 4BG1 TCG

135USK

Isuzu 4BG1 TCG

160W

Isuzu AA 4BG1 TC

180 W

Isuzu 4 BG 1 XABFA

01/2003 →

180LC(N)

Isuzu AA-4BG1 TCG02

180W

Isuzu AA 4BG1

ISUZU 4JG1

70/70LC/80/80LCK/80SB/80SBLC

70LC-3

ISUZU 4LE2-XYSA-01

75US-3/75USK-3/80US-3

Isuzu AU-4LE2XYSA-01

75US-A

Isuzu AA-4JG1

01/2006 →

85USB-3/USBLC-3/USBLCN-3

ISUZU AU-42LE2XYSA-01

HOKUETSU

PDS-Serie

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
130 S	Isuzu 3 KR 1						130 S ENGINE CODE: Isuzu 3 KR 1 CC: kW: HP:
185 S	Isuzu C 240						185 S ENGINE CODE: Isuzu C 240 CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

130 S

Isuzu 3 KR 1

185 S

Isuzu C 240

HYSTER

H-Serie | 96-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
35XL	Isuzu						35XL ENGINE CODE: Isuzu CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

35XL

Isuzu

IHI CONSTRUCTION MACHINERY

(Minibagger / Mini Excavators) | 88-

	ENGINE CODE	kW	HP	YEAR OF MANUFACTURE
25 G	Isuzu 3KC1/2			01/1988 →	25 G ENGINE CODE: Isuzu 3KC1/2 CC: kW: HP: YEAR OF MANUFACTURE: 01/1988 →
27 F	Isuzu 3KC1			01/1988 →	27 F ENGINE CODE: Isuzu 3KC1 CC: kW: HP: YEAR OF MANUFACTURE: 01/1988 →
27 G	Isuzu 3KC1			01/1992 →	27 G ENGINE CODE: Isuzu 3KC1 CC: kW: HP: YEAR OF MANUFACTURE: 01/1992 →
28 G	Isuzu 3KR2	21	29	01/1990 →	28 G ENGINE CODE: Isuzu 3KR2 CC: kW: 21 HP: 29 YEAR OF MANUFACTURE: 01/1990 →
28 J	Isuzu 3LB1	18	25	01/1992 →	28 J ENGINE CODE: Isuzu 3LB1 CC: kW: 18 HP: 25 YEAR OF MANUFACTURE: 01/1992 →
30 F	Isuzu 3KR1			01/1988 →	30 F ENGINE CODE: Isuzu 3KR1 CC: kW: HP: YEAR OF MANUFACTURE: 01/1988 →
30 G	Isuzu 3KC1			01/1990 →	30 G ENGINE CODE: Isuzu 3KC1 CC: kW: HP: YEAR OF MANUFACTURE: 01/1990 →
30 G-2	Isuzu			01/1990 →	30 G-2 ENGINE CODE: Isuzu CC: kW: HP: YEAR OF MANUFACTURE: 01/1990 →
35 F	Isuzu 3AB1			01/1988 →	35 F ENGINE CODE: Isuzu 3AB1 CC: kW: HP: YEAR OF MANUFACTURE: 01/1988 →
40 F	Isuzu			01/1988 →	40 F ENGINE CODE: Isuzu CC: kW: HP: YEAR OF MANUFACTURE: 01/1988 →
40 G	Isuzu 4JE1			01/1990 →	40 G ENGINE CODE: Isuzu 4JE1 CC: kW: HP: YEAR OF MANUFACTURE: 01/1990 →
45 J	Isuzu 4JC1	33	45	01/1992 →	45 J ENGINE CODE: Isuzu 4JC1 CC: kW: 33 HP: 45 YEAR OF MANUFACTURE: 01/1992 →
50 F	Isuzu 4JA1			01/1988 →	50 F ENGINE CODE: Isuzu 4JA1 CC: kW: HP: YEAR OF MANUFACTURE: 01/1988 →
50 G	Isuzu 4JC1	35	48	01/1990 →	50 G ENGINE CODE: Isuzu 4JC1 CC: kW: 35 HP: 48 YEAR OF MANUFACTURE: 01/1990 →
55 J	Isuzu 4JA1/JC1	38	52	01/1992 →	55 J ENGINE CODE: Isuzu 4JA1/JC1 CC: kW: 38 HP: 52 YEAR OF MANUFACTURE: 01/1992 →
75 F	Isuzu 4JB1			01/1988 →	75 F ENGINE CODE: Isuzu 4JB1 CC: kW: HP: YEAR OF MANUFACTURE: 01/1988 →

ENGINE CODE

YEAR OF MANUFACTURE

25 G

Isuzu 3KC1/2

01/1988 →

27 F

Isuzu 3KC1

01/1988 →

27 G

Isuzu 3KC1

01/1992 →

28 G

Isuzu 3KR2

01/1990 →

28 J

Isuzu 3LB1

01/1992 →

30 F

Isuzu 3KR1

01/1988 →

30 G

Isuzu 3KC1

01/1990 →

30 G-2

Isuzu

01/1990 →

35 F

Isuzu 3AB1

01/1988 →

40 F

Isuzu

01/1988 →

40 G

Isuzu 4JE1

01/1990 →

45 J

Isuzu 4JC1

01/1992 →

50 F

Isuzu 4JA1

01/1988 →

50 G

Isuzu 4JC1

01/1990 →

55 J

Isuzu 4JA1/JC1

01/1992 →

75 F

Isuzu 4JB1

01/1988 →

INGERSOLL-RAND

7-Serie | 04-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
7-51	4IRJ7N					i Use for OE no. 54381306	7-51 ENGINE CODE: 4IRJ7N CC: kW: HP: i Use for OE no. 54381306

ENGINE CODE

YEAR OF MANUFACTURE

7-51

4IRJ7N

P-Serie

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
P185WIR/P250WIR/P260WIR						i Use for OE no. 54381306	P185WIR/P250WIR/P260WIR ENGINE CODE: CC: kW: HP: i Use for OE no. 54381306

ENGINE CODE

YEAR OF MANUFACTURE

P185WIR/P250WIR/P260WIR

XP-Serie

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
XP185WIR						i Use for OE no. 54381306	XP185WIR ENGINE CODE: CC: kW: HP: i Use for OE no. 54381306

ENGINE CODE

YEAR OF MANUFACTURE

XP185WIR

ISEKI

SX-Serie | 85-90

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
55	Isuzu 4JB1-PB		37	50	01/1985 → 12/1990		55 ENGINE CODE: Isuzu 4JB1-PB CC: kW: 37 HP: 50 YEAR OF MANUFACTURE: 01/1985 → 12/1990

ENGINE CODE

YEAR OF MANUFACTURE

Isuzu 4JB1-PB

01/1985 → 12/1990

TA-Serie | 87-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
530	Isuzu E3AD1H05K	1498	22	30	01/1996 → 12/1999	530 ENGINE CODE: Isuzu E3AD1H05K CC: 1498 kW: 22 HP: 30 YEAR OF MANUFACTURE: 01/1996 → 12/1999
538	Iseki E3CD	1500	28	38	01/2001 →	538 ENGINE CODE: Iseki E3CD CC: 1500 kW: 28 HP: 38 YEAR OF MANUFACTURE: 01/2001 →
545	Isuzu 4JA1	2500	33	45	01/1993 → 12/1999	545 ENGINE CODE: Isuzu 4JA1 CC: 2500 kW: 33 HP: 45 YEAR OF MANUFACTURE: 01/1993 → 12/1999
545 VL	Isuzu AJA1-PB01	2499	33	45	01/1993 → 12/1999	545 VL ENGINE CODE: Isuzu AJA1-PB01 CC: 2499 kW: 33 HP: 45 YEAR OF MANUFACTURE: 01/1993 → 12/1999
550	Isuzu 4JB1PB02	2770	39	52	01/1993 → 12/1999	550 ENGINE CODE: Isuzu 4JB1PB02 CC: 2770 kW: 39 HP: 52 YEAR OF MANUFACTURE: 01/1993 → 12/1999

ENGINE CODE

YEAR OF MANUFACTURE

530

Isuzu E3AD1H05K

1498

01/1996 → 12/1999

538

Iseki E3CD

1500

01/2001 →

545

Isuzu 4JA1

2500

01/1993 → 12/1999

545 VL

Isuzu AJA1-PB01

2499

01/1993 → 12/1999

550

Isuzu 4JB1PB02

2770

01/1993 → 12/1999

TD-Serie

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
4450	Isuzu C240PBA	2369	33	45		i Partly/or	4450 ENGINE CODE: Isuzu C240PBA CC: 2369 kW: 33 HP: 45 i Partly/or
4451	Isuzu C240PBA	2369	33	45			4451 ENGINE CODE: Isuzu C240PBA CC: 2369 kW: 33 HP: 45

ENGINE CODE

YEAR OF MANUFACTURE

4450

Isuzu C240PBA

2369

4451

Isuzu C240PBA

2369

JCB (J.C. BAMFORD)

8000 (Minibagger / Mini Excavators) | 98-

	ENGINE CODE	kW	HP	YEAR OF MANUFACTURE
8055 ZTS	4LE1/2 Tier III Isuzu				8055 ZTS ENGINE CODE: 4LE1/2 Tier III Isuzu CC: kW: HP:
8060 CTS	4JG1 Isuzu	45	61	01/2000 → 12/2008	8060 CTS ENGINE CODE: 4JG1 Isuzu CC: kW: 45 HP: 61 YEAR OF MANUFACTURE: 01/2000 → 12/2008
8085 ZTS	4LE2X Isuzu				8085 ZTS ENGINE CODE: 4LE2X Isuzu CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

8055 ZTS

4LE1/2 Tier III Isuzu

8060 CTS

4JG1 Isuzu

01/2000 → 12/2008

8085 ZTS

4LE2X Isuzu

JS / JZ (Hydraulikbagger / Hydraulic Excavators) |

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
JS70	Isuzu 1B1PA15		41	56	01/1990 →		JS70 ENGINE CODE: Isuzu 1B1PA15 CC: kW: 41 HP: 56 YEAR OF MANUFACTURE: 01/1990 →

ENGINE CODE

YEAR OF MANUFACTURE

JS70

Isuzu 1B1PA15

01/1990 →

KOBELCO

ED-Serie | 08-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
ED 150							ED 150 ENGINE CODE: CC: kW: HP:
ED 150-1E							ED 150-1E ENGINE CODE: CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

ED 150

ED 150-1E

K/KW-Serie | 98-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
903B	Isuzu C240						903B ENGINE CODE: Isuzu C240 CC: kW: HP:
903C	Isuzu 4JB-1						903C ENGINE CODE: Isuzu 4JB-1 CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

903B

Isuzu C240

903C

Isuzu 4JB-1

MSR-Serie

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
80MSR-1E							80MSR-1E ENGINE CODE: CC: kW: HP:
80MSR-1ES							80MSR-1ES ENGINE CODE: CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

80MSR-1E

80MSR-1ES

SK-Serie | 91-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
006	Isuzu 4JB1					006 ENGINE CODE: Isuzu 4JB1 CC: kW: HP:
060	Isuzu 4JB1		42	57	01/1991 →	060 ENGINE CODE: Isuzu 4JB1 CC: kW: 42 HP: 57 YEAR OF MANUFACTURE: 01/1991 →
115 SR	Isuzu 4BG1TAB	4330	63	86	01/2003 → 12/2004	115 SR ENGINE CODE: Isuzu 4BG1TAB CC: 4330 kW: 63 HP: 86 YEAR OF MANUFACTURE: 01/2003 → 12/2004
115SRDZ-1E						115SRDZ-1E ENGINE CODE: CC: kW: HP:
130 UR	Isuzu 4JJ1X		73	99		130 UR ENGINE CODE: Isuzu 4JJ1X CC: kW: 73 HP: 99
135SR/LC	Isuzu A4BG1-T		63	86	01/2005 →	135SR/LC ENGINE CODE: Isuzu A4BG1-T CC: kW: 63 HP: 86 YEAR OF MANUFACTURE: 01/2005 →
135SRLC-1E						135SRLC-1E ENGINE CODE: CC: kW: HP:
135SRLC-1E						135SRLC-1E ENGINE CODE: CC: kW: HP:
200SR						200SR ENGINE CODE: CC: kW: HP:
200SRLC						200SRLC ENGINE CODE: CC: kW: HP:
200SRLC-1S						200SRLC-1S ENGINE CODE: CC: kW: HP:
70SR-2						70SR-2 ENGINE CODE: CC: kW: HP:
80CS-1E						80CS-1E ENGINE CODE: CC: kW: HP:
80CS-2						80CS-2 ENGINE CODE: CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

006

Isuzu 4JB1

060

Isuzu 4JB1

01/1991 →

115 SR

Isuzu 4BG1TAB

4330

01/2003 → 12/2004

115SRDZ-1E

130 UR

Isuzu 4JJ1X

135SR/LC

Isuzu A4BG1-T

01/2005 →

135SRLC-1E

200SR

200SRLC

200SRLC-1S

70SR-2

80CS-1E

80CS-2

SR-Serie | 08-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
70SR-1E							70SR-1E ENGINE CODE: CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

70SR-1E

KOMATSU

D (Planierraupen / Bulldozers) | 74-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
D 20 A-6 / D 21 P-6	Komatsu 4D94		29	40	01/1985 → 12/1992		D 20 A-6 / D 21 P-6 ENGINE CODE: Komatsu 4D94 CC: kW: 29 HP: 40 YEAR OF MANUFACTURE: 01/1985 → 12/1992
D 21 A/P-7	Komatsu 4D94LE-2	3053	29	40	01/1997 →		D 21 A/P-7 ENGINE CODE: Komatsu 4D94LE-2 CC: 3053 kW: 29 HP: 40 YEAR OF MANUFACTURE: 01/1997 →

ENGINE CODE

YEAR OF MANUFACTURE

D 20 A-6 / D 21 P-6

Komatsu 4D94

01/1985 → 12/1992

D 21 A/P-7

Komatsu 4D94LE-2

3053

01/1997 →

ENGINES

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
4 D 95 L							4 D 95 L ENGINE CODE: CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

4 D 95 L

FD (Gabelstapler / Fork Lifts)

	ENGINE CODE
10 L/N	Isuz. 4FA1/FE1	10 L/N ENGINE CODE: Isuz. 4FA1/FE1 CC: kW: HP:
14 L/N	Isuzu 4FA1/FE1	14 L/N ENGINE CODE: Isuzu 4FA1/FE1 CC: kW: HP:
15	Isuzu C240	15 ENGINE CODE: Isuzu C240 CC: kW: HP:
15 L/N	Isuzu 4FA1/FE1	15 L/N ENGINE CODE: Isuzu 4FA1/FE1 CC: kW: HP:
18	Isuzu C240	18 ENGINE CODE: Isuzu C240 CC: kW: HP:
18 L/N	Isuzu 4FA1/FE1	18 L/N ENGINE CODE: Isuzu 4FA1/FE1 CC: kW: HP:
20	Isuzu C240	20 ENGINE CODE: Isuzu C240 CC: kW: HP:
20 H	Isuzu C240	20 H ENGINE CODE: Isuzu C240 CC: kW: HP:
23	Isuzu C240	23 ENGINE CODE: Isuzu C240 CC: kW: HP:
25	Isuzu C240	25 ENGINE CODE: Isuzu C240 CC: kW: HP:
25 H	Isuzu C240	25 H ENGINE CODE: Isuzu C240 CC: kW: HP:
28	Isuzu C240	28 ENGINE CODE: Isuzu C240 CC: kW: HP:
30	Isuzu C240	30 ENGINE CODE: Isuzu C240 CC: kW: HP:
30 H	Isuzu C240	30 H ENGINE CODE: Isuzu C240 CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

10 L/N

Isuz. 4FA1/FE1

14 L/N

Isuzu 4FA1/FE1

Isuzu C240

15 L/N

Isuzu 4FA1/FE1

Isuzu C240

18 L/N

Isuzu 4FA1/FE1

Isuzu C240

20 H

Isuzu C240

25 H

Isuzu C240

30 H

Isuzu C240

PC (Kettenbagger / Crawler Excavators) | 80-

	ENGINE CODE	kW	HP	YEAR OF MANUFACTURE
PC 05-6	Perkins 103-9					PC 05-6 ENGINE CODE: Perkins 103-9 CC: kW: HP:
PC 130-7 / 130-7K	Komatsu SAA4D95 LE-3	66	88		i From chassis no. 70001-	PC 130-7 / 130-7K ENGINE CODE: Komatsu SAA4D95 LE-3 CC: kW: 66 HP: 88 i From chassis no. 70001-
PC 60-7	4D95L	40	55	09/1993 →		PC 60-7 ENGINE CODE: 4D95L CC: kW: 40 HP: 55 YEAR OF MANUFACTURE: 09/1993 →
PC 78 MR-6	S4D95LE-3A				i From chassis no. 1001	PC 78 MR-6 ENGINE CODE: S4D95LE-3A CC: kW: HP: i From chassis no. 1001
PC 78 US-5	Komatsu 4D95LE-2B					PC 78 US-5 ENGINE CODE: Komatsu 4D95LE-2B CC: kW: HP:
PC 78 US-6	Komatsu S4D95LE-3A-2	40	54			PC 78 US-6 ENGINE CODE: Komatsu S4D95LE-3A-2 CC: kW: 40 HP: 54
PC 78 US-6	Komatsu 4D95LE-2C					PC 78 US-6 ENGINE CODE: Komatsu 4D95LE-2C CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

PC 05-6

Perkins 103-9

PC 130-7 / 130-7K

Komatsu SAA4D95 LE-3

PC 60-7

4D95L

09/1993 →

PC 78 MR-6

S4D95LE-3A

PC 78 US-5

Komatsu 4D95LE-2B

PC 78 US-6

Komatsu S4D95LE-3A-2

PC 78 US-6

Komatsu 4D95LE-2C

SD-Serie

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
15	Isuzu C240						15 ENGINE CODE: Isuzu C240 CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

Isuzu C240

WA (Radlader / Wheel Loaders) | 95-

	ENGINE CODE	YEAR OF MANUFACTURE
100M-3	Komatsu S4D95LE-3C-2M	→ 12/2005	100M-3 ENGINE CODE: Komatsu S4D95LE-3C-2M CC: kW: HP: YEAR OF MANUFACTURE: → 12/2005
120-3	S6D95L		120-3 ENGINE CODE: S6D95L CC: kW: HP:
180-3 (50001-52999)	S6D95L		180-3 (50001-52999) ENGINE CODE: S6D95L CC: kW: HP:
250-3	S6D95L		250-3 ENGINE CODE: S6D95L CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

100M-3

Komatsu S4D95LE-3C-2M

→ 12/2005

120-3

S6D95L

180-3 (50001-52999)

S6D95L

250-3

S6D95L

NEW HOLLAND CONSTRUCTION

E / EC / LE (Kettenbagger / Crawler Excavators) |

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
E 135 SR	Isuzu 4BG1TA Tier 2	4329	63	85	01/2003 → 01/2006	E 135 SR ENGINE CODE: Isuzu 4BG1TA Tier 2 CC: 4329 kW: 63 HP: 85 YEAR OF MANUFACTURE: 01/2003 → 01/2006
E 70 B SR	Isuzu AU-4LE2X Tier3A	2179	42	56	09/2009 →	E 70 B SR ENGINE CODE: Isuzu AU-4LE2X Tier3A CC: 2179 kW: 42 HP: 56 YEAR OF MANUFACTURE: 09/2009 →
E 80 B MSR	Isuzu AU-4LE2X Tier3A	2179	42	56	09/2009 →	E 80 B MSR ENGINE CODE: Isuzu AU-4LE2X Tier3A CC: 2179 kW: 42 HP: 56 YEAR OF MANUFACTURE: 09/2009 →

ENGINE CODE

YEAR OF MANUFACTURE

E 135 SR

Isuzu 4BG1TA Tier 2

4329

01/2003 → 01/2006

E 70 B SR

Isuzu AU-4LE2X Tier3A

2179

09/2009 →

E 80 B MSR

Isuzu AU-4LE2X Tier3A

2179

09/2009 →

SANY

SY-Series for Europe (Bagger / Excavator) | 18-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
SY155C-9	Isuzu 4BG1T	4330	73	99			SY155C-9 ENGINE CODE: Isuzu 4BG1T CC: 4330 kW: 73 HP: 99

ENGINE CODE

YEAR OF MANUFACTURE

SY155C-9

Isuzu 4BG1T

4330

TAKEUCHI

TB (Mobilbagger / Wheeled Excavators)

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
TB 070W	Nissan BD 3004		41	56			TB 070W ENGINE CODE: Nissan BD 3004 CC: kW: 41 HP: 56

ENGINE CODE

YEAR OF MANUFACTURE

TB 070W

Nissan BD 3004

TB 1 (Kompaktbagger / Compact Excavators) | 98-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
TB 1140	Isuzu BB4BG1TRE		62	84		i Use for OE no. 8-97172-5491	TB 1140 ENGINE CODE: Isuzu BB4BG1TRE CC: kW: 62 HP: 84 i Use for OE no. 8-97172-5491
TB 1140	Isuzu 4JJ1XYSB01					i Use for OE no. 8-97172-5491	TB 1140 ENGINE CODE: Isuzu 4JJ1XYSB01 CC: kW: HP: i Use for OE no. 8-97172-5491

ENGINE CODE

YEAR OF MANUFACTURE

TB 1140

Isuzu BB4BG1TRE

TB 1140

Isuzu 4JJ1XYSB01

TL (Deltalader / Compact Track Loaders) | 14-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
TL 140	Isuzu 4JG1TPA						TL 140 ENGINE CODE: Isuzu 4JG1TPA CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

TL 140

Isuzu 4JG1TPA

VALPADANA (ARGO)

1300-Serie | 03-08

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
1330	Perkins 103.10	954	17	24	01/2003 → 12/2008		1330 ENGINE CODE: Perkins 103.10 CC: 954 kW: 17 HP: 24 YEAR OF MANUFACTURE: 01/2003 → 12/2008

ENGINE CODE

YEAR OF MANUFACTURE

1330

Perkins 103.10

954

01/2003 → 12/2008

2000-Serie | 96-00

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
2025	Perkins 103.1						2025 ENGINE CODE: Perkins 103.1 CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

2025

Perkins 103.1

WEIDEMANN (WACKER NEUSON)

1000-Serie | 91-

	ENGINE CODE	kW	HP	YEAR OF MANUFACTURE
1230 P26	Perkins 103-12	19	26	01/1994 →	i Partly/or	1230 P26 ENGINE CODE: Perkins 103-12 CC: kW: 19 HP: 26 YEAR OF MANUFACTURE: 01/1994 → i Partly/or
1252 D/P	Perkins					1252 D/P ENGINE CODE: Perkins CC: kW: HP:
1490 P50	Perkins 404C-22					1490 P50 ENGINE CODE: Perkins 404C-22 CC: kW: HP:
1506 P33	Perkins 103-15	24	33	01/1995 →		1506 P33 ENGINE CODE: Perkins 103-15 CC: kW: 24 HP: 33 YEAR OF MANUFACTURE: 01/1995 →
1506 P43	Perkins 104-20	32	43	01/2001 →		1506 P43 ENGINE CODE: Perkins 104-20 CC: kW: 32 HP: 43 YEAR OF MANUFACTURE: 01/2001 →
1904 D/D	Deutz					1904 D/D ENGINE CODE: Deutz CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

1230 P26

Perkins 103-12

01/1994 →

1252 D/P

Perkins

1490 P50

Perkins 404C-22

1506 P33

Perkins 103-15

01/1995 →

1506 P43

Perkins 104-20

01/2001 →

1904 D/D

Deutz

WINGET / DYNAPAC

CC-Serie | 91-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
CC 900	Perkins 403-D11	1130	18	24	01/2011 →		CC 900 ENGINE CODE: Perkins 403-D11 CC: 1130 kW: 18 HP: 24 YEAR OF MANUFACTURE: 01/2011 →
SCC 800-1EN5	Perkins 403 C-11				03/2008 →		SCC 800-1EN5 ENGINE CODE: Perkins 403 C-11 CC: kW: HP: YEAR OF MANUFACTURE: 03/2008 →

ENGINE CODE

YEAR OF MANUFACTURE

CC 900

Perkins 403-D11

1130

01/2011 →

SCC 800-1EN5

Perkins 403 C-11

03/2008 →

F-Serie | 90-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
F2 C/W	Isuzu 4FB1		24	33	01/1990 →		F2 C/W ENGINE CODE: Isuzu 4FB1 CC: kW: 24 HP: 33 YEAR OF MANUFACTURE: 01/1990 →
F3 C/W	Isuzu 4FB1		24	33	01/1990 →		F3 C/W ENGINE CODE: Isuzu 4FB1 CC: kW: 24 HP: 33 YEAR OF MANUFACTURE: 01/1990 →

ENGINE CODE

YEAR OF MANUFACTURE

F2 C/W

Isuzu 4FB1

01/1990 →

F3 C/W

Isuzu 4FB1

01/1990 →

AIRMAN

4354005500

CASE CONSTRUCTION

84584081
87516468

CATERPILLAR

3I-1120

CUMMINS

6003117460

DYNAPAC

4700376555

HITACHI

4254047
4448371
4616542
4616543
8971725491

ISEKI

6894-143-479-00

ISUZU

1-32400-23
5-1320-0235-0
5-13240-009-0
5-13240-009-1
5-13240-023-0
8-94143-479-0
8-9415-1744-0
8-94370-621-0
8-94414-796-3
8-97116-125-0
8-97172-549-0
8-97179-854-1
8971725491

JOHN DEERE

GV10809

KOBELCO

VI8971725491

KOMATSU

132-400-23
513-240-0091
513-240-0230
600-311-6221
600-311-7410
600-311-7440
600-311-7460

NISSAN

16403-01T01
16403-01T0A
16403-09W00
16403-J2000
16403-J2001
16403-J2110
16403-J5500
16403-T9300
16403-T9301
16403-Z7000

TAKEUCHI

8971725491
T8971725491
Ti8971725491

TOYOTA

23303-54010
23303-54011
23303-54070
23303-54071
23303-54072

Date of last data update: 2025-03-31 Print Report now

DIMENSIONS NEW FILTERS AND CHANGES SPECIAL FILTERS

FILTER CATALOGUE

Search results

Find a filter

REACH-Information

PP 944

CLIPBOARD

Filtry Filtron
