REACH-Information

SVHC declaration according to the regulation EC 1907/2006 concerning the Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH).

Produkt: PP 964/1 - FILTRON

MANN+HUMMEL is well aware of REACH and meet all legal obligations under this regulation.

MANN+HUMMEL has established internal processes to ensure implementation and compliance with the REACH Regulation. Especially, we continuously work on the assessment of presence of SVHC (Substances of Very High Concern).

We may inform you that according to present level of information and best knowledge, this product does not contain any SVHC listed on the Candidate List in concentration above 0,1% (w/w).

Last update: 2024-09-19

Back

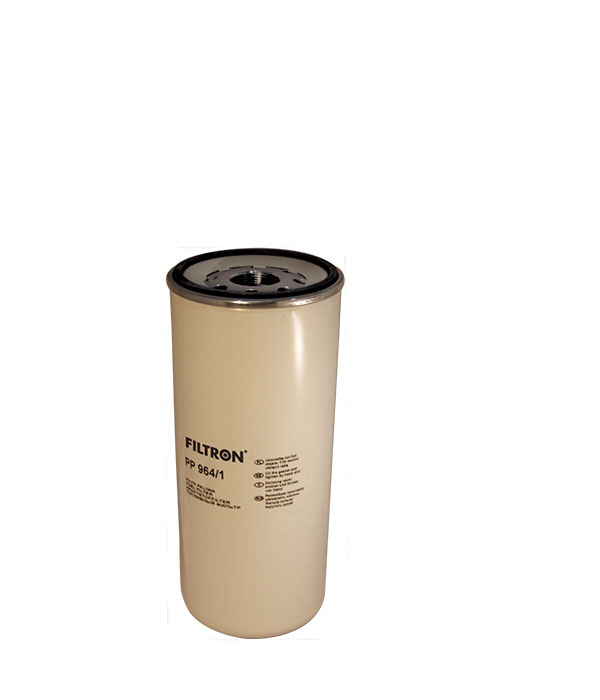

FUEL FILTERS

PP 964/1

EAN CODE: 5904608029645

REACH information

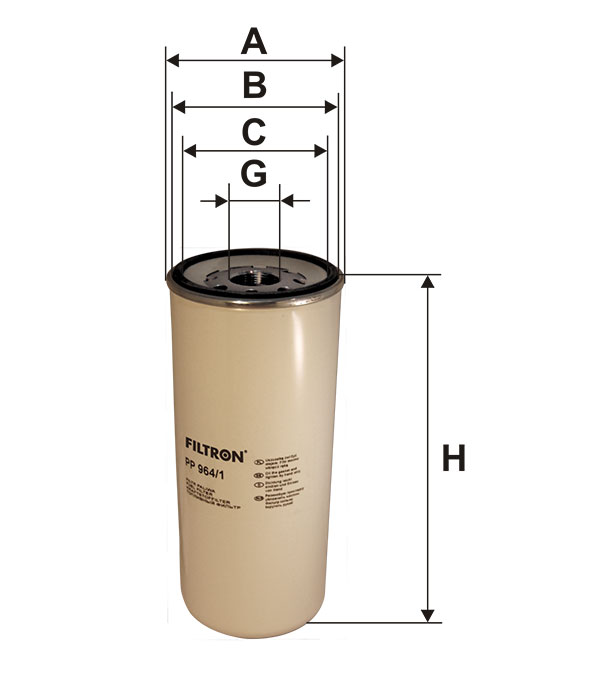

DIMENSIONS (mm):

110.5

104

M32x1.5

261

MAY 2019 Note: change in filter design

Due to the introduction of the new production technology for spin-on filters, the connection of the spin-on-element with the filter cover (the so-called "lock") is not painted. The change does not affect the filtering properties of the filters in any way.

The change is planned for the following numbers:
OP 519, OP 581, OP 620, PP 963, OP 545/2, OP 592/1, OP 619/1, OP 647/1, OP 536, OP 583, OP 621, PP 964, OP 554/1, OP 592/2, OP 619/2, PP 845/2, OP 539, OP 584, OP 626, PP 965, OP 564/1, OP 592/4, OP 626/1, PP 861/2, OP 544, OP 587, OP 631, PP 971, OP 567/2, OP 592/6, OP 626/2, PP 861/3, OP 557, OP 592, OP 635, PP 972, OP 570/2, OP 592/7, OP 626/4, PP 861/4, OP 558, OP 594, OP 636, PP 979, OP 574/1, OP 592/8, OP 626/6, PP 861/5, OP 564, OP 595, OP 641, AK 360/2, OP 574/2, OP 594/1, OP 629/2, PP 861/6, OP 569, OP 597, OP 668, OP 525/1, OP 575/1, OP 594/2, OP 632/4, PP 879/2, OP 572, OP 612, PP 840, OP 525/2, OP 580/5, OP 595/1, OP 632/5, PP 879/4, OP 574, OP 613, PP 845, OP 525/3, OP 580/8, OP 595/2, OP 642/2, PP 879/6, OP 575, OP 617, PP 879, OP 525/4, OP 584/1, OP 597/1, OP 642/3, PP 963/1, OP 577, OP 618, PP 922, OP 526/5, OP 584/2, OP 616/3, OP 643/1, PP 964/1, OP 578, OP 619, PP 944, OP 526/6, OP 587/3, OP 617/1, OP 643/6, PP 971/2

APPLICATION
SUBSTITUTES

MACK (USA)

MACK

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
MACK	MP 10					i Use for OE no. 20539582	MACK ENGINE CODE: MP 10 CC: kW: HP: i Use for OE no. 20539582

ENGINE CODE

YEAR OF MANUFACTURE

MACK

MP 10

OPTARE

Olympus | 06-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
Olympus (B9TL)	Volvo D9B260	9364	191	260	11/2006 →		Olympus (B9TL) ENGINE CODE: Volvo D9B260 CC: 9364 kW: 191 HP: 260 YEAR OF MANUFACTURE: 11/2006 →
Olympus (B9TL)	Volvo D9B310	9364	228	310	11/2006 →		Olympus (B9TL) ENGINE CODE: Volvo D9B310 CC: 9364 kW: 228 HP: 310 YEAR OF MANUFACTURE: 11/2006 →

ENGINE CODE

YEAR OF MANUFACTURE

Olympus (B9TL)

Volvo D9B260

9364

191

260

11/2006 →

Olympus (B9TL)

Volvo D9B310

9364

228

310

11/2006 →

RENAULT TRUCKS (RVI)

Kerax | 97-14

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
330 DXi	DXi 11 Euro 4/5	10837	243	330	10/2005 → 08/2009	330 DXi ENGINE CODE: DXi 11 Euro 4/5 CC: 10837 kW: 243 HP: 330 YEAR OF MANUFACTURE: 10/2005 → 08/2009
370 DXi	DXi 11 Euro 4/5	10800	272	370	05/2006 → 12/2014	370 DXi ENGINE CODE: DXi 11 Euro 4/5 CC: 10800 kW: 272 HP: 370 YEAR OF MANUFACTURE: 05/2006 → 12/2014
380 DXi	DXi 11 Euro 5	10800	280	380	06/2009 → 12/2014	380 DXi ENGINE CODE: DXi 11 Euro 5 CC: 10800 kW: 280 HP: 380 YEAR OF MANUFACTURE: 06/2009 → 12/2014
410 DXi	DXi 11 Euro 4/5	10800	302	410	05/2006 → 12/2014	410 DXi ENGINE CODE: DXi 11 Euro 4/5 CC: 10800 kW: 302 HP: 410 YEAR OF MANUFACTURE: 05/2006 → 12/2014
430 DXi	DXi 11 Euro 5	10800	316	430	06/2009 → 12/2014	430 DXi ENGINE CODE: DXi 11 Euro 5 CC: 10800 kW: 316 HP: 430 YEAR OF MANUFACTURE: 06/2009 → 12/2014
440 DXi	DXi 11 Euro 4/5	10800	324	440	05/2006 → 12/2014	440 DXi ENGINE CODE: DXi 11 Euro 4/5 CC: 10800 kW: 324 HP: 440 YEAR OF MANUFACTURE: 05/2006 → 12/2014
450 DXi	DXi 11 Euro 4/5	10800	331	450	05/2006 → 12/2014	450 DXi ENGINE CODE: DXi 11 Euro 4/5 CC: 10800 kW: 331 HP: 450 YEAR OF MANUFACTURE: 05/2006 → 12/2014
460 DXi	DXi 13 Euro 4/5	12800	339	460	02/2008 → 05/2009	460 DXi ENGINE CODE: DXi 13 Euro 4/5 CC: 12800 kW: 339 HP: 460 YEAR OF MANUFACTURE: 02/2008 → 05/2009
460 DXi	DXi 11 Euro 5	10800	338	460	06/2009 → 12/2014	460 DXi ENGINE CODE: DXi 11 Euro 5 CC: 10800 kW: 338 HP: 460 YEAR OF MANUFACTURE: 06/2009 → 12/2014
480 DXi	DXi 13 Euro 4/5	12800	353	480	02/2008 → 12/2014	480 DXi ENGINE CODE: DXi 13 Euro 4/5 CC: 12800 kW: 353 HP: 480 YEAR OF MANUFACTURE: 02/2008 → 12/2014
500 DXi	DXi 13 Euro 4/5	12800	368	500	02/2008 → 12/2014	500 DXi ENGINE CODE: DXi 13 Euro 4/5 CC: 12800 kW: 368 HP: 500 YEAR OF MANUFACTURE: 02/2008 → 12/2014
520 DXi	DXi 13 Euro 4/5	12800	382	520	02/2008 → 12/2014	520 DXi ENGINE CODE: DXi 13 Euro 4/5 CC: 12800 kW: 382 HP: 520 YEAR OF MANUFACTURE: 02/2008 → 12/2014

ENGINE CODE

YEAR OF MANUFACTURE

330 DXi

DXi 11 Euro 4/5

10837

243

330

10/2005 → 08/2009

370 DXi

DXi 11 Euro 4/5

10800

272

370

05/2006 → 12/2014

380 DXi

DXi 11 Euro 5

10800

280

380

06/2009 → 12/2014

410 DXi

DXi 11 Euro 4/5

10800

302

410

05/2006 → 12/2014

430 DXi

DXi 11 Euro 5

10800

316

430

06/2009 → 12/2014

440 DXi

DXi 11 Euro 4/5

10800

324

440

05/2006 → 12/2014

450 DXi

DXi 11 Euro 4/5

10800

331

450

05/2006 → 12/2014

460 DXi

DXi 13 Euro 4/5

12800

339

460

02/2008 → 05/2009

460 DXi

DXi 11 Euro 5

10800

338

460

06/2009 → 12/2014

480 DXi

DXi 13 Euro 4/5

12800

353

480

02/2008 → 12/2014

500 DXi

DXi 13 Euro 4/5

12800

368

500

02/2008 → 12/2014

520 DXi

DXi 13 Euro 4/5

12800

382

520

02/2008 → 12/2014

Magnum | 90-14

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
AE 440 DXi 12	DXi 12	12100	324	440	03/2005 → 04/2009	AE 440 DXi 12 ENGINE CODE: DXi 12 CC: 12100 kW: 324 HP: 440 YEAR OF MANUFACTURE: 03/2005 → 04/2009
AE 440 DXi 13	DXi 13 Euro 4/5	12800	323	439	03/2009 → 12/2014	AE 440 DXi 13 ENGINE CODE: DXi 13 Euro 4/5 CC: 12800 kW: 323 HP: 439 YEAR OF MANUFACTURE: 03/2009 → 12/2014
AE 460 DXi 13	DXi 13 Euro 4/5	12800	338	460	06/2006 → 04/2009	AE 460 DXi 13 ENGINE CODE: DXi 13 Euro 4/5 CC: 12800 kW: 338 HP: 460 YEAR OF MANUFACTURE: 06/2006 → 04/2009
AE 480 DXi 12	DXi 12	12100	353	480	03/2005 → 04/2009	AE 480 DXi 12 ENGINE CODE: DXi 12 CC: 12100 kW: 353 HP: 480 YEAR OF MANUFACTURE: 03/2005 → 04/2009
AE 480 DXi 13	DXi 13 Euro 4/5	12800	353	480	03/2009 → 12/2014	AE 480 DXi 13 ENGINE CODE: DXi 13 Euro 4/5 CC: 12800 kW: 353 HP: 480 YEAR OF MANUFACTURE: 03/2009 → 12/2014
AE 500 DXi	DXi 13 Euro 4/5	12800	368	500	03/2006 → 06/2009	AE 500 DXi ENGINE CODE: DXi 13 Euro 4/5 CC: 12800 kW: 368 HP: 500 YEAR OF MANUFACTURE: 03/2006 → 06/2009
AE 520 DXi 13	DXi 13 Euro 4/5	12800	382	520	03/2009 → 12/2014	AE 520 DXi 13 ENGINE CODE: DXi 13 Euro 4/5 CC: 12800 kW: 382 HP: 520 YEAR OF MANUFACTURE: 03/2009 → 12/2014

ENGINE CODE

YEAR OF MANUFACTURE

AE 440 DXi 12

DXi 12

12100

324

440

03/2005 → 04/2009

AE 440 DXi 13

DXi 13 Euro 4/5

12800

323

439

03/2009 → 12/2014

AE 460 DXi 13

DXi 13 Euro 4/5

12800

338

460

06/2006 → 04/2009

AE 480 DXi 12

DXi 12

12100

353

480

03/2005 → 04/2009

AE 480 DXi 13

DXi 13 Euro 4/5

12800

353

480

03/2009 → 12/2014

AE 500 DXi

DXi 13 Euro 4/5

12800

368

500

03/2006 → 06/2009

AE 520 DXi 13

DXi 13 Euro 4/5

12800

382

520

03/2009 → 12/2014

Premium Distribution/Route | 96-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
HD 330 DXi	DXi 11 Euro 4/5	10837	243	330	10/2005 →	HD 330 DXi ENGINE CODE: DXi 11 Euro 4/5 CC: 10837 kW: 243 HP: 330 YEAR OF MANUFACTURE: 10/2005 →
HD 370 DXi	DXi 11 Euro 4/5	10800	272	370	05/2006 →	HD 370 DXi ENGINE CODE: DXi 11 Euro 4/5 CC: 10800 kW: 272 HP: 370 YEAR OF MANUFACTURE: 05/2006 →
HD 380 DXi	DXi 11 Euro 4/5	10800	280	381	06/2009 →	HD 380 DXi ENGINE CODE: DXi 11 Euro 4/5 CC: 10800 kW: 280 HP: 381 YEAR OF MANUFACTURE: 06/2009 →
HD 410 DXi	DXi 11 Euro 4/5	10800	302	410	05/2006 →	HD 410 DXi ENGINE CODE: DXi 11 Euro 4/5 CC: 10800 kW: 302 HP: 410 YEAR OF MANUFACTURE: 05/2006 →
HD 430 DXi	DXi 11 Euro 4/5	10800	316	430	06/2009 →	HD 430 DXi ENGINE CODE: DXi 11 Euro 4/5 CC: 10800 kW: 316 HP: 430 YEAR OF MANUFACTURE: 06/2009 →
HD 440 DXi	DXi 11 Euro 4/5	10837	323	439	10/2005 →	HD 440 DXi ENGINE CODE: DXi 11 Euro 4/5 CC: 10837 kW: 323 HP: 439 YEAR OF MANUFACTURE: 10/2005 →
HD 450 DXi	DXi 11 Euro 4/5	10800	331	450	05/2006 →	HD 450 DXi ENGINE CODE: DXi 11 Euro 4/5 CC: 10800 kW: 331 HP: 450 YEAR OF MANUFACTURE: 05/2006 →
HD 460 DXi	DXi 11 Euro 4/5	10800	339	460	06/2009 →	HD 460 DXi ENGINE CODE: DXi 11 Euro 4/5 CC: 10800 kW: 339 HP: 460 YEAR OF MANUFACTURE: 06/2009 →
HR 330 DXi	DXi 11	10800	243	330	10/2005 →	HR 330 DXi ENGINE CODE: DXi 11 CC: 10800 kW: 243 HP: 330 YEAR OF MANUFACTURE: 10/2005 →
HR 370 DXi	DXi 11 Euro 4/5	10800	272	370	05/2006 →	HR 370 DXi ENGINE CODE: DXi 11 Euro 4/5 CC: 10800 kW: 272 HP: 370 YEAR OF MANUFACTURE: 05/2006 →
HR 380 DXi	DXi 11 Euro 3/4/5	10800	280	380	10/2005 →	HR 380 DXi ENGINE CODE: DXi 11 Euro 3/4/5 CC: 10800 kW: 280 HP: 380 YEAR OF MANUFACTURE: 10/2005 →
HR 410 DXi	DXi 11 Euro 4/5	10800	302	410	05/2006 →	HR 410 DXi ENGINE CODE: DXi 11 Euro 4/5 CC: 10800 kW: 302 HP: 410 YEAR OF MANUFACTURE: 05/2006 →
HR 430 DXi	DXi 11 Euro 4/5	10800	316	430	06/2009 →	HR 430 DXi ENGINE CODE: DXi 11 Euro 4/5 CC: 10800 kW: 316 HP: 430 YEAR OF MANUFACTURE: 06/2009 →
HR 440 DXi	DXi 11 Euro 3/4/5	10800	324	436	10/2005 →	HR 440 DXi ENGINE CODE: DXi 11 Euro 3/4/5 CC: 10800 kW: 324 HP: 436 YEAR OF MANUFACTURE: 10/2005 →
HR 450 DXi	DXi 11 Euro 4/5	10800	331	450	05/2006 →	HR 450 DXi ENGINE CODE: DXi 11 Euro 4/5 CC: 10800 kW: 331 HP: 450 YEAR OF MANUFACTURE: 05/2006 →
HR 460 DXi	DXi 11 Euro 4/5	10800	339	460	06/2009 →	HR 460 DXi ENGINE CODE: DXi 11 Euro 4/5 CC: 10800 kW: 339 HP: 460 YEAR OF MANUFACTURE: 06/2009 →

ENGINE CODE

YEAR OF MANUFACTURE

HD 330 DXi

DXi 11 Euro 4/5

10837

243

330

10/2005 →

HD 370 DXi

DXi 11 Euro 4/5

10800

272

370

05/2006 →

HD 380 DXi

DXi 11 Euro 4/5

10800

280

381

06/2009 →

HD 410 DXi

DXi 11 Euro 4/5

10800

302

410

05/2006 →

HD 430 DXi

DXi 11 Euro 4/5

10800

316

430

06/2009 →

HD 440 DXi

DXi 11 Euro 4/5

10837

323

439

10/2005 →

HD 450 DXi

DXi 11 Euro 4/5

10800

331

450

05/2006 →

HD 460 DXi

DXi 11 Euro 4/5

10800

339

460

06/2009 →

HR 330 DXi

DXi 11

10800

243

330

10/2005 →

HR 370 DXi

DXi 11 Euro 4/5

10800

272

370

05/2006 →

HR 380 DXi

DXi 11 Euro 3/4/5

10800

280

380

10/2005 →

HR 410 DXi

DXi 11 Euro 4/5

10800

302

410

05/2006 →

HR 430 DXi

DXi 11 Euro 4/5

10800

316

430

06/2009 →

HR 440 DXi

DXi 11 Euro 3/4/5

10800

324

436

10/2005 →

HR 450 DXi

DXi 11 Euro 4/5

10800

331

450

05/2006 →

HR 460 DXi

DXi 11 Euro 4/5

10800

339

460

06/2009 →

Premium Lander | 04-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
HL 330 DXi	DXi 11 Euro 4/5	10837	243	330	10/2005 →	HL 330 DXi ENGINE CODE: DXi 11 Euro 4/5 CC: 10837 kW: 243 HP: 330 YEAR OF MANUFACTURE: 10/2005 →
HL 370 DXi	DXi 11 Euro 4/5	10800	272	370	05/2006 →	HL 370 DXi ENGINE CODE: DXi 11 Euro 4/5 CC: 10800 kW: 272 HP: 370 YEAR OF MANUFACTURE: 05/2006 →
HL 380 DXi	DXi 11 Euro 4/5	10800	280	381	06/2009 →	HL 380 DXi ENGINE CODE: DXi 11 Euro 4/5 CC: 10800 kW: 280 HP: 381 YEAR OF MANUFACTURE: 06/2009 →
HL 410 DXi	DXi 11 Euro 4/5	10800	302	410	05/2006 →	HL 410 DXi ENGINE CODE: DXi 11 Euro 4/5 CC: 10800 kW: 302 HP: 410 YEAR OF MANUFACTURE: 05/2006 →
HL 430 DXi	DXi 11 Euro 4/5	10800	316	430	06/2009 →	HL 430 DXi ENGINE CODE: DXi 11 Euro 4/5 CC: 10800 kW: 316 HP: 430 YEAR OF MANUFACTURE: 06/2009 →
HL 440 DXi	DXi 11 Euro 3/4/5	10800	324	436	10/2005 →	HL 440 DXi ENGINE CODE: DXi 11 Euro 3/4/5 CC: 10800 kW: 324 HP: 436 YEAR OF MANUFACTURE: 10/2005 →
HL 450 DXi	DXi 11 Euro 4/5	10800	331	450	05/2006 →	HL 450 DXi ENGINE CODE: DXi 11 Euro 4/5 CC: 10800 kW: 331 HP: 450 YEAR OF MANUFACTURE: 05/2006 →
HL 460 DXi	DXi 11 Euro 4/5	10800	339	460	06/2009 →	HL 460 DXi ENGINE CODE: DXi 11 Euro 4/5 CC: 10800 kW: 339 HP: 460 YEAR OF MANUFACTURE: 06/2009 →

ENGINE CODE

YEAR OF MANUFACTURE

HL 330 DXi

DXi 11 Euro 4/5

10837

243

330

10/2005 →

HL 370 DXi

DXi 11 Euro 4/5

10800

272

370

05/2006 →

HL 380 DXi

DXi 11 Euro 4/5

10800

280

381

06/2009 →

HL 410 DXi

DXi 11 Euro 4/5

10800

302

410

05/2006 →

HL 430 DXi

DXi 11 Euro 4/5

10800

316

430

06/2009 →

HL 440 DXi

DXi 11 Euro 3/4/5

10800

324

436

10/2005 →

HL 450 DXi

DXi 11 Euro 4/5

10800

331

450

05/2006 →

HL 460 DXi

DXi 11 Euro 4/5

10800

339

460

06/2009 →

SISU AUTO

R-Serie | 69-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
R 460 (500-460)	DXi 13	12800	338	460	10/2006 →	R 460 (500-460) ENGINE CODE: DXi 13 CC: 12800 kW: 338 HP: 460 YEAR OF MANUFACTURE: 10/2006 →
R 500 (500-440)	DXi 12	12100	324	440	03/2006 →	R 500 (500-440) ENGINE CODE: DXi 12 CC: 12100 kW: 324 HP: 440 YEAR OF MANUFACTURE: 03/2006 →
R 500 (500-480)	DXi 12	12100	353	480	03/2006 →	R 500 (500-480) ENGINE CODE: DXi 12 CC: 12100 kW: 353 HP: 480 YEAR OF MANUFACTURE: 03/2006 →
R 500 (500-500)	DXi 13	12800	368	500	10/2006 →	R 500 (500-500) ENGINE CODE: DXi 13 CC: 12800 kW: 368 HP: 500 YEAR OF MANUFACTURE: 10/2006 →

ENGINE CODE

YEAR OF MANUFACTURE

R 460 (500-460)

DXi 13

12800

338

460

10/2006 →

R 500 (500-440)

DXi 12

12100

324

440

03/2006 →

R 500 (500-480)

DXi 12

12100

353

480

03/2006 →

R 500 (500-500)

DXi 13

12800

368

500

10/2006 →

VOLVO BUS

7000 | 98-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
7500	D9A-340, D9B-340	9400	250	340	01/1999 →	7500 ENGINE CODE: D9A-340, D9B-340 CC: 9400 kW: 250 HP: 340 YEAR OF MANUFACTURE: 01/1999 →
7500	D9B-260	9364	191	260	01/2006 →	7500 ENGINE CODE: D9B-260 CC: 9364 kW: 191 HP: 260 YEAR OF MANUFACTURE: 01/2006 →
7500	D9B-310	9364	228	310	01/2006 →	7500 ENGINE CODE: D9B-310 CC: 9364 kW: 228 HP: 310 YEAR OF MANUFACTURE: 01/2006 →
7500	D9B-360	9364	265	360	01/2006 →	7500 ENGINE CODE: D9B-360 CC: 9364 kW: 265 HP: 360 YEAR OF MANUFACTURE: 01/2006 →
7500	D9B-380	9364	280	381	01/2006 →	7500 ENGINE CODE: D9B-380 CC: 9364 kW: 280 HP: 381 YEAR OF MANUFACTURE: 01/2006 →
7700	D9B260 Euro 4/5	9360	191	260	09/2006 →	7700 ENGINE CODE: D9B260 Euro 4/5 CC: 9360 kW: 191 HP: 260 YEAR OF MANUFACTURE: 09/2006 →
7700, 7700 A	D9B310 Euro 4/5	9360	228	310	09/2006 →	7700, 7700 A ENGINE CODE: D9B310 Euro 4/5 CC: 9360 kW: 228 HP: 310 YEAR OF MANUFACTURE: 09/2006 →
7700, 7700 A	D9B360 Euro 4/5	9360	265	360	09/2006 →	7700, 7700 A ENGINE CODE: D9B360 Euro 4/5 CC: 9360 kW: 265 HP: 360 YEAR OF MANUFACTURE: 09/2006 →

ENGINE CODE

YEAR OF MANUFACTURE

7500

D9A-340, D9B-340

9400

250

340

01/1999 →

7500

D9B-260

9364

191

260

01/2006 →

7500

D9B-310

9364

228

310

01/2006 →

7500

D9B-360

9364

265

360

01/2006 →

7500

D9B-380

9364

280

381

01/2006 →

7700

D9B260 Euro 4/5

9360

191

260

09/2006 →

7700, 7700 A

D9B310 Euro 4/5

9360

228

310

09/2006 →

7700, 7700 A

D9B360 Euro 4/5

9360

265

360

09/2006 →

8000 | 97-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
8300	D9B340 Euro 4/5	9360	250	340	01/2006 →	8300 ENGINE CODE: D9B340 Euro 4/5 CC: 9360 kW: 250 HP: 340 YEAR OF MANUFACTURE: 01/2006 →
8300	D9B360 Euro 4/5	9360	265	360	01/2006 →	8300 ENGINE CODE: D9B360 Euro 4/5 CC: 9360 kW: 265 HP: 360 YEAR OF MANUFACTURE: 01/2006 →
8300	D9B380 Euro 4/5	9360	280	380	01/2006 →	8300 ENGINE CODE: D9B380 Euro 4/5 CC: 9360 kW: 280 HP: 380 YEAR OF MANUFACTURE: 01/2006 →
8300	D9B260 Euro 4/5	9360	191	260	01/2006 →	8300 ENGINE CODE: D9B260 Euro 4/5 CC: 9360 kW: 191 HP: 260 YEAR OF MANUFACTURE: 01/2006 →
8300	D9B310 Euro 4/5	9360	228	310	01/2006 →	8300 ENGINE CODE: D9B310 Euro 4/5 CC: 9360 kW: 228 HP: 310 YEAR OF MANUFACTURE: 01/2006 →
8500 (TX)	DH12D	12100	250	340	01/1999 →	8500 (TX) ENGINE CODE: DH12D CC: 12100 kW: 250 HP: 340 YEAR OF MANUFACTURE: 01/1999 →
8500 (TX)	DH12E340 Euro 4/5	12100	250	340	06/2006 →	8500 (TX) ENGINE CODE: DH12E340 Euro 4/5 CC: 12100 kW: 250 HP: 340 YEAR OF MANUFACTURE: 06/2006 →
8500 (TX)	DH12D-420	12100	309	420	01/1997 →	8500 (TX) ENGINE CODE: DH12D-420 CC: 12100 kW: 309 HP: 420 YEAR OF MANUFACTURE: 01/1997 →
8700	DH12E340 Euro 4/5	12100	250	340	06/2006 →	8700 ENGINE CODE: DH12E340 Euro 4/5 CC: 12100 kW: 250 HP: 340 YEAR OF MANUFACTURE: 06/2006 →
8700	DH12E380 Euro 4/5	12100	280	380	06/2006 →	8700 ENGINE CODE: DH12E380 Euro 4/5 CC: 12100 kW: 280 HP: 380 YEAR OF MANUFACTURE: 06/2006 →
8700 (TX)	DH12D-380	12100	279	380	09/2001 →	8700 (TX) ENGINE CODE: DH12D-380 CC: 12100 kW: 279 HP: 380 YEAR OF MANUFACTURE: 09/2001 →
8700 (TX)	DH12D-340	12100	250	340	09/2003 →	8700 (TX) ENGINE CODE: DH12D-340 CC: 12100 kW: 250 HP: 340 YEAR OF MANUFACTURE: 09/2003 →
8700 (TX)	DH12D-420	12100	309	420	09/2004 →	8700 (TX) ENGINE CODE: DH12D-420 CC: 12100 kW: 309 HP: 420 YEAR OF MANUFACTURE: 09/2004 →

ENGINE CODE

YEAR OF MANUFACTURE

8300

D9B340 Euro 4/5

9360

250

340

01/2006 →

8300

D9B360 Euro 4/5

9360

265

360

01/2006 →

8300

D9B380 Euro 4/5

9360

280

380

01/2006 →

8300

D9B260 Euro 4/5

9360

191

260

01/2006 →

8300

D9B310 Euro 4/5

9360

228

310

01/2006 →

8500 (TX)

DH12D

12100

250

340

01/1999 →

8500 (TX)

DH12E340 Euro 4/5

12100

250

340

06/2006 →

8500 (TX)

DH12D-420

12100

309

420

01/1997 →

8700

DH12E340 Euro 4/5

12100

250

340

06/2006 →

8700

DH12E380 Euro 4/5

12100

280

380

06/2006 →

8700 (TX)

DH12D-380

12100

279

380

09/2001 →

8700 (TX)

DH12D-340

12100

250

340

09/2003 →

8700 (TX)

DH12D-420

12100

309

420

09/2004 →

9000 | 01-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
9300	D9B340 Euro 4/5	9360	250	340	01/2006 →	9300 ENGINE CODE: D9B340 Euro 4/5 CC: 9360 kW: 250 HP: 340 YEAR OF MANUFACTURE: 01/2006 →
9300	D9B260 Euro 4/5	9360	191	260	01/2006 →	9300 ENGINE CODE: D9B260 Euro 4/5 CC: 9360 kW: 191 HP: 260 YEAR OF MANUFACTURE: 01/2006 →
9300	D9B310 Euro 4/5	9360	228	310	01/2006 →	9300 ENGINE CODE: D9B310 Euro 4/5 CC: 9360 kW: 228 HP: 310 YEAR OF MANUFACTURE: 01/2006 →
9300	D9B360 Euro 4/5	9360	265	360	01/2006 →	9300 ENGINE CODE: D9B360 Euro 4/5 CC: 9360 kW: 265 HP: 360 YEAR OF MANUFACTURE: 01/2006 →
9300	D9B380 Euro 4/5	9360	280	380	01/2006 →	9300 ENGINE CODE: D9B380 Euro 4/5 CC: 9360 kW: 280 HP: 380 YEAR OF MANUFACTURE: 01/2006 →
9400	D9B340 Euro 4/5	9360	250	340	01/2006 →	9400 ENGINE CODE: D9B340 Euro 4/5 CC: 9360 kW: 250 HP: 340 YEAR OF MANUFACTURE: 01/2006 →
9400	D9B260 Euro 4/5	9360	191	260	01/2006 →	9400 ENGINE CODE: D9B260 Euro 4/5 CC: 9360 kW: 191 HP: 260 YEAR OF MANUFACTURE: 01/2006 →
9400	D9B310 Euro 4/5	9360	228	310	01/2006 →	9400 ENGINE CODE: D9B310 Euro 4/5 CC: 9360 kW: 228 HP: 310 YEAR OF MANUFACTURE: 01/2006 →
9400	D9B360 Euro 4/5	9360	265	360	01/2006 →	9400 ENGINE CODE: D9B360 Euro 4/5 CC: 9360 kW: 265 HP: 360 YEAR OF MANUFACTURE: 01/2006 →
9400	D9B380 Euro 4/5	9360	280	380	01/2006 →	9400 ENGINE CODE: D9B380 Euro 4/5 CC: 9360 kW: 280 HP: 380 YEAR OF MANUFACTURE: 01/2006 →
9500	D9A/B/C-380	9360	279	380	02/2011 →	9500 ENGINE CODE: D9A/B/C-380 CC: 9360 kW: 279 HP: 380 YEAR OF MANUFACTURE: 02/2011 →
9700	DH12E340 Euro 4/5	12100	250	340	09/2006 →	9700 ENGINE CODE: DH12E340 Euro 4/5 CC: 12100 kW: 250 HP: 340 YEAR OF MANUFACTURE: 09/2006 →
9700	DH12E380 Euro 4/5	12100	279	380	09/2006 →	9700 ENGINE CODE: DH12E380 Euro 4/5 CC: 12100 kW: 279 HP: 380 YEAR OF MANUFACTURE: 09/2006 →
9700	DH12E420 Euro 4/5	12100	309	420	09/2006 →	9700 ENGINE CODE: DH12E420 Euro 4/5 CC: 12100 kW: 309 HP: 420 YEAR OF MANUFACTURE: 09/2006 →
9700	DH12E460 Euro 4/5	12100	338	460	09/2006 →	9700 ENGINE CODE: DH12E460 Euro 4/5 CC: 12100 kW: 338 HP: 460 YEAR OF MANUFACTURE: 09/2006 →
9700	DH13C420 E5	12800	309	420	10/2009 →	9700 ENGINE CODE: DH13C420 E5 CC: 12800 kW: 309 HP: 420 YEAR OF MANUFACTURE: 10/2009 →
9700	DH13C460 E5	12800	338	460	10/2009 →	9700 ENGINE CODE: DH13C460 E5 CC: 12800 kW: 338 HP: 460 YEAR OF MANUFACTURE: 10/2009 →
9700	DH13C500 E5	12800	368	500	01/2009 →	9700 ENGINE CODE: DH13C500 E5 CC: 12800 kW: 368 HP: 500 YEAR OF MANUFACTURE: 01/2009 →
9700 (TX)	DH12D380	12100	280	380	09/2001 → 09/2006	9700 (TX) ENGINE CODE: DH12D380 CC: 12100 kW: 280 HP: 380 YEAR OF MANUFACTURE: 09/2001 → 09/2006
9700 (TX)	DH12D420	12100	308	420	09/2001 → 09/2006	9700 (TX) ENGINE CODE: DH12D420 CC: 12100 kW: 308 HP: 420 YEAR OF MANUFACTURE: 09/2001 → 09/2006
9700 (TX)	DH12D340	12100	250	341	09/2001 → 09/2006	9700 (TX) ENGINE CODE: DH12D340 CC: 12100 kW: 250 HP: 341 YEAR OF MANUFACTURE: 09/2001 → 09/2006
9900	DH12E380 Euro 4/5	12100	279	380	09/2006 →	9900 ENGINE CODE: DH12E380 Euro 4/5 CC: 12100 kW: 279 HP: 380 YEAR OF MANUFACTURE: 09/2006 →
9900	DH12E340 Euro 4/5	12100	250	340	09/2006 →	9900 ENGINE CODE: DH12E340 Euro 4/5 CC: 12100 kW: 250 HP: 340 YEAR OF MANUFACTURE: 09/2006 →
9900	DH12E420 Euro 4/5	12100	309	420	09/2006 →	9900 ENGINE CODE: DH12E420 Euro 4/5 CC: 12100 kW: 309 HP: 420 YEAR OF MANUFACTURE: 09/2006 →
9900	DH12E460 Euro 4/5	12100	338	460	09/2006 →	9900 ENGINE CODE: DH12E460 Euro 4/5 CC: 12100 kW: 338 HP: 460 YEAR OF MANUFACTURE: 09/2006 →
9900	DH13C420 E5	12800	309	420	10/2009 →	9900 ENGINE CODE: DH13C420 E5 CC: 12800 kW: 309 HP: 420 YEAR OF MANUFACTURE: 10/2009 →
9900	DH13C460 E5	12800	338	460	10/2009 →	9900 ENGINE CODE: DH13C460 E5 CC: 12800 kW: 338 HP: 460 YEAR OF MANUFACTURE: 10/2009 →
9900 (TX)	DH12D420	12100	308	420	09/2001 → 09/2006	9900 (TX) ENGINE CODE: DH12D420 CC: 12100 kW: 308 HP: 420 YEAR OF MANUFACTURE: 09/2001 → 09/2006
9900 (TX)	DH12D380	12100	280	380	09/2001 → 09/2006	9900 (TX) ENGINE CODE: DH12D380 CC: 12100 kW: 280 HP: 380 YEAR OF MANUFACTURE: 09/2001 → 09/2006

ENGINE CODE

YEAR OF MANUFACTURE

9300

D9B340 Euro 4/5

9360

250

340

01/2006 →

9300

D9B260 Euro 4/5

9360

191

260

01/2006 →

9300

D9B310 Euro 4/5

9360

228

310

01/2006 →

9300

D9B360 Euro 4/5

9360

265

360

01/2006 →

9300

D9B380 Euro 4/5

9360

280

380

01/2006 →

9400

D9B340 Euro 4/5

9360

250

340

01/2006 →

9400

D9B260 Euro 4/5

9360

191

260

01/2006 →

9400

D9B310 Euro 4/5

9360

228

310

01/2006 →

9400

D9B360 Euro 4/5

9360

265

360

01/2006 →

9400

D9B380 Euro 4/5

9360

280

380

01/2006 →

9500

D9A/B/C-380

9360

279

380

02/2011 →

9700

DH12E340 Euro 4/5

12100

250

340

09/2006 →

9700

DH12E380 Euro 4/5

12100

279

380

09/2006 →

9700

DH12E420 Euro 4/5

12100

309

420

09/2006 →

9700

DH12E460 Euro 4/5

12100

338

460

09/2006 →

9700

DH13C420 E5

12800

309

420

10/2009 →

9700

DH13C460 E5

12800

338

460

10/2009 →

9700

DH13C500 E5

12800

368

500

01/2009 →

9700 (TX)

DH12D380

12100

280

380

09/2001 → 09/2006

9700 (TX)

DH12D420

12100

308

420

09/2001 → 09/2006

9700 (TX)

DH12D340

12100

250

341

09/2001 → 09/2006

9900

DH12E380 Euro 4/5

12100

279

380

09/2006 →

9900

DH12E340 Euro 4/5

12100

250

340

09/2006 →

9900

DH12E420 Euro 4/5

12100

309

420

09/2006 →

9900

DH12E460 Euro 4/5

12100

338

460

09/2006 →

9900

DH13C420 E5

12800

309

420

10/2009 →

9900

DH13C460 E5

12800

338

460

10/2009 →

9900 (TX)

DH12D420

12100

308

420

09/2001 → 09/2006

9900 (TX)

DH12D380

12100

280

380

09/2001 → 09/2006

B13 | 09-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
B13R	DH13C460 E5	12800	338	460	09/2009 →	B13R ENGINE CODE: DH13C460 E5 CC: 12800 kW: 338 HP: 460 YEAR OF MANUFACTURE: 09/2009 →
B13R	DH13C420 E5	12800	309	420	09/2009 →	B13R ENGINE CODE: DH13C420 E5 CC: 12800 kW: 309 HP: 420 YEAR OF MANUFACTURE: 09/2009 →
B13R	DH13C500 E5	12800	368	500	09/2009 →	B13R ENGINE CODE: DH13C500 E5 CC: 12800 kW: 368 HP: 500 YEAR OF MANUFACTURE: 09/2009 →

ENGINE CODE

YEAR OF MANUFACTURE

B13R

DH13C460 E5

12800

338

460

09/2009 →

B13R

DH13C420 E5

12800

309

420

09/2009 →

B13R

DH13C500 E5

12800

368

500

09/2009 →

B9 | 82-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
B9, B9L/TL	D9A-340, D9B-340	9364	250	340	01/2002 →	B9, B9L/TL ENGINE CODE: D9A-340, D9B-340 CC: 9364 kW: 250 HP: 340 YEAR OF MANUFACTURE: 01/2002 →
B9, B9L/TL	D9B-380	9400	280	381	01/2006 →	B9, B9L/TL ENGINE CODE: D9B-380 CC: 9400 kW: 280 HP: 381 YEAR OF MANUFACTURE: 01/2006 →
B9L/TL	D9B-260	9400	191	260	09/2006 →	B9L/TL ENGINE CODE: D9B-260 CC: 9400 kW: 191 HP: 260 YEAR OF MANUFACTURE: 09/2006 →
B9L/TL	D9B-310	9400	228	310	09/2006 →	B9L/TL ENGINE CODE: D9B-310 CC: 9400 kW: 228 HP: 310 YEAR OF MANUFACTURE: 09/2006 →
B9R Elegance	D9A-340	9400	250	340	10/2006 →	B9R Elegance ENGINE CODE: D9A-340 CC: 9400 kW: 250 HP: 340 YEAR OF MANUFACTURE: 10/2006 →
B9R Elegance	D9A-380	9400	279	380	10/2006 →	B9R Elegance ENGINE CODE: D9A-380 CC: 9400 kW: 279 HP: 380 YEAR OF MANUFACTURE: 10/2006 →
B9TL	D9A-310	9400	228	310	03/2002 → 08/2006	B9TL ENGINE CODE: D9A-310 CC: 9400 kW: 228 HP: 310 YEAR OF MANUFACTURE: 03/2002 → 08/2006
B9TL	D9B-360	9400	265	360	01/2006 →	B9TL ENGINE CODE: D9B-360 CC: 9400 kW: 265 HP: 360 YEAR OF MANUFACTURE: 01/2006 →
B9TL	D9A-300	9400	220	299	01/2002 →	B9TL ENGINE CODE: D9A-300 CC: 9400 kW: 220 HP: 299 YEAR OF MANUFACTURE: 01/2002 →

ENGINE CODE

YEAR OF MANUFACTURE

B9, B9L/TL

D9A-340, D9B-340

9364

250

340

01/2002 →

B9, B9L/TL

D9B-380

9400

280

381

01/2006 →

B9L/TL

D9B-260

9400

191

260

09/2006 →

B9L/TL

D9B-310

9400

228

310

09/2006 →

B9R Elegance

D9A-340

9400

250

340

10/2006 →

B9R Elegance

D9A-380

9400

279

380

10/2006 →

B9TL

D9A-310

9400

228

310

03/2002 → 08/2006

B9TL

D9B-360

9400

265

360

01/2006 →

B9TL

D9A-300

9400

220

299

01/2002 →

VOLVO TRUCKS

FH 12 | 93-05

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
FH 12-340	D12A/B/C/D-340	12100	250	340	08/1993 → 12/2005	i 12/2001 ->	FH 12-340 ENGINE CODE: D12A/B/C/D-340 CC: 12100 kW: 250 HP: 340 YEAR OF MANUFACTURE: 08/1993 → 12/2005
FH 12-380	D12A/B/C/D-380	12130	279	380	08/1993 → 12/2005	i 12/2001 ->	FH 12-380 ENGINE CODE: D12A/B/C/D-380 CC: 12130 kW: 279 HP: 380 YEAR OF MANUFACTURE: 08/1993 → 12/2005
FH 12-390	D12F-390	12130	287	390	09/2001 → 09/2005	i 12/2001 ->	FH 12-390 ENGINE CODE: D12F-390 CC: 12130 kW: 287 HP: 390 YEAR OF MANUFACTURE: 09/2001 → 09/2005
FH 12-420	D12A/B/C/D-420	12130	309	420	08/1993 → 12/2005	i 12/2001 ->	FH 12-420 ENGINE CODE: D12A/B/C/D-420 CC: 12130 kW: 309 HP: 420 YEAR OF MANUFACTURE: 08/1993 → 12/2005
FH 12-430	D12F-430	12130	316	430	09/2001 → 09/2005	i 12/2001 ->	FH 12-430 ENGINE CODE: D12F-430 CC: 12130 kW: 316 HP: 430 YEAR OF MANUFACTURE: 09/2001 → 09/2005
FH 12-460	D12C/D-460	12130	338	460	08/1998 → 12/2005	i 12/2001 ->	FH 12-460 ENGINE CODE: D12C/D-460 CC: 12130 kW: 338 HP: 460 YEAR OF MANUFACTURE: 08/1998 → 12/2005
FH 12-500	D12D-500	12130	368	500	09/1998 → 12/2005		FH 12-500 ENGINE CODE: D12D-500 CC: 12130 kW: 368 HP: 500 YEAR OF MANUFACTURE: 09/1998 → 12/2005

ENGINE CODE

YEAR OF MANUFACTURE

FH 12-340

D12A/B/C/D-340

12100

250

340

08/1993 → 12/2005

FH 12-380

D12A/B/C/D-380

12130

279

380

08/1993 → 12/2005

FH 12-390

D12F-390

12130

287

390

09/2001 → 09/2005

FH 12-420

D12A/B/C/D-420

12130

309

420

08/1993 → 12/2005

FH 12-430

D12F-430

12130

316

430

09/2001 → 09/2005

FH 12-460

D12C/D-460

12130

338

460

08/1998 → 12/2005

FH 12-500

D12D-500

12130

368

500

09/1998 → 12/2005

FH 16, FH 16 Classic | 93-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
FH 16-540	D16E 540	16120	397	540	02/2006 → 08/2008	FH 16-540 ENGINE CODE: D16E 540 CC: 16120 kW: 397 HP: 540 YEAR OF MANUFACTURE: 02/2006 → 08/2008
FH 16-550	D16C-550	16120	405	550	06/2003 → 08/2008	FH 16-550 ENGINE CODE: D16C-550 CC: 16120 kW: 405 HP: 550 YEAR OF MANUFACTURE: 06/2003 → 08/2008
FH 16-580	D16E 580	16120	426	580	02/2006 → 08/2008	FH 16-580 ENGINE CODE: D16E 580 CC: 16120 kW: 426 HP: 580 YEAR OF MANUFACTURE: 02/2006 → 08/2008
FH 16-610	D16C-610	16120	449	610	06/2003 →	FH 16-610 ENGINE CODE: D16C-610 CC: 16120 kW: 449 HP: 610 YEAR OF MANUFACTURE: 06/2003 →
FH 16-660	D16E 660	16120	485	660	02/2006 → 08/2008	FH 16-660 ENGINE CODE: D16E 660 CC: 16120 kW: 485 HP: 660 YEAR OF MANUFACTURE: 02/2006 → 08/2008

ENGINE CODE

YEAR OF MANUFACTURE

FH 16-540

D16E 540

16120

397

540

02/2006 → 08/2008

FH 16-550

D16C-550

16120

405

550

06/2003 → 08/2008

FH 16-580

D16E 580

16120

426

580

02/2006 → 08/2008

FH 16-610

D16C-610

16120

449

610

06/2003 →

FH 16-660

D16E 660

16120

485

660

02/2006 → 08/2008

FH, FH Classic | 05-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
FH 400	D13A/B-400	12800	294	400	09/2005 → 07/2008	FH 400 ENGINE CODE: D13A/B-400 CC: 12800 kW: 294 HP: 400 YEAR OF MANUFACTURE: 09/2005 → 07/2008
FH 400	D13A/B-400	12800	294	400	09/2008 →	FH 400 ENGINE CODE: D13A/B-400 CC: 12800 kW: 294 HP: 400 YEAR OF MANUFACTURE: 09/2008 →
FH 420	D13C-420	12800	309	420	04/2009 →	FH 420 ENGINE CODE: D13C-420 CC: 12800 kW: 309 HP: 420 YEAR OF MANUFACTURE: 04/2009 →
FH 440	D13A/B-440	12800	324	440	09/2005 → 08/2008	FH 440 ENGINE CODE: D13A/B-440 CC: 12800 kW: 324 HP: 440 YEAR OF MANUFACTURE: 09/2005 → 08/2008
FH 440	D13A/B-440	12800	324	440	09/2008 →	FH 440 ENGINE CODE: D13A/B-440 CC: 12800 kW: 324 HP: 440 YEAR OF MANUFACTURE: 09/2008 →
FH 460	D13C-460	12800	338	460	04/2009 →	FH 460 ENGINE CODE: D13C-460 CC: 12800 kW: 338 HP: 460 YEAR OF MANUFACTURE: 04/2009 →
FH 480	D13A-480	12800	353	480	09/2005 → 08/2008	FH 480 ENGINE CODE: D13A-480 CC: 12800 kW: 353 HP: 480 YEAR OF MANUFACTURE: 09/2005 → 08/2008
FH 480	D13A-480	12800	353	480	09/2008 →	FH 480 ENGINE CODE: D13A-480 CC: 12800 kW: 353 HP: 480 YEAR OF MANUFACTURE: 09/2008 →
FH 500	D13B/C-500	12800	368	500	09/2007 →	FH 500 ENGINE CODE: D13B/C-500 CC: 12800 kW: 368 HP: 500 YEAR OF MANUFACTURE: 09/2007 →
FH 520	D13A-520	12800	382	520	09/2005 → 08/2008	FH 520 ENGINE CODE: D13A-520 CC: 12800 kW: 382 HP: 520 YEAR OF MANUFACTURE: 09/2005 → 08/2008
FH 520	D13B-520	12800	382	520	09/2008 →	FH 520 ENGINE CODE: D13B-520 CC: 12800 kW: 382 HP: 520 YEAR OF MANUFACTURE: 09/2008 →
FH 540	D13C-540	12800	397	540	04/2009 →	FH 540 ENGINE CODE: D13C-540 CC: 12800 kW: 397 HP: 540 YEAR OF MANUFACTURE: 04/2009 →

ENGINE CODE

YEAR OF MANUFACTURE

FH 400

D13A/B-400

12800

294

400

09/2005 → 07/2008

FH 400

D13A/B-400

12800

294

400

09/2008 →

FH 420

D13C-420

12800

309

420

04/2009 →

FH 440

D13A/B-440

12800

324

440

09/2005 → 08/2008

FH 440

D13A/B-440

12800

324

440

09/2008 →

FH 460

D13C-460

12800

338

460

04/2009 →

FH 480

D13A-480

12800

353

480

09/2005 → 08/2008

FH 480

D13A-480

12800

353

480

09/2008 →

FH 500

D13B/C-500

12800

368

500

09/2007 →

FH 520

D13A-520

12800

382

520

09/2005 → 08/2008

FH 520

D13B-520

12800

382

520

09/2008 →

FH 540

D13C-540

12800

397

540

04/2009 →

FM / FMX / FMX Classic | 05-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
FM 300	D9B-300	9400	220	300	09/2005 → 07/2009	FM 300 ENGINE CODE: D9B-300 CC: 9400 kW: 220 HP: 300 YEAR OF MANUFACTURE: 09/2005 → 07/2009
FM 330, FMX 330	D11C-330 E5/EEV	10800	243	330	04/2009 →	FM 330, FMX 330 ENGINE CODE: D11C-330 E5/EEV CC: 10800 kW: 243 HP: 330 YEAR OF MANUFACTURE: 04/2009 →
FM 340	D9B-340	9400	250	340	09/2005 → 07/2009	FM 340 ENGINE CODE: D9B-340 CC: 9400 kW: 250 HP: 340 YEAR OF MANUFACTURE: 09/2005 → 07/2009
FM 360	D13A/B-360	12800	264	360	11/2005 → 08/2008	FM 360 ENGINE CODE: D13A/B-360 CC: 12800 kW: 264 HP: 360 YEAR OF MANUFACTURE: 11/2005 → 08/2008
FM 360	D13A/B-360	12800	264	360	09/2008 → 07/2009	FM 360 ENGINE CODE: D13A/B-360 CC: 12800 kW: 264 HP: 360 YEAR OF MANUFACTURE: 09/2008 → 07/2009
FM 370, FMX 370	D11C-370 E5/EEV	10800	272	370	04/2009 →	FM 370, FMX 370 ENGINE CODE: D11C-370 E5/EEV CC: 10800 kW: 272 HP: 370 YEAR OF MANUFACTURE: 04/2009 →
FM 380	D9B-380	9400	280	380	09/2005 → 07/2009	FM 380 ENGINE CODE: D9B-380 CC: 9400 kW: 280 HP: 380 YEAR OF MANUFACTURE: 09/2005 → 07/2009
FM 380, FMX 380	D13C-380 E5/EEV	12800	280	380	04/2009 →	FM 380, FMX 380 ENGINE CODE: D13C-380 E5/EEV CC: 12800 kW: 280 HP: 380 YEAR OF MANUFACTURE: 04/2009 →
FM 390	D11B-390	10800	287	390	09/2008 → 07/2009	FM 390 ENGINE CODE: D11B-390 CC: 10800 kW: 287 HP: 390 YEAR OF MANUFACTURE: 09/2008 → 07/2009
FM 400	D13A/B-400	12800	294	400	09/2005 → 08/2008	FM 400 ENGINE CODE: D13A/B-400 CC: 12800 kW: 294 HP: 400 YEAR OF MANUFACTURE: 09/2005 → 08/2008
FM 400	D13A/B-400	12800	294	400	09/2008 →	FM 400 ENGINE CODE: D13A/B-400 CC: 12800 kW: 294 HP: 400 YEAR OF MANUFACTURE: 09/2008 →
FM 410, FMX 410	D11C-410 E5/EEV	10800	302	410	04/2009 →	FM 410, FMX 410 ENGINE CODE: D11C-410 E5/EEV CC: 10800 kW: 302 HP: 410 YEAR OF MANUFACTURE: 04/2009 →
FM 420, FMX 420	D13C-420 E5/EEV	12800	309	420	04/2009 →	FM 420, FMX 420 ENGINE CODE: D13C-420 E5/EEV CC: 12800 kW: 309 HP: 420 YEAR OF MANUFACTURE: 04/2009 →
FM 430	D11B-430	10800	316	430	09/2008 → 07/2009	FM 430 ENGINE CODE: D11B-430 CC: 10800 kW: 316 HP: 430 YEAR OF MANUFACTURE: 09/2008 → 07/2009
FM 440	D13A/B-440	12800	324	440	09/2005 → 08/2008	FM 440 ENGINE CODE: D13A/B-440 CC: 12800 kW: 324 HP: 440 YEAR OF MANUFACTURE: 09/2005 → 08/2008
FM 440	D13A/B-440	12800	324	440	09/2008 → 07/2009	FM 440 ENGINE CODE: D13A/B-440 CC: 12800 kW: 324 HP: 440 YEAR OF MANUFACTURE: 09/2008 → 07/2009
FM 450, FMX 450	D11C-450 E5/EEV	10800	331	450	04/2009 →	FM 450, FMX 450 ENGINE CODE: D11C-450 E5/EEV CC: 10800 kW: 331 HP: 450 YEAR OF MANUFACTURE: 04/2009 →
FM 460, FMX 460	D13C-460 E5/EEV	12800	338	460	04/2009 →	FM 460, FMX 460 ENGINE CODE: D13C-460 E5/EEV CC: 12800 kW: 338 HP: 460 YEAR OF MANUFACTURE: 04/2009 →
FM 480	D13A/B-480	12800	353	480	09/2005 → 08/2008	FM 480 ENGINE CODE: D13A/B-480 CC: 12800 kW: 353 HP: 480 YEAR OF MANUFACTURE: 09/2005 → 08/2008
FM 480	D13A/B-480	12800	353	480	09/2008 → 07/2009	FM 480 ENGINE CODE: D13A/B-480 CC: 12800 kW: 353 HP: 480 YEAR OF MANUFACTURE: 09/2008 → 07/2009
FM 500	D13B-500	12800	368	500	05/2007 → 08/2008	FM 500 ENGINE CODE: D13B-500 CC: 12800 kW: 368 HP: 500 YEAR OF MANUFACTURE: 05/2007 → 08/2008
FM 500, FMX 500	D13C-500 E5/EEV	12800	368	500	04/2009 →	FM 500, FMX 500 ENGINE CODE: D13C-500 E5/EEV CC: 12800 kW: 368 HP: 500 YEAR OF MANUFACTURE: 04/2009 →

ENGINE CODE

YEAR OF MANUFACTURE

FM 300

D9B-300

9400

220

300

09/2005 → 07/2009

FM 330, FMX 330

D11C-330 E5/EEV

10800

243

330

04/2009 →

FM 340

D9B-340

9400

250

340

09/2005 → 07/2009

FM 360

D13A/B-360

12800

264

360

11/2005 → 08/2008

FM 360

D13A/B-360

12800

264

360

09/2008 → 07/2009

FM 370, FMX 370

D11C-370 E5/EEV

10800

272

370

04/2009 →

FM 380

D9B-380

9400

280

380

09/2005 → 07/2009

FM 380, FMX 380

D13C-380 E5/EEV

12800

280

380

04/2009 →

FM 390

D11B-390

10800

287

390

09/2008 → 07/2009

FM 400

D13A/B-400

12800

294

400

09/2005 → 08/2008

FM 400

D13A/B-400

12800

294

400

09/2008 →

FM 410, FMX 410

D11C-410 E5/EEV

10800

302

410

04/2009 →

FM 420, FMX 420

D13C-420 E5/EEV

12800

309

420

04/2009 →

FM 430

D11B-430

10800

316

430

09/2008 → 07/2009

FM 440

D13A/B-440

12800

324

440

09/2005 → 08/2008

FM 440

D13A/B-440

12800

324

440

09/2008 → 07/2009

FM 450, FMX 450

D11C-450 E5/EEV

10800

331

450

04/2009 →

FM 460, FMX 460

D13C-460 E5/EEV

12800

338

460

04/2009 →

FM 480

D13A/B-480

12800

353

480

09/2005 → 08/2008

FM 480

D13A/B-480

12800

353

480

09/2008 → 07/2009

FM 500

D13B-500

12800

368

500

05/2007 → 08/2008

FM 500, FMX 500

D13C-500 E5/EEV

12800

368

500

04/2009 →

FM 12 | 98-08

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
FM 12-340	D 12C/D-340	12100	250	340	08/1998 → 11/2008	i Engine code D12D	FM 12-340 ENGINE CODE: D 12C/D-340 CC: 12100 kW: 250 HP: 340 YEAR OF MANUFACTURE: 08/1998 → 11/2008 i Engine code D12D
FM 12-380	D 12C/D-380	12100	279	380	08/1998 → 11/2008	i Engine code D12D	FM 12-380 ENGINE CODE: D 12C/D-380 CC: 12100 kW: 279 HP: 380 YEAR OF MANUFACTURE: 08/1998 → 11/2008 i Engine code D12D
FM 12-420	D 12C/D-420	12100	309	420	08/1998 → 11/2008	i Engine code D12D	FM 12-420 ENGINE CODE: D 12C/D-420 CC: 12100 kW: 309 HP: 420 YEAR OF MANUFACTURE: 08/1998 → 11/2008 i Engine code D12D
FM 12-460	D 12C/D-460	12130	338	460	08/1998 → 11/2008	i Engine code D12D	FM 12-460 ENGINE CODE: D 12C/D-460 CC: 12130 kW: 338 HP: 460 YEAR OF MANUFACTURE: 08/1998 → 11/2008 i Engine code D12D

ENGINE CODE

YEAR OF MANUFACTURE

FM 12-340

D 12C/D-340

12100

250

340

08/1998 → 11/2008

FM 12-380

D 12C/D-380

12100

279

380

08/1998 → 11/2008

FM 12-420

D 12C/D-420

12100

309

420

08/1998 → 11/2008

FM 12-460

D 12C/D-460

12130

338

460

08/1998 → 11/2008

FM 9 | 01-05

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
FM 9-260	D9A-260	9400	191	260	11/2001 → 10/2005	FM 9-260 ENGINE CODE: D9A-260 CC: 9400 kW: 191 HP: 260 YEAR OF MANUFACTURE: 11/2001 → 10/2005
FM 9-300	D9A-300	9400	220	300	11/2001 → 10/2005	FM 9-300 ENGINE CODE: D9A-300 CC: 9400 kW: 220 HP: 300 YEAR OF MANUFACTURE: 11/2001 → 10/2005
FM 9-340	D9A-340	9400	250	340	11/2001 → 10/2005	FM 9-340 ENGINE CODE: D9A-340 CC: 9400 kW: 250 HP: 340 YEAR OF MANUFACTURE: 11/2001 → 10/2005
FM 9-380	D9A-380	9400	279	380	11/2001 → 10/2005	FM 9-380 ENGINE CODE: D9A-380 CC: 9400 kW: 279 HP: 380 YEAR OF MANUFACTURE: 11/2001 → 10/2005

ENGINE CODE

YEAR OF MANUFACTURE

FM 9-260

D9A-260

9400

191

260

11/2001 → 10/2005

FM 9-300

D9A-300

9400

220

300

11/2001 → 10/2005

FM 9-340

D9A-340

9400

250

340

11/2001 → 10/2005

FM 9-380

D9A-380

9400

279

380

11/2001 → 10/2005

VN | 02-

	ENGINE CODE	YEAR OF MANUFACTURE
VN 630	D12, D13, D16	08/2002 →	VN 630 ENGINE CODE: D12, D13, D16 CC: kW: HP: YEAR OF MANUFACTURE: 08/2002 →
VN 670	D12, D13, D16	08/2002 →	VN 670 ENGINE CODE: D12, D13, D16 CC: kW: HP: YEAR OF MANUFACTURE: 08/2002 →
VN 730	D13, D16	01/2006 →	VN 730 ENGINE CODE: D13, D16 CC: kW: HP: YEAR OF MANUFACTURE: 01/2006 →
VN 780	D12, D13, D16	08/2002 →	VN 780 ENGINE CODE: D12, D13, D16 CC: kW: HP: YEAR OF MANUFACTURE: 08/2002 →

ENGINE CODE

YEAR OF MANUFACTURE

VN 630

D12, D13, D16

08/2002 →

VN 670

D12, D13, D16

08/2002 →

VN 730

D13, D16

01/2006 →

VN 780

D12, D13, D16

08/2002 →

KOHLER ENGINE (USA)

Generatoren / Gensets

	ENGINE CODE	CC	kW	HP
KV450U/KV500	TAD1640GE	161	431	586	KV450U/KV500 ENGINE CODE: TAD1640GE CC: 161 kW: 431 HP: 586
KV550U/KV630	TAD1642GE	161	535	727	KV550U/KV630 ENGINE CODE: TAD1642GE CC: 161 kW: 535 HP: 727
KVS500	TAD 1641 GE	1612	484	658	KVS500 ENGINE CODE: TAD 1641 GE CC: 1612 kW: 484 HP: 658

ENGINE CODE

YEAR OF MANUFACTURE

KV450U/KV500

TAD1640GE

161

431

586

KV550U/KV630

TAD1642GE

161

535

727

KVS500

TAD 1641 GE

1612

484

658

VOLVO CONSTRUCTION EQUIPMENT

A (Knickgel. Muldenkipper / Articul. Dump Truck) |

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
A 25 E	VOLVO D9				01/2007 → 12/2011		A 25 E ENGINE CODE: VOLVO D9 CC: kW: HP: YEAR OF MANUFACTURE: 01/2007 → 12/2011
A 25 F	Volvo D11H-A / D11H-B	10800	235	320		i Use for OE no. 20976003	A 25 F ENGINE CODE: Volvo D11H-A / D11H-B CC: 10800 kW: 235 HP: 320 i Use for OE no. 20976003
A 25 G	Volvo D11L		235	316			A 25 G ENGINE CODE: Volvo D11L CC: kW: 235 HP: 316
A 30 D	Volvo D9A 340		250	340	01/2003 → 01/2007	i Use for OE no. 20976003	A 30 D ENGINE CODE: Volvo D9A 340 CC: kW: 250 HP: 340 YEAR OF MANUFACTURE: 01/2003 → 01/2007 i Use for OE no. 20976003
A 30 F	Volvo D11H-A / D11H-B	10800	266	362	01/2011 → 12/2014	i Use for OE no. 20976003	A 30 F ENGINE CODE: Volvo D11H-A / D11H-B CC: 10800 kW: 266 HP: 362 YEAR OF MANUFACTURE: 01/2011 → 12/2014 i Use for OE no. 20976003
A 35 E	VOLVO D12				01/2007 → 12/2011		A 35 E ENGINE CODE: VOLVO D12 CC: kW: HP: YEAR OF MANUFACTURE: 01/2007 → 12/2011
A 35 E FS	D12D AFE3 / AEE3	12000	309	420	01/2008 → 12/2011		A 35 E FS ENGINE CODE: D12D AFE3 / AEE3 CC: 12000 kW: 309 HP: 420 YEAR OF MANUFACTURE: 01/2008 → 12/2011
A 40 D	Volvo D12C 420					i Use for OE no. 20976003	A 40 D ENGINE CODE: Volvo D12C 420 CC: kW: HP: i Use for OE no. 20976003
A 40 E	D16A 520					i Use for OE no. 20976003	A 40 E ENGINE CODE: D16A 520 CC: kW: HP: i Use for OE no. 20976003

ENGINE CODE

YEAR OF MANUFACTURE

A 25 E

VOLVO D9

01/2007 → 12/2011

A 25 F

Volvo D11H-A / D11H-B

10800

235

320

A 25 G

Volvo D11L

235

316

A 30 D

Volvo D9A 340

250

340

01/2003 → 01/2007

A 30 F

Volvo D11H-A / D11H-B

10800

266

362

01/2011 → 12/2014

A 35 E

VOLVO D12

01/2007 → 12/2011

A 35 E FS

D12D AFE3 / AEE3

12000

309

420

01/2008 → 12/2011

A 40 D

Volvo D12C 420

A 40 E

D16A 520

EC / ECR (Kettenbagger / Crawler Excavators) | 96-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
EC 330C	VOLVO D12D						EC 330C ENGINE CODE: VOLVO D12D CC: kW: HP:
EC 340 D	Volvo D13H-D		215	292	01/2011 → 12/2014		EC 340 D ENGINE CODE: Volvo D13H-D CC: kW: 215 HP: 292 YEAR OF MANUFACTURE: 01/2011 → 12/2014
EC 360B	D12D					i Use for OE no. 20976003	EC 360B ENGINE CODE: D12D CC: kW: HP: i Use for OE no. 20976003
EC 360C	D12D					i Use for OE no. 20976003	EC 360C ENGINE CODE: D12D CC: kW: HP: i Use for OE no. 20976003
EC 360C L	D12D						EC 360C L ENGINE CODE: D12D CC: kW: HP:
EC 360C LD	D12D						EC 360C LD ENGINE CODE: D12D CC: kW: HP:
EC 360C NL	D12D						EC 360C NL ENGINE CODE: D12D CC: kW: HP:
EC 380 EL	Volvo D13J		226	307	01/2015 → 12/2018		EC 380 EL ENGINE CODE: Volvo D13J CC: kW: 226 HP: 307 YEAR OF MANUFACTURE: 01/2015 → 12/2018
EC 460 CL	Volvo D12D EAE3	12100	245	333	01/2007 → 12/2011	i Use for OE no. 20976003	EC 460 CL ENGINE CODE: Volvo D12D EAE3 CC: 12100 kW: 245 HP: 333 YEAR OF MANUFACTURE: 01/2007 → 12/2011 i Use for OE no. 20976003
EC 480 E L	Volvo D13J		278	373	01/2015 → 01/2018		EC 480 E L ENGINE CODE: Volvo D13J CC: kW: 278 HP: 373 YEAR OF MANUFACTURE: 01/2015 → 01/2018
EC 750 E	Volvo D16J		374	508	01/2016 → 01/2018		EC 750 E ENGINE CODE: Volvo D16J CC: kW: 374 HP: 508 YEAR OF MANUFACTURE: 01/2016 → 01/2018

ENGINE CODE

YEAR OF MANUFACTURE

EC 330C

VOLVO D12D

EC 340 D

Volvo D13H-D

215

292

01/2011 → 12/2014

EC 360B

D12D

EC 360C

D12D

EC 360C L

D12D

EC 360C LD

D12D

EC 360C NL

D12D

EC 380 EL

Volvo D13J

226

307

01/2015 → 12/2018

EC 460 CL

Volvo D12D EAE3

12100

245

333

01/2007 → 12/2011

EC 480 E L

Volvo D13J

278

373

01/2015 → 01/2018

EC 750 E

Volvo D16J

374

508

01/2016 → 01/2018

L (Radlader / Wheel Loaders) | 85-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
L 150 F	D12D LD E3						L 150 F ENGINE CODE: D12D LD E3 CC: kW: HP:
L 150 F	Volvo D12 D340		210	286	01/2007 → 01/2011	i Use for OE no. 20976003	L 150 F ENGINE CODE: Volvo D12 D340 CC: kW: 210 HP: 286 YEAR OF MANUFACTURE: 01/2007 → 01/2011 i Use for OE no. 20976003
L 180 E	D12CLCE2						L 180 E ENGINE CODE: D12CLCE2 CC: kW: HP:
L 180 E	D12 DLAE 3						L 180 E ENGINE CODE: D12 DLAE 3 CC: kW: HP:
L 180 E	Volvo D12C380		224	305		i Use for OE no. 20976003	L 180 E ENGINE CODE: Volvo D12C380 CC: kW: 224 HP: 305 i Use for OE no. 20976003
L 180 F	Volvo D12 DLAE 3		235	320	01/2007 → 01/2011	i Series 20976003-	L 180 F ENGINE CODE: Volvo D12 DLAE 3 CC: kW: 235 HP: 320 YEAR OF MANUFACTURE: 01/2007 → 01/2011 i Series 20976003-
L 220 E	D12 DLBE 3	12000	259	352	01/2001 → 12/2006		L 220 E ENGINE CODE: D12 DLBE 3 CC: 12000 kW: 259 HP: 352 YEAR OF MANUFACTURE: 01/2001 → 12/2006
L 220 F	D12 DLBE 3		259	352	01/2007 → 01/2011		L 220 F ENGINE CODE: D12 DLBE 3 CC: kW: 259 HP: 352 YEAR OF MANUFACTURE: 01/2007 → 01/2011

ENGINE CODE

YEAR OF MANUFACTURE

L 150 F

D12D LD E3

L 150 F

Volvo D12 D340

210

286

01/2007 → 01/2011

L 180 E

D12CLCE2

L 180 E

D12 DLAE 3

L 180 E

Volvo D12C380

224

305

L 180 F

Volvo D12 DLAE 3

235

320

01/2007 → 01/2011

L 220 E

D12 DLBE 3

12000

259

352

01/2001 → 12/2006

L 220 F

D12 DLBE 3

259

352

01/2007 → 01/2011

VOLVO PENTA

D-Serie | 98-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
12D					01/2002 →		12D ENGINE CODE: CC: kW: HP: YEAR OF MANUFACTURE: 01/2002 →
9A					01/2002 →		9A ENGINE CODE: CC: kW: HP: YEAR OF MANUFACTURE: 01/2002 →

ENGINE CODE

YEAR OF MANUFACTURE

12D

01/2002 →

KNORR-BREMSE

K117922N50

MACK

205 39582
2097 6005

RENAULT TRUCKS (RVI)

74 20 541 381
74 20 976 001
74 85 116 634

VOLVO (TRUCKS/VCE/VME/PENTA)

20430751
20815011
20976003
22480372

Date of last data update: 2025-05-29 Print Report now

DIMENSIONS NEW FILTERS AND CHANGES SPECIAL FILTERS

FILTER CATALOGUE

Search results

Find a filter

REACH-Information

PP 964/1

CLIPBOARD

Filtry Filtron
