FUEL FILTERS

PP 976/4

EAN CODE: 5904608059765

REACH information

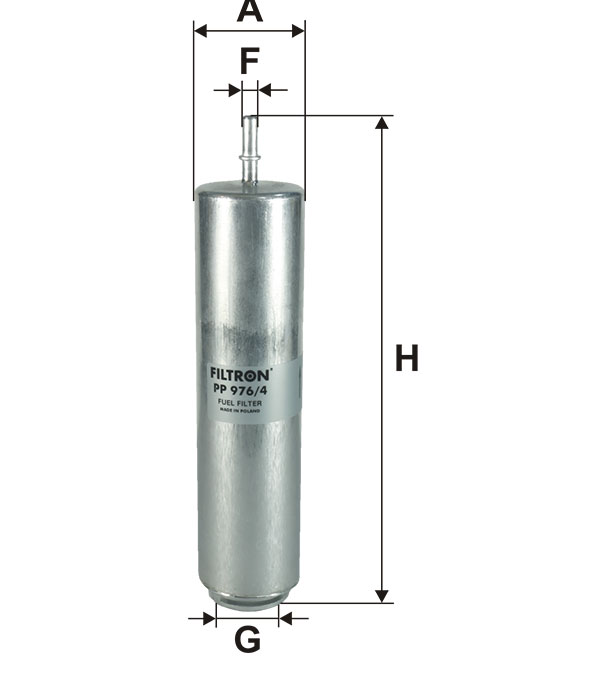

DIMENSIONS (mm):

55.5

256

APPLICATION
SUBSTITUTES

BMW

1 (F20/F21) | 11-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
114 d (F20/F21)	N47D16A	1598	70	95	10/2012 → 06/2015	114 d (F20/F21) ENGINE CODE: N47D16A CC: 1598 kW: 70 HP: 95 YEAR OF MANUFACTURE: 10/2012 → 06/2015
114 d (F20/F21)	B37D15A	1496	70	95	06/2015 →	114 d (F20/F21) ENGINE CODE: B37D15A CC: 1496 kW: 70 HP: 95 YEAR OF MANUFACTURE: 06/2015 →
116 d (F20/F21)	N47D20C, N47D16A	1995	85	116	09/2011 → 02/2015	116 d (F20/F21) ENGINE CODE: N47D20C, N47D16A CC: 1995 kW: 85 HP: 116 YEAR OF MANUFACTURE: 09/2011 → 02/2015
116 d (F20/F21)	B37D15	1496	85	116	02/2015 →	116 d (F20/F21) ENGINE CODE: B37D15 CC: 1496 kW: 85 HP: 116 YEAR OF MANUFACTURE: 02/2015 →
118 d (F20/F21)	N47D20C	1995	105	143	09/2011 → 02/2015	118 d (F20/F21) ENGINE CODE: N47D20C CC: 1995 kW: 105 HP: 143 YEAR OF MANUFACTURE: 09/2011 → 02/2015
118 d (F20/F21)	B47D20	1995	110	150	02/2015 →	118 d (F20/F21) ENGINE CODE: B47D20 CC: 1995 kW: 110 HP: 150 YEAR OF MANUFACTURE: 02/2015 →
120 d (F20/F21)	N47D20C	1995	135	184	09/2011 → 02/2015	120 d (F20/F21) ENGINE CODE: N47D20C CC: 1995 kW: 135 HP: 184 YEAR OF MANUFACTURE: 09/2011 → 02/2015
120 d (F20/F21)	N47D20C	1995	120	163	09/2011 →	120 d (F20/F21) ENGINE CODE: N47D20C CC: 1995 kW: 120 HP: 163 YEAR OF MANUFACTURE: 09/2011 →
120 d (F20/F21)	B47D20	1995	140	190	02/2015 →	120 d (F20/F21) ENGINE CODE: B47D20 CC: 1995 kW: 140 HP: 190 YEAR OF MANUFACTURE: 02/2015 →
120 d (F20/F21)	B47D20A	1995	151	205	03/2015 →	120 d (F20/F21) ENGINE CODE: B47D20A CC: 1995 kW: 151 HP: 205 YEAR OF MANUFACTURE: 03/2015 →
125 d (F20/F21)	N47D20D	1995	160	218	03/2012 → 02/2015	125 d (F20/F21) ENGINE CODE: N47D20D CC: 1995 kW: 160 HP: 218 YEAR OF MANUFACTURE: 03/2012 → 02/2015
125 d (F20/F21)	N47D20D	1995	155	211	03/2012 →	125 d (F20/F21) ENGINE CODE: N47D20D CC: 1995 kW: 155 HP: 211 YEAR OF MANUFACTURE: 03/2012 →
125 d (F20/F21)	B47D20B	1995	165	224	02/2015 →	125 d (F20/F21) ENGINE CODE: B47D20B CC: 1995 kW: 165 HP: 224 YEAR OF MANUFACTURE: 02/2015 →

ENGINE CODE

YEAR OF MANUFACTURE

114 d (F20/F21)

N47D16A

1598

10/2012 → 06/2015

114 d (F20/F21)

B37D15A

1496

06/2015 →

116 d (F20/F21)

N47D20C, N47D16A

1995

116

09/2011 → 02/2015

116 d (F20/F21)

B37D15

1496

116

02/2015 →

118 d (F20/F21)

N47D20C

1995

105

143

09/2011 → 02/2015

118 d (F20/F21)

B47D20

1995

110

150

02/2015 →

120 d (F20/F21)

N47D20C

1995

135

184

09/2011 → 02/2015

120 d (F20/F21)

N47D20C

1995

120

163

09/2011 →

120 d (F20/F21)

B47D20

1995

140

190

02/2015 →

120 d (F20/F21)

B47D20A

1995

151

205

03/2015 →

125 d (F20/F21)

N47D20D

1995

160

218

03/2012 → 02/2015

125 d (F20/F21)

N47D20D

1995

155

211

03/2012 →

125 d (F20/F21)

B47D20B

1995

165

224

02/2015 →

2 (F22, F23, F87) | 14-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
218 d (F22)	N47D20C	1995	105	143	02/2014 → 06/2015	218 d (F22) ENGINE CODE: N47D20C CC: 1995 kW: 105 HP: 143 YEAR OF MANUFACTURE: 02/2014 → 06/2015
218 d (F23)	B47D20A	1995	110	150	07/2015 →	218 d (F23) ENGINE CODE: B47D20A CC: 1995 kW: 110 HP: 150 YEAR OF MANUFACTURE: 07/2015 →
220 d (F22, F23)	N47D20C	1995	135	184	02/2014 → 11/2014	220 d (F22, F23) ENGINE CODE: N47D20C CC: 1995 kW: 135 HP: 184 YEAR OF MANUFACTURE: 02/2014 → 11/2014
220 d (F22, F23)	B47D20	1995	140	190	11/2014 →	220 d (F22, F23) ENGINE CODE: B47D20 CC: 1995 kW: 140 HP: 190 YEAR OF MANUFACTURE: 11/2014 →
220 d (F22, F23)	B47D20A	1995	151	205	03/2014 →	220 d (F22, F23) ENGINE CODE: B47D20A CC: 1995 kW: 151 HP: 205 YEAR OF MANUFACTURE: 03/2014 →
225 d (F22)	N47D20D	1995	160	218	02/2014 →	225 d (F22) ENGINE CODE: N47D20D CC: 1995 kW: 160 HP: 218 YEAR OF MANUFACTURE: 02/2014 →
225 d (F23)	B47D20B	1995	165	224	07/2015 →	225 d (F23) ENGINE CODE: B47D20B CC: 1995 kW: 165 HP: 224 YEAR OF MANUFACTURE: 07/2015 →

ENGINE CODE

YEAR OF MANUFACTURE

218 d (F22)

N47D20C

1995

105

143

02/2014 → 06/2015

218 d (F23)

B47D20A

1995

110

150

07/2015 →

220 d (F22, F23)

N47D20C

1995

135

184

02/2014 → 11/2014

220 d (F22, F23)

B47D20

1995

140

190

11/2014 →

220 d (F22, F23)

B47D20A

1995

151

205

03/2014 →

225 d (F22)

N47D20D

1995

160

218

02/2014 →

225 d (F23)

B47D20B

1995

165

224

07/2015 →

3 (F30/F31/F80) | 11-18

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
316 d (F30, F31)	N47D20C, B47D20A	1995	85	116	03/2012 → 10/2018	316 d (F30, F31) ENGINE CODE: N47D20C, B47D20A CC: 1995 kW: 85 HP: 116 YEAR OF MANUFACTURE: 03/2012 → 10/2018
318 d (F30, F31)	N47D20C	1995	105	143	03/2012 → 10/2018	318 d (F30, F31) ENGINE CODE: N47D20C CC: 1995 kW: 105 HP: 143 YEAR OF MANUFACTURE: 03/2012 → 10/2018
318 d (F30, F31)	B47D20A	1995	110	150	08/2015 → 10/2018	318 d (F30, F31) ENGINE CODE: B47D20A CC: 1995 kW: 110 HP: 150 YEAR OF MANUFACTURE: 08/2015 → 10/2018
320 d (F30, F31)	N47D20C	1995	135	184	10/2011 → 03/2016	320 d (F30, F31) ENGINE CODE: N47D20C CC: 1995 kW: 135 HP: 184 YEAR OF MANUFACTURE: 10/2011 → 03/2016
320 d (F30, F31)	B47D20A	1995	140	190	08/2015 → 10/2018	320 d (F30, F31) ENGINE CODE: B47D20A CC: 1995 kW: 140 HP: 190 YEAR OF MANUFACTURE: 08/2015 → 10/2018
320 d ED (F30, F31)	N47D20C, B47D20A	1995	120	163	10/2011 → 10/2018	320 d ED (F30, F31) ENGINE CODE: N47D20C, B47D20A CC: 1995 kW: 120 HP: 163 YEAR OF MANUFACTURE: 10/2011 → 10/2018
325 d (F30, F31)	N47D20D	1995	160	218	03/2013 → 02/2016	325 d (F30, F31) ENGINE CODE: N47D20D CC: 1995 kW: 160 HP: 218 YEAR OF MANUFACTURE: 03/2013 → 02/2016
325 d (F30, F31)	B47D20B	1995	165	224	01/2016 → 02/2018	325 d (F30, F31) ENGINE CODE: B47D20B CC: 1995 kW: 165 HP: 224 YEAR OF MANUFACTURE: 01/2016 → 02/2018
330 d (F30, F31)	N57D30A	2993	190	258	07/2012 → 10/2018	330 d (F30, F31) ENGINE CODE: N57D30A CC: 2993 kW: 190 HP: 258 YEAR OF MANUFACTURE: 07/2012 → 10/2018
335 dX (F30, F31)	N57D30B	2993	230	313	07/2013 → 10/2018	335 dX (F30, F31) ENGINE CODE: N57D30B CC: 2993 kW: 230 HP: 313 YEAR OF MANUFACTURE: 07/2013 → 10/2018

ENGINE CODE

YEAR OF MANUFACTURE

316 d (F30, F31)

N47D20C, B47D20A

1995

116

03/2012 → 10/2018

318 d (F30, F31)

N47D20C

1995

105

143

03/2012 → 10/2018

318 d (F30, F31)

B47D20A

1995

110

150

08/2015 → 10/2018

320 d (F30, F31)

N47D20C

1995

135

184

10/2011 → 03/2016

320 d (F30, F31)

B47D20A

1995

140

190

08/2015 → 10/2018

320 d ED (F30, F31)

N47D20C, B47D20A

1995

120

163

10/2011 → 10/2018

325 d (F30, F31)

N47D20D

1995

160

218

03/2013 → 02/2016

325 d (F30, F31)

B47D20B

1995

165

224

01/2016 → 02/2018

330 d (F30, F31)

N57D30A

2993

190

258

07/2012 → 10/2018

335 dX (F30, F31)

N57D30B

2993

230

313

07/2013 → 10/2018

3 GT (F34) | 13-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
318 d Gran Tourismo (F34)	N47D20C	1995	105	143	05/2013 →	318 d Gran Tourismo (F34) ENGINE CODE: N47D20C CC: 1995 kW: 105 HP: 143 YEAR OF MANUFACTURE: 05/2013 →
318 d Gran Tourismo (F34)	B47D20A	1995	110	150	07/2015 →	318 d Gran Tourismo (F34) ENGINE CODE: B47D20A CC: 1995 kW: 110 HP: 150 YEAR OF MANUFACTURE: 07/2015 →
320 d Gran Tourismo (F34)	N47D20C	1995	135	184	05/2013 → 06/2015	320 d Gran Tourismo (F34) ENGINE CODE: N47D20C CC: 1995 kW: 135 HP: 184 YEAR OF MANUFACTURE: 05/2013 → 06/2015
320 d Gran Tourismo (F34)	B47D20A	1995	140	190	07/2015 →	320 d Gran Tourismo (F34) ENGINE CODE: B47D20A CC: 1995 kW: 140 HP: 190 YEAR OF MANUFACTURE: 07/2015 →
325 d Gran Tourismo (F34)	N47D20D	1995	160	218	05/2013 → 06/2016	325 d Gran Tourismo (F34) ENGINE CODE: N47D20D CC: 1995 kW: 160 HP: 218 YEAR OF MANUFACTURE: 05/2013 → 06/2016
325 d Gran Tourismo (F34)	B47D20B	1995	165	224	06/2016 → 02/2018	325 d Gran Tourismo (F34) ENGINE CODE: B47D20B CC: 1995 kW: 165 HP: 224 YEAR OF MANUFACTURE: 06/2016 → 02/2018
330 d Gran Tourismo (F34)	N57D30A	2993	190	258	01/2014 →	330 d Gran Tourismo (F34) ENGINE CODE: N57D30A CC: 2993 kW: 190 HP: 258 YEAR OF MANUFACTURE: 01/2014 →
335 dX Gran Tourismo (F34)	N57D30B	2993	230	313	01/2014 →	335 dX Gran Tourismo (F34) ENGINE CODE: N57D30B CC: 2993 kW: 230 HP: 313 YEAR OF MANUFACTURE: 01/2014 →

ENGINE CODE

YEAR OF MANUFACTURE

318 d Gran Tourismo (F34)

N47D20C

1995

105

143

05/2013 →

318 d Gran Tourismo (F34)

B47D20A

1995

110

150

07/2015 →

320 d Gran Tourismo (F34)

N47D20C

1995

135

184

05/2013 → 06/2015

320 d Gran Tourismo (F34)

B47D20A

1995

140

190

07/2015 →

325 d Gran Tourismo (F34)

N47D20D

1995

160

218

05/2013 → 06/2016

325 d Gran Tourismo (F34)

B47D20B

1995

165

224

06/2016 → 02/2018

330 d Gran Tourismo (F34)

N57D30A

2993

190

258

01/2014 →

335 dX Gran Tourismo (F34)

N57D30B

2993

230

313

01/2014 →

4 (F32/F33/F36/F82) | 13-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
418 d (F32, F36)	B47D20A	1995	110	150	03/2015 → 10/2017	418 d (F32, F36) ENGINE CODE: B47D20A CC: 1995 kW: 110 HP: 150 YEAR OF MANUFACTURE: 03/2015 → 10/2017
418 d (F36)	N47D20C	1995	105	143	03/2014 → 06/2015	418 d (F36) ENGINE CODE: N47D20C CC: 1995 kW: 105 HP: 143 YEAR OF MANUFACTURE: 03/2014 → 06/2015
418 d (F36)	N47D20C, B47D20A	1995	100	136	03/2014 →	418 d (F36) ENGINE CODE: N47D20C, B47D20A CC: 1995 kW: 100 HP: 136 YEAR OF MANUFACTURE: 03/2014 →
420 d (F32/F33/F36)	N47D20C	1995	135	184	07/2013 → 06/2015	420 d (F32/F33/F36) ENGINE CODE: N47D20C CC: 1995 kW: 135 HP: 184 YEAR OF MANUFACTURE: 07/2013 → 06/2015
420 d (F32/F33/F36)	B47D20A	1995	140	190	03/2015 →	420 d (F32/F33/F36) ENGINE CODE: B47D20A CC: 1995 kW: 140 HP: 190 YEAR OF MANUFACTURE: 03/2015 →
420 d (F32/F33/F36)	N47D20C, B47D20A	1995	120	163	07/2013 →	420 d (F32/F33/F36) ENGINE CODE: N47D20C, B47D20A CC: 1995 kW: 120 HP: 163 YEAR OF MANUFACTURE: 07/2013 →
420 d (F32/F33/F36)	B47D20A	1995	151	205	07/2015 →	420 d (F32/F33/F36) ENGINE CODE: B47D20A CC: 1995 kW: 151 HP: 205 YEAR OF MANUFACTURE: 07/2015 →
425 d (F32)	N47D20D	1995	160	218	01/2014 → 02/2016	425 d (F32) ENGINE CODE: N47D20D CC: 1995 kW: 160 HP: 218 YEAR OF MANUFACTURE: 01/2014 → 02/2016
425 d (F32/F33/F36)	B47D20B	1995	165	224	01/2016 → 02/2018	425 d (F32/F33/F36) ENGINE CODE: B47D20B CC: 1995 kW: 165 HP: 224 YEAR OF MANUFACTURE: 01/2016 → 02/2018
430 d (F32)	N57D30A	2993	190	258	10/2013 →	430 d (F32) ENGINE CODE: N57D30A CC: 2993 kW: 190 HP: 258 YEAR OF MANUFACTURE: 10/2013 →
435 d (F32)	N57D30B	2993	230	313	10/2013 →	435 d (F32) ENGINE CODE: N57D30B CC: 2993 kW: 230 HP: 313 YEAR OF MANUFACTURE: 10/2013 →

ENGINE CODE

YEAR OF MANUFACTURE

418 d (F32, F36)

B47D20A

1995

110

150

03/2015 → 10/2017

418 d (F36)

N47D20C

1995

105

143

03/2014 → 06/2015

418 d (F36)

N47D20C, B47D20A

1995

100

136

03/2014 →

420 d (F32/F33/F36)

N47D20C

1995

135

184

07/2013 → 06/2015

420 d (F32/F33/F36)

B47D20A

1995

140

190

03/2015 →

420 d (F32/F33/F36)

N47D20C, B47D20A

1995

120

163

07/2013 →

420 d (F32/F33/F36)

B47D20A

1995

151

205

07/2015 →

425 d (F32)

N47D20D

1995

160

218

01/2014 → 02/2016

425 d (F32/F33/F36)

B47D20B

1995

165

224

01/2016 → 02/2018

430 d (F32)

N57D30A

2993

190

258

10/2013 →

435 d (F32)

N57D30B

2993

230

313

10/2013 →

BMW ALPINA B. BOVENSIEPEN

D3 (F30/F31) | 14-18

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
3.0 Biturbo (F30, F31)	N57D30B	2993	257	350	03/2014 → 07/2018		3.0 Biturbo (F30, F31) ENGINE CODE: N57D30B CC: 2993 kW: 257 HP: 350 YEAR OF MANUFACTURE: 03/2014 → 07/2018

ENGINE CODE

YEAR OF MANUFACTURE

3.0 Biturbo (F30, F31)

N57D30B

2993

257

350

03/2014 → 07/2018

D4 (F32/F33) | 14-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
3.0 Biturbo		2993	257	349	09/2014 →		3.0 Biturbo ENGINE CODE: CC: 2993 kW: 257 HP: 349 YEAR OF MANUFACTURE: 09/2014 →

ENGINE CODE

YEAR OF MANUFACTURE

3.0 Biturbo

2993

257

349

09/2014 →

MINI (BMW GROUP)

Mini Cooper II,Cabr,Coupé,Club/Country/Pacem./Road

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
1.6 Diesel (R55, R56, R57, R60, R61)	N47C16A	1598	82	112	09/2010 → 10/2016	i Series R60, R61	1.6 Diesel (R55, R56, R57, R60, R61) ENGINE CODE: N47C16A CC: 1598 kW: 82 HP: 112 YEAR OF MANUFACTURE: 09/2010 → 10/2016 i Series R60, R61
2.0 D Diesel (R55, R56, R57, R60, R61)	N47C20A	1995	82	112	03/2011 → 10/2016	i Series R60	2.0 D Diesel (R55, R56, R57, R60, R61) ENGINE CODE: N47C20A CC: 1995 kW: 82 HP: 112 YEAR OF MANUFACTURE: 03/2011 → 10/2016 i Series R60
2.0 SD Diesel (R55, R56, R57, R58, R59, R60)	N47C20A	1995	100	136	03/2011 → 10/2016	i Series R60	2.0 SD Diesel (R55, R56, R57, R58, R59, R60) ENGINE CODE: N47C20A CC: 1995 kW: 100 HP: 136 YEAR OF MANUFACTURE: 03/2011 → 10/2016 i Series R60
2.0 SD Diesel (R55, R56, R57, R58, R59, R60, R61)	N47C20A	1995	105	143	03/2011 → 10/2016	i Series R60, R61	2.0 SD Diesel (R55, R56, R57, R58, R59, R60, R61) ENGINE CODE: N47C20A CC: 1995 kW: 105 HP: 143 YEAR OF MANUFACTURE: 03/2011 → 10/2016 i Series R60, R61

ENGINE CODE

YEAR OF MANUFACTURE

1.6 Diesel (R55, R56, R57, R60, R61)

N47C16A

1598

112

09/2010 → 10/2016

2.0 D Diesel (R55, R56, R57, R60, R61)

N47C20A

1995

112

03/2011 → 10/2016

2.0 SD Diesel (R55, R56, R57, R58, R59, R60)

N47C20A

1995

100

136

03/2011 → 10/2016

2.0 SD Diesel (R55, R56, R57, R58, R59, R60, R61)

N47C20A

1995

105

143

03/2011 → 10/2016

Mini One II, Cabrio, Clubman, Countryman | 07-16

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
1.6 Diesel (R55, R56, R60)	N47C16A	1598	66	90	09/2010 → 10/2016	i Series R60	1.6 Diesel (R55, R56, R60) ENGINE CODE: N47C16A CC: 1598 kW: 66 HP: 90 YEAR OF MANUFACTURE: 09/2010 → 10/2016 i Series R60
2.0 Diesel (R56, R60)	N47D20C	1995	105	143	03/2011 → 06/2014	i Series R60	2.0 Diesel (R56, R60) ENGINE CODE: N47D20C CC: 1995 kW: 105 HP: 143 YEAR OF MANUFACTURE: 03/2011 → 06/2014 i Series R60

ENGINE CODE

YEAR OF MANUFACTURE

1.6 Diesel (R55, R56, R60)

N47C16A

1598

09/2010 → 10/2016

2.0 Diesel (R56, R60)

N47D20C

1995

105

143

03/2011 → 06/2014

BMW

13 32 7 822 497
13 32 8 511 053
13 32 8 572 522

Date of last data update: 2025-06-30 Print Report now
