Produkt: OC 601 - FILTRON

MANN+HUMMEL is well aware of REACH and meet all legal obligations under this regulation.

MANN+HUMMEL has established internal processes to ensure implementation and compliance with the REACH Regulation. Especially, we continuously work on the assessment of presence of SVHC (Substances of Very High Concern).

We may inform you that according to present level of information and best knowledge, this product does not contain any SVHC listed on the Candidate List in concentration above 0,1% (w/w).

Last update: 2024-09-19

Back

OIL FILTERS

OC 601

EAN CODE:

REACH information

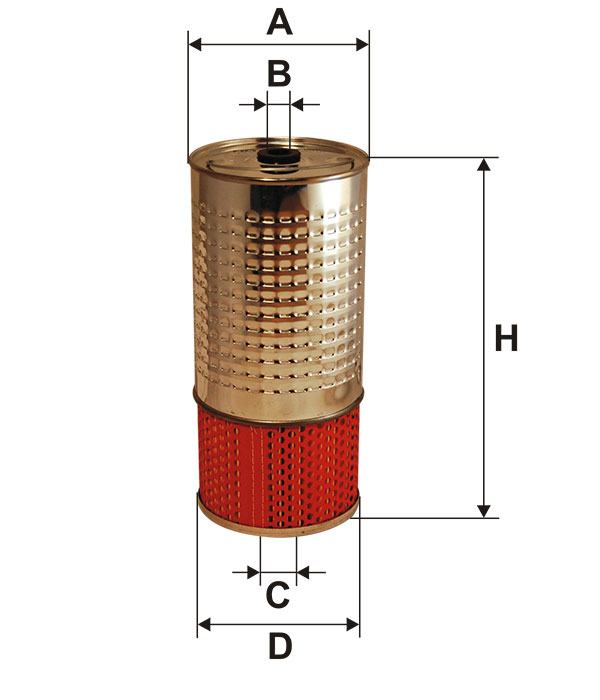

DIMENSIONS (mm):

90.5

195

MARCH 2019 Note: change in filter design

Removing the protective paper does not affect the filter's functionality.

The change is planned for the following numbers:
OM 500/1, OM 516/1, PM 801, OM 500, OM 516/2, PM 802, OM 501, OM 516, PM 803, OM 502, OM 522/1, PM 804A, OM 503, OM 523/1, PM 805, OM 504A, OM 524, PM 806, OM 504, OM 529, PM 807, OM 505, OM 585H, PM 808, OM 506, OM 590, PM 810/1, OM 507, OM 591/1, PM 810, OM 508, OC 601, PM 811, OM 509, OC 601/1, PM 812, OM 510, OC 602, PM 813/1, OM 511, OM 610, PM 815, OM 512/3, OM 614, PM 816, OM 513/1-2x, OM 659/2, PM 818, OM 513/2, OM 659, PM 819/1, OM 513, OM 661H, PM 948/1, OM 515/1, PM 800/2, PM 948, OM 515, PM 800

APPLICATION
SUBSTITUTES

MERCEDES-BENZ

G-Klasse (W460) | 79-93

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
240 GD (W460.3-463)	OM 616.936/938	2350	53	72	03/1979 → 08/1987		240 GD (W460.3-463) ENGINE CODE: OM 616.936/938 CC: 2350 kW: 53 HP: 72 YEAR OF MANUFACTURE: 03/1979 → 08/1987
300 GD (W460.3-463)	OM 617.931/932	2938	65	88	12/1979 → 08/1990		300 GD (W460.3-463) ENGINE CODE: OM 617.931/932 CC: 2938 kW: 65 HP: 88 YEAR OF MANUFACTURE: 12/1979 → 08/1990

ENGINE CODE

YEAR OF MANUFACTURE

240 GD (W460.3-463)

OM 616.936/938

2350

03/1979 → 08/1987

300 GD (W460.3-463)

OM 617.931/932

2938

12/1979 → 08/1990

Transporter 206-210 (601/T1) | 71-96

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
207 D (601/T1)	OM 616.917	2350	48	65	04/1977 → 12/1982	207 D (601/T1) ENGINE CODE: OM 616.917 CC: 2350 kW: 48 HP: 65 YEAR OF MANUFACTURE: 04/1977 → 12/1982
207 D (601/T1)	OM 616.917	2400	53	72	05/1977 → 08/1982	207 D (601/T1) ENGINE CODE: OM 616.917 CC: 2400 kW: 53 HP: 72 YEAR OF MANUFACTURE: 05/1977 → 08/1982
207 D (601/T1)	OM 615.944	1988	53	72	08/1977 → 01/1989	207 D (601/T1) ENGINE CODE: OM 615.944 CC: 1988 kW: 53 HP: 72 YEAR OF MANUFACTURE: 08/1977 → 01/1989
207 D (601/T1)	OM 616.937,939	2400	53	72	09/1982 → 03/1989	207 D (601/T1) ENGINE CODE: OM 616.937,939 CC: 2400 kW: 53 HP: 72 YEAR OF MANUFACTURE: 09/1982 → 03/1989
209 D (601/T1)	OM 617.913	2938	65	88	09/1982 → 01/1990	209 D (601/T1) ENGINE CODE: OM 617.913 CC: 2938 kW: 65 HP: 88 YEAR OF MANUFACTURE: 09/1982 → 01/1990

ENGINE CODE

YEAR OF MANUFACTURE

207 D (601/T1)

OM 616.917

2350

04/1977 → 12/1982

207 D (601/T1)

OM 616.917

2400

05/1977 → 08/1982

207 D (601/T1)

OM 615.944

1988

08/1977 → 01/1989

207 D (601/T1)

OM 616.937,939

2400

09/1982 → 03/1989

209 D (601/T1)

OM 617.913

2938

09/1982 → 01/1990

Transporter 307-310 (602/T1) | 60-96

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
307 D (602/T1)	OM 616	2376	48	65	04/1977 → 01/1983	307 D (602/T1) ENGINE CODE: OM 616 CC: 2376 kW: 48 HP: 65 YEAR OF MANUFACTURE: 04/1977 → 01/1983
307 D (602/T1)	OM 616.934	2398	53	72	05/1977 → 08/1982	307 D (602/T1) ENGINE CODE: OM 616.934 CC: 2398 kW: 53 HP: 72 YEAR OF MANUFACTURE: 05/1977 → 08/1982
307 D (602/T1)	OM 615.944	1988	53	72	08/1977 → 10/1985	307 D (602/T1) ENGINE CODE: OM 615.944 CC: 1988 kW: 53 HP: 72 YEAR OF MANUFACTURE: 08/1977 → 10/1985
307 D (602/T1)	OM 616.937/939	2398	53	72	09/1982 → 01/1990	307 D (602/T1) ENGINE CODE: OM 616.937/939 CC: 2398 kW: 53 HP: 72 YEAR OF MANUFACTURE: 09/1982 → 01/1990
309 D (602/T1)	OM 617.913	2998	48	65	09/1982 → 01/1989	309 D (602/T1) ENGINE CODE: OM 617.913 CC: 2998 kW: 48 HP: 65 YEAR OF MANUFACTURE: 09/1982 → 01/1989
309 D (602/T1)	OM 617.913	2938	65	88	10/1982 → 01/1990	309 D (602/T1) ENGINE CODE: OM 617.913 CC: 2938 kW: 65 HP: 88 YEAR OF MANUFACTURE: 10/1982 → 01/1990

ENGINE CODE

YEAR OF MANUFACTURE

307 D (602/T1)

OM 616

2376

04/1977 → 01/1983

307 D (602/T1)

OM 616.934

2398

05/1977 → 08/1982

307 D (602/T1)

OM 615.944

1988

08/1977 → 10/1985

307 D (602/T1)

OM 616.937/939

2398

09/1982 → 01/1990

309 D (602/T1)

OM 617.913

2998

09/1982 → 01/1989

309 D (602/T1)

OM 617.913

2938

10/1982 → 01/1990

Transporter 407-410 (611/309) | 63-95

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
407 D (611/T1)	OM 616.913/939	2398	53	72	07/1981 → 01/1989	407 D (611/T1) ENGINE CODE: OM 616.913/939 CC: 2398 kW: 53 HP: 72 YEAR OF MANUFACTURE: 07/1981 → 01/1989
409 D (611/T1)	OM 617.913	2998	65	89	04/1982 → 01/1989	409 D (611/T1) ENGINE CODE: OM 617.913 CC: 2998 kW: 65 HP: 89 YEAR OF MANUFACTURE: 04/1982 → 01/1989
L 407 D (309)	OM 616.960	2400	53	72	12/1980 → 06/1989	L 407 D (309) ENGINE CODE: OM 616.960 CC: 2400 kW: 53 HP: 72 YEAR OF MANUFACTURE: 12/1980 → 06/1989
L 407 D (309)	OM 616.910	2400	53	72	01/1975 → 12/1988	L 407 D (309) ENGINE CODE: OM 616.910 CC: 2400 kW: 53 HP: 72 YEAR OF MANUFACTURE: 01/1975 → 12/1988

ENGINE CODE

YEAR OF MANUFACTURE

407 D (611/T1)

OM 616.913/939

2398

07/1981 → 01/1989

409 D (611/T1)

OM 617.913

2998

04/1982 → 01/1989

L 407 D (309)

OM 616.960

2400

12/1980 → 06/1989

L 407 D (309)

OM 616.910

2400

01/1975 → 12/1988

W123/S123/C123 | 76-85

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
200 D (W123)	OM 615.940	1971	40	55	07/1976 → 02/1979	200 D (W123) ENGINE CODE: OM 615.940 CC: 1971 kW: 40 HP: 55 YEAR OF MANUFACTURE: 07/1976 → 02/1979
200 D (W123)	OM 615.940	1971	44	60	03/1979 → 11/1985	200 D (W123) ENGINE CODE: OM 615.940 CC: 1971 kW: 44 HP: 60 YEAR OF MANUFACTURE: 03/1979 → 11/1985
220 D (W123)	OM 615.941	2172	44	60	01/1976 → 02/1979	220 D (W123) ENGINE CODE: OM 615.941 CC: 2172 kW: 44 HP: 60 YEAR OF MANUFACTURE: 01/1976 → 02/1979
220 D (W123)	OM 615.941	2172	49	67	01/1977 → 03/1979	220 D (W123) ENGINE CODE: OM 615.941 CC: 2172 kW: 49 HP: 67 YEAR OF MANUFACTURE: 01/1977 → 03/1979
240 D (W/S123)	OM 616.912	2376	48	65	02/1976 → 02/1979	240 D (W/S123) ENGINE CODE: OM 616.912 CC: 2376 kW: 48 HP: 65 YEAR OF MANUFACTURE: 02/1976 → 02/1979
240 D (W/S123)	OM 616.912	2350	53	72	03/1979 → 11/1985	240 D (W/S123) ENGINE CODE: OM 616.912 CC: 2350 kW: 53 HP: 72 YEAR OF MANUFACTURE: 03/1979 → 11/1985
300 D (W/S123)	OM 617.912	2971	59	80	02/1976 → 07/1980	300 D (W/S123) ENGINE CODE: OM 617.912 CC: 2971 kW: 59 HP: 80 YEAR OF MANUFACTURE: 02/1976 → 07/1980
300 D (W/S123)	OM 617.912	2971	65	88	03/1979 → 11/1985	300 D (W/S123) ENGINE CODE: OM 617.912 CC: 2971 kW: 65 HP: 88 YEAR OF MANUFACTURE: 03/1979 → 11/1985
300 D Turbo (W/S123)	OM 617.952	2971	92	125	08/1981 → 07/1985	300 D Turbo (W/S123) ENGINE CODE: OM 617.952 CC: 2971 kW: 92 HP: 125 YEAR OF MANUFACTURE: 08/1981 → 07/1985

ENGINE CODE

YEAR OF MANUFACTURE

200 D (W123)

OM 615.940

1971

07/1976 → 02/1979

200 D (W123)

OM 615.940

1971

03/1979 → 11/1985

220 D (W123)

OM 615.941

2172

01/1976 → 02/1979

220 D (W123)

OM 615.941

2172

01/1977 → 03/1979

240 D (W/S123)

OM 616.912

2376

02/1976 → 02/1979

240 D (W/S123)

OM 616.912

2350

03/1979 → 11/1985

300 D (W/S123)

OM 617.912

2971

02/1976 → 07/1980

300 D (W/S123)

OM 617.912

2971

03/1979 → 11/1985

300 D Turbo (W/S123)

OM 617.952

2971

125

08/1981 → 07/1985

T2/L (309, 310, 313, 328,343) 59-95 | 59-95

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
L 407 D (309)	OM 616.910	2400	53	72	01/1975 → 12/1988		L 407 D (309) ENGINE CODE: OM 616.910 CC: 2400 kW: 53 HP: 72 YEAR OF MANUFACTURE: 01/1975 → 12/1988
L 407 D (309)	OM 616.960	2400	53	72	12/1980 → 06/1989		L 407 D (309) ENGINE CODE: OM 616.960 CC: 2400 kW: 53 HP: 72 YEAR OF MANUFACTURE: 12/1980 → 06/1989

ENGINE CODE

YEAR OF MANUFACTURE

L 407 D (309)

OM 616.910

2400

01/1975 → 12/1988

L 407 D (309)

OM 616.960

2400

12/1980 → 06/1989

T2/LN1 (667, 668, 669, 670, 672) | 86-94

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
507 D (T2,667)	OM 616.914	2399	53	72	04/1986 → 04/1989		507 D (T2,667) ENGINE CODE: OM 616.914 CC: 2399 kW: 53 HP: 72 YEAR OF MANUFACTURE: 04/1986 → 04/1989

ENGINE CODE

YEAR OF MANUFACTURE

507 D (T2,667)

OM 616.914

2399

04/1986 → 04/1989

OM-Serie (Motoren / Engines) | 85-


615	i 07/1976 ->	615 ENGINE CODE: CC: kW: HP:
616	i 07/1976 ->	616 ENGINE CODE: CC: kW: HP:
617	i 07/1976 ->	617 ENGINE CODE: CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

615

616

617

U-Serie (Unimog) | 66-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
U 40	OM 621.931 (01.66-.)	1988	29	40	01/1966 → 04/1971		U 40 ENGINE CODE: OM 621.931 (01.66-.) CC: 1988 kW: 29 HP: 40 YEAR OF MANUFACTURE: 01/1966 → 04/1971

ENGINE CODE

YEAR OF MANUFACTURE

U 40

OM 621.931 (01.66-.)

1988

01/1966 → 04/1971

Unimog-Serie | 56-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
U 45 (421)	OM 615.911	2200	33	45	01/1968 → 12/1971	i Partly/or	U 45 (421) ENGINE CODE: OM 615.911 CC: 2200 kW: 33 HP: 45 YEAR OF MANUFACTURE: 01/1968 → 12/1971 i Partly/or
U 52 (421)	OM 616.915	2450	38	52	05/1969 → 12/1976	i Partly/or	U 52 (421) ENGINE CODE: OM 616.915 CC: 2450 kW: 38 HP: 52 YEAR OF MANUFACTURE: 05/1969 → 12/1976 i Partly/or
U 55 (421)	OM 615.914	2200	40	55	01/1968 → 12/1971	i Partly/or	U 55 (421) ENGINE CODE: OM 615.914 CC: 2200 kW: 40 HP: 55 YEAR OF MANUFACTURE: 01/1968 → 12/1971 i Partly/or
U 60 (421)	OM 616.930	2450	44	60	05/1969 → 12/1976	i Partly/or	U 60 (421) ENGINE CODE: OM 616.930 CC: 2450 kW: 44 HP: 60 YEAR OF MANUFACTURE: 05/1969 → 12/1976 i Partly/or
U 600 (407.100)	OM 616.942	2404	44	60	05/1988 →		U 600 (407.100) ENGINE CODE: OM 616.942 CC: 2404 kW: 44 HP: 60 YEAR OF MANUFACTURE: 05/1988 →
U 600 (421.124,125,140)	OM 616.911,915	2404	44	60	01/1977 → 05/1988	i 07/1979 ->	U 600 (421.124,125,140) ENGINE CODE: OM 616.911,915 CC: 2404 kW: 44 HP: 60 YEAR OF MANUFACTURE: 01/1977 → 05/1988
U 650 (407.110,210)	OM 616.943	2399	44	60	05/1988 →		U 650 (407.110,210) ENGINE CODE: OM 616.943 CC: 2399 kW: 44 HP: 60 YEAR OF MANUFACTURE: 05/1988 →
U 650 L (407111)	OM 616		44	60			U 650 L (407111) ENGINE CODE: OM 616 CC: kW: 44 HP: 60

ENGINE CODE

YEAR OF MANUFACTURE

U 45 (421)

OM 615.911

2200

01/1968 → 12/1971

U 52 (421)

OM 616.915

2450

05/1969 → 12/1976

U 55 (421)

OM 615.914

2200

01/1968 → 12/1971

U 60 (421)

OM 616.930

2450

05/1969 → 12/1976

U 600 (407.100)

OM 616.942

2404

05/1988 →

U 600 (421.124,125,140)

OM 616.911,915

2404

01/1977 → 05/1988

U 650 (407.110,210)

OM 616.943

2399

05/1988 →

U 650 L (407111)

OM 616

EVOBUS (MERCEDES-BENZ/SETRA)

O 309 | 67-89

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
O 309 D	OM 616.937, 939	5675	66	90	09/1982 → 02/1989		O 309 D ENGINE CODE: OM 616.937, 939 CC: 5675 kW: 66 HP: 90 YEAR OF MANUFACTURE: 09/1982 → 02/1989

ENGINE CODE

YEAR OF MANUFACTURE

O 309 D

OM 616.937, 939

5675

09/1982 → 02/1989

STEYR (MAN-STEYR AG)

City-Bus | 75-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
City-Bus SC 6 F 55	MB-OM 615.942	2000	40	55	01/1975 → 12/1980		City-Bus SC 6 F 55 ENGINE CODE: MB-OM 615.942 CC: 2000 kW: 40 HP: 55 YEAR OF MANUFACTURE: 01/1975 → 12/1980
City-Bus SC 6 F 65	MB-OM 616	2440	48	65	01/1981 →		City-Bus SC 6 F 65 ENGINE CODE: MB-OM 616 CC: 2440 kW: 48 HP: 65 YEAR OF MANUFACTURE: 01/1981 →

ENGINE CODE

YEAR OF MANUFACTURE

City-Bus SC 6 F 55

MB-OM 615.942

2000

01/1975 → 12/1980

City-Bus SC 6 F 65

MB-OM 616

2440

01/1981 →

AEBI TRAKTOREN (CH)

TP / Transporter-Serie | 66-

	ENGINE CODE	CC	kW	HP
TP 57	MB OM616		40	54	TP 57 ENGINE CODE: MB OM616 CC: kW: 40 HP: 54
TP 65	MB OM 616				TP 65 ENGINE CODE: MB OM 616 CC: kW: HP:
TP 67	MB OM 616	2298	49	67	TP 67 ENGINE CODE: MB OM 616 CC: 2298 kW: 49 HP: 67

ENGINE CODE

YEAR OF MANUFACTURE

TP 57

MB OM616

TP 65

MB OM 616

TP 67

MB OM 616

2298

TT / Terratrac-Serie | 76-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
TT 88	MB OM616		42	57	01/1986 → 12/1994		TT 88 ENGINE CODE: MB OM616 CC: kW: 42 HP: 57 YEAR OF MANUFACTURE: 01/1986 → 12/1994

ENGINE CODE

YEAR OF MANUFACTURE

TT 88

MB OM616

01/1986 → 12/1994

ALLIS-CHALMERS

100-Series

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
940	ALLIS-CHALMERS 2900					i Use for OE no. 74037047	940 ENGINE CODE: ALLIS-CHALMERS 2900 CC: kW: HP: i Use for OE no. 74037047

ENGINE CODE

YEAR OF MANUFACTURE

940

ALLIS-CHALMERS 2900

KAESSBOHRER PISTEN BULLY

Pisten Bully | 97-

	ENGINE CODE
100 DR	Mercedes	100 DR ENGINE CODE: Mercedes CC: kW: HP:
110 DR	Mercedes	110 DR ENGINE CODE: Mercedes CC: kW: HP:
120	Mercedes	120 ENGINE CODE: Mercedes CC: kW: HP:
30	Mercedes	30 ENGINE CODE: Mercedes CC: kW: HP:
60	Mercedes	60 ENGINE CODE: Mercedes CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

100 DR

Mercedes

110 DR

Mercedes

120

Mercedes

SOLE MARINE DIESEL

SM-Serie

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
615 (Mercedes-Benz)			40	55			615 (Mercedes-Benz) ENGINE CODE: CC: kW: 40 HP: 55
616 (Mercedes-Benz)			53	72			616 (Mercedes-Benz) ENGINE CODE: CC: kW: 53 HP: 72

ENGINE CODE

YEAR OF MANUFACTURE

615 (Mercedes-Benz)

616 (Mercedes-Benz)

CASE CONSTRUCTION

F-1950520

DEMAG (COMPAIR)

963 511 00

FORD

5002 704
5010 667
5010 961
5019 420

GENERAL MOTORS (GM)

9975223

MERCEDES-BENZ (DAIMLER AG)

000 180 25 09
601 180 06 10
615 184 00 25
617 180 00 09
617 184 00 25
617 184 01 25
A 000 180 25 09
A 601 180 06 10
A 615 184 00 25
A 617 180 00 09
A 617 184 00 25
A 617 184 01 25

ORENSTEIN + KOPPEL (O+K)

140 8369

POCLAIN

F 19505-20

RENAULT TRUCKS (RVI)

50 01 846 634

STILL

0 142 273
1 142 273
