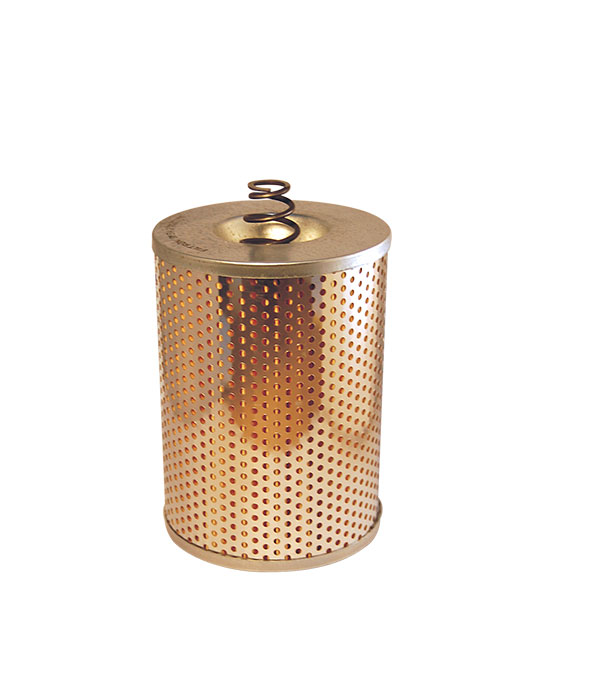

OIL FILTERS

OM 514/2

EAN CODE: 5904608075147

REACH information

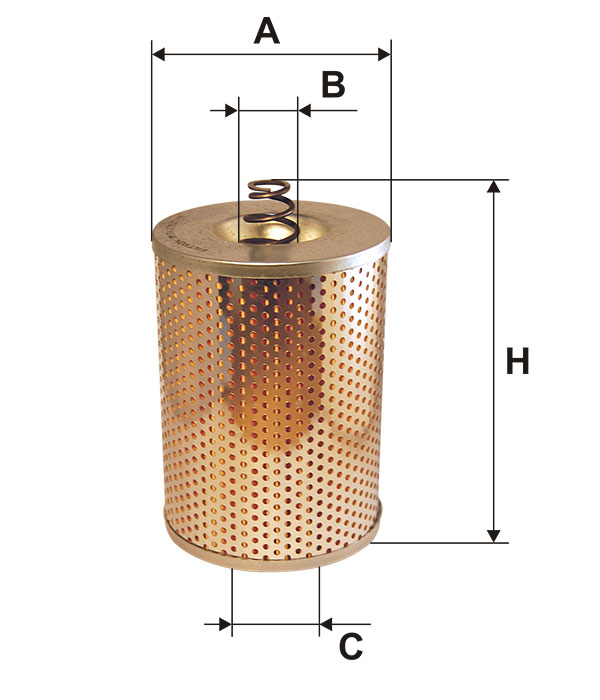

DIMENSIONS (mm):

120

13.5

193

APPLICATION
SUBSTITUTES

AUTOSAN

A-Serie

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
A 10-10 M	DC OM 366 A						A 10-10 M ENGINE CODE: DC OM 366 A CC: kW: HP:
A 10-10 M	DC OM 366 LA						A 10-10 M ENGINE CODE: DC OM 366 LA CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

A 10-10 M

DC OM 366 A

A 10-10 M

DC OM 366 LA

Lider

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
Lider	DC OM 366 A						Lider ENGINE CODE: DC OM 366 A CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

Lider

DC OM 366 A

DROEGMOELLER (VOLVO BUS)

E-Serie | 80-01

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
E 280	MB-OM 421.900	10964	159	216	01/1980 → 05/2001		E 280 ENGINE CODE: MB-OM 421.900 CC: 10964 kW: 159 HP: 216 YEAR OF MANUFACTURE: 01/1980 → 05/2001

ENGINE CODE

YEAR OF MANUFACTURE

E 280

MB-OM 421.900

10964

159

216

01/1980 → 05/2001

Europullmann | 72-79

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
Europullmann	MB-OM 402				01/1973 → 12/1979	i Partly/or	Europullmann ENGINE CODE: MB-OM 402 CC: kW: HP: YEAR OF MANUFACTURE: 01/1973 → 12/1979 i Partly/or

ENGINE CODE

YEAR OF MANUFACTURE

Europullmann

MB-OM 402

01/1973 → 12/1979

O 302-Serie | 70-79

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
O 302	MB-OM 360	11600	176	240	01/1970 → 12/1979	i Partly/or	O 302 ENGINE CODE: MB-OM 360 CC: 11600 kW: 176 HP: 240 YEAR OF MANUFACTURE: 01/1970 → 12/1979 i Partly/or

ENGINE CODE

YEAR OF MANUFACTURE

O 302

MB-OM 360

11600

176

240

01/1970 → 12/1979

EVOBUS (MERCEDES-BENZ/SETRA)

O 301 | 86-87

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
O 301 (697.001)	OM 366.917	5958	125	170	06/1986 → 05/1987		O 301 (697.001) ENGINE CODE: OM 366.917 CC: 5958 kW: 125 HP: 170 YEAR OF MANUFACTURE: 06/1986 → 05/1987
O 301 (697.006)	OM 366.965 A	5958	125	170	02/1986 → 05/1987		O 301 (697.006) ENGINE CODE: OM 366.965 A CC: 5958 kW: 125 HP: 170 YEAR OF MANUFACTURE: 02/1986 → 05/1987

ENGINE CODE

YEAR OF MANUFACTURE

O 301 (697.001)

OM 366.917

5958

125

170

06/1986 → 05/1987

O 301 (697.006)

OM 366.965 A

5958

125

170

02/1986 → 05/1987

O 303 | 74-92

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
O 303 (300.210,.290)	OM 421.951 A	10964	184	250	11/1985 → 04/1989	i Partly/or	O 303 (300.210,.290) ENGINE CODE: OM 421.951 A CC: 10964 kW: 184 HP: 250 YEAR OF MANUFACTURE: 11/1985 → 04/1989 i Partly/or
O 303 (300/301)	OM 401.907/908/912	972	141	192	10/1974 → 06/1983		O 303 (300/301) ENGINE CODE: OM 401.907/908/912 CC: 972 kW: 141 HP: 192 YEAR OF MANUFACTURE: 10/1974 → 06/1983
O 303 (300/600)	OM 421/441	10964	159	216	01/1980 → 09/1992	i Partly/or	O 303 (300/600) ENGINE CODE: OM 421/441 CC: 10964 kW: 159 HP: 216 YEAR OF MANUFACTURE: 01/1980 → 09/1992 i Partly/or
O 303 (301)	OM 402.907	12800	188	256	03/1975 → 06/1983		O 303 (301) ENGINE CODE: OM 402.907 CC: 12800 kW: 188 HP: 256 YEAR OF MANUFACTURE: 03/1975 → 06/1983
O 303 (600)	OM 441.950/953	10964	200	272	09/1987 → 09/1992		O 303 (600) ENGINE CODE: OM 441.950/953 CC: 10964 kW: 200 HP: 272 YEAR OF MANUFACTURE: 09/1987 → 09/1992

ENGINE CODE

YEAR OF MANUFACTURE

O 303 (300.210,.290)

OM 421.951 A

10964

184

250

11/1985 → 04/1989

O 303 (300/301)

OM 401.907/908/912

972

141

192

10/1974 → 06/1983

O 303 (300/600)

OM 421/441

10964

159

216

01/1980 → 09/1992

O 303 (301)

OM 402.907

12800

188

256

03/1975 → 06/1983

O 303 (600)

OM 441.950/953

10964

200

272

09/1987 → 09/1992

O 400 | 92-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
O 400 R (Brasil)	OM 449 A	9973	180	245	03/1993 →		O 400 R (Brasil) ENGINE CODE: OM 449 A CC: 9973 kW: 180 HP: 245 YEAR OF MANUFACTURE: 03/1993 →
O 400 RS (Brasil)	OM 447 LA	11967	260	354	01/1992 →		O 400 RS (Brasil) ENGINE CODE: OM 447 LA CC: 11967 kW: 260 HP: 354 YEAR OF MANUFACTURE: 01/1992 →

ENGINE CODE

YEAR OF MANUFACTURE

O 400 R (Brasil)

OM 449 A

9973

180

245

03/1993 →

O 400 RS (Brasil)

OM 447 LA

11967

260

354

01/1992 →

Setra S/SG 200 | 73-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
S 208 Setra	MB-OM 401	9570	141	192	08/1976 → 01/1980		S 208 Setra ENGINE CODE: MB-OM 401 CC: 9570 kW: 141 HP: 192 YEAR OF MANUFACTURE: 08/1976 → 01/1980
S 209 H Setra	MB-OM 421.900	10964	159	216	01/1980 → 10/1983		S 209 H Setra ENGINE CODE: MB-OM 421.900 CC: 10964 kW: 159 HP: 216 YEAR OF MANUFACTURE: 01/1980 → 10/1983
S 209 Setra	MB-OM 401	9570	141	192	08/1976 → 01/1980		S 209 Setra ENGINE CODE: MB-OM 401 CC: 9570 kW: 141 HP: 192 YEAR OF MANUFACTURE: 08/1976 → 01/1980
S 210 H.. Setra	MB-OM 421.900	10964	159	216	10/1983 → 09/1987	i Up to engine no. 019113	S 210 H.. Setra ENGINE CODE: MB-OM 421.900 CC: 10964 kW: 159 HP: 216 YEAR OF MANUFACTURE: 10/1983 → 09/1987 i Up to engine no. 019113
S 211 H Setra	MB-OM 401	9570	141	192	08/1976 → 01/1980		S 211 H Setra ENGINE CODE: MB-OM 401 CC: 9570 kW: 141 HP: 192 YEAR OF MANUFACTURE: 08/1976 → 01/1980
S 212 H Setra	MB-OM 402	14618	206	280	08/1976 → 01/1980		S 212 H Setra ENGINE CODE: MB-OM 402 CC: 14618 kW: 206 HP: 280 YEAR OF MANUFACTURE: 08/1976 → 01/1980
S 212 H Setra	MB-OM 421.900	14618	206	280	01/1980 → 05/1983		S 212 H Setra ENGINE CODE: MB-OM 421.900 CC: 14618 kW: 206 HP: 280 YEAR OF MANUFACTURE: 01/1980 → 05/1983
S 213 H Setra	MB-OM 402	15950	235	320	08/1976 → 01/1980		S 213 H Setra ENGINE CODE: MB-OM 402 CC: 15950 kW: 235 HP: 320 YEAR OF MANUFACTURE: 08/1976 → 01/1980
S 215 H Setra	MB-OM 402.925	12760	188	256	08/1976 → 01/1980		S 215 H Setra ENGINE CODE: MB-OM 402.925 CC: 12760 kW: 188 HP: 256 YEAR OF MANUFACTURE: 08/1976 → 01/1980
S 215 Setra	MB-OM 401	9570	141	192	08/1976 → 01/1980		S 215 Setra ENGINE CODE: MB-OM 401 CC: 9570 kW: 141 HP: 192 YEAR OF MANUFACTURE: 08/1976 → 01/1980

ENGINE CODE

YEAR OF MANUFACTURE

S 208 Setra

MB-OM 401

9570

141

192

08/1976 → 01/1980

S 209 H Setra

MB-OM 421.900

10964

159

216

01/1980 → 10/1983

S 209 Setra

MB-OM 401

9570

141

192

08/1976 → 01/1980

S 210 H.. Setra

MB-OM 421.900

10964

159

216

10/1983 → 09/1987

S 211 H Setra

MB-OM 401

9570

141

192

08/1976 → 01/1980

S 212 H Setra

MB-OM 402

14618

206

280

08/1976 → 01/1980

S 212 H Setra

MB-OM 421.900

14618

206

280

01/1980 → 05/1983

S 213 H Setra

MB-OM 402

15950

235

320

08/1976 → 01/1980

S 215 H Setra

MB-OM 402.925

12760

188

256

08/1976 → 01/1980

S 215 Setra

MB-OM 401

9570

141

192

08/1976 → 01/1980

Setra S/SG 300 | 89-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
S 315 NF (Multi Class)	MB-OM 447 hLA	11967	184	250	03/1996 →	i Partly/or	S 315 NF (Multi Class) ENGINE CODE: MB-OM 447 hLA CC: 11967 kW: 184 HP: 250 YEAR OF MANUFACTURE: 03/1996 → i Partly/or
S 315 NF (Multi Class)	MB OM 447 hLA		257	350	04/1996 →	i Partly/or	S 315 NF (Multi Class) ENGINE CODE: MB OM 447 hLA CC: kW: 257 HP: 350 YEAR OF MANUFACTURE: 04/1996 → i Partly/or
S 315 NF (Multi Class)	MB OM 447 hLA		220	300	05/1996 →	i Partly/or	S 315 NF (Multi Class) ENGINE CODE: MB OM 447 hLA CC: kW: 220 HP: 300 YEAR OF MANUFACTURE: 05/1996 → i Partly/or

ENGINE CODE

YEAR OF MANUFACTURE

S 315 NF (Multi Class)

MB-OM 447 hLA

11967

184

250

03/1996 →

S 315 NF (Multi Class)

MB OM 447 hLA

257

350

04/1996 →

S 315 NF (Multi Class)

MB OM 447 hLA

220

300

05/1996 →

FREIGHTLINER

Business Class | 91-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
60-Serie (MB-60)	MB-OM 366 LA	5958	125	170	03/1991 →	60-Serie (MB-60) ENGINE CODE: MB-OM 366 LA CC: 5958 kW: 125 HP: 170 YEAR OF MANUFACTURE: 03/1991 →
70-Serie (MB-70)	MB-OM 366 LA	5958	140	190	03/1991 →	70-Serie (MB-70) ENGINE CODE: MB-OM 366 LA CC: 5958 kW: 140 HP: 190 YEAR OF MANUFACTURE: 03/1991 →
80-Serie (MB-80)	MB-OM 366 LA	8270	221	300	03/1991 →	80-Serie (MB-80) ENGINE CODE: MB-OM 366 LA CC: 8270 kW: 221 HP: 300 YEAR OF MANUFACTURE: 03/1991 →

ENGINE CODE

YEAR OF MANUFACTURE

60-Serie (MB-60)

MB-OM 366 LA

5958

125

170

03/1991 →

70-Serie (MB-70)

MB-OM 366 LA

5958

140

190

03/1991 →

80-Serie (MB-80)

MB-OM 366 LA

8270

221

300

03/1991 →

HANOMAG HENSCHEL

F 161-F 420 | 70-73

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
F 162 AK	MB-OM 402	12800	188	256	07/1972 → 06/1973	F 162 AK ENGINE CODE: MB-OM 402 CC: 12800 kW: 188 HP: 256 YEAR OF MANUFACTURE: 07/1972 → 06/1973
F 192 AK	MB-OM 402	12800	188	256	07/1972 → 06/1973	F 192 AK ENGINE CODE: MB-OM 402 CC: 12800 kW: 188 HP: 256 YEAR OF MANUFACTURE: 07/1972 → 06/1973
F 262 AK	MB-OM 402	12800	188	256	07/1972 → 06/1973	F 262 AK ENGINE CODE: MB-OM 402 CC: 12800 kW: 188 HP: 256 YEAR OF MANUFACTURE: 07/1972 → 06/1973

ENGINE CODE

YEAR OF MANUFACTURE

F 162 AK

MB-OM 402

12800

188

256

07/1972 → 06/1973

F 192 AK

MB-OM 402

12800

188

256

07/1972 → 06/1973

F 262 AK

MB-OM 402

12800

188

256

07/1972 → 06/1973

IKARUS

200-Serie | 69-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
260.71 A	MAN-D 2866 UM	11967	152	207	08/1991 →	260.71 A ENGINE CODE: MAN-D 2866 UM CC: 11967 kW: 152 HP: 207 YEAR OF MANUFACTURE: 08/1991 →
266.71	MAN-D 2866 UM	11967	152	207	08/1991 →	266.71 ENGINE CODE: MAN-D 2866 UM CC: 11967 kW: 152 HP: 207 YEAR OF MANUFACTURE: 08/1991 →
280.69	MAN-D2866 TUH	11967	163	222	08/1991 →	280.69 ENGINE CODE: MAN-D2866 TUH CC: 11967 kW: 163 HP: 222 YEAR OF MANUFACTURE: 08/1991 →

ENGINE CODE

YEAR OF MANUFACTURE

260.71 A

MAN-D 2866 UM

11967

152

207

08/1991 →

266.71

MAN-D 2866 UM

11967

152

207

08/1991 →

280.69

MAN-D2866 TUH

11967

163

222

08/1991 →

400-Serie | 84-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
435	MAN-D 2866 TUH	11867	225	306	07/1991 →		435 ENGINE CODE: MAN-D 2866 TUH CC: 11867 kW: 225 HP: 306 YEAR OF MANUFACTURE: 07/1991 →

ENGINE CODE

YEAR OF MANUFACTURE

435

MAN-D 2866 TUH

11867

225

306

07/1991 →

MAN TRUCK

13t-Serie | 65-82

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
13.168 F (232)	D 2555 MF	9510	124	168	10/1973 → 11/1976	13.168 F (232) ENGINE CODE: D 2555 MF CC: 9510 kW: 124 HP: 168 YEAR OF MANUFACTURE: 10/1973 → 11/1976
13.168 F (523)	D 2565 MF/168	9510	124	168	12/1976 → 12/1982	13.168 F (523) ENGINE CODE: D 2565 MF/168 CC: 9510 kW: 124 HP: 168 YEAR OF MANUFACTURE: 12/1976 → 12/1982
13.192 F (232)	D 2555 MXF	9510	141	192	05/1974 → 12/1976	13.192 F (232) ENGINE CODE: D 2555 MXF CC: 9510 kW: 141 HP: 192 YEAR OF MANUFACTURE: 05/1974 → 12/1976
13.192 F (523)	D 2565 MF	9510	141	192	01/1977 → 12/1982	13.192 F (523) ENGINE CODE: D 2565 MF CC: 9510 kW: 141 HP: 192 YEAR OF MANUFACTURE: 01/1977 → 12/1982
13.192 U (903)	D 2555 MXUL	9650	141	192	09/1975 → 12/1976	13.192 U (903) ENGINE CODE: D 2555 MXUL CC: 9650 kW: 141 HP: 192 YEAR OF MANUFACTURE: 09/1975 → 12/1976

ENGINE CODE

YEAR OF MANUFACTURE

13.168 F (232)

D 2555 MF

9510

124

168

10/1973 → 11/1976

13.168 F (523)

D 2565 MF/168

9510

124

168

12/1976 → 12/1982

13.192 F (232)

D 2555 MXF

9510

141

192

05/1974 → 12/1976

13.192 F (523)

D 2565 MF

9510

141

192

01/1977 → 12/1982

13.192 U (903)

D 2555 MXUL

9650

141

192

09/1975 → 12/1976

14t-Serie | 65-82

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
14.168 F (523)	D 2565 MF/168	9510	124	168	12/1976 → 12/1982	14.168 F (523) ENGINE CODE: D 2565 MF/168 CC: 9510 kW: 124 HP: 168 YEAR OF MANUFACTURE: 12/1976 → 12/1982
14.192 F (523)	D 2565 MF	9510	141	192	04/1977 → 12/1982	14.192 F (523) ENGINE CODE: D 2565 MF CC: 9510 kW: 141 HP: 192 YEAR OF MANUFACTURE: 04/1977 → 12/1982
14.192 U (903,928)	D 2565 MUL	9650	141	192	06/1975 → 12/1982	14.192 U (903,928) ENGINE CODE: D 2565 MUL CC: 9650 kW: 141 HP: 192 YEAR OF MANUFACTURE: 06/1975 → 12/1982

ENGINE CODE

YEAR OF MANUFACTURE

14.168 F (523)

D 2565 MF/168

9510

124

168

12/1976 → 12/1982

14.192 F (523)

D 2565 MF

9510

141

192

04/1977 → 12/1982

14.192 U (903,928)

D 2565 MUL

9650

141

192

06/1975 → 12/1982

15t-Serie | 65-82

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
15.168 F, FK (237)	D 2555 MF	9200	124	168	10/1973 → 11/1976	15.168 F, FK (237) ENGINE CODE: D 2555 MF CC: 9200 kW: 124 HP: 168 YEAR OF MANUFACTURE: 10/1973 → 11/1976
15.168 F, FK, FS (542)	D 2565 MF/168	9510	124	168	12/1976 → 12/1982	15.168 F, FK, FS (542) ENGINE CODE: D 2565 MF/168 CC: 9510 kW: 124 HP: 168 YEAR OF MANUFACTURE: 12/1976 → 12/1982
15.192 F, FK, FS (542)	D 2565 MF	9510	141	192	04/1977 → 12/1982	15.192 F, FK, FS (542) ENGINE CODE: D 2565 MF CC: 9510 kW: 141 HP: 192 YEAR OF MANUFACTURE: 04/1977 → 12/1982

ENGINE CODE

YEAR OF MANUFACTURE

15.168 F, FK (237)

D 2555 MF

9200

124

168

10/1973 → 11/1976

15.168 F, FK, FS (542)

D 2565 MF/168

9510

124

168

12/1976 → 12/1982

15.192 F, FK, FS (542)

D 2565 MF

9510

141

192

04/1977 → 12/1982

16t-Serie | 66-82

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
16.168 F (255)	D 2555 MF	9510	124	168	01/1974 → 11/1976	16.168 F (255) ENGINE CODE: D 2555 MF CC: 9510 kW: 124 HP: 168 YEAR OF MANUFACTURE: 01/1974 → 11/1976
16.168 FL (543)	D 2565 MF/168	9510	124	168	04/1977 → 12/1982	16.168 FL (543) ENGINE CODE: D 2565 MF/168 CC: 9510 kW: 124 HP: 168 YEAR OF MANUFACTURE: 04/1977 → 12/1982
16.192 F (543)	D 2565 MF	9510	141	192	04/1977 → 12/1982	16.192 F (543) ENGINE CODE: D 2565 MF CC: 9510 kW: 141 HP: 192 YEAR OF MANUFACTURE: 04/1977 → 12/1982

ENGINE CODE

YEAR OF MANUFACTURE

16.168 F (255)

D 2555 MF

9510

124

168

01/1974 → 11/1976

16.168 FL (543)

D 2565 MF/168

9510

124

168

04/1977 → 12/1982

16.192 F (543)

D 2565 MF

9510

141

192

04/1977 → 12/1982

19t-Serie | 68-77

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
19.168 HA (254)	D 2555 M	9200	124	168	01/1974 → 02/1977		19.168 HA (254) ENGINE CODE: D 2555 M CC: 9200 kW: 124 HP: 168 YEAR OF MANUFACTURE: 01/1974 → 02/1977

ENGINE CODE

YEAR OF MANUFACTURE

19.168 HA (254)

D 2555 M

9200

124

168

01/1974 → 02/1977

20t-Serie | 75-77

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
20.192 DH	D 2555 MX	9510	141	192	09/1975 → 04/1977		20.192 DH ENGINE CODE: D 2555 MX CC: 9510 kW: 141 HP: 192 YEAR OF MANUFACTURE: 09/1975 → 04/1977

ENGINE CODE

YEAR OF MANUFACTURE

20.192 DH

D 2555 MX

9510

141

192

09/1975 → 04/1977

22t-Serie | 67-82

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
22.192 DH (213)	D 2565 M	9510	141	192	05/1977 → 11/1982		22.192 DH (213) ENGINE CODE: D 2565 M CC: 9510 kW: 141 HP: 192 YEAR OF MANUFACTURE: 05/1977 → 11/1982

ENGINE CODE

YEAR OF MANUFACTURE

22.192 DH (213)

D 2565 M

9510

141

192

05/1977 → 11/1982

F7/F8/F9 | 67-93

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
24.192 FVL (551)	D 2565 MF	9510	141	192	11/1986 → 12/1987		24.192 FVL (551) ENGINE CODE: D 2565 MF CC: 9510 kW: 141 HP: 192 YEAR OF MANUFACTURE: 11/1986 → 12/1987

ENGINE CODE

YEAR OF MANUFACTURE

24.192 FVL (551)

D 2565 MF

9510

141

192

11/1986 → 12/1987

MERCEDES-BENZ

LN2 / LK (673.001-679.259) | 84-98

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
1117 (LK,676)	OM 366 A	5958	125	170	04/1984 → 12/1992	i Up to engine no. 923826	1117 (LK,676) ENGINE CODE: OM 366 A CC: 5958 kW: 125 HP: 170 YEAR OF MANUFACTURE: 04/1984 → 12/1992 i Up to engine no. 923826
1117 A (LK,676.112)	OM 366.966 A	5958	125	170	06/1987 → 12/1992	i Up to engine no. 923826	1117 A (LK,676.112) ENGINE CODE: OM 366.966 A CC: 5958 kW: 125 HP: 170 YEAR OF MANUFACTURE: 06/1987 → 12/1992 i Up to engine no. 923826
1120 (LK,677)	OM 366.988 LA	5958	155	211	06/1984 → 02/1993	i Up to engine no. 923826	1120 (LK,677) ENGINE CODE: OM 366.988 LA CC: 5958 kW: 155 HP: 211 YEAR OF MANUFACTURE: 06/1984 → 02/1993 i Up to engine no. 923826
1317 (LK,676)	OM 366 A	5960	125	170	08/1984 → 02/1993	i Up to engine no. 923826	1317 (LK,676) ENGINE CODE: OM 366 A CC: 5960 kW: 125 HP: 170 YEAR OF MANUFACTURE: 08/1984 → 02/1993 i Up to engine no. 923826
1320 (LK,677.032)	OM 366.962 A	5960	155	211	10/1984 → 12/1998	i Up to engine no. 923826	1320 (LK,677.032) ENGINE CODE: OM 366.962 A CC: 5960 kW: 155 HP: 211 YEAR OF MANUFACTURE: 10/1984 → 12/1998 i Up to engine no. 923826
1520 (LK,677)	OM 366.995 LA	5958	155	211	01/1989 → 12/1992	i Up to engine no. 923826	1520 (LK,677) ENGINE CODE: OM 366.995 LA CC: 5958 kW: 155 HP: 211 YEAR OF MANUFACTURE: 01/1989 → 12/1992 i Up to engine no. 923826
817 LO (LK,676)	OM 366.969 A	5958	125	170	06/1986 → 02/1993	i Up to engine no. 923826	817 LO (LK,676) ENGINE CODE: OM 366.969 A CC: 5958 kW: 125 HP: 170 YEAR OF MANUFACTURE: 06/1986 → 02/1993 i Up to engine no. 923826
917 (LK,676)	OM 366 A	5958	125	170	01/1985 → 12/1998	i Up to engine no. 923826	917 (LK,676) ENGINE CODE: OM 366 A CC: 5958 kW: 125 HP: 170 YEAR OF MANUFACTURE: 01/1985 → 12/1998 i Up to engine no. 923826
917 AF (LK,676)	OM 366 A	5958	125	170	02/1987 → 02/1993	i Up to engine no. 923826	917 AF (LK,676) ENGINE CODE: OM 366 A CC: 5958 kW: 125 HP: 170 YEAR OF MANUFACTURE: 02/1987 → 02/1993 i Up to engine no. 923826

ENGINE CODE

YEAR OF MANUFACTURE

1117 (LK,676)

OM 366 A

5958

125

170

04/1984 → 12/1992

1117 A (LK,676.112)

OM 366.966 A

5958

125

170

06/1987 → 12/1992

1120 (LK,677)

OM 366.988 LA

5958

155

211

06/1984 → 02/1993

1317 (LK,676)

OM 366 A

5960

125

170

08/1984 → 02/1993

1320 (LK,677.032)

OM 366.962 A

5960

155

211

10/1984 → 12/1998

1520 (LK,677)

OM 366.995 LA

5958

155

211

01/1989 → 12/1992

817 LO (LK,676)

OM 366.969 A

5958

125

170

06/1986 → 02/1993

917 (LK,676)

OM 366 A

5958

125

170

01/1985 → 12/1998

917 AF (LK,676)

OM 366 A

5958

125

170

02/1987 → 02/1993

MK (650.034-654.555) | 87-96

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
1222 (MK,650)	OM 441.905,913	10964	165	224	07/1989 → 08/1994		1222 (MK,650) ENGINE CODE: OM 441.905,913 CC: 10964 kW: 165 HP: 224 YEAR OF MANUFACTURE: 07/1989 → 08/1994
1226 AF (MK,650.288)	OM 442.907	15080	195	265	02/1990 → 09/1993	i Partly/or -> 08/1990	1226 AF (MK,650.288) ENGINE CODE: OM 442.907 CC: 15080 kW: 195 HP: 265 YEAR OF MANUFACTURE: 02/1990 → 09/1993 i Partly/or -> 08/1990
1417 (MK,651)	OM 366.952 A	5958	125	170	07/1989 → 07/1992	i Up to engine no. 923826	1417 (MK,651) ENGINE CODE: OM 366.952 A CC: 5958 kW: 125 HP: 170 YEAR OF MANUFACTURE: 07/1989 → 07/1992 i Up to engine no. 923826
1422 (MK,651)	OM 441.905	11310	169	230	07/1989 → 08/1994		1422 (MK,651) ENGINE CODE: OM 441.905 CC: 11310 kW: 169 HP: 230 YEAR OF MANUFACTURE: 07/1989 → 08/1994
1627 F, AF (MK,650.288)	OM442.914,920,932/33	15080	200	272	01/1992 → 09/1996		1627 F, AF (MK,650.288) ENGINE CODE: OM442.914,920,932/33 CC: 15080 kW: 200 HP: 272 YEAR OF MANUFACTURE: 01/1992 → 09/1996
1717 (MK, 652)	OM 366 A	5958	129	175	09/1989 → 09/1993	i Up to engine no. 923826	1717 (MK, 652) ENGINE CODE: OM 366 A CC: 5958 kW: 129 HP: 175 YEAR OF MANUFACTURE: 09/1989 → 09/1993 i Up to engine no. 923826
1718 K (MK, 652)	OM 366 A	5958	135	184	07/1990 → 09/1996	i Up to engine no. 923826	1718 K (MK, 652) ENGINE CODE: OM 366 A CC: 5958 kW: 135 HP: 184 YEAR OF MANUFACTURE: 07/1990 → 09/1996 i Up to engine no. 923826
1720 (MK, 652)	OM 356 (366) LA	5958	155	211	02/1990 → 08/1996	i Up to engine no. 923826	1720 (MK, 652) ENGINE CODE: OM 356 (366) LA CC: 5958 kW: 155 HP: 211 YEAR OF MANUFACTURE: 02/1990 → 08/1996 i Up to engine no. 923826
1722 (MK, 652)	OM 441.905,923	11309	160	218	12/1988 → 09/1993		1722 (MK, 652) ENGINE CODE: OM 441.905,923 CC: 11309 kW: 160 HP: 218 YEAR OF MANUFACTURE: 12/1988 → 09/1993
2422 (MK,653)	OM 441.905,912	11309	160	218	09/1989 → 09/1993		2422 (MK,653) ENGINE CODE: OM 441.905,912 CC: 11309 kW: 160 HP: 218 YEAR OF MANUFACTURE: 09/1989 → 09/1993

ENGINE CODE

YEAR OF MANUFACTURE

1222 (MK,650)

OM 441.905,913

10964

165

224

07/1989 → 08/1994

1226 AF (MK,650.288)

OM 442.907

15080

195

265

02/1990 → 09/1993

1417 (MK,651)

OM 366.952 A

5958

125

170

07/1989 → 07/1992

1422 (MK,651)

OM 441.905

11310

169

230

07/1989 → 08/1994

1627 F, AF (MK,650.288)

OM442.914,920,932/33

15080

200

272

01/1992 → 09/1996

1717 (MK, 652)

OM 366 A

5958

129

175

09/1989 → 09/1993

1718 K (MK, 652)

OM 366 A

5958

135

184

07/1990 → 09/1996

1720 (MK, 652)

OM 356 (366) LA

5958

155

211

02/1990 → 08/1996

1722 (MK, 652)

OM 441.905,923

11309

160

218

12/1988 → 09/1993

2422 (MK,653)

OM 441.905,912

11309

160

218

09/1989 → 09/1993

NG (380.002-395.452/615.026-648.473) | 73-94

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
1219	OM 401.914,915	9570	141	192	09/1975 → 09/1984		1219 ENGINE CODE: OM 401.914,915 CC: 9570 kW: 141 HP: 192 YEAR OF MANUFACTURE: 09/1975 → 09/1984
1419	OM 401.914	9570	141	192	05/1975 → 12/1982		1419 ENGINE CODE: OM 401.914 CC: 9570 kW: 141 HP: 192 YEAR OF MANUFACTURE: 05/1975 → 12/1982
1419 C (616)	OM 362.906,909	5700	141	192	06/1983 → 06/1985		1419 C (616) ENGINE CODE: OM 362.906,909 CC: 5700 kW: 141 HP: 192 YEAR OF MANUFACTURE: 06/1983 → 06/1985
1420 (616)	OM 366.983 LA	5958	155	211	07/1985 → 03/1991	i Up to engine no. 923826	1420 (616) ENGINE CODE: OM 366.983 LA CC: 5958 kW: 155 HP: 211 YEAR OF MANUFACTURE: 07/1985 → 03/1991 i Up to engine no. 923826
1424	OM 402.910,911	12800	180	245	07/1975 → 01/1987		1424 ENGINE CODE: OM 402.910,911 CC: 12800 kW: 180 HP: 245 YEAR OF MANUFACTURE: 07/1975 → 01/1987
1425 (616)	OM 422.909	14600	184	250	12/1982 → 03/1991	i Partly/or 04/1987 ->	1425 (616) ENGINE CODE: OM 422.909 CC: 14600 kW: 184 HP: 250 YEAR OF MANUFACTURE: 12/1982 → 03/1991 i Partly/or 04/1987 ->
1617 C (617)	OM 366.951 A	5960	125	170	04/1984 → 03/1991	i Up to engine no. 923826	1617 C (617) ENGINE CODE: OM 366.951 A CC: 5960 kW: 125 HP: 170 YEAR OF MANUFACTURE: 04/1984 → 03/1991 i Up to engine no. 923826
1619	OM 401.905, 914	9570	141	192	11/1974 → 05/1987		1619 ENGINE CODE: OM 401.905, 914 CC: 9570 kW: 141 HP: 192 YEAR OF MANUFACTURE: 11/1974 → 05/1987
1619 C (617)	OM 362.906,909	5700	141	192	06/1983 → 06/1985		1619 C (617) ENGINE CODE: OM 362.906,909 CC: 5700 kW: 141 HP: 192 YEAR OF MANUFACTURE: 06/1983 → 06/1985
1620 (617)	OM 366.983 LA	5958	150	204	07/1985 → 03/1991	i Up to engine no. 923826	1620 (617) ENGINE CODE: OM 366.983 LA CC: 5958 kW: 150 HP: 204 YEAR OF MANUFACTURE: 07/1985 → 03/1991 i Up to engine no. 923826
1622 (617)	OM 441.906	10964	159	216	03/1987 → 03/1991		1622 (617) ENGINE CODE: OM 441.906 CC: 10964 kW: 159 HP: 216 YEAR OF MANUFACTURE: 03/1987 → 03/1991
1624	OM 402.911	12800	176	240	07/1975 → 12/1982		1624 ENGINE CODE: OM 402.911 CC: 12800 kW: 176 HP: 240 YEAR OF MANUFACTURE: 07/1975 → 12/1982
1625 (617)	OM 442.905	15080	191	260	03/1987 → 10/1989		1625 (617) ENGINE CODE: OM 442.905 CC: 15080 kW: 191 HP: 260 YEAR OF MANUFACTURE: 03/1987 → 10/1989
1626	OM 402.912	12800	188	256	05/1974 → 12/1980		1626 ENGINE CODE: OM 402.912 CC: 12800 kW: 188 HP: 256 YEAR OF MANUFACTURE: 05/1974 → 12/1980
1628 L (620)	OM 441.951 LA	14600	243	330	07/1987 → 02/1990		1628 L (620) ENGINE CODE: OM 441.951 LA CC: 14600 kW: 243 HP: 330 YEAR OF MANUFACTURE: 07/1987 → 02/1990
1719 (387)	OM 401.909,916	9570	141	192	09/1973 → 08/1982		1719 (387) ENGINE CODE: OM 401.909,916 CC: 9570 kW: 141 HP: 192 YEAR OF MANUFACTURE: 09/1973 → 08/1982
1919	OM 401.909, 916	9570	141	192	05/1974 → 08/1982		1919 ENGINE CODE: OM 401.909, 916 CC: 9570 kW: 141 HP: 192 YEAR OF MANUFACTURE: 05/1974 → 08/1982
1926 K, AK	OM 402.912, 906	12800	188	256	08/1973 → 12/1980		1926 K, AK ENGINE CODE: OM 402.912, 906 CC: 12800 kW: 188 HP: 256 YEAR OF MANUFACTURE: 08/1973 → 12/1980
2026 S (391)	OM 402.912,916	12800	188	256	10/1976 → 12/1980		2026 S (391) ENGINE CODE: OM 402.912,916 CC: 12800 kW: 188 HP: 256 YEAR OF MANUFACTURE: 10/1976 → 12/1980
2219 A	OM 401.905, 914	9570	141	192	06/1976 → 06/1987		2219 A ENGINE CODE: OM 401.905, 914 CC: 9570 kW: 141 HP: 192 YEAR OF MANUFACTURE: 06/1976 → 06/1987
2219 C (619)	OM 362.906	5700	141	192	02/1983 → 09/1985		2219 C (619) ENGINE CODE: OM 362.906 CC: 5700 kW: 141 HP: 192 YEAR OF MANUFACTURE: 02/1983 → 09/1985
2220 (619)	OM 366.983 LA	5958	150	204	07/1985 → 03/1991	i Up to engine no. 923826	2220 (619) ENGINE CODE: OM 366.983 LA CC: 5958 kW: 150 HP: 204 YEAR OF MANUFACTURE: 07/1985 → 03/1991 i Up to engine no. 923826
2222 B (619)	OM 441.906	10964	159	216	03/1987 → 03/1991		2222 B (619) ENGINE CODE: OM 441.906 CC: 10964 kW: 159 HP: 216 YEAR OF MANUFACTURE: 03/1987 → 03/1991
2224	OM 402.911	12800	176	240	04/1976 → 12/1982		2224 ENGINE CODE: OM 402.911 CC: 12800 kW: 176 HP: 240 YEAR OF MANUFACTURE: 04/1976 → 12/1982
2226	OM 402.912, 916	12800	188	256	09/1975 → 12/1980		2226 ENGINE CODE: OM 402.912, 916 CC: 12800 kW: 188 HP: 256 YEAR OF MANUFACTURE: 09/1975 → 12/1980
2419	OM 401.11	9570	134	182	01/1980 → 10/1982		2419 ENGINE CODE: OM 401.11 CC: 9570 kW: 134 HP: 182 YEAR OF MANUFACTURE: 01/1980 → 10/1982
2626 B, AB (395)	OM 402	12800	188	256	05/1974 → 12/1980		2626 B, AB (395) ENGINE CODE: OM 402 CC: 12800 kW: 188 HP: 256 YEAR OF MANUFACTURE: 05/1974 → 12/1980
2626 K, AK (395)	OM 402.906,912	12800	188	256	08/1973 → 12/1981		2626 K, AK (395) ENGINE CODE: OM 402.906,912 CC: 12800 kW: 188 HP: 256 YEAR OF MANUFACTURE: 08/1973 → 12/1981
3225 B, K (NG, 625)	OM 422.920	14618	184	250	07/1987 → 03/1991	i Partly/or	3225 B, K (NG, 625) ENGINE CODE: OM 422.920 CC: 14618 kW: 184 HP: 250 YEAR OF MANUFACTURE: 07/1987 → 03/1991 i Partly/or

ENGINE CODE

YEAR OF MANUFACTURE

1219

OM 401.914,915

9570

141

192

09/1975 → 09/1984

1419

OM 401.914

9570

141

192

05/1975 → 12/1982

1419 C (616)

OM 362.906,909

5700

141

192

06/1983 → 06/1985

1420 (616)

OM 366.983 LA

5958

155

211

07/1985 → 03/1991

1424

OM 402.910,911

12800

180

245

07/1975 → 01/1987

1425 (616)

OM 422.909

14600

184

250

12/1982 → 03/1991

1617 C (617)

OM 366.951 A

5960

125

170

04/1984 → 03/1991

1619

OM 401.905, 914

9570

141

192

11/1974 → 05/1987

1619 C (617)

OM 362.906,909

5700

141

192

06/1983 → 06/1985

1620 (617)

OM 366.983 LA

5958

150

204

07/1985 → 03/1991

1622 (617)

OM 441.906

10964

159

216

03/1987 → 03/1991

1624

OM 402.911

12800

176

240

07/1975 → 12/1982

1625 (617)

OM 442.905

15080

191

260

03/1987 → 10/1989

1626

OM 402.912

12800

188

256

05/1974 → 12/1980

1628 L (620)

OM 441.951 LA

14600

243

330

07/1987 → 02/1990

1719 (387)

OM 401.909,916

9570

141

192

09/1973 → 08/1982

1919

OM 401.909, 916

9570

141

192

05/1974 → 08/1982

1926 K, AK

OM 402.912, 906

12800

188

256

08/1973 → 12/1980

2026 S (391)

OM 402.912,916

12800

188

256

10/1976 → 12/1980

2219 A

OM 401.905, 914

9570

141

192

06/1976 → 06/1987

2219 C (619)

OM 362.906

5700

141

192

02/1983 → 09/1985

2220 (619)

OM 366.983 LA

5958

150

204

07/1985 → 03/1991

2222 B (619)

OM 441.906

10964

159

216

03/1987 → 03/1991

2224

OM 402.911

12800

176

240

04/1976 → 12/1982

2226

OM 402.912, 916

12800

188

256

09/1975 → 12/1980

2419

OM 401.11

9570

134

182

01/1980 → 10/1982

2626 B, AB (395)

OM 402

12800

188

256

05/1974 → 12/1980

2626 K, AK (395)

OM 402.906,912

12800

188

256

08/1973 → 12/1981

3225 B, K (NG, 625)

OM 422.920

14618

184

250

07/1987 → 03/1991

SK (621.005-625.932/655.005-659.344) | 87-06

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
2422 L (SK, 656)	OM 441.905,923	11309	160	218	07/1987 → 09/1996		2422 L (SK, 656) ENGINE CODE: OM 441.905,923 CC: 11309 kW: 160 HP: 218 YEAR OF MANUFACTURE: 07/1987 → 09/1996
2529 (SK, 656)	OM 442	15078	213	290	07/1988 → 09/1996		2529 (SK, 656) ENGINE CODE: OM 442 CC: 15078 kW: 213 HP: 290 YEAR OF MANUFACTURE: 07/1988 → 09/1996

ENGINE CODE

YEAR OF MANUFACTURE

2422 L (SK, 656)

OM 441.905,923

11309

160

218

07/1987 → 09/1996

2529 (SK, 656)

OM 442

15078

213

290

07/1988 → 09/1996

OM-Serie (Motoren / Engines) | 85-


360	i Partly/or	360 ENGINE CODE: CC: kW: HP: i Partly/or
401		401 ENGINE CODE: CC: kW: HP:
402	i Partly/or	402 ENGINE CODE: CC: kW: HP: i Partly/or
421		421 ENGINE CODE: CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

360

401

402

421

NEOPLAN (NEOMAN)

Jetliner | 81-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
Jetliner N 216	MB OM 422 LA	14618	206	280	09/1990 →	i From engine no. 139200	Jetliner N 216 ENGINE CODE: MB OM 422 LA CC: 14618 kW: 206 HP: 280 YEAR OF MANUFACTURE: 09/1990 → i From engine no. 139200
Jetliner N 216	MB OM 422.909/912	14618	184	250	09/1990 →	i From engine no. 139200	Jetliner N 216 ENGINE CODE: MB OM 422.909/912 CC: 14618 kW: 184 HP: 250 YEAR OF MANUFACTURE: 09/1990 → i From engine no. 139200

ENGINE CODE

YEAR OF MANUFACTURE

Jetliner N 216

MB OM 422 LA

14618

206

280

09/1990 →

Jetliner N 216

MB OM 422.909/912

14618

184

250

09/1990 →

Transliner | 88-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
Transliner N 316 H	MB OM 401.905/906	9570	141	192	12/1988 →		Transliner N 316 H ENGINE CODE: MB OM 401.905/906 CC: 9570 kW: 141 HP: 192 YEAR OF MANUFACTURE: 12/1988 →

ENGINE CODE

YEAR OF MANUFACTURE

Transliner N 316 H

MB OM 401.905/906

9570

141

192

12/1988 →

OTOMARSAN

O 302-Serie | 75-89

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
O 302	MB-OM 360	11600	176	240	12/1975 → 12/1989	i Partly/or	O 302 ENGINE CODE: MB-OM 360 CC: 11600 kW: 176 HP: 240 YEAR OF MANUFACTURE: 12/1975 → 12/1989 i Partly/or

ENGINE CODE

YEAR OF MANUFACTURE

O 302

MB-OM 360

11600

176

240

12/1975 → 12/1989

PADANE (OFFICINE PADANE)

Z-Serie | 79-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
Z 309 (MB-O309)	MB-OM 421				05/1984 →		Z 309 (MB-O309) ENGINE CODE: MB-OM 421 CC: kW: HP: YEAR OF MANUFACTURE: 05/1984 →

ENGINE CODE

YEAR OF MANUFACTURE

Z 309 (MB-O309)

MB-OM 421

05/1984 →

VETTER

302-Serie | 70-79

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
II-302	MB-OM 360				01/1970 → 12/1979	i Partly/or	II-302 ENGINE CODE: MB-OM 360 CC: kW: HP: YEAR OF MANUFACTURE: 01/1970 → 12/1979 i Partly/or

ENGINE CODE

YEAR OF MANUFACTURE

II-302

MB-OM 360

01/1970 → 12/1979

O-Serie | 72-79

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
O 302/10 R, 11 R, 12 R	MB-OM 360				01/1972 → 12/1979	i Partly/or	O 302/10 R, 11 R, 12 R ENGINE CODE: MB-OM 360 CC: kW: HP: YEAR OF MANUFACTURE: 01/1972 → 12/1979 i Partly/or
O 302/46, 50, 58	MB-OM 360				01/1972 → 12/1979	i Partly/or	O 302/46, 50, 58 ENGINE CODE: MB-OM 360 CC: kW: HP: YEAR OF MANUFACTURE: 01/1972 → 12/1979 i Partly/or

ENGINE CODE

YEAR OF MANUFACTURE

O 302/10 R, 11 R, 12 R

MB-OM 360

01/1972 → 12/1979

O 302/46, 50, 58

MB-OM 360

01/1972 → 12/1979

CASE-STEYR (CNH GLOBAL)

8300-Serie | 87-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
8300	WD 615.84		180	245			8300 ENGINE CODE: WD 615.84 CC: kW: 180 HP: 245

ENGINE CODE

YEAR OF MANUFACTURE

8300

WD 615.84

180

245

CLAAS

Commandor / Dominator CS-Serie (Harvester)

	ENGINE CODE	CC	kW	HP
CO 114 CS	Mercedes Benz OM 421				CO 114 CS ENGINE CODE: Mercedes Benz OM 421 CC: kW: HP:
CO 115 CS	Mercedes Benz OM 421A		184	250	CO 115 CS ENGINE CODE: Mercedes Benz OM 421A CC: kW: 184 HP: 250
CO 116 CS	Mercedes Benz OM 422		202	275	CO 116 CS ENGINE CODE: Mercedes Benz OM 422 CC: kW: 202 HP: 275
DO 114 CS	Mercedes Benz OM 421	10900	162	221	DO 114 CS ENGINE CODE: Mercedes Benz OM 421 CC: 10900 kW: 162 HP: 221
DO 114 CS	Mercedes Benz OM 401-901				DO 114 CS ENGINE CODE: Mercedes Benz OM 401-901 CC: kW: HP:
DO 115 CS	Mercedes Benz OM 421 A	10900	184	250	DO 115 CS ENGINE CODE: Mercedes Benz OM 421 A CC: 10900 kW: 184 HP: 250
DO 116 CS	Mercedes Benz OM 422	14600	203	276	DO 116 CS ENGINE CODE: Mercedes Benz OM 422 CC: 14600 kW: 203 HP: 276
DO 116 CS	Mercedes Benz OM 421A		202	275	DO 116 CS ENGINE CODE: Mercedes Benz OM 421A CC: kW: 202 HP: 275

ENGINE CODE

YEAR OF MANUFACTURE

CO 114 CS

Mercedes Benz OM 421

CO 115 CS

Mercedes Benz OM 421A

184

250

CO 116 CS

Mercedes Benz OM 422

202

275

DO 114 CS

Mercedes Benz OM 421

10900

162

221

DO 114 CS

Mercedes Benz OM 401-901

DO 115 CS

Mercedes Benz OM 421 A

10900

184

250

DO 116 CS

Mercedes Benz OM 422

14600

203

276

DO 116 CS

Mercedes Benz OM 421A

202

275

Dominator (6) (Mähdrescher / Harvesters)

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
106, 106 SL	Mercedes Benz OM 401.901		150	204			106, 106 SL ENGINE CODE: Mercedes Benz OM 401.901 CC: kW: 150 HP: 204
106, 106 SL	Mercedes Benz OM 421		150	204			106, 106 SL ENGINE CODE: Mercedes Benz OM 421 CC: kW: 150 HP: 204

ENGINE CODE

YEAR OF MANUFACTURE

106, 106 SL

Mercedes Benz OM 401.901

150

204

106, 106 SL

Mercedes Benz OM 421

150

204

Dominator (8) (Mähdrescher / Harvesters) | 82-99

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
108 SL	DB OM 421		163	222			108 SL ENGINE CODE: DB OM 421 CC: kW: 163 HP: 222
118 SL	DB OM 441A						118 SL ENGINE CODE: DB OM 441A CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

108 SL

DB OM 421

163

222

118 SL

DB OM 441A

Dominator VX (Mähdrescher / Harvesters)

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
108 VX	MB OM 441 A		191	260			108 VX ENGINE CODE: MB OM 441 A CC: kW: 191 HP: 260

ENGINE CODE

YEAR OF MANUFACTURE

108 VX

MB OM 441 A

191

260

Jaguar (Feldhäcksler / Field Choppers) | 73-

	ENGINE CODE	YEAR OF MANUFACTURE
682 S, 682 SL	DB OM 441A	01/1984 → 12/1994	682 S, 682 SL ENGINE CODE: DB OM 441A CC: kW: HP: YEAR OF MANUFACTURE: 01/1984 → 12/1994
70 SF	DB OM 401	01/1975 → 05/1984	70 SF ENGINE CODE: DB OM 401 CC: kW: HP: YEAR OF MANUFACTURE: 01/1975 → 05/1984
800 (Typ 491)	DB OM 441A	01/1993 → 12/2000	800 (Typ 491) ENGINE CODE: DB OM 441A CC: kW: HP: YEAR OF MANUFACTURE: 01/1993 → 12/2000

ENGINE CODE

YEAR OF MANUFACTURE

682 S, 682 SL

DB OM 441A

01/1984 → 12/1994

70 SF

DB OM 401

01/1975 → 05/1984

800 (Typ 491)

DB OM 441A

01/1993 → 12/2000

Mega (I + II) (Mähdrescher / Harvesters) | 03-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
218	Mercedes Benz OM 441A		199	271			218 ENGINE CODE: Mercedes Benz OM 441A CC: kW: 199 HP: 271
218 (Mega II)	Mercedes Benz OM 441A		199	271			218 (Mega II) ENGINE CODE: Mercedes Benz OM 441A CC: kW: 199 HP: 271

ENGINE CODE

YEAR OF MANUFACTURE

218

Mercedes Benz OM 441A

199

271

218 (Mega II)

Mercedes Benz OM 441A

199

271

FORTSCHRITT (CNH GLOBAL/MDW)

E-Serie

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
E 527 STS	Mercedes-Benz						E 527 STS ENGINE CODE: Mercedes-Benz CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

E 527 STS

Mercedes-Benz

GROVE

A-Serie

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
AT 735 S	DB OM 362/362LA						AT 735 S ENGINE CODE: DB OM 362/362LA CC: kW: HP:
AT 745 S	DB OM 362/362LA						AT 745 S ENGINE CODE: DB OM 362/362LA CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

AT 735 S

DB OM 362/362LA

AT 745 S

DB OM 362/362LA

KAELBLE

SL10-Serie | 87-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
18 C/E	DB OM 427						18 C/E ENGINE CODE: DB OM 427 CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

18 C/E

DB OM 427

SL20-Serie | 87-

	ENGINE CODE	kW	HP	YEAR OF MANUFACTURE
20	MB OM 427				20 ENGINE CODE: MB OM 427 CC: kW: HP:
25 B	MB OM 427A	203	277		25 B ENGINE CODE: MB OM 427A CC: kW: 203 HP: 277
25 C	DB OM 427A	213	290	01/1988 →	25 C ENGINE CODE: DB OM 427A CC: kW: 213 HP: 290 YEAR OF MANUFACTURE: 01/1988 →

ENGINE CODE

YEAR OF MANUFACTURE

MB OM 427

25 B

MB OM 427A

203

277

25 C

DB OM 427A

213

290

01/1988 →

KAESSBOHRER PISTEN BULLY

Pisten Bully | 97-

	ENGINE CODE
210 DR	Mercedes		210 DR ENGINE CODE: Mercedes CC: kW: HP:
220 DR	Mercedes	i Some models	220 DR ENGINE CODE: Mercedes CC: kW: HP: i Some models
230 DR	Mercedes	i Some models	230 DR ENGINE CODE: Mercedes CC: kW: HP: i Some models
270	Mercedes		270 ENGINE CODE: Mercedes CC: kW: HP:
320 D			320 D ENGINE CODE: CC: kW: HP:
330 D			330 D ENGINE CODE: CC: kW: HP:
43.270 D	Mercedes OM 421 A		43.270 D ENGINE CODE: Mercedes OM 421 A CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

210 DR

Mercedes

220 DR

Mercedes

230 DR

Mercedes

270

Mercedes

320 D

330 D

43.270 D

Mercedes OM 421 A

KOMATSU

D (Planierraupen / Bulldozers) | 74-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
D 155 A/S-1 & A-2	Komatsu S6D155		151	205	01/1974 → 12/1994	i Secondary flow	D 155 A/S-1 & A-2 ENGINE CODE: Komatsu S6D155 CC: kW: 151 HP: 205 YEAR OF MANUFACTURE: 01/1974 → 12/1994 i Secondary flow

ENGINE CODE

YEAR OF MANUFACTURE

D 155 A/S-1 & A-2

Komatsu S6D155

151

205

01/1974 → 12/1994

LIEBHERR

LR (Laderaupen / Track Loaders) | 85-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
LR 631 B / C							LR 631 B / C ENGINE CODE: CC: kW: HP:
LR 631 C	DB OM 441		118	161			LR 631 C ENGINE CODE: DB OM 441 CC: kW: 118 HP: 161

ENGINE CODE

YEAR OF MANUFACTURE

LR 631 B / C

LR 631 C

DB OM 441

118

161

PR (Planierraupen / Bulldozers) | 88-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
731 / C / CL / CM	DB OM 421		110	150			731 / C / CL / CM ENGINE CODE: DB OM 421 CC: kW: 110 HP: 150

ENGINE CODE

YEAR OF MANUFACTURE

731 / C / CL / CM

DB OM 421

110

150

LIEBHERR-MOBILKRANE

LG-Serie | 93-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
LG 1130	DB OM 404					i Crane engine DB OM401	LG 1130 ENGINE CODE: DB OM 404 CC: kW: HP: i Crane engine DB OM401

ENGINE CODE

YEAR OF MANUFACTURE

LG 1130

DB OM 404

LT-Serie

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
LT 1300	DB OM 424A					i Crane engine DB OM362A	LT 1300 ENGINE CODE: DB OM 424A CC: kW: HP: i Crane engine DB OM362A

ENGINE CODE

YEAR OF MANUFACTURE

LT 1300

DB OM 424A

LTM-Serie | 90-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
LTM 1160	DB OM 424A					i Crane engine DB OM362A	LTM 1160 ENGINE CODE: DB OM 424A CC: kW: HP: i Crane engine DB OM362A

ENGINE CODE

YEAR OF MANUFACTURE

LTM 1160

DB OM 424A

MAN ENGINES

D25-Serie

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
D2565							D2565 ENGINE CODE: CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

D2565

D28-Serie | 83-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
D2866						i Partly/or	D2866 ENGINE CODE: CC: kW: HP: i Partly/or

ENGINE CODE

YEAR OF MANUFACTURE

D2866

MTU

099 (Motoren / Engines)

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
6R 099 TA 51	Mercedes OM 366A						6R 099 TA 51 ENGINE CODE: Mercedes OM 366A CC: kW: HP:
6R 099 TE 51	Mercedes OM 366LA						6R 099 TE 51 ENGINE CODE: Mercedes OM 366LA CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

6R 099 TA 51

Mercedes OM 366A

6R 099 TE 51

Mercedes OM 366LA

NEW HOLLAND

1500-Serie | 87-98

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
1550	DB OM 360						1550 ENGINE CODE: DB OM 360 CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

1550

DB OM 360

8000-Serie | 93-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
8080	DB OM 401						8080 ENGINE CODE: DB OM 401 CC: kW: HP:
8080	DB OM 402					i Partly/or	8080 ENGINE CODE: DB OM 402 CC: kW: HP: i Partly/or

ENGINE CODE

YEAR OF MANUFACTURE

8080

DB OM 401

8080

DB OM 402

TF-Serie (Mähdrescher / Harvester) | 93-02

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
TF44	DB OM 360						TF44 ENGINE CODE: DB OM 360 CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

TF44

DB OM 360

CLAAS

00 0133 529 1
0133 529 0
0133 529 1

DEMAG (COMPAIR)

760 131 00

EVOBUS/SETRA

8.311.999.137
8.319.000.110

LIEBHERR

700 2914

MAN

51.05504-0048
51.05504-0049
51.05504-0068
51.05504-0084
51.05504-0085
51.05504-0086
51.05504-0091
81.00000-0239
81.05504-0038
81.05504-0040

MERCEDES-BENZ (DAIMLER AG)

001 184 02 25
001 184 04 25
001 184 05 25
362 180 01 10
401 180 00 09
401 184 00 25
A 001 184 02 25
A 001 184 04 25
A 001 184 05 25
A 362 180 01 10
A 401 180 00 09
A 401 184 00 25

RENAULT TRUCKS (OKELIA)

50 21 107 382
50 21 107 439

RENAULT TRUCKS (RVI)

50 00 242 510
50 01 846 630

Date of last data update: 2025-03-31 Print Report now

DIMENSIONS NEW FILTERS AND CHANGES SPECIAL FILTERS

FILTER CATALOGUE

Search results

Find a filter

REACH-Information

OM 514/2

CLIPBOARD

Filtry Filtron
