REACH-Information

SVHC declaration according to the regulation EC 1907/2006 concerning the Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH).

Produkt: OM 515/1 - FILTRON

MANN+HUMMEL is well aware of REACH and meet all legal obligations under this regulation.

MANN+HUMMEL has established internal processes to ensure implementation and compliance with the REACH Regulation. Especially, we continuously work on the assessment of presence of SVHC (Substances of Very High Concern).

We may inform you that according to present level of information and best knowledge, this product does not contain any SVHC listed on the Candidate List in concentration above 0,1% (w/w).

Last update: 2024-09-19

Back

OIL FILTERS

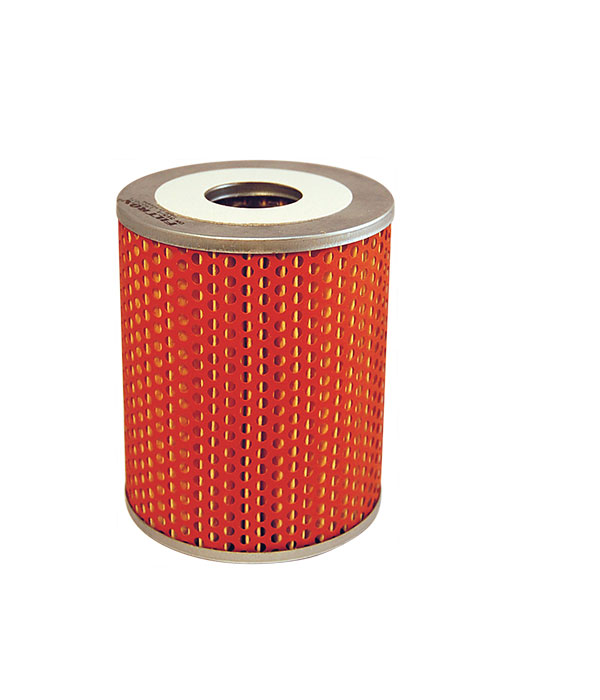

OM 515/1

EAN CODE: 5904608015150

REACH information

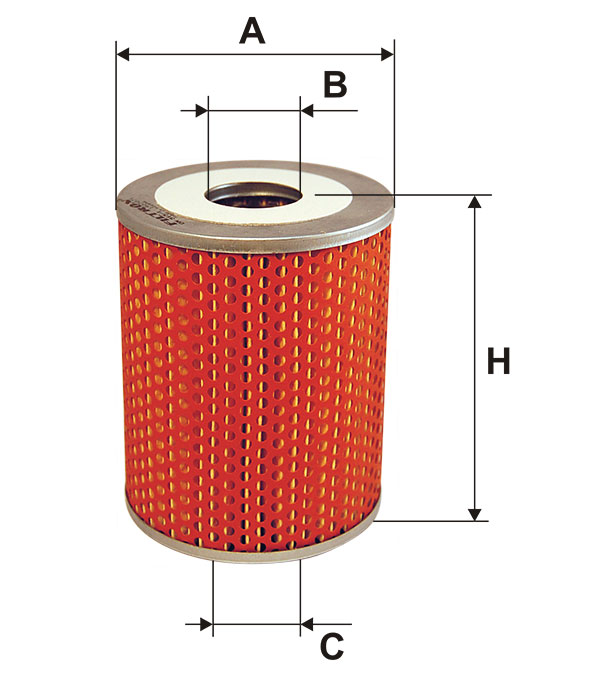

DIMENSIONS (mm):

116

MARCH 2019 Note: change in filter design

Removing the protective paper does not affect the filter's functionality.

The change is planned for the following numbers:
OM 500/1, OM 516/1, PM 801, OM 500, OM 516/2, PM 802, OM 501, OM 516, PM 803, OM 502, OM 522/1, PM 804A, OM 503, OM 523/1, PM 805, OM 504A, OM 524, PM 806, OM 504, OM 529, PM 807, OM 505, OM 585H, PM 808, OM 506, OM 590, PM 810/1, OM 507, OM 591/1, PM 810, OM 508, OC 601, PM 811, OM 509, OC 601/1, PM 812, OM 510, OC 602, PM 813/1, OM 511, OM 610, PM 815, OM 512/3, OM 614, PM 816, OM 513/1-2x, OM 659/2, PM 818, OM 513/2, OM 659, PM 819/1, OM 513, OM 661H, PM 948/1, OM 515/1, PM 800/2, PM 948, OM 515, PM 800

APPLICATION
SUBSTITUTES

BMW

2500 - 3.3 | 68-77

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
2.8 L	M 30 B 28	2788	125	170	02/1975 → 04/1977	2.8 L ENGINE CODE: M 30 B 28 CC: 2788 kW: 125 HP: 170 YEAR OF MANUFACTURE: 02/1975 → 04/1977
2500	M 30 B 25	2494	110	150	10/1968 → 04/1977	2500 ENGINE CODE: M 30 B 25 CC: 2494 kW: 110 HP: 150 YEAR OF MANUFACTURE: 10/1968 → 04/1977
2800	M 30 B 28	2788	125	170	10/1968 → 07/1975	2800 ENGINE CODE: M 30 B 28 CC: 2788 kW: 125 HP: 170 YEAR OF MANUFACTURE: 10/1968 → 07/1975
3.0 L	M 30 B 30	2985	132	180	02/1975 → 04/1977	3.0 L ENGINE CODE: M 30 B 30 CC: 2985 kW: 132 HP: 180 YEAR OF MANUFACTURE: 02/1975 → 04/1977
3.0 S	M 30 B 30	2985	132	180	05/1971 → 04/1977	3.0 S ENGINE CODE: M 30 B 30 CC: 2985 kW: 132 HP: 180 YEAR OF MANUFACTURE: 05/1971 → 04/1977
3.0 Si	M 30 B 30	2985	143	194	10/1975 → 04/1977	3.0 Si ENGINE CODE: M 30 B 30 CC: 2985 kW: 143 HP: 194 YEAR OF MANUFACTURE: 10/1975 → 04/1977
3.0 Si	M 30 B 30	2985	147	200	07/1971 → 09/1975	3.0 Si ENGINE CODE: M 30 B 30 CC: 2985 kW: 147 HP: 200 YEAR OF MANUFACTURE: 07/1971 → 09/1975
3.2 Li	M 30 B 32	3205	147	200	10/1975 → 04/1977	3.2 Li ENGINE CODE: M 30 B 32 CC: 3205 kW: 147 HP: 200 YEAR OF MANUFACTURE: 10/1975 → 04/1977
3.3 L	M 30 B 33	3277	140	190	01/1974 → 09/1976	3.3 L ENGINE CODE: M 30 B 33 CC: 3277 kW: 140 HP: 190 YEAR OF MANUFACTURE: 01/1974 → 09/1976

ENGINE CODE

YEAR OF MANUFACTURE

2.8 L

M 30 B 28

2788

125

170

02/1975 → 04/1977

2500

M 30 B 25

2494

110

150

10/1968 → 04/1977

2800

M 30 B 28

2788

125

170

10/1968 → 07/1975

3.0 L

M 30 B 30

2985

132

180

02/1975 → 04/1977

3.0 S

M 30 B 30

2985

132

180

05/1971 → 04/1977

3.0 Si

M 30 B 30

2985

143

194

10/1975 → 04/1977

3.0 Si

M 30 B 30

2985

147

200

07/1971 → 09/1975

3.2 Li

M 30 B 32

3205

147

200

10/1975 → 04/1977

3.3 L

M 30 B 33

3277

140

190

01/1974 → 09/1976

5 (E12) | 72-81

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
525 (E12)	M 30 B 25	2494	107	146	08/1973 → 10/1976		525 (E12) ENGINE CODE: M 30 B 25 CC: 2494 kW: 107 HP: 146 YEAR OF MANUFACTURE: 08/1973 → 10/1976
525 (E12)	M 30 B 25	2494	110	150	08/1976 → 05/1981	i -> 05/1977	525 (E12) ENGINE CODE: M 30 B 25 CC: 2494 kW: 110 HP: 150 YEAR OF MANUFACTURE: 08/1976 → 05/1981
528 (E12)	M 30 B 28	2788	121	165	01/1975 → 08/1977	i -> 05/1977	528 (E12) ENGINE CODE: M 30 B 28 CC: 2788 kW: 121 HP: 165 YEAR OF MANUFACTURE: 01/1975 → 08/1977
528 (E12)	M 30 B 28	2788	125	170	01/1975 → 08/1977	i -> 05/1977	528 (E12) ENGINE CODE: M 30 B 28 CC: 2788 kW: 125 HP: 170 YEAR OF MANUFACTURE: 01/1975 → 08/1977

ENGINE CODE

YEAR OF MANUFACTURE

525 (E12)

M 30 B 25

2494

107

146

08/1973 → 10/1976

525 (E12)

M 30 B 25

2494

110

150

08/1976 → 05/1981

528 (E12)

M 30 B 28

2788

121

165

01/1975 → 08/1977

528 (E12)

M 30 B 28

2788

125

170

01/1975 → 08/1977

6 (E24) | 76-90

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
628 CSi (E24)	M 30 B 28	2769	135	184	09/1979 → 08/1987	i With oil cooler	628 CSi (E24) ENGINE CODE: M 30 B 28 CC: 2769 kW: 135 HP: 184 YEAR OF MANUFACTURE: 09/1979 → 08/1987 i With oil cooler
630 CS (E24)	M 30 B 30	2986	135	184	04/1976 → 08/1979	i -> 05/1977	630 CS (E24) ENGINE CODE: M 30 B 30 CC: 2986 kW: 135 HP: 184 YEAR OF MANUFACTURE: 04/1976 → 08/1979
630 CS (E24)	M 30 B 30	2966	136	185	04/1976 → 08/1979	i -> 05/1977	630 CS (E24) ENGINE CODE: M 30 B 30 CC: 2966 kW: 136 HP: 185 YEAR OF MANUFACTURE: 04/1976 → 08/1979
633 CSi (E24)	M 30 B 32	3205	147	200	04/1976 → 09/1978	i -> 05/1977	633 CSi (E24) ENGINE CODE: M 30 B 32 CC: 3205 kW: 147 HP: 200 YEAR OF MANUFACTURE: 04/1976 → 09/1978
635 CSi (E24)	M 30 B 35	3400	160	218	06/1978 → 08/1988	i -> 11/1980	635 CSi (E24) ENGINE CODE: M 30 B 35 CC: 3400 kW: 160 HP: 218 YEAR OF MANUFACTURE: 06/1978 → 08/1988
635 CSi/A (E24)	M 30 B 35	3406	160	218	09/1980 → 08/1987	i -> 11/1980	635 CSi/A (E24) ENGINE CODE: M 30 B 35 CC: 3406 kW: 160 HP: 218 YEAR OF MANUFACTURE: 09/1980 → 08/1987

ENGINE CODE

YEAR OF MANUFACTURE

628 CSi (E24)

M 30 B 28

2769

135

184

09/1979 → 08/1987

630 CS (E24)

M 30 B 30

2986

135

184

04/1976 → 08/1979

630 CS (E24)

M 30 B 30

2966

136

185

04/1976 → 08/1979

633 CSi (E24)

M 30 B 32

3205

147

200

04/1976 → 09/1978

635 CSi (E24)

M 30 B 35

3400

160

218

06/1978 → 08/1988

635 CSi/A (E24)

M 30 B 35

3406

160

218

09/1980 → 08/1987

7 (E23) | 77-86

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
735i (E23)	M 30 B 35	3453	160	218	09/1979 → 08/1986	i -> 11/1980	735i (E23) ENGINE CODE: M 30 B 35 CC: 3453 kW: 160 HP: 218 YEAR OF MANUFACTURE: 09/1979 → 08/1986

ENGINE CODE

YEAR OF MANUFACTURE

735i (E23)

M 30 B 35

3453

160

218

09/1979 → 08/1986

CS - CSL | 65-76

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
2.5 CS	M 30 B 25	2494	110	150	09/1974 → 03/1976	2.5 CS ENGINE CODE: M 30 B 25 CC: 2494 kW: 110 HP: 150 YEAR OF MANUFACTURE: 09/1974 → 03/1976
2800 CS	M 30 B 28	2788	125	170	01/1969 → 04/1971	2800 CS ENGINE CODE: M 30 B 28 CC: 2788 kW: 125 HP: 170 YEAR OF MANUFACTURE: 01/1969 → 04/1971
3.0 CS	M 30 B 30	2985	132	180	05/1971 → 03/1976	3.0 CS ENGINE CODE: M 30 B 30 CC: 2985 kW: 132 HP: 180 YEAR OF MANUFACTURE: 05/1971 → 03/1976
3.0 CSi	M 30 B 30	2985	147	200	07/1971 → 03/1976	3.0 CSi ENGINE CODE: M 30 B 30 CC: 2985 kW: 147 HP: 200 YEAR OF MANUFACTURE: 07/1971 → 03/1976
3.0 CSL	M 30 B 32	3153	152	206	01/1974 → 12/1975	3.0 CSL ENGINE CODE: M 30 B 32 CC: 3153 kW: 152 HP: 206 YEAR OF MANUFACTURE: 01/1974 → 12/1975

ENGINE CODE

YEAR OF MANUFACTURE

2.5 CS

M 30 B 25

2494

110

150

09/1974 → 03/1976

2800 CS

M 30 B 28

2788

125

170

01/1969 → 04/1971

3.0 CS

M 30 B 30

2985

132

180

05/1971 → 03/1976

3.0 CSi

M 30 B 30

2985

147

200

07/1971 → 03/1976

3.0 CSL

M 30 B 32

3153

152

206

01/1974 → 12/1975

BMW MARINE POWER

B-Serie

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
B190							B190 ENGINE CODE: CC: kW: HP:
B220							B220 ENGINE CODE: CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

B190

B220

BMW

11 42 1 251 964
11 42 1 256 402
11 42 1 256 714
11 42 1 265 945

FOMOCO

2715E 6731 A
27703E 631 A
753F 6731 BA1A

FORD

5003 138

GENERAL MOTORS (GM)

7984463

MASSEY-FERGUSON

1852331M1

RENAULT TRUCKS (RVI)

00 03 563 602

Date of last data update: 2025-05-29 Print Report now
