Produkt: OM 529 - FILTRON

MANN+HUMMEL is well aware of REACH and meet all legal obligations under this regulation.

MANN+HUMMEL has established internal processes to ensure implementation and compliance with the REACH Regulation. Especially, we continuously work on the assessment of presence of SVHC (Substances of Very High Concern).

We may inform you that according to present level of information and best knowledge, this product does not contain any SVHC listed on the Candidate List in concentration above 0,1% (w/w).

Last update: 2024-09-19

Back

OIL FILTERS

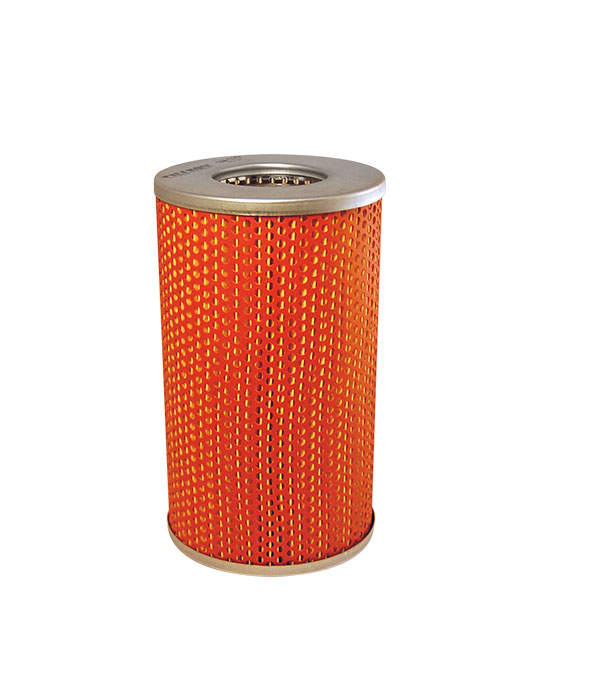

OM 529

EAN CODE: 5904608005298

REACH information

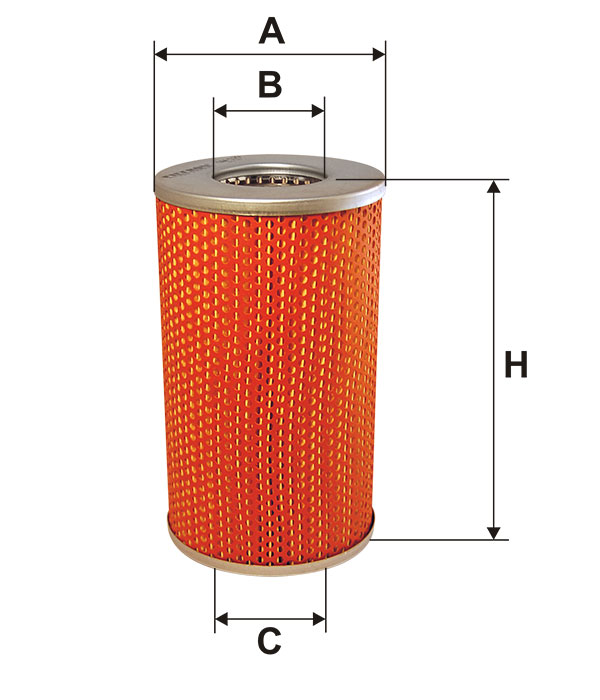

DIMENSIONS (mm):

115

196

MARCH 2019 Note: change in filter design

Removing the protective paper does not affect the filter's functionality.

The change is planned for the following numbers:
OM 500/1, OM 516/1, PM 801, OM 500, OM 516/2, PM 802, OM 501, OM 516, PM 803, OM 502, OM 522/1, PM 804A, OM 503, OM 523/1, PM 805, OM 504A, OM 524, PM 806, OM 504, OM 529, PM 807, OM 505, OM 585H, PM 808, OM 506, OM 590, PM 810/1, OM 507, OM 591/1, PM 810, OM 508, OC 601, PM 811, OM 509, OC 601/1, PM 812, OM 510, OC 602, PM 813/1, OM 511, OM 610, PM 815, OM 512/3, OM 614, PM 816, OM 513/1-2x, OM 659/2, PM 818, OM 513/2, OM 659, PM 819/1, OM 513, OM 661H, PM 948/1, OM 515/1, PM 800/2, PM 948, OM 515, PM 800

APPLICATION
SUBSTITUTES

DROEGMOELLER (VOLVO BUS)

DR-Serie | 73-79

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
DR 30	MB-OM 352				01/1973 → 12/1979		DR 30 ENGINE CODE: MB-OM 352 CC: kW: HP: YEAR OF MANUFACTURE: 01/1973 → 12/1979

ENGINE CODE

YEAR OF MANUFACTURE

DR 30

MB-OM 352

01/1973 → 12/1979

EVOBUS (MERCEDES-BENZ/SETRA)

O 317 | 58-78

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
O 317	OM 346.911	10800	154	210	01/1964 → 12/1965	i Partly/or	O 317 ENGINE CODE: OM 346.911 CC: 10800 kW: 154 HP: 210 YEAR OF MANUFACTURE: 01/1964 → 12/1965 i Partly/or
O 317 K	OM 346.918	10800	132	180	01/1964 → 12/1965		O 317 K ENGINE CODE: OM 346.918 CC: 10800 kW: 132 HP: 180 YEAR OF MANUFACTURE: 01/1964 → 12/1965
O 317..	OM 346.911	10800	154	210	01/1966 → 01/1978		O 317.. ENGINE CODE: OM 346.911 CC: 10800 kW: 154 HP: 210 YEAR OF MANUFACTURE: 01/1966 → 01/1978

ENGINE CODE

YEAR OF MANUFACTURE

O 317

OM 346.911

10800

154

210

01/1964 → 12/1965

O 317 K

OM 346.918

10800

132

180

01/1964 → 12/1965

O 317..

OM 346.911

10800

154

210

01/1966 → 01/1978

O 321 | 57-65

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
O 321 H..	OM 322	5680	93	126	01/1957 → 05/1964	i Partly/or	O 321 H.. ENGINE CODE: OM 322 CC: 5680 kW: 93 HP: 126 YEAR OF MANUFACTURE: 01/1957 → 05/1964 i Partly/or

ENGINE CODE

YEAR OF MANUFACTURE

O 321 H..

OM 322

5680

126

01/1957 → 05/1964

O 322 | 61-65

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
O 322	OM 322	5700	110	150	01/1961 → 05/1964	i Partly/or	O 322 ENGINE CODE: OM 322 CC: 5700 kW: 110 HP: 150 YEAR OF MANUFACTURE: 01/1961 → 05/1964 i Partly/or

ENGINE CODE

YEAR OF MANUFACTURE

O 322

OM 322

5700

110

150

01/1961 → 05/1964

Setra S/SG 200 | 73-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
S 208 H Setra	MB-OM 352.900	5680	124	168	09/1979 → 10/1983		S 208 H Setra ENGINE CODE: MB-OM 352.900 CC: 5680 kW: 124 HP: 168 YEAR OF MANUFACTURE: 09/1979 → 10/1983

ENGINE CODE

YEAR OF MANUFACTURE

S 208 H Setra

MB-OM 352.900

5680

124

168

09/1979 → 10/1983

MAN TRUCK

16t-Serie | 66-82

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
16.304 F	D 2858 MX-090	15400	224	304	05/1971 → 12/1973		16.304 F ENGINE CODE: D 2858 MX-090 CC: 15400 kW: 224 HP: 304 YEAR OF MANUFACTURE: 05/1971 → 12/1973

ENGINE CODE

YEAR OF MANUFACTURE

16.304 F

D 2858 MX-090

15400

224

304

05/1971 → 12/1973

30t-Serie | 71-77

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
30.304 DFSA	D 2858 MX-090	15400	224	304	05/1971 → 12/1973		30.304 DFSA ENGINE CODE: D 2858 MX-090 CC: 15400 kW: 224 HP: 304 YEAR OF MANUFACTURE: 05/1971 → 12/1973

ENGINE CODE

YEAR OF MANUFACTURE

30.304 DFSA

D 2858 MX-090

15400

224

304

05/1971 → 12/1973

F7/F8/F9 | 67-93

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
19.275 DF	D 2658 M 2	15000	202	275	12/1968 → 12/1969	19.275 DF ENGINE CODE: D 2658 M 2 CC: 15000 kW: 202 HP: 275 YEAR OF MANUFACTURE: 12/1968 → 12/1969
22.304 DFSA	D 2858 M 1	15400	224	304	01/1970 → 04/1971	22.304 DFSA ENGINE CODE: D 2858 M 1 CC: 15400 kW: 224 HP: 304 YEAR OF MANUFACTURE: 01/1970 → 04/1971
26.304 DF, DFS, DFK, DFKA	D 2858 MX-090	15400	224	304	05/1971 → 12/1973	26.304 DF, DFS, DFK, DFKA ENGINE CODE: D 2858 MX-090 CC: 15400 kW: 224 HP: 304 YEAR OF MANUFACTURE: 05/1971 → 12/1973

ENGINE CODE

YEAR OF MANUFACTURE

19.275 DF

D 2658 M 2

15000

202

275

12/1968 → 12/1969

22.304 DFSA

D 2858 M 1

15400

224

304

01/1970 → 04/1971

26.304 DF, DFS, DFK, DFKA

D 2858 MX-090

15400

224

304

05/1971 → 12/1973

MERCEDES-BENZ

NG (380.002-395.452/615.026-648.473) | 73-94

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
1017 (380)	OM 353 A	5700	124	168	11/1975 → 02/1991		1017 (380) ENGINE CODE: OM 353 A CC: 5700 kW: 124 HP: 168 YEAR OF MANUFACTURE: 11/1975 → 02/1991
1217 K, AK	OM 353.950,951	5700	124	168	09/1975 → 09/1985		1217 K, AK ENGINE CODE: OM 353.950,951 CC: 5700 kW: 124 HP: 168 YEAR OF MANUFACTURE: 09/1975 → 09/1985

ENGINE CODE

YEAR OF MANUFACTURE

1017 (380)

OM 353 A

5700

124

168

11/1975 → 02/1991

1217 K, AK

OM 353.950,951

5700

124

168

09/1975 → 09/1985

OM-Serie (Motoren / Engines) | 85-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
322							322 ENGINE CODE: CC: kW: HP:
352 A							352 A ENGINE CODE: CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

322

352 A

Unimog-Serie | 56-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
U1300 (425.121)	OM 353.973 A	5675	92	125	01/1977 → 12/1984	i Partly/or 02/1979 ->	U1300 (425.121) ENGINE CODE: OM 353.973 A CC: 5675 kW: 92 HP: 125 YEAR OF MANUFACTURE: 01/1977 → 12/1984 i Partly/or 02/1979 ->
U1500 (425.141)	OM 353.958	5675	110	150	01/1977 → 05/1988	i Partly/or 02/1979 ->	U1500 (425.141) ENGINE CODE: OM 353.958 CC: 5675 kW: 110 HP: 150 YEAR OF MANUFACTURE: 01/1977 → 05/1988 i Partly/or 02/1979 ->
U1550 (424.126)	OM 353.958	5675	110	150	04/1986 → 05/1988	i Partly/or	U1550 (424.126) ENGINE CODE: OM 353.958 CC: 5675 kW: 110 HP: 150 YEAR OF MANUFACTURE: 04/1986 → 05/1988 i Partly/or

ENGINE CODE

YEAR OF MANUFACTURE

U1300 (425.121)

OM 353.973 A

5675

125

01/1977 → 12/1984

U1500 (425.141)

OM 353.958

5675

110

150

01/1977 → 05/1988

U1550 (424.126)

OM 353.958

5675

110

150

04/1986 → 05/1988

NEOPLAN (NEOMAN)

Jetliner | 81-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
Jetliner N 208	MB OM 352A	5958	150	204	01/1983 →		Jetliner N 208 ENGINE CODE: MB OM 352A CC: 5958 kW: 150 HP: 204 YEAR OF MANUFACTURE: 01/1983 →

ENGINE CODE

YEAR OF MANUFACTURE

Jetliner N 208

MB OM 352A

5958

150

204

01/1983 →

RENAULT TRUCKS (RVI)

SM-Serie | 67-84

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
SM 300, T	MAN-D 2658 M 41	14900	224	305	01/1971 → 12/1976	SM 300, T ENGINE CODE: MAN-D 2658 M 41 CC: 14900 kW: 224 HP: 305 YEAR OF MANUFACTURE: 01/1971 → 12/1976
SM 320	MAN-D 2858 M 4	15500	224	304	01/1972 → 12/1974	SM 320 ENGINE CODE: MAN-D 2858 M 4 CC: 15500 kW: 224 HP: 304 YEAR OF MANUFACTURE: 01/1972 → 12/1974
SM 340 V	MAN-D 2858 M 4	15500	246	335	01/1974 → 06/1980	SM 340 V ENGINE CODE: MAN-D 2858 M 4 CC: 15500 kW: 246 HP: 335 YEAR OF MANUFACTURE: 01/1974 → 06/1980

ENGINE CODE

YEAR OF MANUFACTURE

SM 300, T

MAN-D 2658 M 41

14900

224

305

01/1971 → 12/1976

SM 320

MAN-D 2858 M 4

15500

224

304

01/1972 → 12/1974

SM 340 V

MAN-D 2858 M 4

15500

246

335

01/1974 → 06/1980

STEYR (MAN-STEYR AG)

1290-Serie | 69-78

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
1290.320	WD 815.60/70	11964	235	320	01/1973 → 12/1978		1290.320 ENGINE CODE: WD 815.60/70 CC: 11964 kW: 235 HP: 320 YEAR OF MANUFACTURE: 01/1973 → 12/1978

ENGINE CODE

YEAR OF MANUFACTURE

1290.320

WD 815.60/70

11964

235

320

01/1973 → 12/1978

1291-Serie | 78-87

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
1291.260	WD 615.60	9730	191	260	05/1978 → 12/1982	1291.260 ENGINE CODE: WD 615.60 CC: 9730 kW: 191 HP: 260 YEAR OF MANUFACTURE: 05/1978 → 12/1982
1291.280	WD 615.65	9730	206	280	03/1979 → 02/1982	1291.280 ENGINE CODE: WD 615.65 CC: 9730 kW: 206 HP: 280 YEAR OF MANUFACTURE: 03/1979 → 02/1982
1291.310	WD 615.68,78	9726	225	306	09/1985 → 09/1987	1291.310 ENGINE CODE: WD 615.68,78 CC: 9726 kW: 225 HP: 306 YEAR OF MANUFACTURE: 09/1985 → 09/1987
1291.320	WD 815.61	12000	235	320	08/1979 → 11/1982	1291.320 ENGINE CODE: WD 815.61 CC: 12000 kW: 235 HP: 320 YEAR OF MANUFACTURE: 08/1979 → 11/1982
1291.330	WD 815.64	12000	240	327	07/1982 → 09/1987	1291.330 ENGINE CODE: WD 815.64 CC: 12000 kW: 240 HP: 327 YEAR OF MANUFACTURE: 07/1982 → 09/1987

ENGINE CODE

YEAR OF MANUFACTURE

1291.260

WD 615.60

9730

191

260

05/1978 → 12/1982

1291.280

WD 615.65

9730

206

280

03/1979 → 02/1982

1291.310

WD 615.68,78

9726

225

306

09/1985 → 09/1987

1291.320

WD 815.61

12000

235

320

08/1979 → 11/1982

1291.330

WD 815.64

12000

240

327

07/1982 → 09/1987

1390-Serie | 71-78

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
1390.150	WD 610.60	5975	110	150	01/1971 → 12/1978		1390.150 ENGINE CODE: WD 610.60 CC: 5975 kW: 110 HP: 150 YEAR OF MANUFACTURE: 01/1971 → 12/1978
1390.180	WD 610, WD 614	8143	132	180	01/1971 → 12/1975	i Engine code WD 610	1390.180 ENGINE CODE: WD 610, WD 614 CC: 8143 kW: 132 HP: 180 YEAR OF MANUFACTURE: 01/1971 → 12/1975 i Engine code WD 610

ENGINE CODE

YEAR OF MANUFACTURE

1390.150

WD 610.60

5975

110

150

01/1971 → 12/1978

1390.180

WD 610, WD 614

8143

132

180

01/1971 → 12/1975

1391-Serie | 78-87

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
1391.170	WD 612.60	6590	125	170	11/1978 → 09/1987		1391.170 ENGINE CODE: WD 612.60 CC: 6590 kW: 125 HP: 170 YEAR OF MANUFACTURE: 11/1978 → 09/1987

ENGINE CODE

YEAR OF MANUFACTURE

1391.170

WD 612.60

6590

125

170

11/1978 → 09/1987

1490-Serie | 70-78

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
1490.320	WD 815.60/70	11964	235	320	01/1973 → 12/1978		1490.320 ENGINE CODE: WD 815.60/70 CC: 11964 kW: 235 HP: 320 YEAR OF MANUFACTURE: 01/1973 → 12/1978

ENGINE CODE

YEAR OF MANUFACTURE

1490.320

WD 815.60/70

11964

235

320

01/1973 → 12/1978

1491-Serie | 78-87

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
1491.260	WD 615.60	9730	191	260	05/1978 → 12/1982	1491.260 ENGINE CODE: WD 615.60 CC: 9730 kW: 191 HP: 260 YEAR OF MANUFACTURE: 05/1978 → 12/1982
1491.280	WD 615.65	9730	206	280	03/1979 → 02/1982	1491.280 ENGINE CODE: WD 615.65 CC: 9730 kW: 206 HP: 280 YEAR OF MANUFACTURE: 03/1979 → 02/1982
1491.310	WD 615.68,78	9726	225	306	09/1985 → 09/1987	1491.310 ENGINE CODE: WD 615.68,78 CC: 9726 kW: 225 HP: 306 YEAR OF MANUFACTURE: 09/1985 → 09/1987
1491.320	WD 815.61	12000	235	320	08/1979 → 11/1982	1491.320 ENGINE CODE: WD 815.61 CC: 12000 kW: 235 HP: 320 YEAR OF MANUFACTURE: 08/1979 → 11/1982
1491.330	WD 815.64	12000	240	327	07/1982 → 09/1987	1491.330 ENGINE CODE: WD 815.64 CC: 12000 kW: 240 HP: 327 YEAR OF MANUFACTURE: 07/1982 → 09/1987

ENGINE CODE

YEAR OF MANUFACTURE

1491.260

WD 615.60

9730

191

260

05/1978 → 12/1982

1491.280

WD 615.65

9730

206

280

03/1979 → 02/1982

1491.310

WD 615.68,78

9726

225

306

09/1985 → 09/1987

1491.320

WD 815.61

12000

235

320

08/1979 → 11/1982

1491.330

WD 815.64

12000

240

327

07/1982 → 09/1987

1890-Serie | 75-79

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
1890.320	WD 815.60	11967	235	320	01/1975 → 12/1979		1890.320 ENGINE CODE: WD 815.60 CC: 11967 kW: 235 HP: 320 YEAR OF MANUFACTURE: 01/1975 → 12/1979

ENGINE CODE

YEAR OF MANUFACTURE

1890.320

WD 815.60

11967

235

320

01/1975 → 12/1979

1891-Serie | 81-87

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
1891.280	WD 615.67,69,77	9730	206	280	02/1982 → 12/1987	i -> 02/1984	1891.280 ENGINE CODE: WD 615.67,69,77 CC: 9730 kW: 206 HP: 280 YEAR OF MANUFACTURE: 02/1982 → 12/1987
1891.310	WD 615.68	9726	225	305	09/1985 → 09/1987		1891.310 ENGINE CODE: WD 615.68 CC: 9726 kW: 225 HP: 305 YEAR OF MANUFACTURE: 09/1985 → 09/1987
1891.320	WD 815.61	12000	235	320	07/1981 → 06/1982		1891.320 ENGINE CODE: WD 815.61 CC: 12000 kW: 235 HP: 320 YEAR OF MANUFACTURE: 07/1981 → 06/1982
1891.330	WD 815.62,72	12000	240	327	07/1982 → 09/1987		1891.330 ENGINE CODE: WD 815.62,72 CC: 12000 kW: 240 HP: 327 YEAR OF MANUFACTURE: 07/1982 → 09/1987

ENGINE CODE

YEAR OF MANUFACTURE

1891.280

WD 615.67,69,77

9730

206

280

02/1982 → 12/1987

1891.310

WD 615.68

9726

225

305

09/1985 → 09/1987

1891.320

WD 815.61

12000

235

320

07/1981 → 06/1982

1891.330

WD 815.62,72

12000

240

327

07/1982 → 09/1987

19 S | 87-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
19 S 34	WD 815.64,79	11964	250	340	10/1987 → 06/1996	19 S 34 ENGINE CODE: WD 815.64,79 CC: 11964 kW: 250 HP: 340 YEAR OF MANUFACTURE: 10/1987 → 06/1996
19 S 37	WD 815.66,76	11964	270	367	10/1987 → 06/1996	19 S 37 ENGINE CODE: WD 815.66,76 CC: 11964 kW: 270 HP: 367 YEAR OF MANUFACTURE: 10/1987 → 06/1996
19 S 39	WD 815.66	11964	284	386	05/1990 → 06/1996	19 S 39 ENGINE CODE: WD 815.66 CC: 11964 kW: 284 HP: 386 YEAR OF MANUFACTURE: 05/1990 → 06/1996

ENGINE CODE

YEAR OF MANUFACTURE

19 S 34

WD 815.64,79

11964

250

340

10/1987 → 06/1996

19 S 37

WD 815.66,76

11964

270

367

10/1987 → 06/1996

19 S 39

WD 815.66

11964

284

386

05/1990 → 06/1996

22 S | 87-97

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
22 S 34	WD 815.64	11964	250	340	10/1987 → 06/1996		22 S 34 ENGINE CODE: WD 815.64 CC: 11964 kW: 250 HP: 340 YEAR OF MANUFACTURE: 10/1987 → 06/1996
22 S 37	WD 815.66	11964	270	367	10/1987 → 06/1996		22 S 37 ENGINE CODE: WD 815.66 CC: 11964 kW: 270 HP: 367 YEAR OF MANUFACTURE: 10/1987 → 06/1996

ENGINE CODE

YEAR OF MANUFACTURE

22 S 34

WD 815.64

11964

250

340

10/1987 → 06/1996

22 S 37

WD 815.66

11964

270

367

10/1987 → 06/1996

26 S | 87-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
26 S 34	WD 815.64	11964	250	340	10/1987 → 06/1996		26 S 34 ENGINE CODE: WD 815.64 CC: 11964 kW: 250 HP: 340 YEAR OF MANUFACTURE: 10/1987 → 06/1996
26 S 37	WD 815.66,76	11964	270	367	10/1987 → 06/1996		26 S 37 ENGINE CODE: WD 815.66,76 CC: 11964 kW: 270 HP: 367 YEAR OF MANUFACTURE: 10/1987 → 06/1996

ENGINE CODE

YEAR OF MANUFACTURE

26 S 34

WD 815.64

11964

250

340

10/1987 → 06/1996

26 S 37

WD 815.66,76

11964

270

367

10/1987 → 06/1996

2891-Serie | 83-87

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
2891.280	WD 615.93	9730	206	280	09/1983 → 12/1987	i -> 02/1984	2891.280 ENGINE CODE: WD 615.93 CC: 9730 kW: 206 HP: 280 YEAR OF MANUFACTURE: 09/1983 → 12/1987
2891.330	WD 815.97	12000	240	327	10/1983 → 12/1987		2891.330 ENGINE CODE: WD 815.97 CC: 12000 kW: 240 HP: 327 YEAR OF MANUFACTURE: 10/1983 → 12/1987

ENGINE CODE

YEAR OF MANUFACTURE

2891.280

WD 615.93

9730

206

280

09/1983 → 12/1987

2891.330

WD 815.97

12000

240

327

10/1983 → 12/1987

32 S | 87-97

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
32 S 34	WD 815.64,79	11964	250	340	10/1987 → 06/1996		32 S 34 ENGINE CODE: WD 815.64,79 CC: 11964 kW: 250 HP: 340 YEAR OF MANUFACTURE: 10/1987 → 06/1996
32 S 37	WD 815.66,76	11964	270	367	10/1987 → 06/1996		32 S 37 ENGINE CODE: WD 815.66,76 CC: 11964 kW: 270 HP: 367 YEAR OF MANUFACTURE: 10/1987 → 06/1996

ENGINE CODE

YEAR OF MANUFACTURE

32 S 34

WD 815.64,79

11964

250

340

10/1987 → 06/1996

32 S 37

WD 815.66,76

11964

270

367

10/1987 → 06/1996

33 S | 87-96

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
33 S 34	WD 815.67	11964	250	340	10/1987 → 12/1996		33 S 34 ENGINE CODE: WD 815.67 CC: 11964 kW: 250 HP: 340 YEAR OF MANUFACTURE: 10/1987 → 12/1996

ENGINE CODE

YEAR OF MANUFACTURE

33 S 34

WD 815.67

11964

250

340

10/1987 → 12/1996

40 S | 88-96

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
40 S 34	WD 815.67	11964	184	250	01/1988 → 12/1996		40 S 34 ENGINE CODE: WD 815.67 CC: 11964 kW: 184 HP: 250 YEAR OF MANUFACTURE: 01/1988 → 12/1996
40 S 37	WD 815.66	11964	199	270	01/1988 → 12/1996		40 S 37 ENGINE CODE: WD 815.66 CC: 11964 kW: 199 HP: 270 YEAR OF MANUFACTURE: 01/1988 → 12/1996

ENGINE CODE

YEAR OF MANUFACTURE

40 S 34

WD 815.67

11964

184

250

01/1988 → 12/1996

40 S 37

WD 815.66

11964

199

270

01/1988 → 12/1996

586-Serie | 65-83

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
586.132	WD 610.16	5970	71	97	03/1971 → 07/1983		586.132 ENGINE CODE: WD 610.16 CC: 5970 kW: 71 HP: 97 YEAR OF MANUFACTURE: 03/1971 → 07/1983

ENGINE CODE

YEAR OF MANUFACTURE

586.132

WD 610.16

5970

03/1971 → 07/1983

791-Serie | 78-86

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
791.145	WD 612.00	6590	107	145	11/1978 → 02/1986	791.145 ENGINE CODE: WD 612.00 CC: 6590 kW: 107 HP: 145 YEAR OF MANUFACTURE: 11/1978 → 02/1986
791.170	WD 612.60	6590	125	170	11/1978 → 02/1986	791.170 ENGINE CODE: WD 612.60 CC: 6590 kW: 125 HP: 170 YEAR OF MANUFACTURE: 11/1978 → 02/1986
791.195	WD 612.67	6590	144	195	02/1979 → 08/1982	791.195 ENGINE CODE: WD 612.67 CC: 6590 kW: 144 HP: 195 YEAR OF MANUFACTURE: 02/1979 → 08/1982
791.210	WD 612.90	6590	154	210	09/1982 → 02/1986	791.210 ENGINE CODE: WD 612.90 CC: 6590 kW: 154 HP: 210 YEAR OF MANUFACTURE: 09/1982 → 02/1986

ENGINE CODE

YEAR OF MANUFACTURE

791.145

WD 612.00

6590

107

145

11/1978 → 02/1986

791.170

WD 612.60

6590

125

170

11/1978 → 02/1986

791.195

WD 612.67

6590

144

195

02/1979 → 08/1982

791.210

WD 612.90

6590

154

210

09/1982 → 02/1986

890-Serie | 68-79

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
890.132	WD 610.19	5975	97	132	01/1968 → 12/1974		890.132 ENGINE CODE: WD 610.19 CC: 5975 kW: 97 HP: 132 YEAR OF MANUFACTURE: 01/1968 → 12/1974
890.150	WD 610	5975	97	132	01/1968 → 12/1979		890.150 ENGINE CODE: WD 610 CC: 5975 kW: 97 HP: 132 YEAR OF MANUFACTURE: 01/1968 → 12/1979

ENGINE CODE

YEAR OF MANUFACTURE

890.132

WD 610.19

5975

132

01/1968 → 12/1974

890.150

WD 610

5975

132

01/1968 → 12/1979

891-Serie | 78-86

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
891.170	WD 612.60	6560	125	170	11/1978 → 02/1986		891.170 ENGINE CODE: WD 612.60 CC: 6560 kW: 125 HP: 170 YEAR OF MANUFACTURE: 11/1978 → 02/1986

ENGINE CODE

YEAR OF MANUFACTURE

891.170

WD 612.60

6560

125

170

11/1978 → 02/1986

991-Serie | 78-87

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
991.200	WD 615.00	9730	148	201	05/1978 → 12/1987		991.200 ENGINE CODE: WD 615.00 CC: 9730 kW: 148 HP: 201 YEAR OF MANUFACTURE: 05/1978 → 12/1987

ENGINE CODE

YEAR OF MANUFACTURE

991.200

WD 615.00

9730

148

201

05/1978 → 12/1987

TATRA

JAMAL | 98-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
270 (T163)	T3B 928-40, T3C 928-81	12667	270	367	01/1998 →	270 (T163) ENGINE CODE: T3B 928-40, T3C 928-81 CC: 12667 kW: 270 HP: 367 YEAR OF MANUFACTURE: 01/1998 →
280 (T163)	T3D 928-20	12667	280	381	01/2006 →	280 (T163) ENGINE CODE: T3D 928-20 CC: 12667 kW: 280 HP: 381 YEAR OF MANUFACTURE: 01/2006 →
300 (T163)	T3B 928-70, T3C 928-90	12667	300	408	01/1998 →	300 (T163) ENGINE CODE: T3B 928-70, T3C 928-90 CC: 12667 kW: 300 HP: 408 YEAR OF MANUFACTURE: 01/1998 →
320 (T163)	T3D 928-30	12667	320	435	01/2006 →	320 (T163) ENGINE CODE: T3D 928-30 CC: 12667 kW: 320 HP: 435 YEAR OF MANUFACTURE: 01/2006 →
325 (T163)	T3D 928-30	12667	325	442	01/2008 →	325 (T163) ENGINE CODE: T3D 928-30 CC: 12667 kW: 325 HP: 442 YEAR OF MANUFACTURE: 01/2008 →

ENGINE CODE

YEAR OF MANUFACTURE

270 (T163)

T3B 928-40, T3C 928-81

12667

270

367

01/1998 →

280 (T163)

T3D 928-20

12667

280

381

01/2006 →

300 (T163)

T3B 928-70, T3C 928-90

12667

300

408

01/1998 →

320 (T163)

T3D 928-30

12667

320

435

01/2006 →

325 (T163)

T3D 928-30

12667

325

442

01/2008 →

T815 / T815-2 / T815-7 | 83-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
T 815-2	T3B 928-60	12667	255	347	01/1989 →	i Height: 196 mm 01/1996 ->	T 815-2 ENGINE CODE: T3B 928-60 CC: 12667 kW: 255 HP: 347 YEAR OF MANUFACTURE: 01/1989 → i Height: 196 mm 01/1996 ->
T 815-2	T3B 928-10/50	12667	230	313	01/1989 →	i Height: 196 mm 01/1996 ->	T 815-2 ENGINE CODE: T3B 928-10/50 CC: 12667 kW: 230 HP: 313 YEAR OF MANUFACTURE: 01/1989 → i Height: 196 mm 01/1996 ->
T 815-2	T3B 928-40, T3C 928-81	12667	270	367	01/1989 →	i Height: 196 mm 01/1996 ->	T 815-2 ENGINE CODE: T3B 928-40, T3C 928-81 CC: 12667 kW: 270 HP: 367 YEAR OF MANUFACTURE: 01/1989 → i Height: 196 mm 01/1996 ->
T 815-2	T3B 928-70, T3C 928-90	12667	300	408	01/1989 →	i Height: 196 mm 01/1996 ->	T 815-2 ENGINE CODE: T3B 928-70, T3C 928-90 CC: 12667 kW: 300 HP: 408 YEAR OF MANUFACTURE: 01/1989 → i Height: 196 mm 01/1996 ->
T 815-2	T3D 928-20	12667	280	381	01/2006 →		T 815-2 ENGINE CODE: T3D 928-20 CC: 12667 kW: 280 HP: 381 YEAR OF MANUFACTURE: 01/2006 →
T 815-2	T3D 928-30	12667	320	435	01/2006 →		T 815-2 ENGINE CODE: T3D 928-30 CC: 12667 kW: 320 HP: 435 YEAR OF MANUFACTURE: 01/2006 →
T 815-2	T3D 928-30	12667	325	442	01/2008 →		T 815-2 ENGINE CODE: T3D 928-30 CC: 12667 kW: 325 HP: 442 YEAR OF MANUFACTURE: 01/2008 →
T 815-7 (T815-732R90 50 325 8x8)	T3D 928-30	12667	325	442	01/2013 →		T 815-7 (T815-732R90 50 325 8x8) ENGINE CODE: T3D 928-30 CC: 12667 kW: 325 HP: 442 YEAR OF MANUFACTURE: 01/2013 →

ENGINE CODE

YEAR OF MANUFACTURE

T 815-2

T3B 928-60

12667

255

347

01/1989 →

T 815-2

T3B 928-10/50

12667

230

313

01/1989 →

T 815-2

T3B 928-40, T3C 928-81

12667

270

367

01/1989 →

T 815-2

T3B 928-70, T3C 928-90

12667

300

408

01/1989 →

T 815-2

T3D 928-20

12667

280

381

01/2006 →

T 815-2

T3D 928-30

12667

320

435

01/2006 →

T 815-2

T3D 928-30

12667

325

442

01/2008 →

T 815-7 (T815-732R90 50 325 8x8)

T3D 928-30

12667

325

442

01/2013 →

TERRNo1 | 97-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
270 (T815)	T3B 928-40, T3C 928-81	12667	270	367	01/1997 →	270 (T815) ENGINE CODE: T3B 928-40, T3C 928-81 CC: 12667 kW: 270 HP: 367 YEAR OF MANUFACTURE: 01/1997 →
280 (T815)	T3D 928-20	12667	280	381	01/2006 →	280 (T815) ENGINE CODE: T3D 928-20 CC: 12667 kW: 280 HP: 381 YEAR OF MANUFACTURE: 01/2006 →
300 (T815)	T3B 928-70, T3C 928-90	12667	300	408	01/1997 →	300 (T815) ENGINE CODE: T3B 928-70, T3C 928-90 CC: 12667 kW: 300 HP: 408 YEAR OF MANUFACTURE: 01/1997 →
320 (T815)	T3D 928-30	12667	320	435	01/2006 →	320 (T815) ENGINE CODE: T3D 928-30 CC: 12667 kW: 320 HP: 435 YEAR OF MANUFACTURE: 01/2006 →
325 (T815)	T3D 928-30	12667	325	442	01/2008 →	325 (T815) ENGINE CODE: T3D 928-30 CC: 12667 kW: 325 HP: 442 YEAR OF MANUFACTURE: 01/2008 →

ENGINE CODE

YEAR OF MANUFACTURE

270 (T815)

T3B 928-40, T3C 928-81

12667

270

367

01/1997 →

280 (T815)

T3D 928-20

12667

280

381

01/2006 →

300 (T815)

T3B 928-70, T3C 928-90

12667

300

408

01/1997 →

320 (T815)

T3D 928-30

12667

320

435

01/2006 →

325 (T815)

T3D 928-30

12667

325

442

01/2008 →

BOMAG

MPH-Serie

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
100 R	GMC 8V-71					i Use for OE no. 853531105	100 R ENGINE CODE: GMC 8V-71 CC: kW: HP: i Use for OE no. 853531105

ENGINE CODE

YEAR OF MANUFACTURE

100 R

GMC 8V-71

CASE CONSTRUCTION

1100-Serie | 95-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
1150						i Use for OE no. D35995	1150 ENGINE CODE: CC: kW: HP: i Use for OE no. D35995

ENGINE CODE

YEAR OF MANUFACTURE

1150

800-Serie | 17-20

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
850						i Use for OE no. D35995	850 ENGINE CODE: CC: kW: HP: i Use for OE no. D35995
850						i Use for OE no. D35995	850 ENGINE CODE: CC: kW: HP: i Use for OE no. D35995

ENGINE CODE

YEAR OF MANUFACTURE

850

CASE-STEYR (CNH GLOBAL)

1000-Serie

	ENGINE CODE
1090, 1090 A		i Partly/or	1090, 1090 A ENGINE CODE: CC: kW: HP: i Partly/or
1100			1100 ENGINE CODE: CC: kW: HP:
1200	WD 612.40	i Partly/or	1200 ENGINE CODE: WD 612.40 CC: kW: HP: i Partly/or

ENGINE CODE

YEAR OF MANUFACTURE

1090, 1090 A

1100

1200

WD 612.40

CLAAS

Dominator (5) (Mähdrescher / Harvesters) | 14-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
85	DB OM 352A						85 ENGINE CODE: DB OM 352A CC: kW: HP:
85 H	DB OM 352A						85 H ENGINE CODE: DB OM 352A CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

DB OM 352A

85 H

DB OM 352A

Dominator (6) (Mähdrescher / Harvesters)

	ENGINE CODE
76 H	DB OM 352A	i From chassis no. 08403675	76 H ENGINE CODE: DB OM 352A CC: kW: HP: i From chassis no. 08403675
86	DB OM 352A	i From chassis no. 08701399. Use for OE no. 00 0133 499 0	86 ENGINE CODE: DB OM 352A CC: kW: HP: i From chassis no. 08701399. Use for OE no. 00 0133 499 0
96	DB OM 352A		96 ENGINE CODE: DB OM 352A CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

76 H

DB OM 352A

Dominator (8) (Mähdrescher / Harvesters) | 82-99

	ENGINE CODE	kW	HP
78 SL	DB OM 352 A			78 SL ENGINE CODE: DB OM 352 A CC: kW: HP:
78 SL	DB OM 352			78 SL ENGINE CODE: DB OM 352 CC: kW: HP:
88 S	DB OM 352A	110	150	88 S ENGINE CODE: DB OM 352A CC: kW: 110 HP: 150
98 SL	DB OM 352A	171	232	98 SL ENGINE CODE: DB OM 352A CC: kW: 171 HP: 232
98, 98 S	DB OM 352A	118	160	98, 98 S ENGINE CODE: DB OM 352A CC: kW: 118 HP: 160

ENGINE CODE

YEAR OF MANUFACTURE

78 SL

DB OM 352 A

78 SL

DB OM 352

88 S

DB OM 352A

110

150

98 SL

DB OM 352A

171

232

98, 98 S

DB OM 352A

118

160

Jaguar (Feldhäcksler / Field Choppers) | 73-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
70 SF	DB OM 352A				01/1975 → 05/1984		70 SF ENGINE CODE: DB OM 352A CC: kW: HP: YEAR OF MANUFACTURE: 01/1975 → 05/1984

ENGINE CODE

YEAR OF MANUFACTURE

70 SF

DB OM 352A

01/1975 → 05/1984

FAUN

K-Serie | 69-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
K 80 W 4x2	MTU12V493TZ	59200	669	910	01/1973 → 12/1974		K 80 W 4x2 ENGINE CODE: MTU12V493TZ CC: 59200 kW: 669 HP: 910 YEAR OF MANUFACTURE: 01/1973 → 12/1974

ENGINE CODE

YEAR OF MANUFACTURE

K 80 W 4x2

MTU12V493TZ

59200

669

910

01/1973 → 12/1974

FAUN-FRISCH (O+K)

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
400						i Use for OE no. 1470841	400 ENGINE CODE: CC: kW: HP: i Use for OE no. 1470841

ENGINE CODE

YEAR OF MANUFACTURE

400

JOHN DEERE

600-Serie | 81-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
690 B / 693 B						i Use for OE no. AT71583	690 B / 693 B ENGINE CODE: CC: kW: HP: i Use for OE no. AT71583

ENGINE CODE

YEAR OF MANUFACTURE

690 B / 693 B

800-Serie | 68-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
890						i Use for OE no. AT71583	890 ENGINE CODE: CC: kW: HP: i Use for OE no. AT71583
890 A						i Use for OE no. AT71583	890 A ENGINE CODE: CC: kW: HP: i Use for OE no. AT71583

ENGINE CODE

YEAR OF MANUFACTURE

890

890 A

KAELBLE

SL10-Serie | 87-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
12 B/C	DB OM 352A						12 B/C ENGINE CODE: DB OM 352A CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

12 B/C

DB OM 352A

KAESSBOHRER PISTEN BULLY

Pisten Bully | 97-

	ENGINE CODE
145 B	Mercedes	145 B ENGINE CODE: Mercedes CC: kW: HP:
36.200	Mercedes OM 352 LA	36.200 ENGINE CODE: Mercedes OM 352 LA CC: kW: HP:
39.200 D	Mercedes OM 352 LA	39.200 D ENGINE CODE: Mercedes OM 352 LA CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

145 B

Mercedes

36.200

Mercedes OM 352 LA

39.200 D

Mercedes OM 352 LA

KRUPP-MOBILKRANE

AMK-Serie | 64-68

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
AMK 18	D 573.18	7270	147	200	01/1964 → 01/1968		AMK 18 ENGINE CODE: D 573.18 CC: 7270 kW: 147 HP: 200 YEAR OF MANUFACTURE: 01/1964 → 01/1968

ENGINE CODE

YEAR OF MANUFACTURE

AMK 18

D 573.18

7270

147

200

01/1964 → 01/1968

MK-Serie | 64-68

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
MK 17	D 573.20	7270	147	200	01/1964 → 01/1968		MK 17 ENGINE CODE: D 573.20 CC: 7270 kW: 147 HP: 200 YEAR OF MANUFACTURE: 01/1964 → 01/1968
MK 18	D 573.18	7270	147	200	01/1964 → 01/1968		MK 18 ENGINE CODE: D 573.18 CC: 7270 kW: 147 HP: 200 YEAR OF MANUFACTURE: 01/1964 → 01/1968

ENGINE CODE

YEAR OF MANUFACTURE

MK 17

D 573.20

7270

147

200

01/1964 → 01/1968

MK 18

D 573.18

7270

147

200

01/1964 → 01/1968

LIEBHERR

LR (Laderaupen / Track Loaders) | 85-

	ENGINE CODE	kW	HP	YEAR OF MANUFACTURE
LR 612 B					i Use for OE no. 7004520	LR 612 B ENGINE CODE: CC: kW: HP: i Use for OE no. 7004520
LR 621 B / C / (LH-Motor)					i Series LR 621 B ->No. 1000	LR 621 B / C / (LH-Motor) ENGINE CODE: CC: kW: HP: i Series LR 621 B ->No. 1000
LR 621, LR 621 B/BM	DB OM 352A	81	110	→ 12/1993		LR 621, LR 621 B/BM ENGINE CODE: DB OM 352A CC: kW: 81 HP: 110 YEAR OF MANUFACTURE: → 12/1993

ENGINE CODE

YEAR OF MANUFACTURE

LR 612 B

LR 621 B / C / (LH-Motor)

LR 621, LR 621 B/BM

DB OM 352A

110

→ 12/1993

PR (Planierraupen / Bulldozers) | 88-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
721 C	Liebherr D904T					i Up to chassis no. 1500	721 C ENGINE CODE: Liebherr D904T CC: kW: HP: i Up to chassis no. 1500
721 C / CM	DB OM 352A		81	110			721 C / CM ENGINE CODE: DB OM 352A CC: kW: 81 HP: 110

ENGINE CODE

YEAR OF MANUFACTURE

721 C

Liebherr D904T

721 C / CM

DB OM 352A

110

LIEBHERR-MOBILKRANE

LTM-Serie | 90-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
LTM 1070	DB OM 442A					i Crane engine DB OM352A	LTM 1070 ENGINE CODE: DB OM 442A CC: kW: HP: i Crane engine DB OM352A

ENGINE CODE

YEAR OF MANUFACTURE

LTM 1070

DB OM 442A

MTU

396 (Motoren / Engines)

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
12V 396							12V 396 ENGINE CODE: CC: kW: HP:
16V 396							16V 396 ENGINE CODE: CC: kW: HP:
8V 396							8V 396 ENGINE CODE: CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

12V 396

16V 396

8V 396

NEW HOLLAND

8000-Serie (Ford) | 68-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
8055	MB OM 352 A						8055 ENGINE CODE: MB OM 352 A CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

8055

MB OM 352 A

8000-Serie | 93-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
8070	DB OM 352A						8070 ENGINE CODE: DB OM 352A CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

8070

DB OM 352A

ZETTELMEYER (VOLVO)

ZL-Serie | 88-

	ENGINE CODE
1700	MB OM 352 A	1700 ENGINE CODE: MB OM 352 A CC: kW: HP:
2000, 2001	MB OM 352 A	2000, 2001 ENGINE CODE: MB OM 352 A CC: kW: HP:
4000, 4001	MB OM 352 A	4000, 4001 ENGINE CODE: MB OM 352 A CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

1700

MB OM 352 A

2000, 2001

MB OM 352 A

4000, 4001

MB OM 352 A

BOMAG

96006354

CASE CONSTRUCTION

L-51619

CLAAS

00 0133 499 0
0133 499 0

DEMAG (COMPAIR)

760 594 00

FAUN

4796-439

FOMOCO

A730 X 6744 F3A

FORD

5000 847
5000 848
A 730 X 6744 F3A

FRISCH

147-0841

JOHN DEERE

AT45811
AT71583

KAELBLE

400 01 317

KRUPP

7.9999.211.62

LIEBHERR

550 7372
550 8423
700 4520

LINK-BELT

20P14

MAN

81.05504-0025
81.05504-0027

MARVEL

676366-5125
6763665140
6763667110
M-2361-34
M-2490
M-2940

MASSEY-FERGUSON

133499C0
CL133499C0

MERCEDES-BENZ (DAIMLER AG)

000 184 21 45
000 184 40 25
000 184 41 25
001 184 49 25
001 184 67 25
001 184 72 25
352 180 02 09
A 000 184 21 45
A 000 184 40 25
A 000 184 41 25
A 001 184 49 25
A 001 184 67 25
A 001 184 72 25
A 352 180 02 09

MTU

000 184 4125
001 184 72 25

NEW HOLLAND (CNH)

419550

RENAULT TRUCKS (RVI)

00 05 311 053
77 01 006 018
77 01 006 020
77 01 009 924

SDMO

330510029
FHU702

STEYR-DAIMLER-PUCH

5.590.01.000.356
609 F 07.0060
609 F 07.60
609.60.728
610.00.07.0013
610.00.07.0050
610.000.07.0050

SULLAIR

2132170

TATRA

442900356000

Date of last data update: 2025-05-29 Print Report now

DIMENSIONS NEW FILTERS AND CHANGES SPECIAL FILTERS

FILTER CATALOGUE

Search results

Find a filter

REACH-Information

OM 529

CLIPBOARD

Filtry Filtron
