SVHC declaration according to the regulation EC 1907/2006 concerning the Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH).

Produkt: OP 543 - FILTRON

MANN+HUMMEL is well aware of REACH and meet all legal obligations under this regulation.

MANN+HUMMEL has established internal processes to ensure implementation and compliance with the REACH Regulation. Especially, we continuously work on the assessment of presence of SVHC (Substances of Very High Concern).

We may inform you that according to present level of information and best knowledge, this product does not contain any SVHC listed on the Candidate List in concentration above 0,1% (w/w).

Last update: 2024-09-19

Back

OIL FILTERS

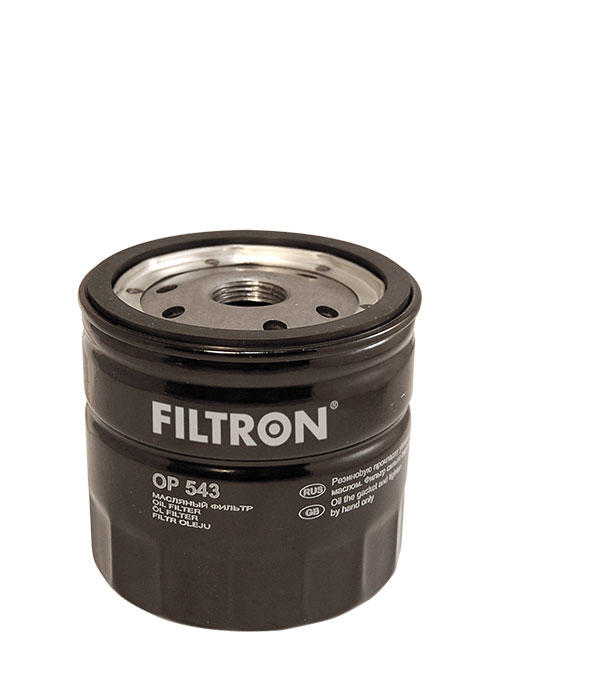

OP 543

EAN CODE: 5904608005434

REACH information

DIMENSIONS (mm):

93.5

M22x1.5

89.5

By-pass Valve

Yes

Anti-Drain Valve

Yes

Anti-siphon Valve

APPLICATION
SUBSTITUTES

FORD

Fiesta Courier II | 96-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
1.8 DI		1753	55	75	09/2000 → 08/2003		1.8 DI ENGINE CODE: CC: 1753 kW: 55 HP: 75 YEAR OF MANUFACTURE: 09/2000 → 08/2003

ENGINE CODE

YEAR OF MANUFACTURE

1.8 DI

1753

09/2000 → 08/2003

Fiesta IV / Fiesta Mk IV + V | 95-02

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
1.8 DI Turbodiesel	Lynx TC(RTN/RTP/RTQ)	1753	55	75	04/2000 → 04/2002		1.8 DI Turbodiesel ENGINE CODE: Lynx TC(RTN/RTP/RTQ) CC: 1753 kW: 55 HP: 75 YEAR OF MANUFACTURE: 04/2000 → 04/2002
1.8 TDI Turbodiesel	C9DC	1753	66	90	03/2000 → 04/2002		1.8 TDI Turbodiesel ENGINE CODE: C9DC CC: 1753 kW: 66 HP: 90 YEAR OF MANUFACTURE: 03/2000 → 04/2002

ENGINE CODE

YEAR OF MANUFACTURE

1.8 DI Turbodiesel

Lynx TC(RTN/RTP/RTQ)

1753

04/2000 → 04/2002

1.8 TDI Turbodiesel

C9DC

1753

03/2000 → 04/2002

Focus I | 98-04

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
1.8 DI	BHDA, BHDB	1753	55	75	10/1999 → 12/2004	1.8 DI ENGINE CODE: BHDA, BHDB CC: 1753 kW: 55 HP: 75 YEAR OF MANUFACTURE: 10/1999 → 12/2004
1.8 TDCi	F9DA/DB	1796	85	115	03/2001 → 12/2004	1.8 TDCi ENGINE CODE: F9DA/DB CC: 1796 kW: 85 HP: 115 YEAR OF MANUFACTURE: 03/2001 → 12/2004
1.8 TDCi	FFDA	1796	74	100	09/2002 → 12/2004	1.8 TDCi ENGINE CODE: FFDA CC: 1796 kW: 74 HP: 100 YEAR OF MANUFACTURE: 09/2002 → 12/2004
1.8 TDDi	C9DA/B/C	1753	66	90	09/1998 → 12/2004	1.8 TDDi ENGINE CODE: C9DA/B/C CC: 1753 kW: 66 HP: 90 YEAR OF MANUFACTURE: 09/1998 → 12/2004

ENGINE CODE

YEAR OF MANUFACTURE

1.8 DI

BHDA, BHDB

1753

10/1999 → 12/2004

1.8 TDCi

F9DA/DB

1796

115

03/2001 → 12/2004

1.8 TDCi

FFDA

1796

100

09/2002 → 12/2004

1.8 TDDi

C9DA/B/C

1753

09/1998 → 12/2004

Tourneo Connect | 02-13

	ENGINE CODE	kW	HP	YEAR OF MANUFACTURE
1.8 TDCi Turbodiesel	Duratorq	66	90	09/2002 → 12/2013	1.8 TDCi Turbodiesel ENGINE CODE: Duratorq CC: kW: 66 HP: 90 YEAR OF MANUFACTURE: 09/2002 → 12/2013
1.8 TDCi Turbodiesel	Duratorq	81	110	08/2006 → 12/2013	1.8 TDCi Turbodiesel ENGINE CODE: Duratorq CC: kW: 81 HP: 110 YEAR OF MANUFACTURE: 08/2006 → 12/2013
1.8 TDDi Turbodiesel	Duratorq	55	75	09/2002 → 12/2013	1.8 TDDi Turbodiesel ENGINE CODE: Duratorq CC: kW: 55 HP: 75 YEAR OF MANUFACTURE: 09/2002 → 12/2013

ENGINE CODE

YEAR OF MANUFACTURE

1.8 TDCi Turbodiesel

Duratorq

09/2002 → 12/2013

1.8 TDCi Turbodiesel

Duratorq

110

08/2006 → 12/2013

1.8 TDDi Turbodiesel

Duratorq

09/2002 → 12/2013

Tourneo | 94-00

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
2.5 D	4FA,4FB,4FC		51	70	11/1994 → 12/2000	2.5 D ENGINE CODE: 4FA,4FB,4FC CC: kW: 51 HP: 70 YEAR OF MANUFACTURE: 11/1994 → 12/2000
2.5 D	4HA,4HB,4HC		56	76	11/1994 → 12/2000	2.5 D ENGINE CODE: 4HA,4HB,4HC CC: kW: 56 HP: 76 YEAR OF MANUFACTURE: 11/1994 → 12/2000
2.5 D Turbo	4GA,4GB,4GC		63	86	11/1994 → 12/2000	2.5 D Turbo ENGINE CODE: 4GA,4GB,4GC CC: kW: 63 HP: 86 YEAR OF MANUFACTURE: 11/1994 → 12/2000
2.5 D Turbo TDE		2496	74	100	11/1998 → 12/2000	2.5 D Turbo TDE ENGINE CODE: CC: 2496 kW: 74 HP: 100 YEAR OF MANUFACTURE: 11/1998 → 12/2000

ENGINE CODE

YEAR OF MANUFACTURE

2.5 D

4FA,4FB,4FC

11/1994 → 12/2000

2.5 D

4HA,4HB,4HC

11/1994 → 12/2000

2.5 D Turbo

4GA,4GB,4GC

11/1994 → 12/2000

2.5 D Turbo TDE

2496

100

11/1998 → 12/2000

Transit 77 | 77-86

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
2.5 D	4AB	2496	50	68	05/1984 → 10/1986		2.5 D ENGINE CODE: 4AB CC: 2496 kW: 50 HP: 68 YEAR OF MANUFACTURE: 05/1984 → 10/1986

ENGINE CODE

YEAR OF MANUFACTURE

2.5 D

4AB

2496

05/1984 → 10/1986

Transit 86 | 85-92

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
2.5 D	4AB	2496	50	68	05/1986 → 09/1991	2.5 D ENGINE CODE: 4AB CC: 2496 kW: 50 HP: 68 YEAR OF MANUFACTURE: 05/1986 → 09/1991
2.5 D	4CA	2496	52	71	11/1988 → 09/1991	2.5 D ENGINE CODE: 4CA CC: 2496 kW: 52 HP: 71 YEAR OF MANUFACTURE: 11/1988 → 09/1991
2.5 D	4AB	2468	50	68	09/1985 → 01/1989	2.5 D ENGINE CODE: 4AB CC: 2468 kW: 50 HP: 68 YEAR OF MANUFACTURE: 09/1985 → 01/1989
2.5 D	4AE	2496	60	82	10/1985 → 03/1991	2.5 D ENGINE CODE: 4AE CC: 2496 kW: 60 HP: 82 YEAR OF MANUFACTURE: 10/1985 → 03/1991

ENGINE CODE

YEAR OF MANUFACTURE

2.5 D

4AB

2496

05/1986 → 09/1991

2.5 D

4CA

2496

11/1988 → 09/1991

2.5 D

4AB

2468

09/1985 → 01/1989

2.5 D

4AE

2496

10/1985 → 03/1991

Transit 92 | 91-94

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
2.5 D	4FA	2496	51	69	05/1991 → 09/1994	2.5 D ENGINE CODE: 4FA CC: 2496 kW: 51 HP: 69 YEAR OF MANUFACTURE: 05/1991 → 09/1994
2.5 D	4DA	2496	59	80	09/1991 → 09/1994	2.5 D ENGINE CODE: 4DA CC: 2496 kW: 59 HP: 80 YEAR OF MANUFACTURE: 09/1991 → 09/1994
2.5 D	4GC	2496	63	86	10/1992 → 09/1994	2.5 D ENGINE CODE: 4GC CC: 2496 kW: 63 HP: 86 YEAR OF MANUFACTURE: 10/1992 → 09/1994
2.5 TD	4EB	2496	74	100	09/1991 → 09/1994	2.5 TD ENGINE CODE: 4EB CC: 2496 kW: 74 HP: 100 YEAR OF MANUFACTURE: 09/1991 → 09/1994
2.5 TD	4EB	2496	74	101	05/1991 → 09/1994	2.5 TD ENGINE CODE: 4EB CC: 2496 kW: 74 HP: 101 YEAR OF MANUFACTURE: 05/1991 → 09/1994
2.5 TD	4GC	2496	63	85	01/1993 → 09/1994	2.5 TD ENGINE CODE: 4GC CC: 2496 kW: 63 HP: 85 YEAR OF MANUFACTURE: 01/1993 → 09/1994

ENGINE CODE

YEAR OF MANUFACTURE

2.5 D

4FA

2496

05/1991 → 09/1994

2.5 D

4DA

2496

09/1991 → 09/1994

2.5 D

4GC

2496

10/1992 → 09/1994

2.5 TD

4EB

2496

100

09/1991 → 09/1994

2.5 TD

4EB

2496

101

05/1991 → 09/1994

2.5 TD

4GC

2496

01/1993 → 09/1994

Transit 95 | 94-00

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
2.5 D	4HB	2496	56	76	07/1994 → 12/2000	2.5 D ENGINE CODE: 4HB CC: 2496 kW: 56 HP: 76 YEAR OF MANUFACTURE: 07/1994 → 12/2000
2.5 D		2496	51	70	08/1995 → 12/2000	2.5 D ENGINE CODE: CC: 2496 kW: 51 HP: 70 YEAR OF MANUFACTURE: 08/1995 → 12/2000
2.5 D (EBL,EDL,EDS,E)		2496	63	85	08/1997 → 12/2000	2.5 D (EBL,EDL,EDS,E) ENGINE CODE: CC: 2496 kW: 63 HP: 85 YEAR OF MANUFACTURE: 08/1997 → 12/2000
2.5 D (EDL, EDS)		2496	56	76	08/1995 → 12/2000	2.5 D (EDL, EDS) ENGINE CODE: CC: 2496 kW: 56 HP: 76 YEAR OF MANUFACTURE: 08/1995 → 12/2000
2.5 D (ESS)	4HB	2496	56	76	09/1995 → 12/2000	2.5 D (ESS) ENGINE CODE: 4HB CC: 2496 kW: 56 HP: 76 YEAR OF MANUFACTURE: 09/1995 → 12/2000
2.5 DI (E-BL/DS/SL/SS/U)	4FA, 4FB, 4FC	2496	51	69	04/1997 → 12/2000	2.5 DI (E-BL/DS/SL/SS/U) ENGINE CODE: 4FA, 4FB, 4FC CC: 2496 kW: 51 HP: 69 YEAR OF MANUFACTURE: 04/1997 → 12/2000
2.5 DI/TDE (EAL/AS/EML/ENEL)	4ED	2496	85	116	05/1999 → 03/2000	2.5 DI/TDE (EAL/AS/EML/ENEL) ENGINE CODE: 4ED CC: 2496 kW: 85 HP: 116 YEAR OF MANUFACTURE: 05/1999 → 03/2000
2.5 TDE	4HA, 4HD	2496	55	75	11/1998 → 12/2000	2.5 TDE ENGINE CODE: 4HA, 4HD CC: 2496 kW: 55 HP: 75 YEAR OF MANUFACTURE: 11/1998 → 12/2000
2.5 TDE		2496	85	115	11/1997 → 12/2000	2.5 TDE ENGINE CODE: CC: 2496 kW: 85 HP: 115 YEAR OF MANUFACTURE: 11/1997 → 12/2000
2.5 TDE		2496	74	100	11/1998 → 12/2000	2.5 TDE ENGINE CODE: CC: 2496 kW: 74 HP: 100 YEAR OF MANUFACTURE: 11/1998 → 12/2000
2.5 TDE		2496	63	85	11/1997 → 12/2000	2.5 TDE ENGINE CODE: CC: 2496 kW: 63 HP: 85 YEAR OF MANUFACTURE: 11/1997 → 12/2000
2.5 TDi (EDL)	4EB	2496	74	101	08/1995 → 12/2000	2.5 TDi (EDL) ENGINE CODE: 4EB CC: 2496 kW: 74 HP: 101 YEAR OF MANUFACTURE: 08/1995 → 12/2000
2.5 TDi (EDL)	4GC	2496	63	85	07/1994 → 12/2000	2.5 TDi (EDL) ENGINE CODE: 4GC CC: 2496 kW: 63 HP: 85 YEAR OF MANUFACTURE: 07/1994 → 12/2000
2.5 TDi (EDS)		2496	63	85	09/1995 → 12/2000	2.5 TDi (EDS) ENGINE CODE: CC: 2496 kW: 63 HP: 85 YEAR OF MANUFACTURE: 09/1995 → 12/2000
2.5 TDi (ESS)	4GC	2496	63	85	09/1995 → 12/2000	2.5 TDi (ESS) ENGINE CODE: 4GC CC: 2496 kW: 63 HP: 85 YEAR OF MANUFACTURE: 09/1995 → 12/2000
2.5 TDi (ESS)	4EB	2496	74	101	09/1995 → 12/2000	2.5 TDi (ESS) ENGINE CODE: 4EB CC: 2496 kW: 74 HP: 101 YEAR OF MANUFACTURE: 09/1995 → 12/2000

ENGINE CODE

YEAR OF MANUFACTURE

2.5 D

4HB

2496

07/1994 → 12/2000

2.5 D

2496

08/1995 → 12/2000

2.5 D (EBL,EDL,EDS,E)

2496

08/1997 → 12/2000

2.5 D (EDL, EDS)

2496

08/1995 → 12/2000

2.5 D (ESS)

4HB

2496

09/1995 → 12/2000

2.5 DI (E-BL/DS/SL/SS/U)

4FA, 4FB, 4FC

2496

04/1997 → 12/2000

2.5 DI/TDE (EAL/AS/EML/ENEL)

4ED

2496

116

05/1999 → 03/2000

2.5 TDE

4HA, 4HD

2496

11/1998 → 12/2000

2.5 TDE

2496

115

11/1997 → 12/2000

2.5 TDE

2496

100

11/1998 → 12/2000

2.5 TDE

2496

11/1997 → 12/2000

2.5 TDi (EDL)

4EB

2496

101

08/1995 → 12/2000

2.5 TDi (EDL)

4GC

2496

07/1994 → 12/2000

2.5 TDi (EDS)

2496

09/1995 → 12/2000

2.5 TDi (ESS)

4GC

2496

09/1995 → 12/2000

2.5 TDi (ESS)

4EB

2496

101

09/1995 → 12/2000

Transit Connect (TC7) | 02-13

	ENGINE CODE	kW	HP	YEAR OF MANUFACTURE
1.8 TDCi Turbodiesel	Duratorq	66	90	09/2002 → 12/2013	1.8 TDCi Turbodiesel ENGINE CODE: Duratorq CC: kW: 66 HP: 90 YEAR OF MANUFACTURE: 09/2002 → 12/2013
1.8 TDCi Turbodiesel	Duratorq	81	110	08/2006 → 12/2013	1.8 TDCi Turbodiesel ENGINE CODE: Duratorq CC: kW: 81 HP: 110 YEAR OF MANUFACTURE: 08/2006 → 12/2013
1.8 TDDi / TDCi Turbodiesel	Duratorq	55	75	09/2002 → 12/2013	1.8 TDDi / TDCi Turbodiesel ENGINE CODE: Duratorq CC: kW: 55 HP: 75 YEAR OF MANUFACTURE: 09/2002 → 12/2013

ENGINE CODE

YEAR OF MANUFACTURE

1.8 TDCi Turbodiesel

Duratorq

09/2002 → 12/2013

1.8 TDCi Turbodiesel

Duratorq

110

08/2006 → 12/2013

1.8 TDDi / TDCi Turbodiesel

Duratorq

09/2002 → 12/2013

A-Serie | 73-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
A 0407	NAT	2496	57	78	01/1986 →	A 0407 ENGINE CODE: NAT CC: 2496 kW: 57 HP: 78 YEAR OF MANUFACTURE: 01/1986 →
A 0407	NX	2496	57	78	01/1986 →	A 0407 ENGINE CODE: NX CC: 2496 kW: 57 HP: 78 YEAR OF MANUFACTURE: 01/1986 →
A 0407	4AB, 4CA	2496	57	78	01/1986 →	A 0407 ENGINE CODE: 4AB, 4CA CC: 2496 kW: 57 HP: 78 YEAR OF MANUFACTURE: 01/1986 →

ENGINE CODE

YEAR OF MANUFACTURE

A 0407

NAT

2496

01/1986 →

A 0407

2496

01/1986 →

A 0407

4AB, 4CA

2496

01/1986 →

LDV LIMITED

Convoy 400 (VH C35) | 93-06

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
2.5 Diesel	Ford	2498	56	76	04/1998 → 05/2005		2.5 Diesel ENGINE CODE: Ford CC: 2498 kW: 56 HP: 76 YEAR OF MANUFACTURE: 04/1998 → 05/2005
2.5 Turbodiesel	Ford	2498	74	100	04/1998 → 05/2005		2.5 Turbodiesel ENGINE CODE: Ford CC: 2498 kW: 74 HP: 100 YEAR OF MANUFACTURE: 04/1998 → 05/2005

ENGINE CODE

YEAR OF MANUFACTURE

2.5 Diesel

Ford

2498

04/1998 → 05/2005

2.5 Turbodiesel

Ford

2498

100

04/1998 → 05/2005

METRO-CAMMELL-WEYMANN

Taxi Cab / Metrocab | 86-06

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
2.5 Diesel Injection	Ford 2.5Di	2491	52	71	08/1986 → 05/2006		2.5 Diesel Injection ENGINE CODE: Ford 2.5Di CC: 2491 kW: 52 HP: 71 YEAR OF MANUFACTURE: 08/1986 → 05/2006

ENGINE CODE

YEAR OF MANUFACTURE

2.5 Diesel Injection

Ford 2.5Di

2491

08/1986 → 05/2006

FOMOCO

2M5Q-6714-AC
2U7J6714AA
4M5Q 6714 BA
844F 6714 A1A
844F 6714 AA
914F 6714 AA
XS4Q 6714AB

FORD

1059 924
1136 568
1148 703
1207 066
1231 233
1322 152
1641 187
4M5Q6714BA
5022 955
6119 196
6184 942
6203 126
844 F 6714 A1A
914 F 6714 A
914 F 6714 AA

GENERAL MOTORS (GM)

93156291

RENAULT TRUCKS (OKELIA)

50 21 185 452

Date of last data update: 2025-03-31 Print Report now
