OIL FILTERS

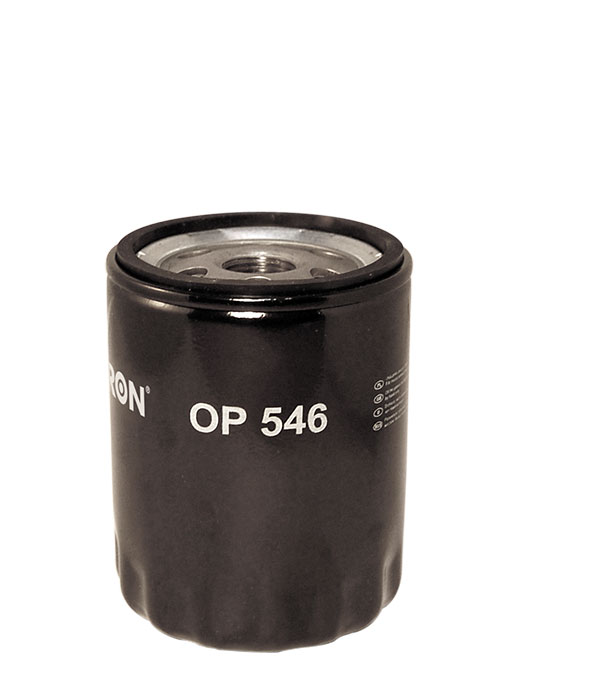

OP 546

EAN CODE:

REACH information

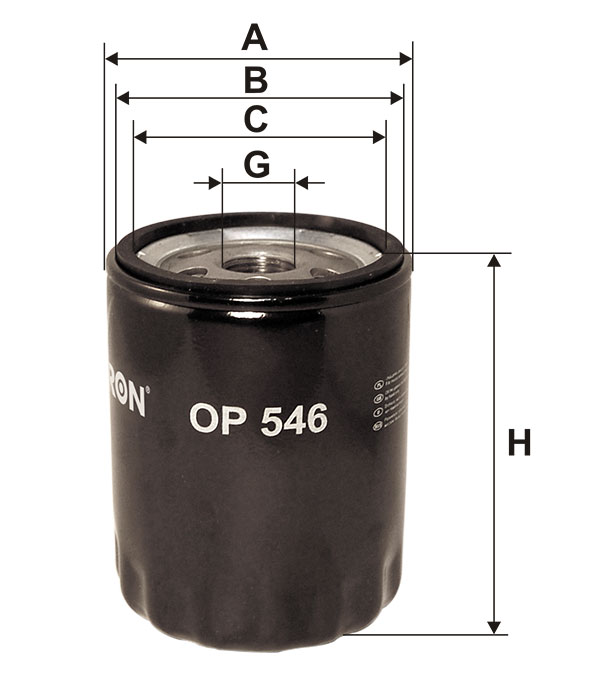

DIMENSIONS (mm):

76.5

71.5

62.5

3/4-16 UNF

96.5

By-pass Valve

Yes

Anti-Drain Valve

Yes

Anti-siphon Valve

APPLICATION
SUBSTITUTES

FORD

Escort Cabriolet | 83-98

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
1.8 TD (ALL)	RFD/RFK	1753	66	90	12/1995 → 06/1998		1.8 TD (ALL) ENGINE CODE: RFD/RFK CC: 1753 kW: 66 HP: 90 YEAR OF MANUFACTURE: 12/1995 → 06/1998
1.8 TD (ALL)	RVA	1753	51	70	10/1996 → 06/1998		1.8 TD (ALL) ENGINE CODE: RVA CC: 1753 kW: 51 HP: 70 YEAR OF MANUFACTURE: 10/1996 → 06/1998

ENGINE CODE

YEAR OF MANUFACTURE

1.8 TD (ALL)

RFD/RFK

1753

12/1995 → 06/1998

1.8 TD (ALL)

RVA

1753

10/1996 → 06/1998

Escort Express | 81-00

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
1.7 D		1753	44	60	07/1988 → 07/1990	1.7 D ENGINE CODE: CC: 1753 kW: 44 HP: 60 YEAR OF MANUFACTURE: 07/1988 → 07/1990
1.8 D	RTH	1753	44	60	01/1995 → 08/2000	1.8 D ENGINE CODE: RTH CC: 1753 kW: 44 HP: 60 YEAR OF MANUFACTURE: 01/1995 → 08/2000
1.8 D	RTH	1753	44	60	07/1990 → 12/1994	1.8 D ENGINE CODE: RTH CC: 1753 kW: 44 HP: 60 YEAR OF MANUFACTURE: 07/1990 → 12/1994
1.8 D	RVA	1753	51	70	12/1995 → 10/1998	1.8 D ENGINE CODE: RVA CC: 1753 kW: 51 HP: 70 YEAR OF MANUFACTURE: 12/1995 → 10/1998

ENGINE CODE

YEAR OF MANUFACTURE

1.7 D

1753

07/1988 → 07/1990

1.8 D

RTH

1753

01/1995 → 08/2000

1.8 D

RTH

1753

07/1990 → 12/1994

1.8 D

RVA

1753

12/1995 → 10/1998

Escort IV | 85-90

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
1.8 D Turnier	RTB	1753	44	60	07/1988 → 11/1990		1.8 D Turnier ENGINE CODE: RTB CC: 1753 kW: 44 HP: 60 YEAR OF MANUFACTURE: 07/1988 → 11/1990

ENGINE CODE

YEAR OF MANUFACTURE

1.8 D Turnier

RTB

1753

07/1988 → 11/1990

Escort V | 90-92

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
1.8 D	RTH	1753	44	60	07/1990 → 12/1992		1.8 D ENGINE CODE: RTH CC: 1753 kW: 44 HP: 60 YEAR OF MANUFACTURE: 07/1990 → 12/1992

ENGINE CODE

YEAR OF MANUFACTURE

1.8 D

RTH

1753

07/1990 → 12/1992

Escort VI | 92-97

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
1.8 D	RTH	1753	44	60	09/1992 → 01/1995		1.8 D ENGINE CODE: RTH CC: 1753 kW: 44 HP: 60 YEAR OF MANUFACTURE: 09/1992 → 01/1995
1.8 TD	RFK	1753	66	90	02/1993 → 01/1995		1.8 TD ENGINE CODE: RFK CC: 1753 kW: 66 HP: 90 YEAR OF MANUFACTURE: 02/1993 → 01/1995

ENGINE CODE

YEAR OF MANUFACTURE

1.8 D

RTH

1753

09/1992 → 01/1995

1.8 TD

RFK

1753

02/1993 → 01/1995

Escort VII | 95-02

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
1.8 D	RTH	1753	44	60	02/1995 → 02/1999	1.8 D ENGINE CODE: RTH CC: 1753 kW: 44 HP: 60 YEAR OF MANUFACTURE: 02/1995 → 02/1999
1.8 TD		1753	55	75	02/2000 → 09/2002	1.8 TD ENGINE CODE: CC: 1753 kW: 55 HP: 75 YEAR OF MANUFACTURE: 02/2000 → 09/2002
1.8 TD	RFD/RFK	1753	66	90	02/1995 → 09/2000	1.8 TD ENGINE CODE: RFD/RFK CC: 1753 kW: 66 HP: 90 YEAR OF MANUFACTURE: 02/1995 → 09/2000
1.8 TD	RVA	1753	51	70	12/1995 → 02/1999	1.8 TD ENGINE CODE: RVA CC: 1753 kW: 51 HP: 70 YEAR OF MANUFACTURE: 12/1995 → 02/1999

ENGINE CODE

YEAR OF MANUFACTURE

1.8 D

RTH

1753

02/1995 → 02/1999

1.8 TD

1753

02/2000 → 09/2002

1.8 TD

RFD/RFK

1753

02/1995 → 09/2000

1.8 TD

RVA

1753

12/1995 → 02/1999

Fiesta Courier I | 91-96

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
1.8 D (F3L)		1753	44	60	07/1991 → 01/1996		1.8 D (F3L) ENGINE CODE: CC: 1753 kW: 44 HP: 60 YEAR OF MANUFACTURE: 07/1991 → 01/1996
1.8 D (F5L)	RTC	1753	44	60	09/1991 → 01/1996		1.8 D (F5L) ENGINE CODE: RTC CC: 1753 kW: 44 HP: 60 YEAR OF MANUFACTURE: 09/1991 → 01/1996

ENGINE CODE

YEAR OF MANUFACTURE

1.8 D (F3L)

1753

07/1991 → 01/1996

1.8 D (F5L)

RTC

1753

09/1991 → 01/1996

Fiesta Courier II | 96-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
1.8 D		1753	44	60	02/1996 →		1.8 D ENGINE CODE: CC: 1753 kW: 44 HP: 60 YEAR OF MANUFACTURE: 02/1996 →

ENGINE CODE

YEAR OF MANUFACTURE

1.8 D

1753

02/1996 →

Fiesta III / Fiesta III | 89-96

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
1.8 D (GFJ)	RTC	1753	44	60	03/1989 → 08/1996		1.8 D (GFJ) ENGINE CODE: RTC CC: 1753 kW: 44 HP: 60 YEAR OF MANUFACTURE: 03/1989 → 08/1996
1.8 TD (GFJ)		1753	57	77	03/1993 → 08/1996		1.8 TD (GFJ) ENGINE CODE: CC: 1753 kW: 57 HP: 77 YEAR OF MANUFACTURE: 03/1993 → 08/1996

ENGINE CODE

YEAR OF MANUFACTURE

1.8 D (GFJ)

RTC

1753

03/1989 → 08/1996

1.8 TD (GFJ)

1753

03/1993 → 08/1996

Fiesta IV / Fiesta Mk IV + V | 95-02

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
1.8 D	RTJ/RTK	1753	44	60	01/1996 → 05/2000		1.8 D ENGINE CODE: RTJ/RTK CC: 1753 kW: 44 HP: 60 YEAR OF MANUFACTURE: 01/1996 → 05/2000

ENGINE CODE

YEAR OF MANUFACTURE

1.8 D

RTJ/RTK

1753

01/1996 → 05/2000

Mondeo I (BNP/GBP) | 93-96

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
1.8 TD	RFN	1753	65	88	06/1993 → 08/1996		1.8 TD ENGINE CODE: RFN CC: 1753 kW: 65 HP: 88 YEAR OF MANUFACTURE: 06/1993 → 08/1996
1.8 TD		1753	66	90	10/1995 → 08/1996		1.8 TD ENGINE CODE: CC: 1753 kW: 66 HP: 90 YEAR OF MANUFACTURE: 10/1995 → 08/1996

ENGINE CODE

YEAR OF MANUFACTURE

1.8 TD

RFN

1753

06/1993 → 08/1996

1.8 TD

1753

10/1995 → 08/1996

Mondeo II (BAP/BFP/BNP) | 96-00

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
1.8 TD		1753	66	90	09/1996 → 11/2000		1.8 TD ENGINE CODE: CC: 1753 kW: 66 HP: 90 YEAR OF MANUFACTURE: 09/1996 → 11/2000

ENGINE CODE

YEAR OF MANUFACTURE

1.8 TD

1753

09/1996 → 11/2000

Orion | 83-93

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
1.8 D	RTB	1753	44	60	01/1989 → 07/1990	1.8 D ENGINE CODE: RTB CC: 1753 kW: 44 HP: 60 YEAR OF MANUFACTURE: 01/1989 → 07/1990
1.8 D	RTH	1753	44	60	11/1990 → 07/1993	1.8 D ENGINE CODE: RTH CC: 1753 kW: 44 HP: 60 YEAR OF MANUFACTURE: 11/1990 → 07/1993
1.8 TD	RFK	1753	66	90	03/1992 → 07/1993	1.8 TD ENGINE CODE: RFK CC: 1753 kW: 66 HP: 90 YEAR OF MANUFACTURE: 03/1992 → 07/1993

ENGINE CODE

YEAR OF MANUFACTURE

1.8 D

RTB

1753

01/1989 → 07/1990

1.8 D

RTH

1753

11/1990 → 07/1993

1.8 TD

RFK

1753

03/1992 → 07/1993

P-Serie (Pickup) | 82-92

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
P 100 1.8 TD	RFA	1753	55	75	10/1987 → 12/1992		P 100 1.8 TD ENGINE CODE: RFA CC: 1753 kW: 55 HP: 75 YEAR OF MANUFACTURE: 10/1987 → 12/1992

ENGINE CODE

YEAR OF MANUFACTURE

P 100 1.8 TD

RFA

1753

10/1987 → 12/1992

Sierra II (Sapphire) | 82-93

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
1.8 TD	RFL	1753	55	75	08/1988 → 02/1993		1.8 TD ENGINE CODE: RFL CC: 1753 kW: 55 HP: 75 YEAR OF MANUFACTURE: 08/1988 → 02/1993

ENGINE CODE

YEAR OF MANUFACTURE

1.8 TD

RFL

1753

08/1988 → 02/1993

MAZDA

121 (JASM/JBSM) | 96-03

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
1.8 D (JASM/JBSM)	RTJ / RTK	1753	44	60	03/1996 → 07/2003		1.8 D (JASM/JBSM) ENGINE CODE: RTJ / RTK CC: 1753 kW: 44 HP: 60 YEAR OF MANUFACTURE: 03/1996 → 07/2003
1.8 TD (JASM/JBSM)		1753	55	75	02/2000 → 10/2002		1.8 TD (JASM/JBSM) ENGINE CODE: CC: 1753 kW: 55 HP: 75 YEAR OF MANUFACTURE: 02/2000 → 10/2002

ENGINE CODE

YEAR OF MANUFACTURE

1.8 D (JASM/JBSM)

RTJ / RTK

1753

03/1996 → 07/2003

1.8 TD (JASM/JBSM)

1753

02/2000 → 10/2002

MOSKVITCH

2141 (Aleko) | 87-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
21423 (1.8 D)	Ford Diesel	1753	44	60	09/1991 →		21423 (1.8 D) ENGINE CODE: Ford Diesel CC: 1753 kW: 44 HP: 60 YEAR OF MANUFACTURE: 09/1991 →

ENGINE CODE

YEAR OF MANUFACTURE

21423 (1.8 D)

Ford Diesel

1753

09/1991 →

ANTONIO CARRARO

Tigrone | 08-14

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
TN 5500 E	Perkins Tier3A	2216	35	48	01/2008 → 12/2014		TN 5500 E ENGINE CODE: Perkins Tier3A CC: 2216 kW: 35 HP: 48 YEAR OF MANUFACTURE: 01/2008 → 12/2014

ENGINE CODE

YEAR OF MANUFACTURE

TN 5500 E

Perkins Tier3A

2216

01/2008 → 12/2014

ATLAS WEYCOR (ATLAS WEYHAUSEN)

AR-Serie | 06-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
AR 60	Perkins 404C-22T	2200	45	61	12/2007 → 12/2007		AR 60 ENGINE CODE: Perkins 404C-22T CC: 2200 kW: 45 HP: 61 YEAR OF MANUFACTURE: 12/2007 → 12/2007
AR 60 P/Z	Perkins 404C-22T	2200	36	49	01/2006 →		AR 60 P/Z ENGINE CODE: Perkins 404C-22T CC: 2200 kW: 36 HP: 49 YEAR OF MANUFACTURE: 01/2006 →

ENGINE CODE

YEAR OF MANUFACTURE

AR 60

Perkins 404C-22T

2200

12/2007 → 12/2007

AR 60 P/Z

Perkins 404C-22T

2200

01/2006 →

AUSA

AHG Dumper

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
100 AHG 4X4	Perkins KD 81252U						100 AHG 4X4 ENGINE CODE: Perkins KD 81252U CC: kW: HP:
120 AHG	Perkins KD 81252						120 AHG ENGINE CODE: Perkins KD 81252 CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

100 AHG 4X4

Perkins KD 81252U

120 AHG

Perkins KD 81252

CASE CONSTRUCTION

20-Serie | 98-

	ENGINE CODE	YEAR OF MANUFACTURE
23	Perkins	01/1998 →	23 ENGINE CODE: Perkins CC: kW: HP: YEAR OF MANUFACTURE: 01/1998 →
28	Perkins 103-16	01/1998 →	28 ENGINE CODE: Perkins 103-16 CC: kW: HP: YEAR OF MANUFACTURE: 01/1998 →
31	Perkins 103-16	01/1998 →	31 ENGINE CODE: Perkins 103-16 CC: kW: HP: YEAR OF MANUFACTURE: 01/1998 →
35	Perkins 103-16	01/1998 →	35 ENGINE CODE: Perkins 103-16 CC: kW: HP: YEAR OF MANUFACTURE: 01/1998 →

ENGINE CODE

YEAR OF MANUFACTURE

Perkins

01/1998 →

Perkins 103-16

01/1998 →

Perkins 103-16

01/1998 →

Perkins 103-16

01/1998 →

CX-Serie (Hydraulikbagger / Hydraulic Excavators)

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
CX 16	Perkins 103.10	1000	13	18	01/2002 → 12/2004	i Partly/or	CX 16 ENGINE CODE: Perkins 103.10 CC: 1000 kW: 13 HP: 18 YEAR OF MANUFACTURE: 01/2002 → 12/2004 i Partly/or
CX 28	Perkins 103.13	1300	18	24	01/2002 → 12/2004		CX 28 ENGINE CODE: Perkins 103.13 CC: 1300 kW: 18 HP: 24 YEAR OF MANUFACTURE: 01/2002 → 12/2004
CX 31	Perkins 103.15	1500	23	31	01/2002 → 05/2004		CX 31 ENGINE CODE: Perkins 103.15 CC: 1500 kW: 23 HP: 31 YEAR OF MANUFACTURE: 01/2002 → 05/2004
CX 35	Perkins 103.15	1500	24	33	01/2002 → 12/2004		CX 35 ENGINE CODE: Perkins 103.15 CC: 1500 kW: 24 HP: 33 YEAR OF MANUFACTURE: 01/2002 → 12/2004

ENGINE CODE

YEAR OF MANUFACTURE

CX 16

Perkins 103.10

1000

01/2002 → 12/2004

CX 28

Perkins 103.13

1300

01/2002 → 12/2004

CX 31

Perkins 103.15

1500

01/2002 → 05/2004

CX 35

Perkins 103.15

1500

01/2002 → 12/2004

DYNAPAC-WINGET

CC-Serie | 04-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
CC 800	Perkins 403C-11	1130	17	24	01/2004 → 12/2011		CC 800 ENGINE CODE: Perkins 403C-11 CC: 1130 kW: 17 HP: 24 YEAR OF MANUFACTURE: 01/2004 → 12/2011

ENGINE CODE

YEAR OF MANUFACTURE

CC 800

Perkins 403C-11

1130

01/2004 → 12/2011

GEHLMAX

KL-Serie | 02-07

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
168	Perkins		24	33	01/2002 → 12/2007	i Partly/or. Use for OE no. 574 700 2002	168 ENGINE CODE: Perkins CC: kW: 24 HP: 33 YEAR OF MANUFACTURE: 01/2002 → 12/2007 i Partly/or. Use for OE no. 574 700 2002

ENGINE CODE

YEAR OF MANUFACTURE

168

Perkins

01/2002 → 12/2007

JUNGHEINRICH

DFG <100 Series | 93-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
DFG 16 AS	Perkins 404-22	2200	38	52	01/1998 → 01/2004		DFG 16 AS ENGINE CODE: Perkins 404-22 CC: 2200 kW: 38 HP: 52 YEAR OF MANUFACTURE: 01/1998 → 01/2004

ENGINE CODE

YEAR OF MANUFACTURE

DFG 16 AS

Perkins 404-22

2200

01/1998 → 01/2004

MANITOU

TMT-Serie | 97-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
25.20 C / SR	Perkins 404C-22		38	52	01/2004 → 12/2014		25.20 C / SR ENGINE CODE: Perkins 404C-22 CC: kW: 38 HP: 52 YEAR OF MANUFACTURE: 01/2004 → 12/2014

ENGINE CODE

YEAR OF MANUFACTURE

25.20 C / SR

Perkins 404C-22

01/2004 → 12/2014

SULLAIR

S-Serie | 08-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
S 88	Caterpillar C2.2 DIT				01/2008 →		S 88 ENGINE CODE: Caterpillar C2.2 DIT CC: kW: HP: YEAR OF MANUFACTURE: 01/2008 →

ENGINE CODE

YEAR OF MANUFACTURE

S 88

Caterpillar C2.2 DIT

01/2008 →

VALPADANA (ARGO)

1300-Serie | 03-08

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
1330	Perkins 103.10	954	17	24	01/2003 → 12/2008		1330 ENGINE CODE: Perkins 103.10 CC: 954 kW: 17 HP: 24 YEAR OF MANUFACTURE: 01/2003 → 12/2008

ENGINE CODE

YEAR OF MANUFACTURE

1330

Perkins 103.10

954

01/2003 → 12/2008

2000-Serie | 96-00

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
2025	Perkins 103.1						2025 ENGINE CODE: Perkins 103.1 CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

2025

Perkins 103.1

WEIDEMANN (WACKER NEUSON)

1000-Serie | 91-

	ENGINE CODE	kW	HP
1030 D/P	103-10			i Use for OE no. 5747002002	1030 D/P ENGINE CODE: 103-10 CC: kW: HP: i Use for OE no. 5747002002
1130 CX	Perkins 403 D-11	19	24		1130 CX ENGINE CODE: Perkins 403 D-11 CC: kW: 19 HP: 24
1130 CX	Perkins 403 C-11				1130 CX ENGINE CODE: Perkins 403 C-11 CC: kW: HP:
1140 CX	Perkins 403 D-11	19	24		1140 CX ENGINE CODE: Perkins 403 D-11 CC: kW: 19 HP: 24
1350 CX45	Perkins 404C-22				1350 CX45 ENGINE CODE: Perkins 404C-22 CC: kW: HP:
1770 CX50	Perkins 404C-22				1770 CX50 ENGINE CODE: Perkins 404C-22 CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

1030 D/P

103-10

1130 CX

Perkins 403 D-11

1130 CX

Perkins 403 C-11

1140 CX

Perkins 403 D-11

1350 CX45

Perkins 404C-22

1770 CX50

Perkins 404C-22

900-Serie

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
915 D/P	Perkins 103					i Use for OE no. 5747002002	915 D/P ENGINE CODE: Perkins 103 CC: kW: HP: i Use for OE no. 5747002002

ENGINE CODE

YEAR OF MANUFACTURE

915 D/P

Perkins 103

FORD

1039 020
1039 021
1220 880
6179 700
6179 701
6607 325
6607 326
89F F 6714 A2E

MAZDA

1E20-14-302B

WEIDEMANN

574 700 2002

Date of last data update: 2025-05-29 Print Report now
