REACH-Information

SVHC declaration according to the regulation EC 1907/2006 concerning the Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH).

Produkt: OP 546/2 - FILTRON

MANN+HUMMEL is well aware of REACH and meet all legal obligations under this regulation.

MANN+HUMMEL has established internal processes to ensure implementation and compliance with the REACH Regulation. Especially, we continuously work on the assessment of presence of SVHC (Substances of Very High Concern).

We may inform you that according to present level of information and best knowledge, this product does not contain any SVHC listed on the Candidate List in concentration above 0,1% (w/w).

Last update: 2024-09-19

Back

OIL FILTERS

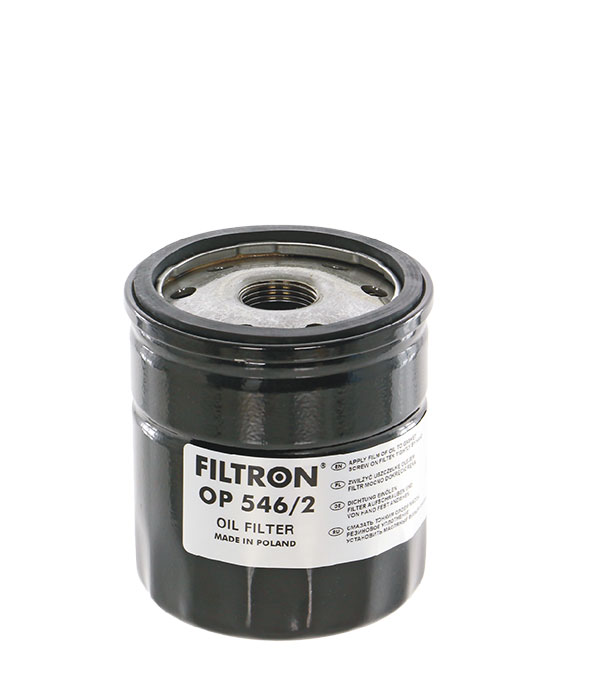

OP 546/2

EAN CODE: 5904608035462

REACH information

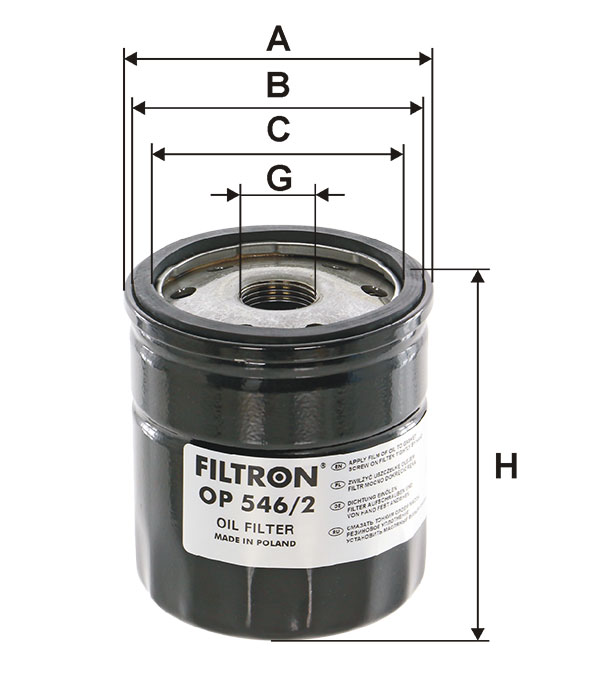

DIMENSIONS (mm):

71.5

62.5

M20x1.5

By-pass Valve

Yes

Anti-Drain Valve

Yes

Anti-siphon Valve

APPLICATION
SUBSTITUTES

FORD

C-Max II, Grand C-Max | 10-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
2.0 TDCi	T7DB, T7DC, T7DD	1997	110	150	03/2015 → 06/2019		2.0 TDCi ENGINE CODE: T7DB, T7DC, T7DD CC: 1997 kW: 110 HP: 150 YEAR OF MANUFACTURE: 03/2015 → 06/2019
2.0 TDCi	T8DE, T8DF	1997	125	170	03/2015 → 06/2019		2.0 TDCi ENGINE CODE: T8DE, T8DF CC: 1997 kW: 125 HP: 170 YEAR OF MANUFACTURE: 03/2015 → 06/2019

ENGINE CODE

YEAR OF MANUFACTURE

2.0 TDCi

T7DB, T7DC, T7DD

1997

110

150

03/2015 → 06/2019

2.0 TDCi

T8DE, T8DF

1997

125

170

03/2015 → 06/2019

Edge (CDQ) | 15-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
2.0 TDCi	T8CC, T8CM	1997	132	180	05/2015 → 07/2018	2.0 TDCi ENGINE CODE: T8CC, T8CM CC: 1997 kW: 132 HP: 180 YEAR OF MANUFACTURE: 05/2015 → 07/2018
2.0 TDCi		1997	139	189	02/2018 →	2.0 TDCi ENGINE CODE: CC: 1997 kW: 139 HP: 189 YEAR OF MANUFACTURE: 02/2018 →
2.0 TDCi Bi-Turbo	T9CE, T9CF	1997	154	210	08/2015 → 07/2018	2.0 TDCi Bi-Turbo ENGINE CODE: T9CE, T9CF CC: 1997 kW: 154 HP: 210 YEAR OF MANUFACTURE: 08/2015 → 07/2018
2.0 TDCi Bi-Turbo		1997	175	238	02/2018 →	2.0 TDCi Bi-Turbo ENGINE CODE: CC: 1997 kW: 175 HP: 238 YEAR OF MANUFACTURE: 02/2018 →

ENGINE CODE

YEAR OF MANUFACTURE

2.0 TDCi

T8CC, T8CM

1997

132

180

05/2015 → 07/2018

2.0 TDCi

1997

139

189

02/2018 →

2.0 TDCi Bi-Turbo

T9CE, T9CF

1997

154

210

08/2015 → 07/2018

2.0 TDCi Bi-Turbo

1997

175

238

02/2018 →

Focus III | 11-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
2.0 TDCi	Duratorq	1997	110	150	09/2014 →		2.0 TDCi ENGINE CODE: Duratorq CC: 1997 kW: 110 HP: 150 YEAR OF MANUFACTURE: 09/2014 →
2.0 TDCi ST	Duratorq	1997	136	185	12/2014 →		2.0 TDCi ST ENGINE CODE: Duratorq CC: 1997 kW: 136 HP: 185 YEAR OF MANUFACTURE: 12/2014 →

ENGINE CODE

YEAR OF MANUFACTURE

2.0 TDCi

Duratorq

1997

110

150

09/2014 →

2.0 TDCi ST

Duratorq

1997

136

185

12/2014 →

Galaxy III | 15-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
2.0 TDCi (CDR)	UFCA, UFCB	1999	88	120	01/2015 → 06/2018	2.0 TDCi (CDR) ENGINE CODE: UFCA, UFCB CC: 1999 kW: 88 HP: 120 YEAR OF MANUFACTURE: 01/2015 → 06/2018
2.0 TDCi (CDR)	T7CI, T7CJ, T7CK, T7CL	1999	110	150	01/2015 → 06/2018	2.0 TDCi (CDR) ENGINE CODE: T7CI, T7CJ, T7CK, T7CL CC: 1999 kW: 110 HP: 150 YEAR OF MANUFACTURE: 01/2015 → 06/2018
2.0 TDCi (CDR)	T8CG, T8CH, T8CI, T8CJ	1999	132	179	01/2015 → 06/2018	2.0 TDCi (CDR) ENGINE CODE: T8CG, T8CH, T8CI, T8CJ CC: 1999 kW: 132 HP: 179 YEAR OF MANUFACTURE: 01/2015 → 06/2018
2.0 TDCi Bi-Turbo (CDR)	T9CB, T9CC, T9CD	1999	154	209	04/2015 → 06/2018	2.0 TDCi Bi-Turbo (CDR) ENGINE CODE: T9CB, T9CC, T9CD CC: 1999 kW: 154 HP: 209 YEAR OF MANUFACTURE: 04/2015 → 06/2018

ENGINE CODE

YEAR OF MANUFACTURE

2.0 TDCi (CDR)

UFCA, UFCB

1999

120

01/2015 → 06/2018

2.0 TDCi (CDR)

T7CI, T7CJ, T7CK, T7CL

1999

110

150

01/2015 → 06/2018

2.0 TDCi (CDR)

T8CG, T8CH, T8CI, T8CJ

1999

132

179

01/2015 → 06/2018

2.0 TDCi Bi-Turbo (CDR)

T9CB, T9CC, T9CD

1999

154

209

04/2015 → 06/2018

Kuga II | 12-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
2.0 TDCi	Duratorq (UFMA)	1997	103	140	06/2012 →	i Spin-on filter 10/2014 ->	2.0 TDCi ENGINE CODE: Duratorq (UFMA) CC: 1997 kW: 103 HP: 140 YEAR OF MANUFACTURE: 06/2012 → i Spin-on filter 10/2014 ->
2.0 TDCi	Duratorq	1997	132	180	10/2014 → 08/2016		2.0 TDCi ENGINE CODE: Duratorq CC: 1997 kW: 132 HP: 180 YEAR OF MANUFACTURE: 10/2014 → 08/2016
2.0 TDCi	Duratorq	1997	110	150	10/2014 →		2.0 TDCi ENGINE CODE: Duratorq CC: 1997 kW: 110 HP: 150 YEAR OF MANUFACTURE: 10/2014 →
2.0 TDCi	Duratorq	1997	88	120	10/2014 →		2.0 TDCi ENGINE CODE: Duratorq CC: 1997 kW: 88 HP: 120 YEAR OF MANUFACTURE: 10/2014 →

ENGINE CODE

YEAR OF MANUFACTURE

2.0 TDCi

Duratorq (UFMA)

1997

103

140

06/2012 →

2.0 TDCi

Duratorq

1997

132

180

10/2014 → 08/2016

2.0 TDCi

Duratorq

1997

110

150

10/2014 →

2.0 TDCi

Duratorq

1997

120

10/2014 →

Mondeo V | 14-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
2.0 TDCi (CNG)	Duratorq	1997	110	150	10/2014 →	2.0 TDCi (CNG) ENGINE CODE: Duratorq CC: 1997 kW: 110 HP: 150 YEAR OF MANUFACTURE: 10/2014 →
2.0 TDCi (CNG)	Duratorq	1997	132	180	10/2014 →	2.0 TDCi (CNG) ENGINE CODE: Duratorq CC: 1997 kW: 132 HP: 180 YEAR OF MANUFACTURE: 10/2014 →
2.0 TDCi Bi-Turbo (CNG)		1997	154	209	03/2015 →	2.0 TDCi Bi-Turbo (CNG) ENGINE CODE: CC: 1997 kW: 154 HP: 209 YEAR OF MANUFACTURE: 03/2015 →

ENGINE CODE

YEAR OF MANUFACTURE

2.0 TDCi (CNG)

Duratorq

1997

110

150

10/2014 →

2.0 TDCi (CNG)

Duratorq

1997

132

180

10/2014 →

2.0 TDCi Bi-Turbo (CNG)

1997

154

209

03/2015 →

S-Max II | 15-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
2.0 TDCi (CDR)	UFCA, UFCB, UFCD	1999	88	120	04/2015 → 06/2018	2.0 TDCi (CDR) ENGINE CODE: UFCA, UFCB, UFCD CC: 1999 kW: 88 HP: 120 YEAR OF MANUFACTURE: 04/2015 → 06/2018
2.0 TDCi (CDR)	T7CI, T7CJ, T7CK, T7CL	1999	110	150	01/2015 → 06/2018	2.0 TDCi (CDR) ENGINE CODE: T7CI, T7CJ, T7CK, T7CL CC: 1999 kW: 110 HP: 150 YEAR OF MANUFACTURE: 01/2015 → 06/2018
2.0 TDCi Bi-Turbo (CDR)	T9CB, T9CC	1999	154	209	04/2015 → 06/2018	2.0 TDCi Bi-Turbo (CDR) ENGINE CODE: T9CB, T9CC CC: 1999 kW: 154 HP: 209 YEAR OF MANUFACTURE: 04/2015 → 06/2018

ENGINE CODE

YEAR OF MANUFACTURE

2.0 TDCi (CDR)

UFCA, UFCB, UFCD

1999

120

04/2015 → 06/2018

2.0 TDCi (CDR)

T7CI, T7CJ, T7CK, T7CL

1999

110

150

01/2015 → 06/2018

2.0 TDCi Bi-Turbo (CDR)

T9CB, T9CC

1999

154

209

04/2015 → 06/2018

FOMOCO

DS7Q6714AA
DS7Q6714AB

FORD

1890 364
2193 141

Date of last data update: 2025-03-31 Print Report now
