OIL FILTERS

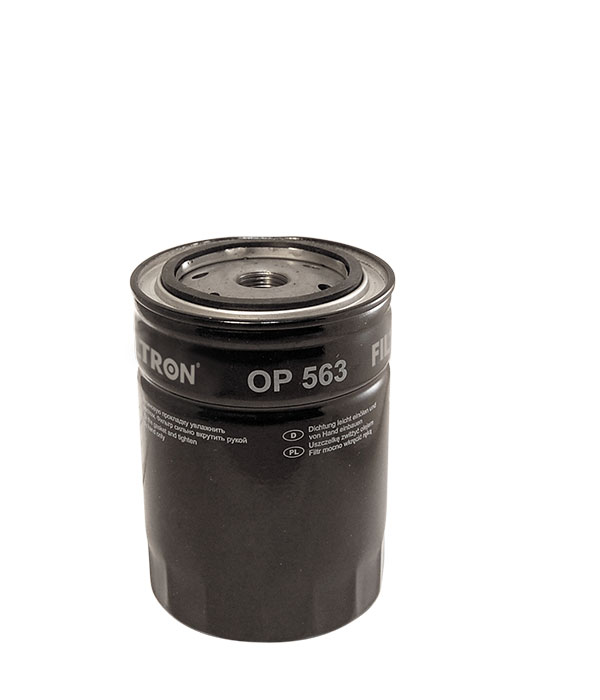

OP 563

EAN CODE:

REACH information

DIMENSIONS (mm):

93.5

72.5

62.5

3/4-16 UNF

131

By-pass Valve

Yes

Anti-Drain Valve

Yes

Anti-siphon Valve

APPLICATION
SUBSTITUTES

ALFA ROMEO

164 | 87-98

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
2.5 TD (A1A)	VM 84 A	2500	84	114	06/1987 → 09/1992		2.5 TD (A1A) ENGINE CODE: VM 84 A CC: 2500 kW: 84 HP: 114 YEAR OF MANUFACTURE: 06/1987 → 09/1992

ENGINE CODE

YEAR OF MANUFACTURE

2.5 TD (A1A)

VM 84 A

2500

114

06/1987 → 09/1992

2300 Berlina | 74-80

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
2300		2310	104	141	03/1974 → 10/1980		2300 ENGINE CODE: CC: 2310 kW: 104 HP: 141 YEAR OF MANUFACTURE: 03/1974 → 10/1980
2300 Ti		2310	109	149	11/1976 → 10/1980		2300 Ti ENGINE CODE: CC: 2310 kW: 109 HP: 149 YEAR OF MANUFACTURE: 11/1976 → 10/1980

ENGINE CODE

YEAR OF MANUFACTURE

2300

2310

104

141

03/1974 → 10/1980

2300 Ti

2310

109

149

11/1976 → 10/1980

75 | 85-92

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
2.0 TD (BD,BG)	VM 80 A	1995	70	95	05/1985 → 02/1992		2.0 TD (BD,BG) ENGINE CODE: VM 80 A CC: 1995 kW: 70 HP: 95 YEAR OF MANUFACTURE: 05/1985 → 02/1992
2.4 TD	VM 81 A	2393	82	113	01/1989 → 02/1992		2.4 TD ENGINE CODE: VM 81 A CC: 2393 kW: 82 HP: 113 YEAR OF MANUFACTURE: 01/1989 → 02/1992

ENGINE CODE

YEAR OF MANUFACTURE

2.0 TD (BD,BG)

VM 80 A

1995

05/1985 → 02/1992

2.4 TD

VM 81 A

2393

113

01/1989 → 02/1992

90 | 84-87

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
2.4 TD (B5)	VM 81 A	2393	81	110	10/1984 → 07/1987		2.4 TD (B5) ENGINE CODE: VM 81 A CC: 2393 kW: 81 HP: 110 YEAR OF MANUFACTURE: 10/1984 → 07/1987

ENGINE CODE

YEAR OF MANUFACTURE

2.4 TD (B5)

VM 81 A

2393

110

10/1984 → 07/1987

Alfa 6 | 79-88

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
2.5 TD	VM-HR 588 HT	2494	77	105	07/1981 → 05/1986		2.5 TD ENGINE CODE: VM-HR 588 HT CC: 2494 kW: 77 HP: 105 YEAR OF MANUFACTURE: 07/1981 → 05/1986

ENGINE CODE

YEAR OF MANUFACTURE

2.5 TD

VM-HR 588 HT

2494

105

07/1981 → 05/1986

Alfetta | 74-84

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
2.0 TD (BA)	VM4HT/2	1981	60	82	10/1979 → 03/1983		2.0 TD (BA) ENGINE CODE: VM4HT/2 CC: 1981 kW: 60 HP: 82 YEAR OF MANUFACTURE: 10/1979 → 03/1983
2.4 TD (B3)	VM4HT 2.4	2325	70	95	04/1983 → 12/1984		2.4 TD (B3) ENGINE CODE: VM4HT 2.4 CC: 2325 kW: 70 HP: 95 YEAR OF MANUFACTURE: 04/1983 → 12/1984

ENGINE CODE

YEAR OF MANUFACTURE

2.0 TD (BA)

VM4HT/2

1981

10/1979 → 03/1983

2.4 TD (B3)

VM4HT 2.4

2325

04/1983 → 12/1984

F 12 | 54-81

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
F 12	Perk. 4.108 (V)	1800	40	54	10/1972 → 10/1981		F 12 ENGINE CODE: Perk. 4.108 (V) CC: 1800 kW: 40 HP: 54 YEAR OF MANUFACTURE: 10/1972 → 10/1981

ENGINE CODE

YEAR OF MANUFACTURE

F 12

Perk. 4.108 (V)

1800

10/1972 → 10/1981

Giulia | 64-78

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
1800 Diesel (115)	Perkins 4.108	1760	38	52	06/1976 → 12/1978		1800 Diesel (115) ENGINE CODE: Perkins 4.108 CC: 1760 kW: 38 HP: 52 YEAR OF MANUFACTURE: 06/1976 → 12/1978

ENGINE CODE

YEAR OF MANUFACTURE

1800 Diesel (115)

Perkins 4.108

1760

06/1976 → 12/1978

Giulietta (116) | 77-85

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
2.0 TD		1995	61	83	01/1983 → 12/1985		2.0 TD ENGINE CODE: CC: 1995 kW: 61 HP: 83 YEAR OF MANUFACTURE: 01/1983 → 12/1985

ENGINE CODE

YEAR OF MANUFACTURE

2.0 TD

1995

01/1983 → 12/1985

DAEWOO - FS LUBLIN

Lublin II | 97-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
2.4 D (3302)	4C90	2417	52	71	04/1997 →		2.4 D (3302) ENGINE CODE: 4C90 CC: 2417 kW: 52 HP: 71 YEAR OF MANUFACTURE: 04/1997 →
2.4 TD (3304)	4CT90-1	2417	66	90	04/1997 → 02/2002		2.4 TD (3304) ENGINE CODE: 4CT90-1 CC: 2417 kW: 66 HP: 90 YEAR OF MANUFACTURE: 04/1997 → 02/2002

ENGINE CODE

YEAR OF MANUFACTURE

2.4 D (3302)

4C90

2417

04/1997 →

2.4 TD (3304)

4CT90-1

2417

04/1997 → 02/2002

FORD

Scorpio (Granada) | 85-94

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
2.5 D Turnier	SCB	2500	85	116	08/1993 → 09/1994		2.5 D Turnier ENGINE CODE: SCB CC: 2500 kW: 85 HP: 116 YEAR OF MANUFACTURE: 08/1993 → 09/1994
2.5 TD	SCB	2500	85	116	08/1993 → 09/1994		2.5 TD ENGINE CODE: SCB CC: 2500 kW: 85 HP: 116 YEAR OF MANUFACTURE: 08/1993 → 09/1994

ENGINE CODE

YEAR OF MANUFACTURE

2.5 D Turnier

SCB

2500

116

08/1993 → 09/1994

2.5 TD

SCB

2500

116

08/1993 → 09/1994

Scorpio | 94-98

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
2.5 TD	SCC	2500	85	115	10/1994 → 08/1998		2.5 TD ENGINE CODE: SCC CC: 2500 kW: 85 HP: 115 YEAR OF MANUFACTURE: 10/1994 → 08/1998
2.5 TD	VM	2500	92	125	09/1996 → 08/1998		2.5 TD ENGINE CODE: VM CC: 2500 kW: 92 HP: 125 YEAR OF MANUFACTURE: 09/1996 → 08/1998

ENGINE CODE

YEAR OF MANUFACTURE

2.5 TD

SCC

2500

115

10/1994 → 08/1998

2.5 TD

2500

125

09/1996 → 08/1998

LANCIA (LANCIA AUTOBIANCHI)

Fulvia | 64-76

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
1.1 (818)		1091	52	71	11/1964 → 12/1969	i 01/1969 ->	1.1 (818) ENGINE CODE: CC: 1091 kW: 52 HP: 71 YEAR OF MANUFACTURE: 11/1964 → 12/1969

ENGINE CODE

YEAR OF MANUFACTURE

1.1 (818)

1091

11/1964 → 12/1969

LAND ROVER

Range Rover I (Classic) | 70-94

	kW	HP	YEAR OF MANUFACTURE
2.4 TD	89	121	01/1988 → 11/1991	2.4 TD ENGINE CODE: CC: kW: 89 HP: 121 YEAR OF MANUFACTURE: 01/1988 → 11/1991
2.4 TDi	83	113	01/1988 → 10/1994	2.4 TDi ENGINE CODE: CC: kW: 83 HP: 113 YEAR OF MANUFACTURE: 01/1988 → 10/1994
2.5 TD	89	121	01/1988 → 11/1991	2.5 TD ENGINE CODE: CC: kW: 89 HP: 121 YEAR OF MANUFACTURE: 01/1988 → 11/1991
2.5 TDi	83	113	01/1988 → 10/1994	2.5 TDi ENGINE CODE: CC: kW: 83 HP: 113 YEAR OF MANUFACTURE: 01/1988 → 10/1994

ENGINE CODE

YEAR OF MANUFACTURE

2.4 TD

121

01/1988 → 11/1991

2.4 TDi

113

01/1988 → 10/1994

2.5 TD

121

01/1988 → 11/1991

2.5 TDi

113

01/1988 → 10/1994

LDV LIMITED

Convoy 400 (VH C35) | 93-06

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
3.5 Diesel	Andoria 4CT90-1/A7		73	100	07/1993 → 05/2005		3.5 Diesel ENGINE CODE: Andoria 4CT90-1/A7 CC: kW: 73 HP: 100 YEAR OF MANUFACTURE: 07/1993 → 05/2005
3.5 Diesel	And. 4CT90-1/BEA07		73	100	09/1998 → 05/2005		3.5 Diesel ENGINE CODE: And. 4CT90-1/BEA07 CC: kW: 73 HP: 100 YEAR OF MANUFACTURE: 09/1998 → 05/2005

ENGINE CODE

YEAR OF MANUFACTURE

3.5 Diesel

Andoria 4CT90-1/A7

100

07/1993 → 05/2005

3.5 Diesel

And. 4CT90-1/BEA07

100

09/1998 → 05/2005

PORSCHE

911 | 63-90

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
2.0 E Targa	901.11	1991	103	140	08/1968 → 02/1972		2.0 E Targa ENGINE CODE: 901.11 CC: 1991 kW: 103 HP: 140 YEAR OF MANUFACTURE: 08/1968 → 02/1972
2.0 L	901.01/05	1991	96	130	01/1963 → 08/1967		2.0 L ENGINE CODE: 901.01/05 CC: 1991 kW: 96 HP: 130 YEAR OF MANUFACTURE: 01/1963 → 08/1967
2.0 L		1991	110	150	08/1967 → 11/1968		2.0 L ENGINE CODE: CC: 1991 kW: 110 HP: 150 YEAR OF MANUFACTURE: 08/1967 → 11/1968
2.0 L Targa	901	1991	96	131	11/1964 → 11/1968		2.0 L Targa ENGINE CODE: 901 CC: 1991 kW: 96 HP: 131 YEAR OF MANUFACTURE: 11/1964 → 11/1968
2.0 S Targa	901.02	1991	118	160	07/1966 → 11/1968		2.0 S Targa ENGINE CODE: 901.02 CC: 1991 kW: 118 HP: 160 YEAR OF MANUFACTURE: 07/1966 → 11/1968
2.0 S Targa	901.02	1991	125	170	07/1966 → 02/1972		2.0 S Targa ENGINE CODE: 901.02 CC: 1991 kW: 125 HP: 170 YEAR OF MANUFACTURE: 07/1966 → 02/1972
2.0 T	901.13	1991	81	110	08/1968 → 02/1972		2.0 T ENGINE CODE: 901.13 CC: 1991 kW: 81 HP: 110 YEAR OF MANUFACTURE: 08/1968 → 02/1972
2.2 E Targa	911.04	2195	114	155	09/1969 → 02/1972	i -> 08/1971	2.2 E Targa ENGINE CODE: 911.04 CC: 2195 kW: 114 HP: 155 YEAR OF MANUFACTURE: 09/1969 → 02/1972
2.2 S Targa	911.02	2195	132	180	09/1969 → 02/1972	i -> 08/1971	2.2 S Targa ENGINE CODE: 911.02 CC: 2195 kW: 132 HP: 180 YEAR OF MANUFACTURE: 09/1969 → 02/1972
2.2 T	911	2179	92	125	01/1970 → 12/1972	i -> 08/1971	2.2 T ENGINE CODE: 911 CC: 2179 kW: 92 HP: 125 YEAR OF MANUFACTURE: 01/1970 → 12/1972

ENGINE CODE

YEAR OF MANUFACTURE

2.0 E Targa

901.11

1991

103

140

08/1968 → 02/1972

2.0 L

901.01/05

1991

130

01/1963 → 08/1967

2.0 L

1991

110

150

08/1967 → 11/1968

2.0 L Targa

901

1991

131

11/1964 → 11/1968

2.0 S Targa

901.02

1991

118

160

07/1966 → 11/1968

2.0 S Targa

901.02

1991

125

170

07/1966 → 02/1972

2.0 T

901.13

1991

110

08/1968 → 02/1972

2.2 E Targa

911.04

2195

114

155

09/1969 → 02/1972

2.2 S Targa

911.02

2195

132

180

09/1969 → 02/1972

2.2 T

911

2179

125

01/1970 → 12/1972

VAUXHALL-BEDFORD (LCV)

CF-Serie | 68-87

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
CF Van	Perkins-4.108				01/1968 → 12/1977	i From engine no. 108U59238 01/1974 ->	CF Van ENGINE CODE: Perkins-4.108 CC: kW: HP: YEAR OF MANUFACTURE: 01/1968 → 12/1977 i From engine no. 108U59238 01/1974 ->

ENGINE CODE

YEAR OF MANUFACTURE

CF Van

Perkins-4.108

01/1968 → 12/1977

VOLGA / GAZ

Gazel / Gazelle | 93-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
2.1 Turbodiesel (3302/3221/3512)	Steyr M14TCA(GAZ560)	2134	95	130	01/1999 →	2.1 Turbodiesel (3302/3221/3512) ENGINE CODE: Steyr M14TCA(GAZ560) CC: 2134 kW: 95 HP: 130 YEAR OF MANUFACTURE: 01/1999 →
2.1 Turbodiesel (3302/3221/3512)	GAZ5601 Euro3(Steyr)	2134	81	110	01/2003 → 03/2013	2.1 Turbodiesel (3302/3221/3512) ENGINE CODE: GAZ5601 Euro3(Steyr) CC: 2134 kW: 81 HP: 110 YEAR OF MANUFACTURE: 01/2003 → 03/2013
2.1 Turbodiesel (3302/3221/3512)	GAZ5601 Euro3(Steyr)	2134	70	95	01/2003 → 03/2013	2.1 Turbodiesel (3302/3221/3512) ENGINE CODE: GAZ5601 Euro3(Steyr) CC: 2134 kW: 70 HP: 95 YEAR OF MANUFACTURE: 01/2003 → 03/2013
2.4 Diesel (3302/3221/3512)	Andoria 4CTi90	2446	67	91	10/1993 → 09/2001	2.4 Diesel (3302/3221/3512) ENGINE CODE: Andoria 4CTi90 CC: 2446 kW: 67 HP: 91 YEAR OF MANUFACTURE: 10/1993 → 09/2001
2.4 Turbodiesel (3302/3221/3512)	Andoria 4CTi90-BE/BE6 A2201/03	2417	66	90	01/2003 → 02/2013	2.4 Turbodiesel (3302/3221/3512) ENGINE CODE: Andoria 4CTi90-BE/BE6 A2201/03 CC: 2417 kW: 66 HP: 90 YEAR OF MANUFACTURE: 01/2003 → 02/2013

ENGINE CODE

YEAR OF MANUFACTURE

2.1 Turbodiesel (3302/3221/3512)

Steyr M14TCA(GAZ560)

2134

130

01/1999 →

2.1 Turbodiesel (3302/3221/3512)

GAZ5601 Euro3(Steyr)

2134

110

01/2003 → 03/2013

2.1 Turbodiesel (3302/3221/3512)

GAZ5601 Euro3(Steyr)

2134

01/2003 → 03/2013

2.4 Diesel (3302/3221/3512)

Andoria 4CTi90

2446

10/1993 → 09/2001

2.4 Turbodiesel (3302/3221/3512)

Andoria 4CTi90-BE/BE6 A2201/03

2417

01/2003 → 02/2013

Sobol | 97-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
2.1 TD (2310, 2752)	GAZ-560	2134	81	110	09/1997 → 04/2013		2.1 TD (2310, 2752) ENGINE CODE: GAZ-560 CC: 2134 kW: 81 HP: 110 YEAR OF MANUFACTURE: 09/1997 → 04/2013

ENGINE CODE

YEAR OF MANUFACTURE

2.1 TD (2310, 2752)

GAZ-560

2134

110

09/1997 → 04/2013

Volga 3102 / 3110 / 3111 | 72-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
2.1 TDi		2134	70	95	02/1993 → 12/2010		2.1 TDi ENGINE CODE: CC: 2134 kW: 70 HP: 95 YEAR OF MANUFACTURE: 02/1993 → 12/2010
2.5 D	ZMZ- 20ZLT	2446	67	91	10/1994 → 04/1998		2.5 D ENGINE CODE: ZMZ- 20ZLT CC: 2446 kW: 67 HP: 91 YEAR OF MANUFACTURE: 10/1994 → 04/1998

ENGINE CODE

YEAR OF MANUFACTURE

2.1 TDi

2134

02/1993 → 12/2010

2.5 D

ZMZ- 20ZLT

2446

10/1994 → 04/1998

VW-PORSCHE

914 | 69-76

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
2.0	901.37	1991	81	110	11/1969 → 12/1973		2.0 ENGINE CODE: 901.37 CC: 1991 kW: 81 HP: 110 YEAR OF MANUFACTURE: 11/1969 → 12/1973

ENGINE CODE

YEAR OF MANUFACTURE

2.0

901.37

1991

110

11/1969 → 12/1973

AVIA (MISA)

1000-Serie | 63-84

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
1500	Perkins-4.192	3150	49	67	01/1972 → 10/1984		1500 ENGINE CODE: Perkins-4.192 CC: 3150 kW: 49 HP: 67 YEAR OF MANUFACTURE: 01/1972 → 10/1984

ENGINE CODE

YEAR OF MANUFACTURE

1500

Perkins-4.192

3150

01/1972 → 10/1984

2000-Serie | 63-80

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
2000	Perkins-4.192	3429	77	105	01/1972 → 12/1980	2000 ENGINE CODE: Perkins-4.192 CC: 3429 kW: 77 HP: 105 YEAR OF MANUFACTURE: 01/1972 → 12/1980
2500	Perkins-4.192	3330	52	71	01/1972 → 12/1980	2500 ENGINE CODE: Perkins-4.192 CC: 3330 kW: 52 HP: 71 YEAR OF MANUFACTURE: 01/1972 → 12/1980
2500	Perkins-4.203	3330	52	71	01/1963 → 12/1980	2500 ENGINE CODE: Perkins-4.203 CC: 3330 kW: 52 HP: 71 YEAR OF MANUFACTURE: 01/1963 → 12/1980

ENGINE CODE

YEAR OF MANUFACTURE

2000

Perkins-4.192

3429

105

01/1972 → 12/1980

2500

Perkins-4.192

3330

01/1972 → 12/1980

2500

Perkins-4.203

3330

01/1963 → 12/1980

3000-Serie | 63-80

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
3500	Perkins-4.192					3500 ENGINE CODE: Perkins-4.192 CC: kW: HP:
3500	Perkins-4.236	3800	65	89	01/1963 → 12/1980	3500 ENGINE CODE: Perkins-4.236 CC: 3800 kW: 65 HP: 89 YEAR OF MANUFACTURE: 01/1963 → 12/1980
3500 LE	Perkins-4.203					3500 LE ENGINE CODE: Perkins-4.203 CC: kW: HP:
3600, 3600 F	Perkins-4.236					3600, 3600 F ENGINE CODE: Perkins-4.236 CC: kW: HP:
3601	Perkins-4.236					3601 ENGINE CODE: Perkins-4.236 CC: kW: HP:
3602, 3602 F	Perkins-4.236					3602, 3602 F ENGINE CODE: Perkins-4.236 CC: kW: HP:
3603	Perkins-4.236					3603 ENGINE CODE: Perkins-4.236 CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

3500

Perkins-4.192

3500

Perkins-4.236

3800

01/1963 → 12/1980

3500 LE

Perkins-4.203

3600, 3600 F

Perkins-4.236

3601

Perkins-4.236

3602, 3602 F

Perkins-4.236

3603

Perkins-4.236

4000-Serie | 65-80

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
4000	Perkins-4.192	3800	65	89	01/1973 → 12/1980	4000 ENGINE CODE: Perkins-4.192 CC: 3800 kW: 65 HP: 89 YEAR OF MANUFACTURE: 01/1973 → 12/1980
4000	Perkins-4.203	3800	65	89	01/1972 → 12/1976	4000 ENGINE CODE: Perkins-4.203 CC: 3800 kW: 65 HP: 89 YEAR OF MANUFACTURE: 01/1972 → 12/1976
4000	Perkins-4.236	3800	65	89	01/1965 → 12/1980	4000 ENGINE CODE: Perkins-4.236 CC: 3800 kW: 65 HP: 89 YEAR OF MANUFACTURE: 01/1965 → 12/1980
4006 C	Perkins-6.305	5000	73	100	01/1968 → 12/1980	4006 C ENGINE CODE: Perkins-6.305 CC: 5000 kW: 73 HP: 100 YEAR OF MANUFACTURE: 01/1968 → 12/1980

ENGINE CODE

YEAR OF MANUFACTURE

4000

Perkins-4.192

3800

01/1973 → 12/1980

4000

Perkins-4.203

3800

01/1972 → 12/1976

4000

Perkins-4.236

3800

01/1965 → 12/1980

4006 C

Perkins-6.305

5000

100

01/1968 → 12/1980

5000-Serie | 71-80

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
5000	Perkins-4.236	3800	65	89	01/1971 → 12/1980	5000 ENGINE CODE: Perkins-4.236 CC: 3800 kW: 65 HP: 89 YEAR OF MANUFACTURE: 01/1971 → 12/1980
5600, 5600 F	Perkins-4.236					5600, 5600 F ENGINE CODE: Perkins-4.236 CC: kW: HP:
5601, 5601 F	Perkins-4.236					5601, 5601 F ENGINE CODE: Perkins-4.236 CC: kW: HP:
5602, 5602 F	Perkins-4.236					5602, 5602 F ENGINE CODE: Perkins-4.236 CC: kW: HP:
5603	Perkins-4.236					5603 ENGINE CODE: Perkins-4.236 CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

5000

Perkins-4.236

3800

01/1971 → 12/1980

5600, 5600 F

Perkins-4.236

5601, 5601 F

Perkins-4.236

5602, 5602 F

Perkins-4.236

5603

Perkins-4.236

6000-Serie | 66-70

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
6500	Perkins-6.305	5000	73	100	01/1966 → 12/1970		6500 ENGINE CODE: Perkins-6.305 CC: 5000 kW: 73 HP: 100 YEAR OF MANUFACTURE: 01/1966 → 12/1970

ENGINE CODE

YEAR OF MANUFACTURE

6500

Perkins-6.305

5000

100

01/1966 → 12/1970

70-Serie

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
70 TT	Perkins-4.236						70 TT ENGINE CODE: Perkins-4.236 CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

70 TT

Perkins-4.236

7000-Serie | 69-80

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
7000	Perkins-6.305	5000	99	135	01/1969 → 12/1980		7000 ENGINE CODE: Perkins-6.305 CC: 5000 kW: 99 HP: 135 YEAR OF MANUFACTURE: 01/1969 → 12/1980

ENGINE CODE

YEAR OF MANUFACTURE

7000

Perkins-6.305

5000

135

01/1969 → 12/1980

AWD

M-Serie | 88-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
MT 12-18	Perk. 6.180Ti	6000	134	180	03/1988 →		MT 12-18 ENGINE CODE: Perk. 6.180Ti CC: 6000 kW: 134 HP: 180 YEAR OF MANUFACTURE: 03/1988 →
MT 15-18	Perk. 6.180Ti	6000	134	180	03/1988 →		MT 15-18 ENGINE CODE: Perk. 6.180Ti CC: 6000 kW: 134 HP: 180 YEAR OF MANUFACTURE: 03/1988 →

ENGINE CODE

YEAR OF MANUFACTURE

MT 12-18

Perk. 6.180Ti

6000

134

180

03/1988 →

MT 15-18

Perk. 6.180Ti

6000

134

180

03/1988 →

TL-Serie | 88-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
TL 7-14	Perk. 6.145T	5985	107	143	01/1988 →	TL 7-14 ENGINE CODE: Perk. 6.145T CC: 5985 kW: 107 HP: 143 YEAR OF MANUFACTURE: 01/1988 →
TL 8-14	Perk. 6.145T	5985	107	143	08/1988 →	TL 8-14 ENGINE CODE: Perk. 6.145T CC: 5985 kW: 107 HP: 143 YEAR OF MANUFACTURE: 08/1988 →
TL 9-14	Perk. 6.145T	3985	107	143	01/1988 →	TL 9-14 ENGINE CODE: Perk. 6.145T CC: 3985 kW: 107 HP: 143 YEAR OF MANUFACTURE: 01/1988 →
TL 10-14	Perk. 6.145T	5985	107	143	08/1989 →	TL 10-14 ENGINE CODE: Perk. 6.145T CC: 5985 kW: 107 HP: 143 YEAR OF MANUFACTURE: 08/1989 →
TL 12-16	Perk. 6.160T	5985	119	160	01/1988 →	TL 12-16 ENGINE CODE: Perk. 6.160T CC: 5985 kW: 119 HP: 160 YEAR OF MANUFACTURE: 01/1988 →
TL 13-16	Perk. 6.160T	5985	119	160	09/1988 →	TL 13-16 ENGINE CODE: Perk. 6.160T CC: 5985 kW: 119 HP: 160 YEAR OF MANUFACTURE: 09/1988 →
TL 17-18	Perk. 6.180Ti	5985	134	180	03/1989 →	TL 17-18 ENGINE CODE: Perk. 6.180Ti CC: 5985 kW: 134 HP: 180 YEAR OF MANUFACTURE: 03/1989 →
TL 18-16	Perk.Ph. 6.160T	5985	119	160	01/1988 →	TL 18-16 ENGINE CODE: Perk.Ph. 6.160T CC: 5985 kW: 119 HP: 160 YEAR OF MANUFACTURE: 01/1988 →
TL 21-16	Perk.Ph. 6.160T	5985	119	160	01/1988 →	TL 21-16 ENGINE CODE: Perk.Ph. 6.160T CC: 5985 kW: 119 HP: 160 YEAR OF MANUFACTURE: 01/1988 →

ENGINE CODE

YEAR OF MANUFACTURE

TL 7-14

Perk. 6.145T

5985

107

143

01/1988 →

TL 8-14

Perk. 6.145T

5985

107

143

08/1988 →

TL 9-14

Perk. 6.145T

3985

107

143

01/1988 →

TL 10-14

Perk. 6.145T

5985

107

143

08/1989 →

TL 12-16

Perk. 6.160T

5985

119

160

01/1988 →

TL 13-16

Perk. 6.160T

5985

119

160

09/1988 →

TL 17-18

Perk. 6.180Ti

5985

134

180

03/1989 →

TL 18-16

Perk.Ph. 6.160T

5985

119

160

01/1988 →

TL 21-16

Perk.Ph. 6.160T

5985

119

160

01/1988 →

CHRYSLER

100-Serie | 72-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
102/3	Perk. 4.236 (V)				01/1972 → 12/1975	102/3 ENGINE CODE: Perk. 4.236 (V) CC: kW: HP: YEAR OF MANUFACTURE: 01/1972 → 12/1975
103	Perk. 6.354 (V)				01/1972 → 12/1975	103 ENGINE CODE: Perk. 6.354 (V) CC: kW: HP: YEAR OF MANUFACTURE: 01/1972 → 12/1975
PW 150	Perkins-4.236	3865	60	82	01/1987 →	PW 150 ENGINE CODE: Perkins-4.236 CC: 3865 kW: 60 HP: 82 YEAR OF MANUFACTURE: 01/1987 →

ENGINE CODE

YEAR OF MANUFACTURE

102/3

Perk. 4.236 (V)

01/1972 → 12/1975

103

Perk. 6.354 (V)

01/1972 → 12/1975

PW 150

Perkins-4.236

3865

01/1987 →

AS-Serie | 89-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
AS 250	Perkins-4.236	3865	60	82	01/1989 →		AS 250 ENGINE CODE: Perkins-4.236 CC: 3865 kW: 60 HP: 82 YEAR OF MANUFACTURE: 01/1989 →
AS 400	Perkins-4.236	3865	60	82	01/1989 →		AS 400 ENGINE CODE: Perkins-4.236 CC: 3865 kW: 60 HP: 82 YEAR OF MANUFACTURE: 01/1989 →

ENGINE CODE

YEAR OF MANUFACTURE

AS 250

Perkins-4.236

3865

01/1989 →

AS 400

Perkins-4.236

3865

01/1989 →

COMMER

Commando | 74-81

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
Commando G..	Perkins 4.236				04/1974 → 12/1976		Commando G.. ENGINE CODE: Perkins 4.236 CC: kW: HP: YEAR OF MANUFACTURE: 04/1974 → 12/1976

ENGINE CODE

YEAR OF MANUFACTURE

Commando G..

Perkins 4.236

04/1974 → 12/1976

KC-Serie | 69-79

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
KC Walktrough	Perkins-4.236				01/1976 → 12/1979		KC Walktrough ENGINE CODE: Perkins-4.236 CC: kW: HP: YEAR OF MANUFACTURE: 01/1976 → 12/1979
KCF Walktrough	Perkins-4.236				01/1969 → 12/1976	i Partly/or	KCF Walktrough ENGINE CODE: Perkins-4.236 CC: kW: HP: YEAR OF MANUFACTURE: 01/1969 → 12/1976 i Partly/or

ENGINE CODE

YEAR OF MANUFACTURE

KC Walktrough

Perkins-4.236

01/1976 → 12/1979

KCF Walktrough

Perkins-4.236

01/1969 → 12/1976

PB-Serie | 69-76

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
1500	Perkins-4.108				01/1969 → 12/1976	i Partly/or	1500 ENGINE CODE: Perkins-4.108 CC: kW: HP: YEAR OF MANUFACTURE: 01/1969 → 12/1976 i Partly/or
2500	Perkins-4.108				01/1969 → 12/1976	i Partly/or	2500 ENGINE CODE: Perkins-4.108 CC: kW: HP: YEAR OF MANUFACTURE: 01/1969 → 12/1976 i Partly/or

ENGINE CODE

YEAR OF MANUFACTURE

1500

Perkins-4.108

01/1969 → 12/1976

2500

Perkins-4.108

01/1969 → 12/1976

VC-Serie | 69-73

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
4, 5, 7	Perkins-4.236				01/1969 → 12/1973	i Partly/or	4, 5, 7 ENGINE CODE: Perkins-4.236 CC: kW: HP: YEAR OF MANUFACTURE: 01/1969 → 12/1973 i Partly/or

ENGINE CODE

YEAR OF MANUFACTURE

4, 5, 7

Perkins-4.236

01/1969 → 12/1973

DENNIS BUS / ALEXANDER DENNIS

Dominant | 72-80

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
Dominant DB15/D20/DB21	Perkins-D 6.354				01/1976 → 12/1980	i Partly/or	Dominant DB15/D20/DB21 ENGINE CODE: Perkins-D 6.354 CC: kW: HP: YEAR OF MANUFACTURE: 01/1976 → 12/1980 i Partly/or

ENGINE CODE

YEAR OF MANUFACTURE

Dominant DB15/D20/DB21

Perkins-D 6.354

01/1976 → 12/1980

Domino

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
Domino	Perk. T6.354.4						Domino ENGINE CODE: Perk. T6.354.4 CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

Domino

Perk. T6.354.4

Lancet

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
Lancet	Perk. 6.354.4						Lancet ENGINE CODE: Perk. 6.354.4 CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

Lancet

Perk. 6.354.4

Lancet Midi

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
Lancet Midi	Perk. 6.354						Lancet Midi ENGINE CODE: Perk. 6.354 CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

Lancet Midi

Perk. 6.354

DENNIS TRUCKS / DENNIS EAGLE

Defiant

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
DB 24T	Perk. V8.510					i Partly/or	DB 24T ENGINE CODE: Perk. V8.510 CC: kW: HP: i Partly/or

ENGINE CODE

YEAR OF MANUFACTURE

DB 24T

Perk. V8.510

Maxim

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
Maxim	Perk. 6.354					i Partly/or	Maxim ENGINE CODE: Perk. 6.354 CC: kW: HP: i Partly/or

ENGINE CODE

YEAR OF MANUFACTURE

Maxim

Perk. 6.354

Pax

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
Pax	Perk. 6.354					i Partly/or	Pax ENGINE CODE: Perk. 6.354 CC: kW: HP: i Partly/or

ENGINE CODE

YEAR OF MANUFACTURE

Pax

Perk. 6.354

DODGE

50-Serie | 79-86

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
50	Perkins-6.247	4560	82	112	04/1979 → 10/1986		50 ENGINE CODE: Perkins-6.247 CC: 4560 kW: 82 HP: 112 YEAR OF MANUFACTURE: 04/1979 → 10/1986

ENGINE CODE

YEAR OF MANUFACTURE

Perkins-6.247

4560

112

04/1979 → 10/1986

Commando | 76-81

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
Commando 100 G..	Perkins-4.236				01/1976 → 09/1981	i Partly/or	Commando 100 G.. ENGINE CODE: Perkins-4.236 CC: kW: HP: YEAR OF MANUFACTURE: 01/1976 → 09/1981 i Partly/or

ENGINE CODE

YEAR OF MANUFACTURE

Commando 100 G..

Perkins-4.236

01/1976 → 09/1981

D-Serie | 68-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
D 308	Perkins-6.354				01/1968 →	i Partly/or	D 308 ENGINE CODE: Perkins-6.354 CC: kW: HP: YEAR OF MANUFACTURE: 01/1968 → i Partly/or
D 309	Perkins-6.354	5320	88	120	01/1968 →	i Partly/or	D 309 ENGINE CODE: Perkins-6.354 CC: 5320 kW: 88 HP: 120 YEAR OF MANUFACTURE: 01/1968 → i Partly/or
DKCF Walk Thru	Perkins-4.236				01/1969 → 12/1976	i Partly/or	DKCF Walk Thru ENGINE CODE: Perkins-4.236 CC: kW: HP: YEAR OF MANUFACTURE: 01/1969 → 12/1976 i Partly/or
DPB 1500	Perkins-4.108	1725			01/1976 → 12/1981	i Partly/or	DPB 1500 ENGINE CODE: Perkins-4.108 CC: 1725 kW: HP: YEAR OF MANUFACTURE: 01/1976 → 12/1981 i Partly/or
DPB 2000	Perkins-4.108	1725			01/1976 → 12/1981	i Partly/or	DPB 2000 ENGINE CODE: Perkins-4.108 CC: 1725 kW: HP: YEAR OF MANUFACTURE: 01/1976 → 12/1981 i Partly/or
DPB 2500	Perkins-4.108	1725			01/1976 → 12/1981	i Partly/or	DPB 2500 ENGINE CODE: Perkins-4.108 CC: 1725 kW: HP: YEAR OF MANUFACTURE: 01/1976 → 12/1981 i Partly/or

ENGINE CODE

YEAR OF MANUFACTURE

D 308

Perkins-6.354

01/1968 →

D 309

Perkins-6.354

5320

120

01/1968 →

DKCF Walk Thru

Perkins-4.236

01/1969 → 12/1976

DPB 1500

Perkins-4.108

1725

01/1976 → 12/1981

DPB 2000

Perkins-4.108

1725

01/1976 → 12/1981

DPB 2500

Perkins-4.108

1725

01/1976 → 12/1981

K-Serie | 61-79

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
K 500, 600, 700, 800, 950	Perkins-6.354				12/1968 → 12/1978	i Partly/or	K 500, 600, 700, 800, 950 ENGINE CODE: Perkins-6.354 CC: kW: HP: YEAR OF MANUFACTURE: 12/1968 → 12/1978 i Partly/or
K 1050, 1100	Perkins-V 8.510				10/1968 → 12/1978	i Partly/or	K 1050, 1100 ENGINE CODE: Perkins-V 8.510 CC: kW: HP: YEAR OF MANUFACTURE: 10/1968 → 12/1978 i Partly/or

ENGINE CODE

YEAR OF MANUFACTURE

K 500, 600, 700, 800, 950

Perkins-6.354

12/1968 → 12/1978

K 1050, 1100

Perkins-V 8.510

10/1968 → 12/1978

EBRO (MISA)

100-Serie | 84-87

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
100/8 D	Perk. T6.354.3	5800	110	150	04/1984 → 05/1987		100/8 D ENGINE CODE: Perk. T6.354.3 CC: 5800 kW: 110 HP: 150 YEAR OF MANUFACTURE: 04/1984 → 05/1987

ENGINE CODE

YEAR OF MANUFACTURE

100/8 D

Perk. T6.354.3

5800

110

150

04/1984 → 05/1987

50-Serie | 75-80

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
50/5D	Perkins-4.203	3330	52	71	01/1975 → 12/1980		50/5D ENGINE CODE: Perkins-4.203 CC: 3330 kW: 52 HP: 71 YEAR OF MANUFACTURE: 01/1975 → 12/1980
55/6 D	Perkins 4.236						55/6 D ENGINE CODE: Perkins 4.236 CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

50/5D

Perkins-4.203

3330

01/1975 → 12/1980

55/6 D

Perkins 4.236

60-Serie | 75-90

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
60/7 D	Perkins-6.305	5000	73	100	01/1975 → 12/1980	60/7 D ENGINE CODE: Perkins-6.305 CC: 5000 kW: 73 HP: 100 YEAR OF MANUFACTURE: 01/1975 → 12/1980
65/7 D	Perkins-T4.236	3867	60	82	02/1984 → 06/1990	65/7 D ENGINE CODE: Perkins-T4.236 CC: 3867 kW: 60 HP: 82 YEAR OF MANUFACTURE: 02/1984 → 06/1990
66/7 T	Perkins-6.305	5000	73	100	01/1975 → 12/1979	66/7 T ENGINE CODE: Perkins-6.305 CC: 5000 kW: 73 HP: 100 YEAR OF MANUFACTURE: 01/1975 → 12/1979

ENGINE CODE

YEAR OF MANUFACTURE

60/7 D

Perkins-6.305

5000

100

01/1975 → 12/1980

65/7 D

Perkins-T4.236

3867

02/1984 → 06/1990

66/7 T

Perkins-6.305

5000

100

01/1975 → 12/1979

70-Serie

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
71/7 D	Perkins 4.236						71/7 D ENGINE CODE: Perkins 4.236 CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

71/7 D

Perkins 4.236

C-Serie | 65-70

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
C	Perkins-4.203	3610	53	73	01/1965 → 12/1970		C ENGINE CODE: Perkins-4.203 CC: 3610 kW: 53 HP: 73 YEAR OF MANUFACTURE: 01/1965 → 12/1970

ENGINE CODE

YEAR OF MANUFACTURE

Perkins-4.203

3610

01/1965 → 12/1970

D-Serie | 70-74

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
D 150, 350, 450	Perkins-4.203	3610	53	73	01/1970 → 12/1974	i Partly/or	D 150, 350, 450 ENGINE CODE: Perkins-4.203 CC: 3610 kW: 53 HP: 73 YEAR OF MANUFACTURE: 01/1970 → 12/1974 i Partly/or
D 500	Perkins-4.203	3610	53	73	01/1970 → 12/1974	i Partly/or	D 500 ENGINE CODE: Perkins-4.203 CC: 3610 kW: 53 HP: 73 YEAR OF MANUFACTURE: 01/1970 → 12/1974 i Partly/or
D 600, 700	Perkins-6.305	5000	73	100	01/1970 → 12/1974		D 600, 700 ENGINE CODE: Perkins-6.305 CC: 5000 kW: 73 HP: 100 YEAR OF MANUFACTURE: 01/1970 → 12/1974
D-150	Perkins 4.236						D-150 ENGINE CODE: Perkins 4.236 CC: kW: HP:
D-350	Perkins 4.236						D-350 ENGINE CODE: Perkins 4.236 CC: kW: HP:
D-550	Perkins 4.236						D-550 ENGINE CODE: Perkins 4.236 CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

D 150, 350, 450

Perkins-4.203

3610

01/1970 → 12/1974

D 500

Perkins-4.203

3610

01/1970 → 12/1974

D 600, 700

Perkins-6.305

5000

100

01/1970 → 12/1974

D-150

Perkins 4.236

D-350

Perkins 4.236

D-550

Perkins 4.236

E-Serie | 71-80

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
E 35	Perkins-4.203	3330	52	71	01/1975 → 12/1980		E 35 ENGINE CODE: Perkins-4.203 CC: 3330 kW: 52 HP: 71 YEAR OF MANUFACTURE: 01/1975 → 12/1980
E 60	Perkins-4.203	3860	65	89	01/1975 → 12/1980	i Partly/or	E 60 ENGINE CODE: Perkins-4.203 CC: 3860 kW: 65 HP: 89 YEAR OF MANUFACTURE: 01/1975 → 12/1980 i Partly/or
E 60	Perkins-4.236	3860	65	89	01/1975 → 12/1980		E 60 ENGINE CODE: Perkins-4.236 CC: 3860 kW: 65 HP: 89 YEAR OF MANUFACTURE: 01/1975 → 12/1980
E 70	Perkins-4.236	3860	65	89	01/1975 → 12/1980		E 70 ENGINE CODE: Perkins-4.236 CC: 3860 kW: 65 HP: 89 YEAR OF MANUFACTURE: 01/1975 → 12/1980
E 90	Perkins-4.236	3860	65	89	01/1975 → 12/1980		E 90 ENGINE CODE: Perkins-4.236 CC: 3860 kW: 65 HP: 89 YEAR OF MANUFACTURE: 01/1975 → 12/1980
E 90 T	Perkins-4.236	3860	65	89	01/1973 → 12/1976		E 90 T ENGINE CODE: Perkins-4.236 CC: 3860 kW: 65 HP: 89 YEAR OF MANUFACTURE: 01/1973 → 12/1976
E 95	Perkins-6.305	5800	94	129	01/1975 → 12/1980		E 95 ENGINE CODE: Perkins-6.305 CC: 5800 kW: 94 HP: 129 YEAR OF MANUFACTURE: 01/1975 → 12/1980
E 95 T	Perkins-6.305	5000	73	100	01/1973 → 12/1976		E 95 T ENGINE CODE: Perkins-6.305 CC: 5000 kW: 73 HP: 100 YEAR OF MANUFACTURE: 01/1973 → 12/1976
E 100	Perkins-6.305	5800	94	129	01/1977 → 12/1980		E 100 ENGINE CODE: Perkins-6.305 CC: 5800 kW: 94 HP: 129 YEAR OF MANUFACTURE: 01/1977 → 12/1980
E 100	Perkins-6.354	5800	94	129	01/1977 → 12/1980		E 100 ENGINE CODE: Perkins-6.354 CC: 5800 kW: 94 HP: 129 YEAR OF MANUFACTURE: 01/1977 → 12/1980
E 110	Perkins-6.305	5000	73	100	01/1975 → 12/1980		E 110 ENGINE CODE: Perkins-6.305 CC: 5000 kW: 73 HP: 100 YEAR OF MANUFACTURE: 01/1975 → 12/1980
E 183	Perkins-6.305	5000	54	73	01/1971 → 12/1976		E 183 ENGINE CODE: Perkins-6.305 CC: 5000 kW: 54 HP: 73 YEAR OF MANUFACTURE: 01/1971 → 12/1976
E-35	Perkins 4.236						E-35 ENGINE CODE: Perkins 4.236 CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

E 35

Perkins-4.203

3330

01/1975 → 12/1980

E 60

Perkins-4.203

3860

01/1975 → 12/1980

E 60

Perkins-4.236

3860

01/1975 → 12/1980

E 70

Perkins-4.236

3860

01/1975 → 12/1980

E 90

Perkins-4.236

3860

01/1975 → 12/1980

E 90 T

Perkins-4.236

3860

01/1973 → 12/1976

E 95

Perkins-6.305

5800

129

01/1975 → 12/1980

E 95 T

Perkins-6.305

5000

100

01/1973 → 12/1976

E 100

Perkins-6.305

5800

129

01/1977 → 12/1980

E 100

Perkins-6.354

5800

129

01/1977 → 12/1980

E 110

Perkins-6.305

5000

100

01/1975 → 12/1980

E 183

Perkins-6.305

5000

01/1971 → 12/1976

E-35

Perkins 4.236

L-Serie | 79-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
L 80, F	Perkins-4.236	3867	51	70	07/1979 → 04/1985		L 80, F ENGINE CODE: Perkins-4.236 CC: 3867 kW: 51 HP: 70 YEAR OF MANUFACTURE: 07/1979 → 04/1985
L-80	Perkins 4.236						L-80 ENGINE CODE: Perkins 4.236 CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

L 80, F

Perkins-4.236

3867

07/1979 → 04/1985

L-80

Perkins 4.236

300-Serie

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
350	Perkins 3152-4203						350 ENGINE CODE: Perkins 3152-4203 CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

350

Perkins 3152-4203

400-Serie

	ENGINE CODE
460	Perkins 3152-4203	460 ENGINE CODE: Perkins 3152-4203 CC: kW: HP:
470	Perkins 4236	470 ENGINE CODE: Perkins 4236 CC: kW: HP:
480	Perkins 4248	480 ENGINE CODE: Perkins 4248 CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

460

Perkins 3152-4203

470

Perkins 4236

480

Perkins 4248

600-Serie

	ENGINE CODE
684	Perkins 6305	684 ENGINE CODE: Perkins 6305 CC: kW: HP:
684 E	Perkins 6305	684 E ENGINE CODE: Perkins 6305 CC: kW: HP:
684 EX	Perkins 6305	684 EX ENGINE CODE: Perkins 6305 CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

684

Perkins 6305

684 E

Perkins 6305

684 EX

Perkins 6305

6000-Serie

	ENGINE CODE
6067	Perkins 4236	6067 ENGINE CODE: Perkins 4236 CC: kW: HP:
6070	Perkins 4236-4248	6070 ENGINE CODE: Perkins 4236-4248 CC: kW: HP:
6079	Perkins 4236-4248	6079 ENGINE CODE: Perkins 4236-4248 CC: kW: HP:
6080	Perkins 4248-T 4236	6080 ENGINE CODE: Perkins 4248-T 4236 CC: kW: HP:
6090	Perkins 4248-T 4236	6090 ENGINE CODE: Perkins 4248-T 4236 CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

6067

Perkins 4236

6070

Perkins 4236-4248

6079

Perkins 4236-4248

6080

Perkins 4248-T 4236

6090

Perkins 4248-T 4236

HANOMAG HENSCHEL

F 20-F 45 | 67-74

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
F 45 V Diesel	D 141 L	2830	48	65	01/1971 → 12/1973		F 45 V Diesel ENGINE CODE: D 141 L CC: 2830 kW: 48 HP: 65 YEAR OF MANUFACTURE: 01/1971 → 12/1973

ENGINE CODE

YEAR OF MANUFACTURE

F 45 V Diesel

D 141 L

2830

01/1971 → 12/1973

F 46-F 86 | 71-74

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
F 46, 55	D 142 L 1	3140	59	80	01/1971 → 12/1973	F 46, 55 ENGINE CODE: D 142 L 1 CC: 3140 kW: 59 HP: 80 YEAR OF MANUFACTURE: 01/1971 → 12/1973
F 65, 75	D 142 L 2	3140	59	80	01/1971 → 12/1973	F 65, 75 ENGINE CODE: D 142 L 2 CC: 3140 kW: 59 HP: 80 YEAR OF MANUFACTURE: 01/1971 → 12/1973
F 66, 76	D 161 L	4250	74	100	01/1971 → 12/1973	F 66, 76 ENGINE CODE: D 161 L CC: 4250 kW: 74 HP: 100 YEAR OF MANUFACTURE: 01/1971 → 12/1973
F 85, 86	D 161 L 2	4250	74	100	01/1971 → 12/1973	F 85, 86 ENGINE CODE: D 161 L 2 CC: 4250 kW: 74 HP: 100 YEAR OF MANUFACTURE: 01/1971 → 12/1973
F 86	D 162 L/6 R1010	4710	85	115	01/1971 → 12/1973	F 86 ENGINE CODE: D 162 L/6 R1010 CC: 4710 kW: 85 HP: 115 YEAR OF MANUFACTURE: 01/1971 → 12/1973

ENGINE CODE

YEAR OF MANUFACTURE

F 46, 55

D 142 L 1

3140

01/1971 → 12/1973

F 65, 75

D 142 L 2

3140

01/1971 → 12/1973

F 66, 76

D 161 L

4250

100

01/1971 → 12/1973

F 85, 86

D 161 L 2

4250

100

01/1971 → 12/1973

F 86

D 162 L/6 R1010

4710

115

01/1971 → 12/1973

HANOMAG RHEINSTAHL

F 20 - F 35 Serie | 67-70

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
F 45, V	D 141 L	2830	48	65	04/1967 → 12/1970	F 45, V ENGINE CODE: D 141 L CC: 2830 kW: 48 HP: 65 YEAR OF MANUFACTURE: 04/1967 → 12/1970
F 46, V, 55, V	D 142 L 1	3140	59	80	04/1967 → 12/1970	F 46, V, 55, V ENGINE CODE: D 142 L 1 CC: 3140 kW: 59 HP: 80 YEAR OF MANUFACTURE: 04/1967 → 12/1970
F 65, V, 75	D 142 L 2	3140	59	80	04/1967 → 12/1970	F 65, V, 75 ENGINE CODE: D 142 L 2 CC: 3140 kW: 59 HP: 80 YEAR OF MANUFACTURE: 04/1967 → 12/1970
F 66, V, 76	D 161 L	4250	74	100	04/1967 → 12/1970	F 66, V, 76 ENGINE CODE: D 161 L CC: 4250 kW: 74 HP: 100 YEAR OF MANUFACTURE: 04/1967 → 12/1970
F 85	D 161 L 2	4250	74	100	09/1969 → 12/1970	F 85 ENGINE CODE: D 161 L 2 CC: 4250 kW: 74 HP: 100 YEAR OF MANUFACTURE: 09/1969 → 12/1970
F 86	D 162 L	4710	85	115	02/1968 → 12/1970	F 86 ENGINE CODE: D 162 L CC: 4710 kW: 85 HP: 115 YEAR OF MANUFACTURE: 02/1968 → 12/1970

ENGINE CODE

YEAR OF MANUFACTURE

F 45, V

D 141 L

2830

04/1967 → 12/1970

F 46, V, 55, V

D 142 L 1

3140

04/1967 → 12/1970

F 65, V, 75

D 142 L 2

3140

04/1967 → 12/1970

F 66, V, 76

D 161 L

4250

100

04/1967 → 12/1970

F 85

D 161 L 2

4250

100

09/1969 → 12/1970

F 86

D 162 L

4710

115

02/1968 → 12/1970

HEULIEZ BUS (IVECO BUS)

PK-Serie | 73-79

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
PK 450	Perkins-4.236				01/1973 → 12/1977	i Partly/or	PK 450 ENGINE CODE: Perkins-4.236 CC: kW: HP: YEAR OF MANUFACTURE: 01/1973 → 12/1977 i Partly/or

ENGINE CODE

YEAR OF MANUFACTURE

PK 450

Perkins-4.236

01/1973 → 12/1977

SC 28 | 73-77

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
SC 28	Saviem 797				01/1973 → 12/1977		SC 28 ENGINE CODE: Saviem 797 CC: kW: HP: YEAR OF MANUFACTURE: 01/1973 → 12/1977

ENGINE CODE

YEAR OF MANUFACTURE

SC 28

Saviem 797

01/1973 → 12/1977

IKARUS

500-Serie | 86-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
543.17 (PSG 4)	Renault-720	3590	49	67			543.17 (PSG 4) ENGINE CODE: Renault-720 CC: 3590 kW: 49 HP: 67

ENGINE CODE

YEAR OF MANUFACTURE

543.17 (PSG 4)

Renault-720

3590

MAN TRUCK

10t-Serie | 60-70

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
10.126 F ..	Saviem-597.04	5280	93	126	01/1970 → 12/1970		10.126 F .. ENGINE CODE: Saviem-597.04 CC: 5280 kW: 93 HP: 126 YEAR OF MANUFACTURE: 01/1970 → 12/1970

ENGINE CODE

YEAR OF MANUFACTURE

10.126 F ..

Saviem-597.04

5280

126

01/1970 → 12/1970

11t-Serie | 71-81

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
11.136 H, HK (220)	Saviem-797.03	5480	100	136	01/1971 → 07/1981		11.136 H, HK (220) ENGINE CODE: Saviem-797.03 CC: 5480 kW: 100 HP: 136 YEAR OF MANUFACTURE: 01/1971 → 07/1981
11.136 U (900)	D 0216 MXUL	5490	100	136	08/1972 → 07/1981		11.136 U (900) ENGINE CODE: D 0216 MXUL CC: 5490 kW: 100 HP: 136 YEAR OF MANUFACTURE: 08/1972 → 07/1981

ENGINE CODE

YEAR OF MANUFACTURE

11.136 H, HK (220)

Saviem-797.03

5480

100

136

01/1971 → 07/1981

11.136 U (900)

D 0216 MXUL

5490

100

136

08/1972 → 07/1981

13t-Serie | 65-82

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
13.136 U (900)	D 0216 MXUL	5490	100	136	08/1972 → 12/1981		13.136 U (900) ENGINE CODE: D 0216 MXUL CC: 5490 kW: 100 HP: 136 YEAR OF MANUFACTURE: 08/1972 → 12/1981

ENGINE CODE

YEAR OF MANUFACTURE

13.136 U (900)

D 0216 MXUL

5490

100

136

08/1972 → 12/1981

15t-Serie | 65-82

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
15.136 F (137)	Saviem-797.04	5480	100	136	01/1971 → 12/1974		15.136 F (137) ENGINE CODE: Saviem-797.04 CC: 5480 kW: 100 HP: 136 YEAR OF MANUFACTURE: 01/1971 → 12/1974

ENGINE CODE

YEAR OF MANUFACTURE

15.136 F (137)

Saviem-797.04

5480

100

136

01/1971 → 12/1974

5t-Serie | 67-77

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
5.126 F, FK	Saviem-597.02	5270	93	126	09/1967 → 10/1969		5.126 F, FK ENGINE CODE: Saviem-597.02 CC: 5270 kW: 93 HP: 126 YEAR OF MANUFACTURE: 09/1967 → 10/1969

ENGINE CODE

YEAR OF MANUFACTURE

5.126 F, FK

Saviem-597.02

5270

126

09/1967 → 10/1969

6t-Serie | 67-77

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
6.126 F	Saviem-597.02	5270	93	126	09/1967 → 10/1969		6.126 F ENGINE CODE: Saviem-597.02 CC: 5270 kW: 93 HP: 126 YEAR OF MANUFACTURE: 09/1967 → 10/1969

ENGINE CODE

YEAR OF MANUFACTURE

6.126 F

Saviem-597.02

5270

126

09/1967 → 10/1969

7t-Serie | 65-77

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
7.126 H	Saviem-597.03	5890	93	126	03/1970 → 12/1970		7.126 H ENGINE CODE: Saviem-597.03 CC: 5890 kW: 93 HP: 126 YEAR OF MANUFACTURE: 03/1970 → 12/1970
7.136 F, FK (104)	Saviem-797.02	5480	100	136	04/1971 → 12/1974		7.136 F, FK (104) ENGINE CODE: Saviem-797.02 CC: 5480 kW: 100 HP: 136 YEAR OF MANUFACTURE: 04/1971 → 12/1974

ENGINE CODE

YEAR OF MANUFACTURE

7.126 H

Saviem-597.03

5890

126

03/1970 → 12/1970

7.136 F, FK (104)

Saviem-797.02

5480

100

136

04/1971 → 12/1974

9t-Serie | 67-74

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
9.126 H, HA, HK, HKA, HS, HSA	Saviem-597.03	5280	93	126	03/1970 → 12/1970		9.126 H, HA, HK, HKA, HS, HSA ENGINE CODE: Saviem-597.03 CC: 5280 kW: 93 HP: 126 YEAR OF MANUFACTURE: 03/1970 → 12/1970
9.136 F (104)	Saviem-797.02	5687	100	136	04/1971 → 12/1974		9.136 F (104) ENGINE CODE: Saviem-797.02 CC: 5687 kW: 100 HP: 136 YEAR OF MANUFACTURE: 04/1971 → 12/1974

ENGINE CODE

YEAR OF MANUFACTURE

9.126 H, HA, HK, HKA, HS, HSA

Saviem-597.03

5280

126

03/1970 → 12/1970

9.136 F (104)

Saviem-797.02

5687

100

136

04/1971 → 12/1974

MEILI

MA 1500 | 71-75

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
MA 1500	Perkins-4.108				01/1971 → 12/1975	i Spin-on filter	MA 1500 ENGINE CODE: Perkins-4.108 CC: kW: HP: YEAR OF MANUFACTURE: 01/1971 → 12/1975 i Spin-on filter

ENGINE CODE

YEAR OF MANUFACTURE

MA 1500

Perkins-4.108

01/1971 → 12/1975

PEGASO (ENASA)

S-Serie | 82-83

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
S 217	9702.5	3800	56	76	01/1982 → 02/1983	S 217 ENGINE CODE: 9702.5 CC: 3800 kW: 56 HP: 76 YEAR OF MANUFACTURE: 01/1982 → 02/1983
S 415	9702.5	3800	56	76	01/1982 → 02/1983	S 415 ENGINE CODE: 9702.5 CC: 3800 kW: 56 HP: 76 YEAR OF MANUFACTURE: 01/1982 → 02/1983
S 515	9702.5	3800	56	76	01/1982 → 02/1983	S 515 ENGINE CODE: 9702.5 CC: 3800 kW: 56 HP: 76 YEAR OF MANUFACTURE: 01/1982 → 02/1983

ENGINE CODE

YEAR OF MANUFACTURE

S 217

9702.5

3800

01/1982 → 02/1983

S 415

9702.5

3800

01/1982 → 02/1983

S 515

9702.5

3800

01/1982 → 02/1983

RELIANCE

Halco Tiger | 71-75

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
Halco Tiger	Perkins-6.354				01/1972 → 12/1975		Halco Tiger ENGINE CODE: Perkins-6.354 CC: kW: HP: YEAR OF MANUFACTURE: 01/1972 → 12/1975

ENGINE CODE

YEAR OF MANUFACTURE

Halco Tiger

Perkins-6.354

01/1972 → 12/1975

RENAULT BUS (IRISBUS/RVI)

E7 | 70-80

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
E 7 C	579	5490	107	145	10/1970 → 03/1980	E 7 C ENGINE CODE: 579 CC: 5490 kW: 107 HP: 145 YEAR OF MANUFACTURE: 10/1970 → 03/1980
E 7 C	797-40	5490	107	145	01/1973 → 06/1980	E 7 C ENGINE CODE: 797-40 CC: 5490 kW: 107 HP: 145 YEAR OF MANUFACTURE: 01/1973 → 06/1980
E 7 C	798-40	5490	107	145	06/1973 → 06/1980	E 7 C ENGINE CODE: 798-40 CC: 5490 kW: 107 HP: 145 YEAR OF MANUFACTURE: 06/1973 → 06/1980

ENGINE CODE

YEAR OF MANUFACTURE

E 7 C

579

5490

107

145

10/1970 → 03/1980

E 7 C

797-40

5490

107

145

01/1973 → 06/1980

E 7 C

798-40

5490

107

145

06/1973 → 06/1980

S45/S53/S105 | 64-86

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
S 45, 53, 105	597				03/1965 → 06/1980		S 45, 53, 105 ENGINE CODE: 597 CC: kW: HP: YEAR OF MANUFACTURE: 03/1965 → 06/1980

ENGINE CODE

YEAR OF MANUFACTURE

S 45, 53, 105

597

03/1965 → 06/1980

SC | 72-80

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
SC 50	597	5270	99	135	05/1972 → 06/1980		SC 50 ENGINE CODE: 597 CC: 5270 kW: 99 HP: 135 YEAR OF MANUFACTURE: 05/1972 → 06/1980

ENGINE CODE

YEAR OF MANUFACTURE

SC 50

597

5270

135

05/1972 → 06/1980

SG | 66-94

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
SG 2, 3, 4, 5	817 Benzin				04/1973 → 06/1980	SG 2, 3, 4, 5 ENGINE CODE: 817 Benzin CC: kW: HP: YEAR OF MANUFACTURE: 04/1973 → 06/1980
SG 4	720	3600	67	91	06/1980 → 09/1986	SG 4 ENGINE CODE: 720 CC: 3600 kW: 67 HP: 91 YEAR OF MANUFACTURE: 06/1980 → 09/1986
SG 4	817	3600	67	91	06/1980 → 09/1986	SG 4 ENGINE CODE: 817 CC: 3600 kW: 67 HP: 91 YEAR OF MANUFACTURE: 06/1980 → 09/1986
SG 5	720-01-01	3570	74	100	04/1973 → 06/1980	SG 5 ENGINE CODE: 720-01-01 CC: 3570 kW: 74 HP: 100 YEAR OF MANUFACTURE: 04/1973 → 06/1980

ENGINE CODE

YEAR OF MANUFACTURE

SG 2, 3, 4, 5

817 Benzin

04/1973 → 06/1980

SG 4

720

3600

06/1980 → 09/1986

SG 4

817

3600

06/1980 → 09/1986

SG 5

720-01-01

3570

100

04/1973 → 06/1980

RENAULT TRUCKS (RVI)

300-Serie

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
350, 380 K	Perkins-4.236				→ 09/1979	i Partly/or	350, 380 K ENGINE CODE: Perkins-4.236 CC: kW: HP: YEAR OF MANUFACTURE: → 09/1979 i Partly/or

ENGINE CODE

YEAR OF MANUFACTURE

350, 380 K

Perkins-4.236

→ 09/1979

400-Serie

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
440, 450, 480 K	Perkins-4.236				→ 09/1979	i Partly/or	440, 450, 480 K ENGINE CODE: Perkins-4.236 CC: kW: HP: YEAR OF MANUFACTURE: → 09/1979 i Partly/or

ENGINE CODE

YEAR OF MANUFACTURE

440, 450, 480 K

Perkins-4.236

→ 09/1979

500-Serie

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
500, 530, 550, 560 K	Perkins-4.236				→ 09/1979	i Partly/or	500, 530, 550, 560 K ENGINE CODE: Perkins-4.236 CC: kW: HP: YEAR OF MANUFACTURE: → 09/1979 i Partly/or

ENGINE CODE

YEAR OF MANUFACTURE

500, 530, 550, 560 K

Perkins-4.236

→ 09/1979

JE-Serie | 75-91

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
JE 9, JE 11, JE 13, JE 15	797, 798	5490	113	154	01/1978 → 10/1991	i Spin-on filter. Thread size 3/4-16 UNF	JE 9, JE 11, JE 13, JE 15 ENGINE CODE: 797, 798 CC: 5490 kW: 113 HP: 154 YEAR OF MANUFACTURE: 01/1978 → 10/1991 i Spin-on filter. Thread size 3/4-16 UNF
JE 9, JE 11, JE 13, JE 15	797, 798	5490	98	133	01/1975 → 06/1991	i Spin-on filter. Thread size 3/4-16 UNF	JE 9, JE 11, JE 13, JE 15 ENGINE CODE: 797, 798 CC: 5490 kW: 98 HP: 133 YEAR OF MANUFACTURE: 01/1975 → 06/1991 i Spin-on filter. Thread size 3/4-16 UNF

ENGINE CODE

YEAR OF MANUFACTURE

JE 9, JE 11, JE 13, JE 15

797, 798

5490

113

154

01/1978 → 10/1991

JE 9, JE 11, JE 13, JE 15

797, 798

5490

133

01/1975 → 06/1991

JK-Serie | 76-86

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
JK 60 B	720-12	3590	67	90	10/1979 → 01/1986	JK 60 B ENGINE CODE: 720-12 CC: 3590 kW: 67 HP: 90 YEAR OF MANUFACTURE: 10/1979 → 01/1986
JK 60, 65	720-01/08/12	3590	48	65	03/1976 → 06/1980	JK 60, 65 ENGINE CODE: 720-01/08/12 CC: 3590 kW: 48 HP: 65 YEAR OF MANUFACTURE: 03/1976 → 06/1980
JK 65	720-12	3590	66	90	10/1979 → 01/1986	JK 65 ENGINE CODE: 720-12 CC: 3590 kW: 66 HP: 90 YEAR OF MANUFACTURE: 10/1979 → 01/1986
JK 75	720-01/08/12	3590	66	90	03/1976 → 06/1980	JK 75 ENGINE CODE: 720-01/08/12 CC: 3590 kW: 66 HP: 90 YEAR OF MANUFACTURE: 03/1976 → 06/1980
JK 75	720-12	3590	66	90	10/1979 → 01/1986	JK 75 ENGINE CODE: 720-12 CC: 3590 kW: 66 HP: 90 YEAR OF MANUFACTURE: 10/1979 → 01/1986

ENGINE CODE

YEAR OF MANUFACTURE

JK 60 B

720-12

3590

10/1979 → 01/1986

JK 60, 65

720-01/08/12

3590

03/1976 → 06/1980

JK 65

720-12

3590

10/1979 → 01/1986

JK 75

720-01/08/12

3590

03/1976 → 06/1980

JK 75

720-12

3590

10/1979 → 01/1986

JN-Serie | 75-84

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
JN 60	797	5490	72	98	06/1980 → 06/1984	JN 60 ENGINE CODE: 797 CC: 5490 kW: 72 HP: 98 YEAR OF MANUFACTURE: 06/1980 → 06/1984
JN 75	797-10	5490	72	98	03/1975 → 06/1984	JN 75 ENGINE CODE: 797-10 CC: 5490 kW: 72 HP: 98 YEAR OF MANUFACTURE: 03/1975 → 06/1984
JN 80	797	5490	72	98	10/1982 → 06/1984	JN 80 ENGINE CODE: 797 CC: 5490 kW: 72 HP: 98 YEAR OF MANUFACTURE: 10/1982 → 06/1984
JN 85	797-10	5490	72	98	03/1975 → 06/1980	JN 85 ENGINE CODE: 797-10 CC: 5490 kW: 72 HP: 98 YEAR OF MANUFACTURE: 03/1975 → 06/1980
JN 85	720	5490	72	98	06/1980 → 06/1984	JN 85 ENGINE CODE: 720 CC: 5490 kW: 72 HP: 98 YEAR OF MANUFACTURE: 06/1980 → 06/1984
JN 90	797-10	5490	72	98	03/1975 → 06/1984	JN 90 ENGINE CODE: 797-10 CC: 5490 kW: 72 HP: 98 YEAR OF MANUFACTURE: 03/1975 → 06/1984
JN 95	797	5490	72	98	06/1980 → 06/1984	JN 95 ENGINE CODE: 797 CC: 5490 kW: 72 HP: 98 YEAR OF MANUFACTURE: 06/1980 → 06/1984

ENGINE CODE

YEAR OF MANUFACTURE

JN 60

797

5490

06/1980 → 06/1984

JN 75

797-10

5490

03/1975 → 06/1984

JN 80

797

5490

10/1982 → 06/1984

JN 85

797-10

5490

03/1975 → 06/1980

JN 85

720

5490

06/1980 → 06/1984

JN 90

797-10

5490

03/1975 → 06/1984

JN 95

797

5490

06/1980 → 06/1984

JP-Serie | 75-84

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
JP 11 A	797-10	5490	72	98	03/1975 → 06/1984		JP 11 A ENGINE CODE: 797-10 CC: 5490 kW: 72 HP: 98 YEAR OF MANUFACTURE: 03/1975 → 06/1984
JP 13 A	797-10	5490	72	98	03/1975 → 06/1984	i Partly/or	JP 13 A ENGINE CODE: 797-10 CC: 5490 kW: 72 HP: 98 YEAR OF MANUFACTURE: 03/1975 → 06/1984 i Partly/or
JP 13 B/C	798-10, 798-13	5490	82	111	05/1976 → 06/1980		JP 13 B/C ENGINE CODE: 798-10, 798-13 CC: 5490 kW: 82 HP: 111 YEAR OF MANUFACTURE: 05/1976 → 06/1980
JP 14 B	797	5490	72	98	12/1981 → 06/1984	i Partly/or	JP 14 B ENGINE CODE: 797 CC: 5490 kW: 72 HP: 98 YEAR OF MANUFACTURE: 12/1981 → 06/1984 i Partly/or

ENGINE CODE

YEAR OF MANUFACTURE

JP 11 A

797-10

5490

03/1975 → 06/1984

JP 13 A

797-10

5490

03/1975 → 06/1984

JP 13 B/C

798-10, 798-13

5490

111

05/1976 → 06/1980

JP 14 B

797

5490

12/1981 → 06/1984

JR-Serie | 76-84

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
JR 19 A	798	5490	81	110	06/1980 → 06/1984	JR 19 A ENGINE CODE: 798 CC: 5490 kW: 81 HP: 110 YEAR OF MANUFACTURE: 06/1980 → 06/1984
JR 19, 21	798-10, 798-13	5490	82	111	05/1976 → 06/1980	JR 19, 21 ENGINE CODE: 798-10, 798-13 CC: 5490 kW: 82 HP: 111 YEAR OF MANUFACTURE: 05/1976 → 06/1980
JR 21	798	5490	81	110	06/1980 → 06/1984	JR 21 ENGINE CODE: 798 CC: 5490 kW: 81 HP: 110 YEAR OF MANUFACTURE: 06/1980 → 06/1984

ENGINE CODE

YEAR OF MANUFACTURE

JR 19 A

798

5490

110

06/1980 → 06/1984

JR 19, 21

798-10, 798-13

5490

111

05/1976 → 06/1980

JR 21

798

5490

110

06/1980 → 06/1984

JX-Serie | 80-84

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
JX 21	797	5490	72	98	06/1980 → 06/1984	i Partly/or	JX 21 ENGINE CODE: 797 CC: 5490 kW: 72 HP: 98 YEAR OF MANUFACTURE: 06/1980 → 06/1984 i Partly/or

ENGINE CODE

YEAR OF MANUFACTURE

JX 21

797

5490

06/1980 → 06/1984

Midliner S | 82-

	ENGINE CODE	YEAR OF MANUFACTURE
S 08.130 Midliner	R 797	07/1987 →	S 08.130 Midliner ENGINE CODE: R 797 CC: kW: HP: YEAR OF MANUFACTURE: 07/1987 →
S 100 Midliner	Perkins-T4.38	01/1986 → 09/1990	S 100 Midliner ENGINE CODE: Perkins-T4.38 CC: kW: HP: YEAR OF MANUFACTURE: 01/1986 → 09/1990
S 110 Midliner	797-21	06/1985 → 09/1990	S 110 Midliner ENGINE CODE: 797-21 CC: kW: HP: YEAR OF MANUFACTURE: 06/1985 → 09/1990
S 130 Midliner (Export Africa)	797 NFA	11/1989 → 06/1991	S 130 Midliner (Export Africa) ENGINE CODE: 797 NFA CC: kW: HP: YEAR OF MANUFACTURE: 11/1989 → 06/1991
S 150 Midliner	798-10	05/1983 → 07/1986	S 150 Midliner ENGINE CODE: 798-10 CC: kW: HP: YEAR OF MANUFACTURE: 05/1983 → 07/1986
S 90	720	05/1984 → 12/1994	S 90 ENGINE CODE: 720 CC: kW: HP: YEAR OF MANUFACTURE: 05/1984 → 12/1994

ENGINE CODE

YEAR OF MANUFACTURE

S 08.130 Midliner

R 797

07/1987 →

S 100 Midliner

Perkins-T4.38

01/1986 → 09/1990

S 110 Midliner

797-21

06/1985 → 09/1990

S 130 Midliner (Export Africa)

797 NFA

11/1989 → 06/1991

S 150 Midliner

798-10

05/1983 → 07/1986

S 90

720

05/1984 → 12/1994

OK-Serie | 73-79

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
OK O 5 K, O 10 K	Perkins-4.236				01/1973 → 09/1979	i Partly/or	OK O 5 K, O 10 K ENGINE CODE: Perkins-4.236 CC: kW: HP: YEAR OF MANUFACTURE: 01/1973 → 09/1979 i Partly/or

ENGINE CODE

YEAR OF MANUFACTURE

OK O 5 K, O 10 K

Perkins-4.236

01/1973 → 09/1979

SB-Serie | 66-84

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
SB 2	817	3320	40	54	→ 06/1980		SB 2 ENGINE CODE: 817 CC: 3320 kW: 40 HP: 54 YEAR OF MANUFACTURE: → 06/1980

ENGINE CODE

YEAR OF MANUFACTURE

SB 2

817

3320

→ 06/1980

SM-Serie | 67-84

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
SM 5	720-01-02	3570	74	100	04/1973 → 06/1980		SM 5 ENGINE CODE: 720-01-02 CC: 3570 kW: 74 HP: 100 YEAR OF MANUFACTURE: 04/1973 → 06/1980
SM 6	597.02	5270	93	126	10/1967 → 12/1970	i Spin-on filter	SM 6 ENGINE CODE: 597.02 CC: 5270 kW: 93 HP: 126 YEAR OF MANUFACTURE: 10/1967 → 12/1970 i Spin-on filter
SM 6 A/B/C	597	5270	99	135	01/1971 → 06/1980	i Spin-on filter	SM 6 A/B/C ENGINE CODE: 597 CC: 5270 kW: 99 HP: 135 YEAR OF MANUFACTURE: 01/1971 → 06/1980 i Spin-on filter
SM 7	597.02	5490	110	150	10/1967 → 12/1970	i Spin-on filter	SM 7 ENGINE CODE: 597.02 CC: 5490 kW: 110 HP: 150 YEAR OF MANUFACTURE: 10/1967 → 12/1970 i Spin-on filter
SM 7	797-10	5490	110	150	01/1971 → 06/1980	i Spin-on filter	SM 7 ENGINE CODE: 797-10 CC: 5490 kW: 110 HP: 150 YEAR OF MANUFACTURE: 01/1971 → 06/1980 i Spin-on filter
SM 8	597	5270	99	135	01/1971 → 06/1980	i Spin-on filter	SM 8 ENGINE CODE: 597 CC: 5270 kW: 99 HP: 135 YEAR OF MANUFACTURE: 01/1971 → 06/1980 i Spin-on filter
SM 8	597.02	5270	99	135	10/1967 → 12/1970	i Spin-on filter	SM 8 ENGINE CODE: 597.02 CC: 5270 kW: 99 HP: 135 YEAR OF MANUFACTURE: 10/1967 → 12/1970 i Spin-on filter
SM 8 TU	798-11	5490	125	170	06/1973 → 06/1980	i Spin-on filter	SM 8 TU ENGINE CODE: 798-11 CC: 5490 kW: 125 HP: 170 YEAR OF MANUFACTURE: 06/1973 → 06/1980 i Spin-on filter
SM 8 TY/M	797-10	5490	110	150	01/1971 → 06/1980	i Spin-on filter	SM 8 TY/M ENGINE CODE: 797-10 CC: 5490 kW: 110 HP: 150 YEAR OF MANUFACTURE: 01/1971 → 06/1980 i Spin-on filter
SM 8.13	797-10	5490	110	150	01/1971 → 06/1980	i Spin-on filter	SM 8.13 ENGINE CODE: 797-10 CC: 5490 kW: 110 HP: 150 YEAR OF MANUFACTURE: 01/1971 → 06/1980 i Spin-on filter
SM 8	797	5490	72	98	06/1980 → 06/1984		SM 8 ENGINE CODE: 797 CC: 5490 kW: 72 HP: 98 YEAR OF MANUFACTURE: 06/1980 → 06/1984

ENGINE CODE

YEAR OF MANUFACTURE

SM 5

720-01-02

3570

100

04/1973 → 06/1980

SM 6

597.02

5270

126

10/1967 → 12/1970

SM 6 A/B/C

597

5270

135

01/1971 → 06/1980

SM 7

597.02

5490

110

150

10/1967 → 12/1970

SM 7

797-10

5490

110

150

01/1971 → 06/1980

SM 8

597

5270

135

01/1971 → 06/1980

SM 8

597.02

5270

135

10/1967 → 12/1970

SM 8 TU

798-11

5490

125

170

06/1973 → 06/1980

SM 8 TY/M

797-10

5490

110

150

01/1971 → 06/1980

SM 8.13

797-10

5490

110

150

01/1971 → 06/1980

SM 8

797

5490

06/1980 → 06/1984

TP-Serie | 80-85

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
TP 3	712	3320	56	76	06/1980 → 05/1985		TP 3 ENGINE CODE: 712 CC: 3320 kW: 56 HP: 76 YEAR OF MANUFACTURE: 06/1980 → 05/1985

ENGINE CODE

YEAR OF MANUFACTURE

TP 3

712

3320

06/1980 → 05/1985

SAVA

5700-Serie | 71-81

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
5701	9702.3	3800	56	76	06/1971 → 12/1978	i Partly/or	5701 ENGINE CODE: 9702.3 CC: 3800 kW: 56 HP: 76 YEAR OF MANUFACTURE: 06/1971 → 12/1978 i Partly/or
5702						i Partly/or	5702 ENGINE CODE: CC: kW: HP: i Partly/or
5741	9702/5	3800	56	76	01/1977 → 12/1981	i Partly/or	5741 ENGINE CODE: 9702/5 CC: 3800 kW: 56 HP: 76 YEAR OF MANUFACTURE: 01/1977 → 12/1981 i Partly/or
5744						i Partly/or	5744 ENGINE CODE: CC: kW: HP: i Partly/or

ENGINE CODE

YEAR OF MANUFACTURE

5701

9702.3

3800

06/1971 → 12/1978

5702

5741

9702/5

3800

01/1977 → 12/1981

5744

S-Serie | 64-81

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
S 217	9702/5	3800	56	76	01/1977 → 12/1981	i Partly/or	S 217 ENGINE CODE: 9702/5 CC: 3800 kW: 56 HP: 76 YEAR OF MANUFACTURE: 01/1977 → 12/1981 i Partly/or
S 411	9702/1	3800	56	77	01/1970 → 06/1976	i Partly/or	S 411 ENGINE CODE: 9702/1 CC: 3800 kW: 56 HP: 77 YEAR OF MANUFACTURE: 01/1970 → 06/1976 i Partly/or
S 415	9702/5	3800	56	76	06/1976 → 12/1981	i Partly/or	S 415 ENGINE CODE: 9702/5 CC: 3800 kW: 56 HP: 76 YEAR OF MANUFACTURE: 06/1976 → 12/1981 i Partly/or
S 511	9702/8	3800	56	77	01/1970 → 06/1976	i Partly/or	S 511 ENGINE CODE: 9702/8 CC: 3800 kW: 56 HP: 77 YEAR OF MANUFACTURE: 01/1970 → 06/1976 i Partly/or
S 515	9702/4	3800	56	76	06/1976 → 12/1981	i Partly/or	S 515 ENGINE CODE: 9702/4 CC: 3800 kW: 56 HP: 76 YEAR OF MANUFACTURE: 06/1976 → 12/1981 i Partly/or

ENGINE CODE

YEAR OF MANUFACTURE

S 217

9702/5

3800

01/1977 → 12/1981

S 411

9702/1

3800

01/1970 → 06/1976

S 415

9702/5

3800

06/1976 → 12/1981

S 511

9702/8

3800

01/1970 → 06/1976

S 515

9702/4

3800

06/1976 → 12/1981

SEDDON ATKINSON

2-11 series | 86-92

	ENGINE CODE	YEAR OF MANUFACTURE
R17P16	Perk.T6.354.4	01/1986 → 08/1992	R17P16 ENGINE CODE: Perk.T6.354.4 CC: kW: HP: YEAR OF MANUFACTURE: 01/1986 → 08/1992
R17P16	Perk.Phas.160T	01/1986 → 08/1992	R17P16 ENGINE CODE: Perk.Phas.160T CC: kW: HP: YEAR OF MANUFACTURE: 01/1986 → 08/1992
R17P18	Perk.Phas.180Ti	01/1986 → 08/1992	R17P18 ENGINE CODE: Perk.Phas.180Ti CC: kW: HP: YEAR OF MANUFACTURE: 01/1986 → 08/1992
R17P18	Perk. Ph.180Ti	01/1986 → 08/1992	R17P18 ENGINE CODE: Perk. Ph.180Ti CC: kW: HP: YEAR OF MANUFACTURE: 01/1986 → 08/1992

ENGINE CODE

YEAR OF MANUFACTURE

R17P16

Perk.T6.354.4

01/1986 → 08/1992

R17P16

Perk.Phas.160T

01/1986 → 08/1992

R17P18

Perk.Phas.180Ti

01/1986 → 08/1992

R17P18

Perk. Ph.180Ti

01/1986 → 08/1992

200 Series | 76-82

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
200	Perk. 6.354.4	1994	67	91	01/1976 → 12/1982		200 ENGINE CODE: Perk. 6.354.4 CC: 1994 kW: 67 HP: 91 YEAR OF MANUFACTURE: 01/1976 → 12/1982

ENGINE CODE

YEAR OF MANUFACTURE

200

Perk. 6.354.4

1994

01/1976 → 12/1982

STAR TRUCKS

700-Serie | 80-00

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
742	Perk. Phaser 110T	3990	80	109	01/1992 → 12/1995		742 ENGINE CODE: Perk. Phaser 110T CC: 3990 kW: 80 HP: 109 YEAR OF MANUFACTURE: 01/1992 → 12/1995

ENGINE CODE

YEAR OF MANUFACTURE

742

Perk. Phaser 110T

3990

109

01/1992 → 12/1995

TAM

60-Serie | 80-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
60 T	S44V				01/1980 →		60 T ENGINE CODE: S44V CC: kW: HP: YEAR OF MANUFACTURE: 01/1980 →

ENGINE CODE

YEAR OF MANUFACTURE

60 T

S44V

01/1980 →

75-Serie | 80-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
75 T 5	S44V				01/1980 →		75 T 5 ENGINE CODE: S44V CC: kW: HP: YEAR OF MANUFACTURE: 01/1980 →

ENGINE CODE

YEAR OF MANUFACTURE

75 T 5

S44V

01/1980 →

80-Serie | 80-

	ENGINE CODE	YEAR OF MANUFACTURE
80 A 50/60	S44V	01/1985 →	80 A 50/60 ENGINE CODE: S44V CC: kW: HP: YEAR OF MANUFACTURE: 01/1985 →
80 T 5 / T6 B/BK	S44V	01/1980 →	80 T 5 / T6 B/BK ENGINE CODE: S44V CC: kW: HP: YEAR OF MANUFACTURE: 01/1980 →
80 T 50	S44V	01/1980 →	80 T 50 ENGINE CODE: S44V CC: kW: HP: YEAR OF MANUFACTURE: 01/1980 →

ENGINE CODE

YEAR OF MANUFACTURE

80 A 50/60

S44V

01/1985 →

80 T 5 / T6 B/BK

S44V

01/1980 →

80 T 50

S44V

01/1980 →

81-Serie | 80-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
81 T 6B	S44V				01/1980 →		81 T 6B ENGINE CODE: S44V CC: kW: HP: YEAR OF MANUFACTURE: 01/1980 →

ENGINE CODE

YEAR OF MANUFACTURE

81 T 6B

S44V

01/1980 →

90-Serie | 80-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
90 T 50	S44V				01/1980 →		90 T 50 ENGINE CODE: S44V CC: kW: HP: YEAR OF MANUFACTURE: 01/1980 →

ENGINE CODE

YEAR OF MANUFACTURE

90 T 50

S44V

01/1980 →

VOLVO TRUCKS

F 4 | 75-86

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
F 406	D39B/C (P. 4.236)	3860	75	102	09/1975 → 02/1986		F 406 ENGINE CODE: D39B/C (P. 4.236) CC: 3860 kW: 75 HP: 102 YEAR OF MANUFACTURE: 09/1975 → 02/1986
F 407	D39C (P. 4.236)	3860	73	99	09/1975 → 02/1986		F 407 ENGINE CODE: D39C (P. 4.236) CC: 3860 kW: 73 HP: 99 YEAR OF MANUFACTURE: 09/1975 → 02/1986

ENGINE CODE

YEAR OF MANUFACTURE

F 406

D39B/C (P. 4.236)

3860

102

09/1975 → 02/1986

F 407

D39C (P. 4.236)

3860

09/1975 → 02/1986

F 80 | 65-78

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
F 82 S	D39B (P. 4.236)	3860	57	78	09/1972 → 11/1975	i From engine no. 2364/112270	F 82 S ENGINE CODE: D39B (P. 4.236) CC: 3860 kW: 57 HP: 78 YEAR OF MANUFACTURE: 09/1972 → 11/1975 i From engine no. 2364/112270
F 82, 83	Perk. 4.236 (V)	3860			01/1968 → 12/1971	i From engine no. 2364/112270	F 82, 83 ENGINE CODE: Perk. 4.236 (V) CC: 3860 kW: HP: YEAR OF MANUFACTURE: 01/1968 → 12/1971 i From engine no. 2364/112270
F 83 S	D39B (P. 4.236)	3860	57	78	09/1972 → 11/1975	i From engine no. 2364/112270	F 83 S ENGINE CODE: D39B (P. 4.236) CC: 3860 kW: 57 HP: 78 YEAR OF MANUFACTURE: 09/1972 → 11/1975 i From engine no. 2364/112270

ENGINE CODE

YEAR OF MANUFACTURE

F 82 S

D39B (P. 4.236)

3860

09/1972 → 11/1975

F 82, 83

Perk. 4.236 (V)

3860

01/1968 → 12/1971

F 83 S

D39B (P. 4.236)

3860

09/1972 → 11/1975

ZASTAVA

600-Serie | 75-80

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
615, GVW	Perkins-4.108				01/1975 → 12/1980		615, GVW ENGINE CODE: Perkins-4.108 CC: kW: HP: YEAR OF MANUFACTURE: 01/1975 → 12/1980
616	Perkins-4.108	2120	48	65	01/1975 → 12/1980		616 ENGINE CODE: Perkins-4.108 CC: 2120 kW: 48 HP: 65 YEAR OF MANUFACTURE: 01/1975 → 12/1980

ENGINE CODE

YEAR OF MANUFACTURE

615, GVW

Perkins-4.108

01/1975 → 12/1980

616

Perkins-4.108

2120

01/1975 → 12/1980

AEBI TRAKTOREN (CH)

TP / Transporter-Serie | 66-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
TP 45	Perkins 4.108	1760	30	40	01/1983 →		TP 45 ENGINE CODE: Perkins 4.108 CC: 1760 kW: 30 HP: 40 YEAR OF MANUFACTURE: 01/1983 →
TP 50	Perkins-4.107				01/1972 → 12/1980	i Partly/or	TP 50 ENGINE CODE: Perkins-4.107 CC: kW: HP: YEAR OF MANUFACTURE: 01/1972 → 12/1980 i Partly/or
TP 50	Perkins-4.108				01/1972 → 12/1975		TP 50 ENGINE CODE: Perkins-4.108 CC: kW: HP: YEAR OF MANUFACTURE: 01/1972 → 12/1975
TP 98	VM D704 LTE	2800	60	82	01/1998 →		TP 98 ENGINE CODE: VM D704 LTE CC: 2800 kW: 60 HP: 82 YEAR OF MANUFACTURE: 01/1998 →

ENGINE CODE

YEAR OF MANUFACTURE

TP 45

Perkins 4.108

1760

01/1983 →

TP 50

Perkins-4.107

01/1972 → 12/1980

TP 50

Perkins-4.108

01/1972 → 12/1975

TP 98

VM D704 LTE

2800

01/1998 →

TT / Terratrac-Serie | 76-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
TT 270	VM D704 LTE	2776	64	87	09/2003 → 12/2013		TT 270 ENGINE CODE: VM D704 LTE CC: 2776 kW: 64 HP: 87 YEAR OF MANUFACTURE: 09/2003 → 12/2013
TT 77	Perkins-4.108		29	40	01/1976 → 12/1991		TT 77 ENGINE CODE: Perkins-4.108 CC: kW: 29 HP: 40 YEAR OF MANUFACTURE: 01/1976 → 12/1991

ENGINE CODE

YEAR OF MANUFACTURE

TT 270

VM D704 LTE

2776

09/2003 → 12/2013

TT 77

Perkins-4.108

01/1976 → 12/1991

AGRIFULL

80-Serie

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
80.66, 80.66 DT	MWM D225-4						80.66, 80.66 DT ENGINE CODE: MWM D225-4 CC: kW: HP:
80.76, 80.76 DT	MWM D227-4						80.76, 80.76 DT ENGINE CODE: MWM D227-4 CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

80.66, 80.66 DT

MWM D225-4

80.76, 80.76 DT

MWM D227-4

AHLMANN (MECALAC)

AL-Serie | 92-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
7, 7C, 7G	Perk. 3.152.4		33	45		i Partly/or	7, 7C, 7G ENGINE CODE: Perk. 3.152.4 CC: kW: 33 HP: 45 i Partly/or
8, 8C, 8CS	Perk. 3.152.4		41	56		i Partly/or	8, 8C, 8CS ENGINE CODE: Perk. 3.152.4 CC: kW: 41 HP: 56 i Partly/or

ENGINE CODE

YEAR OF MANUFACTURE

7, 7C, 7G

Perk. 3.152.4

8, 8C, 8CS

Perk. 3.152.4

AS-Serie | 90-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
7C	Perkins 3.152.4					i Partly/or	7C ENGINE CODE: Perkins 3.152.4 CC: kW: HP: i Partly/or

ENGINE CODE

YEAR OF MANUFACTURE

Perkins 3.152.4

ALBAJAR (IASA)

2300-Serie

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
2305, 2365	Perkins						2305, 2365 ENGINE CODE: Perkins CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

2305, 2365

Perkins

4300-Serie

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
4300, 4360	Perkins						4300, 4360 ENGINE CODE: Perkins CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

4300, 4360

Perkins

G-Serie

	ENGINE CODE
10/16	Perk. 4.236	10/16 ENGINE CODE: Perk. 4.236 CC: kW: HP:
14T	Perk. 6.305	14T ENGINE CODE: Perk. 6.305 CC: kW: HP:
20/21, 20/26, 20/27	Perk. 6.305	20/21, 20/26, 20/27 ENGINE CODE: Perk. 6.305 CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

10/16

Perk. 4.236

14T

Perk. 6.305

20/21, 20/26, 20/27

Perk. 6.305

I-Serie

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
3000, 4300, 4360	3.152, 4.203						3000, 4300, 4360 ENGINE CODE: 3.152, 4.203 CC: kW: HP:
3000, 4300, 4360	4.236, 6.305						3000, 4300, 4360 ENGINE CODE: 4.236, 6.305 CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

3000, 4300, 4360

3.152, 4.203

3000, 4300, 4360

4.236, 6.305

P-Serie

	ENGINE CODE
08, 10	3.152, 4.203	08, 10 ENGINE CODE: 3.152, 4.203 CC: kW: HP:
08, 10	4.236, 6.305	08, 10 ENGINE CODE: 4.236, 6.305 CC: kW: HP:
304, 366, 420	4.236, 6.305	304, 366, 420 ENGINE CODE: 4.236, 6.305 CC: kW: HP:
304, 366, 420	3.152, 4.203	304, 366, 420 ENGINE CODE: 3.152, 4.203 CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

08, 10

3.152, 4.203

08, 10

4.236, 6.305

304, 366, 420

4.236, 6.305

304, 366, 420

3.152, 4.203

ALLIS-CHALMERS

100-Series (Loaders) | 70-75

	ENGINE CODE
715	Perkins 4.236	715 ENGINE CODE: Perkins 4.236 CC: kW: HP:
715 D	Perkins 4.236	715 D ENGINE CODE: Perkins 4.236 CC: kW: HP:
816	Perkins 4.248	816 ENGINE CODE: Perkins 4.248 CC: kW: HP:
816 B	Perkins 4.248	816 B ENGINE CODE: Perkins 4.248 CC: kW: HP:
840	Perkins	840 ENGINE CODE: Perkins CC: kW: HP:
840 B	Perkins	840 B ENGINE CODE: Perkins CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

715

Perkins 4.236

715 D

Perkins 4.236

816

Perkins 4.248

816 B

Perkins 4.248

840

Perkins

840 B

Perkins

TL-Serie

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
345	Perkins 4.248						345 ENGINE CODE: Perkins 4.248 CC: kW: HP:
840	Perkins 4.248						840 ENGINE CODE: Perkins 4.248 CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

345

Perkins 4.248

840

Perkins 4.248

AMMANN

DTV-Series

	ENGINE CODE
143	Hatz 2L30S	143 ENGINE CODE: Hatz 2L30S CC: kW: HP:
213	Hatz 2L40S	213 ENGINE CODE: Hatz 2L40S CC: kW: HP:
222, 223	Hatz	222, 223 ENGINE CODE: Hatz CC: kW: HP:
453	Hatz 3L40S	453 ENGINE CODE: Hatz 3L40S CC: kW: HP:
472	Hatz	472 ENGINE CODE: Hatz CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

143

Hatz 2L30S

213

Hatz 2L40S

222, 223

Hatz

453

Hatz 3L40S

472

Hatz

ANTONIO CARRARO

Ergit-Serie | 99-

	ENGINE CODE	kW	HP	YEAR OF MANUFACTURE
5400 TC	VM D703 L28	34	46	06/1999 →	i Partly/or	5400 TC ENGINE CODE: VM D703 L28 CC: kW: 34 HP: 46 YEAR OF MANUFACTURE: 06/1999 → i Partly/or
6400 SRX/TC/TRX/TTR	VM D703 LTS	44	60	06/1999 →		6400 SRX/TC/TRX/TTR ENGINE CODE: VM D703 LTS CC: kW: 44 HP: 60 YEAR OF MANUFACTURE: 06/1999 →
7400 TF/TRX/TTR	VM D704 L21	47	64	06/1999 →		7400 TF/TRX/TTR ENGINE CODE: VM D704 L21 CC: kW: 47 HP: 64 YEAR OF MANUFACTURE: 06/1999 →
7400 TRF	VM D704 L21	47	64	06/1999 →		7400 TRF ENGINE CODE: VM D704 L21 CC: kW: 47 HP: 64 YEAR OF MANUFACTURE: 06/1999 →

ENGINE CODE

YEAR OF MANUFACTURE

5400 TC

VM D703 L28

06/1999 →

6400 SRX/TC/TRX/TTR

VM D703 LTS

06/1999 →

7400 TF/TRX/TTR

VM D704 L21

06/1999 →

7400 TRF

VM D704 L21

06/1999 →

Supertrac | 96-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
5400 HTM	VM D703		35	48	01/2000 →		5400 HTM ENGINE CODE: VM D703 CC: kW: 35 HP: 48 YEAR OF MANUFACTURE: 01/2000 →

ENGINE CODE

YEAR OF MANUFACTURE

5400 HTM

VM D703

01/2000 →

Tigretrac

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
8008 (22)	VM 704 L21		51	70			8008 (22) ENGINE CODE: VM 704 L21 CC: kW: 51 HP: 70

ENGINE CODE

YEAR OF MANUFACTURE

8008 (22)

VM 704 L21

ARMOURWELD

DW/TDW-Serie

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
400	Perk. 4.236						400 ENGINE CODE: Perk. 4.236 CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

400

Perk. 4.236

ATLAS (TEREX)

AT-Serie | 01-

	ENGINE CODE	YEAR OF MANUFACTURE
3207	Perkins 1004-40T	05/2001 →	3207 ENGINE CODE: Perkins 1004-40T CC: kW: HP: YEAR OF MANUFACTURE: 05/2001 →
3208	Perkins 1004-40T	05/2001 →	3208 ENGINE CODE: Perkins 1004-40T CC: kW: HP: YEAR OF MANUFACTURE: 05/2001 →
3212	Perkins 1004-40T	05/2001 →	3212 ENGINE CODE: Perkins 1004-40T CC: kW: HP: YEAR OF MANUFACTURE: 05/2001 →
4007	Perkins 1004-40T	05/2001 →	4007 ENGINE CODE: Perkins 1004-40T CC: kW: HP: YEAR OF MANUFACTURE: 05/2001 →
4008	Perkins 1004-40T	05/2001 →	4008 ENGINE CODE: Perkins 1004-40T CC: kW: HP: YEAR OF MANUFACTURE: 05/2001 →
4011	Perkins 1004-40T	05/2001 →	4011 ENGINE CODE: Perkins 1004-40T CC: kW: HP: YEAR OF MANUFACTURE: 05/2001 →
4012	Perkins 1004-40T	05/2001 →	4012 ENGINE CODE: Perkins 1004-40T CC: kW: HP: YEAR OF MANUFACTURE: 05/2001 →

ENGINE CODE

YEAR OF MANUFACTURE

3207

Perkins 1004-40T

05/2001 →

3208

Perkins 1004-40T

05/2001 →

3212

Perkins 1004-40T

05/2001 →

4007

Perkins 1004-40T

05/2001 →

4008

Perkins 1004-40T

05/2001 →

4011

Perkins 1004-40T

05/2001 →

4012

Perkins 1004-40T

05/2001 →

ATMOS

PDI - Serie

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
PDI 15I							PDI 15I ENGINE CODE: CC: kW: HP:
PDI 20							PDI 20 ENGINE CODE: CC: kW: HP:
PDI 20I							PDI 20I ENGINE CODE: CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

PDI 15I

PDI 20

PDI 20I

PDP - Serie

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
PDP 15	Perkins						PDP 15 ENGINE CODE: Perkins CC: kW: HP:
PDP 20	Perkins						PDP 20 ENGINE CODE: Perkins CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

PDP 15

Perkins

PDP 20

Perkins

PDV - Serie

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
PDV 15							PDV 15 ENGINE CODE: CC: kW: HP:
PDV 20							PDV 20 ENGINE CODE: CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

PDV 15

PDV 20

AVELING BARFORD

DC-Serie

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
011, 012, 013, 014, 015	Perk. 4.236						011, 012, 013, 014, 015 ENGINE CODE: Perk. 4.236 CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

011, 012, 013, 014, 015

Perk. 4.236

G-Serie

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
GC, GN	Perk. 4.236					i Partly/or	GC, GN ENGINE CODE: Perk. 4.236 CC: kW: HP: i Partly/or

ENGINE CODE

YEAR OF MANUFACTURE

GC, GN

Perk. 4.236

P-Serie

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
PR	Perk. 4.236					i Partly/or	PR ENGINE CODE: Perk. 4.236 CC: kW: HP: i Partly/or

ENGINE CODE

YEAR OF MANUFACTURE

Perk. 4.236

TG-Serie

	ENGINE CODE
012	Perk. T6.354.4	012 ENGINE CODE: Perk. T6.354.4 CC: kW: HP:
014	Perk. T6.354.4	014 ENGINE CODE: Perk. T6.354.4 CC: kW: HP:
112	Perk. 6.354.4	112 ENGINE CODE: Perk. 6.354.4 CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

012

Perk. T6.354.4

014

Perk. T6.354.4

112

Perk. 6.354.4

BARBER GREENE (CATERPILLAR)

PS-Serie

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
70	P. 4.236/6.354						70 ENGINE CODE: P. 4.236/6.354 CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

P. 4.236/6.354

SA-Serie

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
35	Perk. 4.236					i Partly/or	35 ENGINE CODE: Perk. 4.236 CC: kW: HP: i Partly/or

ENGINE CODE

YEAR OF MANUFACTURE

Perk. 4.236

BAUTZ

T-Serie

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
600, 600S, 604 Commodore	Gueld. 3/4L79					i 01/1966 ->	600, 600S, 604 Commodore ENGINE CODE: Gueld. 3/4L79 CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

600, 600S, 604 Commodore

Gueld. 3/4L79

BELARUS TRACTORS

1000-Serie | 97-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
1025	Minsk D-245 S	4700	77	105	01/1997 → 12/2014	1025 ENGINE CODE: Minsk D-245 S CC: 4700 kW: 77 HP: 105 YEAR OF MANUFACTURE: 01/1997 → 12/2014
1025,3	D-245S2		79	107		1025,3 ENGINE CODE: D-245S2 CC: kW: 79 HP: 107
1025,4	D-245S3A	4750	81	110	01/2008 → 12/2015	1025,4 ENGINE CODE: D-245S3A CC: 4750 kW: 81 HP: 110 YEAR OF MANUFACTURE: 01/2008 → 12/2015

ENGINE CODE

YEAR OF MANUFACTURE

1025

Minsk D-245 S

4700

105

01/1997 → 12/2014

1025,3

D-245S2

107

1025,4

D-245S3A

4750

110

01/2008 → 12/2015

900-Serie | 91-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
952,3	Minsk D-245.5S2	4750	70	95	01/2004 → 12/2008		952,3 ENGINE CODE: Minsk D-245.5S2 CC: 4750 kW: 70 HP: 95 YEAR OF MANUFACTURE: 01/2004 → 12/2008

ENGINE CODE

YEAR OF MANUFACTURE

952,3

Minsk D-245.5S2

4750

01/2004 → 12/2008

BENATI

3-Serie | 92-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
3.07	Perk. 4.236						3.07 ENGINE CODE: Perk. 4.236 CC: kW: HP:
3.16R	Perk. 1004						3.16R ENGINE CODE: Perk. 1004 CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

3.07

Perk. 4.236

3.16R

Perk. 1004

Ben-Serie

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
120 ACS, 120 CS, 120 RS	Perk. 4.236						120 ACS, 120 CS, 120 RS ENGINE CODE: Perk. 4.236 CC: kW: HP:
2000 2RM Universal	Perkins 4.236						2000 2RM Universal ENGINE CODE: Perkins 4.236 CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

120 ACS, 120 CS, 120 RS

Perk. 4.236

2000 2RM Universal

Perkins 4.236

Max-Serie

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
160, 160 R4	Perk. 6.354					i Partly/or	160, 160 R4 ENGINE CODE: Perk. 6.354 CC: kW: HP: i Partly/or
90 (Ribot), 90 R4	Perk. A4.236					i Partly/or	90 (Ribot), 90 R4 ENGINE CODE: Perk. A4.236 CC: kW: HP: i Partly/or

ENGINE CODE

YEAR OF MANUFACTURE

160, 160 R4

Perk. 6.354

90 (Ribot), 90 R4

Perk. A4.236

BENFORD

TT-Serie

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
3 1/2	Ford 2504						3 1/2 ENGINE CODE: Ford 2504 CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

3 1/2

Ford 2504

BENMAC

3-Serie | 89-

	ENGINE CODE	kW	HP	YEAR OF MANUFACTURE
3.08 C, 3.08 C EX/TB	Perk. 1004.4	56	76	03/1990 →	3.08 C, 3.08 C EX/TB ENGINE CODE: Perk. 1004.4 CC: kW: 56 HP: 76 YEAR OF MANUFACTURE: 03/1990 →
3.08 S, 3.08 TB/EX	Perk. 1004.4	56	76	01/1989 →	3.08 S, 3.08 TB/EX ENGINE CODE: Perk. 1004.4 CC: kW: 56 HP: 76 YEAR OF MANUFACTURE: 01/1989 →
3.12 S, 3.12 TB	Perk. 1004.4	61	83	01/1990 →	3.12 S, 3.12 TB ENGINE CODE: Perk. 1004.4 CC: kW: 61 HP: 83 YEAR OF MANUFACTURE: 01/1990 →

ENGINE CODE

YEAR OF MANUFACTURE

3.08 C, 3.08 C EX/TB

Perk. 1004.4

03/1990 →

3.08 S, 3.08 TB/EX

Perk. 1004.4

01/1989 →

3.12 S, 3.12 TB

Perk. 1004.4

01/1990 →

BERZONI

BWS-Serie

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
40A	Perkins						40A ENGINE CODE: Perkins CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

40A

Perkins

BLAW KNOX (VOLVO CE)

BK/BD-Serie

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
165	Perk. 4.236						165 ENGINE CODE: Perk. 4.236 CC: kW: HP:
46	Perk. 4.154						46 ENGINE CODE: Perk. 4.154 CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

165

Perk. 4.236

Perk. 4.154

RW-Serie

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
38 RW	Perk. 4.108						38 RW ENGINE CODE: Perk. 4.108 CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

38 RW

Perk. 4.108

BOBCAT

1000-Serie

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
1074	Perkins 4.236						1074 ENGINE CODE: Perkins 4.236 CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

1074

Perkins 4.236

2000-Serie

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
2400							2400 ENGINE CODE: CC: kW: HP:
2410							2410 ENGINE CODE: CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

2400

2410

800-Serie

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
825							825 ENGINE CODE: CC: kW: HP:
825	Perkins 4.108						825 ENGINE CODE: Perkins 4.108 CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

825

Perkins 4.108

900-Serie

	ENGINE CODE
943		943 ENGINE CODE: CC: kW: HP:
943		943 ENGINE CODE: CC: kW: HP:
943	Perkins 4.236	943 ENGINE CODE: Perkins 4.236 CC: kW: HP:
953		953 ENGINE CODE: CC: kW: HP:
953		953 ENGINE CODE: CC: kW: HP:
963		963 ENGINE CODE: CC: kW: HP:
963G		963G ENGINE CODE: CC: kW: HP:
970	Perkins	970 ENGINE CODE: Perkins CC: kW: HP:
970 (Diesel)		970 (Diesel) ENGINE CODE: CC: kW: HP:
974		974 ENGINE CODE: CC: kW: HP:
974		974 ENGINE CODE: CC: kW: HP:
974	Perkins 4.236	974 ENGINE CODE: Perkins 4.236 CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

943

Perkins 4.236

953

963

963G

970

Perkins

970 (Diesel)

974

Perkins 4.236

T-Serie (Teleskopstapler / Telescopic Forklifts) |

	ENGINE CODE	kW	HP	YEAR OF MANUFACTURE
T 3093 S	Perkins 1004.42	59	80	01/1998 →	T 3093 S ENGINE CODE: Perkins 1004.42 CC: kW: 59 HP: 80 YEAR OF MANUFACTURE: 01/1998 →
T 3093 S Turbo	Perkins 1004.40T	78	106	01/1998 →	T 3093 S Turbo ENGINE CODE: Perkins 1004.40T CC: kW: 78 HP: 106 YEAR OF MANUFACTURE: 01/1998 →
T2556	Perkins 1004.42	59	80	01/1998 →	T2556 ENGINE CODE: Perkins 1004.42 CC: kW: 59 HP: 80 YEAR OF MANUFACTURE: 01/1998 →
T2556 Turbo	Perkins 1004.40T	78	106	01/1998 →	T2556 Turbo ENGINE CODE: Perkins 1004.40T CC: kW: 78 HP: 106 YEAR OF MANUFACTURE: 01/1998 →
T40.150	Perkins 1004.40T				T40.150 ENGINE CODE: Perkins 1004.40T CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

T 3093 S

Perkins 1004.42

01/1998 →

T 3093 S Turbo

Perkins 1004.40T

106

01/1998 →

T2556

Perkins 1004.42

01/1998 →

T2556 Turbo

Perkins 1004.40T

106

01/1998 →

T40.150

Perkins 1004.40T

BOMBARDIER

BR - Serie

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
180	PERKINS						180 ENGINE CODE: PERKINS CC: kW: HP:
2000							2000 ENGINE CODE: CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

180

PERKINS

2000

BOSCH KOMPRESSOREN

DDOD-Serie | 82-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
36	Hatz V108N		25	34	04/1982 → 07/1985		36 ENGINE CODE: Hatz V108N CC: kW: 25 HP: 34 YEAR OF MANUFACTURE: 04/1982 → 07/1985

ENGINE CODE

YEAR OF MANUFACTURE

Hatz V108N

04/1982 → 07/1985

BOTTARINI

KS - Serie

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
KS 8							KS 8 ENGINE CODE: CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

KS 8

BRAUD

100-Serie

	ENGINE CODE
603	Perk. 6.372	603 ENGINE CODE: Perk. 6.372 CC: kW: HP:
604, 605	Perk. 6.354	604, 605 ENGINE CODE: Perk. 6.354 CC: kW: HP:
701	Perk. 6.372	701 ENGINE CODE: Perk. 6.372 CC: kW: HP:
801	Perk. T6.354	801 ENGINE CODE: Perk. T6.354 CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

603

Perk. 6.372

604, 605

Perk. 6.354

701

Perk. 6.372

801

Perk. T6.354

BRAY CONSTRUCTION

500-Serie

	ENGINE CODE
530	Perk. 4.236	i Partly/or	530 ENGINE CODE: Perk. 4.236 CC: kW: HP: i Partly/or
534	Perk. 4.236	i Partly/or	534 ENGINE CODE: Perk. 4.236 CC: kW: HP: i Partly/or
540	Perk. 4.236	i Partly/or	540 ENGINE CODE: Perk. 4.236 CC: kW: HP: i Partly/or
544	Perk. 4.236	i Partly/or	544 ENGINE CODE: Perk. 4.236 CC: kW: HP: i Partly/or
546	Perk. 6.354	i Partly/or	546 ENGINE CODE: Perk. 6.354 CC: kW: HP: i Partly/or
552	Perk. 6.354	i Partly/or	552 ENGINE CODE: Perk. 6.354 CC: kW: HP: i Partly/or

ENGINE CODE

YEAR OF MANUFACTURE

530

Perk. 4.236

534

Perk. 4.236

540

Perk. 4.236

544

Perk. 4.236

546

Perk. 6.354

552

Perk. 6.354

BL-Serie

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
534	Perk. 4.236					i Partly/or	534 ENGINE CODE: Perk. 4.236 CC: kW: HP: i Partly/or
540	Perk. 4.236					i Partly/or	540 ENGINE CODE: Perk. 4.236 CC: kW: HP: i Partly/or

ENGINE CODE

YEAR OF MANUFACTURE

534

Perk. 4.236

540

Perk. 4.236

PS/RS-Serie

	ENGINE CODE
10000 A, 10000 C	Perk. 6.354	10000 A, 10000 C ENGINE CODE: Perk. 6.354 CC: kW: HP:
4000	Perk. 6.354	4000 ENGINE CODE: Perk. 6.354 CC: kW: HP:
4500	Perk. 6.354	4500 ENGINE CODE: Perk. 6.354 CC: kW: HP:
5000	Perk. 6.354	5000 ENGINE CODE: Perk. 6.354 CC: kW: HP:
6000	Perk. 6.354	6000 ENGINE CODE: Perk. 6.354 CC: kW: HP:
7000	Perk. 6.354	7000 ENGINE CODE: Perk. 6.354 CC: kW: HP:
7500	Perk. 6.354	7500 ENGINE CODE: Perk. 6.354 CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

10000 A, 10000 C

Perk. 6.354

4000

Perk. 6.354

4500

Perk. 6.354

5000

Perk. 6.354

6000

Perk. 6.354

7000

Perk. 6.354

7500

Perk. 6.354

BRISTOL PNEUMATIC

ATS-Serie

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
161PD2, 161PD4	Perk. 4.236						161PD2, 161PD4 ENGINE CODE: Perk. 4.236 CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

161PD2, 161PD4

Perk. 4.236

BRITISH JEFFREY DIAMOND

600-Serie

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
613	Perkins 4.236					i Partly/or	613 ENGINE CODE: Perkins 4.236 CC: kW: HP: i Partly/or

ENGINE CODE

YEAR OF MANUFACTURE

613

Perkins 4.236

BROEYT (BROEDR SOYLAND AS)

X-Serie

	ENGINE CODE
X20	MWM		X20 ENGINE CODE: MWM CC: kW: HP:
X20	Perk. 6.354	i Partly/or	X20 ENGINE CODE: Perk. 6.354 CC: kW: HP: i Partly/or
X21	Perk. T6.354.4		X21 ENGINE CODE: Perk. T6.354.4 CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

X20

MWM

X20

Perk. 6.354

X21

Perk. T6.354.4

BUEHRER TRAKTOREN

VF-Serie

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
14	Perkins						14 ENGINE CODE: Perkins CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

Perkins

BUSCH VACUUM PUMPS

138-Serie

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
160-38							160-38 ENGINE CODE: CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

160-38

Rotary vane vacuum pump, oil-lubricated


EVA CB 0220	i Use for OE no. 531000001	EVA CB 0220 ENGINE CODE: CC: kW: HP: i Use for OE no. 531000001
EVA CB 0250	i Use for OE no. 531000001	EVA CB 0250 ENGINE CODE: CC: kW: HP: i Use for OE no. 531000001
R 5 0160 B	i Use for OE no. 531000001	R 5 0160 B ENGINE CODE: CC: kW: HP: i Use for OE no. 531000001
R 5 0160 C	i Use for OE no. 531000001	R 5 0160 C ENGINE CODE: CC: kW: HP: i Use for OE no. 531000001
R 5 0160 D	i Use for OE no. 531000001	R 5 0160 D ENGINE CODE: CC: kW: HP: i Use for OE no. 531000001
R 5 0160-116	i Use for OE no. 531000001	R 5 0160-116 ENGINE CODE: CC: kW: HP: i Use for OE no. 531000001
R 5 0250 B	i Use for OE no. 531000001	R 5 0250 B ENGINE CODE: CC: kW: HP: i Use for OE no. 531000001
R 5 0250 C	i Use for OE no. 531000001	R 5 0250 C ENGINE CODE: CC: kW: HP: i Use for OE no. 531000001
R 5 0250-116	i Use for OE no. 531000001	R 5 0250-116 ENGINE CODE: CC: kW: HP: i Use for OE no. 531000001
R 5 0300 B	i Use for OE no. 531000001	R 5 0300 B ENGINE CODE: CC: kW: HP: i Use for OE no. 531000001
R 5 0300 C	i Use for OE no. 531000001	R 5 0300 C ENGINE CODE: CC: kW: HP: i Use for OE no. 531000001
R 5 0302 D	i Use for OE no. 531000001	R 5 0302 D ENGINE CODE: CC: kW: HP: i Use for OE no. 531000001
R 5 160	i Use for OE no. 531000001	R 5 160 ENGINE CODE: CC: kW: HP: i Use for OE no. 531000001
R 5 160 B	i Use for OE no. 531000001	R 5 160 B ENGINE CODE: CC: kW: HP: i Use for OE no. 531000001
R 5 160 C	i Use for OE no. 531000001	R 5 160 C ENGINE CODE: CC: kW: HP: i Use for OE no. 531000001
R 5 160 D	i Use for OE no. 531000001	R 5 160 D ENGINE CODE: CC: kW: HP: i Use for OE no. 531000001
R 5 165 D	i Use for OE no. 531000001	R 5 165 D ENGINE CODE: CC: kW: HP: i Use for OE no. 531000001
R 5 202 D	i Use for OE no. 531000001	R 5 202 D ENGINE CODE: CC: kW: HP: i Use for OE no. 531000001
R 5 205 D	i Use for OE no. 531000001	R 5 205 D ENGINE CODE: CC: kW: HP: i Use for OE no. 531000001
R 5 250	i Use for OE no. 531000001	R 5 250 ENGINE CODE: CC: kW: HP: i Use for OE no. 531000001
R 5 250 B	i Use for OE no. 531000001	R 5 250 B ENGINE CODE: CC: kW: HP: i Use for OE no. 531000001
R 5 250 C	i Use for OE no. 531000001	R 5 250 C ENGINE CODE: CC: kW: HP: i Use for OE no. 531000001
R 5 250 D	i Use for OE no. 531000001	R 5 250 D ENGINE CODE: CC: kW: HP: i Use for OE no. 531000001
R 5 255 D	i Use for OE no. 531000001	R 5 255 D ENGINE CODE: CC: kW: HP: i Use for OE no. 531000001
R 5 302 D	i Use for OE no. 531000001	R 5 302 D ENGINE CODE: CC: kW: HP: i Use for OE no. 531000001
R 5 305 D	i Use for OE no. 531000001	R 5 305 D ENGINE CODE: CC: kW: HP: i Use for OE no. 531000001
R 5 RA 0160 D	i Use for OE no. 531000001	R 5 RA 0160 D ENGINE CODE: CC: kW: HP: i Use for OE no. 531000001
R 5 RA 0165 D	i Use for OE no. 531000001	R 5 RA 0165 D ENGINE CODE: CC: kW: HP: i Use for OE no. 531000001
R 5 RA 0202 D	i Use for OE no. 531000001	R 5 RA 0202 D ENGINE CODE: CC: kW: HP: i Use for OE no. 531000001
R 5 RA 0205 D	i Use for OE no. 531000001	R 5 RA 0205 D ENGINE CODE: CC: kW: HP: i Use for OE no. 531000001
R 5 RA 0250 D	i Use for OE no. 531000001	R 5 RA 0250 D ENGINE CODE: CC: kW: HP: i Use for OE no. 531000001
R 5 RA 0255 D	i Use for OE no. 531000001	R 5 RA 0255 D ENGINE CODE: CC: kW: HP: i Use for OE no. 531000001
R 5 RA 0302 D	i Use for OE no. 531000001	R 5 RA 0302 D ENGINE CODE: CC: kW: HP: i Use for OE no. 531000001
R 5 RA 0305 D	i Use for OE no. 531000001	R 5 RA 0305 D ENGINE CODE: CC: kW: HP: i Use for OE no. 531000001
R 5 RA/RC 0160 - 116	i Use for OE no. 531000001	R 5 RA/RC 0160 - 116 ENGINE CODE: CC: kW: HP: i Use for OE no. 531000001

ENGINE CODE

YEAR OF MANUFACTURE

EVA CB 0220

EVA CB 0250

R 5 0160 B

R 5 0160 C

R 5 0160 D

R 5 0160-116

R 5 0250 B

R 5 0250 C

R 5 0250-116

R 5 0300 B

R 5 0300 C

R 5 0302 D

R 5 160

R 5 160 B

R 5 160 C

R 5 160 D

R 5 165 D

R 5 202 D

R 5 205 D

R 5 250

R 5 250 B

R 5 250 C

R 5 250 D

R 5 255 D

R 5 302 D

R 5 305 D

R 5 RA 0160 D

R 5 RA 0165 D

R 5 RA 0202 D

R 5 RA 0205 D

R 5 RA 0250 D

R 5 RA 0255 D

R 5 RA 0302 D

R 5 RA 0305 D

R 5 RA/RC 0160 - 116

CARRARO

1000-Serie

	ENGINE CODE
1020 (2/4 RM)	Perkins 4.318	1020 (2/4 RM) ENGINE CODE: Perkins 4.318 CC: kW: HP:
1020.2, 1020.4	Perkins 4.318	1020.2, 1020.4 ENGINE CODE: Perkins 4.318 CC: kW: HP:
1050.4	MWM D227-4	1050.4 ENGINE CODE: MWM D227-4 CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

1020 (2/4 RM)

Perkins 4.318

1020.2, 1020.4

Perkins 4.318

1050.4

MWM D227-4

1100-Serie

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
1151-4	MWM D226-4						1151-4 ENGINE CODE: MWM D226-4 CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

1151-4

MWM D226-4

60-Serie

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
68.2, 68.4	Perkins 4.236						68.2, 68.4 ENGINE CODE: Perkins 4.236 CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

68.2, 68.4

Perkins 4.236

700-Serie

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
720 (2/4 RM)	Perkins 4.236						720 (2/4 RM) ENGINE CODE: Perkins 4.236 CC: kW: HP:
720.2, 720.4	Perkins 4.236						720.2, 720.4 ENGINE CODE: Perkins 4.236 CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

720 (2/4 RM)

Perkins 4.236

720.2, 720.4

Perkins 4.236

80-Serie

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
88.2, 88.4	Perkins 4.248						88.2, 88.4 ENGINE CODE: Perkins 4.248 CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

88.2, 88.4

Perkins 4.248

800-Serie

	ENGINE CODE
820 (2/4 RM)	Perkins 4.236	820 (2/4 RM) ENGINE CODE: Perkins 4.236 CC: kW: HP:
820.2, 820.4	Perkins 4.236	820.2, 820.4 ENGINE CODE: Perkins 4.236 CC: kW: HP:
842	Perkins	842 ENGINE CODE: Perkins CC: kW: HP:
844	Perkins	844 ENGINE CODE: Perkins CC: kW: HP:
850.2, 850.4	MWM D226-4	850.2, 850.4 ENGINE CODE: MWM D226-4 CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

820 (2/4 RM)

Perkins 4.236

820.2, 820.4

Perkins 4.236

842

Perkins

844

Perkins

850.2, 850.4

MWM D226-4

90-Serie

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
98.2, 98.4	Perkins 4.318						98.2, 98.4 ENGINE CODE: Perkins 4.318 CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

98.2, 98.4

Perkins 4.318

900-Serie

	ENGINE CODE
920 (2/4 RM)	Perkins 4.248	920 (2/4 RM) ENGINE CODE: Perkins 4.248 CC: kW: HP:
920.2, 920.4	Perkins 4.248	920.2, 920.4 ENGINE CODE: Perkins 4.248 CC: kW: HP:
920.5	Perkins T4.236	920.5 ENGINE CODE: Perkins T4.236 CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

920 (2/4 RM)

Perkins 4.248

920.2, 920.4

Perkins 4.248

920.5

Perkins T4.236

CASE CONSTRUCTION

1600-Serie

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
1665	Perkins						1665 ENGINE CODE: Perkins CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

1665

Perkins

CASE-IH (CNH GLOBAL)

CS/CS PRO/CS Compact-Serie | 94-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
CS 48, 48 A	Perkins 903.27	2701	35	48	02/1997 → 01/2001	CS 48, 48 A ENGINE CODE: Perkins 903.27 CC: 2701 kW: 35 HP: 48 YEAR OF MANUFACTURE: 02/1997 → 01/2001
CS 52, 52 A	Perkins 903.27T	2701	38	52	01/2001 → 03/2004	CS 52, 52 A ENGINE CODE: Perkins 903.27T CC: 2701 kW: 38 HP: 52 YEAR OF MANUFACTURE: 01/2001 → 03/2004
CS 58, 58 A	Perkins 903.27T	2701	43	59	02/1997 → 01/2001	CS 58, 58 A ENGINE CODE: Perkins 903.27T CC: 2701 kW: 43 HP: 59 YEAR OF MANUFACTURE: 02/1997 → 01/2001
CS 63, 63 A	Perkins 903.27T	2701	46	63	01/2001 → 03/2004	CS 63, 63 A ENGINE CODE: Perkins 903.27T CC: 2701 kW: 46 HP: 63 YEAR OF MANUFACTURE: 01/2001 → 03/2004

ENGINE CODE

YEAR OF MANUFACTURE

CS 48, 48 A

Perkins 903.27

2701

02/1997 → 01/2001

CS 52, 52 A

Perkins 903.27T

2701

01/2001 → 03/2004

CS 58, 58 A

Perkins 903.27T

2701

02/1997 → 01/2001

CS 63, 63 A

Perkins 903.27T

2701

01/2001 → 03/2004

CX-Serie | 98-01

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
CX 50	G 2.7	2700	37	50	01/1998 → 05/2001		CX 50 ENGINE CODE: G 2.7 CC: 2700 kW: 37 HP: 50 YEAR OF MANUFACTURE: 01/1998 → 05/2001
CX 60	G 2.7T	2700	44	60	01/1998 → 05/2001		CX 60 ENGINE CODE: G 2.7T CC: 2700 kW: 44 HP: 60 YEAR OF MANUFACTURE: 01/1998 → 05/2001

ENGINE CODE

YEAR OF MANUFACTURE

CX 50

G 2.7

2700

01/1998 → 05/2001

CX 60

G 2.7T

2700

01/1998 → 05/2001

CASE-STEYR (CNH GLOBAL)

500-Serie

	kW	HP
540			540 ENGINE CODE: CC: kW: HP:
545	33	45	545 ENGINE CODE: CC: kW: 33 HP: 45
548			548 ENGINE CODE: CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

540

545

548

600-Serie

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
650	WD 408.41						650 ENGINE CODE: WD 408.41 CC: kW: HP:
658							658 ENGINE CODE: CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

650

WD 408.41

658

700-Serie

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
760							760 ENGINE CODE: CC: kW: HP:
768	WD 408.43						768 ENGINE CODE: WD 408.43 CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

760

768

WD 408.43

800-Serie

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
870							870 ENGINE CODE: CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

870

8000-Serie | 80-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
8045, 8045 A	Steyer WD 308.48	2356	31	42	11/1980 → 12/1992	8045, 8045 A ENGINE CODE: Steyer WD 308.48 CC: 2356 kW: 31 HP: 42 YEAR OF MANUFACTURE: 11/1980 → 12/1992
8055, 8055 A	Steyer WD 311.47	2592	35	48	01/1982 → 12/1992	8055, 8055 A ENGINE CODE: Steyer WD 311.47 CC: 2592 kW: 35 HP: 48 YEAR OF MANUFACTURE: 01/1982 → 12/1992
8060 T, 8060 TA	Steyer WD 311.87		41	56	01/1987 → 12/1992	8060 T, 8060 TA ENGINE CODE: Steyer WD 311.87 CC: kW: 41 HP: 56 YEAR OF MANUFACTURE: 01/1987 → 12/1992
8060, 8060 A	Steyer WD 311.40/41	2592	35	48	01/1980 → 12/1992	8060, 8060 A ENGINE CODE: Steyer WD 311.40/41 CC: 2592 kW: 35 HP: 48 YEAR OF MANUFACTURE: 01/1980 → 12/1992
8065, 8065 A	Steyer WD 311.85	2592	41	56	06/1985 → 12/1992	8065, 8065 A ENGINE CODE: Steyer WD 311.85 CC: 2592 kW: 41 HP: 56 YEAR OF MANUFACTURE: 06/1985 → 12/1992
8070, 8070 A	Steyer WD 411.42/44	3456	47	64	01/1980 → 12/1992	8070, 8070 A ENGINE CODE: Steyer WD 411.42/44 CC: 3456 kW: 47 HP: 64 YEAR OF MANUFACTURE: 01/1980 → 12/1992
8075, 8075 A	Steyer WD 411.45/46	3456	47	64	01/1984 → 12/1992	8075, 8075 A ENGINE CODE: Steyer WD 411.45/46 CC: 3456 kW: 47 HP: 64 YEAR OF MANUFACTURE: 01/1984 → 12/1992
8080, 8080A	Steyer WD 411.86/90	3456	53	72	05/1984 → 12/1992	8080, 8080A ENGINE CODE: Steyer WD 411.86/90 CC: 3456 kW: 53 HP: 72 YEAR OF MANUFACTURE: 05/1984 → 12/1992
8090, 8090 A	Steyer WD 411.87/88	3456	59	80	01/1984 → 12/1992	8090, 8090 A ENGINE CODE: Steyer WD 411.87/88 CC: 3456 kW: 59 HP: 80 YEAR OF MANUFACTURE: 01/1984 → 12/1992
8095, 8095 A	Steyer WD 411	3456			01/1980 →	8095, 8095 A ENGINE CODE: Steyer WD 411 CC: 3456 kW: HP: YEAR OF MANUFACTURE: 01/1980 →

ENGINE CODE

YEAR OF MANUFACTURE

8045, 8045 A

Steyer WD 308.48

2356

11/1980 → 12/1992

8055, 8055 A

Steyer WD 311.47

2592

01/1982 → 12/1992

8060 T, 8060 TA

Steyer WD 311.87

01/1987 → 12/1992

8060, 8060 A

Steyer WD 311.40/41

2592

01/1980 → 12/1992

8065, 8065 A

Steyer WD 311.85

2592

06/1985 → 12/1992

8070, 8070 A

Steyer WD 411.42/44

3456

01/1980 → 12/1992

8075, 8075 A

Steyer WD 411.45/46

3456

01/1984 → 12/1992

8080, 8080A

Steyer WD 411.86/90

3456

05/1984 → 12/1992

8090, 8090 A

Steyer WD 411.87/88

3456

01/1984 → 12/1992

8095, 8095 A

Steyer WD 411

3456

01/1980 →

900-Serie | 91-

	ENGINE CODE	kW	HP	YEAR OF MANUFACTURE
942	WD 308.48	31	42	01/1991 →	942 ENGINE CODE: WD 308.48 CC: kW: 31 HP: 42 YEAR OF MANUFACTURE: 01/1991 →
948	WD 308.48				948 ENGINE CODE: WD 308.48 CC: kW: HP:
988	WD412.41				988 ENGINE CODE: WD412.41 CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

942

WD 308.48

01/1991 →

948

WD 308.48

988

WD412.41

9000-Serie | 93-12

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
9078 (M 9078)	MWM WD401.81	4156	57	78	09/1993 → 12/1998	i Partly/or	9078 (M 9078) ENGINE CODE: MWM WD401.81 CC: 4156 kW: 57 HP: 78 YEAR OF MANUFACTURE: 09/1993 → 12/1998 i Partly/or
9083 (M 9083)	WD401.82		61	83	→ 12/1998	i Some models: MWM Motor/engine	9083 (M 9083) ENGINE CODE: WD401.82 CC: kW: 61 HP: 83 YEAR OF MANUFACTURE: → 12/1998 i Some models: MWM Motor/engine
9086 (M 9086)	WD401.83		63	86	→ 12/1998		9086 (M 9086) ENGINE CODE: WD401.83 CC: kW: 63 HP: 86 YEAR OF MANUFACTURE: → 12/1998
9094 (M 9094)	WD401.85		69	94	→ 12/1998		9094 (M 9094) ENGINE CODE: WD401.85 CC: kW: 69 HP: 94 YEAR OF MANUFACTURE: → 12/1998

ENGINE CODE

YEAR OF MANUFACTURE

9078 (M 9078)

MWM WD401.81

4156

09/1993 → 12/1998

9083 (M 9083)

WD401.82

→ 12/1998

9086 (M 9086)

WD401.83

→ 12/1998

9094 (M 9094)

WD401.85

→ 12/1998

M 900-Serie | 97-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
M 948, M 948 A	WD 308.48	2700	35	48	07/1999 → 12/2001		M 948, M 948 A ENGINE CODE: WD 308.48 CC: 2700 kW: 35 HP: 48 YEAR OF MANUFACTURE: 07/1999 → 12/2001
M 958, M 958 A	WD 308.48	2700	42	58	07/1999 → 01/2001		M 958, M 958 A ENGINE CODE: WD 308.48 CC: 2700 kW: 42 HP: 58 YEAR OF MANUFACTURE: 07/1999 → 01/2001

ENGINE CODE

YEAR OF MANUFACTURE

M 948, M 948 A

WD 308.48

2700

07/1999 → 12/2001

M 958, M 958 A

WD 308.48

2700

07/1999 → 01/2001

CATERPILLAR

200 (Kettenbagger / Crawler Excavators) | 86-

	ENGINE CODE
205	Perkins	205 ENGINE CODE: Perkins CC: kW: HP:
206	Perkins 4 . 236	206 ENGINE CODE: Perkins 4 . 236 CC: kW: HP:
211	Perkins 4 . 236	211 ENGINE CODE: Perkins 4 . 236 CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

205

Perkins

206

Perkins 4 . 236

211

Perkins 4 . 236

200 (Kompaktlader / Skid Steer Loaders) | 96-

	ENGINE CODE	kW	HP	YEAR OF MANUFACTURE
216	Cat 3034	37	50	01/1999 → 12/2002	216 ENGINE CODE: Cat 3034 CC: kW: 37 HP: 50 YEAR OF MANUFACTURE: 01/1999 → 12/2002
226	Cat 3034	41	54	01/1999 →	226 ENGINE CODE: Cat 3034 CC: kW: 41 HP: 54 YEAR OF MANUFACTURE: 01/1999 →
228	Cat 3034				228 ENGINE CODE: Cat 3034 CC: kW: HP:
236	Cat 3034	44	60	01/1999 →	236 ENGINE CODE: Cat 3034 CC: kW: 44 HP: 60 YEAR OF MANUFACTURE: 01/1999 →
246	Cat 3034	55	75	01/1996 →	246 ENGINE CODE: Cat 3034 CC: kW: 55 HP: 75 YEAR OF MANUFACTURE: 01/1996 →
247	Cat 3034				247 ENGINE CODE: Cat 3034 CC: kW: HP:
248	Cat 3034				248 ENGINE CODE: Cat 3034 CC: kW: HP:
252	Cat 3034				252 ENGINE CODE: Cat 3034 CC: kW: HP:
257	Cat 3034				257 ENGINE CODE: Cat 3034 CC: kW: HP:
262	Cat 3034				262 ENGINE CODE: Cat 3034 CC: kW: HP:
267	Cat 3034				267 ENGINE CODE: Cat 3034 CC: kW: HP:
277	Cat 3034				277 ENGINE CODE: Cat 3034 CC: kW: HP:
287	Perkins 2.9 L				287 ENGINE CODE: Perkins 2.9 L CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

216

Cat 3034

01/1999 → 12/2002

226

Cat 3034

01/1999 →

228

Cat 3034

236

Cat 3034

01/1999 →

246

Cat 3034

01/1996 →

247

Cat 3034

248

Cat 3034

252

Cat 3034

257

Cat 3034

262

Cat 3034

267

Cat 3034

277

Cat 3034

287

Perkins 2.9 L

300 (Kettenbagger / Crawler Excavators) | 92-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
307	Cat 3054						307 ENGINE CODE: Cat 3054 CC: kW: HP:
307	Mitsubishi 4D 32						307 ENGINE CODE: Mitsubishi 4D 32 CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

307

Cat 3054

307

Mitsubishi 4D 32

3000 (Motoren / Engines)


3034 D		3034 D ENGINE CODE: CC: kW: HP:
3054		3054 ENGINE CODE: CC: kW: HP:
3054 B		3054 B ENGINE CODE: CC: kW: HP:
3054 C	i Use for OE no. 7W-2327	3054 C ENGINE CODE: CC: kW: HP: i Use for OE no. 7W-2327

ENGINE CODE

YEAR OF MANUFACTURE

3034 D

3054

3054 B

3054 C

400 (Baggerlader / Backhoe Loaders) | 89-

	ENGINE CODE	kW	HP	YEAR OF MANUFACTURE
416 / 416 Series II	Perkins 4.236					416 / 416 Series II ENGINE CODE: Perkins 4.236 CC: kW: HP:
416 B	Cat 3054					416 B ENGINE CODE: Cat 3054 CC: kW: HP:
416 C	Cat 3054	59	60		i Partly/or	416 C ENGINE CODE: Cat 3054 CC: kW: 59 HP: 60 i Partly/or
416 C	Perkins					416 C ENGINE CODE: Perkins CC: kW: HP:
426	Perkins 4 . 236					426 ENGINE CODE: Perkins 4 . 236 CC: kW: HP:
426 B	Cat 3054				i Partly/or	426 B ENGINE CODE: Cat 3054 CC: kW: HP: i Partly/or
428	Perkins 4.236	53	72			428 ENGINE CODE: Perkins 4.236 CC: kW: 53 HP: 72
428 B	Cat. 3054	58	79	01/1992 →		428 B ENGINE CODE: Cat. 3054 CC: kW: 58 HP: 79 YEAR OF MANUFACTURE: 01/1992 →
428 C	Perkins					428 C ENGINE CODE: Perkins CC: kW: HP:
438 / 438 Series II	Perkins 4.236	58	79	01/1989 →		438 / 438 Series II ENGINE CODE: Perkins 4.236 CC: kW: 58 HP: 79 YEAR OF MANUFACTURE: 01/1989 →

ENGINE CODE

YEAR OF MANUFACTURE

416 / 416 Series II

Perkins 4.236

416 B

Cat 3054

416 C

Cat 3054

416 C

Perkins

426

Perkins 4 . 236

426 B

Cat 3054

428

Perkins 4.236

428 B

Cat. 3054

01/1992 →

428 C

Perkins

438 / 438 Series II

Perkins 4.236

01/1989 →

900 (Radlader / Wheel Loaders) | 98-

	ENGINE CODE	kW	HP	YEAR OF MANUFACTURE
924 G	Cat 3056 T	85	115	01/1999 →		924 G ENGINE CODE: Cat 3056 T CC: kW: 85 HP: 115 YEAR OF MANUFACTURE: 01/1999 →
924 G	Cat 3056E ATAAC	97	132			924 G ENGINE CODE: Cat 3056E ATAAC CC: kW: 97 HP: 132
924 GZ	Cat 3056E ATAAC	97	132			924 GZ ENGINE CODE: Cat 3056E ATAAC CC: kW: 97 HP: 132
930 G					i Use for OE no. 7W2327	930 G ENGINE CODE: CC: kW: HP: i Use for OE no. 7W2327

ENGINE CODE

YEAR OF MANUFACTURE

924 G

Cat 3056 T

115

01/1999 →

924 G

Cat 3056E ATAAC

132

924 GZ

Cat 3056E ATAAC

132

930 G

AP / BG (Asphaltfertiger / Asphalt Pavers) | 07-

	ENGINE CODE	kW	HP
AP-1200	Perkins			AP-1200 ENGINE CODE: Perkins CC: kW: HP:
AP-200B	Hatz 2M40L	25	35	AP-200B ENGINE CODE: Hatz 2M40L CC: kW: 25 HP: 35
AP-655C				AP-655C ENGINE CODE: CC: kW: HP:
AP-800B	Perkins T4.236			AP-800B ENGINE CODE: Perkins T4.236 CC: kW: HP:
AP-800C	Cat 3054			AP-800C ENGINE CODE: Cat 3054 CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

AP-1200

Perkins

AP-200B

Hatz 2M40L

AP-655C

AP-800B

Perkins T4.236

AP-800C

Cat 3054

CB / CC / CD (Tandem-Walzen / Rollers) | 95-

	ENGINE CODE	kW	HP	YEAR OF MANUFACTURE
CB214 C	Hatz 2M40L	24	33	01/1995 → 12/2000	CB214 C ENGINE CODE: Hatz 2M40L CC: kW: 24 HP: 33 YEAR OF MANUFACTURE: 01/1995 → 12/2000
CB224 B					CB224 B ENGINE CODE: CC: kW: HP:
CB224 C	Hatz				CB224 C ENGINE CODE: Hatz CC: kW: HP:
CB434 B	Cat 3054				CB434 B ENGINE CODE: Cat 3054 CC: kW: HP:
CB434 C	Cat 3054				CB434 C ENGINE CODE: Cat 3054 CC: kW: HP:
CB544	Cat 3054				CB544 ENGINE CODE: Cat 3054 CC: kW: HP:
CB545	Cat 3054				CB545 ENGINE CODE: Cat 3054 CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

CB214 C

Hatz 2M40L

01/1995 → 12/2000

CB224 B

CB224 C

Hatz

CB434 B

Cat 3054

CB434 C

Cat 3054

CB544

Cat 3054

CB545

Cat 3054

CP / CS (Walzenzüge / Rollers) | 97-

	ENGINE CODE	kW	HP
CP323 C	Cat 3054			CP323 C ENGINE CODE: Cat 3054 CC: kW: HP:
CP433 C	Cat 3054			CP433 C ENGINE CODE: Cat 3054 CC: kW: HP:
CP433 C (2JM1->)	Cat 3054 T	77	105	CP433 C (2JM1->) ENGINE CODE: Cat 3054 T CC: kW: 77 HP: 105
CS323 C	Cat 3054			CS323 C ENGINE CODE: Cat 3054 CC: kW: HP:
CS413 C	Perkins			CS413 C ENGINE CODE: Perkins CC: kW: HP:
CS431 C	Cat 3054			CS431 C ENGINE CODE: Cat 3054 CC: kW: HP:
CS433 C	Cat 3054 T	77	105	CS433 C ENGINE CODE: Cat 3054 T CC: kW: 77 HP: 105

ENGINE CODE

YEAR OF MANUFACTURE

CP323 C

Cat 3054

CP433 C

Cat 3054

CP433 C (2JM1->)

Cat 3054 T

105

CS323 C

Cat 3054

CS413 C

Perkins

CS431 C

Cat 3054

CS433 C

Cat 3054 T

105

M300 (Mobilbagger / Wheeled Excavators) | 96-

	ENGINE CODE	kW	HP	YEAR OF MANUFACTURE
M 316 C	Cat 3056 E	103	140	09/2002 →	i Required quantity: 2 Piece	M 316 C ENGINE CODE: Cat 3056 E CC: kW: 103 HP: 140 YEAR OF MANUFACTURE: 09/2002 → i Required quantity: 2 Piece
M 318 C/ MH	Cat 3056 E	113	154	09/2002 →		M 318 C/ MH ENGINE CODE: Cat 3056 E CC: kW: 113 HP: 154 YEAR OF MANUFACTURE: 09/2002 →
M 322 C/ C MH	Cat 3056 E	122	166	09/2002 →		M 322 C/ C MH ENGINE CODE: Cat 3056 E CC: kW: 122 HP: 166 YEAR OF MANUFACTURE: 09/2002 →

ENGINE CODE

YEAR OF MANUFACTURE

M 316 C

Cat 3056 E

103

140

09/2002 →

M 318 C/ MH

Cat 3056 E

113

154

09/2002 →

M 322 C/ C MH

Cat 3056 E

122

166

09/2002 →

MULTI TERRAIN LOADERS / DELTA LADER | 03-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
247	Cat 3034		41	56	01/2003 →		247 ENGINE CODE: Cat 3034 CC: kW: 41 HP: 56 YEAR OF MANUFACTURE: 01/2003 →

ENGINE CODE

YEAR OF MANUFACTURE

247

Cat 3034

01/2003 →

PF/PM/RS/PS/PST/RM (Paving Equipment)

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
PS150 B Pneumatic	Cat 3054						PS150 B Pneumatic ENGINE CODE: Cat 3054 CC: kW: HP:
PS300 B	Cat 3054 T		79	108			PS300 B ENGINE CODE: Cat 3054 T CC: kW: 79 HP: 108

ENGINE CODE

YEAR OF MANUFACTURE

PS150 B Pneumatic

Cat 3054

PS300 B

Cat 3054 T

108

RT-Serie (kompakte Raupenlader/ compact track load

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
RT 50 (5PF..)							RT 50 (5PF..) ENGINE CODE: CC: kW: HP:
RT 50 SA							RT 50 SA ENGINE CODE: CC: kW: HP:
RT 60							RT 60 ENGINE CODE: CC: kW: HP:
RTC 60							RTC 60 ENGINE CODE: CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

RT 50 (5PF..)

RT 50 SA

RT 60

RTC 60

TH (Teleskoplader / Telehandlers) | 96-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
TH215	Cat 3054 B-DI	4200	63	86	01/2002 → 12/2006	i Use for OE no. 7W-2327	TH215 ENGINE CODE: Cat 3054 B-DI CC: 4200 kW: 63 HP: 86 YEAR OF MANUFACTURE: 01/2002 → 12/2006 i Use for OE no. 7W-2327
TH82	Cat 3054 DIT		75	102	01/1996 → 12/2002	i Partly/or	TH82 ENGINE CODE: Cat 3054 DIT CC: kW: 75 HP: 102 YEAR OF MANUFACTURE: 01/1996 → 12/2002 i Partly/or
TH83	Cat 3054 DIT		75	102	01/1996 → 12/2002	i Partly/or	TH83 ENGINE CODE: Cat 3054 DIT CC: kW: 75 HP: 102 YEAR OF MANUFACTURE: 01/1996 → 12/2002 i Partly/or

ENGINE CODE

YEAR OF MANUFACTURE

TH215

Cat 3054 B-DI

4200

01/2002 → 12/2006

TH82

Cat 3054 DIT

102

01/1996 → 12/2002

TH83

Cat 3054 DIT

102

01/1996 → 12/2002

CLAAS

Consul (Mähdrescher / Harvesters)

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
Consul	Perkins 4.236						Consul ENGINE CODE: Perkins 4.236 CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

Consul

Perkins 4.236

Dominator (0) (Mähdrescher / Harvesters) | 10-

	ENGINE CODE	CC	kW	HP
130 (Typ 156)	Caterpillar 3056 E	5900	97	132	i Required quantity: 2 Piece	130 (Typ 156) ENGINE CODE: Caterpillar 3056 E CC: 5900 kW: 97 HP: 132 i Required quantity: 2 Piece
130 (Typ 156)	Perkins 1006-6T				i Required quantity: 2 Piece	130 (Typ 156) ENGINE CODE: Perkins 1006-6T CC: kW: HP: i Required quantity: 2 Piece
140 (Typ 200)	Cat. 3056 E	5900	97	132	i Required quantity: 2 Piece	140 (Typ 200) ENGINE CODE: Cat. 3056 E CC: 5900 kW: 97 HP: 132 i Required quantity: 2 Piece
140 (Typ 200)	Perkins 1006-6T				i Required quantity: 2 Piece	140 (Typ 200) ENGINE CODE: Perkins 1006-6T CC: kW: HP: i Required quantity: 2 Piece
150 (Typ 200)	Caterpillar 3056 E	5900	112	152	i Required quantity: 2 Piece	150 (Typ 200) ENGINE CODE: Caterpillar 3056 E CC: 5900 kW: 112 HP: 152 i Required quantity: 2 Piece
150 (Typ 200)	Perkins 1006-6T				i Required quantity: 2 Piece	150 (Typ 200) ENGINE CODE: Perkins 1006-6T CC: kW: HP: i Required quantity: 2 Piece

ENGINE CODE

YEAR OF MANUFACTURE

130 (Typ 156)

Caterpillar 3056 E

5900

132

130 (Typ 156)

Perkins 1006-6T

140 (Typ 200)

Cat. 3056 E

5900

132

140 (Typ 200)

Perkins 1006-6T

150 (Typ 200)

Caterpillar 3056 E

5900

112

152

150 (Typ 200)

Perkins 1006-6T

Dominator (5) (Mähdrescher / Harvesters) | 14-

	ENGINE CODE
105	DB OM 360	i Ground drive: Linde Anlage PV 105/MF 105 Transmission Filter	105 ENGINE CODE: DB OM 360 CC: kW: HP: i Ground drive: Linde Anlage PV 105/MF 105 Transmission Filter
105	Perkins V8.605	i Ground drive: Linde Anlage PV 105/MF 105 Transmission Filter	105 ENGINE CODE: Perkins V8.605 CC: kW: HP: i Ground drive: Linde Anlage PV 105/MF 105 Transmission Filter
85	Perk. 6.372.4		85 ENGINE CODE: Perk. 6.372.4 CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

105

DB OM 360

105

Perkins V8.605

Perk. 6.372.4

Dominator (6) (Mähdrescher / Harvesters)

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
96	Perkins T6.354.4					i Required quantity: 2 Piece. Use for OE no. 77 0102 928 0. Partly/or	96 ENGINE CODE: Perkins T6.354.4 CC: kW: HP: i Required quantity: 2 Piece. Use for OE no. 77 0102 928 0. Partly/or

ENGINE CODE

YEAR OF MANUFACTURE

Perkins T6.354.4

Dominator (8) (Mähdrescher / Harvesters) | 82-99

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
38 S	Perkins 4.236	3860	55	75	01/1987 → 12/1994		38 S ENGINE CODE: Perkins 4.236 CC: 3860 kW: 55 HP: 75 YEAR OF MANUFACTURE: 01/1987 → 12/1994
38 S	Perkins 4.236						38 S ENGINE CODE: Perkins 4.236 CC: kW: HP:
38 S	Perkins 4.236					i Partly/or. Use for OE no. 77 0102 928 0	38 S ENGINE CODE: Perkins 4.236 CC: kW: HP: i Partly/or. Use for OE no. 77 0102 928 0
48 S	Perkins 4.236	2400	59	80	01/1987 → 12/1995		48 S ENGINE CODE: Perkins 4.236 CC: 2400 kW: 59 HP: 80 YEAR OF MANUFACTURE: 01/1987 → 12/1995
48 S	Perkins 4.236	2400	59	80	01/1987 → 12/1995	i Partly/or. Use for OE no. 77 0102 928 0	48 S ENGINE CODE: Perkins 4.236 CC: 2400 kW: 59 HP: 80 YEAR OF MANUFACTURE: 01/1987 → 12/1995 i Partly/or. Use for OE no. 77 0102 928 0
58 (48 Spezial)	Perkins 4.236						58 (48 Spezial) ENGINE CODE: Perkins 4.236 CC: kW: HP:
58 (48 Spezial)	Perkins 4.248						58 (48 Spezial) ENGINE CODE: Perkins 4.248 CC: kW: HP:
58 S	Perkins 4.428						58 S ENGINE CODE: Perkins 4.428 CC: kW: HP:
68	CAT 3056 E		93	128	01/1989 → 12/1999		68 ENGINE CODE: CAT 3056 E CC: kW: 93 HP: 128 YEAR OF MANUFACTURE: 01/1989 → 12/1999
68	Perkins 1006.60T					i Required quantity: 2 Piece. Partly/or	68 ENGINE CODE: Perkins 1006.60T CC: kW: HP: i Required quantity: 2 Piece. Partly/or
68	Perkins 4.248						68 ENGINE CODE: Perkins 4.248 CC: kW: HP:
68 R, 68 S	Perkins 4.428						68 R, 68 S ENGINE CODE: Perkins 4.428 CC: kW: HP:
88 S	Perkins T6.354.4		110	150		i Required quantity: 2 Piece	88 S ENGINE CODE: Perkins T6.354.4 CC: kW: 110 HP: 150 i Required quantity: 2 Piece
88 SL	Perkins T6.354.4					i Required quantity: 2 Piece	88 SL ENGINE CODE: Perkins T6.354.4 CC: kW: HP: i Required quantity: 2 Piece
98, 98 S	Perk. T6.354.4		118	160		i Required quantity: 2 Piece	98, 98 S ENGINE CODE: Perk. T6.354.4 CC: kW: 118 HP: 160 i Required quantity: 2 Piece

ENGINE CODE

YEAR OF MANUFACTURE

38 S

Perkins 4.236

3860

01/1987 → 12/1994

38 S

Perkins 4.236

38 S

Perkins 4.236

48 S

Perkins 4.236

2400

01/1987 → 12/1995

48 S

Perkins 4.236

2400

01/1987 → 12/1995

58 (48 Spezial)

Perkins 4.236

58 (48 Spezial)

Perkins 4.248

58 S

Perkins 4.428

CAT 3056 E

128

01/1989 → 12/1999

Perkins 1006.60T

Perkins 4.248

68 R, 68 S

Perkins 4.428

88 S

Perkins T6.354.4

110

150

88 SL

Perkins T6.354.4

98, 98 S

Perk. T6.354.4

118

160

Jaguar (Feldhäcksler / Field Choppers) | 73-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
80, 80 SF	Deutz F10L413		88	120	01/1975 → 05/1984	i Transmission Filter	80, 80 SF ENGINE CODE: Deutz F10L413 CC: kW: 88 HP: 120 YEAR OF MANUFACTURE: 01/1975 → 05/1984

ENGINE CODE

YEAR OF MANUFACTURE

80, 80 SF

Deutz F10L413

120

01/1975 → 05/1984

Lexion (Mähdrescher / Harvesters) | 96-

	ENGINE CODE	kW	HP	YEAR OF MANUFACTURE
405	Perk. 1006.6TW	125	170	01/1996 → 12/2001	i Required quantity: 2 Piece	405 ENGINE CODE: Perk. 1006.6TW CC: kW: 125 HP: 170 YEAR OF MANUFACTURE: 01/1996 → 12/2001 i Required quantity: 2 Piece
410	Perk. 1006.6TA	140	191	01/1996 → 12/2001	i Required quantity: 2 Piece	410 ENGINE CODE: Perk. 1006.6TA CC: kW: 140 HP: 191 YEAR OF MANUFACTURE: 01/1996 → 12/2001 i Required quantity: 2 Piece
415	Perk. 1006.6TA	147	200	01/1996 → 12/2001	i Required quantity: 2 Piece	415 ENGINE CODE: Perk. 1006.6TA CC: kW: 147 HP: 200 YEAR OF MANUFACTURE: 01/1996 → 12/2001 i Required quantity: 2 Piece

ENGINE CODE

YEAR OF MANUFACTURE

405

Perk. 1006.6TW

125

170

01/1996 → 12/2001

410

Perk. 1006.6TA

140

191

01/1996 → 12/2001

415

Perk. 1006.6TA

147

200

01/1996 → 12/2001

Medion (Mähdrescher / Harvesters) | 00-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
310	Perkins 1006.60TA		136	185	04/2000 →		310 ENGINE CODE: Perkins 1006.60TA CC: kW: 136 HP: 185 YEAR OF MANUFACTURE: 04/2000 →
320	Perkins 1006.60TA		147	200	04/2000 →		320 ENGINE CODE: Perkins 1006.60TA CC: kW: 147 HP: 200 YEAR OF MANUFACTURE: 04/2000 →

ENGINE CODE

YEAR OF MANUFACTURE

310

Perkins 1006.60TA

136

185

04/2000 →

320

Perkins 1006.60TA

147

200

04/2000 →

Mercator (Mähdrescher / Harvesters)

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
50	Perkins 4.248						50 ENGINE CODE: Perkins 4.248 CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

Perkins 4.248

Ranger (Teleskoplader / Telehandlers) | 93-01

	ENGINE CODE	kW	HP	YEAR OF MANUFACTURE
907	Perkins 1004.4	62	85	01/1993 → 12/1997		907 ENGINE CODE: Perkins 1004.4 CC: kW: 62 HP: 85 YEAR OF MANUFACTURE: 01/1993 → 12/1997
911 T	Perkins 4.236T	74	101	01/1993 → 12/1997		911 T ENGINE CODE: Perkins 4.236T CC: kW: 74 HP: 101 YEAR OF MANUFACTURE: 01/1993 → 12/1997
920	Perkins 1004.4T	79	108	01/1996 → 12/1999		920 ENGINE CODE: Perkins 1004.4T CC: kW: 79 HP: 108 YEAR OF MANUFACTURE: 01/1996 → 12/1999
940 GX	Perkins 1004.4T	79	108	01/1996 → 12/1999	i Filter for: 3/4 Anschluss, connection Transmission Filter	940 GX ENGINE CODE: Perkins 1004.4T CC: kW: 79 HP: 108 YEAR OF MANUFACTURE: 01/1996 → 12/1999 i Filter for: 3/4 Anschluss, connection Transmission Filter
940 GX	Perkins 1004.4T	79	108	01/1996 → 12/1999		940 GX ENGINE CODE: Perkins 1004.4T CC: kW: 79 HP: 108 YEAR OF MANUFACTURE: 01/1996 → 12/1999

ENGINE CODE

YEAR OF MANUFACTURE

907

Perkins 1004.4

01/1993 → 12/1997

911 T

Perkins 4.236T

101

01/1993 → 12/1997

920

Perkins 1004.4T

108

01/1996 → 12/1999

940 GX

Perkins 1004.4T

108

01/1996 → 12/1999

940 GX

Perkins 1004.4T

108

01/1996 → 12/1999

Targo (Teleskoplader / Telehandlers) | 01-

	ENGINE CODE	kW	HP	YEAR OF MANUFACTURE
C 40	Perkins 1004-40	64	86	01/2001 →		C 40 ENGINE CODE: Perkins 1004-40 CC: kW: 64 HP: 86 YEAR OF MANUFACTURE: 01/2001 →
C 40 (517)	Perkins 1004.42	64	87	01/2001 → 12/2005	i Use for OE no. 00 0147 225 0. Up to machine no. 51700099	C 40 (517) ENGINE CODE: Perkins 1004.42 CC: kW: 64 HP: 87 YEAR OF MANUFACTURE: 01/2001 → 12/2005 i Use for OE no. 00 0147 225 0. Up to machine no. 51700099
C 40 (517)	Perkins 1004.42	64	87	01/2001 → 12/2005	i Use for OE no. 00 0796 717 0. From machine no. 51700100	C 40 (517) ENGINE CODE: Perkins 1004.42 CC: kW: 64 HP: 87 YEAR OF MANUFACTURE: 01/2001 → 12/2005 i Use for OE no. 00 0796 717 0. From machine no. 51700100
C 40 (517)	Perkins 1004.42	64	87	01/2001 → 12/2005	i Use for OE no. 77 0102 928 0	C 40 (517) ENGINE CODE: Perkins 1004.42 CC: kW: 64 HP: 87 YEAR OF MANUFACTURE: 01/2001 → 12/2005 i Use for OE no. 77 0102 928 0
C 50	Perkins 1004-40	64	86	01/2001 →		C 50 ENGINE CODE: Perkins 1004-40 CC: kW: 64 HP: 86 YEAR OF MANUFACTURE: 01/2001 →
C 50 (518)	Perkins 1004.42	64	87	01/2001 → 12/2005	i Use for OE no. 00 0147 225 0. Up to machine no. 51800099	C 50 (518) ENGINE CODE: Perkins 1004.42 CC: kW: 64 HP: 87 YEAR OF MANUFACTURE: 01/2001 → 12/2005 i Use for OE no. 00 0147 225 0. Up to machine no. 51800099
C 50 (518)	Perkins 1004.42	64	87	01/2001 → 12/2005	i Use for OE no. 00 0796 717 0. From machine no. 51800100	C 50 (518) ENGINE CODE: Perkins 1004.42 CC: kW: 64 HP: 87 YEAR OF MANUFACTURE: 01/2001 → 12/2005 i Use for OE no. 00 0796 717 0. From machine no. 51800100
C 50 (518)	Perkins 1004.42	64	87	01/2001 → 12/2005	i Use for OE no. 77 0102 928 0	C 50 (518) ENGINE CODE: Perkins 1004.42 CC: kW: 64 HP: 87 YEAR OF MANUFACTURE: 01/2001 → 12/2005 i Use for OE no. 77 0102 928 0

ENGINE CODE

YEAR OF MANUFACTURE

C 40

Perkins 1004-40

01/2001 →

C 40 (517)

Perkins 1004.42

01/2001 → 12/2005

C 40 (517)

Perkins 1004.42

01/2001 → 12/2005

C 40 (517)

Perkins 1004.42

01/2001 → 12/2005

C 50

Perkins 1004-40

01/2001 →

C 50 (518)

Perkins 1004.42

01/2001 → 12/2005

C 50 (518)

Perkins 1004.42

01/2001 → 12/2005

C 50 (518)

Perkins 1004.42

01/2001 → 12/2005

CLARK EQUIPMENT

C500/H500-Serie

	ENGINE CODE
Y100D	Perkins 4.236	Y100D ENGINE CODE: Perkins 4.236 CC: kW: HP:
Y110D	Perkins 4.236	Y110D ENGINE CODE: Perkins 4.236 CC: kW: HP:
Y120D	Perkins 4.236	Y120D ENGINE CODE: Perkins 4.236 CC: kW: HP:
Y60D	Perkins 4.236	Y60D ENGINE CODE: Perkins 4.236 CC: kW: HP:
Y70D	Perkins 4.236	Y70D ENGINE CODE: Perkins 4.236 CC: kW: HP:
Y80D	Perkins 4.236	Y80D ENGINE CODE: Perkins 4.236 CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

Y100D

Perkins 4.236

Y110D

Perkins 4.236

Y120D

Perkins 4.236

Y60D

Perkins 4.236

Y70D

Perkins 4.236

Y80D

Perkins 4.236

COLES CRANES

Cranes

	ENGINE CODE
Adonis Mobile	Perkins 4.236	Adonis Mobile ENGINE CODE: Perkins 4.236 CC: kW: HP:
Aeneas Mobile	Perkins 4.236	Aeneas Mobile ENGINE CODE: Perkins 4.236 CC: kW: HP:
Proteus Mobile	Perkins 4.236	Proteus Mobile ENGINE CODE: Perkins 4.236 CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

Adonis Mobile

Perkins 4.236

Aeneas Mobile

Perkins 4.236

Proteus Mobile

Perkins 4.236

DEUTZ-FAHR (SAME DEUTZ-FAHR)

M 1300-Serie

	ENGINE CODE
M 1300 Hydromat	F6L 912	i Transmission Filter	M 1300 Hydromat ENGINE CODE: F6L 912 CC: kW: HP:
M 1302 HA	BF6L 912/913	i Up to chassis no. 21112486 Transmission Filter	M 1302 HA ENGINE CODE: BF6L 912/913 CC: kW: HP: i Up to chassis no. 21112486 Transmission Filter
M 1302, 1302 H/HA	F6L 912/913	i Up to chassis no. 21112486 Transmission Filter	M 1302, 1302 H/HA ENGINE CODE: F6L 912/913 CC: kW: HP: i Up to chassis no. 21112486 Transmission Filter

ENGINE CODE

YEAR OF MANUFACTURE

M 1300 Hydromat

F6L 912

M 1302 HA

BF6L 912/913

M 1302, 1302 H/HA

F6L 912/913

M 1600-Serie

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
M 1600 Hydromat	F8L 413V					i Up to chassis no. 21071400 Transmission Filter	M 1600 Hydromat ENGINE CODE: F8L 413V CC: kW: HP: i Up to chassis no. 21071400 Transmission Filter

ENGINE CODE

YEAR OF MANUFACTURE

M 1600 Hydromat

F8L 413V

DEXHEIMER TRAKTOREN

300-Serie

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
345	MWM D327-4						345 ENGINE CODE: MWM D327-4 CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

345

MWM D327-4

DOMAIN INTERNATIONAL

Unitair-Compressors

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
160	Perkins 6.354					i Partly/or	160 ENGINE CODE: Perkins 6.354 CC: kW: HP: i Partly/or
75	Perkins 4.154					i Partly/or	75 ENGINE CODE: Perkins 4.154 CC: kW: HP: i Partly/or

ENGINE CODE

YEAR OF MANUFACTURE

160

Perkins 6.354

Perkins 4.154

DOOSAN COMPRESSORS

DR/DRF/DRP/DRAP/DRC/DRR-Serie

	ENGINE CODE
125, 125S	Perkins 4.236		125, 125S ENGINE CODE: Perkins 4.236 CC: kW: HP:
140	Perkins 4.236		140 ENGINE CODE: Perkins 4.236 CC: kW: HP:
150	Perkins 4.236	i Partly/or	150 ENGINE CODE: Perkins 4.236 CC: kW: HP: i Partly/or

ENGINE CODE

YEAR OF MANUFACTURE

125, 125S

Perkins 4.236

140

Perkins 4.236

150

Perkins 4.236

HP-Serie | 87-01

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
355 WP	Perkins 1004-4TW		91	124	01/1999 → 12/2001		355 WP ENGINE CODE: Perkins 1004-4TW CC: kW: 91 HP: 124 YEAR OF MANUFACTURE: 01/1999 → 12/2001

ENGINE CODE

YEAR OF MANUFACTURE

355 WP

Perkins 1004-4TW

124

01/1999 → 12/2001

P-Serie | 86-

	ENGINE CODE	kW	HP	YEAR OF MANUFACTURE
380 WP	Perkins 1004-4T	82	112	01/1997 → 12/2000	380 WP ENGINE CODE: Perkins 1004-4T CC: kW: 82 HP: 112 YEAR OF MANUFACTURE: 01/1997 → 12/2000
400 WP	Perkins 1004-4TW	91	124	01/1999 →	400 WP ENGINE CODE: Perkins 1004-4TW CC: kW: 91 HP: 124 YEAR OF MANUFACTURE: 01/1999 →
600 WP	Perkins 1006-6TW	134	183	01/1999 →	600 WP ENGINE CODE: Perkins 1006-6TW CC: kW: 134 HP: 183 YEAR OF MANUFACTURE: 01/1999 →

ENGINE CODE

YEAR OF MANUFACTURE

380 WP

Perkins 1004-4T

112

01/1997 → 12/2000

400 WP

Perkins 1004-4TW

124

01/1999 →

600 WP

Perkins 1006-6TW

134

183

01/1999 →

EDER BAGGER

M+R-Serie | 87-

	ENGINE CODE	kW	HP	YEAR OF MANUFACTURE
805	Perkins 4.236	52	71		805 ENGINE CODE: Perkins 4.236 CC: kW: 52 HP: 71
805 B	Perkins 1004.4T	71	97	01/1991 →	805 B ENGINE CODE: Perkins 1004.4T CC: kW: 71 HP: 97 YEAR OF MANUFACTURE: 01/1991 →
815	Perkins 4.236	70	95		815 ENGINE CODE: Perkins 4.236 CC: kW: 70 HP: 95
815 B	Perkins 1004.4T	71	97	01/1991 →	815 B ENGINE CODE: Perkins 1004.4T CC: kW: 71 HP: 97 YEAR OF MANUFACTURE: 01/1991 →

ENGINE CODE

YEAR OF MANUFACTURE

805

Perkins 4.236

805 B

Perkins 1004.4T

01/1991 →

815

Perkins 4.236

815 B

Perkins 1004.4T

01/1991 →

EICHER

2000-Serie | 89-91

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
2070 Turbo (Koenigstiger)	EDL3-9T		51	70	01/1989 → 12/1989		2070 Turbo (Koenigstiger) ENGINE CODE: EDL3-9T CC: kW: 51 HP: 70 YEAR OF MANUFACTURE: 01/1989 → 12/1989

ENGINE CODE

YEAR OF MANUFACTURE

2070 Turbo (Koenigstiger)

EDL3-9T

01/1989 → 12/1989

300-Serie | 70-82

	ENGINE CODE	kW	HP	YEAR OF MANUFACTURE
342 AS (3710)	EDK3-4			01/1970 → 12/1979	342 AS (3710) ENGINE CODE: EDK3-4 CC: kW: HP: YEAR OF MANUFACTURE: 01/1970 → 12/1979
342 S (3709)	EDK3-4			01/1970 → 12/1979	342 S (3709) ENGINE CODE: EDK3-4 CC: kW: HP: YEAR OF MANUFACTURE: 01/1970 → 12/1979
350 P (3719)	EDK3-4/7/11				350 P (3719) ENGINE CODE: EDK3-4/7/11 CC: kW: HP:
352 AS (3712/3716)	EDK3-3/3-7			01/1970 → 12/1979	352 AS (3712/3716) ENGINE CODE: EDK3-3/3-7 CC: kW: HP: YEAR OF MANUFACTURE: 01/1970 → 12/1979
352 S (3711/3715)	EDK3-3/3-7			01/1970 → 12/1979	352 S (3711/3715) ENGINE CODE: EDK3-3/3-7 CC: kW: HP: YEAR OF MANUFACTURE: 01/1970 → 12/1979
365 AS (3718)	EDK4-8	48	65	01/1978 → 10/1980	365 AS (3718) ENGINE CODE: EDK4-8 CC: kW: 48 HP: 65 YEAR OF MANUFACTURE: 01/1978 → 10/1980
365 S (3717)	EDK 4-8	48	65	01/1976 → 12/1979	365 S (3717) ENGINE CODE: EDK 4-8 CC: kW: 48 HP: 65 YEAR OF MANUFACTURE: 01/1976 → 12/1979

ENGINE CODE

YEAR OF MANUFACTURE

342 AS (3710)

EDK3-4

01/1970 → 12/1979

342 S (3709)

EDK3-4

01/1970 → 12/1979

350 P (3719)

EDK3-4/7/11

352 AS (3712/3716)

EDK3-3/3-7

01/1970 → 12/1979

352 S (3711/3715)

EDK3-3/3-7

01/1970 → 12/1979

365 AS (3718)

EDK4-8

01/1978 → 10/1980

365 S (3717)

EDK 4-8

01/1976 → 12/1979

3000-Serie | 70-92

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
3042	EDL3-6	3000	31	42	01/1987 → 12/1992	3042 ENGINE CODE: EDL3-6 CC: 3000 kW: 31 HP: 42 YEAR OF MANUFACTURE: 01/1987 → 12/1992
3048, 3048 A (3257/3258)	EDL3-7	3000	35	48	01/1982 → 12/1990	3048, 3048 A (3257/3258) ENGINE CODE: EDL3-7 CC: 3000 kW: 35 HP: 48 YEAR OF MANUFACTURE: 01/1982 → 12/1990
3056, 3056 A (3357/3358)	EDL3-8	3000	41	56	01/1982 → 12/1990	3056, 3056 A (3357/3358) ENGINE CODE: EDL3-8 CC: 3000 kW: 41 HP: 56 YEAR OF MANUFACTURE: 01/1982 → 12/1990
3059	EDL3-6	3000	31	42	01/1987 → 11/1992	3059 ENGINE CODE: EDL3-6 CC: 3000 kW: 31 HP: 42 YEAR OF MANUFACTURE: 01/1987 → 11/1992
3066, 3066 A (3457/3458)	EDL3-9T		48	66	01/1982 → 12/1990	3066, 3066 A (3457/3458) ENGINE CODE: EDL3-9T CC: kW: 48 HP: 66 YEAR OF MANUFACTURE: 01/1982 → 12/1990
3072 A Turbo (3560)	EDL4-4 Turbo	4000	53	72	01/1985 → 11/1990	3072 A Turbo (3560) ENGINE CODE: EDL4-4 Turbo CC: 4000 kW: 53 HP: 72 YEAR OF MANUFACTURE: 01/1985 → 11/1990
3072 Turbo (3559)	EDL4-4 Turbo	4000	53	72	01/1985 → 12/1990	3072 Turbo (3559) ENGINE CODE: EDL4-4 Turbo CC: 4000 kW: 53 HP: 72 YEAR OF MANUFACTURE: 01/1985 → 12/1990
3075, 3075 A (3557/3558)	EDL4-1	4000	55	75	01/1982 → 12/1985	3075, 3075 A (3557/3558) ENGINE CODE: EDL4-1 CC: 4000 kW: 55 HP: 75 YEAR OF MANUFACTURE: 01/1982 → 12/1985
3080 A (3660)	EDL4-5T	4000	59	80	01/1985 → 12/1990	3080 A (3660) ENGINE CODE: EDL4-5T CC: 4000 kW: 59 HP: 80 YEAR OF MANUFACTURE: 01/1985 → 12/1990
3085, 3085 A (3655/3656)	EDK4-12	4000	62	85	01/1978 → 12/1982	3085, 3085 A (3655/3656) ENGINE CODE: EDK4-12 CC: 4000 kW: 62 HP: 85 YEAR OF MANUFACTURE: 01/1978 → 12/1982
3088 (3657)	EDL4-2T		65	88	01/1982 → 12/1984	3088 (3657) ENGINE CODE: EDL4-2T CC: kW: 65 HP: 88 YEAR OF MANUFACTURE: 01/1982 → 12/1984
3088 A Turbo (3658)	EDL4-2T	4000	65	88	01/1982 → 12/1990	3088 A Turbo (3658) ENGINE CODE: EDL4-2T CC: 4000 kW: 65 HP: 88 YEAR OF MANUFACTURE: 01/1982 → 12/1990
3554	EDK4					3554 ENGINE CODE: EDK4 CC: kW: HP:
3656	EDK4TB					3656 ENGINE CODE: EDK4TB CC: kW: HP:
37011						37011 ENGINE CODE: CC: kW: HP:
37012						37012 ENGINE CODE: CC: kW: HP:
3709	EDK3-4				01/1970 → 12/1979	3709 ENGINE CODE: EDK3-4 CC: kW: HP: YEAR OF MANUFACTURE: 01/1970 → 12/1979
3710	EDK3-4				01/1970 → 12/1979	3710 ENGINE CODE: EDK3-4 CC: kW: HP: YEAR OF MANUFACTURE: 01/1970 → 12/1979
3711	EDK3-3		33	45	01/1970 → 12/1979	3711 ENGINE CODE: EDK3-3 CC: kW: 33 HP: 45 YEAR OF MANUFACTURE: 01/1970 → 12/1979
3712	EDK3-3		33	45	01/1970 → 12/1979	3712 ENGINE CODE: EDK3-3 CC: kW: 33 HP: 45 YEAR OF MANUFACTURE: 01/1970 → 12/1979

ENGINE CODE

YEAR OF MANUFACTURE

3042

EDL3-6

3000

01/1987 → 12/1992

3048, 3048 A (3257/3258)

EDL3-7

3000

01/1982 → 12/1990

3056, 3056 A (3357/3358)

EDL3-8

3000

01/1982 → 12/1990

3059

EDL3-6

3000

01/1987 → 11/1992

3066, 3066 A (3457/3458)

EDL3-9T

01/1982 → 12/1990

3072 A Turbo (3560)

EDL4-4 Turbo

4000

01/1985 → 11/1990

3072 Turbo (3559)

EDL4-4 Turbo

4000

01/1985 → 12/1990

3075, 3075 A (3557/3558)

EDL4-1

4000

01/1982 → 12/1985

3080 A (3660)

EDL4-5T

4000

01/1985 → 12/1990

3085, 3085 A (3655/3656)

EDK4-12

4000

01/1978 → 12/1982

3088 (3657)

EDL4-2T

01/1982 → 12/1984

3088 A Turbo (3658)

EDL4-2T

4000

01/1982 → 12/1990

3554

EDK4

3656

EDK4TB

37011

37012

3709

EDK3-4

01/1970 → 12/1979

3710

EDK3-4

01/1970 → 12/1979

3711

EDK3-3

01/1970 → 12/1979

3712

EDK3-3

01/1970 → 12/1979

400-Serie (Puma II) | 63-70

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
ES 400 (Puma II)	EDK3-3	3000			01/1963 → 11/1970	i Spin-on filter	ES 400 (Puma II) ENGINE CODE: EDK3-3 CC: 3000 kW: HP: YEAR OF MANUFACTURE: 01/1963 → 11/1970 i Spin-on filter

ENGINE CODE

YEAR OF MANUFACTURE

ES 400 (Puma II)

EDK3-3

3000

01/1963 → 11/1970

4000-Serie | 78-82

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
4056, 4056 A (3355/3356)	Perkins AD4.203	3900	41	56	01/1980 → 12/1982	4056, 4056 A (3355/3356) ENGINE CODE: Perkins AD4.203 CC: 3900 kW: 41 HP: 56 YEAR OF MANUFACTURE: 01/1980 → 12/1982
4060, 4060 A (3355/3356)	Perkins AD4.203	3300	44	60	01/1978 → 12/1980	4060, 4060 A (3355/3356) ENGINE CODE: Perkins AD4.203 CC: 3300 kW: 44 HP: 60 YEAR OF MANUFACTURE: 01/1978 → 12/1980
4066 (3455)	Perkins AD4.236	3900	48	66	01/1980 → 12/1982	4066 (3455) ENGINE CODE: Perkins AD4.236 CC: 3900 kW: 48 HP: 66 YEAR OF MANUFACTURE: 01/1980 → 12/1982
4066 A (3456)	Perkins AD4.236	3900	48	66	01/1980 → 12/1982	4066 A (3456) ENGINE CODE: Perkins AD4.236 CC: 3900 kW: 48 HP: 66 YEAR OF MANUFACTURE: 01/1980 → 12/1982
4072, 4072 A (3555/3556)	Perkins A4.248	4100	53	72	01/1978 → 12/1982	4072, 4072 A (3555/3556) ENGINE CODE: Perkins A4.248 CC: 4100 kW: 53 HP: 72 YEAR OF MANUFACTURE: 01/1978 → 12/1982

ENGINE CODE

YEAR OF MANUFACTURE

4056, 4056 A (3355/3356)

Perkins AD4.203

3900

01/1980 → 12/1982

4060, 4060 A (3355/3356)

Perkins AD4.203

3300

01/1978 → 12/1980

4066 (3455)

Perkins AD4.236

3900

01/1980 → 12/1982

4066 A (3456)

Perkins AD4.236

3900

01/1980 → 12/1982

4072, 4072 A (3555/3556)

Perkins A4.248

4100

01/1978 → 12/1982

500-Serie | 78-86

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
542 SK/ASK (3723K/3724K)	EDK3-8/EDL3-3	3000	31	42	01/1979 → 12/1984	542 SK/ASK (3723K/3724K) ENGINE CODE: EDK3-8/EDL3-3 CC: 3000 kW: 31 HP: 42 YEAR OF MANUFACTURE: 01/1979 → 12/1984
550 P/PA (3725P/3726P)	EDK3-10	3000	37	50	01/1980 → 12/1981	550 P/PA (3725P/3726P) ENGINE CODE: EDK3-10 CC: 3000 kW: 37 HP: 50 YEAR OF MANUFACTURE: 01/1980 → 12/1981
552 S/AS (3725S/3726S)	EDK3-7	3000	38	52	01/1980 → 12/1981	552 S/AS (3725S/3726S) ENGINE CODE: EDK3-7 CC: 3000 kW: 38 HP: 52 YEAR OF MANUFACTURE: 01/1980 → 12/1981
554 S/AS/P/PA/PAB (3725/3726)	EDL3-1	3000	40	54	01/1981 → 12/1986	554 S/AS/P/PA/PAB (3725/3726) ENGINE CODE: EDL3-1 CC: 3000 kW: 40 HP: 54 YEAR OF MANUFACTURE: 01/1981 → 12/1986
565 S/AS (3727S/3728S)	EDK4-11	4000	48	65	01/1980 → 11/1983	565 S/AS (3727S/3728S) ENGINE CODE: EDK4-11 CC: 4000 kW: 48 HP: 65 YEAR OF MANUFACTURE: 01/1980 → 11/1983
566 S/AS/P/PA/PAB (3725/3726)	EDL3-5		48	66	01/1983 → 12/1986	566 S/AS/P/PA/PAB (3725/3726) ENGINE CODE: EDL3-5 CC: kW: 48 HP: 66 YEAR OF MANUFACTURE: 01/1983 → 12/1986

ENGINE CODE

YEAR OF MANUFACTURE

542 SK/ASK (3723K/3724K)

EDK3-8/EDL3-3

3000

01/1979 → 12/1984

550 P/PA (3725P/3726P)

EDK3-10

3000

01/1980 → 12/1981

552 S/AS (3725S/3726S)

EDK3-7

3000

01/1980 → 12/1981

554 S/AS/P/PA/PAB (3725/3726)

EDL3-1

3000

01/1981 → 12/1986

565 S/AS (3727S/3728S)

EDK4-11

4000

01/1980 → 11/1983

566 S/AS/P/PA/PAB (3725/3726)

EDL3-5

01/1983 → 12/1986

600-Serie | 85-97

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
645 K/KA (3763/3764)	EDL3-7	3000	33	45	01/1986 → 12/1997	645 K/KA (3763/3764) ENGINE CODE: EDL3-7 CC: 3000 kW: 33 HP: 45 YEAR OF MANUFACTURE: 01/1986 → 12/1997
648 V/VA (3765/3766)	EDL3-7	3000	35	48	01/1987 → 12/1992	648 V/VA (3765/3766) ENGINE CODE: EDL3-7 CC: 3000 kW: 35 HP: 48 YEAR OF MANUFACTURE: 01/1987 → 12/1992
656 P/PA/PAB/PB (3771/3772)	EDL3-8	3000	41	56	01/1986 → 12/1997	656 P/PA/PAB/PB (3771/3772) ENGINE CODE: EDL3-8 CC: 3000 kW: 41 HP: 56 YEAR OF MANUFACTURE: 01/1986 → 12/1997
656 V/VA (3767/3768)	EDL3-8	3000	41	56	01/1986 → 12/1997	656 V/VA (3767/3768) ENGINE CODE: EDL3-8 CC: 3000 kW: 41 HP: 56 YEAR OF MANUFACTURE: 01/1986 → 12/1997
666 P/PA/PAB/PB (3771/3772)	EDL3-9 Turbo	3000	48	66	01/1986 → 12/1991	666 P/PA/PAB/PB (3771/3772) ENGINE CODE: EDL3-9 Turbo CC: 3000 kW: 48 HP: 66 YEAR OF MANUFACTURE: 01/1986 → 12/1991
666 V/VA (3767/3768)	EDL3-9 Turbo	3000	48	66	01/1986 → 12/1997	666 V/VA (3767/3768) ENGINE CODE: EDL3-9 Turbo CC: 3000 kW: 48 HP: 66 YEAR OF MANUFACTURE: 01/1986 → 12/1997
680 PA/PAB (3774/3774-2)	EDL4-5 Turbo	4000	59	80	01/1985 → 12/1991	680 PA/PAB (3774/3774-2) ENGINE CODE: EDL4-5 Turbo CC: 4000 kW: 59 HP: 80 YEAR OF MANUFACTURE: 01/1985 → 12/1991

ENGINE CODE

YEAR OF MANUFACTURE

645 K/KA (3763/3764)

EDL3-7

3000

01/1986 → 12/1997

648 V/VA (3765/3766)

EDL3-7

3000

01/1987 → 12/1992

656 P/PA/PAB/PB (3771/3772)

EDL3-8

3000

01/1986 → 12/1997

656 V/VA (3767/3768)

EDL3-8

3000

01/1986 → 12/1997

666 P/PA/PAB/PB (3771/3772)

EDL3-9 Turbo

3000

01/1986 → 12/1991

666 V/VA (3767/3768)

EDL3-9 Turbo

3000

01/1986 → 12/1997

680 PA/PAB (3774/3774-2)

EDL4-5 Turbo

4000

01/1985 → 12/1991

700-Serie | 90-98

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
756 AS	EDL3-8	3000	41	56	12/1990 → 12/1998	756 AS ENGINE CODE: EDL3-8 CC: 3000 kW: 41 HP: 56 YEAR OF MANUFACTURE: 12/1990 → 12/1998
766 AS	EDL3-9 Turbo	3000	48	66	12/1990 → 12/1998	766 AS ENGINE CODE: EDL3-9 Turbo CC: 3000 kW: 48 HP: 66 YEAR OF MANUFACTURE: 12/1990 → 12/1998
780 AS	EDL4-5 Turbo	4000	59	80	12/1990 → 11/1998	780 AS ENGINE CODE: EDL4-5 Turbo CC: 4000 kW: 59 HP: 80 YEAR OF MANUFACTURE: 12/1990 → 11/1998

ENGINE CODE

YEAR OF MANUFACTURE

756 AS

EDL3-8

3000

12/1990 → 12/1998

766 AS

EDL3-9 Turbo

3000

12/1990 → 12/1998

780 AS

EDL4-5 Turbo

4000

12/1990 → 11/1998

Koenigstiger-Serie | 68-89

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
2070 Turbo	EDL3-9Turbo	3000	51	70	01/1989 → 12/1989		2070 Turbo ENGINE CODE: EDL3-9Turbo CC: 3000 kW: 51 HP: 70 YEAR OF MANUFACTURE: 01/1989 → 12/1989
EM300					→ 12/1972	i 01/1968 ->	EM300 ENGINE CODE: CC: kW: HP: YEAR OF MANUFACTURE: → 12/1972
I (3007/10A/3251)	EDK3/EDK3-3	3000	33	45	01/1968 → 12/1973		I (3007/10A/3251) ENGINE CODE: EDK3/EDK3-3 CC: 3000 kW: 33 HP: 45 YEAR OF MANUFACTURE: 01/1968 → 12/1973
II (3015/16A/3351)	EDK4-7/EDK4-9	4000			01/1968 → 12/1972		II (3015/16A/3351) ENGINE CODE: EDK4-7/EDK4-9 CC: 4000 kW: HP: YEAR OF MANUFACTURE: 01/1968 → 12/1972

ENGINE CODE

YEAR OF MANUFACTURE

2070 Turbo

EDL3-9Turbo

3000

01/1989 → 12/1989

EM300

→ 12/1972

I (3007/10A/3251)

EDK3/EDK3-3

3000

01/1968 → 12/1973

II (3015/16A/3351)

EDK4-7/EDK4-9

4000

01/1968 → 12/1972

Mammut (1+2)-Serie | 59-78

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
504	EDK4				01/1965 → 12/1968	i 03/1968 ->	504 ENGINE CODE: EDK4 CC: kW: HP: YEAR OF MANUFACTURE: 01/1965 → 12/1968
604	EDK4				01/1965 → 12/1969	i 03/1968 ->	604 ENGINE CODE: EDK4 CC: kW: HP: YEAR OF MANUFACTURE: 01/1965 → 12/1969
EM 500	EDK4		37	50	01/1964 → 12/1968	i 03/1968 ->	EM 500 ENGINE CODE: EDK4 CC: kW: 37 HP: 50 YEAR OF MANUFACTURE: 01/1964 → 12/1968
EM 600	EDK4		45	62	01/1962 → 12/1969	i 03/1968 ->	EM 600 ENGINE CODE: EDK4 CC: kW: 45 HP: 62 YEAR OF MANUFACTURE: 01/1962 → 12/1969
HR/HRA (3001/3002/3011/3012)	EDK4	4000			01/1966 → 12/1969	i 03/1968 ->	HR/HRA (3001/3002/3011/3012) ENGINE CODE: EDK4 CC: 4000 kW: HP: YEAR OF MANUFACTURE: 01/1966 → 12/1969
HR/HRA (3019/3020/3422)	EDK4/EDK4-8				01/1970 → 12/1973		HR/HRA (3019/3020/3422) ENGINE CODE: EDK4/EDK4-8 CC: kW: HP: YEAR OF MANUFACTURE: 01/1970 → 12/1973
HS (3423/3551)	EDK4-8/EDK4-10T				01/1971 → 12/1973		HS (3423/3551) ENGINE CODE: EDK4-8/EDK4-10T CC: kW: HP: YEAR OF MANUFACTURE: 01/1971 → 12/1973

ENGINE CODE

YEAR OF MANUFACTURE

504

EDK4

01/1965 → 12/1968

604

EDK4

01/1965 → 12/1969

EM 500

EDK4

01/1964 → 12/1968

EM 600

EDK4

01/1962 → 12/1969

HR/HRA (3001/3002/3011/3012)

EDK4

4000

01/1966 → 12/1969

HR/HRA (3019/3020/3422)

EDK4/EDK4-8

01/1970 → 12/1973

HS (3423/3551)

EDK4-8/EDK4-10T

01/1971 → 12/1973

Tiger-Serie | 59-78

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
EM 295	EDK 2a/2b	1536	16	22	09/1959 → 09/1969	i 03/1968 ->	EM 295 ENGINE CODE: EDK 2a/2b CC: 1536 kW: 16 HP: 22 YEAR OF MANUFACTURE: 09/1959 → 09/1969
II (3009/3151)	EDK3-2/EDK3-4		26	35	02/1968 → 07/1972		II (3009/3151) ENGINE CODE: EDK3-2/EDK3-4 CC: kW: 26 HP: 35 YEAR OF MANUFACTURE: 02/1968 → 07/1972

ENGINE CODE

YEAR OF MANUFACTURE

EM 295

EDK 2a/2b

1536

09/1959 → 09/1969

II (3009/3151)

EDK3-2/EDK3-4

02/1968 → 07/1972

EPPLE

EM-Serie

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
940	Perkins 4.236					i Partly/or	940 ENGINE CODE: Perkins 4.236 CC: kW: HP: i Partly/or

ENGINE CODE

YEAR OF MANUFACTURE

940

Perkins 4.236

ERKUNT Tractor

ArmaTrac - Serie | 12-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
ArmaTrac 502	Perkins 1103D-33 Tier3A	3300	37	50	01/2012 →	ArmaTrac 502 ENGINE CODE: Perkins 1103D-33 Tier3A CC: 3300 kW: 37 HP: 50 YEAR OF MANUFACTURE: 01/2012 →
ArmaTrac 502 FG	Perkins 1103D-33 Tier3		37	50		ArmaTrac 502 FG ENGINE CODE: Perkins 1103D-33 Tier3 CC: kW: 37 HP: 50
ArmaTrac 502E	Perkins 1103D-33 Tier3A	3300	37	50	01/2012 →	ArmaTrac 502E ENGINE CODE: Perkins 1103D-33 Tier3A CC: 3300 kW: 37 HP: 50 YEAR OF MANUFACTURE: 01/2012 →
ArmaTrac 504	Perkins 1103D-33 Tier3A	3300	37	50	01/2012 →	ArmaTrac 504 ENGINE CODE: Perkins 1103D-33 Tier3A CC: 3300 kW: 37 HP: 50 YEAR OF MANUFACTURE: 01/2012 →
ArmaTrac 504 FG	Perkins 1103D-33 Tier3A	3000	38	52		ArmaTrac 504 FG ENGINE CODE: Perkins 1103D-33 Tier3A CC: 3000 kW: 38 HP: 52
ArmaTrac 504E	Perkins 1103D-33 Tier3A	3300	37	50	01/2012 →	ArmaTrac 504E ENGINE CODE: Perkins 1103D-33 Tier3A CC: 3300 kW: 37 HP: 50 YEAR OF MANUFACTURE: 01/2012 →
ArmaTrac 654 FG	Perkins 1103D-33TA Tier3A	3982	47	64		ArmaTrac 654 FG ENGINE CODE: Perkins 1103D-33TA Tier3A CC: 3982 kW: 47 HP: 64
ArmaTrac 702 FG	Perkins 1103C-33T	3300	48	64		ArmaTrac 702 FG ENGINE CODE: Perkins 1103C-33T CC: 3300 kW: 48 HP: 64
ArmaTrac 704 FG	Perkins Tier3A		54	73		ArmaTrac 704 FG ENGINE CODE: Perkins Tier3A CC: kW: 54 HP: 73

ENGINE CODE

YEAR OF MANUFACTURE

ArmaTrac 502

Perkins 1103D-33 Tier3A

3300

01/2012 →

ArmaTrac 502 FG

Perkins 1103D-33 Tier3

ArmaTrac 502E

Perkins 1103D-33 Tier3A

3300

01/2012 →

ArmaTrac 504

Perkins 1103D-33 Tier3A

3300

01/2012 →

ArmaTrac 504 FG

Perkins 1103D-33 Tier3A

3000

ArmaTrac 504E

Perkins 1103D-33 Tier3A

3300

01/2012 →

ArmaTrac 654 FG

Perkins 1103D-33TA Tier3A

3982

ArmaTrac 702 FG

Perkins 1103C-33T

3300

ArmaTrac 704 FG

Perkins Tier3A

Bereket - Serie | 10-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
Bereket 60	Sonalika 1TL 3100-FLT	2800	42	57	01/2010 →	Bereket 60 ENGINE CODE: Sonalika 1TL 3100-FLT CC: 2800 kW: 42 HP: 57 YEAR OF MANUFACTURE: 01/2010 →
Bereket 60E	Sonalika 1TL 2.8L Tier3A		42	56	01/2013 →	Bereket 60E ENGINE CODE: Sonalika 1TL 2.8L Tier3A CC: kW: 42 HP: 56 YEAR OF MANUFACTURE: 01/2013 →
Bereket 65	Perkins 1103D-33TA Tier3A	3300	47	64		Bereket 65 ENGINE CODE: Perkins 1103D-33TA Tier3A CC: 3300 kW: 47 HP: 64
Bereket 65E	Perkins 1103D-33TA Tier3A	3300	47	64	01/2013 →	Bereket 65E ENGINE CODE: Perkins 1103D-33TA Tier3A CC: 3300 kW: 47 HP: 64 YEAR OF MANUFACTURE: 01/2013 →
Bereket 65M	Perkins 1103D-33TA Tier3A	3300	47	64		Bereket 65M ENGINE CODE: Perkins 1103D-33TA Tier3A CC: 3300 kW: 47 HP: 64

ENGINE CODE

YEAR OF MANUFACTURE

Bereket 60

Sonalika 1TL 3100-FLT

2800

01/2010 →

Bereket 60E

Sonalika 1TL 2.8L Tier3A

01/2013 →

Bereket 65

Perkins 1103D-33TA Tier3A

3300

Bereket 65E

Perkins 1103D-33TA Tier3A

3300

01/2013 →

Bereket 65M

Perkins 1103D-33TA Tier3A

3300

Kismet - Serie | 10-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
Kismet 55						Kismet 55 ENGINE CODE: CC: kW: HP:
Kismet 55 E	Sonalika 3100-FLT Tier3A	2780	42	57	01/2012 →	Kismet 55 E ENGINE CODE: Sonalika 3100-FLT Tier3A CC: 2780 kW: 42 HP: 57 YEAR OF MANUFACTURE: 01/2012 →
Kismet 55 M						Kismet 55 M ENGINE CODE: CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

Kismet 55

Kismet 55 E

Sonalika 3100-FLT Tier3A

2780

01/2012 →

Kismet 55 M

Nimet - Serie | 10-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
Nimet 70	Perkins 1103D-33TA Tier3A	3300	68	91	01/2010 →	Nimet 70 ENGINE CODE: Perkins 1103D-33TA Tier3A CC: 3300 kW: 68 HP: 91 YEAR OF MANUFACTURE: 01/2010 →
Nimet 70M	Perkins 1103D-33TA Tier3A	3300	50	68		Nimet 70M ENGINE CODE: Perkins 1103D-33TA Tier3A CC: 3300 kW: 50 HP: 68
Nimet 70T	Perkins					Nimet 70T ENGINE CODE: Perkins CC: kW: HP:
Nimet 75E	Perkins 1104D-44T Tier3A	4400	55	75		Nimet 75E ENGINE CODE: Perkins 1104D-44T Tier3A CC: 4400 kW: 55 HP: 75

ENGINE CODE

YEAR OF MANUFACTURE

Nimet 70

Perkins 1103D-33TA Tier3A

3300

01/2010 →

Nimet 70M

Perkins 1103D-33TA Tier3A

3300

Nimet 70T

Perkins

Nimet 75E

Perkins 1104D-44T Tier3A

4400

Servet - Serie | 10-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
Servet 80.3	Perkins 1103D-33TA	3300	58	78	01/2010 →	Servet 80.3 ENGINE CODE: Perkins 1103D-33TA CC: 3300 kW: 58 HP: 78 YEAR OF MANUFACTURE: 01/2010 →
Servet 80.3E	Perkins		60	80	01/2012 →	Servet 80.3E ENGINE CODE: Perkins CC: kW: 60 HP: 80 YEAR OF MANUFACTURE: 01/2012 →
Servet 80.3M	Perkins 1103D-33TA Tier3A	3300	58	79	01/2012 →	Servet 80.3M ENGINE CODE: Perkins 1103D-33TA Tier3A CC: 3300 kW: 58 HP: 79 YEAR OF MANUFACTURE: 01/2012 →
Servet 80.3M	Perkins 1103D-33TA Tier3A	3300	58	78	01/2010 →	Servet 80.3M ENGINE CODE: Perkins 1103D-33TA Tier3A CC: 3300 kW: 58 HP: 78 YEAR OF MANUFACTURE: 01/2010 →
Servet 80T	Perkins 1103C-33T	3300	56	75		Servet 80T ENGINE CODE: Perkins 1103C-33T CC: 3300 kW: 56 HP: 75

ENGINE CODE

YEAR OF MANUFACTURE

Servet 80.3

Perkins 1103D-33TA

3300

01/2010 →

Servet 80.3E

Perkins

01/2012 →

Servet 80.3M

Perkins 1103D-33TA Tier3A

3300

01/2012 →

Servet 80.3M

Perkins 1103D-33TA Tier3A

3300

01/2010 →

Servet 80T

Perkins 1103C-33T

3300

ETEC BAGGER

800-Serie | 93-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
812 EHS	Perkins 1004.4		67	91	01/1993 →		812 EHS ENGINE CODE: Perkins 1004.4 CC: kW: 67 HP: 91 YEAR OF MANUFACTURE: 01/1993 →
816 EHS	Perkins 1004.4T		84	115	01/1993 →		816 EHS ENGINE CODE: Perkins 1004.4T CC: kW: 84 HP: 115 YEAR OF MANUFACTURE: 01/1993 →

ENGINE CODE

YEAR OF MANUFACTURE

812 EHS

Perkins 1004.4

01/1993 →

816 EHS

Perkins 1004.4T

115

01/1993 →

FAI (KOMATSU UTILITY EUROPE)

100-Serie

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
100 BDT/DT/RTD	Perkins						100 BDT/DT/RTD ENGINE CODE: Perkins CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

100 BDT/DT/RTD

Perkins

1000-Serie | 88-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
1000	Perkins T4.236		71	97	01/1990 →		1000 ENGINE CODE: Perkins T4.236 CC: kW: 71 HP: 97 YEAR OF MANUFACTURE: 01/1990 →

ENGINE CODE

YEAR OF MANUFACTURE

1000

Perkins T4.236

01/1990 →

60-Serie

	ENGINE CODE
61 B/BTD	Perkins	61 B/BTD ENGINE CODE: Perkins CC: kW: HP:
65 B/BDT	Perkins	65 B/BDT ENGINE CODE: Perkins CC: kW: HP:
66 B/BTD	Perkins	66 B/BTD ENGINE CODE: Perkins CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

61 B/BTD

Perkins

65 B/BDT

Perkins

66 B/BTD

Perkins

70-Serie

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
70 B/BTD	Perkins						70 B/BTD ENGINE CODE: Perkins CC: kW: HP:
75 B/BTD	Perkins						75 B/BTD ENGINE CODE: Perkins CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

70 B/BTD

Perkins

75 B/BTD

Perkins

80-Serie

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
80 B/BTD	Perkins						80 B/BTD ENGINE CODE: Perkins CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

80 B/BTD

Perkins

900-Serie | 90-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
900	Perkins 4.236		55	75	01/1990 →		900 ENGINE CODE: Perkins 4.236 CC: kW: 55 HP: 75 YEAR OF MANUFACTURE: 01/1990 →

ENGINE CODE

YEAR OF MANUFACTURE

900

Perkins 4.236

01/1990 →

FARYMANN DIESEL

10-Serie

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
S10							S10 ENGINE CODE: CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

S10

FENDT (AGCO)

Farmer 100-Serie | 72-87

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
105 S/LS/SA	MWM D 226-4	3400	44	60	01/1972 → 09/1985	105 S/LS/SA ENGINE CODE: MWM D 226-4 CC: 3400 kW: 44 HP: 60 YEAR OF MANUFACTURE: 01/1972 → 09/1985
106 LS/LSA/S	MWM D226.4.2 / D225-4 / D226-4	3378	48	65	01/1972 → 12/1980	106 LS/LSA/S ENGINE CODE: MWM D226.4.2 / D225-4 / D226-4 CC: 3378 kW: 48 HP: 65 YEAR OF MANUFACTURE: 01/1972 → 12/1980
106 S/SA/S Turbomatic	MWM D 226-4	3400	48	65	01/1972 → 12/1980	106 S/SA/S Turbomatic ENGINE CODE: MWM D 226-4 CC: 3400 kW: 48 HP: 65 YEAR OF MANUFACTURE: 01/1972 → 12/1980
108, 108 S/SA	MWM D 226-4	4154	48	75	01/1975 → 12/1980	108, 108 S/SA ENGINE CODE: MWM D 226-4 CC: 4154 kW: 48 HP: 75 YEAR OF MANUFACTURE: 01/1975 → 12/1980

ENGINE CODE

YEAR OF MANUFACTURE

105 S/LS/SA

MWM D 226-4

3400

01/1972 → 09/1985

106 LS/LSA/S

MWM D226.4.2 / D225-4 / D226-4

3378

01/1972 → 12/1980

106 S/SA/S Turbomatic

MWM D 226-4

3400

01/1972 → 12/1980

108, 108 S/SA

MWM D 226-4

4154

01/1975 → 12/1980

Farmer 300-Serie | 80-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
305 S/LS/LSA	MWM D227-4	3768	46	63	01/1980 → 08/1993	305 S/LS/LSA ENGINE CODE: MWM D227-4 CC: 3768 kW: 46 HP: 63 YEAR OF MANUFACTURE: 01/1980 → 08/1993
306 S/LS/LSA	MWM D 226-4	4154	50	68	01/1980 → 08/1993	306 S/LS/LSA ENGINE CODE: MWM D 226-4 CC: 4154 kW: 50 HP: 68 YEAR OF MANUFACTURE: 01/1980 → 08/1993
307 CA	Deutz BF4M2012C	4040	65	88	11/2001 →	307 CA ENGINE CODE: Deutz BF4M2012C CC: 4040 kW: 65 HP: 88 YEAR OF MANUFACTURE: 11/2001 →
307 S/LS/LSA	MWM TD226-4	3117	55	75	01/1980 → 08/1993	307 S/LS/LSA ENGINE CODE: MWM TD226-4 CC: 3117 kW: 55 HP: 75 YEAR OF MANUFACTURE: 01/1980 → 08/1993
308 S/LS/LSA	MWM D226-4		57	78	01/1980 → 08/1993	308 S/LS/LSA ENGINE CODE: MWM D226-4 CC: kW: 57 HP: 78 YEAR OF MANUFACTURE: 01/1980 → 08/1993
308 Turbo (T308.210)	MWM TD226-B4		63	86	08/1993 → 12/2001	308 Turbo (T308.210) ENGINE CODE: MWM TD226-B4 CC: kW: 63 HP: 86 YEAR OF MANUFACTURE: 08/1993 → 12/2001
309 S/LS/LSA	MWM TD226-4	4154	66	90	01/1980 → 08/1993	309 S/LS/LSA ENGINE CODE: MWM TD226-4 CC: 4154 kW: 66 HP: 90 YEAR OF MANUFACTURE: 01/1980 → 08/1993
309 Turbo (T309.210)	MWM TD226-B4		70	95	08/1993 → 12/2001	309 Turbo (T309.210) ENGINE CODE: MWM TD226-B4 CC: kW: 70 HP: 95 YEAR OF MANUFACTURE: 08/1993 → 12/2001
310 LS/LSA	TD 226-4.2 ab 1990: TD 226 B-4	4160	70	95	01/1984 → 08/1993	310 LS/LSA ENGINE CODE: TD 226-4.2 ab 1990: TD 226 B-4 CC: 4160 kW: 70 HP: 95 YEAR OF MANUFACTURE: 01/1984 → 08/1993
310 Turbo (T310.210)	MWM TD226-B4		77	105	09/1993 → 12/2001	310 Turbo (T310.210) ENGINE CODE: MWM TD226-B4 CC: kW: 77 HP: 105 YEAR OF MANUFACTURE: 09/1993 → 12/2001
311 LS/LSA	D 226 - 6.2 ab 1990 TD 226 .B	6234	74	101	01/1984 → 08/1993	311 LS/LSA ENGINE CODE: D 226 - 6.2 ab 1990 TD 226 .B CC: 6234 kW: 74 HP: 101 YEAR OF MANUFACTURE: 01/1984 → 08/1993
311 Turbo (T311.210)	MWM TD226-B6		85	116	09/1993 → 12/2001	311 Turbo (T311.210) ENGINE CODE: MWM TD226-B6 CC: kW: 85 HP: 116 YEAR OF MANUFACTURE: 09/1993 → 12/2001
312 LS/LSA	MWM D 226.B-6	6234	88	120	01/1987 → 08/1993	312 LS/LSA ENGINE CODE: MWM D 226.B-6 CC: 6234 kW: 88 HP: 120 YEAR OF MANUFACTURE: 01/1987 → 08/1993

ENGINE CODE

YEAR OF MANUFACTURE

305 S/LS/LSA

MWM D227-4

3768

01/1980 → 08/1993

306 S/LS/LSA

MWM D 226-4

4154

01/1980 → 08/1993

307 CA

Deutz BF4M2012C

4040

11/2001 →

307 S/LS/LSA

MWM TD226-4

3117

01/1980 → 08/1993

308 S/LS/LSA

MWM D226-4

01/1980 → 08/1993

308 Turbo (T308.210)

MWM TD226-B4

08/1993 → 12/2001

309 S/LS/LSA

MWM TD226-4

4154

01/1980 → 08/1993

309 Turbo (T309.210)

MWM TD226-B4

08/1993 → 12/2001

310 LS/LSA

TD 226-4.2 ab 1990: TD 226 B-4

4160

01/1984 → 08/1993

310 Turbo (T310.210)

MWM TD226-B4

105

09/1993 → 12/2001

311 LS/LSA

D 226 - 6.2 ab 1990 TD 226 .B

6234

101

01/1984 → 08/1993

311 Turbo (T311.210)

MWM TD226-B6

116

09/1993 → 12/2001

312 LS/LSA

MWM D 226.B-6

6234

120

01/1987 → 08/1993

Farmer-Serie | 58-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
106 S	D 226-4	4160	48	65	01/1975 →		106 S ENGINE CODE: D 226-4 CC: 4160 kW: 48 HP: 65 YEAR OF MANUFACTURE: 01/1975 →
11 S	MWM D 225-6/226-6	5100	59	80	01/1970 →		11 S ENGINE CODE: MWM D 225-6/226-6 CC: 5100 kW: 59 HP: 80 YEAR OF MANUFACTURE: 01/1970 →
12 S	MWM D 225-6/226-6						12 S ENGINE CODE: MWM D 225-6/226-6 CC: kW: HP:
14 S	MWM D 225-6/226-6						14 S ENGINE CODE: MWM D 225-6/226-6 CC: kW: HP:
3 S	D 208-4	2980	35	48	01/1966 → 12/1972		3 S ENGINE CODE: D 208-4 CC: 2980 kW: 35 HP: 48 YEAR OF MANUFACTURE: 01/1966 → 12/1972
3 S	MWM D 208-4	2980	40	55	01/1963 →	i 04/1968 ->	3 S ENGINE CODE: MWM D 208-4 CC: 2980 kW: 40 HP: 55 YEAR OF MANUFACTURE: 01/1963 →
305 LS	D 226 B-4	4160	52	70	01/1987 → 12/1993		305 LS ENGINE CODE: D 226 B-4 CC: 4160 kW: 52 HP: 70 YEAR OF MANUFACTURE: 01/1987 → 12/1993
305 LSA	D 226 B-4	4160	52	70	01/1987 → 12/1993		305 LSA ENGINE CODE: D 226 B-4 CC: 4160 kW: 52 HP: 70 YEAR OF MANUFACTURE: 01/1987 → 12/1993
307 LS, 307 LSE	TD 226 B-3	3120	52	70	01/1985 →		307 LS, 307 LSE ENGINE CODE: TD 226 B-3 CC: 3120 kW: 52 HP: 70 YEAR OF MANUFACTURE: 01/1985 →
307 LSA	TD 226 B-3	3120	52	70	01/1985 →		307 LSA ENGINE CODE: TD 226 B-3 CC: 3120 kW: 52 HP: 70 YEAR OF MANUFACTURE: 01/1985 →
308 LS, 308 LSE	TD 226 B-4	4160	60	82	01/1990 →		308 LS, 308 LSE ENGINE CODE: TD 226 B-4 CC: 4160 kW: 60 HP: 82 YEAR OF MANUFACTURE: 01/1990 →
309 LS	TD 226 B-4	4160	65	88	01/1981 → 12/1991		309 LS ENGINE CODE: TD 226 B-4 CC: 4160 kW: 65 HP: 88 YEAR OF MANUFACTURE: 01/1981 → 12/1991
310 LSE	D 226 B-4	4160	74	100	01/1990 →		310 LSE ENGINE CODE: D 226 B-4 CC: 4160 kW: 74 HP: 100 YEAR OF MANUFACTURE: 01/1990 →
311 LSA	D 226 B-6	6234	81	110	01/1991 →		311 LSA ENGINE CODE: D 226 B-6 CC: 6234 kW: 81 HP: 110 YEAR OF MANUFACTURE: 01/1991 →
311 LSE	D 226 B-6	6234	81	110	01/1991 →		311 LSE ENGINE CODE: D 226 B-6 CC: 6234 kW: 81 HP: 110 YEAR OF MANUFACTURE: 01/1991 →
312 LSA	D 226 B-6	6234	85	116	01/1991 →		312 LSA ENGINE CODE: D 226 B-6 CC: 6234 kW: 85 HP: 116 YEAR OF MANUFACTURE: 01/1991 →
4 S	MWM D 208-4	2980	41	56	01/1970 →		4 S ENGINE CODE: MWM D 208-4 CC: 2980 kW: 41 HP: 56 YEAR OF MANUFACTURE: 01/1970 →
5 S	MWM D 225-4	2980	48	65	01/1970 →		5 S ENGINE CODE: MWM D 225-4 CC: 2980 kW: 48 HP: 65 YEAR OF MANUFACTURE: 01/1970 →

ENGINE CODE

YEAR OF MANUFACTURE

106 S

D 226-4

4160

01/1975 →

11 S

MWM D 225-6/226-6

5100

01/1970 →

12 S

MWM D 225-6/226-6

14 S

MWM D 225-6/226-6

3 S

D 208-4

2980

01/1966 → 12/1972

3 S

MWM D 208-4

2980

01/1963 →

305 LS

D 226 B-4

4160

01/1987 → 12/1993

305 LSA

D 226 B-4

4160

01/1987 → 12/1993

307 LS, 307 LSE

TD 226 B-3

3120

01/1985 →

307 LSA

TD 226 B-3

3120

01/1985 →

308 LS, 308 LSE

TD 226 B-4

4160

01/1990 →

309 LS

TD 226 B-4

4160

01/1981 → 12/1991

310 LSE

D 226 B-4

4160

100

01/1990 →

311 LSA

D 226 B-6

6234

110

01/1991 →

311 LSE

D 226 B-6

6234

110

01/1991 →

312 LSA

D 226 B-6

6234

116

01/1991 →

4 S

MWM D 208-4

2980

01/1970 →

5 S

MWM D 225-4

2980

01/1970 →

Favorit (erste Reihe) | 59-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
10 S/SA (FW/FWA 181)	MWM, Typ D 225-6	5100	59	80	01/1970 → 12/1972		10 S/SA (FW/FWA 181) ENGINE CODE: MWM, Typ D 225-6 CC: 5100 kW: 59 HP: 80 YEAR OF MANUFACTURE: 01/1970 → 12/1972
11 S/SA (T 182.010/210)	MWM, Typ D 225-6	5100	70	95	01/1970 → 12/1971		11 S/SA (T 182.010/210) ENGINE CODE: MWM, Typ D 225-6 CC: 5100 kW: 70 HP: 95 YEAR OF MANUFACTURE: 01/1970 → 12/1971
12 SA (T 183.210)	MWM, Typ D 226-6	6240	81	110	01/1970 → 12/1971		12 SA (T 183.210) ENGINE CODE: MWM, Typ D 226-6 CC: 6240 kW: 81 HP: 110 YEAR OF MANUFACTURE: 01/1970 → 12/1971
4 S/SA (FW/FWA180-182)	MWM D225-6	5100	59	80	01/1966 → 12/1970	i 04/1968 ->	4 S/SA (FW/FWA180-182) ENGINE CODE: MWM D225-6 CC: 5100 kW: 59 HP: 80 YEAR OF MANUFACTURE: 01/1966 → 12/1970
610 LS	D 226-6	6234	66	90	01/1984 →		610 LS ENGINE CODE: D 226-6 CC: 6234 kW: 66 HP: 90 YEAR OF MANUFACTURE: 01/1984 →
610 LSA	D 226-6	6234	66	90	01/1984 →		610 LSA ENGINE CODE: D 226-6 CC: 6234 kW: 66 HP: 90 YEAR OF MANUFACTURE: 01/1984 →
610 S	D 225-6	5100	63	85	01/1972 → 12/1976		610 S ENGINE CODE: D 225-6 CC: 5100 kW: 63 HP: 85 YEAR OF MANUFACTURE: 01/1972 → 12/1976
611 S	D 226-6	6234	77	105	01/1972 → 12/1976		611 S ENGINE CODE: D 226-6 CC: 6234 kW: 77 HP: 105 YEAR OF MANUFACTURE: 01/1972 → 12/1976
611 SA	D 226-6	6234	77	105	01/1972 → 12/1976		611 SA ENGINE CODE: D 226-6 CC: 6234 kW: 77 HP: 105 YEAR OF MANUFACTURE: 01/1972 → 12/1976
611 SL	D 226-6	6234	77	105	01/1976 → 12/1978		611 SL ENGINE CODE: D 226-6 CC: 6234 kW: 77 HP: 105 YEAR OF MANUFACTURE: 01/1976 → 12/1978
612 SL	D 226-6	6234	88	120	01/1976 → 12/1984		612 SL ENGINE CODE: D 226-6 CC: 6234 kW: 88 HP: 120 YEAR OF MANUFACTURE: 01/1976 → 12/1984
614 SA	D 226-6	6234	99	135	01/1974 → 12/1976		614 SA ENGINE CODE: D 226-6 CC: 6234 kW: 99 HP: 135 YEAR OF MANUFACTURE: 01/1974 → 12/1976
614 SL	D 226-6	6234	99	135	01/1976 → 12/1977		614 SL ENGINE CODE: D 226-6 CC: 6234 kW: 99 HP: 135 YEAR OF MANUFACTURE: 01/1976 → 12/1977

ENGINE CODE

YEAR OF MANUFACTURE

10 S/SA (FW/FWA 181)

MWM, Typ D 225-6

5100

01/1970 → 12/1972

11 S/SA (T 182.010/210)

MWM, Typ D 225-6

5100

01/1970 → 12/1971

12 SA (T 183.210)

MWM, Typ D 226-6

6240

110

01/1970 → 12/1971

4 S/SA (FW/FWA180-182)

MWM D225-6

5100

01/1966 → 12/1970

610 LS

D 226-6

6234

01/1984 →

610 LSA

D 226-6

6234

01/1984 →

610 S

D 225-6

5100

01/1972 → 12/1976

611 S

D 226-6

6234

105

01/1972 → 12/1976

611 SA

D 226-6

6234

105

01/1972 → 12/1976

611 SL

D 226-6

6234

105

01/1976 → 12/1978

612 SL

D 226-6

6234

120

01/1976 → 12/1984

614 SA

D 226-6

6234

135

01/1974 → 12/1976

614 SL

D 226-6

6234

135

01/1976 → 12/1977

Favorit 500-Serie | 93-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
509 C	TD 226.B4	4156	70	95	05/1993 →		509 C ENGINE CODE: TD 226.B4 CC: 4156 kW: 70 HP: 95 YEAR OF MANUFACTURE: 05/1993 →
510 C	TD 226.B4	4156	77	105	05/1993 →		510 C ENGINE CODE: TD 226.B4 CC: 4156 kW: 77 HP: 105 YEAR OF MANUFACTURE: 05/1993 →
512 C/CA	TD 226.B6	6234	92	125	05/1993 →	i Use for OE no. F 238 202 310 010	512 C/CA ENGINE CODE: TD 226.B6 CC: 6234 kW: 92 HP: 125 YEAR OF MANUFACTURE: 05/1993 → i Use for OE no. F 238 202 310 010
514 C/CA	TD 226.B6	6234	103	140	05/1993 →	i Use for OE no. F 238 202 310 010	514 C/CA ENGINE CODE: TD 226.B6 CC: 6234 kW: 103 HP: 140 YEAR OF MANUFACTURE: 05/1993 → i Use for OE no. F 238 202 310 010
515 C/CA	TD 226.B6	6234	110	150	06/1993 →	i Use for OE no. F 238 202 310 010	515 C/CA ENGINE CODE: TD 226.B6 CC: 6234 kW: 110 HP: 150 YEAR OF MANUFACTURE: 06/1993 → i Use for OE no. F 238 202 310 010

ENGINE CODE

YEAR OF MANUFACTURE

509 C

TD 226.B4

4156

05/1993 →

510 C

TD 226.B4

4156

105

05/1993 →

512 C/CA

TD 226.B6

6234

125

05/1993 →

514 C/CA

TD 226.B6

6234

103

140

05/1993 →

515 C/CA

TD 226.B6

6234

110

150

06/1993 →

Favorit 600-Serie | 72-93

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
600 LS	MWM D 227-6	5654	63	86	01/1976 → 09/1981	600 LS ENGINE CODE: MWM D 227-6 CC: 5654 kW: 63 HP: 86 YEAR OF MANUFACTURE: 01/1976 → 09/1981
610 LS	MWM D 226-6	5654	70	95	01/1978 → 09/1984	610 LS ENGINE CODE: MWM D 226-6 CC: 5654 kW: 70 HP: 95 YEAR OF MANUFACTURE: 01/1978 → 09/1984
610 S	MWM 225-6	5100	63	85	01/1972 → 12/1976	610 S ENGINE CODE: MWM 225-6 CC: 5100 kW: 63 HP: 85 YEAR OF MANUFACTURE: 01/1972 → 12/1976
610 SA/SL	MWM D226-6	5100	63	85	03/1972 → 12/1976	610 SA/SL ENGINE CODE: MWM D226-6 CC: 5100 kW: 63 HP: 85 YEAR OF MANUFACTURE: 03/1972 → 12/1976
611 LS/LSA	MWM D 226-6	6240	77	105	01/1976 → 12/1993	611 LS/LSA ENGINE CODE: MWM D 226-6 CC: 6240 kW: 77 HP: 105 YEAR OF MANUFACTURE: 01/1976 → 12/1993
611 S/SA	MWM 226-6	6250	77	105	01/1972 → 12/1976	611 S/SA ENGINE CODE: MWM 226-6 CC: 6250 kW: 77 HP: 105 YEAR OF MANUFACTURE: 01/1972 → 12/1976
611 SA/SL	MWM D 226-6	6240	77	105	01/1972 → 12/1976	611 SA/SL ENGINE CODE: MWM D 226-6 CC: 6240 kW: 77 HP: 105 YEAR OF MANUFACTURE: 01/1972 → 12/1976
612 S/SA/SL	MWM 226-6	6230	88	120	04/1972 → 09/1976	612 S/SA/SL ENGINE CODE: MWM 226-6 CC: 6230 kW: 88 HP: 120 YEAR OF MANUFACTURE: 04/1972 → 09/1976
614 S/SA	MWM 226-6 TD	6230	99	135	01/1974 → 12/1976	614 S/SA ENGINE CODE: MWM 226-6 TD CC: 6230 kW: 99 HP: 135 YEAR OF MANUFACTURE: 01/1974 → 12/1976
614 SL	MWM TD 226-6	6240	99	135	01/1972 → 12/1976	614 SL ENGINE CODE: MWM TD 226-6 CC: 6240 kW: 99 HP: 135 YEAR OF MANUFACTURE: 01/1972 → 12/1976
615 S/SL	MWM D226-6	6240	110	150	01/1972 → 09/1976	615 S/SL ENGINE CODE: MWM D226-6 CC: 6240 kW: 110 HP: 150 YEAR OF MANUFACTURE: 01/1972 → 09/1976

ENGINE CODE

YEAR OF MANUFACTURE

600 LS

MWM D 227-6

5654

01/1976 → 09/1981

610 LS

MWM D 226-6

5654

01/1978 → 09/1984

610 S

MWM 225-6

5100

01/1972 → 12/1976

610 SA/SL

MWM D226-6

5100

03/1972 → 12/1976

611 LS/LSA

MWM D 226-6

6240

105

01/1976 → 12/1993

611 S/SA

MWM 226-6

6250

105

01/1972 → 12/1976

611 SA/SL

MWM D 226-6

6240

105

01/1972 → 12/1976

612 S/SA/SL

MWM 226-6

6230

120

04/1972 → 09/1976

614 S/SA

MWM 226-6 TD

6230

135

01/1974 → 12/1976

614 SL

MWM TD 226-6

6240

135

01/1972 → 12/1976

615 S/SL

MWM D226-6

6240

110

150

01/1972 → 09/1976

GT-Serie | 57-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
255 GT (T 255.100)	Deutz F3L 912H	2826	40	55	01/1977 → 12/1984		255 GT (T 255.100) ENGINE CODE: Deutz F3L 912H CC: 2826 kW: 40 HP: 55 YEAR OF MANUFACTURE: 01/1977 → 12/1984
275 GT/GTF (T 275.100/010)	Deutz F4L 912	3770	51	70	01/1976 → 12/1984		275 GT/GTF (T 275.100/010) ENGINE CODE: Deutz F4L 912 CC: 3770 kW: 51 HP: 70 YEAR OF MANUFACTURE: 01/1976 → 12/1984

ENGINE CODE

YEAR OF MANUFACTURE

255 GT (T 255.100)

Deutz F3L 912H

2826

01/1977 → 12/1984

275 GT/GTF (T 275.100/010)

Deutz F4L 912

3770

01/1976 → 12/1984

TS-Serie | 70-88

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
60 (T 259.010)	MWM D226-4		46	63	01/1983 → 06/1988		60 (T 259.010) ENGINE CODE: MWM D226-4 CC: kW: 46 HP: 63 YEAR OF MANUFACTURE: 01/1983 → 06/1988
80/65 (T 269.340)	MWM D225-4				01/1970 → 12/1976		80/65 (T 269.340) ENGINE CODE: MWM D225-4 CC: kW: HP: YEAR OF MANUFACTURE: 01/1970 → 12/1976

ENGINE CODE

YEAR OF MANUFACTURE

60 (T 259.010)

MWM D226-4

01/1983 → 06/1988

80/65 (T 269.340)

MWM D225-4

01/1970 → 12/1976

FIAT-ALLIS/GEOTECH/HITACHI

W-Serie | 97-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
80, 80H	Perkins 1004.42		54	73	01/1997 →		80, 80H ENGINE CODE: Perkins 1004.42 CC: kW: 54 HP: 73 YEAR OF MANUFACTURE: 01/1997 →

ENGINE CODE

YEAR OF MANUFACTURE

80, 80H

Perkins 1004.42

01/1997 →

FORTSCHRITT (CNH GLOBAL/MDW)

E-Serie

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
E 521	Perkins						E 521 ENGINE CODE: Perkins CC: kW: HP:
E 525	Perkins						E 525 ENGINE CODE: Perkins CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

E 521

Perkins

E 525

Perkins

FUCHS (Terex)

700 (K/M/R)-Serie | 85-

	ENGINE CODE	kW	HP	YEAR OF MANUFACTURE
712	Perkins 1004.4	59	80	01/1992 →	712 ENGINE CODE: Perkins 1004.4 CC: kW: 59 HP: 80 YEAR OF MANUFACTURE: 01/1992 →
712 M/D	Perkins 1004-4	59	80	01/1991 → 07/1996	712 M/D ENGINE CODE: Perkins 1004-4 CC: kW: 59 HP: 80 YEAR OF MANUFACTURE: 01/1991 → 07/1996
720	Perkins 4.236	54	74	01/1988 →	720 ENGINE CODE: Perkins 4.236 CC: kW: 54 HP: 74 YEAR OF MANUFACTURE: 01/1988 →

ENGINE CODE

YEAR OF MANUFACTURE

712

Perkins 1004.4

01/1992 →

712 M/D

Perkins 1004-4

01/1991 → 07/1996

720

Perkins 4.236

01/1988 →

GEHL

HL-Serie

	ENGINE CODE
HL4400	4.108 Perkins	i Use for OE no. 078849	HL4400 ENGINE CODE: 4.108 Perkins CC: kW: HP: i Use for OE no. 078849
HL4400	4.108 Perkins	i Use for OE no. 078849	HL4400 ENGINE CODE: 4.108 Perkins CC: kW: HP: i Use for OE no. 078849
HL4600	4.108 Perkins	i Use for OE no. 078849	HL4600 ENGINE CODE: 4.108 Perkins CC: kW: HP: i Use for OE no. 078849

ENGINE CODE

YEAR OF MANUFACTURE

HL4400

4.108 Perkins

HL4400

4.108 Perkins

HL4600

4.108 Perkins

SL-Serie | 86-

	ENGINE CODE	kW	HP
4610	4.108 Perkins			i Use for OE no. 078849	4610 ENGINE CODE: 4.108 Perkins CC: kW: HP: i Use for OE no. 078849
4610	4.19 Perkins			i Use for OE no. 078849	4610 ENGINE CODE: 4.19 Perkins CC: kW: HP: i Use for OE no. 078849
4610	Perkins 4.108	33	45	i Up to chassis no. 60845	4610 ENGINE CODE: Perkins 4.108 CC: kW: 33 HP: 45 i Up to chassis no. 60845
4615	4.108 Perkins			i Use for OE no. 078849	4615 ENGINE CODE: 4.108 Perkins CC: kW: HP: i Use for OE no. 078849
4615	4.19 Perkins			i Use for OE no. 078849	4615 ENGINE CODE: 4.19 Perkins CC: kW: HP: i Use for OE no. 078849

ENGINE CODE

YEAR OF MANUFACTURE

4610

4.108 Perkins

4610

4.19 Perkins

4610

Perkins 4.108

4615

4.108 Perkins

4615

4.19 Perkins

GOLDONI TRACTORS

3000-Serie

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
3060 Vigneron Turbo	VM						3060 Vigneron Turbo ENGINE CODE: VM CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

3060 Vigneron Turbo

400-Serie

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
452	Perkins 4.108						452 ENGINE CODE: Perkins 4.108 CC: kW: HP:
454	Perkins 4.108						454 ENGINE CODE: Perkins 4.108 CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

452

Perkins 4.108

454

Perkins 4.108

GROVE

A-Serie

	ENGINE CODE
AMZ 50 XT	Hatz	AMZ 50 XT ENGINE CODE: Hatz CC: kW: HP:
AP 408	Perk. 6.354.4	AP 408 ENGINE CODE: Perk. 6.354.4 CC: kW: HP:
AP 415	Perk. 6.354.4	AP 415 ENGINE CODE: Perk. 6.354.4 CC: kW: HP:
SM 4688 XT	Hatz 2L31C	SM 4688 XT ENGINE CODE: Hatz 2L31C CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

AMZ 50 XT

Hatz

AP 408

Perk. 6.354.4

AP 415

Perk. 6.354.4

SM 4688 XT

Hatz 2L31C

R-Serie

	ENGINE CODE
RT 518	Perk. 6.354.4	RT 518 ENGINE CODE: Perk. 6.354.4 CC: kW: HP:
RT 522	Perkins 6.354.4	RT 522 ENGINE CODE: Perkins 6.354.4 CC: kW: HP:
RT 615 S	Perkins 6.354.4	RT 615 S ENGINE CODE: Perkins 6.354.4 CC: kW: HP:
RT 620 S	Perkins 6.354.4	RT 620 S ENGINE CODE: Perkins 6.354.4 CC: kW: HP:
RT 625 S	Perkins 6.354.4	RT 625 S ENGINE CODE: Perkins 6.354.4 CC: kW: HP:
RT 628 S	Perkins 6.354.4	RT 628 S ENGINE CODE: Perkins 6.354.4 CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

RT 518

Perk. 6.354.4

RT 522

Perkins 6.354.4

RT 615 S

Perkins 6.354.4

RT 620 S

Perkins 6.354.4

RT 625 S

Perkins 6.354.4

RT 628 S

Perkins 6.354.4

HAKO

Hakotrac | 98-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
4100 D	VW						4100 D ENGINE CODE: VW CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

4100 D

HAMM (WIRTGEN GROUP)

DV/DVO-Serie | 87-

	ENGINE CODE	kW	HP	YEAR OF MANUFACTURE
DV 2 K	Hatz 2M30	16	22	01/1988 →	DV 2 K ENGINE CODE: Hatz 2M30 CC: kW: 16 HP: 22 YEAR OF MANUFACTURE: 01/1988 →
DV 2.22	Hatz 2M30	16	22	01/1987 →	DV 2.22 ENGINE CODE: Hatz 2M30 CC: kW: 16 HP: 22 YEAR OF MANUFACTURE: 01/1987 →
DV 3 K, 3.21, 3.22	Hatz 2L40S	23	31	01/1987 → 12/1994	DV 3 K, 3.21, 3.22 ENGINE CODE: Hatz 2L40S CC: kW: 23 HP: 31 YEAR OF MANUFACTURE: 01/1987 → 12/1994
DV 3.22	Hatz 2M41	24	33	01/1996 → 12/2004	DV 3.22 ENGINE CODE: Hatz 2M41 CC: kW: 24 HP: 33 YEAR OF MANUFACTURE: 01/1996 → 12/2004

ENGINE CODE

YEAR OF MANUFACTURE

DV 2 K

Hatz 2M30

01/1988 →

DV 2.22

Hatz 2M30

01/1987 →

DV 3 K, 3.21, 3.22

Hatz 2L40S

01/1987 → 12/1994

DV 3.22

Hatz 2M41

01/1996 → 12/2004

HANOMAG (KOMATSU HANOMAG AG)

10-Serie | 90-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
10 E	Perkins 4.108		27	37		i Partly/or	10 E ENGINE CODE: Perkins 4.108 CC: kW: 27 HP: 37 i Partly/or

ENGINE CODE

YEAR OF MANUFACTURE

10 E

Perkins 4.108

20-Serie | 86-

	ENGINE CODE	kW	HP	YEAR OF MANUFACTURE
20 E	Perkins 4.236	44	60	01/1986 →	20 E ENGINE CODE: Perkins 4.236 CC: kW: 44 HP: 60 YEAR OF MANUFACTURE: 01/1986 →
20 F	Perkins 4.236	48	65	01/1993 →	20 F ENGINE CODE: Perkins 4.236 CC: kW: 48 HP: 65 YEAR OF MANUFACTURE: 01/1993 →
22 C/CI	Perkins 4.248	55	75		22 C/CI ENGINE CODE: Perkins 4.248 CC: kW: 55 HP: 75
22 D/DI	Perkins 4.248	55	75		22 D/DI ENGINE CODE: Perkins 4.248 CC: kW: 55 HP: 75

ENGINE CODE

YEAR OF MANUFACTURE

20 E

Perkins 4.236

01/1986 →

20 F

Perkins 4.236

01/1993 →

22 C/CI

Perkins 4.248

22 D/DI

Perkins 4.248

5-Serie

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
5 C	Perkins 4.108					i Partly/or	5 C ENGINE CODE: Perkins 4.108 CC: kW: HP: i Partly/or

ENGINE CODE

YEAR OF MANUFACTURE

5 C

Perkins 4.108

6-Serie

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
6 D	Perkins 4.108		27	37		i Partly/or	6 D ENGINE CODE: Perkins 4.108 CC: kW: 27 HP: 37 i Partly/or

ENGINE CODE

YEAR OF MANUFACTURE

6 D

Perkins 4.108

B-Serie

	ENGINE CODE
6	Hanomag	6 ENGINE CODE: Hanomag CC: kW: HP:
6 C	Hanomag	6 C ENGINE CODE: Hanomag CC: kW: HP:
8 C	Hanomag	8 C ENGINE CODE: Hanomag CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

Hanomag

6 C

Hanomag

8 C

Hanomag

K-Serie

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
5 B	Hanomag						5 B ENGINE CODE: Hanomag CC: kW: HP:
5 E/L	D28/142 K						5 E/L ENGINE CODE: D28/142 K CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

5 B

Hanomag

5 E/L

D28/142 K

HANOMAG TRAKTOREN

Brillant-Serie

	ENGINE CODE
600, 600 A		600, 600 A ENGINE CODE: CC: kW: HP:
601	D 142R	601 ENGINE CODE: D 142R CC: kW: HP:
700, 700 A		700, 700 A ENGINE CODE: CC: kW: HP:
701	D 161R	701 ENGINE CODE: D 161R CC: kW: HP:
900, 900 A		900, 900 A ENGINE CODE: CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

600, 600 A

601

D 142R

700, 700 A

701

D 161R

900, 900 A

Granit-Serie

	ENGINE CODE
500, 500 E	D 131/132	500, 500 E ENGINE CODE: D 131/132 CC: kW: HP:
501	D 131R	501 ENGINE CODE: D 131R CC: kW: HP:
501 E	D 132R	501 E ENGINE CODE: D 132R CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

500, 500 E

D 131/132

501

D 131R

501 E

D 132R

Perfekt-Serie

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
401, 401 E						i Partly/or	401, 401 E ENGINE CODE: CC: kW: HP: i Partly/or

ENGINE CODE

YEAR OF MANUFACTURE

401, 401 E

Robust-Serie

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
901	D 162D						901 ENGINE CODE: D 162D CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

901

D 162D

HATZ

D-Serie

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
108						i Use for OE no. 400 65 300	108 ENGINE CODE: CC: kW: HP: i Use for OE no. 400 65 300

ENGINE CODE

YEAR OF MANUFACTURE

108

L-Serie | 08-

	CC	kW	HP	YEAR OF MANUFACTURE
2L30C					2L30C ENGINE CODE: CC: kW: HP:
2L30S					2L30S ENGINE CODE: CC: kW: HP:
2L30S/Z					2L30S/Z ENGINE CODE: CC: kW: HP:
2L30Z					2L30Z ENGINE CODE: CC: kW: HP:
2L40					2L40 ENGINE CODE: CC: kW: HP:
2L40S					2L40S ENGINE CODE: CC: kW: HP:
2L41C					2L41C ENGINE CODE: CC: kW: HP:
3L30C					3L30C ENGINE CODE: CC: kW: HP:
3L30S					3L30S ENGINE CODE: CC: kW: HP:
3L30S/Z					3L30S/Z ENGINE CODE: CC: kW: HP:
3L40					3L40 ENGINE CODE: CC: kW: HP:
3L40C					3L40C ENGINE CODE: CC: kW: HP:
3L40S					3L40S ENGINE CODE: CC: kW: HP:
3L41C					3L41C ENGINE CODE: CC: kW: HP:
4L30C					4L30C ENGINE CODE: CC: kW: HP:
4L30S					4L30S ENGINE CODE: CC: kW: HP:
4L30S/Z					4L30S/Z ENGINE CODE: CC: kW: HP:
4L40					4L40 ENGINE CODE: CC: kW: HP:
4L40S					4L40S ENGINE CODE: CC: kW: HP:
4L41C/K					4L41C/K ENGINE CODE: CC: kW: HP:
4L42 C	3432	40	54	06/2008 →	4L42 C ENGINE CODE: CC: 3432 kW: 40 HP: 54 YEAR OF MANUFACTURE: 06/2008 →

ENGINE CODE

YEAR OF MANUFACTURE

2L30C

2L30S

2L30S/Z

2L30Z

2L40

2L40S

2L41C

3L30C

3L30S

3L30S/Z

3L40

3L40C

3L40S

3L41C

4L30C

4L30S

4L30S/Z

4L40

4L40S

4L41C/K

4L42 C

3432

06/2008 →

LM-Serie | 12-

	YEAR OF MANUFACTURE
2LM41	04/2012 →	2LM41 ENGINE CODE: CC: kW: HP: YEAR OF MANUFACTURE: 04/2012 →
3LM41	04/2012 →	3LM41 ENGINE CODE: CC: kW: HP: YEAR OF MANUFACTURE: 04/2012 →
4LM41	04/2012 →	4LM41 ENGINE CODE: CC: kW: HP: YEAR OF MANUFACTURE: 04/2012 →
4LM42	04/2012 →	4LM42 ENGINE CODE: CC: kW: HP: YEAR OF MANUFACTURE: 04/2012 →

ENGINE CODE

YEAR OF MANUFACTURE

2LM41

04/2012 →

3LM41

04/2012 →

4LM41

04/2012 →

4LM42

04/2012 →

M-Serie | 08-

	CC	kW	HP	YEAR OF MANUFACTURE
2M40					2M40 ENGINE CODE: CC: kW: HP:
2M41					2M41 ENGINE CODE: CC: kW: HP:
3M40					3M40 ENGINE CODE: CC: kW: HP:
3M41					3M41 ENGINE CODE: CC: kW: HP:
4M40					4M40 ENGINE CODE: CC: kW: HP:
4M41					4M41 ENGINE CODE: CC: kW: HP:
4M42	3432	50	68	06/2008 →	4M42 ENGINE CODE: CC: 3432 kW: 50 HP: 68 YEAR OF MANUFACTURE: 06/2008 →

ENGINE CODE

YEAR OF MANUFACTURE

2M40

2M41

3M40

3M41

4M40

4M41

4M42

3432

06/2008 →

V-Serie

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
108							108 ENGINE CODE: CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

108

HAULOTTE

H-Serie | 06-

	ENGINE CODE	kW	HP	YEAR OF MANUFACTURE
H12SX	Hatz 2L41C	23	31	01/2006 →	H12SX ENGINE CODE: Hatz 2L41C CC: kW: 23 HP: 31 YEAR OF MANUFACTURE: 01/2006 →
H12SXL					H12SXL ENGINE CODE: CC: kW: HP:
H15SX	Hatz 2L41C	23	31	01/2006 →	H15SX ENGINE CODE: Hatz 2L41C CC: kW: 23 HP: 31 YEAR OF MANUFACTURE: 01/2006 →
H15SX	Hatz 2L41C	23	31	01/2018 →	H15SX ENGINE CODE: Hatz 2L41C CC: kW: 23 HP: 31 YEAR OF MANUFACTURE: 01/2018 →
H15SXL					H15SXL ENGINE CODE: CC: kW: HP:
H23TPX					H23TPX ENGINE CODE: CC: kW: HP:
HB68J					HB68J ENGINE CODE: CC: kW: HP:
HS3388RT					HS3388RT ENGINE CODE: CC: kW: HP:
HS3388RTXL					HS3388RTXL ENGINE CODE: CC: kW: HP:
HS4388RT					HS4388RT ENGINE CODE: CC: kW: HP:
HS4388RTXL					HS4388RTXL ENGINE CODE: CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

H12SX

Hatz 2L41C

01/2006 →

H12SXL

H15SX

Hatz 2L41C

01/2006 →

H15SX

Hatz 2L41C

01/2018 →

H15SXL

H23TPX

HB68J

HS3388RT

HS3388RTXL

HS4388RT

HS4388RTXL

HA-Serie | 00-

	ENGINE CODE	kW	HP	YEAR OF MANUFACTURE
HA 20 DX	Hatz 3L40C				HA 20 DX ENGINE CODE: Hatz 3L40C CC: kW: HP:
HA 20 DX	Hatz 3L41C				HA 20 DX ENGINE CODE: Hatz 3L41C CC: kW: HP:
HA 20 PX	HATZ 3M40				HA 20 PX ENGINE CODE: HATZ 3M40 CC: kW: HP:
HA 20 PX	DEUTZ F4L1011F	42	57	01/2007 →	HA 20 PX ENGINE CODE: DEUTZ F4L1011F CC: kW: 42 HP: 57 YEAR OF MANUFACTURE: 01/2007 →

ENGINE CODE

YEAR OF MANUFACTURE

HA 20 DX

Hatz 3L40C

HA 20 DX

Hatz 3L41C

HA 20 PX

HATZ 3M40

HA 20 PX

DEUTZ F4L1011F

01/2007 →

HENLEY FORKLIFT

(Gabelstapler / Fork Lifts)

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
Husky	Perkins 4.236					i Partly/or	Husky ENGINE CODE: Perkins 4.236 CC: kW: HP: i Partly/or
Sideloader	Perkins 4.236					i Partly/or	Sideloader ENGINE CODE: Perkins 4.236 CC: kW: HP: i Partly/or

ENGINE CODE

YEAR OF MANUFACTURE

Husky

Perkins 4.236

Sideloader

Perkins 4.236

HUERLIMANN TRAKTOREN

H300-Serie | 83-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
345	983L	2700	33	45	07/1983 → 03/1986		345 ENGINE CODE: 983L CC: 2700 kW: 33 HP: 45 YEAR OF MANUFACTURE: 07/1983 → 03/1986
351	983LA	2715	37	50	01/1987 → 12/1990		351 ENGINE CODE: 983LA CC: 2715 kW: 37 HP: 50 YEAR OF MANUFACTURE: 01/1987 → 12/1990

ENGINE CODE

YEAR OF MANUFACTURE

345

983L

2700

07/1983 → 03/1986

351

983LA

2715

01/1987 → 12/1990

HY-MAC

100-Serie

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
121 B	Perkins 4.248						121 B ENGINE CODE: Perkins 4.248 CC: kW: HP:
141 B	Perkins 4.248						141 B ENGINE CODE: Perkins 4.248 CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

121 B

Perkins 4.248

141 B

Perkins 4.248

30-Serie

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
35 AWS	Perkins						35 AWS ENGINE CODE: Perkins CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

35 AWS

Perkins

HYSTER

C200-Serie

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
225 A	Perkins 4.236					i Partly/or	225 A ENGINE CODE: Perkins 4.236 CC: kW: HP: i Partly/or

ENGINE CODE

YEAR OF MANUFACTURE

225 A

Perkins 4.236

C300-Serie

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
340 A/D	Perkins 4.236					i Partly/or	340 A/D ENGINE CODE: Perkins 4.236 CC: kW: HP: i Partly/or
350 A/B/D	Perkins 4.236					i Partly/or	350 A/B/D ENGINE CODE: Perkins 4.236 CC: kW: HP: i Partly/or

ENGINE CODE

YEAR OF MANUFACTURE

340 A/D

Perkins 4.236

350 A/B/D

Perkins 4.236

H-Serie | 96-

	ENGINE CODE	kW	HP	YEAR OF MANUFACTURE
100C	Perkins 4.236				100C ENGINE CODE: Perkins 4.236 CC: kW: HP:
110F	Perkins 4.236				110F ENGINE CODE: Perkins 4.236 CC: kW: HP:
120C	Perkins 4.236				120C ENGINE CODE: Perkins 4.236 CC: kW: HP:
150F	Perkins 4.236				150F ENGINE CODE: Perkins 4.236 CC: kW: HP:
3.50XM	Perkins 1004-42	56	76	01/2000 →	3.50XM ENGINE CODE: Perkins 1004-42 CC: kW: 56 HP: 76 YEAR OF MANUFACTURE: 01/2000 →
4.00XM	Perkins 1004-42	56	76	01/2000 →	4.00XM ENGINE CODE: Perkins 1004-42 CC: kW: 56 HP: 76 YEAR OF MANUFACTURE: 01/2000 →
5.50XM	Perkins 1004-42	56	76	01/2000 →	5.50XM ENGINE CODE: Perkins 1004-42 CC: kW: 56 HP: 76 YEAR OF MANUFACTURE: 01/2000 →

ENGINE CODE

YEAR OF MANUFACTURE

100C

Perkins 4.236

110F

Perkins 4.236

120C

Perkins 4.236

150F

Perkins 4.236

3.50XM

Perkins 1004-42

01/2000 →

4.00XM

Perkins 1004-42

01/2000 →

5.50XM

Perkins 1004-42

01/2000 →

M-Serie

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
200H	Perkins 6.354					i Partly/or	200H ENGINE CODE: Perkins 6.354 CC: kW: HP: i Partly/or
400H	Perkins 6.354					i Partly/or	400H ENGINE CODE: Perkins 6.354 CC: kW: HP: i Partly/or

ENGINE CODE

YEAR OF MANUFACTURE

200H

Perkins 6.354

400H

Perkins 6.354

P-Serie

	ENGINE CODE
125A	Perkins	i Partly/or	125A ENGINE CODE: Perkins CC: kW: HP: i Partly/or
150B	Perkins	i Partly/or	150B ENGINE CODE: Perkins CC: kW: HP: i Partly/or
150B	Perkins 6.354		150B ENGINE CODE: Perkins 6.354 CC: kW: HP:
180A	Perkins	i Partly/or	180A ENGINE CODE: Perkins CC: kW: HP: i Partly/or
200B	Perkins	i Partly/or	200B ENGINE CODE: Perkins CC: kW: HP: i Partly/or

ENGINE CODE

YEAR OF MANUFACTURE

125A

Perkins

150B

Perkins

150B

Perkins 6.354

180A

Perkins

200B

Perkins

S-Serie

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
S100E						i Use for OE no. 259964	S100E ENGINE CODE: CC: kW: HP: i Use for OE no. 259964

ENGINE CODE

YEAR OF MANUFACTURE

S100E

JCB (J.C. BAMFORD)

100 - Series (Skid Steer Loaders) | 00-13

	ENGINE CODE
110	4.248 Mfr Perkins	110 ENGINE CODE: 4.248 Mfr Perkins CC: kW: HP:
110B	4.248 Mfr Perkins	110B ENGINE CODE: 4.248 Mfr Perkins CC: kW: HP:
110C	4.248 Mfr Perkins	110C ENGINE CODE: 4.248 Mfr Perkins CC: kW: HP:
180T ROBOT	404C-22T Mfr Perkins	180T ROBOT ENGINE CODE: 404C-22T Mfr Perkins CC: kW: HP:
180T ROBOT	404D-22 Tier III Mfr Perkins	180T ROBOT ENGINE CODE: 404D-22 Tier III Mfr Perkins CC: kW: HP:
180THF ROBOT	404C-22T Mfr Perkins	180THF ROBOT ENGINE CODE: 404C-22T Mfr Perkins CC: kW: HP:
180THF ROBOT	404D-22 Tier III Mfr Perkins	180THF ROBOT ENGINE CODE: 404D-22 Tier III Mfr Perkins CC: kW: HP:
185 ROBOT	1000.4 Mfr Perkins	185 ROBOT ENGINE CODE: 1000.4 Mfr Perkins CC: kW: HP:
185HF ROBOT	1000.4 Mfr Perkins	185HF ROBOT ENGINE CODE: 1000.4 Mfr Perkins CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

110

4.248 Mfr Perkins

110B

4.248 Mfr Perkins

110C

4.248 Mfr Perkins

180T ROBOT

404C-22T Mfr Perkins

180T ROBOT

404D-22 Tier III Mfr Perkins

180THF ROBOT

404C-22T Mfr Perkins

180THF ROBOT

404D-22 Tier III Mfr Perkins

185 ROBOT

1000.4 Mfr Perkins

185HF ROBOT

1000.4 Mfr Perkins

1000-Serie | 01-08

	ENGINE CODE
1105 ROBOT	1000.4 Perkins	1105 ROBOT ENGINE CODE: 1000.4 Perkins CC: kW: HP:
1105HF ROBOT	1000.4 Perkins	1105HF ROBOT ENGINE CODE: 1000.4 Perkins CC: kW: HP:
1400B-2/4	1000.4 Mfr Perkins	1400B-2/4 ENGINE CODE: 1000.4 Mfr Perkins CC: kW: HP:
1400B-2/4 TURBO	1000.4 Mfr Perkins	1400B-2/4 TURBO ENGINE CODE: 1000.4 Mfr Perkins CC: kW: HP:
1550B-2/4	1000.4 Mfr Perkins	1550B-2/4 ENGINE CODE: 1000.4 Mfr Perkins CC: kW: HP:
1550B-2/4 TURBO	1000.4 Mfr Perkins	1550B-2/4 TURBO ENGINE CODE: 1000.4 Mfr Perkins CC: kW: HP:
1600B-2/4	1000.4 Mfr Perkins	1600B-2/4 ENGINE CODE: 1000.4 Mfr Perkins CC: kW: HP:
1600B-2/4 TURBO	1000.4 Mfr Perkins	1600B-2/4 TURBO ENGINE CODE: 1000.4 Mfr Perkins CC: kW: HP:
1700B-2/4	1000.4 Mfr Perkins	1700B-2/4 ENGINE CODE: 1000.4 Mfr Perkins CC: kW: HP:
1700B-2/4 TURBO	1000.4 Mfr Perkins	1700B-2/4 TURBO ENGINE CODE: 1000.4 Mfr Perkins CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

1105 ROBOT

1000.4 Perkins

1105HF ROBOT

1000.4 Perkins

1400B-2/4

1000.4 Mfr Perkins

1400B-2/4 TURBO

1000.4 Mfr Perkins

1550B-2/4

1000.4 Mfr Perkins

1550B-2/4 TURBO

1000.4 Mfr Perkins

1600B-2/4

1000.4 Mfr Perkins

1600B-2/4 TURBO

1000.4 Mfr Perkins

1700B-2/4

1000.4 Mfr Perkins

1700B-2/4 TURBO

1000.4 Mfr Perkins

200-Serie | 13-

	ENGINE CODE
210S	1000.4 Mfr Perkins	210S ENGINE CODE: 1000.4 Mfr Perkins CC: kW: HP:
210S	1004.4 Tier I Mfr Perkins	210S ENGINE CODE: 1004.4 Tier I Mfr Perkins CC: kW: HP:
210S	D3.152 Mfr Perkins	210S ENGINE CODE: D3.152 Mfr Perkins CC: kW: HP:
210SL	1000.4 Mfr Perkins	210SL ENGINE CODE: 1000.4 Mfr Perkins CC: kW: HP:
210SL	1004.4 Tier I Mfr Perkins	210SL ENGINE CODE: 1004.4 Tier I Mfr Perkins CC: kW: HP:
210SL	D3.152 Mfr Perkins	210SL ENGINE CODE: D3.152 Mfr Perkins CC: kW: HP:
210SU	1000.4 Mfr Perkins	210SU ENGINE CODE: 1000.4 Mfr Perkins CC: kW: HP:
210SU	1004.4 Tier I Mfr Perkins	210SU ENGINE CODE: 1004.4 Tier I Mfr Perkins CC: kW: HP:
210SU	D3.152 Mfr Perkins	210SU ENGINE CODE: D3.152 Mfr Perkins CC: kW: HP:
212S	1000.4 Mfr Perkins	212S ENGINE CODE: 1000.4 Mfr Perkins CC: kW: HP:
212S	1004.4 Tier I Mfr Perkins	212S ENGINE CODE: 1004.4 Tier I Mfr Perkins CC: kW: HP:
212SL	1000.4 Mfr Perkins	212SL ENGINE CODE: 1000.4 Mfr Perkins CC: kW: HP:
212SL	1004.4 Tier I Mfr Perkins	212SL ENGINE CODE: 1004.4 Tier I Mfr Perkins CC: kW: HP:
212SU	1000.4 Mfr Perkins	212SU ENGINE CODE: 1000.4 Mfr Perkins CC: kW: HP:
212SU	1004.4 Tier I Mfr Perkins	212SU ENGINE CODE: 1004.4 Tier I Mfr Perkins CC: kW: HP:
214 SITE MASTER	1004THR Mfr Perkins	214 SITE MASTER ENGINE CODE: 1004THR Mfr Perkins CC: kW: HP:
214 WHEEL DRIVE	1004THR Mfr Perkins	214 WHEEL DRIVE ENGINE CODE: 1004THR Mfr Perkins CC: kW: HP:
214-2/4	1000.4 Mfr Perkins	214-2/4 ENGINE CODE: 1000.4 Mfr Perkins CC: kW: HP:
214E-LE	1000.4 Mfr Perkins	214E-LE ENGINE CODE: 1000.4 Mfr Perkins CC: kW: HP:
214PC	1000.4 Mfr Perkins	214PC ENGINE CODE: 1000.4 Mfr Perkins CC: kW: HP:
214S	1000.4 Mfr Perkins	214S ENGINE CODE: 1000.4 Mfr Perkins CC: kW: HP:
214SE	1000.4 Mfr Perkins	214SE ENGINE CODE: 1000.4 Mfr Perkins CC: kW: HP:
215-2/4	1000.4 Mfr Perkins	215-2/4 ENGINE CODE: 1000.4 Mfr Perkins CC: kW: HP:
215E	1000.4 Mfr Perkins	215E ENGINE CODE: 1000.4 Mfr Perkins CC: kW: HP:
215PC	1000.4 Mfr Perkins	215PC ENGINE CODE: 1000.4 Mfr Perkins CC: kW: HP:
215S	1000.4 Mfr Perkins	215S ENGINE CODE: 1000.4 Mfr Perkins CC: kW: HP:
216-2/4 TURBO	1004.40T Mfr Perkins	216-2/4 TURBO ENGINE CODE: 1004.40T Mfr Perkins CC: kW: HP:
217	1004.40T Mfr Perkins	217 ENGINE CODE: 1004.40T Mfr Perkins CC: kW: HP:
217-2/4	1000.4 Mfr Perkins	217-2/4 ENGINE CODE: 1000.4 Mfr Perkins CC: kW: HP:
217PC	1000.4 Mfr Perkins	217PC ENGINE CODE: 1000.4 Mfr Perkins CC: kW: HP:
217S	1000.4 Mfr Perkins	217S ENGINE CODE: 1000.4 Mfr Perkins CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

210S

1000.4 Mfr Perkins

210S

1004.4 Tier I Mfr Perkins

210S

D3.152 Mfr Perkins

210SL

1000.4 Mfr Perkins

210SL

1004.4 Tier I Mfr Perkins

210SL

D3.152 Mfr Perkins

210SU

1000.4 Mfr Perkins

210SU

1004.4 Tier I Mfr Perkins

210SU

D3.152 Mfr Perkins

212S

1000.4 Mfr Perkins

212S

1004.4 Tier I Mfr Perkins

212SL

1000.4 Mfr Perkins

212SL

1004.4 Tier I Mfr Perkins

212SU

1000.4 Mfr Perkins

212SU

1004.4 Tier I Mfr Perkins

214 SITE MASTER

1004THR Mfr Perkins

214 WHEEL DRIVE

1004THR Mfr Perkins

214-2/4

1000.4 Mfr Perkins

214E-LE

1000.4 Mfr Perkins

214PC

1000.4 Mfr Perkins

214S

1000.4 Mfr Perkins

214SE

1000.4 Mfr Perkins

215-2/4

1000.4 Mfr Perkins

215E

1000.4 Mfr Perkins

215PC

1000.4 Mfr Perkins

215S

1000.4 Mfr Perkins

216-2/4 TURBO

1004.40T Mfr Perkins

217

1004.40T Mfr Perkins

217-2/4

1000.4 Mfr Perkins

217PC

1000.4 Mfr Perkins

217S

1000.4 Mfr Perkins

3-Serie | 21-

	ENGINE CODE
3C1400-2/4	4.236 Mfr Perkins	3C1400-2/4 ENGINE CODE: 4.236 Mfr Perkins CC: kW: HP:
3C1400-2/4 TURBO	4.236 Mfr Perkins	3C1400-2/4 TURBO ENGINE CODE: 4.236 Mfr Perkins CC: kW: HP:
3C1500-2/4	4.236 Mfr Perkins	3C1500-2/4 ENGINE CODE: 4.236 Mfr Perkins CC: kW: HP:
3C1500-2/4 TURBO	4.236 Mfr Perkins	3C1500-2/4 TURBO ENGINE CODE: 4.236 Mfr Perkins CC: kW: HP:
3D1700-2/4	4.236 Mfr Perkins	3D1700-2/4 ENGINE CODE: 4.236 Mfr Perkins CC: kW: HP:
3D1700-2/4 TURBO	4.236 Mfr Perkins	3D1700-2/4 TURBO ENGINE CODE: 4.236 Mfr Perkins CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

3C1400-2/4

4.236 Mfr Perkins

3C1400-2/4 TURBO

4.236 Mfr Perkins

3C1500-2/4

4.236 Mfr Perkins

3C1500-2/4 TURBO

4.236 Mfr Perkins

3D1700-2/4

4.236 Mfr Perkins

3D1700-2/4 TURBO

4.236 Mfr Perkins

4-Serie

	ENGINE CODE
4C TURBO	T4.236 Perkins	4C TURBO ENGINE CODE: T4.236 Perkins CC: kW: HP:
4CN-2/4	4.236 Perkins	4CN-2/4 ENGINE CODE: 4.236 Perkins CC: kW: HP:
4CN-2/4 TURBO	4.236 Perkins	4CN-2/4 TURBO ENGINE CODE: 4.236 Perkins CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

4C TURBO

T4.236 Perkins

4CN-2/4

4.236 Perkins

4CN-2/4 TURBO

4.236 Perkins

400-Serie (Radlader / Wheel Loader) | 87-

	ENGINE CODE	kW	HP	YEAR OF MANUFACTURE
406	Perkins D3.152	34	46	01/1993 →		406 ENGINE CODE: Perkins D3.152 CC: kW: 34 HP: 46 YEAR OF MANUFACTURE: 01/1993 →
407	1000.4 Mfr Perkins					407 ENGINE CODE: 1000.4 Mfr Perkins CC: kW: HP:
407	Perkins 1004.4	43	59	01/1994 →		407 ENGINE CODE: Perkins 1004.4 CC: kW: 43 HP: 59 YEAR OF MANUFACTURE: 01/1994 →
407B ZX	Perkins 1004.40	47	64	01/1998 →		407B ZX ENGINE CODE: Perkins 1004.40 CC: kW: 47 HP: 64 YEAR OF MANUFACTURE: 01/1998 →
408	1000.4 Mfr Perkins					408 ENGINE CODE: 1000.4 Mfr Perkins CC: kW: HP:
408	Perkins 1004.4	43	59	01/1989 →		408 ENGINE CODE: Perkins 1004.4 CC: kW: 43 HP: 59 YEAR OF MANUFACTURE: 01/1989 →
408B ZX	Perkins 1004.40	48	65	01/1998 →		408B ZX ENGINE CODE: Perkins 1004.40 CC: kW: 48 HP: 65 YEAR OF MANUFACTURE: 01/1998 →
409	1000.4 Mfr Perkins					409 ENGINE CODE: 1000.4 Mfr Perkins CC: kW: HP:
409	Perkins 1004.4	43	59	01/1993 →	i Use for OE no. 02/100284	409 ENGINE CODE: Perkins 1004.4 CC: kW: 43 HP: 59 YEAR OF MANUFACTURE: 01/1993 → i Use for OE no. 02/100284
409B ZX	Perkins 1004.40	53	72	01/1998 →		409B ZX ENGINE CODE: Perkins 1004.40 CC: kW: 53 HP: 72 YEAR OF MANUFACTURE: 01/1998 →
410	Perkins 4.236	54	74			410 ENGINE CODE: Perkins 4.236 CC: kW: 54 HP: 74
410	Perkins 1004.4	54	74	01/1988 →		410 ENGINE CODE: Perkins 1004.4 CC: kW: 54 HP: 74 YEAR OF MANUFACTURE: 01/1988 →
410B ZX	Perkins 1004.40			01/1998 →		410B ZX ENGINE CODE: Perkins 1004.40 CC: kW: HP: YEAR OF MANUFACTURE: 01/1998 →
410ZX	1004.4 Tier I Mfr Perkins					410ZX ENGINE CODE: 1004.4 Tier I Mfr Perkins CC: kW: HP:
411	Perkins 1004.4	56	76	01/1993 →		411 ENGINE CODE: Perkins 1004.4 CC: kW: 56 HP: 76 YEAR OF MANUFACTURE: 01/1993 →
411B	Perkins 1004	63	86	06/1997 →		411B ENGINE CODE: Perkins 1004 CC: kW: 63 HP: 86 YEAR OF MANUFACTURE: 06/1997 →
411B ZX	Perkins 1004.40			01/1998 →		411B ZX ENGINE CODE: Perkins 1004.40 CC: kW: HP: YEAR OF MANUFACTURE: 01/1998 →
411ZX	1004.4 Tier I Perkins					411ZX ENGINE CODE: 1004.4 Tier I Perkins CC: kW: HP:
412	Perkins T4.236					412 ENGINE CODE: Perkins T4.236 CC: kW: HP:
415	Perkins 1004.4T	66	90	01/1987 →		415 ENGINE CODE: Perkins 1004.4T CC: kW: 66 HP: 90 YEAR OF MANUFACTURE: 01/1987 →
426 / 426B	1006.6 Perkins					426 / 426B ENGINE CODE: 1006.6 Perkins CC: kW: HP:
426B ZX	Perkins 1004-40	102	139	01/1998 →		426B ZX ENGINE CODE: Perkins 1004-40 CC: kW: 102 HP: 139 YEAR OF MANUFACTURE: 01/1998 →
426HT / 426ZX	1006-60T Perkins					426HT / 426ZX ENGINE CODE: 1006-60T Perkins CC: kW: HP:
430	Perkins T6.354	102	139			430 ENGINE CODE: Perkins T6.354 CC: kW: 102 HP: 139
435						435 ENGINE CODE: CC: kW: HP:
435	Perkins 1006.6	115	157	01/1987 →		435 ENGINE CODE: Perkins 1006.6 CC: kW: 115 HP: 157 YEAR OF MANUFACTURE: 01/1987 →
435	Perkins					435 ENGINE CODE: Perkins CC: kW: HP:
436	1006.6 Perkins					436 ENGINE CODE: 1006.6 Perkins CC: kW: HP:
436 / 436B	Turbo 1006.6Ti Perkins					436 / 436B ENGINE CODE: Turbo 1006.6Ti Perkins CC: kW: HP:
436 B	Perkins				i Required quantity: 2 Piece	436 B ENGINE CODE: Perkins CC: kW: HP: i Required quantity: 2 Piece
436 B LE	Perkins			01/2000 →	i Required quantity: 2 Piece	436 B LE ENGINE CODE: Perkins CC: kW: HP: YEAR OF MANUFACTURE: 01/2000 → i Required quantity: 2 Piece
436B HT	Perkins 1004-40	122	166	01/1998 →		436B HT ENGINE CODE: Perkins 1004-40 CC: kW: 122 HP: 166 YEAR OF MANUFACTURE: 01/1998 →

ENGINE CODE

YEAR OF MANUFACTURE

406

Perkins D3.152

01/1993 →

407

1000.4 Mfr Perkins

407

Perkins 1004.4

01/1994 →

407B ZX

Perkins 1004.40

01/1998 →

408

1000.4 Mfr Perkins

408

Perkins 1004.4

01/1989 →

408B ZX

Perkins 1004.40

01/1998 →

409

1000.4 Mfr Perkins

409

Perkins 1004.4

01/1993 →

409B ZX

Perkins 1004.40

01/1998 →

410

Perkins 4.236

410

Perkins 1004.4

01/1988 →

410B ZX

Perkins 1004.40

01/1998 →

410ZX

1004.4 Tier I Mfr Perkins

411

Perkins 1004.4

01/1993 →

411B

Perkins 1004

06/1997 →

411B ZX

Perkins 1004.40

01/1998 →

411ZX

1004.4 Tier I Perkins

412

Perkins T4.236

415

Perkins 1004.4T

01/1987 →

426 / 426B

1006.6 Perkins

426B ZX

Perkins 1004-40

102

139

01/1998 →

426HT / 426ZX

1006-60T Perkins

430

Perkins T6.354

102

139

435

Perkins 1006.6

115

157

01/1987 →

435

Perkins

436

1006.6 Perkins

436 / 436B

Turbo 1006.6Ti Perkins

436 B

Perkins

436 B LE

Perkins

01/2000 →

436B HT

Perkins 1004-40

122

166

01/1998 →

5-Serie | 21-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
5 C	Perkins 4.248					i Partly/or	5 C ENGINE CODE: Perkins 4.248 CC: kW: HP: i Partly/or

ENGINE CODE

YEAR OF MANUFACTURE

5 C

Perkins 4.248

500-Serie (Teleskoplader / Telehandler) | 90-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
504B	1004.4 Perkins						504B ENGINE CODE: 1004.4 Perkins CC: kW: HP:
504B	1004.4TT Perkins						504B ENGINE CODE: 1004.4TT Perkins CC: kW: HP:
505-19/505-22/506-36	1004.4 Perkins						505-19/505-22/506-36 ENGINE CODE: 1004.4 Perkins CC: kW: HP:
505-22/505-19/506-36	1004.4TT Perkins						505-22/505-19/506-36 ENGINE CODE: 1004.4TT Perkins CC: kW: HP:
506-36					01/1990 → 12/1997		506-36 ENGINE CODE: CC: kW: HP: YEAR OF MANUFACTURE: 01/1990 → 12/1997
506B	1004.4TT Perkins						506B ENGINE CODE: 1004.4TT Perkins CC: kW: HP:
506C/506C LE/506C/HL LE/508C	1004.4TT/1104.4T Perkins						506C/506C LE/506C/HL LE/508C ENGINE CODE: 1004.4TT/1104.4T Perkins CC: kW: HP:
506C/LE/C/HL LE/508-40/C/C LE	1004.4/1104C.4 Perkins						506C/LE/C/HL LE/508-40/C/C LE ENGINE CODE: 1004.4/1104C.4 Perkins CC: kW: HP:
508-40	1004.4TT Perkins						508-40 ENGINE CODE: 1004.4TT Perkins CC: kW: HP:
508C LE	1104.4T Perkins						508C LE ENGINE CODE: 1104.4T Perkins CC: kW: HP:
510-40	1004.4 Perkins						510-40 ENGINE CODE: 1004.4 Perkins CC: kW: HP:
510-40	1004.4TT Perkins						510-40 ENGINE CODE: 1004.4TT Perkins CC: kW: HP:
520	1004.4 Perkins						520 ENGINE CODE: 1004.4 Perkins CC: kW: HP:
520-2/-2HL/-4/-4HL/M-2/M-4	4.236 Perkins						520-2/-2HL/-4/-4HL/M-2/M-4 ENGINE CODE: 4.236 Perkins CC: kW: HP:
520-2/-2HL/-4/-4HL/M-2/M-4	4.236T Perkins						520-2/-2HL/-4/-4HL/M-2/M-4 ENGINE CODE: 4.236T Perkins CC: kW: HP:
520-50	Perkins 1004-4					i Use for OE no. 02/100284	520-50 ENGINE CODE: Perkins 1004-4 CC: kW: HP: i Use for OE no. 02/100284
520-50/520SEL	1004.4 Perkins						520-50/520SEL ENGINE CODE: 1004.4 Perkins CC: kW: HP:
520-50LE/520LE	1004.4 Perkins						520-50LE/520LE ENGINE CODE: 1004.4 Perkins CC: kW: HP:
520-55	1004.4TT Perkins						520-55 ENGINE CODE: 1004.4TT Perkins CC: kW: HP:
520S/520-55	1004.4 Perkins						520S/520-55 ENGINE CODE: 1004.4 Perkins CC: kW: HP:
525-50/-50LE/-50S	1004.4 Perkins		54	73	01/2000 → 12/2004		525-50/-50LE/-50S ENGINE CODE: 1004.4 Perkins CC: kW: 54 HP: 73 YEAR OF MANUFACTURE: 01/2000 → 12/2004
525-58	1004.4HR Perkins						525-58 ENGINE CODE: 1004.4HR Perkins CC: kW: HP:
525-67	1004.4HR Perkins						525-67 ENGINE CODE: 1004.4HR Perkins CC: kW: HP:
525B-2/4/HL	4.236 Perkins						525B-2/4/HL ENGINE CODE: 4.236 Perkins CC: kW: HP:
525B-2/4/HL	4.236T Perkins						525B-2/4/HL ENGINE CODE: 4.236T Perkins CC: kW: HP:
525LE	1004.4 Perkins						525LE ENGINE CODE: 1004.4 Perkins CC: kW: HP:
526/526LE	1004.4 Perkins						526/526LE ENGINE CODE: 1004.4 Perkins CC: kW: HP:
526S	1004.4 Perkins						526S ENGINE CODE: 1004.4 Perkins CC: kW: HP:
526S	1004.4TT Perkins						526S ENGINE CODE: 1004.4TT Perkins CC: kW: HP:
527-67	Perkins 1004.4				01/1996 → 12/1997		527-67 ENGINE CODE: Perkins 1004.4 CC: kW: HP: YEAR OF MANUFACTURE: 01/1996 → 12/1997
528-70	1004.4 Perkins	4400	62	83	01/2006 →		528-70 ENGINE CODE: 1004.4 Perkins CC: 4400 kW: 62 HP: 83 YEAR OF MANUFACTURE: 01/2006 →
530	1004.4 Perkins						530 ENGINE CODE: 1004.4 Perkins CC: kW: HP:
530-67/530-95	1004.4HR Perkins						530-67/530-95 ENGINE CODE: 1004.4HR Perkins CC: kW: HP:
530B/-2/4/-2/4 HL	4.236 Perkins						530B/-2/4/-2/4 HL ENGINE CODE: 4.236 Perkins CC: kW: HP:
530B/-2/4/-2/4 HL	4.236T Perkins						530B/-2/4/-2/4 HL ENGINE CODE: 4.236T Perkins CC: kW: HP:
530FS	1004.4 Perkins						530FS ENGINE CODE: 1004.4 Perkins CC: kW: HP:
530LE	1004.4 Perkins						530LE ENGINE CODE: 1004.4 Perkins CC: kW: HP:
532/532LE	1004.4 Perkins						532/532LE ENGINE CODE: 1004.4 Perkins CC: kW: HP:
533-105	1004.4 Perkins					i Use for OE no. 32915802	533-105 ENGINE CODE: 1004.4 Perkins CC: kW: HP: i Use for OE no. 32915802
537-120	1104.4T Perkins						537-120 ENGINE CODE: 1104.4T Perkins CC: kW: HP:
537-120/537-130	1004.4 Perkins						537-120/537-130 ENGINE CODE: 1004.4 Perkins CC: kW: HP:
537-130	1104.4T Perkins						537-130 ENGINE CODE: 1104.4T Perkins CC: kW: HP:
540/540LE	1004.4 Perkins						540/540LE ENGINE CODE: 1004.4 Perkins CC: kW: HP:
540B/540B-2/4/540BM-2/4	4.236T Perkins						540B/540B-2/4/540BM-2/4 ENGINE CODE: 4.236T Perkins CC: kW: HP:
540B/540B-2/4/540BM-2/4	4.236 Perkins						540B/540B-2/4/540BM-2/4 ENGINE CODE: 4.236 Perkins CC: kW: HP:
540FS	1004.4 Perkins						540FS ENGINE CODE: 1004.4 Perkins CC: kW: HP:
550LE	1004.4 Perkins						550LE ENGINE CODE: 1004.4 Perkins CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

504B

1004.4 Perkins

504B

1004.4TT Perkins

505-19/505-22/506-36

1004.4 Perkins

505-22/505-19/506-36

1004.4TT Perkins

506-36

01/1990 → 12/1997

506B

1004.4TT Perkins

506C/506C LE/506C/HL LE/508C

1004.4TT/1104.4T Perkins

506C/LE/C/HL LE/508-40/C/C LE

1004.4/1104C.4 Perkins

508-40

1004.4TT Perkins

508C LE

1104.4T Perkins

510-40

1004.4 Perkins

510-40

1004.4TT Perkins

520

1004.4 Perkins

520-2/-2HL/-4/-4HL/M-2/M-4

4.236 Perkins

520-2/-2HL/-4/-4HL/M-2/M-4

4.236T Perkins

520-50

Perkins 1004-4

520-50/520SEL

1004.4 Perkins

520-50LE/520LE

1004.4 Perkins

520-55

1004.4TT Perkins

520S/520-55

1004.4 Perkins

525-50/-50LE/-50S

1004.4 Perkins

01/2000 → 12/2004

525-58

1004.4HR Perkins

525-67

1004.4HR Perkins

525B-2/4/HL

4.236 Perkins

525B-2/4/HL

4.236T Perkins

525LE

1004.4 Perkins

526/526LE

1004.4 Perkins

526S

1004.4 Perkins

526S

1004.4TT Perkins

527-67

Perkins 1004.4

01/1996 → 12/1997

528-70

1004.4 Perkins

4400

01/2006 →

530

1004.4 Perkins

530-67/530-95

1004.4HR Perkins

530B/-2/4/-2/4 HL

4.236 Perkins

530B/-2/4/-2/4 HL

4.236T Perkins

530FS

1004.4 Perkins

530LE

1004.4 Perkins

532/532LE

1004.4 Perkins

533-105

1004.4 Perkins

537-120

1104.4T Perkins

537-120/537-130

1004.4 Perkins

537-130

1104.4T Perkins

540/540LE

1004.4 Perkins

540B/540B-2/4/540BM-2/4

4.236T Perkins

540B/540B-2/4/540BM-2/4

4.236 Perkins

540FS

1004.4 Perkins

550LE

1004.4 Perkins

6-Serie | 21-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
6 / 6B / 6C / 6D / 7	Perkins 4.236					i Partly/or	6 / 6B / 6C / 6D / 7 ENGINE CODE: Perkins 4.236 CC: kW: HP: i Partly/or

ENGINE CODE

YEAR OF MANUFACTURE

6 / 6B / 6C / 6D / 7

Perkins 4.236

7-Serie

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
7B / 7C	4.236 Perkins						7B / 7C ENGINE CODE: 4.236 Perkins CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

7B / 7C

4.236 Perkins

700-Serie | 88-

	ENGINE CODE	kW	HP	YEAR OF MANUFACTURE
702	Perkins 4.236				i Partly/or	702 ENGINE CODE: Perkins 4.236 CC: kW: HP: i Partly/or
704	Perkins 4.236				i Partly/or	704 ENGINE CODE: Perkins 4.236 CC: kW: HP: i Partly/or
712	Perkins 6.354.4					712 ENGINE CODE: Perkins 6.354.4 CC: kW: HP:
712	Perkins 1006.6	84	115	01/1988 →		712 ENGINE CODE: Perkins 1006.6 CC: kW: 84 HP: 115 YEAR OF MANUFACTURE: 01/1988 →
716	Perkins 1006.6	102	139	01/1988 →		716 ENGINE CODE: Perkins 1006.6 CC: kW: 102 HP: 139 YEAR OF MANUFACTURE: 01/1988 →

ENGINE CODE

YEAR OF MANUFACTURE

702

Perkins 4.236

704

Perkins 4.236

712

Perkins 6.354.4

712

Perkins 1006.6

115

01/1988 →

716

Perkins 1006.6

102

139

01/1988 →

800 (Minibagger / Mini Excavators) | 88-

	ENGINE CODE	kW	HP	YEAR OF MANUFACTURE
805	Perkins 4.248				i 11/1974 ->	805 ENGINE CODE: Perkins 4.248 CC: kW: HP:
805 B Turbo	Perkins T4.236					805 B Turbo ENGINE CODE: Perkins T4.236 CC: kW: HP:
806	Perkins 4.248				i Partly/or	806 ENGINE CODE: Perkins 4.248 CC: kW: HP: i Partly/or
808	Perkins T6.354					808 ENGINE CODE: Perkins T6.354 CC: kW: HP:
812/SUPER/814/SUPER/S R'MASTER	Turbo T6.354 Perkins					812/SUPER/814/SUPER/S R'MASTER ENGINE CODE: Turbo T6.354 Perkins CC: kW: HP:
814 S	Perkins 1006.6	84	115	01/1988 →		814 S ENGINE CODE: Perkins 1006.6 CC: kW: 84 HP: 115 YEAR OF MANUFACTURE: 01/1988 →
816 S	Perkins 1006.6	84	115	01/1988 →		816 S ENGINE CODE: Perkins 1006.6 CC: kW: 84 HP: 115 YEAR OF MANUFACTURE: 01/1988 →
816SUPER/817/818/SUPER	Turbo T6.354 / 6.354 Perkins					816SUPER/817/818/SUPER ENGINE CODE: Turbo T6.354 / 6.354 Perkins CC: kW: HP:
820/820D	Turbo T6.354 Perkins					820/820D ENGINE CODE: Turbo T6.354 Perkins CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

805

Perkins 4.248

805 B Turbo

Perkins T4.236

806

Perkins 4.248

808

Perkins T6.354

812/SUPER/814/SUPER/S R'MASTER

Turbo T6.354 Perkins

814 S

Perkins 1006.6

115

01/1988 →

816 S

Perkins 1006.6

115

01/1988 →

816SUPER/817/818/SUPER

Turbo T6.354 / 6.354 Perkins

820/820D

Turbo T6.354 Perkins

900-Serie | 04-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
926	Perkins 4.236						926 ENGINE CODE: Perkins 4.236 CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

926

Perkins 4.236

CX (Baggerlader / Backhoe Loaders) | 87-

	ENGINE CODE	kW	HP	YEAR OF MANUFACTURE
2 CX Airmaster	Perkins				2 CX Airmaster ENGINE CODE: Perkins CC: kW: HP:
2 CX II 4x4x4	Perkins 1004.4	48	65	01/1991 → 12/2002	2 CX II 4x4x4 ENGINE CODE: Perkins 1004.4 CC: kW: 48 HP: 65 YEAR OF MANUFACTURE: 01/1991 → 12/2002
2 CXL 4x4x4	Perkins 1004.4	48	65	01/1992 →	2 CXL 4x4x4 ENGINE CODE: Perkins 1004.4 CC: kW: 48 HP: 65 YEAR OF MANUFACTURE: 01/1992 →
2CXMKII	Perkins 3.152 1993				2CXMKII ENGINE CODE: Perkins 3.152 1993 CC: kW: HP:
3 C 4	Perkins 4.236	56	76		3 C 4 ENGINE CODE: Perkins 4.236 CC: kW: 56 HP: 76
3 C/C2	Perkins 4.236	55	75		3 C/C2 ENGINE CODE: Perkins 4.236 CC: kW: 55 HP: 75
3 CX	Perkins 4.236	54	74		3 CX ENGINE CODE: Perkins 4.236 CC: kW: 54 HP: 74
3 CX 2	Perkins 4.236	56	76		3 CX 2 ENGINE CODE: Perkins 4.236 CC: kW: 56 HP: 76
3 CX 2/2S	Perkins 1004.4	57	78		3 CX 2/2S ENGINE CODE: Perkins 1004.4 CC: kW: 57 HP: 78
3 CX 2ED/SED	Perkins 1004.4	57	78		3 CX 2ED/SED ENGINE CODE: Perkins 1004.4 CC: kW: 57 HP: 78
3 CX 4	Perkins 1004.4	57	78		3 CX 4 ENGINE CODE: Perkins 1004.4 CC: kW: 57 HP: 78
3 CX 4ED	Perkins 4.236	56	76		3 CX 4ED ENGINE CODE: Perkins 4.236 CC: kW: 56 HP: 76
3 DB 4 EDT	Perkins T4.236	60	82		3 DB 4 EDT ENGINE CODE: Perkins T4.236 CC: kW: 60 HP: 82
3 DS 2/ED	Perkins 4.236	56	76		3 DS 2/ED ENGINE CODE: Perkins 4.236 CC: kW: 56 HP: 76
3 DS 4	Perkins 4.236	56	76		3 DS 4 ENGINE CODE: Perkins 4.236 CC: kW: 56 HP: 76
3CX TURBO	Perkins				3CX TURBO ENGINE CODE: Perkins CC: kW: HP:
3CX-2/4 SITEMASTER	4.236 Mfr Perkins				3CX-2/4 SITEMASTER ENGINE CODE: 4.236 Mfr Perkins CC: kW: HP:
3CX-2/4 TURBO SITEMASTER	4.236 Mfr Perkins				3CX-2/4 TURBO SITEMASTER ENGINE CODE: 4.236 Mfr Perkins CC: kW: HP:
3CXE	1000.4 Mfr Perkins				3CXE ENGINE CODE: 1000.4 Mfr Perkins CC: kW: HP:
4 C/CX Turbo	Perkins T4.236				4 C/CX Turbo ENGINE CODE: Perkins T4.236 CC: kW: HP:
4CX TURBO/4CX TURBO SERVO PLUS	1000.3 Perkins				4CX TURBO/4CX TURBO SERVO PLUS ENGINE CODE: 1000.3 Perkins CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

2 CX Airmaster

Perkins

2 CX II 4x4x4

Perkins 1004.4

01/1991 → 12/2002

2 CXL 4x4x4

Perkins 1004.4

01/1992 →

2CXMKII

Perkins 3.152 1993

3 C 4

Perkins 4.236

3 C/C2

Perkins 4.236

3 CX

Perkins 4.236

3 CX 2

Perkins 4.236

3 CX 2/2S

Perkins 1004.4

3 CX 2ED/SED

Perkins 1004.4

3 CX 4

Perkins 1004.4

3 CX 4ED

Perkins 4.236

3 DB 4 EDT

Perkins T4.236

3 DS 2/ED

Perkins 4.236

3 DS 4

Perkins 4.236

3CX TURBO

Perkins

3CX-2/4 SITEMASTER

4.236 Mfr Perkins

3CX-2/4 TURBO SITEMASTER

4.236 Mfr Perkins

3CXE

1000.4 Mfr Perkins

4 C/CX Turbo

Perkins T4.236

4CX TURBO/4CX TURBO SERVO PLUS

1000.3 Perkins

Fastrac-Serie (Traktoren / Tractors) | 98-

	ENGINE CODE
110	Perkins 1006.6	110 ENGINE CODE: Perkins 1006.6 CC: kW: HP:
125	Perkins 1006.6	125 ENGINE CODE: Perkins 1006.6 CC: kW: HP:
130	Perkins 1006.6T	130 ENGINE CODE: Perkins 1006.6T CC: kW: HP:
130 (636000)		130 (636000) ENGINE CODE: CC: kW: HP:
135	Perkins 1006.6THR	135 ENGINE CODE: Perkins 1006.6THR CC: kW: HP:
135 (636000)		135 (636000) ENGINE CODE: CC: kW: HP:
145	Perkins 1006.6T	145 ENGINE CODE: Perkins 1006.6T CC: kW: HP:
150 T	Perk. Phaser 160TW	150 T ENGINE CODE: Perk. Phaser 160TW CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

110

Perkins 1006.6

125

Perkins 1006.6

130

Perkins 1006.6T

130 (636000)

135

Perkins 1006.6THR

135 (636000)

145

Perkins 1006.6T

150 T

Perk. Phaser 160TW

LOADALL (Teleskopstapler / Telescopic Forklifts) |

	ENGINE CODE
505-19	Perkins	505-19 ENGINE CODE: Perkins CC: kW: HP:
505-22	Perkins	505-22 ENGINE CODE: Perkins CC: kW: HP:
505-36	Perkins	505-36 ENGINE CODE: Perkins CC: kW: HP:
508-40	Perkins	508-40 ENGINE CODE: Perkins CC: kW: HP:
510-40	Perkins	510-40 ENGINE CODE: Perkins CC: kW: HP:
520, 520 M/2/4	Perkins 4.236	520, 520 M/2/4 ENGINE CODE: Perkins 4.236 CC: kW: HP:
520-55	Perkins	520-55 ENGINE CODE: Perkins CC: kW: HP:
525-38	Perkins	525-38 ENGINE CODE: Perkins CC: kW: HP:
525-58	Perkins 1004.4	525-58 ENGINE CODE: Perkins 1004.4 CC: kW: HP:
525-67	Perkins 1004.4	525-67 ENGINE CODE: Perkins 1004.4 CC: kW: HP:
527	Perkins	527 ENGINE CODE: Perkins CC: kW: HP:
530	Perkins 4.236	530 ENGINE CODE: Perkins 4.236 CC: kW: HP:
530 B, B2/B4	Perkins 4.236	530 B, B2/B4 ENGINE CODE: Perkins 4.236 CC: kW: HP:
530-110	Perkins	530-110 ENGINE CODE: Perkins CC: kW: HP:
530-120	Perkins	530-120 ENGINE CODE: Perkins CC: kW: HP:
530-67	Perkins 1004.4	530-67 ENGINE CODE: Perkins 1004.4 CC: kW: HP:
530-95	Perkins	530-95 ENGINE CODE: Perkins CC: kW: HP:
535	Perkins	535 ENGINE CODE: Perkins CC: kW: HP:
540 BM2	Perkins	540 BM2 ENGINE CODE: Perkins CC: kW: HP:
540, 540 B/B2/B4	Perkins T4.236	540, 540 B/B2/B4 ENGINE CODE: Perkins T4.236 CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

505-19

Perkins

505-22

Perkins

505-36

Perkins

508-40

Perkins

510-40

Perkins

520, 520 M/2/4

Perkins 4.236

520-55

Perkins

525-38

Perkins

525-58

Perkins 1004.4

525-67

Perkins 1004.4

527

Perkins

530

Perkins 4.236

530 B, B2/B4

Perkins 4.236

530-110

Perkins

530-120

Perkins

530-67

Perkins 1004.4

530-95

Perkins

535

Perkins

540 BM2

Perkins

540, 540 B/B2/B4

Perkins T4.236

ROBOT (Deltalader / Compact Track Loaders) | 96-

	ENGINE CODE	CC	YEAR OF MANUFACTURE
110, 110 B/C	Perkins 4.248			110, 110 B/C ENGINE CODE: Perkins 4.248 CC: kW: HP:
170 (9802/4570)	Perkins 404C-22,404C-22T Tier2	373		170 (9802/4570) ENGINE CODE: Perkins 404C-22,404C-22T Tier2 CC: 373 kW: HP:
170 (9802/5470)	Perkins 404D-22,404D-22T Tier3	373	01/2008 → 01/2013	170 (9802/5470) ENGINE CODE: Perkins 404D-22,404D-22T Tier3 CC: 373 kW: HP: YEAR OF MANUFACTURE: 01/2008 → 01/2013
170 HF (9802/4570)	404D-22, 404D-22T Tier 3	373	01/2008 → 01/2013	170 HF (9802/4570) ENGINE CODE: 404D-22, 404D-22T Tier 3 CC: 373 kW: HP: YEAR OF MANUFACTURE: 01/2008 → 01/2013

ENGINE CODE

YEAR OF MANUFACTURE

110, 110 B/C

Perkins 4.248

170 (9802/4570)

Perkins 404C-22,404C-22T Tier2

373

170 (9802/5470)

Perkins 404D-22,404D-22T Tier3

373

01/2008 → 01/2013

170 HF (9802/4570)

404D-22, 404D-22T Tier 3

373

01/2008 → 01/2013

TLT-Serie (Gabelstapler / Fork Lifts) | 08-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
TLT 30 D 4x4	Perkins D404D-22 Tier 3	2200	37	49	01/2009 → 12/2016	TLT 30 D 4x4 ENGINE CODE: Perkins D404D-22 Tier 3 CC: 2200 kW: 37 HP: 49 YEAR OF MANUFACTURE: 01/2009 → 12/2016
TLT 30 D 4x4	Perkins 104-22					TLT 30 D 4x4 ENGINE CODE: Perkins 104-22 CC: kW: HP:
TLT20D	104.22 Diesel Perkins					TLT20D ENGINE CODE: 104.22 Diesel Perkins CC: kW: HP:
TLT20D	404-22 Diesel Perkins					TLT20D ENGINE CODE: 404-22 Diesel Perkins CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

TLT 30 D 4x4

Perkins D404D-22 Tier 3

2200

01/2009 → 12/2016

TLT 30 D 4x4

Perkins 104-22

TLT20D

104.22 Diesel Perkins

TLT20D

404-22 Diesel Perkins

JENBACHER GASMOTOREN

JW-Serie | 96-

	ENGINE CODE	kW	HP
220				220 ENGINE CODE: CC: kW: HP:
260				260 ENGINE CODE: CC: kW: HP:
302				302 ENGINE CODE: CC: kW: HP:
444	JW	30	41	444 ENGINE CODE: JW CC: kW: 30 HP: 41

ENGINE CODE

YEAR OF MANUFACTURE

220

260

302

444

JOHN DEERE

700-Serie | 74-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
730	Perkins 6.354						730 ENGINE CODE: Perkins 6.354 CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

730

Perkins 6.354

F-Serie

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
910	B48G Onan						910 ENGINE CODE: B48G Onan CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

910

B48G Onan

KOMATSU

PC (Kettenbagger / Crawler Excavators) | 80-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
PC 150-5	Perkins 1004.4THR						PC 150-5 ENGINE CODE: Perkins 1004.4THR CC: kW: HP:
PC 95-1	Perkins 1004.4						PC 95-1 ENGINE CODE: Perkins 1004.4 CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

PC 150-5

Perkins 1004.4THR

PC 95-1

Perkins 1004.4

PW (Mobilbagger / Wheeled Excavators) | 87-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
PW 95-1	Perkins 1004-4		56	76	01/1994 → 12/1999		PW 95-1 ENGINE CODE: Perkins 1004-4 CC: kW: 56 HP: 76 YEAR OF MANUFACTURE: 01/1994 → 12/1999

ENGINE CODE

YEAR OF MANUFACTURE

PW 95-1

Perkins 1004-4

01/1994 → 12/1999

KRAMER ALLRAD (WACKER NEUSON)

300-Serie | 86-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
318	Perkins 704-30		37	50	01/1997 →		318 ENGINE CODE: Perkins 704-30 CC: kW: 37 HP: 50 YEAR OF MANUFACTURE: 01/1997 →

ENGINE CODE

YEAR OF MANUFACTURE

318

Perkins 704-30

01/1997 →

400-Serie | 96-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
418	Perkins 704-30		44	60	01/1996 →		418 ENGINE CODE: Perkins 704-30 CC: kW: 44 HP: 60 YEAR OF MANUFACTURE: 01/1996 →

ENGINE CODE

YEAR OF MANUFACTURE

418

Perkins 704-30

01/1996 →

500-Serie | 87-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
520 (Serie II)	Perkins 1004-4LR		53	72	01/2000 →		520 (Serie II) ENGINE CODE: Perkins 1004-4LR CC: kW: 53 HP: 72 YEAR OF MANUFACTURE: 01/2000 →

ENGINE CODE

YEAR OF MANUFACTURE

520 (Serie II)

Perkins 1004-4LR

01/2000 →

600-Serie | 92-

	ENGINE CODE	kW	HP	YEAR OF MANUFACTURE
612SL	Perkins 1004-4T	72	98	01/1992 →	612SL ENGINE CODE: Perkins 1004-4T CC: kW: 72 HP: 98 YEAR OF MANUFACTURE: 01/1992 →
616 (Serie II)	Perkins 1004-40T	73	100	01/1999 →	616 (Serie II) ENGINE CODE: Perkins 1004-40T CC: kW: 73 HP: 100 YEAR OF MANUFACTURE: 01/1999 →
616S	Perkins 1004-4T	75	102	01/1993 → 12/1998	616S ENGINE CODE: Perkins 1004-4T CC: kW: 75 HP: 102 YEAR OF MANUFACTURE: 01/1993 → 12/1998
620 (Serie II)	Perkins 1004-4	60	82	01/2000 →	620 (Serie II) ENGINE CODE: Perkins 1004-4 CC: kW: 60 HP: 82 YEAR OF MANUFACTURE: 01/2000 →

ENGINE CODE

YEAR OF MANUFACTURE

612SL

Perkins 1004-4T

01/1992 →

616 (Serie II)

Perkins 1004-40T

100

01/1999 →

616S

Perkins 1004-4T

102

01/1993 → 12/1998

620 (Serie II)

Perkins 1004-4

01/2000 →

700-Serie | 77-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
720 (Serie II)	Perkins 1004-4T		74	100	01/2000 →		720 (Serie II) ENGINE CODE: Perkins 1004-4T CC: kW: 74 HP: 100 YEAR OF MANUFACTURE: 01/2000 →
721T	Perkins 1004.42		60	82	01/2002 → 12/2004		721T ENGINE CODE: Perkins 1004.42 CC: kW: 60 HP: 82 YEAR OF MANUFACTURE: 01/2002 → 12/2004

ENGINE CODE

YEAR OF MANUFACTURE

720 (Serie II)

Perkins 1004-4T

100

01/2000 →

721T

Perkins 1004.42

01/2002 → 12/2004

800-Serie | 99-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
808 (Serie 3)	Perkins 1004-42		56	74	01/1999 →		808 (Serie 3) ENGINE CODE: Perkins 1004-42 CC: kW: 56 HP: 74 YEAR OF MANUFACTURE: 01/1999 →
812 (Serie 3)	Perkins 1004-40T		72	96	01/1999 →		812 (Serie 3) ENGINE CODE: Perkins 1004-40T CC: kW: 72 HP: 96 YEAR OF MANUFACTURE: 01/1999 →

ENGINE CODE

YEAR OF MANUFACTURE

808 (Serie 3)

Perkins 1004-42

01/1999 →

812 (Serie 3)

Perkins 1004-40T

01/1999 →

KRIEGER TRAKTOREN

K-Serie | 95-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
75 A	MWM D226 B-4		55	75	01/1995 →		75 A ENGINE CODE: MWM D226 B-4 CC: kW: 55 HP: 75 YEAR OF MANUFACTURE: 01/1995 →

ENGINE CODE

YEAR OF MANUFACTURE

75 A

MWM D226 B-4

01/1995 →

KUBOTA

KH-Series (Minibagger / Mini Excavators) | 81-

	ENGINE CODE	kW	HP	YEAR OF MANUFACTURE
10 (SN 51042 ->)	D 1101				10 (SN 51042 ->) ENGINE CODE: D 1101 CC: kW: HP:
170L	S 2600	35	48	01/1985 →	170L ENGINE CODE: S 2600 CC: kW: 35 HP: 48 YEAR OF MANUFACTURE: 01/1985 →
191	S2800D	41	56	01/1988 →	191 ENGINE CODE: S2800D CC: kW: 41 HP: 56 YEAR OF MANUFACTURE: 01/1988 →

ENGINE CODE

YEAR OF MANUFACTURE

10 (SN 51042 ->)

D 1101

170L

S 2600

01/1985 →

191

S2800D

01/1988 →

L-Series | 75-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
L 345 / W	Kubota V1501-DA	1487	25	34	01/1978 → 12/1985	i Filter for: L 345 W	L 345 / W ENGINE CODE: Kubota V1501-DA CC: 1487 kW: 25 HP: 34 YEAR OF MANUFACTURE: 01/1978 → 12/1985 i Filter for: L 345 W
L 4150 DT-Narrow / F / DT	Kubota F2302-DI-2	2326	37	50	01/1984 → 12/1990	i Partly/or. Use for OE no. 15402-32430	L 4150 DT-Narrow / F / DT ENGINE CODE: Kubota F2302-DI-2 CC: 2326 kW: 37 HP: 50 YEAR OF MANUFACTURE: 01/1984 → 12/1990 i Partly/or. Use for OE no. 15402-32430

ENGINE CODE

YEAR OF MANUFACTURE

L 345 / W

Kubota V1501-DA

1487

01/1978 → 12/1985

L 4150 DT-Narrow / F / DT

Kubota F2302-DI-2

2326

01/1984 → 12/1990

M-Series | 76-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
M 4000	Kubota S2200-A	2231	36	48	01/1976 → 12/1983		M 4000 ENGINE CODE: Kubota S2200-A CC: 2231 kW: 36 HP: 48 YEAR OF MANUFACTURE: 01/1976 → 12/1983

ENGINE CODE

YEAR OF MANUFACTURE

M 4000

Kubota S2200-A

2231

01/1976 → 12/1983

M30-Series | 86-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
M 4030 / DT	Kubota S2602-DI-A	2231	36	48	01/1986 → 12/1989		M 4030 / DT ENGINE CODE: Kubota S2602-DI-A CC: 2231 kW: 36 HP: 48 YEAR OF MANUFACTURE: 01/1986 → 12/1989
M 4030 SU / TF	Kubota F2402-DI-A	2231	38	51	01/1988 → 12/1998	i From chassis no. 22427. Up to chassis no. 22426	M 4030 SU / TF ENGINE CODE: Kubota F2402-DI-A CC: 2231 kW: 38 HP: 51 YEAR OF MANUFACTURE: 01/1988 → 12/1998 i From chassis no. 22427. Up to chassis no. 22426
M 5030 /DTL/F/L/MDT/MDTL/MF/SU/SUMDT/V	Kubota S2802-DI-A	2791	40	55	01/1986 → 12/1996		M 5030 /DTL/F/L/MDT/MDTL/MF/SU/SUMDT/V ENGINE CODE: Kubota S2802-DI-A CC: 2791 kW: 40 HP: 55 YEAR OF MANUFACTURE: 01/1986 → 12/1996

ENGINE CODE

YEAR OF MANUFACTURE

M 4030 / DT

Kubota S2602-DI-A

2231

01/1986 → 12/1989

M 4030 SU / TF

Kubota F2402-DI-A

2231

01/1988 → 12/1998

M 5030 /DTL/F/L/MDT/MDTL/MF/SU/SUMDT/V

Kubota S2802-DI-A

2791

01/1986 → 12/1996

M50-Series | 82-94

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
M 4950 / DT	Kubota S2800-A	2791	40	55	01/1983 → 12/1993		M 4950 / DT ENGINE CODE: Kubota S2800-A CC: 2791 kW: 40 HP: 55 YEAR OF MANUFACTURE: 01/1983 → 12/1993

ENGINE CODE

YEAR OF MANUFACTURE

M 4950 / DT

Kubota S2800-A

2791

01/1983 → 12/1993

LAMBORGHINI

300-Serie

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
C 353 L/LL							C 353 L/LL ENGINE CODE: CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

C 353 L/LL

400-Serie

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
R 483							R 483 ENGINE CODE: CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

R 483

500-Serie

	ENGINE CODE
C 503	983P	C 503 ENGINE CODE: 983P CC: kW: HP:
R 500		R 500 ENGINE CODE: CC: kW: HP:
R 550 DT		R 550 DT ENGINE CODE: CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

C 503

983P

R 500

R 550 DT

600-Serie | 99-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
C 603	983P						C 603 ENGINE CODE: 983P CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

C 603

983P

LANCER BOSS

Front Loaders-Serie

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
Front Loader	Perk. 3.152/4.203					i Partly/or	Front Loader ENGINE CODE: Perk. 3.152/4.203 CC: kW: HP: i Partly/or

ENGINE CODE

YEAR OF MANUFACTURE

Front Loader

Perk. 3.152/4.203

LANDINI (ARGO)

13000-Serie | 84-87

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
13500C	Perkins						13500C ENGINE CODE: Perkins CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

13500C

Perkins

14000-Serie | 78-87

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
R 14500, 14500 Mk. II Turbo	Perkins AT6.354.4	5800	99	135	01/1978 → 12/1987		R 14500, 14500 Mk. II Turbo ENGINE CODE: Perkins AT6.354.4 CC: 5800 kW: 99 HP: 135 YEAR OF MANUFACTURE: 01/1978 → 12/1987

ENGINE CODE

YEAR OF MANUFACTURE

R 14500, 14500 Mk. II Turbo

Perkins AT6.354.4

5800

135

01/1978 → 12/1987

16000-Serie

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
16500 DT Turbo-Intercooler	Perkins AT6.3544.4						16500 DT Turbo-Intercooler ENGINE CODE: Perkins AT6.3544.4 CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

16500 DT Turbo-Intercooler

Perkins AT6.3544.4

505-Serie

	ENGINE CODE
5505	Perkins	5505 ENGINE CODE: Perkins CC: kW: HP:
6505	Perkins	6505 ENGINE CODE: Perkins CC: kW: HP:
7505	Perkins	7505 ENGINE CODE: Perkins CC: kW: HP:

ENGINE CODE

YEAR OF MANUFACTURE

5505

Perkins

6505

Perkins

7505

Perkins

60-Serie | 88-00

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
6860 (4068)	Perkins A4236D	3860	48	65	01/1997 → 12/2000	6860 (4068) ENGINE CODE: Perkins A4236D CC: 3860 kW: 48 HP: 65 YEAR OF MANUFACTURE: 01/1997 → 12/2000
7860 (4068)	Perkins AD4.236	3865	54	72	01/1988 → 12/1999	7860 (4068) ENGINE CODE: Perkins AD4.236 CC: 3865 kW: 54 HP: 72 YEAR OF MANUFACTURE: 01/1988 → 12/1999
7860 HC (4068)	Perkins AD4.236	3865	54	72	01/1988 → 12/1999	7860 HC (4068) ENGINE CODE: Perkins AD4.236 CC: 3865 kW: 54 HP: 72 YEAR OF MANUFACTURE: 01/1988 → 12/1999
9060 (4068)	Perkins LJ31229	3860	76	103	01/1988 → 12/1999	9060 (4068) ENGINE CODE: Perkins LJ31229 CC: 3860 kW: 76 HP: 103 YEAR OF MANUFACTURE: 01/1988 → 12/1999

ENGINE CODE

YEAR OF MANUFACTURE

6860 (4068)

Perkins A4236D

3860

01/1997 → 12/2000

7860 (4068)

Perkins AD4.236

3865

01/1988 → 12/1999

7860 HC (4068)

Perkins AD4.236

3865

01/1988 → 12/1999

9060 (4068)

Perkins LJ31229

3860

103

01/1988 → 12/1999

6000-Serie | 73-00

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
6500	Perkins A4.236	3865	48	65	01/1973 → 12/1983	i Partly/or	6500 ENGINE CODE: Perkins A4.236 CC: 3865 kW: 48 HP: 65 YEAR OF MANUFACTURE: 01/1973 → 12/1983 i Partly/or
6530	Perkins A4.236						6530 ENGINE CODE: Perkins A4.236 CC: kW: HP:
6550	Perkins A4.236	3865	48	65	01/1978 → 12/1987		6550 ENGINE CODE: Perkins A4.236 CC: 3865 kW: 48 HP: 65 YEAR OF MANUFACTURE: 01/1978 → 12/1987
6560	Perkins 4.236	3900	48	65	01/1988 → 12/1995		6560 ENGINE CODE: Perkins 4.236 CC: 3900 kW: 48 HP: 65 YEAR OF MANUFACTURE: 01/1988 → 12/1995
6580	Perkins 4.236						6580 ENGINE CODE: Perkins 4.236 CC: kW: HP:
6650	Perkins						6650 ENGINE CODE: Perkins CC: kW: HP:
6830	Perkins A4.236	3865	48	65	01/1983 → 12/1987		6830 ENGINE CODE: Perkins A4.236 CC: 3865 kW: 48 HP: 65 YEAR OF MANUFACTURE: 01/1983 → 12/1987
6840	Perkins						6840 ENGINE CODE: Perkins CC: kW: HP:
6880 (4070)	Perkins 4.236	3860	46	62	01/1987 → 12/1997		6880 (4070) ENGINE CODE: Perkins 4.236 CC: 3860 kW: 46 HP: 62 YEAR OF MANUFACTURE: 01/1987 → 12/1997
6880 (ViewMaster) (4070)	Perkins A4.236	3860	46	62	01/1988 → 12/1999		6880 (ViewMaster) (4070) ENGINE CODE: Perkins A4.236 CC: 3860 kW: 46 HP: 62 YEAR OF MANUFACTURE: 01/1988 → 12/1999

ENGINE CODE

YEAR OF MANUFACTURE

6500

Perkins A4.236

3865

01/1973 → 12/1983

6530

Perkins A4.236

6550

Perkins A4.236

3865

01/1978 → 12/1987

6560

Perkins 4.236

3900

01/1988 → 12/1995

6580

Perkins 4.236

6650

Perkins

6830

Perkins A4.236

3865

01/1983 → 12/1987

6840

Perkins

6880 (4070)

Perkins 4.236

3860

01/1987 → 12/1997

6880 (ViewMaster) (4070)

Perkins A4.236

3860

01/1988 → 12/1999

7000-Serie | 73-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
7500	Perkins A4.236	3865	54	72	01/1973 → 12/1983	i Partly/or	7500 ENGINE CODE: Perkins A4.236 CC: 3865 kW: 54 HP: 72 YEAR OF MANUFACTURE: 01/1973 → 12/1983 i Partly/or
7530, 7530 F2/F4	Perkins						7530, 7530 F2/F4 ENGINE CODE: Perkins CC: kW: HP:
7550, 7550/2, 7550/4	Perkins A4.236	3865	52	70	01/1978 → 12/1987		7550, 7550/2, 7550/4 ENGINE CODE: Perkins A4.236 CC: 3865 kW: 52 HP: 70 YEAR OF MANUFACTURE: 01/1978 → 12/1987
7560	Perkins 4.236	3900	53	72	01/1988 → 12/1995		7560 ENGINE CODE: Perkins 4.236 CC: 3900 kW: 53 HP: 72 YEAR OF MANUFACTURE: 01/1988 → 12/1995
7580	Perkins						7580 ENGINE CODE: Perkins CC: kW: HP:
7800C, 7830C	Perkins						7800C, 7830C ENGINE CODE: Perkins CC: kW: HP:
7830/2, 7830/4	Perkins A4.236	3865	54	72	01/1983 → 12/1987		7830/2, 7830/4 ENGINE CODE: Perkins A4.236 CC: 3865 kW: 54 HP: 72 YEAR OF MANUFACTURE: 01/1983 → 12/1987
7870	Perkins A4.236	3870	53	71	01/1988 → 12/2000		7870 ENGINE CODE: Perkins A4.236 CC: 3870 kW: 53 HP: 71 YEAR OF MANUFACTURE: 01/1988 → 12/2000
7880 (4070)	Perkins AD4.236	3860	52	71	01/1987 → 12/1999		7880 (4070) ENGINE CODE: Perkins AD4.236 CC: 3860 kW: 52 HP: 71 YEAR OF MANUFACTURE: 01/1987 → 12/1999
7880 (ViewMaster) (4070)	Perkins AD4.236	3860	52	71	01/1987 → 12/1999		7880 (ViewMaster) (4070) ENGINE CODE: Perkins AD4.236 CC: 3860 kW: 52 HP: 71 YEAR OF MANUFACTURE: 01/1987 → 12/1999

ENGINE CODE

YEAR OF MANUFACTURE

7500

Perkins A4.236

3865

01/1973 → 12/1983

7530, 7530 F2/F4

Perkins

7550, 7550/2, 7550/4

Perkins A4.236

3865

01/1978 → 12/1987

7560

Perkins 4.236

3900

01/1988 → 12/1995

7580

Perkins

7800C, 7830C

Perkins

7830/2, 7830/4

Perkins A4.236

3865

01/1983 → 12/1987

7870

Perkins A4.236

3870

01/1988 → 12/2000

7880 (4070)

Perkins AD4.236

3860

01/1987 → 12/1999

7880 (ViewMaster) (4070)

Perkins AD4.236

3860

01/1987 → 12/1999

8000-Serie | 73-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
8000R, 8000DT, 8000S	Perkins					i Spin-on filter	8000R, 8000DT, 8000S ENGINE CODE: Perkins CC: kW: HP: i Spin-on filter
8500	Perkins A4.248	4065	59	80	01/1973 → 12/1983	i Spin-on filter	8500 ENGINE CODE: Perkins A4.248 CC: 4065 kW: 59 HP: 80 YEAR OF MANUFACTURE: 01/1973 → 12/1983 i Spin-on filter
8530/2, 8530/4	Perkins AD3.152S	4100	59	80	01/1982 → 12/1987		8530/2, 8530/4 ENGINE CODE: Perkins AD3.152S CC: 4100 kW: 59 HP: 80 YEAR OF MANUFACTURE: 01/1982 → 12/1987
8550/2, 8550/4	Perkins A4.248	4065	59	80	01/1978 → 12/1987		8550/2, 8550/4 ENGINE CODE: Perkins A4.248 CC: 4065 kW: 59 HP: 80 YEAR OF MANUFACTURE: 01/1978 → 12/1987
8560	Perkins		59	80	01/1988 → 12/1995		8560 ENGINE CODE: Perkins CC: kW: 59 HP: 80 YEAR OF MANUFACTURE: 01/1988 → 12/1995
8830/2, 8830/4	Perkins A4.248	4065	59	80	01/1983 → 12/1987		8830/2, 8830/4 ENGINE CODE: Perkins A4.248 CC: 4065 kW: 59 HP: 80 YEAR OF MANUFACTURE: 01/1983 → 12/1987
8850/2, 8850/4	Perkins A4.248						8850/2, 8850/4 ENGINE CODE: Perkins A4.248 CC: kW: HP:
8860	Perkins AD4.248		59	80			8860 ENGINE CODE: Perkins AD4.248 CC: kW: 59 HP: 80
8870	Perkins A4.248	4065	59	80	01/1988 → 12/2000		8870 ENGINE CODE: Perkins A4.248 CC: 4065 kW: 59 HP: 80 YEAR OF MANUFACTURE: 01/1988 → 12/2000
8880 (ViewMaster) (4070)	Perkins AD4.248	4065	59	80	01/1987 → 12/1999		8880 (ViewMaster) (4070) ENGINE CODE: Perkins AD4.248 CC: 4065 kW: 59 HP: 80 YEAR OF MANUFACTURE: 01/1987 → 12/1999
8880 / HC (4070)	Perkins A4.248	4065	59	80	01/1987 → 12/1999		8880 / HC (4070) ENGINE CODE: Perkins A4.248 CC: 4065 kW: 59 HP: 80 YEAR OF MANUFACTURE: 01/1987 → 12/1999

ENGINE CODE

YEAR OF MANUFACTURE

8000R, 8000DT, 8000S

Perkins

8500

Perkins A4.248

4065

01/1973 → 12/1983

8530/2, 8530/4

Perkins AD3.152S

4100

01/1982 → 12/1987

8550/2, 8550/4

Perkins A4.248

4065

01/1978 → 12/1987

8560

Perkins

01/1988 → 12/1995

8830/2, 8830/4

Perkins A4.248

4065

01/1983 → 12/1987

8850/2, 8850/4

Perkins A4.248

8860

Perkins AD4.248

8870

Perkins A4.248

4065

01/1988 → 12/2000

8880 (ViewMaster) (4070)

Perkins AD4.248

4065

01/1987 → 12/1999

8880 / HC (4070)

Perkins A4.248

4065

01/1987 → 12/1999

9000-Serie | 73-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
9080 / HC (4070)	Perkins AT4.236C	3860	63	86	01/1993 → 12/1999		9080 / HC (4070) ENGINE CODE: Perkins AT4.236C CC: 3860 kW: 63 HP: 86 YEAR OF MANUFACTURE: 01/1993 → 12/1999
9880 / HC (4070)	Perkins AT4.236C	3860	68	93	01/1987 → 12/1999		9880 / HC (4070) ENGINE CODE: Perkins AT4.236C CC: 3860 kW: 68 HP: 93 YEAR OF MANUFACTURE: 01/1987 → 12/1999

ENGINE CODE

YEAR OF MANUFACTURE

9080 / HC (4070)

Perkins AT4.236C

3860

01/1993 → 12/1999

9880 / HC (4070)

Perkins AT4.236C

3860

01/1987 → 12/1999

Advantage | 97-00

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
60 F/V (L003)	Perkins AT3.152.4	2500	43	59	01/1997 → 12/2000	i Partly/or	60 F/V (L003) ENGINE CODE: Perkins AT3.152.4 CC: 2500 kW: 43 HP: 59 YEAR OF MANUFACTURE: 01/1997 → 12/2000 i Partly/or
65 V/GT/L (L003)	Perkins AD4.236D	3900	50	67	01/1997 → 12/2000		65 V/GT/L (L003) ENGINE CODE: Perkins AD4.236D CC: 3900 kW: 50 HP: 67 YEAR OF MANUFACTURE: 01/1997 → 12/2000
75 F/FGT/V/L (L003)	Perkins AD4.236	3900	55	74	01/1997 → 12/2000		75 F/FGT/V/L (L003) ENGINE CODE: Perkins AD4.236 CC: 3900 kW: 55 HP: 74 YEAR OF MANUFACTURE: 01/1997 → 12/2000
85 F/GT/L (L003)	Perkins AD4.248	4100	62	83	01/1997 → 12/2000		85 F/GT/L (L003) ENGINE CODE: Perkins AD4.248 CC: 4100 kW: 62 HP: 83 YEAR OF MANUFACTURE: 01/1997 → 12/2000
95 GT/L (L003)	Perkins T4.236	4100	67	90	01/1997 → 12/2000		95 GT/L (L003) ENGINE CODE: Perkins T4.236 CC: 4100 kW: 67 HP: 90 YEAR OF MANUFACTURE: 01/1997 → 12/2000

ENGINE CODE

YEAR OF MANUFACTURE

60 F/V (L003)

Perkins AT3.152.4

2500

01/1997 → 12/2000

65 V/GT/L (L003)

Perkins AD4.236D

3900

01/1997 → 12/2000

75 F/FGT/V/L (L003)

Perkins AD4.236

3900

01/1997 → 12/2000

85 F/GT/L (L003)

Perkins AD4.248

4100

01/1997 → 12/2000

95 GT/L (L003)

Perkins T4.236

4100

01/1997 → 12/2000

Atlantis | 01-04

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
DT 80 (RT50)	Perkins 1004-42	4230	58	78	01/2001 → 12/2003	DT 80 (RT50) ENGINE CODE: Perkins 1004-42 CC: 4230 kW: 58 HP: 78 YEAR OF MANUFACTURE: 01/2001 → 12/2003
DT 80 HC (RT50)	Perkins 1004-42	4230	58	78	01/2003 → 12/2004	DT 80 HC (RT50) ENGINE CODE: Perkins 1004-42 CC: 4230 kW: 58 HP: 78 YEAR OF MANUFACTURE: 01/2003 → 12/2004
DT 85 (RT50)	Perkins 1004-42	4230	58	78	01/2002 → 12/2004	DT 85 (RT50) ENGINE CODE: Perkins 1004-42 CC: 4230 kW: 58 HP: 78 YEAR OF MANUFACTURE: 01/2002 → 12/2004

ENGINE CODE

YEAR OF MANUFACTURE

DT 80 (RT50)

Perkins 1004-42

4230

01/2001 → 12/2003

DT 80 HC (RT50)

Perkins 1004-42

4230

01/2003 → 12/2004

DT 85 (RT50)

Perkins 1004-42

4230

01/2002 → 12/2004

Atlas (Trekker) | 99-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
100, 100DT	Perkins 1004-40T	3990	68	93	05/1999 → 12/2003		100, 100DT ENGINE CODE: Perkins 1004-40T CC: 3990 kW: 68 HP: 93 YEAR OF MANUFACTURE: 05/1999 → 12/2003
70	Perkins 1004-40	3990	49	67	05/1999 →		70 ENGINE CODE: Perkins 1004-40 CC: 3990 kW: 49 HP: 67 YEAR OF MANUFACTURE: 05/1999 →
70 / 70DT	Perkins 1004-40	3990	49	67	05/1999 →		70 / 70DT ENGINE CODE: Perkins 1004-40 CC: 3990 kW: 49 HP: 67 YEAR OF MANUFACTURE: 05/1999 →
75	Perkins 1004.4		49	67	01/1999 → 12/2003		75 ENGINE CODE: Perkins 1004.4 CC: kW: 49 HP: 67 YEAR OF MANUFACTURE: 01/1999 → 12/2003
75 DT	Perkins 1004.4		49	67	01/1999 → 12/2003		75 DT ENGINE CODE: Perkins 1004.4 CC: kW: 49 HP: 67 YEAR OF MANUFACTURE: 01/1999 → 12/2003
80 DT	Perkins 1004-42	4230	59	80	05/1999 → 12/2001	i Partly/or	80 DT ENGINE CODE: Perkins 1004-42 CC: 4230 kW: 59 HP: 80 YEAR OF MANUFACTURE: 05/1999 → 12/2001 i Partly/or
80, 80DT	Perkins 1004-42	4230	57	78	05/1999 →		80, 80DT ENGINE CODE: Perkins 1004-42 CC: 4230 kW: 57 HP: 78 YEAR OF MANUFACTURE: 05/1999 →
85 DT	Perkins 1004.4	4230	63	85	01/1999 → 12/2003		85 DT ENGINE CODE: Perkins 1004.4 CC: 4230 kW: 63 HP: 85 YEAR OF MANUFACTURE: 01/1999 → 12/2003
90	Perkins 1004-40T	3990	65	89	05/1999 →		90 ENGINE CODE: Perkins 1004-40T CC: 3990 kW: 65 HP: 89 YEAR OF MANUFACTURE: 05/1999 →
90 DT	Perkins 1004-40T	3990	67	90	05/1999 →		90 DT ENGINE CODE: Perkins 1004-40T CC: 3990 kW: 67 HP: 90 YEAR OF MANUFACTURE: 05/1999 →

ENGINE CODE

YEAR OF MANUFACTURE

100, 100DT

Perkins 1004-40T

3990

05/1999 → 12/2003

Perkins 1004-40

3990

05/1999 →

70 / 70DT

Perkins 1004-40

3990

05/1999 →

Perkins 1004.4

01/1999 → 12/2003

75 DT

Perkins 1004.4

01/1999 → 12/2003

80 DT

Perkins 1004-42

4230

05/1999 → 12/2001

80, 80DT

Perkins 1004-42

4230

05/1999 →

85 DT

Perkins 1004.4

4230

01/1999 → 12/2003

Perkins 1004-40T

3990

05/1999 →

90 DT

Perkins 1004-40T

3990

05/1999 →

Blizzard | 92-99

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
65 (L002)	Perkins A4.236	3860	46	62	01/1992 → 12/1999	65 (L002) ENGINE CODE: Perkins A4.236 CC: 3860 kW: 46 HP: 62 YEAR OF MANUFACTURE: 01/1992 → 12/1999
75 (L002)	Perkins AD4.236	3860	52	71	01/1992 → 12/1999	75 (L002) ENGINE CODE: Perkins AD4.236 CC: 3860 kW: 52 HP: 71 YEAR OF MANUFACTURE: 01/1992 → 12/1999
85 (L002)	Perkins AD4.248	4065	59	80	01/1992 → 12/1999	85 (L002) ENGINE CODE: Perkins AD4.248 CC: 4065 kW: 59 HP: 80 YEAR OF MANUFACTURE: 01/1992 → 12/1999
95 (L002)	Perkins AT4.236C	3860	63	86	01/1992 → 12/1999	95 (L002) ENGINE CODE: Perkins AT4.236C CC: 3860 kW: 63 HP: 86 YEAR OF MANUFACTURE: 01/1992 → 12/1999

ENGINE CODE

YEAR OF MANUFACTURE

65 (L002)

Perkins A4.236

3860

01/1992 → 12/1999

75 (L002)

Perkins AD4.236

3860

01/1992 → 12/1999

85 (L002)

Perkins AD4.248

4065

01/1992 → 12/1999

95 (L002)

Perkins AT4.236C

3860

01/1992 → 12/1999

Ghibli | 00-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
100	Perkins 1004-40T Tier1	3990	69	93	01/2000 → 12/2003	i Partly/or	100 ENGINE CODE: Perkins 1004-40T Tier1 CC: 3990 kW: 69 HP: 93 YEAR OF MANUFACTURE: 01/2000 → 12/2003 i Partly/or
100, 100DT	Perkins 1004-40T		68	93	02/2000 →		100, 100DT ENGINE CODE: Perkins 1004-40T CC: kW: 68 HP: 93 YEAR OF MANUFACTURE: 02/2000 →
80	Perkins 1004-42	4230	59	80	01/2001 → 12/2004		80 ENGINE CODE: Perkins 1004-42 CC: 4230 kW: 59 HP: 80 YEAR OF MANUFACTURE: 01/2001 → 12/2004
80 DT	Perkins 1004-42	4230	59	80	01/2001 → 12/2003		80 DT ENGINE CODE: Perkins 1004-42 CC: 4230 kW: 59 HP: 80 YEAR OF MANUFACTURE: 01/2001 → 12/2003
90	Perkins 1004-40T Tier1	3990	66	90	01/2000 → 12/2003	i Partly/or	90 ENGINE CODE: Perkins 1004-40T Tier1 CC: 3990 kW: 66 HP: 90 YEAR OF MANUFACTURE: 01/2000 → 12/2003 i Partly/or
90, 90DT	Perkins 1004-40T		65	89	02/2000 → 12/2003		90, 90DT ENGINE CODE: Perkins 1004-40T CC: kW: 65 HP: 89 YEAR OF MANUFACTURE: 02/2000 → 12/2003

ENGINE CODE

YEAR OF MANUFACTURE

100

Perkins 1004-40T Tier1

3990

01/2000 → 12/2003

100, 100DT

Perkins 1004-40T

02/2000 →

Perkins 1004-42

4230

01/2001 → 12/2004

80 DT

Perkins 1004-42

4230

01/2001 → 12/2003

Perkins 1004-40T Tier1

3990

01/2000 → 12/2003

90, 90DT

Perkins 1004-40T

02/2000 → 12/2003

Globus | 96-04

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
50 (RP20)	Perkins 903-27	2700	35	48	01/1996 → 12/1999		50 (RP20) ENGINE CODE: Perkins 903-27 CC: 2700 kW: 35 HP: 48 YEAR OF MANUFACTURE: 01/1996 → 12/1999
55 TOP, 55 DT TOP (RP20)	Perkins 903-27	3990	40	54	01/1999 → 12/2004		55 TOP, 55 DT TOP (RP20) ENGINE CODE: Perkins 903-27 CC: 3990 kW: 40 HP: 54 YEAR OF MANUFACTURE: 01/1999 → 12/2004
60 (RP20)	Perkins 704-30	3000	42	57	01/1996 → 12/1999	i Partly/or	60 (RP20) ENGINE CODE: Perkins 704-30 CC: 3000 kW: 42 HP: 57 YEAR OF MANUFACTURE: 01/1996 → 12/1999 i Partly/or
65 TOP, 65DT/DT TOP (RP20)	Perkins 1004-40	3990	49	67	01/1999 → 12/2004		65 TOP, 65DT/DT TOP (RP20) ENGINE CODE: Perkins 1004-40 CC: 3990 kW: 49 HP: 67 YEAR OF MANUFACTURE: 01/1999 → 12/2004
70 (RP20)	Perkins 704-30	3000	49	67	01/1996 → 12/1999	i Partly/or	70 (RP20) ENGINE CODE: Perkins 704-30 CC: 3000 kW: 49 HP: 67 YEAR OF MANUFACTURE: 01/1996 → 12/1999 i Partly/or
75 TOP, 75DT/DT TOP (RP20)	Perkins 1004-42	4230	53	72	01/1999 → 12/2001		75 TOP, 75DT/DT TOP (RP20) ENGINE CODE: Perkins 1004-42 CC: 4230 kW: 53 HP: 72 YEAR OF MANUFACTURE: 01/1999 → 12/2001
80 (RP20)	Perkins 1004-42	4233	57	78	09/2001 → 12/2004		80 (RP20) ENGINE CODE: Perkins 1004-42 CC: 4233 kW: 57 HP: 78 YEAR OF MANUFACTURE: 09/2001 → 12/2004
80 DT (RP20)	Perkins 1004-42	4233	57	78	09/2001 → 12/2004		80 DT (RP20) ENGINE CODE: Perkins 1004-42 CC: 4233 kW: 57 HP: 78 YEAR OF MANUFACTURE: 09/2001 → 12/2004
R 65	Perkins 1004.40	3990	50	67			R 65 ENGINE CODE: Perkins 1004.40 CC: 3990 kW: 50 HP: 67

ENGINE CODE

YEAR OF MANUFACTURE

50 (RP20)

Perkins 903-27

2700

01/1996 → 12/1999

55 TOP, 55 DT TOP (RP20)

Perkins 903-27

3990

01/1999 → 12/2004

60 (RP20)

Perkins 704-30

3000

01/1996 → 12/1999

65 TOP, 65DT/DT TOP (RP20)

Perkins 1004-40

3990

01/1999 → 12/2004

70 (RP20)

Perkins 704-30

3000

01/1996 → 12/1999

75 TOP, 75DT/DT TOP (RP20)

Perkins 1004-42

4230

01/1999 → 12/2001

80 (RP20)

Perkins 1004-42

4233

09/2001 → 12/2004

80 DT (RP20)

Perkins 1004-42

4233

09/2001 → 12/2004

R 65

Perkins 1004.40

3990

Landpower | 05-14

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
125 TDI (RP72)	Perkins 1006-E60TA	5985	87	118	01/2005 → 12/2007	i Required quantity: 2 Piece	125 TDI (RP72) ENGINE CODE: Perkins 1006-E60TA CC: 5985 kW: 87 HP: 118 YEAR OF MANUFACTURE: 01/2005 → 12/2007 i Required quantity: 2 Piece
135 TDI (RP72)	Perkins 1006-E60TA	5985	99	134	01/2005 → 12/2007	i Required quantity: 2 Piece	135 TDI (RP72) ENGINE CODE: Perkins 1006-E60TA CC: 5985 kW: 99 HP: 134 YEAR OF MANUFACTURE: 01/2005 → 12/2007 i Required quantity: 2 Piece
145 TDI (RP72)	Perkins 1006-E60TA	5985	107	145	01/2005 → 12/2007	i Required quantity: 2 Piece	145 TDI (RP72) ENGINE CODE: Perkins 1006-E60TA CC: 5985 kW: 107 HP: 145 YEAR OF MANUFACTURE: 01/2005 → 12/2007 i Required quantity: 2 Piece
165 TDI (RP72)	Perkins 1006-E60TA	5985	120	163	01/2005 → 12/2007	i Required quantity: 2 Piece	165 TDI (RP72) ENGINE CODE: Perkins 1006-E60TA CC: 5985 kW: 120 HP: 163 YEAR OF MANUFACTURE: 01/2005 → 12/2007 i Required quantity: 2 Piece
185 TDI (RP72)	Perkins 1006-E60TA	5985	135	183	01/2005 → 12/2007	i Required quantity: 2 Piece	185 TDI (RP72) ENGINE CODE: Perkins 1006-E60TA CC: 5985 kW: 135 HP: 183 YEAR OF MANUFACTURE: 01/2005 → 12/2007 i Required quantity: 2 Piece

ENGINE CODE

YEAR OF MANUFACTURE

125 TDI (RP72)

Perkins 1006-E60TA

5985

118

01/2005 → 12/2007

135 TDI (RP72)

Perkins 1006-E60TA

5985

134

01/2005 → 12/2007

145 TDI (RP72)

Perkins 1006-E60TA

5985

107

145

01/2005 → 12/2007

165 TDI (RP72)

Perkins 1006-E60TA

5985

120

163

01/2005 → 12/2007

185 TDI (RP72)

Perkins 1006-E60TA

5985

135

183

01/2005 → 12/2007

Legend I | 93-01

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
105 (Legend)	Perkins 1006.6HR4	6000	76	104	01/1995 → 12/2001		105 (Legend) ENGINE CODE: Perkins 1006.6HR4 CC: 6000 kW: 76 HP: 104 YEAR OF MANUFACTURE: 01/1995 → 12/2001
115	Perkins 1006.6HR3	6000	81	110	01/1993 → 12/1997		115 ENGINE CODE: Perkins 1006.6HR3 CC: 6000 kW: 81 HP: 110 YEAR OF MANUFACTURE: 01/1993 → 12/1997
115 (Legend)	Perkins 1006.6HR3	6000	81	110	01/1997 → 12/2001		115 (Legend) ENGINE CODE: Perkins 1006.6HR3 CC: 6000 kW: 81 HP: 110 YEAR OF MANUFACTURE: 01/1997 → 12/2001
130 (Legend)	Perkins 1006.6TLR2	6000	92	125	01/1993 → 12/1997	i Partly/or	130 (Legend) ENGINE CODE: Perkins 1006.6TLR2 CC: 6000 kW: 92 HP: 125 YEAR OF MANUFACTURE: 01/1993 → 12/1997 i Partly/or
130 (Legend)	Perkins 1006.6TLR2	6000	94	127	01/1997 → 12/2001	i Partly/or	130 (Legend) ENGINE CODE: Perkins 1006.6TLR2 CC: 6000 kW: 94 HP: 127 YEAR OF MANUFACTURE: 01/1997 → 12/2001 i Partly/or
145 (Legend)	Perkins 1006.6THR2	6000	101	138	01/1993 → 12/2001	i Partly/or	145 (Legend) ENGINE CODE: Perkins 1006.6THR2 CC: 6000 kW: 101 HP: 138 YEAR OF MANUFACTURE: 01/1993 → 12/2001 i Partly/or
145 (Legend)	Perkins 1006.6THR2	6000	101	138	01/1997 → 12/2001	i Partly/or	145 (Legend) ENGINE CODE: Perkins 1006.6THR2 CC: 6000 kW: 101 HP: 138 YEAR OF MANUFACTURE: 01/1997 → 12/2001 i Partly/or
165 (Legend)	Perk. 1006.6THR2		117	160			165 (Legend) ENGINE CODE: Perk. 1006.6THR2 CC: kW: 117 HP: 160

ENGINE CODE

YEAR OF MANUFACTURE

105 (Legend)

Perkins 1006.6HR4

6000

104

01/1995 → 12/2001

115

Perkins 1006.6HR3

6000

110

01/1993 → 12/1997

115 (Legend)

Perkins 1006.6HR3

6000

110

01/1997 → 12/2001

130 (Legend)

Perkins 1006.6TLR2

6000

125

01/1993 → 12/1997

130 (Legend)

Perkins 1006.6TLR2

6000

127

01/1997 → 12/2001

145 (Legend)

Perkins 1006.6THR2

6000

101

138

01/1993 → 12/2001

145 (Legend)

Perkins 1006.6THR2

6000

101

138

01/1997 → 12/2001

165 (Legend)

Perk. 1006.6THR2

117

160

Mythos | 99-06

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
100, 100DT (RP40)	Perkins 1004-40T	3990	72	97	07/1999 → 12/2005		100, 100DT (RP40) ENGINE CODE: Perkins 1004-40T CC: 3990 kW: 72 HP: 97 YEAR OF MANUFACTURE: 07/1999 → 12/2005

ENGINE CODE

YEAR OF MANUFACTURE

100, 100DT (RP40)

Perkins 1004-40T

3990

07/1999 → 12/2005

Powerfarm | 04-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
60	Perkins 1103C-33	3300	40	54	05/2011 →		60 ENGINE CODE: Perkins 1103C-33 CC: 3300 kW: 40 HP: 54 YEAR OF MANUFACTURE: 05/2011 →

ENGINE CODE

YEAR OF MANUFACTURE

Perkins 1103C-33

3300

05/2011 →

REX Foot Step | 00-03

	ENGINE CODE	kW	HP	YEAR OF MANUFACTURE
100 FP / GTP / GE (RT40)	Perkins 1004-40T Serie Grun			01/2000 → 12/2003	100 FP / GTP / GE (RT40) ENGINE CODE: Perkins 1004-40T Serie Grun CC: kW: HP: YEAR OF MANUFACTURE: 01/2000 → 12/2003
60 FP / LP / GE (RT40)	Perkins CP81224	40	54	01/2000 → 12/2003	60 FP / LP / GE (RT40) ENGINE CODE: Perkins CP81224 CC: kW: 40 HP: 54 YEAR OF MANUFACTURE: 01/2000 → 12/2003
70 FP / LP / GE / GTP (RT40)	Perkins 1004-41 Series Grun			01/2000 → 12/2003	70 FP / LP / GE / GTP (RT40) ENGINE CODE: Perkins 1004-41 Series Grun CC: kW: HP: YEAR OF MANUFACTURE: 01/2000 → 12/2003
80 FP / LP / GE / GTP (RT40)	Perkins 1004-42 Series Grun			01/2000 → 12/2003	80 FP / LP / GE / GTP (RT40) ENGINE CODE: Perkins 1004-42 Series Grun CC: kW: HP: YEAR OF MANUFACTURE: 01/2000 → 12/2003
90 FP / GE / GTP (RT40)	Perkins 1004-40T Serie Grun			01/2000 → 12/2003	90 FP / GE / GTP (RT40) ENGINE CODE: Perkins 1004-40T Serie Grun CC: kW: HP: YEAR OF MANUFACTURE: 01/2000 → 12/2003

ENGINE CODE

YEAR OF MANUFACTURE

100 FP / GTP / GE (RT40)

Perkins 1004-40T Serie Grun

01/2000 → 12/2003

60 FP / LP / GE (RT40)

Perkins CP81224

01/2000 → 12/2003

70 FP / LP / GE / GTP (RT40)

Perkins 1004-41 Series Grun

01/2000 → 12/2003

80 FP / LP / GE / GTP (RT40)

Perkins 1004-42 Series Grun

01/2000 → 12/2003

90 FP / GE / GTP (RT40)

Perkins 1004-40T Serie Grun

01/2000 → 12/2003

Rex | 99-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
100 GT/GTDT/GEDT/FDT	Perkins 1004-40T		70	93	01/1999 →	100 GT/GTDT/GEDT/FDT ENGINE CODE: Perkins 1004-40T CC: kW: 70 HP: 93 YEAR OF MANUFACTURE: 01/1999 →
100 Top Restyling F/GE/GB (RP55)	Perkins NM75229 Tier3		68	92	01/2010 →	100 Top Restyling F/GE/GB (RP55) ENGINE CODE: Perkins NM75229 Tier3 CC: kW: 68 HP: 92 YEAR OF MANUFACTURE: 01/2010 →
100 Top Restyling F/GE/GB (RP55)	Perkins NM51686 Tier3B		68	92	01/2010 → 10/2017	100 Top Restyling F/GE/GB (RP55) ENGINE CODE: Perkins NM51686 Tier3B CC: kW: 68 HP: 92 YEAR OF MANUFACTURE: 01/2010 → 10/2017
100 Top Restyling F/GE/GB (RP55)	Perkins NM70715 Tier3B		68	92	01/2010 →	100 Top Restyling F/GE/GB (RP55) ENGINE CODE: Perkins NM70715 Tier3B CC: kW: 68 HP: 92 YEAR OF MANUFACTURE: 01/2010 →
100 Top Restyling F/GE/GB (RP55)	Perkins NM82742 Tier3B		68	92	01/2010 → 10/2017	100 Top Restyling F/GE/GB (RP55) ENGINE CODE: Perkins NM82742 Tier3B CC: kW: 68 HP: 92 YEAR OF MANUFACTURE: 01/2010 → 10/2017
100 Top Restyling F/GE/GB (RP55)	Perkins NM83380 Tier3B		68	92	10/2016 → 10/2017	100 Top Restyling F/GE/GB (RP55) ENGINE CODE: Perkins NM83380 Tier3B CC: kW: 68 HP: 92 YEAR OF MANUFACTURE: 10/2016 → 10/2017
105 F/GE/GT (RP53)	Perkins NL38970 Tier3		73	99	01/2008 → 12/2009	105 F/GE/GT (RP53) ENGINE CODE: Perkins NL38970 Tier3 CC: kW: 73 HP: 99 YEAR OF MANUFACTURE: 01/2008 → 12/2009
110 Top Restyling F/GE/GB (RP55)	Perkins NM75231		75	102	01/2010 →	110 Top Restyling F/GE/GB (RP55) ENGINE CODE: Perkins NM75231 CC: kW: 75 HP: 102 YEAR OF MANUFACTURE: 01/2010 →
110 Top Restyling F/GE/GB (RP55)	Perkins NM51683		75	102	01/2010 → 10/2017	110 Top Restyling F/GE/GB (RP55) ENGINE CODE: Perkins NM51683 CC: kW: 75 HP: 102 YEAR OF MANUFACTURE: 01/2010 → 10/2017
110 Top Restyling F/GE/GB (RP55)	Perkins NM70855		75	102	01/2010 →	110 Top Restyling F/GE/GB (RP55) ENGINE CODE: Perkins NM70855 CC: kW: 75 HP: 102 YEAR OF MANUFACTURE: 01/2010 →
110 Top Restyling F/GE/GB (RP55)	Perkins NM82743		75	102	01/2010 → 10/2017	110 Top Restyling F/GE/GB (RP55) ENGINE CODE: Perkins NM82743 CC: kW: 75 HP: 102 YEAR OF MANUFACTURE: 01/2010 → 10/2017
110 Top Restyling F/GE/GB (RP55)	Perkins NM51882		75	102	01/2010 → 10/2017	110 Top Restyling F/GE/GB (RP55) ENGINE CODE: Perkins NM51882 CC: kW: 75 HP: 102 YEAR OF MANUFACTURE: 01/2010 → 10/2017
120 Top Restyling F/GE/GB (RP55)	Perkins NM51726		81	110	01/2010 → 10/2017	120 Top Restyling F/GE/GB (RP55) ENGINE CODE: Perkins NM51726 CC: kW: 81 HP: 110 YEAR OF MANUFACTURE: 01/2010 → 10/2017
120 Top Restyling F/GE/GB (RP55)	Perkins NM70975		81	110	01/2010 →	120 Top Restyling F/GE/GB (RP55) ENGINE CODE: Perkins NM70975 CC: kW: 81 HP: 110 YEAR OF MANUFACTURE: 01/2010 →
120 Top Restyling F/GE/GB (RP55)	Perkins NM82744		81	110	01/2010 → 10/2017	120 Top Restyling F/GE/GB (RP55) ENGINE CODE: Perkins NM82744 CC: kW: 81 HP: 110 YEAR OF MANUFACTURE: 01/2010 → 10/2017
120 Top Restyling F/GE/GB (RP55)	Perkins NM51889		81	110	01/2010 → 10/2017	120 Top Restyling F/GE/GB (RP55) ENGINE CODE: Perkins NM51889 CC: kW: 81 HP: 110 YEAR OF MANUFACTURE: 01/2010 → 10/2017
60 F/L/V/VDT/FDT/GEDT	Perkins 903-27		40	55	01/1999 →	60 F/L/V/VDT/FDT/GEDT ENGINE CODE: Perkins 903-27 CC: kW: 40 HP: 55 YEAR OF MANUFACTURE: 01/1999 →
65 V/VDT/DT	Perkins 903-27T		47	64	01/1999 →	65 V/VDT/DT ENGINE CODE: Perkins 903-27T CC: kW: 47 HP: 64 YEAR OF MANUFACTURE: 01/1999 →
70 F/L/GT/V/VDT/FDT/GTDT/GEDT	Perkins 1004-40		49	67	01/1999 → 12/2004	70 F/L/GT/V/VDT/FDT/GTDT/GEDT ENGINE CODE: Perkins 1004-40 CC: kW: 49 HP: 67 YEAR OF MANUFACTURE: 01/1999 → 12/2004
70 Top Restyling F/GE/GB (RP55)	Perkins XM51628		55	75	01/2010 →	70 Top Restyling F/GE/GB (RP55) ENGINE CODE: Perkins XM51628 CC: kW: 55 HP: 75 YEAR OF MANUFACTURE: 01/2010 →
70 Top Restyling F/GE/GB (RP55)	Perkins XM83731		55	75	01/2010 →	70 Top Restyling F/GE/GB (RP55) ENGINE CODE: Perkins XM83731 CC: kW: 55 HP: 75 YEAR OF MANUFACTURE: 01/2010 →
75 V (RP03)	Perkins 1104C-44	4400	50	68	01/2005 → 12/2007	75 V (RP03) ENGINE CODE: Perkins 1104C-44 CC: 4400 kW: 50 HP: 68 YEAR OF MANUFACTURE: 01/2005 → 12/2007
80	Perkins 1104D-44	4400	55	74	01/2008 → 12/2011	80 ENGINE CODE: Perkins 1104D-44 CC: 4400 kW: 55 HP: 74 YEAR OF MANUFACTURE: 01/2008 → 12/2011
80 F/L/GT/V/VDT/FDT/GTDT/GEDT	Perkins 1004-42		57	78	01/1999 →	80 F/L/GT/V/VDT/FDT/GTDT/GEDT ENGINE CODE: Perkins 1004-42 CC: kW: 57 HP: 78 YEAR OF MANUFACTURE: 01/1999 →
80 Top Restyling F/GE/GT/GB (RP55)	Perkins NK38936		55	75		80 Top Restyling F/GE/GT/GB (RP55) ENGINE CODE: Perkins NK38936 CC: kW: 55 HP: 75
80 Top Restyling F/GE/GT/GB (RP55)	Perkins NK83319		55	75	→ 10/2017	80 Top Restyling F/GE/GT/GB (RP55) ENGINE CODE: Perkins NK83319 CC: kW: 55 HP: 75 YEAR OF MANUFACTURE: → 10/2017
80 Top Restyling F/GE/GT/GB (RP55)	Perkins NK51888		55	75	01/2010 →	80 Top Restyling F/GE/GT/GB (RP55) ENGINE CODE: Perkins NK51888 CC: kW: 55 HP: 75 YEAR OF MANUFACTURE: 01/2010 →
80 V (RP03)	Perkins 1104D-44	4400	55	74	01/2005 → 12/2007	80 V (RP03) ENGINE CODE: Perkins 1104D-44 CC: 4400 kW: 55 HP: 74 YEAR OF MANUFACTURE: 01/2005 → 12/2007
85 Top Restyling F/GE/GB (RP55)	Perkins XM75322		58	79	01/2010 →	85 Top Restyling F/GE/GB (RP55) ENGINE CODE: Perkins XM75322 CC: kW: 58 HP: 79 YEAR OF MANUFACTURE: 01/2010 →
85 Top Restyling F/GE/GB (RP55)	Perkins XM82745		58	79	→ 10/2017	85 Top Restyling F/GE/GB (RP55) ENGINE CODE: Perkins XM82745 CC: kW: 58 HP: 79 YEAR OF MANUFACTURE: → 10/2017
85 Top Restyling F/GE/GB (RP55)	Perkins XM83209		58	79	→ 10/2017	85 Top Restyling F/GE/GB (RP55) ENGINE CODE: Perkins XM83209 CC: kW: 58 HP: 79 YEAR OF MANUFACTURE: → 10/2017
90 F/GE/GT (RP53)	Perkins NL38972 Tier3		60	82	01/2008 → 12/2009	90 F/GE/GT (RP53) ENGINE CODE: Perkins NL38972 Tier3 CC: kW: 60 HP: 82 YEAR OF MANUFACTURE: 01/2008 → 12/2009
90 F/GE/GT (RP53)	Perkins 1100D Tier3		61	83	01/2008 → 12/2009	90 F/GE/GT (RP53) ENGINE CODE: Perkins 1100D Tier3 CC: kW: 61 HP: 83 YEAR OF MANUFACTURE: 01/2008 → 12/2009
90 F/GT/FDT/GTDT/GEDT	Perkins 1004-40T		67	89	01/1999 →	90 F/GT/FDT/GTDT/GEDT ENGINE CODE: Perkins 1004-40T CC: kW: 67 HP: 89 YEAR OF MANUFACTURE: 01/1999 →
90 Top Restyling F/GE/GT/GB (RP55)	Perkins NL51884 Tier3		60	82	01/2010 → 10/2017	90 Top Restyling F/GE/GT/GB (RP55) ENGINE CODE: Perkins NL51884 Tier3 CC: kW: 60 HP: 82 YEAR OF MANUFACTURE: 01/2010 → 10/2017
90 Top Restyling F/GE/GT/GB (RP55)	Perkins NL51687 Tier3B		60	82	→ 10/2017	90 Top Restyling F/GE/GT/GB (RP55) ENGINE CODE: Perkins NL51687 Tier3B CC: kW: 60 HP: 82 YEAR OF MANUFACTURE: → 10/2017
DT 85 V	Perkins 1104C-44	4400	60	82	01/2004 → 12/2008	DT 85 V ENGINE CODE: Perkins 1104C-44 CC: 4400 kW: 60 HP: 82 YEAR OF MANUFACTURE: 01/2004 → 12/2008

ENGINE CODE

YEAR OF MANUFACTURE

100 GT/GTDT/GEDT/FDT

Perkins 1004-40T

01/1999 →
