REACH-Information
SVHC declaration according to the regulation EC 1907/2006 concerning the Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH).

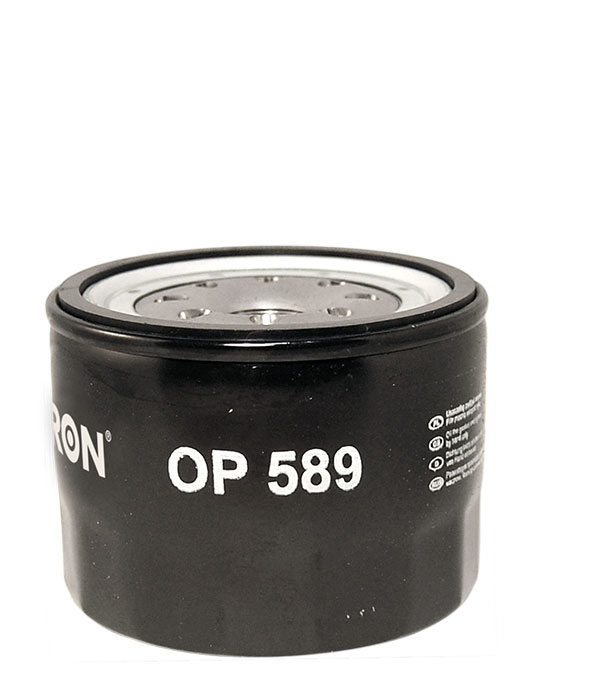

Produkt: OP 589 - FILTRON
MANN+HUMMEL is well aware of REACH and meet all legal obligations under this regulation.
MANN+HUMMEL has established internal processes to ensure implementation and compliance with the REACH Regulation. Especially, we continuously work on the assessment of presence of SVHC (Substances of Very High Concern).
We may inform you that according to present level of information and best knowledge, this product does not contain any SVHC listed on the Candidate List in concentration above 0,1% (w/w).
Last update: 2024-09-19
VOLVER A LA LISTA

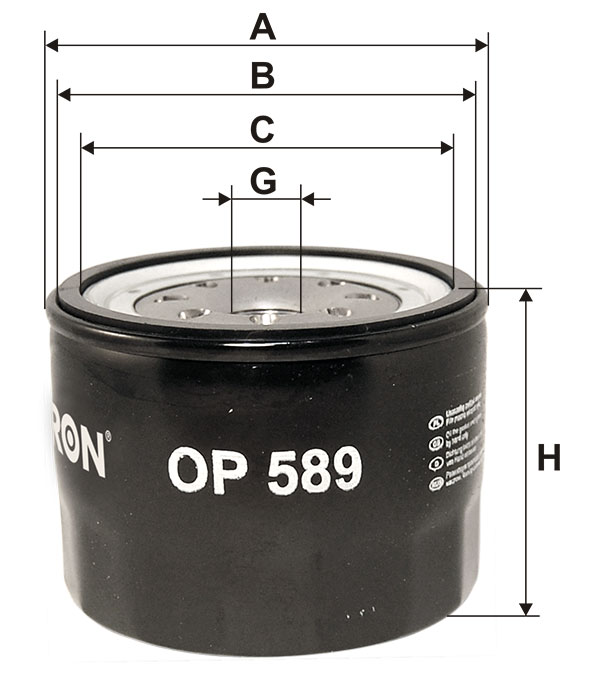

Dimensiones (mm):
A
102
B
94
C
84
G
M20x1.5
H
80.5
By-pass Valve
No
Anti-Drain Valve
No
Anti-siphon Valve
No
MAZDA
323 III / Etude (BF/BW) | 85-91
CÓDIGO DE MOTOR | CC | kW | HP | AÑO DE FABRICACIÓN | |||
---|---|---|---|---|---|---|---|
1.7 D | PN27 | 1708 | 40 | 54 | 04/1986 → 05/1989 |
i
Secondary flow
|
1.7 D CÓDIGO DE MOTOR: PN27 CC: 1708 kW: 40 HP: 54 AÑO DE FABRICACIÓN: 04/1986 → 05/1989 i Secondary flow
|
1.7 D | PN46 | 1708 | 42 | 57 | 01/1987 → 05/1989 |
i
Secondary flow
|
1.7 D CÓDIGO DE MOTOR: PN46 CC: 1708 kW: 42 HP: 57 AÑO DE FABRICACIÓN: 01/1987 → 05/1989 i Secondary flow
|
1.7 D | PN26 | 1708 | 42 | 57 | 11/1986 → 10/1989 |
i
Secondary flow
|
1.7 D CÓDIGO DE MOTOR: PN26 CC: 1708 kW: 42 HP: 57 AÑO DE FABRICACIÓN: 11/1986 → 10/1989 i Secondary flow
|
CÓDIGO DE MOTOR
CC
kW
HP
AÑO DE FABRICACIÓN
1.7 D
PN27
1708
40
54
04/1986 → 05/1989
1.7 D
PN46
1708
42
57
01/1987 → 05/1989
1.7 D
PN26
1708
42
57
11/1986 → 10/1989
E 2200-Serie | 84-04
CÓDIGO DE MOTOR | CC | kW | HP | AÑO DE FABRICACIÓN | |||
---|---|---|---|---|---|---|---|
2.2 D (SR1/SR2) | R203, R207 | 2184 | 47 | 64 | 03/1991 → 05/2003 |
i
Secondary flow
|
2.2 D (SR1/SR2) CÓDIGO DE MOTOR: R203, R207 CC: 2184 kW: 47 HP: 64 AÑO DE FABRICACIÓN: 03/1991 → 05/2003 i Secondary flow
|
2.2 D (SR1/SR2) | R2 | 2184 | 52 | 71 | 02/1997 → 07/2004 |
i
Secondary flow. Use for OE no. P N16-14V61
|
2.2 D (SR1/SR2) CÓDIGO DE MOTOR: R2 CC: 2184 kW: 52 HP: 71 AÑO DE FABRICACIÓN: 02/1997 → 07/2004 i Secondary flow. Use for OE no. P N16-14V61
|
2.2 D (SR1/SR2) | R207 | 2169 | 46 | 63 | 01/1984 → 02/1988 |
i
Secondary flow
|
2.2 D (SR1/SR2) CÓDIGO DE MOTOR: R207 CC: 2169 kW: 46 HP: 63 AÑO DE FABRICACIÓN: 01/1984 → 02/1988 i Secondary flow
|
CÓDIGO DE MOTOR
CC
kW
HP
AÑO DE FABRICACIÓN
2.2 D (SR1/SR2)
R203, R207
2184
47
64
03/1991 → 05/2003
2.2 D (SR1/SR2)
R2
2184
52
71
02/1997 → 07/2004
2.2 D (SR1/SR2)
R207
2169
46
63
01/1984 → 02/1988
E-Serie | 75-
CÓDIGO DE MOTOR | CC | kW | HP | AÑO DE FABRICACIÓN | |||
---|---|---|---|---|---|---|---|
2.2 Diesel (SA55) | R207 | 2183 | 34 | 46 | 02/1984 → 09/1985 |
i
Secondary flow
|
2.2 Diesel (SA55) CÓDIGO DE MOTOR: R207 CC: 2183 kW: 34 HP: 46 AÑO DE FABRICACIÓN: 02/1984 → 09/1985 i Secondary flow
|
2.2 Diesel (SA79) | R203 | 2183 | 34 | 46 | 01/1984 → 02/1988 |
i
Secondary flow
|
2.2 Diesel (SA79) CÓDIGO DE MOTOR: R203 CC: 2183 kW: 34 HP: 46 AÑO DE FABRICACIÓN: 01/1984 → 02/1988 i Secondary flow
|
2.2 Diesel (SB53) | R238 | 2183 | 34 | 46 | 02/1984 → 09/1985 |
i
Secondary flow
|
2.2 Diesel (SB53) CÓDIGO DE MOTOR: R238 CC: 2183 kW: 34 HP: 46 AÑO DE FABRICACIÓN: 02/1984 → 09/1985 i Secondary flow
|
2.2 Diesel (SC2) | R2 | 2183 | 34 | 46 | 02/1984 → 09/1985 |
i
Secondary flow
|
2.2 Diesel (SC2) CÓDIGO DE MOTOR: R2 CC: 2183 kW: 34 HP: 46 AÑO DE FABRICACIÓN: 02/1984 → 09/1985 i Secondary flow
|
2.2 Diesel (SD53) | R254 | 2183 | 34 | 46 | 11/1985 → 02/1988 |
i
Secondary flow
|
2.2 Diesel (SD53) CÓDIGO DE MOTOR: R254 CC: 2183 kW: 34 HP: 46 AÑO DE FABRICACIÓN: 11/1985 → 02/1988 i Secondary flow
|
2.2 Diesel (SE39) | R284 | 2183 | 34 | 46 | 01/1988 → 08/1989 |
i
Secondary flow
|
2.2 Diesel (SE39) CÓDIGO DE MOTOR: R284 CC: 2183 kW: 34 HP: 46 AÑO DE FABRICACIÓN: 01/1988 → 08/1989 i Secondary flow
|
2.2 Diesel (SE6) | R281 | 2183 | 34 | 46 | 12/1987 → 08/1989 |
i
Secondary flow
|
2.2 Diesel (SE6) CÓDIGO DE MOTOR: R281 CC: 2183 kW: 34 HP: 46 AÑO DE FABRICACIÓN: 12/1987 → 08/1989 i Secondary flow
|
2.2 Diesel (SF7) | R296 | 2183 | 34 | 46 | 07/1989 → |
i
Secondary flow
|
2.2 Diesel (SF7) CÓDIGO DE MOTOR: R296 CC: 2183 kW: 34 HP: 46 AÑO DE FABRICACIÓN: 07/1989 → i Secondary flow
|
2.2 Diesel (SF70) | R29 | 2183 | 34 | 46 | 07/1989 → |
i
Secondary flow
|
2.2 Diesel (SF70) CÓDIGO DE MOTOR: R29 CC: 2183 kW: 34 HP: 46 AÑO DE FABRICACIÓN: 07/1989 → i Secondary flow
|
2.2 Diesel 4WD (SE4) | R286 | 2183 | 34 | 46 | 01/1988 → 07/1989 |
i
Secondary flow
|
2.2 Diesel 4WD (SE4) CÓDIGO DE MOTOR: R286 CC: 2183 kW: 34 HP: 46 AÑO DE FABRICACIÓN: 01/1988 → 07/1989 i Secondary flow
|
CÓDIGO DE MOTOR
CC
kW
HP
AÑO DE FABRICACIÓN
2.2 Diesel (SA55)
R207
2183
34
46
02/1984 → 09/1985
2.2 Diesel (SA79)
R203
2183
34
46
01/1984 → 02/1988
2.2 Diesel (SB53)
R238
2183
34
46
02/1984 → 09/1985
2.2 Diesel (SC2)
R2
2183
34
46
02/1984 → 09/1985
2.2 Diesel (SD53)
R254
2183
34
46
11/1985 → 02/1988
2.2 Diesel (SE39)
R284
2183
34
46
01/1988 → 08/1989
2.2 Diesel (SE6)
R281
2183
34
46
12/1987 → 08/1989
2.2 Diesel (SF7)
R296
2183
34
46
07/1989 →
2.2 Diesel (SF70)
R29
2183
34
46
07/1989 →
2.2 Diesel 4WD (SE4)
R286
2183
34
46
01/1988 → 07/1989
ISUZU
NPR | 81-
CÓDIGO DE MOTOR | CC | kW | HP | AÑO DE FABRICACIÓN | |||
---|---|---|---|---|---|---|---|
3.3 Diesel | 4BC2 | 3268 | 65 | 88 | 07/1981 → |
i
Secondary flow
|
3.3 Diesel CÓDIGO DE MOTOR: 4BC2 CC: 3268 kW: 65 HP: 88 AÑO DE FABRICACIÓN: 07/1981 → i Secondary flow
|
3.9 TD (59) | 4BD1(T) | 07/1984 → 06/1993 |
i
Secondary flow
|
3.9 TD (59) CÓDIGO DE MOTOR: 4BD1(T) CC: kW: HP: AÑO DE FABRICACIÓN: 07/1984 → 06/1993 i Secondary flow
|
|||
4.3 D (61) | 4BG1 | 09/1988 → 07/1990 |
i
Secondary flow
|
4.3 D (61) CÓDIGO DE MOTOR: 4BG1 CC: kW: HP: AÑO DE FABRICACIÓN: 09/1988 → 07/1990 i Secondary flow
|
CÓDIGO DE MOTOR
CC
kW
HP
AÑO DE FABRICACIÓN
3.3 Diesel
4BC2
3268
65
88
07/1981 →
3.9 TD (59)
4BD1(T)
07/1984 → 06/1993
4.3 D (61)
4BG1
09/1988 → 07/1990
NPS | 88-
CÓDIGO DE MOTOR | CC | kW | HP | AÑO DE FABRICACIÓN | |||
---|---|---|---|---|---|---|---|
3.9 D (59) | 4BD1 | 02/1988 → |
i
Secondary flow
|
3.9 D (59) CÓDIGO DE MOTOR: 4BD1 CC: kW: HP: AÑO DE FABRICACIÓN: 02/1988 → i Secondary flow
|
|||
3.9 TD (59) | 4BD(T) | 3900 | 02/1988 → 07/1993 |
i
Secondary flow
|
3.9 TD (59) CÓDIGO DE MOTOR: 4BD(T) CC: 3900 kW: HP: AÑO DE FABRICACIÓN: 02/1988 → 07/1993 i Secondary flow
|
||
3.9 TD (59) | 4BD1(T) | 07/1988 → |
i
Secondary flow
|
3.9 TD (59) CÓDIGO DE MOTOR: 4BD1(T) CC: kW: HP: AÑO DE FABRICACIÓN: 07/1988 → i Secondary flow
|
CÓDIGO DE MOTOR
CC
kW
HP
AÑO DE FABRICACIÓN
3.9 D (59)
4BD1
02/1988 →
3.9 TD (59)
4BD(T)
3900
02/1988 → 07/1993
3.9 TD (59)
4BD1(T)
07/1988 →
FORD
- 3254 957
- 3255 952
- E3TZ 6731 B
ISUZU
- 8-94340-259-0
- 8-94340-259-1
- 9-43604-18
- 9-94152-386-0
KIA MOTORS
- 0 K710 23902 A
- 26321 2W000
- O K710 23 902 A
MAZDA
- 8259-23-802
- K 710-23-902
- P N16-14V61
- PN1614V619A
- R 214-23802
- R F10-23802 A
- R F66-14V61 A
