Katalog Filtrów
Tryb wyszukiwaniaWyniki wyszukiwania
×
REACH-Information
SVHC declaration according to the regulation EC 1907/2006 concerning the Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH).

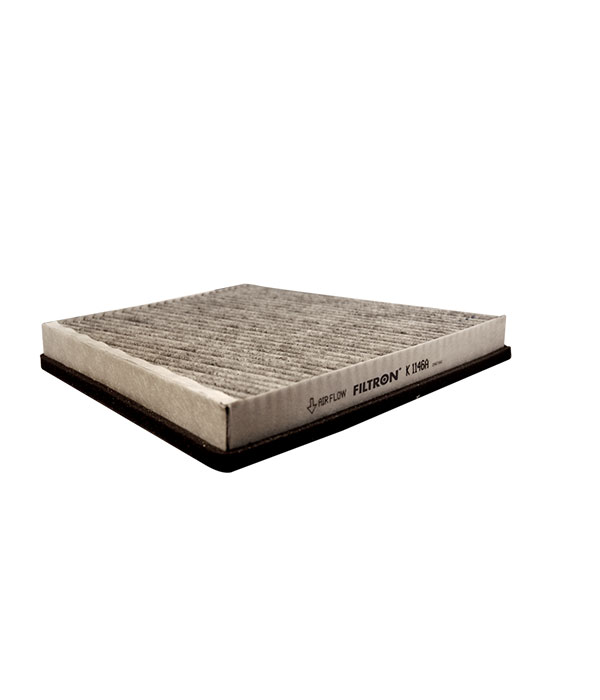

Produkt: K 1146A - FILTRON
MANN+HUMMEL is well aware of REACH and meet all legal obligations under this regulation.
MANN+HUMMEL has established internal processes to ensure implementation and compliance with the REACH Regulation. Especially, we continuously work on the assessment of presence of SVHC (Substances of Very High Concern).
We may inform you that according to present level of information and best knowledge, this product does not contain any SVHC listed on the Candidate List in concentration above 0,1% (w/w).
Last update: 2024-09-19
POWRÓT DO LISTY
![]()
REACH information

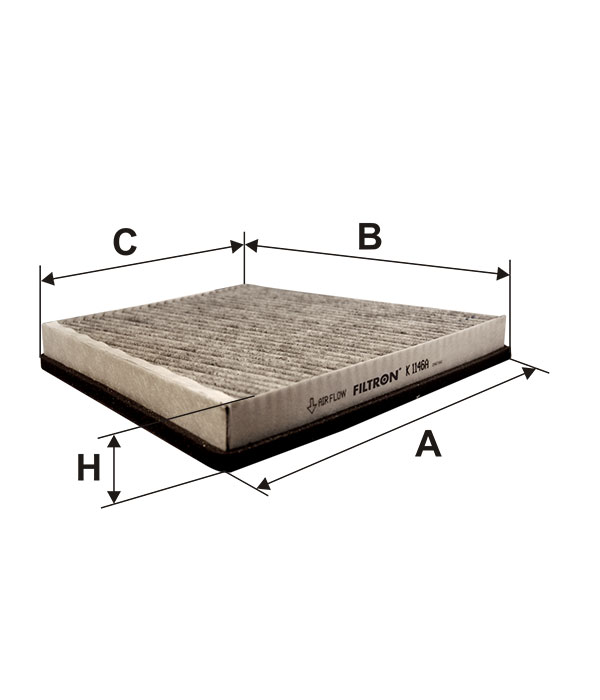

WYMIARY (mm):
A
312
B
258
C
232
H
34
Filtr posiada w standardzie technologię PROTECT+, która redukuje alergeny oraz zapobiega rozwojowi bakterii i pleśni na filtrze. Dowiedz się więcej >>
Maj 2024
Uwaga: zmiana w konstrukcji filtra
Usunięcie uszczelki w celu dostosowania konstrukcji filtra do wymogów rynkowych.
MERCEDES-BENZ
CLS (C219) | 04-10
KOD SILNIKA
CC
kW
HP
ROK BUDOWY
CLS 280 (C219.354)
M272.943
2996
170
231
06/2006 → 03/2009
CLS 300 (C219.354)
M272.943
2996
170
231
04/2009 → 12/2010
CLS 320 CDI (C219.322)
OM 642.920
2987
165
224
08/2005 → 03/2009
CLS 350 (C219.356)
M272.964
3498
200
272
10/2004 → 12/2010
CLS 350 CDI (C219.322)
OM 642.920
2987
165
224
04/2009 → 12/2010
CLS 350 CGI (C219.357)
M272.985
3498
215
292
08/2006 → 12/2010
CLS 500 (C219.372)
M273.960
5461
285
388
06/2006 → 12/2010
CLS 500 (C219.375)
M113.967
4966
225
306
10/2004 → 06/2006
CLS 55 AMG (C219.376)
M113.990
5439
350
476
02/2005 → 05/2006
CLS 63 AMG (C219.377)
M156.963
6208
378
514
03/2006 → 12/2010
E-Klasse (W/S211) | 02-09
KOD SILNIKA
CC
kW
HP
ROK BUDOWY
E 200 CDI (W/S211)
OM 646.820
2148
100
136
06/2006 → 12/2009
E 200 CDI (W211)
OM 646.951
2148
90
122
09/2002 → 07/2006
E 200 CDI (W211)
OM 611
2148
75
102
09/2002 → 12/2009
E 200 CGI (W211)
M 271
1796
125
170
02/2003 → 12/2009
E 200 Kompressor (W211)
M 271.941
1796
120
163
10/2002 → 07/2006
E 200 Kompressor (W211)
M 271
1796
135
184
06/2006 → 12/2009
E 200 NGT (W211)
M 271.941
1796
120
163
03/2004 → 12/2009
E 220 CDI (W/S211)
OM 646.961
2148
110
150
03/2002 → 07/2006
E 220 CDI (W/S211)
OM 646.821
2148
125
170
06/2006 → 12/2009
E 230 (W/S211.032/252)
M 272.922
2496
150
204
02/2007 → 12/2009
E 240 (W/S211)
M 112.913/917
2597
130
177
03/2002 → 06/2005
E 270 CDI (W/S211)
OM 647.961
2685
130
177
03/2002 → 07/2009
E 280 (W/S211)
M 272.943
2996
170
231
05/2005 → 12/2009
E 280 CDI (W/S211)
OM 648.961 (Euro4)
3222
130
177
04/2004 → 06/2005
E 280 CDI V6 (W/S211)
OM 642.920
2987
140
190
05/2005 → 12/2009
E 300 BLUETEC (W211.024)
OM 642
2987
155
211
12/2007 → 12/2009
E 320 (W/S211)
M 112.949/954
3199
165
224
03/2002 → 01/2005
E 320 BLUETEC (W211.024)
OM 642
2987
155
211
10/2006 → 09/2007
E 320 BLUETEC (W211.024)
OM 642
2987
165
224
10/2007 → 12/2009
E 320 CDI (W/S211)
OM 648.961
3222
150
204
11/2002 → 06/2005
E 320 CDI V6 (W/S211)
OM 642.920
2987
165
224
05/2005 → 12/2009
E 350 (W/S211)
M 272.964/972
3498
200
272
12/2004 → 12/2009
E 350 CGI (W/S211.057/257)
M 272.985
3498
215
292
12/2007 → 12/2009
E 400 CDI (W211)
OM 628.961
3996
191
260
09/2002 → 12/2009
E 420 CDI (W211)
OM 629.910
3996
231
314
09/2005 → 12/2009
E 500 (W/S211)
M 113.969
4966
225
306
03/2002 → 07/2006
E 500 (W/S211)
M 273
5461
285
388
06/2006 → 12/2009
E 55 AMG Kompressor (W211)
M 113.990
5439
350
476
10/2002 → 07/2006
E 63 AMG (W/S211.077/277)
M 156.983
6208
378
514
06/2006 → 12/2009
CLAAS
Scorpion (Teleskoplader / Telehandlers) | 05-
KOD SILNIKA
CC
kW
HP
ROK BUDOWY
1033 (Typ K34)
Deutz TCD 3.6L4 Tier 4i
3621
100
136
01/2017 → 12/2019
6030 (Typ K20)
Deutz-Dieselmotor TCD 3.6 L4
3621
90
122
6035 (Typ K21)
Deutz TCD 3.6 L4
3621
90
122
7030 (Typ K22)
Deutz TCD 3.6 L4
3621
90
122
01/2017 →
7035 (Typ K23)
Deutz TCD 3.6 L4 Tier 4i
3621
90
122
01/2017 →
7044 (Typ K24 416-01)
Deutz TCD3.6L4 Tier 4i
3621
90
122
01/2013 → 12/2017
7050 (Typ K25)
Deutz-Dieselmotor TCD 3.6 L4
3621
90
122
756 (K3700021-K3799999)
Deutz TCD 4.1 L4 StageIIIB T4i
4038
115
156
01/2018 →
9055 (Typ K27)
Deutz TCD 4.1 L4
4038
115
156
01/2013 → 12/2017
9055 (Typ K27)
Deutz TCD 4.1 L4
4038
115
156
01/2013 → 12/2017
KRAMER ALLRAD (WACKER NEUSON)
3000-Serie | 05-
KOD SILNIKA
CC
kW
HP
ROK BUDOWY
3007 (Version 1.0 (415-34))
3007 (Version 1.1 (415-24))
3007 (Version 1.2 (415-14))
3007 (Version 1.5 (415-40))
Deutz TCD3.6L4 Tier 3 B
90
122
01/2015 → 12/2021
3507 (Version 1.0 (415-36))
3507 (Version 1.1 (415-26))
3507 (Version 1.2 (415-16))
3507 (Version 1.5 (415-06))
Deutz TCD3.6L4 Tier 3 B
3600
90
122
01/2015 → 12/2021
400-Serie | 96-
KOD SILNIKA
CC
kW
HP
ROK BUDOWY
415-01
Deutz
02/2018 →
415-03
Deutz
02/2018 →
415-05
Deutz
02/2018 →
415-11
Deutz
01/2018 →
415-13
Deutz
01/2018 →
415-15
Deutz
01/2018 →
416-01
Deutz
02/2018 →
416-03
Deutz
02/2018 →
416-05
Deutz
02/2018 →
416-07
Deutz
02/2018 →
416-11
Deutz
01/2018 →
416-13
Deutz
416-15
Deutz
01/2018 →
416-17
Deutz
01/2018 →
4000-Serie | 05-
KOD SILNIKA
CC
kW
HP
ROK BUDOWY
4007 (Version 1.0 (415-37))
Deutz TCD3.6 Tier 4 Final
3621
100
136
01/2021 →
4007 (Version 1.1 (415-27))
Deutz TCD3.6L4 Tier 4
3600
100
136
01/2019 → 12/2021
4209 (Version 1.0 (416-39))
4209 (Version 1.1 (416-29))
Deutz TCD3.6L4 Tier 4
3621
100
136
01/2019 → 12/2021
4407 (Version 1.1 (416-22))
4407 (Version 1.2 (416-12))
4407 (Version 1.6 (416-02))
Deutz TCD3.6L4 Tier 4i
3621
90
122
01/2015 → 12/2021
4507 (Version 1.0 (416-32))
5000-Serie | 14-
KOD SILNIKA
CC
kW
HP
ROK BUDOWY
5007 (Version 1.0 (416-38))
5007 (Version 1.1 (416-28))
5007 (Version 1.2 (416-18))
5007 (Version 1.4 (416-08))
Deutz TCD3.6L4 Tier 4i
3621
90
122
01/2015 → 12/2021
5507 (Version 1.0 (416-34))
5507 (Version 1.0 (416-38))
5507 (Version 1.1 (416-24))
5507 (Version 1.2 (416-14))
5507 (Version 1.2 (416-18))
5507 (Version 1.4 (416-08))
5507 (Version 1.6 (416-04))
5507 (Version1.1 (416-28))
5509 (Version 1.0 (416-36))
5509 (Version 1.1 (416-26))
5509 (Version 1.2 (416-16))
5509 (Version 1.6 (416-06))
Deutz TCD4.1L4 Tier 4 Final
4100
115
156
01/2015 → 12/2021
KT-Serie (Teleskoplader / Telescopic Loaders) | 18
KOD SILNIKA
CC
kW
HP
ROK BUDOWY
KT 306 (Version 1.0 (415-32))
Deutz
KT 306 (Version 1.0 (415-32))
Deutz
KT 306 (Version 1.1 (415-22))
Deutz TCD 3.6 L4 Tier 4 Final
3621
100
136
01/2019 →
KT 306 (Version 1.1 (415-22))
Deutz TCD 3.6 L4 Tier 4 Final
3621
100
136
01/2019 →
KT 306 (Version 2.0 (415-12))
Deutz TCD 3.6 L4 Tier 4 Final
3621
100
136
01/2018 → 12/2021
KT 306 (Version 2.0 (415-12))
Deutz TCD 3.6 L4 Tier 4 Final
3621
100
136
01/2018 → 12/2021
KT 307
Deutz TCD 3.6 L4 Tier 4 Final
3621
100
136
01/2021 →
KT 307
Deutz TCD 3.6 L4 Tier 4 Final
3621
100
136
01/2021 →
KT 307
Deutz TCD 3.6 L4 Tier 4 Final
3621
100
136
01/2021 →
KT 356
Deutz TCD 3.6 L4 Tier 4
3600
136
185
01/2019 →
KT 356 (Version 1.0 (415-12))
Deutz TCD3.6L4 Tier 4 Final
3621
100
136
KT 356 (Version 1.0 (415-32))
Deutz TCD3.6L4 Tier 4 Final
3621
100
136
KT 356 (Version 1.1 (415-22))
Deutz TCD3.6L4 Tier 4 Final
3621
100
136
KT 357
Deutz TCD 3.6 L4 Tier 4
3600
136
185
01/2019 →
KT 357
Deutz TCD3.6L4 Tier 4 Final
3621
100
136
01/2018 → 12/2021
KT 357
Deutz TCD 3.6 L4 Tier 4
3621
100
136
KT 357
KT 357
KT 407 ((415-27))
Deutz TCD 3.6 L4 Tier 4 Final
3621
100
136
KT 407 ((415-37))
Deutz TCD 3.6 L4 Tier 4 Final
3600
136
185
01/2019 →
KT 407 ((415-37))
Deutz TCD 3.6 L4 Tier 4 Final
3600
136
185
01/2019 →
KT 429 (Version 1.0 (416-39))
Deutz TTCD 3.6L4 Tier 4 Final
3621
100
136
KT 429 (Version 1.2 (416-29))
Deutz TTCD 3.6L4 Tier 4 Final
3621
100
136
KT 447 ((416-12))
Deutz TCD 3.6 L4 Tier 4 Final
3621
100
136
01/2018 → 12/2021
KT 447 ((416-12))
Deutz TCD 3.6 L4 Tier 4 Final
3621
100
136
01/2018 → 12/2021
KT 447 ((447-22))
Deutz TCD 3.6 L4 Tier 4 Final
3621
100
136
01/2018 → 12/2021
KT 447 ((447-22))
Deutz TCD 3.6 L4 Tier 4 Final
3621
100
136
01/2018 → 12/2021
KT 457 ((416-32))
Deutz TCD 3.6 L4 Tier 4 Final
3621
100
136
07/2020 →
KT 457 ((416-32))
Deutz TCD 3.6 L4 Tier 4 Final
3621
100
136
07/2020 →
KT 507 (Version 3.0 (416-18))
Deutz TCD 3.6 L4 Tier 4 Final
3621
100
136
01/2018 → 12/2021
KT 507 (Version 3.0 (416-18))
Deutz TCD 3.6 L4 Tier 4 Final
3621
100
136
01/2018 → 12/2021
KT 507-28 (Version 1.0 (416-38))
Deutz TCD 3.6 L4 Tier 4 Final
3621
100
136
07/2020 →
KT 507-28 (Version 1.0 (416-38))
Deutz TCD 3.6 L4 Tier 4 Final
3621
100
136
07/2020 →
KT 507-28 (Version 1.2)
Deutz TCD 3.6 L4 Tier 4 Final
3621
100
136
01/2020 →
KT 507-28 (Version 1.2)
Deutz TCD 3.6 L4 Tier 4 Final
3621
100
136
01/2020 →
KT 557 (Version 1.0 (416-34))
Deutz TCD 4.1L4 Stage V
4038
115
156
07/2020 →
KT 557 (Version 3.0 (416-14))
Deutz TCD4.1L4
4038
115
156
KT 557 (Version 3.0 (416-14))
Deutz TCD4.1L4
4038
115
156
KT 557-24 (Version 1.2)
01/2020 →
KT 559 (Version 1.0 (416-36))
Deutz TCD 4.1 L4 Tier 4 Final
4038
115
156
01/2018 → 12/2021
KT 559 (Version 1.2 (416-26))
KT 559 (Version 3.0 (416-16))
Deutz TCD 4.1 L4 Tier 4 Final
4038
115
156
CLAAS
- 00 1304 585 0
- 1304 585.0
KRAMER
- 100 027 2288
MERCEDES-BENZ (DAIMLER AG)
- 211 830 00 18
- 211 830 03 18
- A 211 830 00 18
- A 211 830 03 18
