REACH-Information

SVHC declaration according to the regulation EC 1907/2006 concerning the Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH).

Produkt: AR 229 - FILTRON

MANN+HUMMEL is well aware of REACH and meet all legal obligations under this regulation.

MANN+HUMMEL has established internal processes to ensure implementation and compliance with the REACH Regulation. Especially, we continuously work on the assessment of presence of SVHC (Substances of Very High Concern).

We may inform you that according to present level of information and best knowledge, this product does not contain any SVHC listed on the Candidate List in concentration above 0,1% (w/w).

Last update: 2024-09-19

LİSTEYE GERİ DÖN

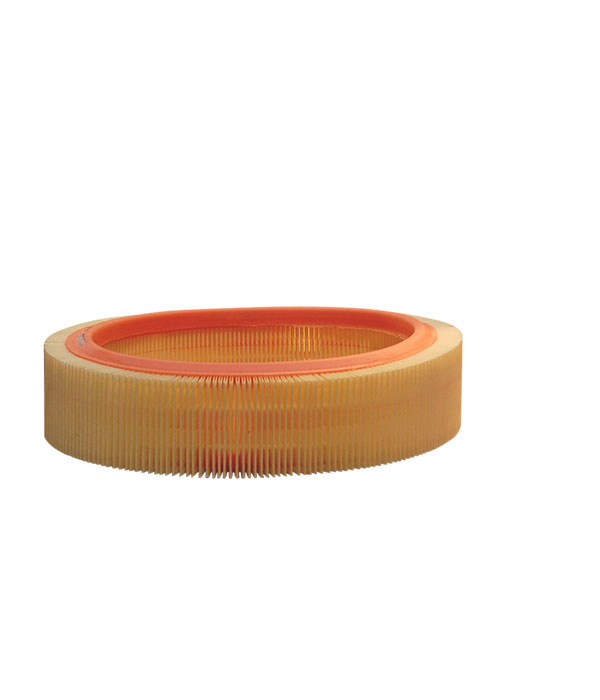

HAVA FILTRESI

AR 229

EAN KODU : 5904608002297

REACH information

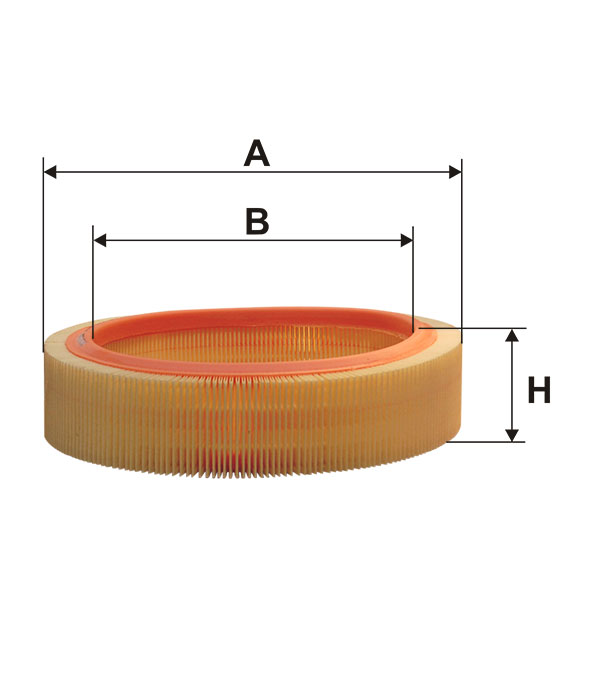

EBATLAR (mm):

244

186

62.5

KULLANIM YERLERİ
MUADİLLER

ARO

ARO 10 | 76-

	MOTOR KODU	CC	kW	HP	ÜRETİM YILI
1.3		1289	40	54	06/1980 → 11/1986	i 07/1984 ->	1.3 MOTOR KODU: CC: 1289 kW: 40 HP: 54 ÜRETİM YILI: 06/1980 → 11/1986
1.4					01/1976 →	i 07/1984 ->	1.4 MOTOR KODU: CC: kW: HP: ÜRETİM YILI: 01/1976 →
1.4	IAP 810-R-99	1397	46	63	06/1984 → 10/1999	i 07/1984 ->	1.4 MOTOR KODU: IAP 810-R-99 CC: 1397 kW: 46 HP: 63 ÜRETİM YILI: 06/1984 → 10/1999
1.6					01/1976 →	i 07/1984 ->	1.6 MOTOR KODU: CC: kW: HP: ÜRETİM YILI: 01/1976 →
1.6		1595	55	75	06/1988 → 10/1999		1.6 MOTOR KODU: CC: 1595 kW: 55 HP: 75 ÜRETİM YILI: 06/1988 → 10/1999
1.6		1557	67	91	06/1998 → 10/1999		1.6 MOTOR KODU: CC: 1557 kW: 67 HP: 91 ÜRETİM YILI: 06/1998 → 10/1999

MOTOR KODU

ÜRETİM YILI

1.3

1289

06/1980 → 11/1986

1.4

01/1976 →

1.4

IAP 810-R-99

1397

06/1984 → 10/1999

1.6

01/1976 →

1.6

1595

06/1988 → 10/1999

1.6

1557

06/1998 → 10/1999

DACIA (RENAULT GROUP)

Duster (ARO 10 4x4) | 84-93

	MOTOR KODU	CC	kW	HP	ÜRETİM YILI
1.4		1397	46	63	11/1984 → 09/1993		1.4 MOTOR KODU: CC: 1397 kW: 46 HP: 63 ÜRETİM YILI: 11/1984 → 09/1993

MOTOR KODU

ÜRETİM YILI

1.4

1397

11/1984 → 09/1993

RENAULT

Clio I | 91-98

	MOTOR KODU	CC	kW	HP	ÜRETİM YILI
1.1	C1E 700	1108	34	46	01/1991 → 08/1998		1.1 MOTOR KODU: C1E 700 CC: 1108 kW: 34 HP: 46 ÜRETİM YILI: 01/1991 → 08/1998

MOTOR KODU

ÜRETİM YILI

1.1

C1E 700

1108

01/1991 → 08/1998

Express / Extra | 86-

	MOTOR KODU	kW	HP	ÜRETİM YILI
1.1 GTC (F401)	C1E	33	45	06/1987 → 08/1991	i 07/1990 ->	1.1 GTC (F401) MOTOR KODU: C1E CC: kW: 33 HP: 45 ÜRETİM YILI: 06/1987 → 08/1991
1.1 GTC (F401)	C1E	36	49	03/1986 → 08/1991	i 07/1990 ->	1.1 GTC (F401) MOTOR KODU: C1E CC: kW: 36 HP: 49 ÜRETİM YILI: 03/1986 → 08/1991
1.2	C1G	40	55	09/1991 →		1.2 MOTOR KODU: C1G CC: kW: 40 HP: 55 ÜRETİM YILI: 09/1991 →
1.4 GTL (F402)	C1J	43	60	03/1986 → 08/1991		1.4 GTL (F402) MOTOR KODU: C1J CC: kW: 43 HP: 60 ÜRETİM YILI: 03/1986 → 08/1991
1.4 GTL (F402)	C2J	44	61	06/1987 →		1.4 GTL (F402) MOTOR KODU: C2J CC: kW: 44 HP: 61 ÜRETİM YILI: 06/1987 →
1.4 GTL (F402)	C3J	44	61	03/1986 → 08/1991		1.4 GTL (F402) MOTOR KODU: C3J CC: kW: 44 HP: 61 ÜRETİM YILI: 03/1986 → 08/1991

MOTOR KODU

ÜRETİM YILI

1.1 GTC (F401)

C1E

06/1987 → 08/1991

1.1 GTC (F401)

C1E

03/1986 → 08/1991

1.2

C1G

09/1991 →

1.4 GTL (F402)

C1J

03/1986 → 08/1991

1.4 GTL (F402)

C2J

06/1987 →

1.4 GTL (F402)

C3J

03/1986 → 08/1991

R 11 | 83-89

	MOTOR KODU	CC	kW	HP	ÜRETİM YILI
1.1 TC,GTC (B/C/S371)	C1E 720	1100	35	48	03/1983 → 07/1989	1.1 TC,GTC (B/C/S371) MOTOR KODU: C1E 720 CC: 1100 kW: 35 HP: 48 ÜRETİM YILI: 03/1983 → 07/1989
1.2 (B/C/S37S)	C1G 710	1228	40	55	10/1984 → 07/1989	1.2 (B/C/S37S) MOTOR KODU: C1G 710 CC: 1228 kW: 40 HP: 55 ÜRETİM YILI: 10/1984 → 07/1989
1.4 (B/C/S372,B/C37A)	C2J 730	1387	44	60	03/1983 → 07/1989	1.4 (B/C/S372,B/C37A) MOTOR KODU: C2J 730 CC: 1387 kW: 44 HP: 60 ÜRETİM YILI: 03/1983 → 07/1989
1.4 (B/C/S373,B/C37R)	C2J 768	1387	49	67	03/1983 → 07/1989	1.4 (B/C/S373,B/C37R) MOTOR KODU: C2J 768 CC: 1387 kW: 49 HP: 67 ÜRETİM YILI: 03/1983 → 07/1989
1.4 (B/C/S373,B/C37R)	C2J 757/768	1387	50	68	03/1983 → 07/1989	1.4 (B/C/S373,B/C37R) MOTOR KODU: C2J 757/768 CC: 1387 kW: 50 HP: 68 ÜRETİM YILI: 03/1983 → 07/1989
1.4 TSE (B/C/S373,B/C37R)	C2J 755	1387	53	72	05/1983 → 07/1989	1.4 TSE (B/C/S373,B/C37R) MOTOR KODU: C2J 755 CC: 1387 kW: 53 HP: 72 ÜRETİM YILI: 05/1983 → 07/1989

MOTOR KODU

ÜRETİM YILI

1.1 TC,GTC (B/C/S371)

C1E 720

1100

03/1983 → 07/1989

1.2 (B/C/S37S)

C1G 710

1228

10/1984 → 07/1989

1.4 (B/C/S372,B/C37A)

C2J 730

1387

03/1983 → 07/1989

1.4 (B/C/S373,B/C37R)

C2J 768

1387

03/1983 → 07/1989

1.4 (B/C/S373,B/C37R)

C2J 757/768

1387

03/1983 → 07/1989

1.4 TSE (B/C/S373,B/C37R)

C2J 755

1387

05/1983 → 07/1989

R 19 | 88-

	MOTOR KODU	CC	kW	HP	ÜRETİM YILI
1.2 (B/C/L/S530)	C1G730	1237	40	54	09/1988 → 12/1995	1.2 (B/C/L/S530) MOTOR KODU: C1G730 CC: 1237 kW: 40 HP: 54 ÜRETİM YILI: 09/1988 → 12/1995
1.4		1390	59	80	01/1992 → 12/1995	1.4 MOTOR KODU: CC: 1390 kW: 59 HP: 80 ÜRETİM YILI: 01/1992 → 12/1995
1.4 (B/C53P)	C2J 772	1397	43	60	01/1989 → 12/1989	1.4 (B/C53P) MOTOR KODU: C2J 772 CC: 1397 kW: 43 HP: 60 ÜRETİM YILI: 01/1989 → 12/1989
1.4 (TR)	C2J-790		55	75	01/1996 →	1.4 (TR) MOTOR KODU: C2J-790 CC: kW: 55 HP: 75 ÜRETİM YILI: 01/1996 →
1.4 RL,RN STH (532)	C3J 710	1390	43	58	04/1992 → 12/1995	1.4 RL,RN STH (532) MOTOR KODU: C3J 710 CC: 1390 kW: 43 HP: 58 ÜRETİM YILI: 04/1992 → 12/1995
1.4 TR,GTR (531,532)	C2J772, C3J 710	1390	43	58	10/1989 → 04/1992	1.4 TR,GTR (531,532) MOTOR KODU: C2J772, C3J 710 CC: 1390 kW: 43 HP: 58 ÜRETİM YILI: 10/1989 → 04/1992
1.6 (TR)	K7M-702		66	90	01/1996 →	1.6 (TR) MOTOR KODU: K7M-702 CC: kW: 66 HP: 90 ÜRETİM YILI: 01/1996 →

MOTOR KODU

ÜRETİM YILI

1.2 (B/C/L/S530)

C1G730

1237

09/1988 → 12/1995

1.4

1390

01/1992 → 12/1995

1.4 (B/C53P)

C2J 772

1397

01/1989 → 12/1989

1.4 (TR)

C2J-790

01/1996 →

1.4 RL,RN STH (532)

C3J 710

1390

04/1992 → 12/1995

1.4 TR,GTR (531,532)

C2J772, C3J 710

1390

10/1989 → 04/1992

1.6 (TR)

K7M-702

01/1996 →

R 5 II | 84-

	MOTOR KODU	CC	kW	HP	ÜRETİM YILI
1.0 (B/C/S400)	C1C 700	949	30	41	10/1984 → 10/1988	i -> 07/1986	1.0 (B/C/S400) MOTOR KODU: C1C 700 CC: 949 kW: 30 HP: 41 ÜRETİM YILI: 10/1984 → 10/1988
1.1 (B/C/S401)	C1E 756	1100	33	45	10/1984 → 03/1995	i -> 07/1986	1.1 (B/C/S401) MOTOR KODU: C1E 756 CC: 1100 kW: 33 HP: 45 ÜRETİM YILI: 10/1984 → 03/1995
1.1 (B/C40H,B/C/S401)	C1E 754	1100	34	46	10/1984 → 12/1996	i -> 07/1986	1.1 (B/C40H,B/C/S401) MOTOR KODU: C1E 754 CC: 1100 kW: 34 HP: 46 ÜRETİM YILI: 10/1984 → 12/1996
1.2		1237	40	55	01/1987 → 12/1996		1.2 MOTOR KODU: CC: 1237 kW: 40 HP: 55 ÜRETİM YILI: 01/1987 → 12/1996
1.4 (B/C402,B/C/S407)	C1J 780	1387	43	59	10/1984 → 06/1988		1.4 (B/C402,B/C/S407) MOTOR KODU: C1J 780 CC: 1387 kW: 43 HP: 59 ÜRETİM YILI: 10/1984 → 06/1988
1.4 (B/C403)	C2J 798	1387	52	71	10/1984 → 07/1989		1.4 (B/C403) MOTOR KODU: C2J 798 CC: 1387 kW: 52 HP: 71 ÜRETİM YILI: 10/1984 → 07/1989
1.4 (B/C40M)	C2J 784	1397	44	60	06/1987 → 08/1990		1.4 (B/C40M) MOTOR KODU: C2J 784 CC: 1397 kW: 44 HP: 60 ÜRETİM YILI: 06/1987 → 08/1990

MOTOR KODU

ÜRETİM YILI

1.0 (B/C/S400)

C1C 700

949

10/1984 → 10/1988

1.1 (B/C/S401)

C1E 756

1100

10/1984 → 03/1995

1.1 (B/C40H,B/C/S401)

C1E 754

1100

10/1984 → 12/1996

1.2

1237

01/1987 → 12/1996

1.4 (B/C402,B/C/S407)

C1J 780

1387

10/1984 → 06/1988

1.4 (B/C403)

C2J 798

1387

10/1984 → 07/1989

1.4 (B/C40M)

C2J 784

1397

06/1987 → 08/1990

R 9 | 81-89

	MOTOR KODU	CC	kW	HP	ÜRETİM YILI
1.1 (L421)	C1E 720	1100	35	48	09/1981 → 10/1987	i -> 06/1986	1.1 (L421) MOTOR KODU: C1E 720 CC: 1100 kW: 35 HP: 48 ÜRETİM YILI: 09/1981 → 10/1987
1.3	C1G 710	1228	40	54	09/1985 → 12/1986		1.3 MOTOR KODU: C1G 710 CC: 1228 kW: 40 HP: 54 ÜRETİM YILI: 09/1985 → 12/1986
1.4 (L423)	C2J 755	1387	53	72	09/1981 → 12/1989		1.4 (L423) MOTOR KODU: C2J 755 CC: 1387 kW: 53 HP: 72 ÜRETİM YILI: 09/1981 → 12/1989
1.4 (L423,L42C)	C2J 768	1387	49	67	09/1985 → 12/1989		1.4 (L423,L42C) MOTOR KODU: C2J 768 CC: 1387 kW: 49 HP: 67 ÜRETİM YILI: 09/1985 → 12/1989
1.4 (L42A)	C2J 730	1387	44	60	12/1981 → 12/1989		1.4 (L42A) MOTOR KODU: C2J 730 CC: 1387 kW: 44 HP: 60 ÜRETİM YILI: 12/1981 → 12/1989
1.4 Automatik (L42R,L423)	C2J 757	1387	50	68	09/1981 → 12/1989		1.4 Automatik (L42R,L423) MOTOR KODU: C2J 757 CC: 1387 kW: 50 HP: 68 ÜRETİM YILI: 09/1981 → 12/1989

MOTOR KODU

ÜRETİM YILI

1.1 (L421)

C1E 720

1100

09/1981 → 10/1987

1.3

C1G 710

1228

09/1985 → 12/1986

1.4 (L423)

C2J 755

1387

09/1981 → 12/1989

1.4 (L423,L42C)

C2J 768

1387

09/1985 → 12/1989

1.4 (L42A)

C2J 730

1387

12/1981 → 12/1989

1.4 Automatik (L42R,L423)

C2J 757

1387

09/1981 → 12/1989

Rapid | 85-

	MOTOR KODU	CC	kW	HP	ÜRETİM YILI
1.1 (F401)	C1E 792, C1E 750	1108	33	45	06/1987 → 08/1991	i 07/1990 ->	1.1 (F401) MOTOR KODU: C1E 792, C1E 750 CC: 1108 kW: 33 HP: 45 ÜRETİM YILI: 06/1987 → 08/1991
1.1 (F401/40H)	C1E 756	1100	33	45	06/1987 → 08/1991	i 07/1990 ->	1.1 (F401/40H) MOTOR KODU: C1E 756 CC: 1100 kW: 33 HP: 45 ÜRETİM YILI: 06/1987 → 08/1991
1.2	C1G	1200	40	55	09/1991 → 11/1998		1.2 MOTOR KODU: C1G CC: 1200 kW: 40 HP: 55 ÜRETİM YILI: 09/1991 → 11/1998
1.4 (F402)	C1J 780	1397	43	58	07/1985 → 08/1991		1.4 (F402) MOTOR KODU: C1J 780 CC: 1397 kW: 43 HP: 58 ÜRETİM YILI: 07/1985 → 08/1991
1.4 (F407/402/40M)	C2J 784	1397	44	60	03/1986 → 08/1991		1.4 (F407/402/40M) MOTOR KODU: C2J 784 CC: 1397 kW: 44 HP: 60 ÜRETİM YILI: 03/1986 → 08/1991
1.4 (F407/40A)	C3J 700, E7J 720	1390	43	58	03/1986 → 03/1998		1.4 (F407/40A) MOTOR KODU: C3J 700, E7J 720 CC: 1390 kW: 43 HP: 58 ÜRETİM YILI: 03/1986 → 03/1998

MOTOR KODU

ÜRETİM YILI

1.1 (F401)

C1E 792, C1E 750

1108

06/1987 → 08/1991

1.1 (F401/40H)

C1E 756

1100

06/1987 → 08/1991

1.2

C1G

1200

09/1991 → 11/1998

1.4 (F402)

C1J 780

1397

07/1985 → 08/1991

1.4 (F407/402/40M)

C2J 784

1397

03/1986 → 08/1991

1.4 (F407/40A)

C3J 700, E7J 720

1390

03/1986 → 03/1998

ECOAIR (IR)

D - Serie

	ÜRETİM YILI
D16		D16 MOTOR KODU: CC: kW: HP:
D20		D20 MOTOR KODU: CC: kW: HP:
D20	→ 12/1990	D20 MOTOR KODU: CC: kW: HP: ÜRETİM YILI: → 12/1990
D30		D30 MOTOR KODU: CC: kW: HP:
