REACH-Information

SVHC declaration according to the regulation EC 1907/2006 concerning the Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH).

Produkt: OP 581 - FILTRON

MANN+HUMMEL is well aware of REACH and meet all legal obligations under this regulation.

MANN+HUMMEL has established internal processes to ensure implementation and compliance with the REACH Regulation. Especially, we continuously work on the assessment of presence of SVHC (Substances of Very High Concern).

We may inform you that according to present level of information and best knowledge, this product does not contain any SVHC listed on the Candidate List in concentration above 0,1% (w/w).

Last update: 2024-09-19

LİSTEYE GERİ DÖN

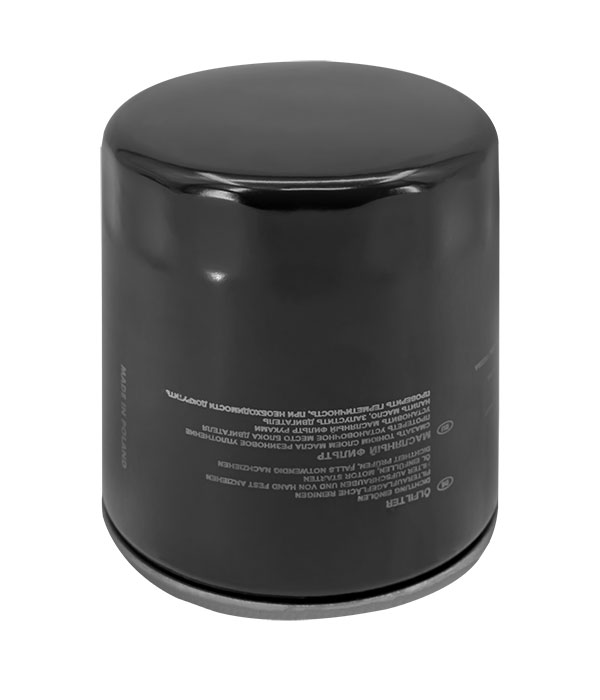

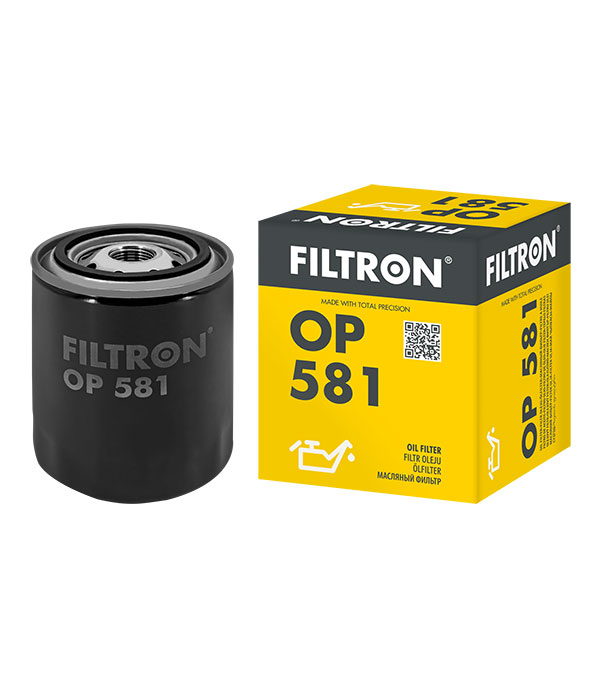

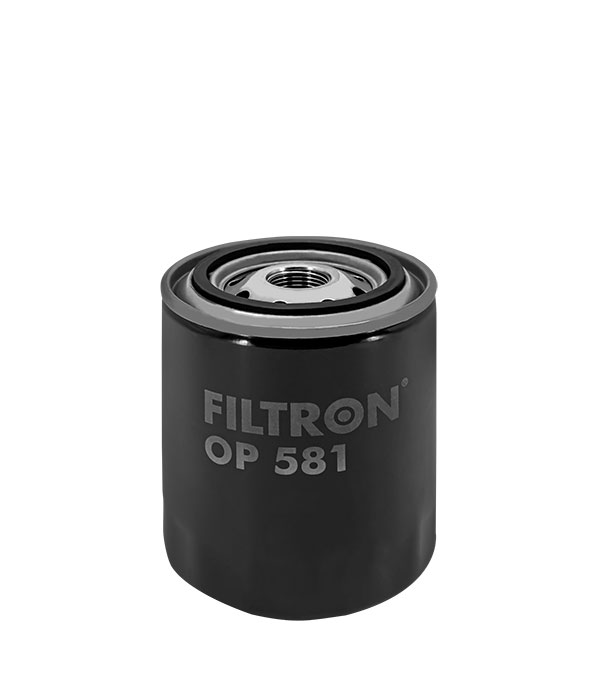

YAĞ FILTRESI

OP 581

EAN KODU : 5904608005816

REACH information

EBATLAR (mm):

3/4-16 UNF

By-pass Valve

Anti-Drain Valve

Yes

Anti-siphon Valve

MAYİS 2019 Dikkat: filtre tasarımına değişiklik yapılmıştır

Kutu filtrelerin üretimi için yeni bir teknolojinin tanıtılmasıyla ilgili olarak, kutuyu filtre kapağına ("kilit" adlı) bağlayan eleman boyanmaz. Değişikliğin, filtrelerin filtreleme özellikleri üzerinde etkisi yoktur.

Değişiklik aşağıdaki numaralar için planlanmıştır:
OP 519, OP 581, OP 620, PP 963, OP 545/2, OP 592/1, OP 619/1, OP 647/1, OP 536, OP 583, OP 621, PP 964, OP 554/1, OP 592/2, OP 619/2, PP 845/2, OP 539, OP 584, OP 626, PP 965, OP 564/1, OP 592/4, OP 626/1, PP 861/2, OP 544, OP 587, OP 631, PP 971, OP 567/2, OP 592/6, OP 626/2, PP 861/3, OP 557, OP 592, OP 635, PP 972, OP 570/2, OP 592/7, OP 626/4, PP 861/4, OP 558, OP 594, OP 636, PP 979, OP 574/1, OP 592/8, OP 626/6, PP 861/5, OP 564, OP 595, OP 641, AK 360/2, OP 574/2, OP 594/1, OP 629/2, PP 861/6, OP 569, OP 597, OP 668, OP 525/1, OP 575/1, OP 594/2, OP 632/4, PP 879/2, OP 572, OP 612, PP 840, OP 525/2, OP 580/5, OP 595/1, OP 632/5, PP 879/4, OP 574, OP 613, PP 845, OP 525/3, OP 580/8, OP 595/2, OP 642/2, PP 879/6, OP 575, OP 617, PP 879, OP 525/4, OP 584/1, OP 597/1, OP 642/3, PP 963/1, OP 577, OP 618, PP 922, OP 526/5, OP 584/2, OP 616/3, OP 643/1, PP 964/1, OP 578, OP 619, PP 944, OP 526/6, OP 587/3, OP 617/1, OP 643/6, PP 971/2

KULLANIM YERLERİ
MUADİLLER

DATSUN

100 | 74-80

	MOTOR KODU	CC	kW	HP	ÜRETİM YILI
1.0 A F-II (BLF 10)		981	33	45	12/1975 → 08/1980		1.0 A F-II (BLF 10) MOTOR KODU: CC: 981 kW: 33 HP: 45 ÜRETİM YILI: 12/1975 → 08/1980
1.0 A F-II (WBLF 10)		981	33	45	12/1975 → 08/1980		1.0 A F-II (WBLF 10) MOTOR KODU: CC: 981 kW: 33 HP: 45 ÜRETİM YILI: 12/1975 → 08/1980

MOTOR KODU

ÜRETİM YILI

1.0 A F-II (BLF 10)

981

12/1975 → 08/1980

1.0 A F-II (WBLF 10)

981

12/1975 → 08/1980

120 | 62-80

	CC	kW	HP	ÜRETİM YILI
1.2 A F-II (KLF 10)	1164	38	52	12/1975 → 08/1980	1.2 A F-II (KLF 10) MOTOR KODU: CC: 1164 kW: 38 HP: 52 ÜRETİM YILI: 12/1975 → 08/1980
1.2 A F-II (LF 10)	1164	38	52	12/1975 → 07/1980	1.2 A F-II (LF 10) MOTOR KODU: CC: 1164 kW: 38 HP: 52 ÜRETİM YILI: 12/1975 → 07/1980
1.2 Y (B 210)	1163	38	52	09/1974 → 07/1980	1.2 Y (B 210) MOTOR KODU: CC: 1163 kW: 38 HP: 52 ÜRETİM YILI: 09/1974 → 07/1980
1.2 Y (LB 210)	1163	38	52	06/1976 → 07/1980	1.2 Y (LB 210) MOTOR KODU: CC: 1163 kW: 38 HP: 52 ÜRETİM YILI: 06/1976 → 07/1980
1.2 Y Coupe (KB 210)	1163	38	52	04/1962 → 07/1980	1.2 Y Coupe (KB 210) MOTOR KODU: CC: 1163 kW: 38 HP: 52 ÜRETİM YILI: 04/1962 → 07/1980

MOTOR KODU

ÜRETİM YILI

1.2 A F-II (KLF 10)

1164

12/1975 → 08/1980

1.2 A F-II (LF 10)

1164

12/1975 → 07/1980

1.2 Y (B 210)

1163

09/1974 → 07/1980

1.2 Y (LB 210)

1163

06/1976 → 07/1980

1.2 Y Coupe (KB 210)

1163

04/1962 → 07/1980

140 | 73-83

	MOTOR KODU	CC	kW	HP	ÜRETİM YILI
1.4 Y Traveller (HLB 310)		1387	49	67	02/1979 → 06/1983		1.4 Y Traveller (HLB 310) MOTOR KODU: CC: 1387 kW: 49 HP: 67 ÜRETİM YILI: 02/1979 → 06/1983

MOTOR KODU

ÜRETİM YILI

1.4 Y Traveller (HLB 310)

1387

02/1979 → 06/1983

160 | 73-82

	MOTOR KODU	CC	kW	HP	ÜRETİM YILI
1.6 (PLA 10)	L16T	1579	61	83	01/1978 → 02/1982		1.6 (PLA 10) MOTOR KODU: L16T CC: 1579 kW: 61 HP: 83 ÜRETİM YILI: 01/1978 → 02/1982

MOTOR KODU

ÜRETİM YILI

1.6 (PLA 10)

L16T

1579

01/1978 → 02/1982

DERWAYS

Cowboy | 04-07

	MOTOR KODU	CC	kW	HP	ÜRETİM YILI
3.0 (3131)	BN6V87QE	2960	118	160	01/2004 → 04/2007		3.0 (3131) MOTOR KODU: BN6V87QE CC: 2960 kW: 118 HP: 160 ÜRETİM YILI: 01/2004 → 04/2007

MOTOR KODU

ÜRETİM YILI

3.0 (3131)

BN6V87QE

2960

118

160

01/2004 → 04/2007

FORD

Maverick I | 93-00

	MOTOR KODU	CC	kW	HP	ÜRETİM YILI
2.4i	KA24-E	2389	91	124	02/1993 → 08/1996	2.4i MOTOR KODU: KA24-E CC: 2389 kW: 91 HP: 124 ÜRETİM YILI: 02/1993 → 08/1996
2.4i (UDS)		2389	85	116	09/1996 → 11/2000	2.4i (UDS) MOTOR KODU: CC: 2389 kW: 85 HP: 116 ÜRETİM YILI: 09/1996 → 11/2000
2.4i (UDS, UNS)	KA-24	2389	87	118	09/1996 → 04/1998	2.4i (UDS, UNS) MOTOR KODU: KA-24 CC: 2389 kW: 87 HP: 118 ÜRETİM YILI: 09/1996 → 04/1998

MOTOR KODU

ÜRETİM YILI

2.4i

KA24-E

2389

124

02/1993 → 08/1996

2.4i (UDS)

2389

116

09/1996 → 11/2000

2.4i (UDS, UNS)

KA-24

2389

118

09/1996 → 04/1998

INFINITI

J30 | 92-97

	MOTOR KODU	CC	kW	HP	ÜRETİM YILI
3.0 V6		2960	157	213	01/1992 → 12/1997		3.0 V6 MOTOR KODU: CC: 2960 kW: 157 HP: 213 ÜRETİM YILI: 01/1992 → 12/1997

MOTOR KODU

ÜRETİM YILI

3.0 V6

2960

157

213

01/1992 → 12/1997

M30 (Coupé/Convertible) | 89-93

	MOTOR KODU	CC	kW	HP	ÜRETİM YILI
3.0		2960	121	164	01/1989 → 12/1993		3.0 MOTOR KODU: CC: 2960 kW: 121 HP: 164 ÜRETİM YILI: 01/1989 → 12/1993

MOTOR KODU

ÜRETİM YILI

3.0

2960

121

164

01/1989 → 12/1993

Q45 | 89-96

	MOTOR KODU	CC	kW	HP	ÜRETİM YILI
4.1 V8 32V		4130	205	278	01/1993 → 12/1996		4.1 V8 32V MOTOR KODU: CC: 4130 kW: 205 HP: 278 ÜRETİM YILI: 01/1993 → 12/1996
4.5 V8		4494	205	278	01/1989 → 12/1993		4.5 V8 MOTOR KODU: CC: 4494 kW: 205 HP: 278 ÜRETİM YILI: 01/1989 → 12/1993

MOTOR KODU

ÜRETİM YILI

4.1 V8 32V

4130

205

278

01/1993 → 12/1996

4.5 V8

4494

205

278

01/1989 → 12/1993

NISSAN

100 NX | 90-94

	MOTOR KODU	CC	kW	HP	ÜRETİM YILI
1.6 (B13)	GA16DS	1597	66	90	03/1990 → 10/1994		1.6 (B13) MOTOR KODU: GA16DS CC: 1597 kW: 66 HP: 90 ÜRETİM YILI: 03/1990 → 10/1994
1.6 SR (B13)	GA16DE	1597	75	102	09/1993 → 10/1994		1.6 SR (B13) MOTOR KODU: GA16DE CC: 1597 kW: 75 HP: 102 ÜRETİM YILI: 09/1993 → 10/1994

MOTOR KODU

ÜRETİM YILI

1.6 (B13)

GA16DS

1597

03/1990 → 10/1994

1.6 SR (B13)

GA16DE

1597

102

09/1993 → 10/1994

200 SX, ZX (Silvia) | 88-99

	MOTOR KODU	CC	kW	HP	ÜRETİM YILI
1.8 Turbo (S13)	CA18DT	1809	124	169	09/1988 → 11/1993		1.8 Turbo (S13) MOTOR KODU: CA18DT CC: 1809 kW: 124 HP: 169 ÜRETİM YILI: 09/1988 → 11/1993

MOTOR KODU

ÜRETİM YILI

1.8 Turbo (S13)

CA18DT

1809

124

169

09/1988 → 11/1993

300 ZX | 84-95

	MOTOR KODU	CC	kW	HP	ÜRETİM YILI
3.0 (Z31)	VG30E	2960	125	170	01/1984 → 12/1987	3.0 (Z31) MOTOR KODU: VG30E CC: 2960 kW: 125 HP: 170 ÜRETİM YILI: 01/1984 → 12/1987
3.0 Turbo (Z31)	VG30ET	2960	149	203	05/1987 → 10/1990	3.0 Turbo (Z31) MOTOR KODU: VG30ET CC: 2960 kW: 149 HP: 203 ÜRETİM YILI: 05/1987 → 10/1990
3.0 Turbo (Z31)		2960	168	228	04/1984 → 10/1990	3.0 Turbo (Z31) MOTOR KODU: CC: 2960 kW: 168 HP: 228 ÜRETİM YILI: 04/1984 → 10/1990
3.0 Twin Turbo (Z32)	VG30DETT	2960	208	283	05/1990 → 09/1995	3.0 Twin Turbo (Z32) MOTOR KODU: VG30DETT CC: 2960 kW: 208 HP: 283 ÜRETİM YILI: 05/1990 → 09/1995
3.0 Twin Turbo (Z32)	VG30DETT	2960	197	268	05/1990 → 09/1995	3.0 Twin Turbo (Z32) MOTOR KODU: VG30DETT CC: 2960 kW: 197 HP: 268 ÜRETİM YILI: 05/1990 → 09/1995

MOTOR KODU

ÜRETİM YILI

3.0 (Z31)

VG30E

2960

125

170

01/1984 → 12/1987

3.0 Turbo (Z31)

VG30ET

2960

149

203

05/1987 → 10/1990

3.0 Turbo (Z31)

2960

168

228

04/1984 → 10/1990

3.0 Twin Turbo (Z32)

VG30DETT

2960

208

283

05/1990 → 09/1995

3.0 Twin Turbo (Z32)

VG30DETT

2960

197

268

05/1990 → 09/1995

Almera I (N15) | 95-00

	MOTOR KODU	CC	kW	HP	ÜRETİM YILI
1.4 (N15)	GA14DE	1392	64	87	09/1995 → 05/2000	1.4 (N15) MOTOR KODU: GA14DE CC: 1392 kW: 64 HP: 87 ÜRETİM YILI: 09/1995 → 05/2000
1.4 S,GX,LX (N15)	GA14DE	1392	55	75	09/1995 → 05/2000	1.4 S,GX,LX (N15) MOTOR KODU: GA14DE CC: 1392 kW: 55 HP: 75 ÜRETİM YILI: 09/1995 → 05/2000
1.5	GA15DE	1497	77	105	07/1995 → 05/2000	1.5 MOTOR KODU: GA15DE CC: 1497 kW: 77 HP: 105 ÜRETİM YILI: 07/1995 → 05/2000
1.6 (N15)	GA16DE	1597	73	99	09/1995 → 05/2000	1.6 (N15) MOTOR KODU: GA16DE CC: 1597 kW: 73 HP: 99 ÜRETİM YILI: 09/1995 → 05/2000
1.6 SR,SLX (N15)	GA16DE	1597	66	90	09/1995 → 05/2000	1.6 SR,SLX (N15) MOTOR KODU: GA16DE CC: 1597 kW: 66 HP: 90 ÜRETİM YILI: 09/1995 → 05/2000

MOTOR KODU

ÜRETİM YILI

1.4 (N15)

GA14DE

1392

09/1995 → 05/2000

1.4 S,GX,LX (N15)

GA14DE

1392

09/1995 → 05/2000

1.5

GA15DE

1497

105

07/1995 → 05/2000

1.6 (N15)

GA16DE

1597

09/1995 → 05/2000

1.6 SR,SLX (N15)

GA16DE

1597

09/1995 → 05/2000

Almera II (N16) | 00-

	MOTOR KODU	CC	kW	HP	ÜRETİM YILI
1.6 (N16)	GA16DE, QG16DE	1597	83	113	07/2000 → 02/2003		1.6 (N16) MOTOR KODU: GA16DE, QG16DE CC: 1597 kW: 83 HP: 113 ÜRETİM YILI: 07/2000 → 02/2003

MOTOR KODU

ÜRETİM YILI

1.6 (N16)

GA16DE, QG16DE

1597

113

07/2000 → 02/2003

Bluebird | 74-91

	MOTOR KODU	CC	kW	HP	ÜRETİM YILI
1.6	CA16S	1598	61	83	03/1986 → 06/1990	1.6 MOTOR KODU: CA16S CC: 1598 kW: 61 HP: 83 ÜRETİM YILI: 03/1986 → 06/1990
1.6		1609	66	90	03/1986 → 06/1991	1.6 MOTOR KODU: CC: 1609 kW: 66 HP: 90 ÜRETİM YILI: 03/1986 → 06/1991
1.8	CA18S	1809	66	90	11/1983 → 02/1986	1.8 MOTOR KODU: CA18S CC: 1809 kW: 66 HP: 90 ÜRETİM YILI: 11/1983 → 02/1986
1.8 Turbo (T72, T12, U11)	CA18T	1809	99	135	04/1984 → 05/1990	1.8 Turbo (T72, T12, U11) MOTOR KODU: CA18T CC: 1809 kW: 99 HP: 135 ÜRETİM YILI: 04/1984 → 05/1990
1.8i 16V (RLT72)	CA18D	1809	95	129	02/1989 → 12/1990	1.8i 16V (RLT72) MOTOR KODU: CA18D CC: 1809 kW: 95 HP: 129 ÜRETİM YILI: 02/1989 → 12/1990
2.0 (T12)	CA20S	1974	75	102	12/1985 → 12/1987	2.0 (T12) MOTOR KODU: CA20S CC: 1974 kW: 75 HP: 102 ÜRETİM YILI: 12/1985 → 12/1987
2.0 (U11)	CA20E Kat.	1974	77	105	04/1984 → 01/1988	2.0 (U11) MOTOR KODU: CA20E Kat. CC: 1974 kW: 77 HP: 105 ÜRETİM YILI: 04/1984 → 01/1988
2.0 St. W. (WU11)	CA20S	1960	75	102	04/1986 → 12/1987	2.0 St. W. (WU11) MOTOR KODU: CA20S CC: 1960 kW: 75 HP: 102 ÜRETİM YILI: 04/1986 → 12/1987
2.0 St. W. (WU11)	CA20E Kat.	1974	77	105	04/1984 → 12/1990	2.0 St. W. (WU11) MOTOR KODU: CA20E Kat. CC: 1974 kW: 77 HP: 105 ÜRETİM YILI: 04/1984 → 12/1990
2.0i	CA20E	1974	85	115	09/1988 → 09/1990	2.0i MOTOR KODU: CA20E CC: 1974 kW: 85 HP: 115 ÜRETİM YILI: 09/1988 → 09/1990
2.0i (HLT72,T12)	CA20E Kat.	1960	77	105	12/1985 → 12/1990	2.0i (HLT72,T12) MOTOR KODU: CA20E Kat. CC: 1960 kW: 77 HP: 105 ÜRETİM YILI: 12/1985 → 12/1990
2.0i St. W. (WU11)	CA20E	1974	85	115	09/1988 → 09/1990	2.0i St. W. (WU11) MOTOR KODU: CA20E CC: 1974 kW: 85 HP: 115 ÜRETİM YILI: 09/1988 → 09/1990

MOTOR KODU

ÜRETİM YILI

1.6

CA16S

1598

03/1986 → 06/1990

1.6

1609

03/1986 → 06/1991

1.8

CA18S

1809

11/1983 → 02/1986

1.8 Turbo (T72, T12, U11)

CA18T

1809

135

04/1984 → 05/1990

1.8i 16V (RLT72)

CA18D

1809

129

02/1989 → 12/1990

2.0 (T12)

CA20S

1974

102

12/1985 → 12/1987

2.0 (U11)

CA20E Kat.

1974

105

04/1984 → 01/1988

2.0 St. W. (WU11)

CA20S

1960

102

04/1986 → 12/1987

2.0 St. W. (WU11)

CA20E Kat.

1974

105

04/1984 → 12/1990

2.0i

CA20E

1974

115

09/1988 → 09/1990

2.0i (HLT72,T12)

CA20E Kat.

1960

105

12/1985 → 12/1990

2.0i St. W. (WU11)

CA20E

1974

115

09/1988 → 09/1990

Cabstar I | 81-00

	MOTOR KODU	CC	kW	HP	ÜRETİM YILI
1.6 (F22,H40)	Z16	1595	62	84	10/1986 → 09/1993		1.6 (F22,H40) MOTOR KODU: Z16 CC: 1595 kW: 62 HP: 84 ÜRETİM YILI: 10/1986 → 09/1993
2.0	Z20	1952	74	100	03/1985 → 09/1993		2.0 MOTOR KODU: Z20 CC: 1952 kW: 74 HP: 100 ÜRETİM YILI: 03/1985 → 09/1993
2.0 (F22)	Z20		64	87	06/1985 → 09/1993		2.0 (F22) MOTOR KODU: Z20 CC: kW: 64 HP: 87 ÜRETİM YILI: 06/1985 → 09/1993
2.3 D (F22)	SD/TD23		51	69	06/1985 → 09/1993	i -> 09/1986	2.3 D (F22) MOTOR KODU: SD/TD23 CC: kW: 51 HP: 69 ÜRETİM YILI: 06/1985 → 09/1993
2.5 D (F22)	SD/TD25		53	73	06/1985 → 09/1993	i -> 01/1989	2.5 D (F22) MOTOR KODU: SD/TD25 CC: kW: 53 HP: 73 ÜRETİM YILI: 06/1985 → 09/1993

MOTOR KODU

ÜRETİM YILI

1.6 (F22,H40)

Z16

1595

10/1986 → 09/1993

2.0

Z20

1952

100

03/1985 → 09/1993

2.0 (F22)

Z20

06/1985 → 09/1993

2.3 D (F22)

SD/TD23

06/1985 → 09/1993

2.5 D (F22)

SD/TD25

06/1985 → 09/1993

Cherry | 70-86

	MOTOR KODU	CC	kW	HP	ÜRETİM YILI
1.0 (E10)	A10	988	33	45	09/1970 → 09/1978	1.0 (E10) MOTOR KODU: A10 CC: 988 kW: 33 HP: 45 ÜRETİM YILI: 09/1970 → 09/1978
1.0 (N10)		988	32	44	03/1979 → 06/1982	1.0 (N10) MOTOR KODU: CC: 988 kW: 32 HP: 44 ÜRETİM YILI: 03/1979 → 06/1982
1.0 (N10, N12)	E10	988	37	50	08/1978 → 05/1986	1.0 (N10, N12) MOTOR KODU: E10 CC: 988 kW: 37 HP: 50 ÜRETİM YILI: 08/1978 → 05/1986
1.2 (N10)	A12	1171	38	52	10/1978 → 06/1982	1.2 (N10) MOTOR KODU: A12 CC: 1171 kW: 38 HP: 52 ÜRETİM YILI: 10/1978 → 06/1982
1.3 (N10)	E13	1269	44	60	09/1981 → 06/1982	1.3 (N10) MOTOR KODU: E13 CC: 1269 kW: 44 HP: 60 ÜRETİM YILI: 09/1981 → 06/1982
1.3 (N12)	E13	1269	44	60	05/1982 → 10/1986	1.3 (N12) MOTOR KODU: E13 CC: 1269 kW: 44 HP: 60 ÜRETİM YILI: 05/1982 → 10/1986
1.4 (N10)	A14S	1379	59	80	10/1979 → 04/1982	1.4 (N10) MOTOR KODU: A14S CC: 1379 kW: 59 HP: 80 ÜRETİM YILI: 10/1979 → 04/1982
1.5 (N10)	E15	1488	51	69	01/1979 → 12/1982	1.5 (N10) MOTOR KODU: E15 CC: 1488 kW: 51 HP: 69 ÜRETİM YILI: 01/1979 → 12/1982
1.5 (N12)	E15S	1488	55	75	11/1983 → 10/1986	1.5 (N12) MOTOR KODU: E15S CC: 1488 kW: 55 HP: 75 ÜRETİM YILI: 11/1983 → 10/1986
1.5 Turbo (N12)	E15ET	1488	77	105	01/1983 → 12/1985	1.5 Turbo (N12) MOTOR KODU: E15ET CC: 1488 kW: 77 HP: 105 ÜRETİM YILI: 01/1983 → 12/1985

MOTOR KODU

ÜRETİM YILI

1.0 (E10)

A10

988

09/1970 → 09/1978

1.0 (N10)

988

03/1979 → 06/1982

1.0 (N10, N12)

E10

988

08/1978 → 05/1986

1.2 (N10)

A12

1171

10/1978 → 06/1982

1.3 (N10)

E13

1269

09/1981 → 06/1982

1.3 (N12)

E13

1269

05/1982 → 10/1986

1.4 (N10)

A14S

1379

10/1979 → 04/1982

1.5 (N10)

E15

1488

01/1979 → 12/1982

1.5 (N12)

E15S

1488

11/1983 → 10/1986

1.5 Turbo (N12)

E15ET

1488

105

01/1983 → 12/1985

Civilian | 86-

	MOTOR KODU	CC	kW	HP	ÜRETİM YILI
2.2	Z22	2188	77	105	10/1986 →		2.2 MOTOR KODU: Z22 CC: 2188 kW: 77 HP: 105 ÜRETİM YILI: 10/1986 →

MOTOR KODU

ÜRETİM YILI

2.2

Z22

2188

105

10/1986 →

Homer | 76-83

	MOTOR KODU	CC	kW	HP	ÜRETİM YILI
2.0 (E20)	H20	1982	55	75	01/1976 → 12/1983		2.0 (E20) MOTOR KODU: H20 CC: 1982 kW: 55 HP: 75 ÜRETİM YILI: 01/1976 → 12/1983

MOTOR KODU

ÜRETİM YILI

2.0 (E20)

H20

1982

01/1976 → 12/1983

Maxima | 88-

	MOTOR KODU	CC	kW	HP	ÜRETİM YILI
3.0 i	VG30E Kat.	2960	125	170	10/1988 → 06/1994		3.0 i MOTOR KODU: VG30E Kat. CC: 2960 kW: 125 HP: 170 ÜRETİM YILI: 10/1988 → 06/1994

MOTOR KODU

ÜRETİM YILI

3.0 i

VG30E Kat.

2960

125

170

10/1988 → 06/1994

Pick Up / Navara (720, D21, D22) | 80-

	MOTOR KODU	CC	kW	HP	ÜRETİM YILI
1.6		1567	51	69	12/1980 → 05/1984	1.6 MOTOR KODU: CC: 1567 kW: 51 HP: 69 ÜRETİM YILI: 12/1980 → 05/1984
2.4i (D22)	KA24DE	2389	98	133	03/2002 → 08/2005	2.4i (D22) MOTOR KODU: KA24DE CC: 2389 kW: 98 HP: 133 ÜRETİM YILI: 03/2002 → 08/2005
2.4i (D22)	KA24E	2389	88	120	02/1998 → 08/2005	2.4i (D22) MOTOR KODU: KA24E CC: 2389 kW: 88 HP: 120 ÜRETİM YILI: 02/1998 → 08/2005
2.4i 12V (D21)	KA24E	2389	91	124	04/1992 → 02/1998	2.4i 12V (D21) MOTOR KODU: KA24E CC: 2389 kW: 91 HP: 124 ÜRETİM YILI: 04/1992 → 02/1998
2.4i 12V 4WD (D21)	KA24E	2389	93	124	04/1992 → 02/1998	2.4i 12V 4WD (D21) MOTOR KODU: KA24E CC: 2389 kW: 93 HP: 124 ÜRETİM YILI: 04/1992 → 02/1998
3.0i V6 4WD (D21)	VG30E	2960	109	148	09/1990 → 02/1998	3.0i V6 4WD (D21) MOTOR KODU: VG30E CC: 2960 kW: 109 HP: 148 ÜRETİM YILI: 09/1990 → 02/1998

MOTOR KODU

ÜRETİM YILI

1.6

1567

12/1980 → 05/1984

2.4i (D22)

KA24DE

2389

133

03/2002 → 08/2005

2.4i (D22)

KA24E

2389

120

02/1998 → 08/2005

2.4i 12V (D21)

KA24E

2389

124

04/1992 → 02/1998

2.4i 12V 4WD (D21)

KA24E

2389

124

04/1992 → 02/1998

3.0i V6 4WD (D21)

VG30E

2960

109

148

09/1990 → 02/1998

Prairie Pro | 88-94

	MOTOR KODU	CC	kW	HP	ÜRETİM YILI
2.0i (M11)	CA20E Kat.	1974	72	98	10/1988 → 04/1992	2.0i (M11) MOTOR KODU: CA20E Kat. CC: 1974 kW: 72 HP: 98 ÜRETİM YILI: 10/1988 → 04/1992
2.0i 4x4 (M11)	CA20E Kat.	1974	72	98	10/1988 → 12/1992	2.0i 4x4 (M11) MOTOR KODU: CA20E Kat. CC: 1974 kW: 72 HP: 98 ÜRETİM YILI: 10/1988 → 12/1992
2.4i (M11)	KA24E	2389	98	133	04/1992 → 07/1994	2.4i (M11) MOTOR KODU: KA24E CC: 2389 kW: 98 HP: 133 ÜRETİM YILI: 04/1992 → 07/1994

MOTOR KODU

ÜRETİM YILI

2.0i (M11)

CA20E Kat.

1974

10/1988 → 04/1992

2.0i 4x4 (M11)

CA20E Kat.

1974

10/1988 → 12/1992

2.4i (M11)

KA24E

2389

133

04/1992 → 07/1994

Prairie | 83-88

	MOTOR KODU	CC	kW	HP	ÜRETİM YILI
1.5 S (M10)	E15S	1488	55	75	01/1984 → 12/1987	1.5 S (M10) MOTOR KODU: E15S CC: 1488 kW: 55 HP: 75 ÜRETİM YILI: 01/1984 → 12/1987
1.8 SGL (M 10)	CA18S	1809	65	88	07/1983 → 12/1985	1.8 SGL (M 10) MOTOR KODU: CA18S CC: 1809 kW: 65 HP: 88 ÜRETİM YILI: 07/1983 → 12/1985
1.8 SGL (M10)	CA18S	1809	66	90	05/1985 → 10/1987	1.8 SGL (M10) MOTOR KODU: CA18S CC: 1809 kW: 66 HP: 90 ÜRETİM YILI: 05/1985 → 10/1987
2.0 4x4 (NM 10)	CA20S	1974	68	92	06/1986 → 09/1988	2.0 4x4 (NM 10) MOTOR KODU: CA20S CC: 1974 kW: 68 HP: 92 ÜRETİM YILI: 06/1986 → 09/1988

MOTOR KODU

ÜRETİM YILI

1.5 S (M10)

E15S

1488

01/1984 → 12/1987

1.8 SGL (M 10)

CA18S

1809

07/1983 → 12/1985

1.8 SGL (M10)

CA18S

1809

05/1985 → 10/1987

2.0 4x4 (NM 10)

CA20S

1974

06/1986 → 09/1988

Primera I (P10) | 90-96

	MOTOR KODU	CC	kW	HP	ÜRETİM YILI
1.6 (P10/W10)	GA16DE, GA16DS	1597	71	97	06/1990 → 01/1996	1.6 (P10/W10) MOTOR KODU: GA16DE, GA16DS CC: 1597 kW: 71 HP: 97 ÜRETİM YILI: 06/1990 → 01/1996
1.6 (P10/W10)	GA16DE	1597	75	102	06/1993 → 01/1996	1.6 (P10/W10) MOTOR KODU: GA16DE CC: 1597 kW: 75 HP: 102 ÜRETİM YILI: 06/1993 → 01/1996
1.6 (P10/W10)	GA16DE, GA16DS	1597	66	90	06/1990 → 01/1996	1.6 (P10/W10) MOTOR KODU: GA16DE, GA16DS CC: 1597 kW: 66 HP: 90 ÜRETİM YILI: 06/1990 → 01/1996

MOTOR KODU

ÜRETİM YILI

1.6 (P10/W10)

GA16DE, GA16DS

1597

06/1990 → 01/1996

1.6 (P10/W10)

GA16DE

1597

102

06/1993 → 01/1996

1.6 (P10/W10)

GA16DE, GA16DS

1597

06/1990 → 01/1996

Primera II / Avenir (P11) | 96-02

	MOTOR KODU	CC	kW	HP	ÜRETİM YILI
1.6 16V (P11)	GA16DE	1597	66	90	09/1996 → 07/2002		1.6 16V (P11) MOTOR KODU: GA16DE CC: 1597 kW: 66 HP: 90 ÜRETİM YILI: 09/1996 → 07/2002
1.6 16V (P11)	GA16DE	1597	73	99	09/1996 → 07/2002		1.6 16V (P11) MOTOR KODU: GA16DE CC: 1597 kW: 73 HP: 99 ÜRETİM YILI: 09/1996 → 07/2002

MOTOR KODU

ÜRETİM YILI

1.6 16V (P11)

GA16DE

1597

09/1996 → 07/2002

1.6 16V (P11)

GA16DE

1597

09/1996 → 07/2002

Sentra | 90-

	MOTOR KODU	CC	kW	HP	ÜRETİM YILI
1.6 (SER)	GA16DE	1597	81	110	09/1990 → 01/1996		1.6 (SER) MOTOR KODU: GA16DE CC: 1597 kW: 81 HP: 110 ÜRETİM YILI: 09/1990 → 01/1996

MOTOR KODU

ÜRETİM YILI

1.6 (SER)

GA16DE

1597

110

09/1990 → 01/1996

Serena | 91-05

	MOTOR KODU	CC	kW	HP	ÜRETİM YILI
1.6 (C23)	GA16DE	1597	71	97	02/1993 → 09/2001		1.6 (C23) MOTOR KODU: GA16DE CC: 1597 kW: 71 HP: 97 ÜRETİM YILI: 02/1993 → 09/2001
2.0	SR20DE	1998	106	145	06/1999 → 05/2005		2.0 MOTOR KODU: SR20DE CC: 1998 kW: 106 HP: 145 ÜRETİM YILI: 06/1999 → 05/2005

MOTOR KODU

ÜRETİM YILI

1.6 (C23)

GA16DE

1597

02/1993 → 09/2001

2.0

SR20DE

1998

106

145

06/1999 → 05/2005

Silvia | 79-89

	MOTOR KODU	CC	kW	HP	ÜRETİM YILI
1.8 Ti (S12)	CA18ET	1800	99	135	01/1984 → 12/1989		1.8 Ti (S12) MOTOR KODU: CA18ET CC: 1800 kW: 99 HP: 135 ÜRETİM YILI: 01/1984 → 12/1989
1.8 Turbo (S110)		1770	68	92	01/1979 → 05/1983		1.8 Turbo (S110) MOTOR KODU: CC: 1770 kW: 68 HP: 92 ÜRETİM YILI: 01/1979 → 05/1983

MOTOR KODU

ÜRETİM YILI

1.8 Ti (S12)

CA18ET

1800

135

01/1984 → 12/1989

1.8 Turbo (S110)

1770

01/1979 → 05/1983

Skyline | 96-99

	MOTOR KODU	CC	kW	HP	ÜRETİM YILI
2.6 TWIN TURBO (R33)	RB26DETT	2568	206	280	01/1996 → 09/1999		2.6 TWIN TURBO (R33) MOTOR KODU: RB26DETT CC: 2568 kW: 206 HP: 280 ÜRETİM YILI: 01/1996 → 09/1999

MOTOR KODU

ÜRETİM YILI

2.6 TWIN TURBO (R33)

RB26DETT

2568

206

280

01/1996 → 09/1999

Stanza | 81-85

	MOTOR KODU	CC	kW	HP	ÜRETİM YILI
1.6 (T11)	CA16S	1598	60	82	08/1981 → 12/1985	1.6 (T11) MOTOR KODU: CA16S CC: 1598 kW: 60 HP: 82 ÜRETİM YILI: 08/1981 → 12/1985
1.8 (T11)	CA18S	1809	65	88	08/1981 → 12/1985	1.8 (T11) MOTOR KODU: CA18S CC: 1809 kW: 65 HP: 88 ÜRETİM YILI: 08/1981 → 12/1985
1.8 (T11)	CA18S	1809	66	90	08/1981 → 12/1985	1.8 (T11) MOTOR KODU: CA18S CC: 1809 kW: 66 HP: 90 ÜRETİM YILI: 08/1981 → 12/1985
2.0i (T11)	CA20E	2000			04/1983 → 12/1985	2.0i (T11) MOTOR KODU: CA20E CC: 2000 kW: HP: ÜRETİM YILI: 04/1983 → 12/1985

MOTOR KODU

ÜRETİM YILI

1.6 (T11)

CA16S

1598

08/1981 → 12/1985

1.8 (T11)

CA18S

1809

08/1981 → 12/1985

1.8 (T11)

CA18S

1809

08/1981 → 12/1985

2.0i (T11)

CA20E

2000

04/1983 → 12/1985

Sunny | 70-00

	MOTOR KODU	CC	kW	HP	ÜRETİM YILI
1.0	E10S	988	37	50	07/1986 → 09/1990	1.0 MOTOR KODU: E10S CC: 988 kW: 37 HP: 50 ÜRETİM YILI: 07/1986 → 09/1990
1.3 (B11)	E13	1269	44	60	03/1982 → 09/1987	1.3 (B11) MOTOR KODU: E13 CC: 1269 kW: 44 HP: 60 ÜRETİM YILI: 03/1982 → 09/1987
1.3 (N13)	E13S	1269	44	60	06/1986 → 10/1988	1.3 (N13) MOTOR KODU: E13S CC: 1269 kW: 44 HP: 60 ÜRETİM YILI: 06/1986 → 10/1988
1.3 (N13)	E13S	1261	44	60	07/1986 → 10/1991	1.3 (N13) MOTOR KODU: E13S CC: 1261 kW: 44 HP: 60 ÜRETİM YILI: 07/1986 → 10/1991
1.4 (HLB 310)	A14	1397	48	65	01/1970 → 02/1982	1.4 (HLB 310) MOTOR KODU: A14 CC: 1397 kW: 48 HP: 65 ÜRETİM YILI: 01/1970 → 02/1982
1.4 (HLB 310)	A14	1397	49	67	06/1979 → 02/1982	1.4 (HLB 310) MOTOR KODU: A14 CC: 1397 kW: 49 HP: 67 ÜRETİM YILI: 06/1979 → 02/1982
1.4 16V (N14)	GA14DE/DS	1597	66	90	10/1990 → 05/1995	1.4 16V (N14) MOTOR KODU: GA14DE/DS CC: 1597 kW: 66 HP: 90 ÜRETİM YILI: 10/1990 → 05/1995
1.4 16V (N14)	GA14DE	1488	51	70	10/1990 → 05/1995	1.4 16V (N14) MOTOR KODU: GA14DE CC: 1488 kW: 51 HP: 70 ÜRETİM YILI: 10/1990 → 05/1995
1.4 16V (N14)	GA14DE	1392	64	87	10/1990 → 05/1995	1.4 16V (N14) MOTOR KODU: GA14DE CC: 1392 kW: 64 HP: 87 ÜRETİM YILI: 10/1990 → 05/1995
1.4 16V (N14)	GA14DE/DS	1392	55	75	10/1990 → 05/1995	1.4 16V (N14) MOTOR KODU: GA14DE/DS CC: 1392 kW: 55 HP: 75 ÜRETİM YILI: 10/1990 → 05/1995
1.4 LX	GA14S	1392	55	75	01/1989 → 08/1991	1.4 LX MOTOR KODU: GA14S CC: 1392 kW: 55 HP: 75 ÜRETİM YILI: 01/1989 → 08/1991
1.4 Traveller (HLB 310)	A14	1397	48	65	06/1979 → 02/1982	1.4 Traveller (HLB 310) MOTOR KODU: A14 CC: 1397 kW: 48 HP: 65 ÜRETİM YILI: 06/1979 → 02/1982
1.5	E15S	1487	52	71	06/1986 → 10/1988	1.5 MOTOR KODU: E15S CC: 1487 kW: 52 HP: 71 ÜRETİM YILI: 06/1986 → 10/1988
1.5 (B11)	E15S	1488	55	75	03/1982 → 10/1986	1.5 (B11) MOTOR KODU: E15S CC: 1488 kW: 55 HP: 75 ÜRETİM YILI: 03/1982 → 10/1986
1.5 (HLB 310)	A15	1488	51	69	06/1979 → 02/1982	1.5 (HLB 310) MOTOR KODU: A15 CC: 1488 kW: 51 HP: 69 ÜRETİM YILI: 06/1979 → 02/1982
1.5 Traveller (HLB 310)	A15	1488	51	69	06/1979 → 02/1982	1.5 Traveller (HLB 310) MOTOR KODU: A15 CC: 1488 kW: 51 HP: 69 ÜRETİM YILI: 06/1979 → 02/1982
1.6	GA16DS	1597	64	87	01/1994 → 12/1995	1.6 MOTOR KODU: GA16DS CC: 1597 kW: 64 HP: 87 ÜRETİM YILI: 01/1994 → 12/1995
1.6 (N13)	E16S	1597	62	84	06/1986 → 10/1988	1.6 (N13) MOTOR KODU: E16S CC: 1597 kW: 62 HP: 84 ÜRETİM YILI: 06/1986 → 10/1988
1.6 (N14/Y10)	GA16DE/DS	1597	66	90	02/1991 → 12/1995	1.6 (N14/Y10) MOTOR KODU: GA16DE/DS CC: 1597 kW: 66 HP: 90 ÜRETİM YILI: 02/1991 → 12/1995
1.6 (Y10)	GA16DE	1597	75	102	07/1995 → 03/2000	1.6 (Y10) MOTOR KODU: GA16DE CC: 1597 kW: 75 HP: 102 ÜRETİM YILI: 07/1995 → 03/2000
1.6 GTI 16V (N13)	CA16D	1598	81	110	06/1987 → 05/1989	1.6 GTI 16V (N13) MOTOR KODU: CA16D CC: 1598 kW: 81 HP: 110 ÜRETİM YILI: 06/1987 → 05/1989
1.6i (N13)	GA16i	1597	66	90	06/1986 → 10/1990	1.6i (N13) MOTOR KODU: GA16i CC: 1597 kW: 66 HP: 90 ÜRETİM YILI: 06/1986 → 10/1990
1.6i (N13)	E16i	1597	54	73	06/1986 → 10/1990	1.6i (N13) MOTOR KODU: E16i CC: 1597 kW: 54 HP: 73 ÜRETİM YILI: 06/1986 → 10/1990
1.6i 16V (N14)	GA16DE	1597	75	102	10/1992 → 05/1995	1.6i 16V (N14) MOTOR KODU: GA16DE CC: 1597 kW: 75 HP: 102 ÜRETİM YILI: 10/1992 → 05/1995
1.6i 16V St. W. (Y10L)	GA16DS	1597	75	102	10/1992 → 03/2000	1.6i 16V St. W. (Y10L) MOTOR KODU: GA16DS CC: 1597 kW: 75 HP: 102 ÜRETİM YILI: 10/1992 → 03/2000
1.8 GTI 16V (N13)	CA18D	1809	92	125	01/1989 → 06/1991	1.8 GTI 16V (N13) MOTOR KODU: CA18D CC: 1809 kW: 92 HP: 125 ÜRETİM YILI: 01/1989 → 06/1991

MOTOR KODU

ÜRETİM YILI

1.0

E10S

988

07/1986 → 09/1990

1.3 (B11)

E13

1269

03/1982 → 09/1987

1.3 (N13)

E13S

1269

06/1986 → 10/1988

1.3 (N13)

E13S

1261

07/1986 → 10/1991

1.4 (HLB 310)

A14

1397

01/1970 → 02/1982

1.4 (HLB 310)

A14

1397

06/1979 → 02/1982

1.4 16V (N14)

GA14DE/DS

1597

10/1990 → 05/1995

1.4 16V (N14)

GA14DE

1488

10/1990 → 05/1995

1.4 16V (N14)

GA14DE

1392

10/1990 → 05/1995

1.4 16V (N14)

GA14DE/DS

1392

10/1990 → 05/1995

1.4 LX

GA14S

1392

01/1989 → 08/1991

1.4 Traveller (HLB 310)

A14

1397

06/1979 → 02/1982

1.5

E15S

1487

06/1986 → 10/1988

1.5 (B11)

E15S

1488

03/1982 → 10/1986

1.5 (HLB 310)

A15

1488

06/1979 → 02/1982

1.5 Traveller (HLB 310)

A15

1488

06/1979 → 02/1982

1.6

GA16DS

1597

01/1994 → 12/1995

1.6 (N13)

E16S

1597

06/1986 → 10/1988

1.6 (N14/Y10)

GA16DE/DS

1597

02/1991 → 12/1995

1.6 (Y10)

GA16DE

1597

102

07/1995 → 03/2000

1.6 GTI 16V (N13)

CA16D

1598

110

06/1987 → 05/1989

1.6i (N13)

GA16i

1597

06/1986 → 10/1990

1.6i (N13)

E16i

1597

06/1986 → 10/1990

1.6i 16V (N14)

GA16DE

1597

102

10/1992 → 05/1995

1.6i 16V St. W. (Y10L)

GA16DS

1597

102

10/1992 → 03/2000

1.8 GTI 16V (N13)

CA18D

1809

125

01/1989 → 06/1991

Terrano I | 86-95

	MOTOR KODU	CC	kW	HP	ÜRETİM YILI
3.0 V6 (WD21)	VG30E	2960	109	148	09/1992 → 12/1995		3.0 V6 (WD21) MOTOR KODU: VG30E CC: 2960 kW: 109 HP: 148 ÜRETİM YILI: 09/1992 → 12/1995

MOTOR KODU

ÜRETİM YILI

3.0 V6 (WD21)

VG30E

2960

109

148

09/1992 → 12/1995

Terrano II | 93-05

	MOTOR KODU	CC	kW	HP	ÜRETİM YILI
2.4 (R20)	KA24E	2389	87	118	05/1996 → 06/2005	2.4 (R20) MOTOR KODU: KA24E CC: 2389 kW: 87 HP: 118 ÜRETİM YILI: 05/1996 → 06/2005
2.4 12V (R20)	KA24E	2389	85	116	05/1996 → 06/2005	2.4 12V (R20) MOTOR KODU: KA24E CC: 2389 kW: 85 HP: 116 ÜRETİM YILI: 05/1996 → 06/2005
2.4i 12V (R20)	KA24E	2389	91	124	02/1993 → 06/1996	2.4i 12V (R20) MOTOR KODU: KA24E CC: 2389 kW: 91 HP: 124 ÜRETİM YILI: 02/1993 → 06/1996

MOTOR KODU

ÜRETİM YILI

2.4 (R20)

KA24E

2389

118

05/1996 → 06/2005

2.4 12V (R20)

KA24E

2389

116

05/1996 → 06/2005

2.4i 12V (R20)

KA24E

2389

124

02/1993 → 06/1996

Urvan | 80-97

	MOTOR KODU	CC	kW	HP	ÜRETİM YILI
2.0 (E23)		1960	55	75	07/1981 → 11/1982	2.0 (E23) MOTOR KODU: CC: 1960 kW: 55 HP: 75 ÜRETİM YILI: 07/1981 → 11/1982
2.0 (E23)	Z20	1938	64	87	01/1980 → 11/1982	2.0 (E23) MOTOR KODU: Z20 CC: 1938 kW: 64 HP: 87 ÜRETİM YILI: 01/1980 → 11/1982
2.0 (E23B)	Z20	1938	64	87	12/1982 → 11/1988	2.0 (E23B) MOTOR KODU: Z20 CC: 1938 kW: 64 HP: 87 ÜRETİM YILI: 12/1982 → 11/1988
2.4i (E24L)	Z24i	2389	74	101	05/1989 → 09/1993	2.4i (E24L) MOTOR KODU: Z24i CC: 2389 kW: 74 HP: 101 ÜRETİM YILI: 05/1989 → 09/1993

MOTOR KODU

ÜRETİM YILI

2.0 (E23)

1960

07/1981 → 11/1982

2.0 (E23)

Z20

1938

01/1980 → 11/1982

2.0 (E23B)

Z20

1938

12/1982 → 11/1988

2.4i (E24L)

Z24i

2389

101

05/1989 → 09/1993

Vanette/Vanette Cargo/Largo | 83-02

	MOTOR KODU	CC	kW	HP	ÜRETİM YILI
1.5 (C22)	A15	1488	51	69	10/1986 → 12/1995	1.5 (C22) MOTOR KODU: A15 CC: 1488 kW: 51 HP: 69 ÜRETİM YILI: 10/1986 → 12/1995
1.5 (KC120)	A15	1488	51	69	01/1983 → 12/1987	1.5 (KC120) MOTOR KODU: A15 CC: 1488 kW: 51 HP: 69 ÜRETİM YILI: 01/1983 → 12/1987
1.6 16V (C23M)	GA16DE	1598	71	97	02/1995 → 05/2001	1.6 16V (C23M) MOTOR KODU: GA16DE CC: 1598 kW: 71 HP: 97 ÜRETİM YILI: 02/1995 → 05/2001
2.4i (SLC 22)	Z24i	2389	77	105	09/1986 → 12/1995	2.4i (SLC 22) MOTOR KODU: Z24i CC: 2389 kW: 77 HP: 105 ÜRETİM YILI: 09/1986 → 12/1995
2.4i (SLC 22)	Z24i	2389	74	101	09/1986 → 12/1995	2.4i (SLC 22) MOTOR KODU: Z24i CC: 2389 kW: 74 HP: 101 ÜRETİM YILI: 09/1986 → 12/1995

MOTOR KODU

ÜRETİM YILI

1.5 (C22)

A15

1488

10/1986 → 12/1995

1.5 (KC120)

A15

1488

01/1983 → 12/1987

1.6 16V (C23M)

GA16DE

1598

02/1995 → 05/2001

2.4i (SLC 22)

Z24i

2389

105

09/1986 → 12/1995

2.4i (SLC 22)

Z24i

2389

101

09/1986 → 12/1995

FX-Serie

	MOTOR KODU	CC	kW	HP	ÜRETİM YILI
FX 25	H-20						FX 25 MOTOR KODU: H-20 CC: kW: HP:
FX 30	H-20						FX 30 MOTOR KODU: H-20 CC: kW: HP:

MOTOR KODU

ÜRETİM YILI

FX 25

H-20

FX 30

H-20

SUBARU

1800 | 80-92

	MOTOR KODU	CC	kW	HP	ÜRETİM YILI
1.8 (AF)	EA81	1769	59	80	09/1980 → 10/1984	1.8 (AF) MOTOR KODU: EA81 CC: 1769 kW: 59 HP: 80 ÜRETİM YILI: 09/1980 → 10/1984
1.8 4WD (AF)	EA81	1769	60	82	09/1980 → 10/1984	1.8 4WD (AF) MOTOR KODU: EA81 CC: 1769 kW: 60 HP: 82 ÜRETİM YILI: 09/1980 → 10/1984
1.8 4WD (LAC)	EA82	1782	72	98	01/1988 → 12/1990	1.8 4WD (LAC) MOTOR KODU: EA82 CC: 1782 kW: 72 HP: 98 ÜRETİM YILI: 01/1988 → 12/1990
1.8 4WD (LAC)	EA82	1769	66	90	11/1984 → 12/1990	1.8 4WD (LAC) MOTOR KODU: EA82 CC: 1769 kW: 66 HP: 90 ÜRETİM YILI: 11/1984 → 12/1990
1.8 Super Kat St.W.		1781	70	95	07/1986 → 02/1992	1.8 Super Kat St.W. MOTOR KODU: CC: 1781 kW: 70 HP: 95 ÜRETİM YILI: 07/1986 → 02/1992
1.8 Turbo 4WD (LAC)	EA82	1769	96	131	03/1989 → 12/1990	1.8 Turbo 4WD (LAC) MOTOR KODU: EA82 CC: 1769 kW: 96 HP: 131 ÜRETİM YILI: 03/1989 → 12/1990
1.8 Turbo 4WD (LAC)	EA82	1769	100	136	11/1984 → 12/1990	1.8 Turbo 4WD (LAC) MOTOR KODU: EA82 CC: 1769 kW: 100 HP: 136 ÜRETİM YILI: 11/1984 → 12/1990
1.8 XT Coupe 4WD (XT)	EA82	1782	88	120	01/1988 → 12/1990	1.8 XT Coupe 4WD (XT) MOTOR KODU: EA82 CC: 1782 kW: 88 HP: 120 ÜRETİM YILI: 01/1988 → 12/1990

MOTOR KODU

ÜRETİM YILI

1.8 (AF)

EA81

1769

09/1980 → 10/1984

1.8 4WD (AF)

EA81

1769

09/1980 → 10/1984

1.8 4WD (LAC)

EA82

1782

01/1988 → 12/1990

1.8 4WD (LAC)

EA82

1769

11/1984 → 12/1990

1.8 Super Kat St.W.

1781

07/1986 → 02/1992

1.8 Turbo 4WD (LAC)

EA82

1769

131

03/1989 → 12/1990

1.8 Turbo 4WD (LAC)

EA82

1769

100

136

11/1984 → 12/1990

1.8 XT Coupe 4WD (XT)

EA82

1782

120

01/1988 → 12/1990

Leone | 78-93

	MOTOR KODU	CC	kW	HP	ÜRETİM YILI
1.3 (AC1/AN1)	EA65		45	61	08/1984 → 12/1993	1.3 (AC1/AN1) MOTOR KODU: EA65 CC: kW: 45 HP: 61 ÜRETİM YILI: 08/1984 → 12/1993
1.3 (AF1/AM1)	EA65		45	61	03/1979 → 08/1984	1.3 (AF1/AM1) MOTOR KODU: EA65 CC: kW: 45 HP: 61 ÜRETİM YILI: 03/1979 → 08/1984
1.6	EA71	1595	55	74	11/1984 → 09/1991	1.6 MOTOR KODU: EA71 CC: 1595 kW: 55 HP: 74 ÜRETİM YILI: 11/1984 → 09/1991
1.6 (AB)	EA71	1595	63	86	03/1979 → 10/1984	1.6 (AB) MOTOR KODU: EA71 CC: 1595 kW: 63 HP: 86 ÜRETİM YILI: 03/1979 → 10/1984
1.6 (AC2/AN2/3)	EA71		52	71	08/1984 → 12/1993	1.6 (AC2/AN2/3) MOTOR KODU: EA71 CC: kW: 52 HP: 71 ÜRETİM YILI: 08/1984 → 12/1993
1.6 (AF2/AM2/3)	EA71	1595	52	71	09/1978 → 12/1984	1.6 (AF2/AM2/3) MOTOR KODU: EA71 CC: 1595 kW: 52 HP: 71 ÜRETİM YILI: 09/1978 → 12/1984
1.8 (AB4/5/AF5)	EA81		60	82	10/1980 → 12/1984	1.8 (AB4/5/AF5) MOTOR KODU: EA81 CC: kW: 60 HP: 82 ÜRETİM YILI: 10/1980 → 12/1984
1.8 (AC4/AN4/5)	EA82		66	90	08/1984 → 12/1991	1.8 (AC4/AN4/5) MOTOR KODU: EA82 CC: kW: 66 HP: 90 ÜRETİM YILI: 08/1984 → 12/1991
1.8 (AM5/J5)	EA81	1781	60	82	05/1979 → 12/1984	1.8 (AM5/J5) MOTOR KODU: EA81 CC: 1781 kW: 60 HP: 82 ÜRETİM YILI: 05/1979 → 12/1984
1.8 4WD	EA82	1782	72	98	01/1988 → 12/1990	1.8 4WD MOTOR KODU: EA82 CC: 1782 kW: 72 HP: 98 ÜRETİM YILI: 01/1988 → 12/1990
1.8 4WD	EA82	1782	88	120	01/1988 → 12/1990	1.8 4WD MOTOR KODU: EA82 CC: 1782 kW: 88 HP: 120 ÜRETİM YILI: 01/1988 → 12/1990
1.8 Ti (AC7/AG7)	EA82T		100	136	08/1984 → 12/1988	1.8 Ti (AC7/AG7) MOTOR KODU: EA82T CC: kW: 100 HP: 136 ÜRETİM YILI: 08/1984 → 12/1988
1.8 Ti Kat. (AC7/AK7)	EA82T		96	131	01/1988 → 12/1991	1.8 Ti Kat. (AC7/AK7) MOTOR KODU: EA82T CC: kW: 96 HP: 131 ÜRETİM YILI: 01/1988 → 12/1991
1.8i (AC5/AK5)	EA82		70	95	08/1984 → 12/1993	1.8i (AC5/AK5) MOTOR KODU: EA82 CC: kW: 70 HP: 95 ÜRETİM YILI: 08/1984 → 12/1993

MOTOR KODU

ÜRETİM YILI

1.3 (AC1/AN1)

EA65

08/1984 → 12/1993

1.3 (AF1/AM1)

EA65

03/1979 → 08/1984

1.6

EA71

1595

11/1984 → 09/1991

1.6 (AB)

EA71

1595

03/1979 → 10/1984

1.6 (AC2/AN2/3)

EA71

08/1984 → 12/1993

1.6 (AF2/AM2/3)

EA71

1595

09/1978 → 12/1984

1.8 (AB4/5/AF5)

EA81

10/1980 → 12/1984

1.8 (AC4/AN4/5)

EA82

08/1984 → 12/1991

1.8 (AM5/J5)

EA81

1781

05/1979 → 12/1984

1.8 4WD

EA82

1782

01/1988 → 12/1990

1.8 4WD

EA82

1782

120

01/1988 → 12/1990

1.8 Ti (AC7/AG7)

EA82T

100

136

08/1984 → 12/1988

1.8 Ti Kat. (AC7/AK7)

EA82T

131

01/1988 → 12/1991

1.8i (AC5/AK5)

EA82

08/1984 → 12/1993

DODICH

DM 400-Serie

	MOTOR KODU	CC	kW	HP	ÜRETİM YILI
414HY	Nissan SD16						414HY MOTOR KODU: Nissan SD16 CC: kW: HP:

MOTOR KODU

ÜRETİM YILI

414HY

Nissan SD16

GROVE

MZ Serie

	MOTOR KODU	CC	kW	HP	ÜRETİM YILI
MZ48B	Nissan A15						MZ48B MOTOR KODU: Nissan A15 CC: kW: HP:

MOTOR KODU

ÜRETİM YILI

MZ48B

Nissan A15

KOMATSU

FG-Serie (Gabelstapler / Fork Lifts)

	MOTOR KODU
07-1	Nissan J15	07-1 MOTOR KODU: Nissan J15 CC: kW: HP:
10	Nissan BS	10 MOTOR KODU: Nissan BS CC: kW: HP:
10	Nissan J15	10 MOTOR KODU: Nissan J15 CC: kW: HP:
10	D11-PU140/144	10 MOTOR KODU: D11-PU140/144 CC: kW: HP:
10 H	Nissan H20	10 H MOTOR KODU: Nissan H20 CC: kW: HP:
10 L	Nissan D11	10 L MOTOR KODU: Nissan D11 CC: kW: HP:
14	Nissan J15	14 MOTOR KODU: Nissan J15 CC: kW: HP:
14 L	Nissan D11	14 L MOTOR KODU: Nissan D11 CC: kW: HP:
15	Nissan J15	15 MOTOR KODU: Nissan J15 CC: kW: HP:
15	D11-PU140/144	15 MOTOR KODU: D11-PU140/144 CC: kW: HP:
15 H	Nissan H20	15 H MOTOR KODU: Nissan H20 CC: kW: HP:
15 L	Nissan D11	15 L MOTOR KODU: Nissan D11 CC: kW: HP:
15 S	Nissan H20	15 S MOTOR KODU: Nissan H20 CC: kW: HP:
20	Nissan J15	20 MOTOR KODU: Nissan J15 CC: kW: HP:
20	Nissan H20	20 MOTOR KODU: Nissan H20 CC: kW: HP:
20 L-6/7	Nissan J15	20 L-6/7 MOTOR KODU: Nissan J15 CC: kW: HP:
23	Nissan H20	23 MOTOR KODU: Nissan H20 CC: kW: HP:
23 L-7	Nissan J15	23 L-7 MOTOR KODU: Nissan J15 CC: kW: HP:
25	Nissan J15	25 MOTOR KODU: Nissan J15 CC: kW: HP:
25	Nissan H20	25 MOTOR KODU: Nissan H20 CC: kW: HP:
25 L-6	Nissan J15	25 L-6 MOTOR KODU: Nissan J15 CC: kW: HP:
25 L-7	Nissan J15	25 L-7 MOTOR KODU: Nissan J15 CC: kW: HP:
27	Nissan H20	27 MOTOR KODU: Nissan H20 CC: kW: HP:
30	Nissan H20	30 MOTOR KODU: Nissan H20 CC: kW: HP:
30-8	Nissan H20	30-8 MOTOR KODU: Nissan H20 CC: kW: HP:

MOTOR KODU

ÜRETİM YILI

07-1

Nissan J15

Nissan BS

Nissan J15

D11-PU140/144

10 H

Nissan H20

10 L

Nissan D11

Nissan J15

14 L

Nissan D11

Nissan J15

D11-PU140/144

15 H

Nissan H20

15 L

Nissan D11

15 S

Nissan H20

Nissan J15

Nissan H20

20 L-6/7

Nissan J15

Nissan H20

23 L-7

Nissan J15

Nissan H20

25 L-6

Nissan J15

25 L-7

Nissan J15

Nissan H20

30-8

Nissan H20

H-Serie

	MOTOR KODU	CC	kW	HP	ÜRETİM YILI
20	Nissan J15						20 MOTOR KODU: Nissan J15 CC: kW: HP:

MOTOR KODU

ÜRETİM YILI

Nissan J15

SG-Serie

	MOTOR KODU	CC	kW	HP	ÜRETİM YILI
10	Nissan H20						10 MOTOR KODU: Nissan H20 CC: kW: HP:
15	Nissan H20						15 MOTOR KODU: Nissan H20 CC: kW: HP:

MOTOR KODU

ÜRETİM YILI

Nissan H20

KUBOTA

B01-Series

	MOTOR KODU	CC	kW	HP	ÜRETİM YILI
B 2301 / HSD	Kubota D 1005 E-TVCS	1001	16	22	→ 01/2018	i Transmission Filter	B 2301 / HSD MOTOR KODU: Kubota D 1005 E-TVCS CC: 1001 kW: 16 HP: 22 ÜRETİM YILI: → 01/2018
B 2601 / HSD	Kubota D 1005 E-TVCS	1123	19	26	→ 01/2018	i For Transmission Transmission Filter	B 2601 / HSD MOTOR KODU: Kubota D 1005 E-TVCS CC: 1123 kW: 19 HP: 26 ÜRETİM YILI: → 01/2018 i For Transmission Transmission Filter

MOTOR KODU

ÜRETİM YILI

B 2301 / HSD

Kubota D 1005 E-TVCS

1001

→ 01/2018

B 2601 / HSD

Kubota D 1005 E-TVCS

1123

→ 01/2018

B10-Series | 95-08

	MOTOR KODU	CC	kW	HP	ÜRETİM YILI
B 2410 /D/DB/HDB/H/HSE/HSD/HSDB	Kubota D1105-D18	1123	18	24	01/2000 → 12/2005	i For B2410 HSE / HDB / HSDB. Use for OE no. HH660-36060 Transmission Filter	B 2410 /D/DB/HDB/H/HSE/HSD/HSDB MOTOR KODU: Kubota D1105-D18 CC: 1123 kW: 18 HP: 24 ÜRETİM YILI: 01/2000 → 12/2005 i For B2410 HSE / HDB / HSDB. Use for OE no. HH660-36060 Transmission Filter

MOTOR KODU

ÜRETİM YILI

B 2410 /D/DB/HDB/H/HSE/HSD/HSDB

Kubota D1105-D18

1123

01/2000 → 12/2005

B1000-Series | 82-

	MOTOR KODU	CC	kW	HP	ÜRETİM YILI
B 1700 /DT / E / HST-D	Kubota D950-D10	898	13	17	01/1995 → 01/1999	i For HST. B1700HST-D. Use for OE no. HH660-36060 Transmission Filter	B 1700 /DT / E / HST-D MOTOR KODU: Kubota D950-D10 CC: 898 kW: 13 HP: 17 ÜRETİM YILI: 01/1995 → 01/1999 i For HST. B1700HST-D. Use for OE no. HH660-36060 Transmission Filter
B 1750 E / D / HST-D / -E	Kubota D950-5B	927	15	20	01/1988 →	i Filter for: HST. For HST-D / -E. Use for OE no. HH660-36060 Transmission Filter	B 1750 E / D / HST-D / -E MOTOR KODU: Kubota D950-5B CC: 927 kW: 15 HP: 20 ÜRETİM YILI: 01/1988 → i Filter for: HST. For HST-D / -E. Use for OE no. HH660-36060 Transmission Filter

MOTOR KODU

ÜRETİM YILI

B 1700 /DT / E / HST-D

Kubota D950-D10

898

01/1995 → 01/1999

B 1750 E / D / HST-D / -E

Kubota D950-5B

927

01/1988 →

B2000-Series | 88-

	MOTOR KODU	CC	kW	HP	ÜRETİM YILI
B 2400 / HD / HST-D / HST-E	Kubota D 1105-D10	1123	18	24	01/1995 → 01/1999	i Filter for: HST. for B 2400 HST-D. Use for OE no. HH660-36060 Transmission Filter	B 2400 / HD / HST-D / HST-E MOTOR KODU: Kubota D 1105-D10 CC: 1123 kW: 18 HP: 24 ÜRETİM YILI: 01/1995 → 01/1999 i Filter for: HST. for B 2400 HST-D. Use for OE no. HH660-36060 Transmission Filter

MOTOR KODU

ÜRETİM YILI

B 2400 / HD / HST-D / HST-E

Kubota D 1105-D10

1123

01/1995 → 01/1999

B30-Series | 06-

	MOTOR KODU	CC	kW	HP	ÜRETİM YILI
B 2530 / C / D / DC / HDB / HDBC	Kubota D 1105 E-TVCS	1123	18	25	01/2010 →	i Transmission Filter	B 2530 / C / D / DC / HDB / HDBC MOTOR KODU: Kubota D 1105 E-TVCS CC: 1123 kW: 18 HP: 25 ÜRETİM YILI: 01/2010 →

MOTOR KODU

ÜRETİM YILI

B 2530 / C / D / DC / HDB / HDBC

Kubota D 1105 E-TVCS

1123

01/2010 →

B50-Series | 13-

	MOTOR KODU	CC	kW	HP	ÜRETİM YILI
B 2650 / H / C / DB-F / HDB-C / HDB-F / HSD	Kubota D 1305 E-TVCS	1261	19	26		i Filter for: B 2650 HSD. For Transmission Hydraulic Transmission Filter	B 2650 / H / C / DB-F / HDB-C / HDB-F / HSD MOTOR KODU: Kubota D 1305 E-TVCS CC: 1261 kW: 19 HP: 26 i Filter for: B 2650 HSD. For Transmission Hydraulic Transmission Filter

MOTOR KODU

ÜRETİM YILI

B 2650 / H / C / DB-F / HDB-C / HDB-F / HSD

Kubota D 1305 E-TVCS

1261

B6000-Series | 73-92

	MOTOR KODU	CC	kW	HP	ÜRETİM YILI
B 6100 / D / E / HST-DT / HST-E	Kubota D650-A / -B	675	10	14	01/1978 → 12/1984	i Filter for: HST. Partly/or. For B6100 HST-DT / HST-E. Use for OE no. HH660-36060 Transmission Filter	B 6100 / D / E / HST-DT / HST-E MOTOR KODU: Kubota D650-A / -B CC: 675 kW: 10 HP: 14 ÜRETİM YILI: 01/1978 → 12/1984 i Filter for: HST. Partly/or. For B6100 HST-DT / HST-E. Use for OE no. HH660-36060 Transmission Filter

MOTOR KODU

ÜRETİM YILI

B 6100 / D / E / HST-DT / HST-E

Kubota D650-A / -B

675

01/1978 → 12/1984

F60-Series (Frontmäher / Front-mount mower) | 97-0

	MOTOR KODU	CC	kW	HP	ÜRETİM YILI
F 2560 / E	Kubota D1005-E-FM	1124	19	25	01/1997 → 12/2005	i Filter for: HST. Use for OE no. HH660-36060. For F2560E Transmission Filter	F 2560 / E MOTOR KODU: Kubota D1005-E-FM CC: 1124 kW: 19 HP: 25 ÜRETİM YILI: 01/1997 → 12/2005 i Filter for: HST. Use for OE no. HH660-36060. For F2560E Transmission Filter

MOTOR KODU

ÜRETİM YILI

F 2560 / E

Kubota D1005-E-FM

1124

01/1997 → 12/2005

ST-Series | 97-

	MOTOR KODU	CC	kW	HP	ÜRETİM YILI
ST Alpha 35 / D	Kubota D1703-EU	1647	21	28	01/2003 →	i Return flow filter Transmission Filter	ST Alpha 35 / D MOTOR KODU: Kubota D1703-EU CC: 1647 kW: 21 HP: 28 ÜRETİM YILI: 01/2003 → i Return flow filter Transmission Filter
STA-30	Kubota D1643	1463	22	30	01/2002 → 12/2005	i Return flow filter. Use for OE no. HH660-36060. Partly/or Transmission Filter	STA-30 MOTOR KODU: Kubota D1643 CC: 1463 kW: 22 HP: 30 ÜRETİM YILI: 01/2002 → 12/2005 i Return flow filter. Use for OE no. HH660-36060. Partly/or Transmission Filter

MOTOR KODU

ÜRETİM YILI

ST Alpha 35 / D

Kubota D1703-EU

1647

01/2003 →

STA-30

Kubota D1643

1463

01/2002 → 12/2005

MANITOU

CD/CG-Serie | 08-

	MOTOR KODU	CC	kW	HP	ÜRETİM YILI
CG 15 P	NISSAN K21	1983	32	44		i Transmission Filter	CG 15 P MOTOR KODU: NISSAN K21 CC: 1983 kW: 32 HP: 44
CG 18 P	NISSAN K21	1983	32	44		i Transmission Filter	CG 18 P MOTOR KODU: NISSAN K21 CC: 1983 kW: 32 HP: 44

MOTOR KODU

ÜRETİM YILI

CG 15 P

NISSAN K21

1983

CG 18 P

NISSAN K21

1983

FORD

1961 451
5012 551
5012 575
5016 955
5018 353
5022 799
YL4J 6714 AA

GENERAL MOTORS (GM)

7984326
93156668

HYUNDAI CONSTRUCTION

15208H1010
15208H8912

ISEKI

569132408041
K10190912000

KOMATSU

15208-H8911
15208-H8916
37Z-020-F201
37Z-020-F201L
37Z-02O-F201

KUBOTA

66021-36060
HH660-36060

NISSAN

15208-13201
15208-13210
15208-13211
15208-13212
15208-55Y00
15208-60U00
15208-71J00
15208-71J0A
15208-G3100
15208-H1010
15208-H1011
15208-H8901
15208-H8903
15208-H8904
15208-H8905
15208-H890C
15208-H8911
15208-H8916
15208-H8917
15208-H8920
15208-H8923
15208-Q9100
A520-8H890C
A5208-H8903
A5208-H8904

SUBARU

15208-HA000
88087-4100

SULLAIR

68561824

Son güncelleme tarihi: 2025-06-30 YAZDIR Hata bildir

EBATLAR YENİ FİLTRELER VE DEĞİŞİKLİKLER ÖZEL FİLTRELER

FİLTRE KATALOĞU

ARAMA SONUÇLARI

FİLTRE BUL

REACH-Information

OP 581

FAVORİLER

Filtry Filtron
