REACH-Information

SVHC declaration according to the regulation EC 1907/2006 concerning the Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH).

Produkt: PP 855 - FILTRON

MANN+HUMMEL is well aware of REACH and meet all legal obligations under this regulation.

MANN+HUMMEL has established internal processes to ensure implementation and compliance with the REACH Regulation. Especially, we continuously work on the assessment of presence of SVHC (Substances of Very High Concern).

We may inform you that according to present level of information and best knowledge, this product does not contain any SVHC listed on the Candidate List in concentration above 0,1% (w/w).

Last update: 2024-09-19

LİSTEYE GERİ DÖN

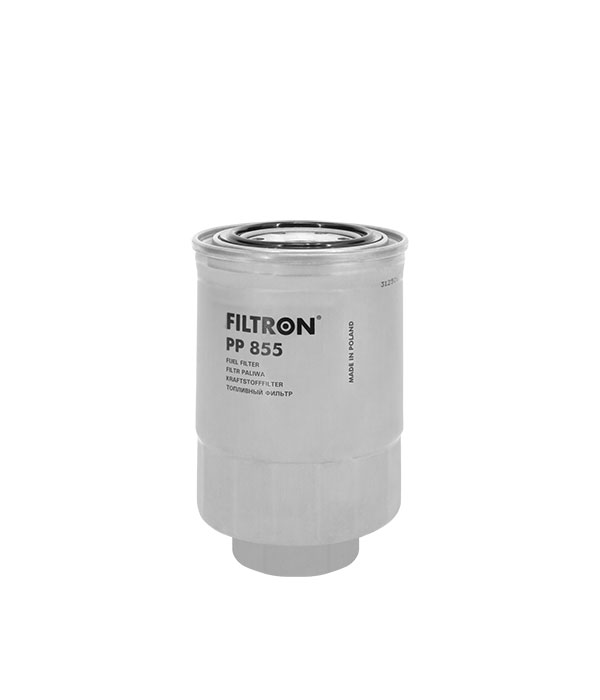

YAKIT FILTRESI

PP 855

EAN KODU : 5904608008558

REACH information

EBATLAR (mm):

M36x1.5

3/4-16 UNF

145

KULLANIM YERLERİ
MUADİLLER

FORD

Endeavour | 05-

	MOTOR KODU	CC	kW	HP	ÜRETİM YILI
2.5 TDCi		2499	105	143	05/2005 →		2.5 TDCi MOTOR KODU: CC: 2499 kW: 105 HP: 143 ÜRETİM YILI: 05/2005 →
3.0 TDCi		2953	115	156	05/2005 →		3.0 TDCi MOTOR KODU: CC: 2953 kW: 115 HP: 156 ÜRETİM YILI: 05/2005 →

MOTOR KODU

ÜRETİM YILI

2.5 TDCi

2499

105

143

05/2005 →

3.0 TDCi

2953

115

156

05/2005 →

Ranger 2006 | 06-12

	MOTOR KODU	CC	kW	HP	ÜRETİM YILI
2.5 TDCi (ES, ET)	WLAA	2499	105	143	05/2006 → 03/2012		2.5 TDCi (ES, ET) MOTOR KODU: WLAA CC: 2499 kW: 105 HP: 143 ÜRETİM YILI: 05/2006 → 03/2012
3.0 TDCi (ES, ET)	WEAT	2953	115	156	05/2006 → 03/2012		3.0 TDCi (ES, ET) MOTOR KODU: WEAT CC: 2953 kW: 115 HP: 156 ÜRETİM YILI: 05/2006 → 03/2012

MOTOR KODU

ÜRETİM YILI

2.5 TDCi (ES, ET)

WLAA

2499

105

143

05/2006 → 03/2012

3.0 TDCi (ES, ET)

WEAT

2953

115

156

05/2006 → 03/2012

Ranger | 99-

	MOTOR KODU	CC	kW	HP	ÜRETİM YILI
2.5 D	MD25NA	2499	57	78	10/1999 → 04/2002	2.5 D MOTOR KODU: MD25NA CC: 2499 kW: 57 HP: 78 ÜRETİM YILI: 10/1999 → 04/2002
2.5 TD	MD25	2499	62	84	04/2002 → 02/2007	2.5 TD MOTOR KODU: MD25 CC: 2499 kW: 62 HP: 84 ÜRETİM YILI: 04/2002 → 02/2007
2.5 TD	MD25TI	2499	80	109	10/1999 → 02/2007	2.5 TD MOTOR KODU: MD25TI CC: 2499 kW: 80 HP: 109 ÜRETİM YILI: 10/1999 → 02/2007
2.5 TDdi (ER, EQ, R_)	WL	2499	86	117	04/2002 → 09/2005	2.5 TDdi (ER, EQ, R_) MOTOR KODU: WL CC: 2499 kW: 86 HP: 117 ÜRETİM YILI: 04/2002 → 09/2005

MOTOR KODU

ÜRETİM YILI

2.5 D

MD25NA

2499

10/1999 → 04/2002

2.5 TD

MD25

2499

04/2002 → 02/2007

2.5 TD

MD25TI

2499

109

10/1999 → 02/2007

2.5 TDdi (ER, EQ, R_)

2499

117

04/2002 → 09/2005

MAZDA

3 (BK) | 03-09

	MOTOR KODU	CC	kW	HP	ÜRETİM YILI
2.0 CD	RF7J, RF8G	1998	105	143	07/2006 → 06/2009		2.0 CD MOTOR KODU: RF7J, RF8G CC: 1998 kW: 105 HP: 143 ÜRETİM YILI: 07/2006 → 06/2009

MOTOR KODU

ÜRETİM YILI

2.0 CD

RF7J, RF8G

1998

105

143

07/2006 → 06/2009

3 (BL) | 08-14

	MOTOR KODU	CC	kW	HP	ÜRETİM YILI
2.2 CD	R2AA	2184	110	150	01/2009 → 09/2014		2.2 CD MOTOR KODU: R2AA CC: 2184 kW: 110 HP: 150 ÜRETİM YILI: 01/2009 → 09/2014
2.2 CD	R2AA	2184	136	185	06/2009 → 05/2013		2.2 CD MOTOR KODU: R2AA CC: 2184 kW: 136 HP: 185 ÜRETİM YILI: 06/2009 → 05/2013

MOTOR KODU

ÜRETİM YILI

2.2 CD

R2AA

2184

110

150

01/2009 → 09/2014

2.2 CD

R2AA

2184

136

185

06/2009 → 05/2013

3 (BM, BN) | 13-19

	MOTOR KODU	CC	kW	HP	ÜRETİM YILI
1.5 Skyactiv-D 105	S5-DPTR, S5-DPTS, S5Y7, S5Y8	1499	77	105	10/2015 → 05/2019		1.5 Skyactiv-D 105 MOTOR KODU: S5-DPTR, S5-DPTS, S5Y7, S5Y8 CC: 1499 kW: 77 HP: 105 ÜRETİM YILI: 10/2015 → 05/2019
2.2 Skyactiv-D 150	SHY4	2191	110	150	09/2013 → 05/2016		2.2 Skyactiv-D 150 MOTOR KODU: SHY4 CC: 2191 kW: 110 HP: 150 ÜRETİM YILI: 09/2013 → 05/2016

MOTOR KODU

ÜRETİM YILI

1.5 Skyactiv-D 105

S5-DPTR, S5-DPTS, S5Y7, S5Y8

1499

105

10/2015 → 05/2019

2.2 Skyactiv-D 150

SHY4

2191

110

150

09/2013 → 05/2016

5 (CR) | 05-10

	MOTOR KODU	CC	kW	HP	ÜRETİM YILI
2.0 CD		1998	81	110	12/2005 → 09/2010		2.0 CD MOTOR KODU: CC: 1998 kW: 81 HP: 110 ÜRETİM YILI: 12/2005 → 09/2010
2.0 CD		1998	105	143	12/2005 → 09/2010		2.0 CD MOTOR KODU: CC: 1998 kW: 105 HP: 143 ÜRETİM YILI: 12/2005 → 09/2010

MOTOR KODU

ÜRETİM YILI

2.0 CD

1998

110

12/2005 → 09/2010

2.0 CD

1998

105

143

12/2005 → 09/2010

6 (GG/GY) | 02-07

	MOTOR KODU	CC	kW	HP	ÜRETİM YILI
2.0 CD (GG, GY)	RF5C	1998	89	121	06/2002 → 08/2007	i 03/2005 ->	2.0 CD (GG, GY) MOTOR KODU: RF5C CC: 1998 kW: 89 HP: 121 ÜRETİM YILI: 06/2002 → 08/2007
2.0 CD (GG, GY)	RF7J	1998	105	143	09/2005 → 08/2007		2.0 CD (GG, GY) MOTOR KODU: RF7J CC: 1998 kW: 105 HP: 143 ÜRETİM YILI: 09/2005 → 08/2007

MOTOR KODU

ÜRETİM YILI

2.0 CD (GG, GY)

RF5C

1998

121

06/2002 → 08/2007

2.0 CD (GG, GY)

RF7J

1998

105

143

09/2005 → 08/2007

6 (GH) | 07-13

	MOTOR KODU	CC	kW	HP	ÜRETİM YILI
2.0 CD	RF7J	1998	103	140	08/2007 → 12/2008	2.0 CD MOTOR KODU: RF7J CC: 1998 kW: 103 HP: 140 ÜRETİM YILI: 08/2007 → 12/2008
2.2 CD	R2AA	2184	136	185	01/2009 → 12/2012	2.2 CD MOTOR KODU: R2AA CC: 2184 kW: 136 HP: 185 ÜRETİM YILI: 01/2009 → 12/2012
2.2 CD	R2BF	2184	92	125	01/2009 → 12/2012	2.2 CD MOTOR KODU: R2BF CC: 2184 kW: 92 HP: 125 ÜRETİM YILI: 01/2009 → 12/2012
2.2 CD	R2AA	2184	120	163	01/2009 → 07/2013	2.2 CD MOTOR KODU: R2AA CC: 2184 kW: 120 HP: 163 ÜRETİM YILI: 01/2009 → 07/2013
2.2 CD	R2AA	2184	132	180	03/2010 → 07/2013	2.2 CD MOTOR KODU: R2AA CC: 2184 kW: 132 HP: 180 ÜRETİM YILI: 03/2010 → 07/2013
2.2 CD	R2BF	2184	95	129	03/2010 → 07/2013	2.2 CD MOTOR KODU: R2BF CC: 2184 kW: 95 HP: 129 ÜRETİM YILI: 03/2010 → 07/2013

MOTOR KODU

ÜRETİM YILI

2.0 CD

RF7J

1998

103

140

08/2007 → 12/2008

2.2 CD

R2AA

2184

136

185

01/2009 → 12/2012

2.2 CD

R2BF

2184

125

01/2009 → 12/2012

2.2 CD

R2AA

2184

120

163

01/2009 → 07/2013

2.2 CD

R2AA

2184

132

180

03/2010 → 07/2013

2.2 CD

R2BF

2184

129

03/2010 → 07/2013

6 (GJ/GL) | 13-

	MOTOR KODU	CC	kW	HP	ÜRETİM YILI
2.2 D (GJ, GL)		2191	135	184	03/2018 →	2.2 D (GJ, GL) MOTOR KODU: CC: 2191 kW: 135 HP: 184 ÜRETİM YILI: 03/2018 →
2.2 Skyactiv-D	SHY4, SHY6, SHY8	2191	110	150	02/2013 → 12/2020	2.2 Skyactiv-D MOTOR KODU: SHY4, SHY6, SHY8 CC: 2191 kW: 110 HP: 150 ÜRETİM YILI: 02/2013 → 12/2020
2.2 Skyactiv-D	SH-VPTR	2188	129	175	02/2013 → 02/2018	2.2 Skyactiv-D MOTOR KODU: SH-VPTR CC: 2188 kW: 129 HP: 175 ÜRETİM YILI: 02/2013 → 02/2018

MOTOR KODU

ÜRETİM YILI

2.2 D (GJ, GL)

2191

135

184

03/2018 →

2.2 Skyactiv-D

SHY4, SHY6, SHY8

2191

110

150

02/2013 → 12/2020

2.2 Skyactiv-D

SH-VPTR

2188

129

175

02/2013 → 02/2018

B-Serie (Pickup) | 71-06

	MOTOR KODU	CC	kW	HP	ÜRETİM YILI
2.2 (UN)	R5A2	2184	60	82	02/1999 → 11/2006	2.2 (UN) MOTOR KODU: R5A2 CC: 2184 kW: 60 HP: 82 ÜRETİM YILI: 02/1999 → 11/2006
2.2 4WD (UN)	JL22	2148	68	92	06/1999 → 11/2006	2.2 4WD (UN) MOTOR KODU: JL22 CC: 2148 kW: 68 HP: 92 ÜRETİM YILI: 06/1999 → 11/2006
2.5 D, 2.5 D 4WD (UN)	MD25NA	2499	57	78	06/1999 → 11/2006	2.5 D, 2.5 D 4WD (UN) MOTOR KODU: MD25NA CC: 2499 kW: 57 HP: 78 ÜRETİM YILI: 06/1999 → 11/2006
2.5 TD 4WD (UN)	MD25TI	2499	80	109	06/1999 → 07/2006	2.5 TD 4WD (UN) MOTOR KODU: MD25TI CC: 2499 kW: 80 HP: 109 ÜRETİM YILI: 06/1999 → 07/2006
2.5D 4WD (UN)	WLE7	2500	62	84	12/2002 → 11/2006	2.5D 4WD (UN) MOTOR KODU: WLE7 CC: 2500 kW: 62 HP: 84 ÜRETİM YILI: 12/2002 → 11/2006

MOTOR KODU

ÜRETİM YILI

2.2 (UN)

R5A2

2184

02/1999 → 11/2006

2.2 4WD (UN)

JL22

2148

06/1999 → 11/2006

2.5 D, 2.5 D 4WD (UN)

MD25NA

2499

06/1999 → 11/2006

2.5 TD 4WD (UN)

MD25TI

2499

109

06/1999 → 07/2006

2.5D 4WD (UN)

WLE7

2500

12/2002 → 11/2006

BT-50 | 06-

	MOTOR KODU	CC	kW	HP	ÜRETİM YILI
2.5 MZR-CD	WLAT	2499	105	143	12/2006 → 12/2015		2.5 MZR-CD MOTOR KODU: WLAT CC: 2499 kW: 105 HP: 143 ÜRETİM YILI: 12/2006 → 12/2015
3.0 MZR-CD	WEAT	2953	115	156	12/2006 → 12/2015		3.0 MZR-CD MOTOR KODU: WEAT CC: 2953 kW: 115 HP: 156 ÜRETİM YILI: 12/2006 → 12/2015

MOTOR KODU

ÜRETİM YILI

2.5 MZR-CD

WLAT

2499

105

143

12/2006 → 12/2015

3.0 MZR-CD

WEAT

2953

115

156

12/2006 → 12/2015

CX-5 (KE) | 12-

	MOTOR KODU	CC	kW	HP	ÜRETİM YILI
2.2 Skyactiv-D		2191	110	150	04/2012 → 02/2017		2.2 Skyactiv-D MOTOR KODU: CC: 2191 kW: 110 HP: 150 ÜRETİM YILI: 04/2012 → 02/2017
2.2 Skyactiv-D		2191	129	175	04/2012 → 02/2017		2.2 Skyactiv-D MOTOR KODU: CC: 2191 kW: 129 HP: 175 ÜRETİM YILI: 04/2012 → 02/2017

MOTOR KODU

ÜRETİM YILI

2.2 Skyactiv-D

2191

110

150

04/2012 → 02/2017

2.2 Skyactiv-D

2191

129

175

04/2012 → 02/2017

CX-5 (KF) | 16-

	MOTOR KODU	CC	kW	HP	ÜRETİM YILI
2.0	PEXB	1998	110	150	03/2018 →	2.0 MOTOR KODU: PEXB CC: 1998 kW: 110 HP: 150 ÜRETİM YILI: 03/2018 →
2.2 Skyactiv-D (KF)	SHY6	2191	129	175	05/2017 → 02/2018	2.2 Skyactiv-D (KF) MOTOR KODU: SHY6 CC: 2191 kW: 129 HP: 175 ÜRETİM YILI: 05/2017 → 02/2018
2.2 Skyactiv-D (KF)	SHY6	2191	110	150	05/2017 →	2.2 Skyactiv-D (KF) MOTOR KODU: SHY6 CC: 2191 kW: 110 HP: 150 ÜRETİM YILI: 05/2017 →
2.2 Skyactiv-D (KF)	SHY8	2191	135	184	07/2018 →	2.2 Skyactiv-D (KF) MOTOR KODU: SHY8 CC: 2191 kW: 135 HP: 184 ÜRETİM YILI: 07/2018 →

MOTOR KODU

ÜRETİM YILI

2.0

PEXB

1998

110

150

03/2018 →

2.2 Skyactiv-D (KF)

SHY6

2191

129

175

05/2017 → 02/2018

2.2 Skyactiv-D (KF)

SHY6

2191

110

150

05/2017 →

2.2 Skyactiv-D (KF)

SHY8

2191

135

184

07/2018 →

CX-7 (ER) | 06-14

	MOTOR KODU	CC	kW	HP	ÜRETİM YILI
2.2 MZR-CD (ER)	R2AA	2184	127	173	07/2009 → 03/2013		2.2 MZR-CD (ER) MOTOR KODU: R2AA CC: 2184 kW: 127 HP: 173 ÜRETİM YILI: 07/2009 → 03/2013

MOTOR KODU

ÜRETİM YILI

2.2 MZR-CD (ER)

R2AA

2184

127

173

07/2009 → 03/2013

E 2200-Serie | 84-04

	MOTOR KODU	CC	kW	HP	ÜRETİM YILI
2.2 D (SR1/SR2)	R2	2184	52	71	02/1997 → 07/2004		2.2 D (SR1/SR2) MOTOR KODU: R2 CC: 2184 kW: 52 HP: 71 ÜRETİM YILI: 02/1997 → 07/2004

MOTOR KODU

ÜRETİM YILI

2.2 D (SR1/SR2)

2184

02/1997 → 07/2004

METRO-CAMMELL-WEYMANN

Taxi Cab / Metrocab | 86-06

	MOTOR KODU	CC	kW	HP	ÜRETİM YILI
2.4 Turbodiesel	Toyota 2L-T	2446	66	90	01/2001 → 05/2006		2.4 Turbodiesel MOTOR KODU: Toyota 2L-T CC: 2446 kW: 66 HP: 90 ÜRETİM YILI: 01/2001 → 05/2006

MOTOR KODU

ÜRETİM YILI

2.4 Turbodiesel

Toyota 2L-T

2446

01/2001 → 05/2006

NISSAN

Pick Up / Navara (720, D21, D22) | 80-

	MOTOR KODU	CC	kW	HP	ÜRETİM YILI
2.5 dCi (D22)	YD25DDTi	2488	98	133	03/2002 →		2.5 dCi (D22) MOTOR KODU: YD25DDTi CC: 2488 kW: 98 HP: 133 ÜRETİM YILI: 03/2002 →

MOTOR KODU

ÜRETİM YILI

2.5 dCi (D22)

YD25DDTi

2488

133

03/2002 →

TOYOTA

4-Runner | 83-09

	MOTOR KODU	CC	kW	HP	ÜRETİM YILI
3.0 TD	1KZ-T	2982	92	125	10/1993 → 03/1996		3.0 TD MOTOR KODU: 1KZ-T CC: 2982 kW: 92 HP: 125 ÜRETİM YILI: 10/1993 → 03/1996

MOTOR KODU

ÜRETİM YILI

3.0 TD

1KZ-T

2982

125

10/1993 → 03/1996

Avensis II (T25) | 03-09

	MOTOR KODU	CC	kW	HP	ÜRETİM YILI
2.0 D-4D/D-CAT (T25)	1CD-FTV	1995	85	116	03/2003 → 07/2005		2.0 D-4D/D-CAT (T25) MOTOR KODU: 1CD-FTV CC: 1995 kW: 85 HP: 116 ÜRETİM YILI: 03/2003 → 07/2005

MOTOR KODU

ÜRETİM YILI

2.0 D-4D/D-CAT (T25)

1CD-FTV

1995

116

03/2003 → 07/2005

Caldina | 92-07

	MOTOR KODU	CC	kW	HP	ÜRETİM YILI
2.0 TD	2C	1974	56	76	06/1994 → 09/1997		2.0 TD MOTOR KODU: 2C CC: 1974 kW: 56 HP: 76 ÜRETİM YILI: 06/1994 → 09/1997

MOTOR KODU

ÜRETİM YILI

2.0 TD

1974

06/1994 → 09/1997

Camry I (V10) | 83-88

	MOTOR KODU	CC	kW	HP	ÜRETİM YILI
1.8 TD (V1)	1C-TL	1826	54	73	10/1984 → 01/1988		1.8 TD (V1) MOTOR KODU: 1C-TL CC: 1826 kW: 54 HP: 73 ÜRETİM YILI: 10/1984 → 01/1988

MOTOR KODU

ÜRETİM YILI

1.8 TD (V1)

1C-TL

1826

10/1984 → 01/1988

Camry II (_V2_) | 86-91

	MOTOR KODU	CC	kW	HP	ÜRETİM YILI
2.0 TD (CV20)	2C-T	1974	63	86	11/1988 → 05/1991		2.0 TD (CV20) MOTOR KODU: 2C-T CC: 1974 kW: 63 HP: 86 ÜRETİM YILI: 11/1988 → 05/1991
2.0 TD (CV20)	2C-T	1974	62	84	11/1986 → 05/1991		2.0 TD (CV20) MOTOR KODU: 2C-T CC: 1974 kW: 62 HP: 84 ÜRETİM YILI: 11/1986 → 05/1991

MOTOR KODU

ÜRETİM YILI

2.0 TD (CV20)

2C-T

1974

11/1988 → 05/1991

2.0 TD (CV20)

2C-T

1974

11/1986 → 05/1991

Camry/Vista | 90-98

	MOTOR KODU	CC	kW	HP	ÜRETİM YILI
2.0 TD (CV30_)	2C-T	1974	66	90	07/1990 → 12/1994		2.0 TD (CV30_) MOTOR KODU: 2C-T CC: 1974 kW: 66 HP: 90 ÜRETİM YILI: 07/1990 → 12/1994

MOTOR KODU

ÜRETİM YILI

2.0 TD (CV30_)

2C-T

1974

07/1990 → 12/1994

Carina E (T19) | 92-97

	MOTOR KODU	CC	kW	HP	ÜRETİM YILI
2.0 D (CT190)	2C	1975	54	73	12/1994 → 01/1996		2.0 D (CT190) MOTOR KODU: 2C CC: 1975 kW: 54 HP: 73 ÜRETİM YILI: 12/1994 → 01/1996
2.0 TD (CT190)	2C-T	1975	61	83	01/1996 → 10/1997		2.0 TD (CT190) MOTOR KODU: 2C-T CC: 1975 kW: 61 HP: 83 ÜRETİM YILI: 01/1996 → 10/1997

MOTOR KODU

ÜRETİM YILI

2.0 D (CT190)

1975

12/1994 → 01/1996

2.0 TD (CT190)

2C-T

1975

01/1996 → 10/1997

Carina II | 82-93

	MOTOR KODU	CC	kW	HP	ÜRETİM YILI
2.0 D (T17)		1974	54	73	03/1988 → 06/1993		2.0 D (T17) MOTOR KODU: CC: 1974 kW: 54 HP: 73 ÜRETİM YILI: 03/1988 → 06/1993
2.0 D DX,GL (T15)	2C-L	1974	50	68	02/1984 → 05/1988		2.0 D DX,GL (T15) MOTOR KODU: 2C-L CC: 1974 kW: 50 HP: 68 ÜRETİM YILI: 02/1984 → 05/1988

MOTOR KODU

ÜRETİM YILI

2.0 D (T17)

1974

03/1988 → 06/1993

2.0 D DX,GL (T15)

2C-L

1974

02/1984 → 05/1988

Coaster | 82-

	MOTOR KODU	ÜRETİM YILI
3.4 D (K/N/U-BB)	3B	04/1982 →	i 08/1984 ->	3.4 D (K/N/U-BB) MOTOR KODU: 3B CC: kW: HP: ÜRETİM YILI: 04/1982 →
3.7 D (U-BB23/24)	14B	07/1988 → 03/1993		3.7 D (U-BB23/24) MOTOR KODU: 14B CC: kW: HP: ÜRETİM YILI: 07/1988 → 03/1993
4.2 D (U-HZB)	1HZ	01/1990 → 10/2003		4.2 D (U-HZB) MOTOR KODU: 1HZ CC: kW: HP: ÜRETİM YILI: 01/1990 → 10/2003
4.2 D Turbo (U-HDB)	1HD-T	01/1990 → 01/1993		4.2 D Turbo (U-HDB) MOTOR KODU: 1HD-T CC: kW: HP: ÜRETİM YILI: 01/1990 → 01/1993

MOTOR KODU

ÜRETİM YILI

3.4 D (K/N/U-BB)

04/1982 →

3.7 D (U-BB23/24)

14B

07/1988 → 03/1993

4.2 D (U-HZB)

1HZ

01/1990 → 10/2003

4.2 D Turbo (U-HDB)

1HD-T

01/1990 → 01/1993

Commuter | 82-

	MOTOR KODU	ÜRETİM YILI
2.2 D (N-LH60/70B)	L	11/1982 → 03/1984	2.2 D (N-LH60/70B) MOTOR KODU: L CC: kW: HP: ÜRETİM YILI: 11/1982 → 03/1984
2.4 D (N-LH61/71B)	2L	01/1984 → 10/1989	2.4 D (N-LH61/71B) MOTOR KODU: 2L CC: kW: HP: ÜRETİM YILI: 01/1984 → 10/1989
2.8 D (S/U-LH)	3L	08/1989 →	2.8 D (S/U-LH) MOTOR KODU: 3L CC: kW: HP: ÜRETİM YILI: 08/1989 →

MOTOR KODU

ÜRETİM YILI

2.2 D (N-LH60/70B)

11/1982 → 03/1984

2.4 D (N-LH61/71B)

01/1984 → 10/1989

2.8 D (S/U-LH)

08/1989 →

Corolla IV (E70) | 79-83

	MOTOR KODU	CC	kW	HP	ÜRETİM YILI
1.8 D (TE71)	1C	1826	43	58	01/1983 → 09/1983		1.8 D (TE71) MOTOR KODU: 1C CC: 1826 kW: 43 HP: 58 ÜRETİM YILI: 01/1983 → 09/1983

MOTOR KODU

ÜRETİM YILI

1.8 D (TE71)

1826

01/1983 → 09/1983

Corolla IX (E12/E13) | 01-09

	MOTOR KODU	CC	kW	HP	ÜRETİM YILI
2.0 D-4D (E12)	1CD-FTV	1995	85	116	06/2003 → 07/2007	i 06/2004 ->	2.0 D-4D (E12) MOTOR KODU: 1CD-FTV CC: 1995 kW: 85 HP: 116 ÜRETİM YILI: 06/2003 → 07/2007

MOTOR KODU

ÜRETİM YILI

2.0 D-4D (E12)

1CD-FTV

1995

116

06/2003 → 07/2007

Corolla IX Verso | 02-09

	MOTOR KODU	CC	kW	HP	ÜRETİM YILI
2.0 D-4D (E12J)	1CD-FTV	1995	85	116	04/2004 → 03/2009		2.0 D-4D (E12J) MOTOR KODU: 1CD-FTV CC: 1995 kW: 85 HP: 116 ÜRETİM YILI: 04/2004 → 03/2009

MOTOR KODU

ÜRETİM YILI

2.0 D-4D (E12J)

1CD-FTV

1995

116

04/2004 → 03/2009

Corolla V (E80) | 83-88

	MOTOR KODU	CC	kW	HP	ÜRETİM YILI
1.8 D (CE80)	1C-L	1839	47	64	06/1983 → 08/1987		1.8 D (CE80) MOTOR KODU: 1C-L CC: 1839 kW: 47 HP: 64 ÜRETİM YILI: 06/1983 → 08/1987
1.8 D (CE80)	1C	1839	43	58	06/1983 → 05/1988		1.8 D (CE80) MOTOR KODU: 1C CC: 1839 kW: 43 HP: 58 ÜRETİM YILI: 06/1983 → 05/1988

MOTOR KODU

ÜRETİM YILI

1.8 D (CE80)

1C-L

1839

06/1983 → 08/1987

1.8 D (CE80)

1839

06/1983 → 05/1988

Corolla VI (E90) | 87-93

	MOTOR KODU	CC	kW	HP	ÜRETİM YILI
1.8 D (CE90)	1C	1826	47	64	08/1987 → 04/1992		1.8 D (CE90) MOTOR KODU: 1C CC: 1826 kW: 47 HP: 64 ÜRETİM YILI: 08/1987 → 04/1992
1.8 D (CE90)	1C	1840	49	67	08/1989 → 04/1992		1.8 D (CE90) MOTOR KODU: 1C CC: 1840 kW: 49 HP: 67 ÜRETİM YILI: 08/1989 → 04/1992

MOTOR KODU

ÜRETİM YILI

1.8 D (CE90)

1826

08/1987 → 04/1992

1.8 D (CE90)

1840

08/1989 → 04/1992

Corolla VII (E10) | 91-97

	MOTOR KODU	CC	kW	HP	ÜRETİM YILI
2.0 D (CE100)	2C	1975	53	72	07/1992 → 05/1997		2.0 D (CE100) MOTOR KODU: 2C CC: 1975 kW: 53 HP: 72 ÜRETİM YILI: 07/1992 → 05/1997

MOTOR KODU

ÜRETİM YILI

2.0 D (CE100)

1975

07/1992 → 05/1997

Corolla VIII (E11) | 97-10

	MOTOR KODU	CC	kW	HP	ÜRETİM YILI
2.0 D (CE11)	2C-E	1975	53	72	04/1997 → 12/1999		2.0 D (CE11) MOTOR KODU: 2C-E CC: 1975 kW: 53 HP: 72 ÜRETİM YILI: 04/1997 → 12/1999

MOTOR KODU

ÜRETİM YILI

2.0 D (CE11)

2C-E

1975

04/1997 → 12/1999

Corona | 79-01

	MOTOR KODU	CC	kW	HP	ÜRETİM YILI
2.0 D (ST141)	2C	1974	54	73	01/1984 → 08/1988		2.0 D (ST141) MOTOR KODU: 2C CC: 1974 kW: 54 HP: 73 ÜRETİM YILI: 01/1984 → 08/1988

MOTOR KODU

ÜRETİM YILI

2.0 D (ST141)

1974

01/1984 → 08/1988

Cressida | 77-88

	MOTOR KODU	CC	kW	HP	ÜRETİM YILI
2.4	2L-T	2446	63	86	01/1985 → 10/1988		2.4 MOTOR KODU: 2L-T CC: 2446 kW: 63 HP: 86 ÜRETİM YILI: 01/1985 → 10/1988

MOTOR KODU

ÜRETİM YILI

2.4

2L-T

2446

01/1985 → 10/1988

Dyna (U60-U90) | 84-87

	MOTOR KODU	CC	kW	HP	ÜRETİM YILI
3.0 D (BU61)	11B				01/1985 → 08/1987		3.0 D (BU61) MOTOR KODU: 11B CC: kW: HP: ÜRETİM YILI: 01/1985 → 08/1987
3.0 D (BU75)	B OHV	2977	44	60	09/1984 → 08/1987		3.0 D (BU75) MOTOR KODU: B OHV CC: 2977 kW: 44 HP: 60 ÜRETİM YILI: 09/1984 → 08/1987

MOTOR KODU

ÜRETİM YILI

3.0 D (BU61)

11B

01/1985 → 08/1987

3.0 D (BU75)

B OHV

2977

09/1984 → 08/1987

Dyna 100 | 85-01

	MOTOR KODU	CC	kW	HP	ÜRETİM YILI
2.4 D (LH80)	2L OHC	2445	53	72	08/1985 → 08/1987		2.4 D (LH80) MOTOR KODU: 2L OHC CC: 2445 kW: 53 HP: 72 ÜRETİM YILI: 08/1985 → 08/1987
2.4 D (LY100)	2L	2446	54	73	05/1995 → 07/2001		2.4 D (LY100) MOTOR KODU: 2L CC: 2446 kW: 54 HP: 73 ÜRETİM YILI: 05/1995 → 07/2001

MOTOR KODU

ÜRETİM YILI

2.4 D (LH80)

2L OHC

2445

08/1985 → 08/1987

2.4 D (LY100)

2446

05/1995 → 07/2001

Dyna 150 | 85-

	MOTOR KODU	CC	kW	HP	ÜRETİM YILI
2.4 D (LY60)	2L OHC	2445	53	72	08/1985 → 08/1987		2.4 D (LY60) MOTOR KODU: 2L OHC CC: 2445 kW: 53 HP: 72 ÜRETİM YILI: 08/1985 → 08/1987
2.5	2KD-FTV	2494	65	88	08/2001 →		2.5 MOTOR KODU: 2KD-FTV CC: 2494 kW: 65 HP: 88 ÜRETİM YILI: 08/2001 →
2.5 D4D	2KD-FTV	2494	75	102	08/2001 →		2.5 D4D MOTOR KODU: 2KD-FTV CC: 2494 kW: 75 HP: 102 ÜRETİM YILI: 08/2001 →
2.8 D	3L		61	83	05/1995 → 08/1998		2.8 D MOTOR KODU: 3L CC: kW: 61 HP: 83 ÜRETİM YILI: 05/1995 → 08/1998
2.8 D (LY61)	3L OHC	2778	43	58	08/1988 → 08/1990		2.8 D (LY61) MOTOR KODU: 3L OHC CC: 2778 kW: 43 HP: 58 ÜRETİM YILI: 08/1988 → 08/1990
3.0 D	1KD-FTV	2982	80	109	09/2006 →	i Partly/or. Use for OE no. 23390-YZZAB. Use for OE no. 23390-30180	3.0 D MOTOR KODU: 1KD-FTV CC: 2982 kW: 80 HP: 109 ÜRETİM YILI: 09/2006 → i Partly/or. Use for OE no. 23390-YZZAB. Use for OE no. 23390-30180
3.0 D	1KD-FTV	2982	100	136	10/2009 →	i Partly/or. Use for OE no. 23390-YZZAB. Use for OE no. 23390-30180	3.0 D MOTOR KODU: 1KD-FTV CC: 2982 kW: 100 HP: 136 ÜRETİM YILI: 10/2009 → i Partly/or. Use for OE no. 23390-YZZAB. Use for OE no. 23390-30180
3.0 D	5L	2986	65	88	09/1998 → 07/2001		3.0 D MOTOR KODU: 5L CC: 2986 kW: 65 HP: 88 ÜRETİM YILI: 09/1998 → 07/2001
3.0 D4d	5L	2986	65	88	08/2001 →		3.0 D4d MOTOR KODU: 5L CC: 2986 kW: 65 HP: 88 ÜRETİM YILI: 08/2001 →

MOTOR KODU

ÜRETİM YILI

2.4 D (LY60)

2L OHC

2445

08/1985 → 08/1987

2.5

2KD-FTV

2494

08/2001 →

2.5 D4D

2KD-FTV

2494

102

08/2001 →

2.8 D

05/1995 → 08/1998

2.8 D (LY61)

3L OHC

2778

08/1988 → 08/1990

3.0 D

1KD-FTV

2982

109

09/2006 →

3.0 D

1KD-FTV

2982

100

136

10/2009 →

3.0 D

2986

09/1998 → 07/2001

3.0 D4d

2986

08/2001 →

Dyna 200 | 87-

	MOTOR KODU	CC	kW	HP	ÜRETİM YILI
2.4 (LH 8)	2L	2446	61	83	08/1987 → 04/1995	2.4 (LH 8) MOTOR KODU: 2L CC: 2446 kW: 61 HP: 83 ÜRETİM YILI: 08/1987 → 04/1995
3.0 D (BU75)	B OHV	2977	44	60	08/1987 → 08/1988	3.0 D (BU75) MOTOR KODU: B OHV CC: 2977 kW: 44 HP: 60 ÜRETİM YILI: 08/1987 → 08/1988
3.0 D (BU81)	11B				08/1987 → 08/1988	3.0 D (BU81) MOTOR KODU: 11B CC: kW: HP: ÜRETİM YILI: 08/1987 → 08/1988
3.4 D	3B	3431	66	90	10/1989 → 05/1999	3.4 D MOTOR KODU: 3B CC: 3431 kW: 66 HP: 90 ÜRETİM YILI: 10/1989 → 05/1999
3.7 D (BU88)	14B				08/1988 → 07/2001	3.7 D (BU88) MOTOR KODU: 14B CC: kW: HP: ÜRETİM YILI: 08/1988 → 07/2001
3.7 D Turbo (BU91)	14BT				04/1990 →	3.7 D Turbo (BU91) MOTOR KODU: 14BT CC: kW: HP: ÜRETİM YILI: 04/1990 →
4.1 Di	15B-F, 15B-FT	4104	92	125	06/1995 → 05/1999	4.1 Di MOTOR KODU: 15B-F, 15B-FT CC: 4104 kW: 92 HP: 125 ÜRETİM YILI: 06/1995 → 05/1999
4.1 TDi	15B-FTE	4104	125	170	06/1999 → 07/2001	4.1 TDi MOTOR KODU: 15B-FTE CC: 4104 kW: 125 HP: 170 ÜRETİM YILI: 06/1999 → 07/2001

MOTOR KODU

ÜRETİM YILI

2.4 (LH 8)

2446

08/1987 → 04/1995

3.0 D (BU75)

B OHV

2977

08/1987 → 08/1988

3.0 D (BU81)

11B

08/1987 → 08/1988

3.4 D

3431

10/1989 → 05/1999

3.7 D (BU88)

14B

08/1988 → 07/2001

3.7 D Turbo (BU91)

14BT

04/1990 →

4.1 Di

15B-F, 15B-FT

4104

125

06/1995 → 05/1999

4.1 TDi

15B-FTE

4104

125

170

06/1999 → 07/2001

Dyna 300 | 95-99

	MOTOR KODU	CC	kW	HP	ÜRETİM YILI
3.4 D	3B	3431	66	90	06/1995 → 05/1999		3.4 D MOTOR KODU: 3B CC: 3431 kW: 66 HP: 90 ÜRETİM YILI: 06/1995 → 05/1999

MOTOR KODU

ÜRETİM YILI

3.4 D

3431

06/1995 → 05/1999

HiAce | 72-

	MOTOR KODU	CC	kW	HP	ÜRETİM YILI
2.2 D (LH51)	L	2188	46	62	12/1982 → 01/1984		2.2 D (LH51) MOTOR KODU: L CC: 2188 kW: 46 HP: 62 ÜRETİM YILI: 12/1982 → 01/1984
2.2 D (RH)	L	2188	46	62	01/1980 → 10/1982		2.2 D (RH) MOTOR KODU: L CC: 2188 kW: 46 HP: 62 ÜRETİM YILI: 01/1980 → 10/1982
2.2 D Pick-Up (LH11)	L	2188	49	67	11/1982 → 07/1985		2.2 D Pick-Up (LH11) MOTOR KODU: L CC: 2188 kW: 49 HP: 67 ÜRETİM YILI: 11/1982 → 07/1985
2.2 D Wagon (H5/H5G)	L	2173	49	67	03/1983 → 11/1989		2.2 D Wagon (H5/H5G) MOTOR KODU: L CC: 2173 kW: 49 HP: 67 ÜRETİM YILI: 03/1983 → 11/1989
2.4 D (H10)	2L	2446	55	75	02/1990 → 08/1995		2.4 D (H10) MOTOR KODU: 2L CC: 2446 kW: 55 HP: 75 ÜRETİM YILI: 02/1990 → 08/1995
2.4 D (H12G)	2L	2446	58	79	08/1995 → 08/2006	i -> 02/1996	2.4 D (H12G) MOTOR KODU: 2L CC: 2446 kW: 58 HP: 79 ÜRETİM YILI: 08/1995 → 08/2006
2.4 D (LH102)	2L	2446	55	75	08/1989 → 08/1995		2.4 D (LH102) MOTOR KODU: 2L CC: 2446 kW: 55 HP: 75 ÜRETİM YILI: 08/1989 → 08/1995
2.4 D (LH102/112)	2L	2446	57	78	10/1993 → 08/1995		2.4 D (LH102/112) MOTOR KODU: 2L CC: 2446 kW: 57 HP: 78 ÜRETİM YILI: 10/1993 → 08/1995
2.4 D (LH51/61)	2L	2429	55	75	08/1984 → 08/1989		2.4 D (LH51/61) MOTOR KODU: 2L CC: 2429 kW: 55 HP: 75 ÜRETİM YILI: 08/1984 → 08/1989
2.4 D (LXH12L)	2L	2446	43	58	08/1995 →	i -> 02/1996	2.4 D (LXH12L) MOTOR KODU: 2L CC: 2446 kW: 43 HP: 58 ÜRETİM YILI: 08/1995 →
2.4 D Turbo (LXH12/KLH12/RCH12)	2LT	2446	66	90	08/1995 → 08/2001	i -> 07/1997	2.4 D Turbo (LXH12/KLH12/RCH12) MOTOR KODU: 2LT CC: 2446 kW: 66 HP: 90 ÜRETİM YILI: 08/1995 → 08/2001
2.4 D Wagon (H5)	2L	2446	55	75	05/1984 → 11/1989		2.4 D Wagon (H5) MOTOR KODU: 2L CC: 2446 kW: 55 HP: 75 ÜRETİM YILI: 05/1984 → 11/1989
2.5 D-4D	2 KD-FTV, H	2494	86	117	10/2006 → 12/2012		2.5 D-4D MOTOR KODU: 2 KD-FTV, H CC: 2494 kW: 86 HP: 117 ÜRETİM YILI: 10/2006 → 12/2012
2.5 D-4D	2 KD-FTV, H	2494	70	95	10/2006 → 12/2012		2.5 D-4D MOTOR KODU: 2 KD-FTV, H CC: 2494 kW: 70 HP: 95 ÜRETİM YILI: 10/2006 → 12/2012
2.5 D-4D (H1/H2)	2KD-FTV	2494	65	88	10/2001 → 08/2006		2.5 D-4D (H1/H2) MOTOR KODU: 2KD-FTV CC: 2494 kW: 65 HP: 88 ÜRETİM YILI: 10/2001 → 08/2006
2.5 D-4D (H1/H2)	2KD-FTV	2494	75	102	10/2001 → 08/2006		2.5 D-4D (H1/H2) MOTOR KODU: 2KD-FTV CC: 2494 kW: 75 HP: 102 ÜRETİM YILI: 10/2001 → 08/2006

MOTOR KODU

ÜRETİM YILI

2.2 D (LH51)

2188

12/1982 → 01/1984

2.2 D (RH)

2188

01/1980 → 10/1982

2.2 D Pick-Up (LH11)

2188

11/1982 → 07/1985

2.2 D Wagon (H5/H5G)

2173

03/1983 → 11/1989

2.4 D (H10)

2446

02/1990 → 08/1995

2.4 D (H12G)

2446

08/1995 → 08/2006

2.4 D (LH102)

2446

08/1989 → 08/1995

2.4 D (LH102/112)

2446

10/1993 → 08/1995

2.4 D (LH51/61)

2429

08/1984 → 08/1989

2.4 D (LXH12L)

2446

08/1995 →

2.4 D Turbo (LXH12/KLH12/RCH12)

2LT

2446

08/1995 → 08/2001

2.4 D Wagon (H5)

2446

05/1984 → 11/1989

2.5 D-4D

2 KD-FTV, H

2494

117

10/2006 → 12/2012

2.5 D-4D

2 KD-FTV, H

2494

10/2006 → 12/2012

2.5 D-4D (H1/H2)

2KD-FTV

2494

10/2001 → 08/2006

2.5 D-4D (H1/H2)

2KD-FTV

2494

102

10/2001 → 08/2006

HiLux / Fortuner | 71-

	MOTOR KODU	CC	kW	HP	ÜRETİM YILI
2.4 D		2446	73	99	08/1991 → 07/1997		2.4 D MOTOR KODU: CC: 2446 kW: 73 HP: 99 ÜRETİM YILI: 08/1991 → 07/1997
2.4 D (LN1)	2L	2446	55	75	07/1998 → 01/2002		2.4 D (LN1) MOTOR KODU: 2L CC: 2446 kW: 55 HP: 75 ÜRETİM YILI: 07/1998 → 01/2002
2.4 D (LN5, LN6, LN8)	2L	2446	59	80	08/1991 → 03/1995		2.4 D (LN5, LN6, LN8) MOTOR KODU: 2L CC: 2446 kW: 59 HP: 80 ÜRETİM YILI: 08/1991 → 03/1995
2.4 D (LN5, LN6, LN8)	2L	2466	59	80	01/1984 → 03/1989	i 09/1985 ->	2.4 D (LN5, LN6, LN8) MOTOR KODU: 2L CC: 2466 kW: 59 HP: 80 ÜRETİM YILI: 01/1984 → 03/1989
2.4 D (LN5, LN6, LN8)	2L	2446	61	83	03/1989 → 12/1995		2.4 D (LN5, LN6, LN8) MOTOR KODU: 2L CC: 2446 kW: 61 HP: 83 ÜRETİM YILI: 03/1989 → 12/1995
2.5 D-4D (KDN1)	2KD-FTV	2494	65	89	10/2001 → 07/2005		2.5 D-4D (KDN1) MOTOR KODU: 2KD-FTV CC: 2494 kW: 65 HP: 89 ÜRETİM YILI: 10/2001 → 07/2005
2.5 D-4D (KDN1)	2KD-FTV	2494	75	102	10/2001 → 07/2005		2.5 D-4D (KDN1) MOTOR KODU: 2KD-FTV CC: 2494 kW: 75 HP: 102 ÜRETİM YILI: 10/2001 → 07/2005
2.7 (RZN1_)	3RZ-FE	2693	108	147	08/2001 → 07/2004		2.7 (RZN1_) MOTOR KODU: 3RZ-FE CC: 2693 kW: 108 HP: 147 ÜRETİM YILI: 08/2001 → 07/2004
3.0 D 4WD (CD / CS / DX / SR / SRV / 4x2 / 4x4)	5LE	2986	66	90	01/2002 → 07/2005		3.0 D 4WD (CD / CS / DX / SR / SRV / 4x2 / 4x4) MOTOR KODU: 5LE CC: 2986 kW: 66 HP: 90 ÜRETİM YILI: 01/2002 → 07/2005

MOTOR KODU

ÜRETİM YILI

2.4 D

2446

08/1991 → 07/1997

2.4 D (LN1)

2446

07/1998 → 01/2002

2.4 D (LN5, LN6, LN8)

2446

08/1991 → 03/1995

2.4 D (LN5, LN6, LN8)

2466

01/1984 → 03/1989

2.4 D (LN5, LN6, LN8)

2446

03/1989 → 12/1995

2.5 D-4D (KDN1)

2KD-FTV

2494

10/2001 → 07/2005

2.5 D-4D (KDN1)

2KD-FTV

2494

102

10/2001 → 07/2005

2.7 (RZN1_)

3RZ-FE

2693

108

147

08/2001 → 07/2004

3.0 D 4WD (CD / CS / DX / SR / SRV / 4x2 / 4x4)

5LE

2986

01/2002 → 07/2005

HILUX / MIGHTY X | 95-05

	MOTOR KODU	CC	kW	HP	ÜRETİM YILI
2.4D	2L	2446	58	79	08/1997 → 07/2005	i Partly/or 10/2000 ->	2.4D MOTOR KODU: 2L CC: 2446 kW: 58 HP: 79 ÜRETİM YILI: 08/1997 → 07/2005 i Partly/or 10/2000 ->

MOTOR KODU

ÜRETİM YILI

2.4D

2446

08/1997 → 07/2005

Hilux Surf | 88-97

	MOTOR KODU	CC	kW	HP	ÜRETİM YILI
2.4 TD 4WD (LN130)	2L-T	2446	92	125	08/1988 → 08/1997		2.4 TD 4WD (LN130) MOTOR KODU: 2L-T CC: 2446 kW: 92 HP: 125 ÜRETİM YILI: 08/1988 → 08/1997

MOTOR KODU

ÜRETİM YILI

2.4 TD 4WD (LN130)

2L-T

2446

125

08/1988 → 08/1997

Land Cruiser | 69-

	MOTOR KODU	CC	kW	HP	ÜRETİM YILI
2.4 D (LJ70)	2L	2429	53	72	11/1984 → 10/1985		2.4 D (LJ70) MOTOR KODU: 2L CC: 2429 kW: 53 HP: 72 ÜRETİM YILI: 11/1984 → 10/1985
2.4 TD (LJ70)	2L-T	2446	66	90	01/1990 → 05/1996		2.4 TD (LJ70) MOTOR KODU: 2L-T CC: 2446 kW: 66 HP: 90 ÜRETİM YILI: 01/1990 → 05/1996
2.4 TD (LJ70/73)	2L-T	2429	63	86	10/1985 → 01/1990		2.4 TD (LJ70/73) MOTOR KODU: 2L-T CC: 2429 kW: 63 HP: 86 ÜRETİM YILI: 10/1985 → 01/1990
2.4 TD (LJ77)	2L-T	2446	66	90	01/1990 → 05/1996		2.4 TD (LJ77) MOTOR KODU: 2L-T CC: 2446 kW: 66 HP: 90 ÜRETİM YILI: 01/1990 → 05/1996
3 0 TD (KZJ70)	1KZ-T	2982	92	125	05/1993 → 05/1996		3 0 TD (KZJ70) MOTOR KODU: 1KZ-T CC: 2982 kW: 92 HP: 125 ÜRETİM YILI: 05/1993 → 05/1996
3.0 D (J12)	1KD-FTV	2982	70	95	04/2002 → 02/2010		3.0 D (J12) MOTOR KODU: 1KD-FTV CC: 2982 kW: 70 HP: 95 ÜRETİM YILI: 04/2002 → 02/2010
3.0 D-4D (J12)	1KD-FTV	2982	120	163	01/2003 → 12/2004		3.0 D-4D (J12) MOTOR KODU: 1KD-FTV CC: 2982 kW: 120 HP: 163 ÜRETİM YILI: 01/2003 → 12/2004
3.0 D-4D (J12)	1KD-FTV	2982	122	166	11/2004 → 02/2010		3.0 D-4D (J12) MOTOR KODU: 1KD-FTV CC: 2982 kW: 122 HP: 166 ÜRETİM YILI: 11/2004 → 02/2010
3.0 D-4D (J12)	1KD-FTV	2982	127	173	12/2006 → 02/2010		3.0 D-4D (J12) MOTOR KODU: 1KD-FTV CC: 2982 kW: 127 HP: 173 ÜRETİM YILI: 12/2006 → 02/2010
3.0 D-4D (J12)	1KD-FTV	2982	150	204	08/2006 → 07/2009		3.0 D-4D (J12) MOTOR KODU: 1KD-FTV CC: 2982 kW: 150 HP: 204 ÜRETİM YILI: 08/2006 → 07/2009
3.0 D-4D (J90/95)	1KD-FTV	2982	120	163	11/2000 → 02/2003		3.0 D-4D (J90/95) MOTOR KODU: 1KD-FTV CC: 2982 kW: 120 HP: 163 ÜRETİM YILI: 11/2000 → 02/2003
3.0 D-4D (KZJ12)	1KZ-TE	2982	92	125	09/2002 → 02/2010		3.0 D-4D (KZJ12) MOTOR KODU: 1KZ-TE CC: 2982 kW: 92 HP: 125 ÜRETİM YILI: 09/2002 → 02/2010
3.0 TD (KZJ90/95)	1KZ-TE	2982	92	125	04/1996 → 12/2002		3.0 TD (KZJ90/95) MOTOR KODU: 1KZ-TE CC: 2982 kW: 92 HP: 125 ÜRETİM YILI: 04/1996 → 12/2002
3.4 D (BJ70/73)	3B	3431	70	95	03/1989 → 12/1996		3.4 D (BJ70/73) MOTOR KODU: 3B CC: 3431 kW: 70 HP: 95 ÜRETİM YILI: 03/1989 → 12/1996
3.5 D	1PZ	3470	85	116	01/1990 → 12/1994		3.5 D MOTOR KODU: 1PZ CC: 3470 kW: 85 HP: 116 ÜRETİM YILI: 01/1990 → 12/1994
4.2 D	1H-Z	4164	123	167	08/1990 → 08/2001		4.2 D MOTOR KODU: 1H-Z CC: 4164 kW: 123 HP: 167 ÜRETİM YILI: 08/1990 → 08/2001
4.2 D (HZJ70/80)	1H-Z	4164	97	132	01/1990 → 12/1997	i Spin-on filter	4.2 D (HZJ70/80) MOTOR KODU: 1H-Z CC: 4164 kW: 97 HP: 132 ÜRETİM YILI: 01/1990 → 12/1997 i Spin-on filter
4.2 D 12V SOHC (HZJ105)	1H-Z	4164	96	131	05/1998 → 08/2007		4.2 D 12V SOHC (HZJ105) MOTOR KODU: 1H-Z CC: 4164 kW: 96 HP: 131 ÜRETİM YILI: 05/1998 → 08/2007
4.2 TD (HDJ100)	1HD-FTE	4164	150	204	01/1998 → 07/2003		4.2 TD (HDJ100) MOTOR KODU: 1HD-FTE CC: 4164 kW: 150 HP: 204 ÜRETİM YILI: 01/1998 → 07/2003
4.2 TD (HDJ80)	1HD-FT	4164	125	170	03/1995 → 12/1997		4.2 TD (HDJ80) MOTOR KODU: 1HD-FT CC: 4164 kW: 125 HP: 170 ÜRETİM YILI: 03/1995 → 12/1997
4.2 TD (HDJ80)	1HD-T	4164	118	160	10/1992 → 12/1997		4.2 TD (HDJ80) MOTOR KODU: 1HD-T CC: 4164 kW: 118 HP: 160 ÜRETİM YILI: 10/1992 → 12/1997
4.2 TD (HZJ80)	1HD-T	4164	123	167	01/1990 → 12/1997		4.2 TD (HZJ80) MOTOR KODU: 1HD-T CC: 4164 kW: 123 HP: 167 ÜRETİM YILI: 01/1990 → 12/1997

MOTOR KODU

ÜRETİM YILI

2.4 D (LJ70)

2429

11/1984 → 10/1985

2.4 TD (LJ70)

2L-T

2446

01/1990 → 05/1996

2.4 TD (LJ70/73)

2L-T

2429

10/1985 → 01/1990

2.4 TD (LJ77)

2L-T

2446

01/1990 → 05/1996

3 0 TD (KZJ70)

1KZ-T

2982

125

05/1993 → 05/1996

3.0 D (J12)

1KD-FTV

2982

04/2002 → 02/2010

3.0 D-4D (J12)

1KD-FTV

2982

120

163

01/2003 → 12/2004

3.0 D-4D (J12)

1KD-FTV

2982

122

166

11/2004 → 02/2010

3.0 D-4D (J12)

1KD-FTV

2982

127

173

12/2006 → 02/2010

3.0 D-4D (J12)

1KD-FTV

2982

150

204

08/2006 → 07/2009

3.0 D-4D (J90/95)

1KD-FTV

2982

120

163

11/2000 → 02/2003

3.0 D-4D (KZJ12)

1KZ-TE

2982

125

09/2002 → 02/2010

3.0 TD (KZJ90/95)

1KZ-TE

2982

125

04/1996 → 12/2002

3.4 D (BJ70/73)

3431

03/1989 → 12/1996

3.5 D

1PZ

3470

116

01/1990 → 12/1994

4.2 D

1H-Z

4164

123

167

08/1990 → 08/2001

4.2 D (HZJ70/80)

1H-Z

4164

132

01/1990 → 12/1997

4.2 D 12V SOHC (HZJ105)

1H-Z

4164

131

05/1998 → 08/2007

4.2 TD (HDJ100)

1HD-FTE

4164

150

204

01/1998 → 07/2003

4.2 TD (HDJ80)

1HD-FT

4164

125

170

03/1995 → 12/1997

4.2 TD (HDJ80)

1HD-T

4164

118

160

10/1992 → 12/1997

4.2 TD (HZJ80)

1HD-T

4164

123

167

01/1990 → 12/1997

Landcruiser PRADO | 03-

	MOTOR KODU	CC	kW	HP	ÜRETİM YILI
3.0 D	5L-E	2986	70	95	07/2009 →		3.0 D MOTOR KODU: 5L-E CC: 2986 kW: 70 HP: 95 ÜRETİM YILI: 07/2009 →

MOTOR KODU

ÜRETİM YILI

3.0 D

5L-E

2986

07/2009 →

Lite-Ace | 79-95

	MOTOR KODU	CC	kW	HP	ÜRETİM YILI
1.8 D (CM20)	1C	1839	41	56	10/1982 → 09/1985	1.8 D (CM20) MOTOR KODU: 1C CC: 1839 kW: 41 HP: 56 ÜRETİM YILI: 10/1982 → 09/1985
1.8 D (CM35)	1C	1839	46	63	09/1985 → 07/1988	1.8 D (CM35) MOTOR KODU: 1C CC: 1839 kW: 46 HP: 63 ÜRETİM YILI: 09/1985 → 07/1988
2.0 D	2C-T	1974	60	82	10/1985 → 01/1992	2.0 D MOTOR KODU: 2C-T CC: 1974 kW: 60 HP: 82 ÜRETİM YILI: 10/1985 → 01/1992
2.0 D (CM30/36)	2C	1975	53	72	07/1988 → 01/1992	2.0 D (CM30/36) MOTOR KODU: 2C CC: 1975 kW: 53 HP: 72 ÜRETİM YILI: 07/1988 → 01/1992
2.0 D (CR21/27)	2C	1974	52	71	01/1992 → 05/1994	2.0 D (CR21/27) MOTOR KODU: 2C CC: 1974 kW: 52 HP: 71 ÜRETİM YILI: 01/1992 → 05/1994

MOTOR KODU

ÜRETİM YILI

1.8 D (CM20)

1839

10/1982 → 09/1985

1.8 D (CM35)

1839

09/1985 → 07/1988

2.0 D

2C-T

1974

10/1985 → 01/1992

2.0 D (CM30/36)

1975

07/1988 → 01/1992

2.0 D (CR21/27)

1974

01/1992 → 05/1994

Sprinter | 91-00

	MOTOR KODU	CC	kW	HP	ÜRETİM YILI
2.2 TD (CE116_)	3CE	2184	59	80	04/1998 → 07/2000		2.2 TD (CE116_) MOTOR KODU: 3CE CC: 2184 kW: 59 HP: 80 ÜRETİM YILI: 04/1998 → 07/2000

MOTOR KODU

ÜRETİM YILI

2.2 TD (CE116_)

3CE

2184

04/1998 → 07/2000

Starlet | 78-99

	MOTOR KODU	CC	kW	HP	ÜRETİM YILI
1.4 D (NP70L)	1N	1443	40	54	12/1986 → 12/1989		1.4 D (NP70L) MOTOR KODU: 1N CC: 1443 kW: 40 HP: 54 ÜRETİM YILI: 12/1986 → 12/1989

MOTOR KODU

ÜRETİM YILI

1.4 D (NP70L)

1443

12/1986 → 12/1989

ToyoAce | 71-11

	MOTOR KODU	CC	kW	HP	ÜRETİM YILI
2.2 Diesel (LY20)	L	2188	36	49	03/1979 → 01/1982	i Partly/or	2.2 Diesel (LY20) MOTOR KODU: L CC: 2188 kW: 36 HP: 49 ÜRETİM YILI: 03/1979 → 01/1982 i Partly/or
2.5 Diesel (LY31)	2L OHC	2500	39	53	08/1983 → 07/1985		2.5 Diesel (LY31) MOTOR KODU: 2L OHC CC: 2500 kW: 39 HP: 53 ÜRETİM YILI: 08/1983 → 07/1985
3.0 D (LY235_)	5L		65	88	08/2001 → 06/2011		3.0 D (LY235_) MOTOR KODU: 5L CC: kW: 65 HP: 88 ÜRETİM YILI: 08/2001 → 06/2011

MOTOR KODU

ÜRETİM YILI

2.2 Diesel (LY20)

2188

03/1979 → 01/1982

2.5 Diesel (LY31)

2L OHC

2500

08/1983 → 07/1985

3.0 D (LY235_)

08/2001 → 06/2011

Verso | 09-18

	MOTOR KODU	CC	kW	HP	ÜRETİM YILI
2.2 D-4D	2AD-FHV	2231	110	150	04/2009 → 08/2018	i 03/2010 ->	2.2 D-4D MOTOR KODU: 2AD-FHV CC: 2231 kW: 110 HP: 150 ÜRETİM YILI: 04/2009 → 08/2018
2.2 D-4D (R2 (AUR21))	2AD-FHV	2231	100	136	04/2009 → 08/2018	i 03/2010 ->	2.2 D-4D (R2 (AUR21)) MOTOR KODU: 2AD-FHV CC: 2231 kW: 100 HP: 136 ÜRETİM YILI: 04/2009 → 08/2018
2.2 D-CAT	2AD-FHV	2231	130	177	04/2009 → 08/2018	i 03/2010 ->	2.2 D-CAT MOTOR KODU: 2AD-FHV CC: 2231 kW: 130 HP: 177 ÜRETİM YILI: 04/2009 → 08/2018

MOTOR KODU

ÜRETİM YILI

2.2 D-4D

2AD-FHV

2231

110

150

04/2009 → 08/2018

2.2 D-4D (R2 (AUR21))

2AD-FHV

2231

100

136

04/2009 → 08/2018

2.2 D-CAT

2AD-FHV

2231

130

177

04/2009 → 08/2018

VW (VOLKSWAGEN)

Taro | 89-97

	MOTOR KODU	CC	kW	HP	ÜRETİM YILI
2.4 D	2L	2446	61	83	06/1989 → 04/1997		2.4 D MOTOR KODU: 2L CC: 2446 kW: 61 HP: 83 ÜRETİM YILI: 06/1989 → 04/1997
2.4 D	2L	2446	59	80	06/1989 → 04/1997		2.4 D MOTOR KODU: 2L CC: 2446 kW: 59 HP: 80 ÜRETİM YILI: 06/1989 → 04/1997

MOTOR KODU

ÜRETİM YILI

2.4 D

2446

06/1989 → 04/1997

2.4 D

2446

06/1989 → 04/1997

ANTONIO CARRARO

TTR | 00-

	MOTOR KODU	CC	kW	HP	ÜRETİM YILI
TTR 7600 Infinity	Kohler Tier3B	2482	55	75			TTR 7600 Infinity MOTOR KODU: Kohler Tier3B CC: 2482 kW: 55 HP: 75

MOTOR KODU

ÜRETİM YILI

TTR 7600 Infinity

Kohler Tier3B

2482

ARBOS

Serie 2000 | 17-

	MOTOR KODU	CC	kW	HP	ÜRETİM YILI
2115	Kohler KDI3404	3404			01/2017 →		2115 MOTOR KODU: Kohler KDI3404 CC: 3404 kW: HP: ÜRETİM YILI: 01/2017 →
2130	Kohler KDI3404	3404			01/2017 →		2130 MOTOR KODU: Kohler KDI3404 CC: 3404 kW: HP: ÜRETİM YILI: 01/2017 →

MOTOR KODU

ÜRETİM YILI

2115

Kohler KDI3404

3404

01/2017 →

2130

Kohler KDI3404

3404

01/2017 →

Serie 5000 | 17-

	MOTOR KODU	CC	kW	HP	ÜRETİM YILI
5100	Kohler KDI3404 Tier 4F	3404	75	102	01/2017 →	5100 MOTOR KODU: Kohler KDI3404 Tier 4F CC: 3404 kW: 75 HP: 102 ÜRETİM YILI: 01/2017 →
5115	Kohler KDI3404 Tier 4F	3404	90	122	01/2017 →	5115 MOTOR KODU: Kohler KDI3404 Tier 4F CC: 3404 kW: 90 HP: 122 ÜRETİM YILI: 01/2017 →
5130	Kohler KDI3404 Tier 4F	3404	100	136	01/2017 →	5130 MOTOR KODU: Kohler KDI3404 Tier 4F CC: 3404 kW: 100 HP: 136 ÜRETİM YILI: 01/2017 →

MOTOR KODU

ÜRETİM YILI

5100

Kohler KDI3404 Tier 4F

3404

102

01/2017 →

5115

Kohler KDI3404 Tier 4F

3404

122

01/2017 →

5130

Kohler KDI3404 Tier 4F

3404

100

136

01/2017 →

HAULOTTE

HTL-Serie | 07-

	MOTOR KODU	CC	kW	HP	ÜRETİM YILI
HTL 4010	KOHLER KDITCR2504E5/26	2482	55	75	01/2018 →	HTL 4010 MOTOR KODU: KOHLER KDITCR2504E5/26 CC: 2482 kW: 55 HP: 75 ÜRETİM YILI: 01/2018 →
HTL3210	Kohler KDI3404 TCR	3400	55	75	01/2017 →	HTL3210 MOTOR KODU: Kohler KDI3404 TCR CC: 3400 kW: 55 HP: 75 ÜRETİM YILI: 01/2017 →
HTL3614	Kohler KDI3404TCR-22C	3404	55	75	01/2016 →	HTL3614 MOTOR KODU: Kohler KDI3404TCR-22C CC: 3404 kW: 55 HP: 75 ÜRETİM YILI: 01/2016 →
HTL3617	Kohler KDI3404TR-22C	3404	55	75	01/2017 →	HTL3617 MOTOR KODU: Kohler KDI3404TR-22C CC: 3404 kW: 55 HP: 75 ÜRETİM YILI: 01/2017 →
HTL4014	Kohler KDI3404TCP Tier4	3400	55	75	01/2015 →	HTL4014 MOTOR KODU: Kohler KDI3404TCP Tier4 CC: 3400 kW: 55 HP: 75 ÜRETİM YILI: 01/2015 →
HTL4017	Kohler FKHX23-36TCR Tier IV	3400	55	75	01/2014 →	HTL4017 MOTOR KODU: Kohler FKHX23-36TCR Tier IV CC: 3400 kW: 55 HP: 75 ÜRETİM YILI: 01/2014 →
HTL4017	Kohler KDI3404TCR-22C	2500	55	75	01/2018 →	HTL4017 MOTOR KODU: Kohler KDI3404TCR-22C CC: 2500 kW: 55 HP: 75 ÜRETİM YILI: 01/2018 →

MOTOR KODU

ÜRETİM YILI

HTL 4010

KOHLER KDITCR2504E5/26

2482

01/2018 →

HTL3210

Kohler KDI3404 TCR

3400

01/2017 →

HTL3614

Kohler KDI3404TCR-22C

3404

01/2016 →

HTL3617

Kohler KDI3404TR-22C

3404

01/2017 →

HTL4014

Kohler KDI3404TCP Tier4

3400

01/2015 →

HTL4017

Kohler FKHX23-36TCR Tier IV

3400

01/2014 →

HTL4017

Kohler KDI3404TCR-22C

2500

01/2018 →

ISEKI

TG 6000-Serie | 14-

	MOTOR KODU	CC	kW	HP	ÜRETİM YILI
6670 AHL	Shibaura N4LDI-TA4501	2216	49	67	01/2018 →	i Prefilter. Water separator	6670 AHL MOTOR KODU: Shibaura N4LDI-TA4501 CC: 2216 kW: 49 HP: 67 ÜRETİM YILI: 01/2018 → i Prefilter. Water separator
6675 AHL	N4LDI-TA4503	2216	48	65		i Prefilter. Water separator	6675 AHL MOTOR KODU: N4LDI-TA4503 CC: 2216 kW: 48 HP: 65 i Prefilter. Water separator

MOTOR KODU

ÜRETİM YILI

6670 AHL

Shibaura N4LDI-TA4501

2216

01/2018 →

6675 AHL

N4LDI-TA4503

2216

JCB (J.C. BAMFORD)

400-Serie (Radlader / Wheel Loader) | 87-

	MOTOR KODU	CC	kW	HP	ÜRETİM YILI
406	Kohler KDI 2504 M		36	49	01/2014 → 01/2020	i Use for OE no. 333/G6057	406 MOTOR KODU: Kohler KDI 2504 M CC: kW: 36 HP: 49 ÜRETİM YILI: 01/2014 → 01/2020 i Use for OE no. 333/G6057
407	Kohler KDI 2504 TCR		48	65	01/2014 → 01/2020	i Use for OE no. 333/G6057	407 MOTOR KODU: Kohler KDI 2504 TCR CC: kW: 48 HP: 65 ÜRETİM YILI: 01/2014 → 01/2020 i Use for OE no. 333/G6057

MOTOR KODU

ÜRETİM YILI

406

Kohler KDI 2504 M

01/2014 → 01/2020

407

Kohler KDI 2504 TCR

01/2014 → 01/2020

500-Serie (Teleskoplader / Telehandler) | 90-

	MOTOR KODU	CC	kW	HP	ÜRETİM YILI
525-60 / Plus	Kohler KDI2504 Tier 4 Final		55	74		i Water separator	525-60 / Plus MOTOR KODU: Kohler KDI2504 Tier 4 Final CC: kW: 55 HP: 74 i Water separator
525-60 Agri	JCB		55	75			525-60 Agri MOTOR KODU: JCB CC: kW: 55 HP: 75

MOTOR KODU

ÜRETİM YILI

525-60 / Plus

Kohler KDI2504 Tier 4 Final

525-60 Agri

JCB

KRAMER ALLRAD (WACKER NEUSON)

2000-Serie | 10-

	MOTOR KODU	CC	kW	HP	ÜRETİM YILI
2706 (Version 1.0 (418-22))						2706 (Version 1.0 (418-22)) MOTOR KODU: CC: kW: HP:
2706 (Version 1.1 (418-12))						2706 (Version 1.1 (418-12)) MOTOR KODU: CC: kW: HP:
2706 (Version 1.4 (418-02))	Kohler KDI2504TCR Tier 3 B	2482	55	75	01/2015 → 12/2021	2706 (Version 1.4 (418-02)) MOTOR KODU: Kohler KDI2504TCR Tier 3 B CC: 2482 kW: 55 HP: 75 ÜRETİM YILI: 01/2015 → 12/2021

MOTOR KODU

ÜRETİM YILI

2706 (Version 1.0 (418-22))

2706 (Version 1.1 (418-12))

2706 (Version 1.4 (418-02))

Kohler KDI2504TCR Tier 3 B

2482

01/2015 → 12/2021

KL-Serie (Radlader / Wheel Loader) | 19-

	MOTOR KODU	CC	kW	HP	ÜRETİM YILI
KL 30.5T (Version 1.4 (353-03))	Kohler KDI 2504TCR Tier 3 B		55	75			KL 30.5T (Version 1.4 (353-03)) MOTOR KODU: Kohler KDI 2504TCR Tier 3 B CC: kW: 55 HP: 75

MOTOR KODU

ÜRETİM YILI

KL 30.5T (Version 1.4 (353-03))

Kohler KDI 2504TCR Tier 3 B

KT-Serie (Teleskoplader / Telescopic Loaders) | 18

	MOTOR KODU	CC	kW	HP
KT 256	Kohler				KT 256 MOTOR KODU: Kohler CC: kW: HP:
KT 276	Kohler KDI 2504TCR Tier 3 B	2482	55	75	KT 276 MOTOR KODU: Kohler KDI 2504TCR Tier 3 B CC: 2482 kW: 55 HP: 75
KT 276	Kohler KDI 2504 TCR Tier 4F	2482	55	75	KT 276 MOTOR KODU: Kohler KDI 2504 TCR Tier 4F CC: 2482 kW: 55 HP: 75

MOTOR KODU

ÜRETİM YILI

KT 256

Kohler

KT 276

Kohler KDI 2504TCR Tier 3 B

2482

KT 276

Kohler KDI 2504 TCR Tier 4F

2482

KUBOTA

KX-Series (Minibagger / Mini Excavators) | 91-

	MOTOR KODU	CC	kW	HP	ÜRETİM YILI
080-4	Kubota V3307CR-TE4	3331	48	65	01/2013 → 02/2016	080-4 MOTOR KODU: Kubota V3307CR-TE4 CC: 3331 kW: 48 HP: 65 ÜRETİM YILI: 01/2013 → 02/2016
080-4 Alpha	Kubota V3307-CRT-EU6	3331	47	63	01/2019 →	080-4 Alpha MOTOR KODU: Kubota V3307-CRT-EU6 CC: 3331 kW: 47 HP: 63 ÜRETİM YILI: 01/2019 →
080-4 Alpha II	Kubota V3307-CRT-EU6	3331	47	63	01/2020 →	080-4 Alpha II MOTOR KODU: Kubota V3307-CRT-EU6 CC: 3331 kW: 47 HP: 63 ÜRETİM YILI: 01/2020 →
80-4a	Kubota V3307CR-TE4	3331	47	63		80-4a MOTOR KODU: Kubota V3307CR-TE4 CC: 3331 kW: 47 HP: 63

MOTOR KODU

ÜRETİM YILI

080-4

Kubota V3307CR-TE4

3331

01/2013 → 02/2016

080-4 Alpha

Kubota V3307-CRT-EU6

3331

01/2019 →

080-4 Alpha II

Kubota V3307-CRT-EU6

3331

01/2020 →

80-4a

Kubota V3307CR-TE4

3331

R-Series (Compact Wheel Loaders) | 86-

	MOTOR KODU	CC	kW	HP	ÜRETİM YILI
085	Kubota V2607CR	2615	46	62	01/2015 → 02/2018		085 MOTOR KODU: Kubota V2607CR CC: 2615 kW: 46 HP: 62 ÜRETİM YILI: 01/2015 → 02/2018
630	Kubota V2607-CR-TE4 Tier4	2615	48	64			630 MOTOR KODU: Kubota V2607-CR-TE4 Tier4 CC: 2615 kW: 48 HP: 64

MOTOR KODU

ÜRETİM YILI

085

Kubota V2607CR

2615

01/2015 → 02/2018

630

Kubota V2607-CR-TE4 Tier4

2615

U-Series (Minibagger / Mini Excavators) | 98-

	MOTOR KODU	CC	kW	HP	ÜRETİM YILI
080-4Alpha	Kubota V3307CR-TE4		47	63	02/2016 → 04/2019		080-4Alpha MOTOR KODU: Kubota V3307CR-TE4 CC: kW: 47 HP: 63 ÜRETİM YILI: 02/2016 → 04/2019
55-4	Kubota V2607-DI	2615	34	46		i Partly/or	55-4 MOTOR KODU: Kubota V2607-DI CC: 2615 kW: 34 HP: 46 i Partly/or

MOTOR KODU

ÜRETİM YILI

080-4Alpha

Kubota V3307CR-TE4

02/2016 → 04/2019

55-4

Kubota V2607-DI

2615

LANDINI (ARGO)

4 - Serie | 20-

	MOTOR KODU	CC	kW	HP	ÜRETİM YILI
4-060 (RS58)	Kohler KDI2504 TCR	2482	45	61	11/2020 →	4-060 (RS58) MOTOR KODU: Kohler KDI2504 TCR CC: 2482 kW: 45 HP: 61 ÜRETİM YILI: 11/2020 →
4-060 (RS58)	Kohler Tier 4F				01/2021 →	4-060 (RS58) MOTOR KODU: Kohler Tier 4F CC: kW: HP: ÜRETİM YILI: 01/2021 →
4-070 (RS58)	Kohler KDI2504 TCR	2482	50	68	11/2020 →	4-070 (RS58) MOTOR KODU: Kohler KDI2504 TCR CC: 2482 kW: 50 HP: 68 ÜRETİM YILI: 11/2020 →
4-070 (RS58)	Kohler Tier 4F				01/2021 →	4-070 (RS58) MOTOR KODU: Kohler Tier 4F CC: kW: HP: ÜRETİM YILI: 01/2021 →
4-080 (RS58)	Kohler KDI2504 TCR	2482	55	75	11/2020 →	4-080 (RS58) MOTOR KODU: Kohler KDI2504 TCR CC: 2482 kW: 55 HP: 75 ÜRETİM YILI: 11/2020 →
4-080 (RS58)	Kohler Tier 4F				01/2021 →	4-080 (RS58) MOTOR KODU: Kohler Tier 4F CC: kW: HP: ÜRETİM YILI: 01/2021 →

MOTOR KODU

ÜRETİM YILI

4-060 (RS58)

Kohler KDI2504 TCR

2482

11/2020 →

4-060 (RS58)

Kohler Tier 4F

01/2021 →

4-070 (RS58)

Kohler KDI2504 TCR

2482

11/2020 →

4-070 (RS58)

Kohler Tier 4F

01/2021 →

4-080 (RS58)

Kohler KDI2504 TCR

2482

11/2020 →

4-080 (RS58)

Kohler Tier 4F

01/2021 →

Mistral 2 StageV | 21-

	MOTOR KODU	CC	kW	HP	ÜRETİM YILI
2-055 (RS14)	Kohler KDI		36	49	01/2021 →		2-055 (RS14) MOTOR KODU: Kohler KDI CC: kW: 36 HP: 49 ÜRETİM YILI: 01/2021 →
2-060 (RS14)	Kohler KDI		42	57	01/2021 →		2-060 (RS14) MOTOR KODU: Kohler KDI CC: kW: 42 HP: 57 ÜRETİM YILI: 01/2021 →

MOTOR KODU

ÜRETİM YILI

2-055 (RS14)

Kohler KDI

01/2021 →

2-060 (RS14)

Kohler KDI

01/2021 →

Rex 3-Serie | 19-

	MOTOR KODU	kW	HP	ÜRETİM YILI
3-060 F-GE (RS60)	Kohler	55	75	01/2019 → 12/2020	3-060 F-GE (RS60) MOTOR KODU: Kohler CC: kW: 55 HP: 75 ÜRETİM YILI: 01/2019 → 12/2020
3-070 F-GE (RS60)	Kohler	55	75	01/2019 → 12/2020	3-070 F-GE (RS60) MOTOR KODU: Kohler CC: kW: 55 HP: 75 ÜRETİM YILI: 01/2019 → 12/2020
3-080 F-GE (RS60)	Kohler	55	75	01/2019 → 12/2020	3-080 F-GE (RS60) MOTOR KODU: Kohler CC: kW: 55 HP: 75 ÜRETİM YILI: 01/2019 → 12/2020
3060 F-GE (RS61)	Kohler Stage V			01/2020 →	3060 F-GE (RS61) MOTOR KODU: Kohler Stage V CC: kW: HP: ÜRETİM YILI: 01/2020 →
3070 F-GE (RS61)	Kohler Stage V			01/2020 →	3070 F-GE (RS61) MOTOR KODU: Kohler Stage V CC: kW: HP: ÜRETİM YILI: 01/2020 →
3080 F-GE (RS61)	Kohler Stage V			01/2020 →	3080 F-GE (RS61) MOTOR KODU: Kohler Stage V CC: kW: HP: ÜRETİM YILI: 01/2020 →

MOTOR KODU

ÜRETİM YILI

3-060 F-GE (RS60)

Kohler

01/2019 → 12/2020

3-070 F-GE (RS60)

Kohler

01/2019 → 12/2020

3-080 F-GE (RS60)

Kohler

01/2019 → 12/2020

3060 F-GE (RS61)

Kohler Stage V

01/2020 →

3070 F-GE (RS61)

Kohler Stage V

01/2020 →

3080 F-GE (RS61)

Kohler Stage V

01/2020 →

MANITOU

MSI-Serie | 97-

	MOTOR KODU	CC	kW	HP	ÜRETİM YILI
20 / 25 / 30 (BUGGIE)							20 / 25 / 30 (BUGGIE) MOTOR KODU: CC: kW: HP:

MOTOR KODU

ÜRETİM YILI

20 / 25 / 30 (BUGGIE)

MCCORMICK (ARGO)

X2-Serie Stage V | 21-

	MOTOR KODU	CC	kW	HP	ÜRETİM YILI
X2.055 STD/GE (RS14)	Kohler KDI 1903 TCR Tier 4F	1900	36	49	01/2021 →		X2.055 STD/GE (RS14) MOTOR KODU: Kohler KDI 1903 TCR Tier 4F CC: 1900 kW: 36 HP: 49 ÜRETİM YILI: 01/2021 →
X2.060 STD/GE (RS14)	Kohler KDI 1903 TCR Tier 4F	1900	42	57	01/2021 →		X2.060 STD/GE (RS14) MOTOR KODU: Kohler KDI 1903 TCR Tier 4F CC: 1900 kW: 42 HP: 57 ÜRETİM YILI: 01/2021 →

MOTOR KODU

ÜRETİM YILI

X2.055 STD/GE (RS14)

Kohler KDI 1903 TCR Tier 4F

1900

01/2021 →

X2.060 STD/GE (RS14)

Kohler KDI 1903 TCR Tier 4F

1900

01/2021 →

X3-Serie Stage V | 20-

	MOTOR KODU	CC	kW	HP	ÜRETİM YILI
X3.60 F-GE (RS61)	Kohler Stage V	2500	40	55	01/2020 →	i Partly/or. Use for OE no. 6654854A1	X3.60 F-GE (RS61) MOTOR KODU: Kohler Stage V CC: 2500 kW: 40 HP: 55 ÜRETİM YILI: 01/2020 → i Partly/or. Use for OE no. 6654854A1
X3.60 F-GE (RS61)	Kohler Stage V	2500	40	55	01/2020 →	i Partly/or. Use for OE no. 6654951A1	X3.60 F-GE (RS61) MOTOR KODU: Kohler Stage V CC: 2500 kW: 40 HP: 55 ÜRETİM YILI: 01/2020 → i Partly/or. Use for OE no. 6654951A1
X3.70 F-GE (RS61)	Kohler Stage V	2500	50	68	01/2020 →		X3.70 F-GE (RS61) MOTOR KODU: Kohler Stage V CC: 2500 kW: 50 HP: 68 ÜRETİM YILI: 01/2020 →
X3.80 F-GE (RS61)	Kohler Stage V	2500	55	75	01/2020 →		X3.80 F-GE (RS61) MOTOR KODU: Kohler Stage V CC: 2500 kW: 55 HP: 75 ÜRETİM YILI: 01/2020 →

MOTOR KODU

ÜRETİM YILI

X3.60 F-GE (RS61)

Kohler Stage V

2500

01/2020 →

X3.60 F-GE (RS61)

Kohler Stage V

2500

01/2020 →

X3.70 F-GE (RS61)

Kohler Stage V

2500

01/2020 →

X3.80 F-GE (RS61)

Kohler Stage V

2500

01/2020 →

X3-Serie | 19-20

	MOTOR KODU	CC	kW	HP	ÜRETİM YILI
X3.20 F-GE (RS60)	Kohler TCR KDI Tier 4i	2504	55	75	01/2019 → 12/2020	X3.20 F-GE (RS60) MOTOR KODU: Kohler TCR KDI Tier 4i CC: 2504 kW: 55 HP: 75 ÜRETİM YILI: 01/2019 → 12/2020
X3.30 F-GE (RS60)	Kohler TCR KDI Tier 4i	2504	55	75	01/2019 → 12/2020	X3.30 F-GE (RS60) MOTOR KODU: Kohler TCR KDI Tier 4i CC: 2504 kW: 55 HP: 75 ÜRETİM YILI: 01/2019 → 12/2020
X3.40 F-GE (RS60)	Kohler TCR KDI Tier 4i	2504	55	75	01/2019 → 12/2020	X3.40 F-GE (RS60) MOTOR KODU: Kohler TCR KDI Tier 4i CC: 2504 kW: 55 HP: 75 ÜRETİM YILI: 01/2019 → 12/2020

MOTOR KODU

ÜRETİM YILI

X3.20 F-GE (RS60)

Kohler TCR KDI Tier 4i

2504

01/2019 → 12/2020

X3.30 F-GE (RS60)

Kohler TCR KDI Tier 4i

2504

01/2019 → 12/2020

X3.40 F-GE (RS60)

Kohler TCR KDI Tier 4i

2504

01/2019 → 12/2020

X4-Serie | 14-

	MOTOR KODU	CC	kW	HP	ÜRETİM YILI
X4.060 (RS58)	Kohler KDI2504 TCR Tier 4F	2500	45	61	01/2021 →	X4.060 (RS58) MOTOR KODU: Kohler KDI2504 TCR Tier 4F CC: 2500 kW: 45 HP: 61 ÜRETİM YILI: 01/2021 →
X4.070 (RS58)	Kohler KDI2504 TCR Tier 4F	2500	50	68	01/2021 →	X4.070 (RS58) MOTOR KODU: Kohler KDI2504 TCR Tier 4F CC: 2500 kW: 50 HP: 68 ÜRETİM YILI: 01/2021 →
X4.080 (RS58)	Kohler KDI2504 TCR Tier 4F	2500	55	75	01/2021 →	X4.080 (RS58) MOTOR KODU: Kohler KDI2504 TCR Tier 4F CC: 2500 kW: 55 HP: 75 ÜRETİM YILI: 01/2021 →

MOTOR KODU

ÜRETİM YILI

X4.060 (RS58)

Kohler KDI2504 TCR Tier 4F

2500

01/2021 →

X4.070 (RS58)

Kohler KDI2504 TCR Tier 4F

2500

01/2021 →

X4.080 (RS58)

Kohler KDI2504 TCR Tier 4F

2500

01/2021 →

MERLO

PANORAMIC | 95-

	MOTOR KODU	CC	kW	HP	ÜRETİM YILI
P27.6 Plus	Kohler KDI2504TCR				11/2020 →		P27.6 Plus MOTOR KODU: Kohler KDI2504TCR CC: kW: HP: ÜRETİM YILI: 11/2020 →

MOTOR KODU

ÜRETİM YILI

P27.6 Plus

Kohler KDI2504TCR

11/2020 →

TURBOFARMER | 14-

	MOTOR KODU	CC	kW	HP	ÜRETİM YILI
TF30.9 G	Kohler KDI2504TCR Tier 4 Final		55	75	01/2020 →		TF30.9 G MOTOR KODU: Kohler KDI2504TCR Tier 4 Final CC: kW: 55 HP: 75 ÜRETİM YILI: 01/2020 →
TF33.7-115	Kohler KDI2504TCR Tier 4 Final		55	75	01/2022 →		TF33.7-115 MOTOR KODU: Kohler KDI2504TCR Tier 4 Final CC: kW: 55 HP: 75 ÜRETİM YILI: 01/2022 →

MOTOR KODU

ÜRETİM YILI

TF30.9 G

Kohler KDI2504TCR Tier 4 Final

01/2020 →

TF33.7-115

Kohler KDI2504TCR Tier 4 Final

01/2022 →

VALPADANA (ARGO)

1500 Restyling-Serie | 16-

	MOTOR KODU	CC	kW	HP	ÜRETİM YILI
1555 (RS14)	Kohler Stufe V				01/2021 →		1555 (RS14) MOTOR KODU: Kohler Stufe V CC: kW: HP: ÜRETİM YILI: 01/2021 →
1560 (RS14)	Kohler Stufe V				01/2021 →		1560 (RS14) MOTOR KODU: Kohler Stufe V CC: kW: HP: ÜRETİM YILI: 01/2021 →

MOTOR KODU

ÜRETİM YILI

1555 (RS14)

Kohler Stufe V

01/2021 →

1560 (RS14)

Kohler Stufe V

01/2021 →

3000-Serie | 19-

	MOTOR KODU	CC	kW	HP	ÜRETİM YILI
3060 F-GE (RS60)	Kohler Tier 4	2500	40	55	01/2019 → 12/2020	3060 F-GE (RS60) MOTOR KODU: Kohler Tier 4 CC: 2500 kW: 40 HP: 55 ÜRETİM YILI: 01/2019 → 12/2020
3060 F-GE (RS60)	Kohler Tier 3B	2500	40	55	01/2019 → 12/2020	3060 F-GE (RS60) MOTOR KODU: Kohler Tier 3B CC: 2500 kW: 40 HP: 55 ÜRETİM YILI: 01/2019 → 12/2020
3060 F-GE (RS60)	Kohler Tier 3B	2500	40	55	01/2019 → 12/2020	3060 F-GE (RS60) MOTOR KODU: Kohler Tier 3B CC: 2500 kW: 40 HP: 55 ÜRETİM YILI: 01/2019 → 12/2020
3060 F-GE (RS61)	Kohler StageV	2500	44	60	01/2020 →	3060 F-GE (RS61) MOTOR KODU: Kohler StageV CC: 2500 kW: 44 HP: 60 ÜRETİM YILI: 01/2020 →
3070 F-GE (RS60)	Kohler Tier 3B	2500	40	55	01/2019 → 12/2020	3070 F-GE (RS60) MOTOR KODU: Kohler Tier 3B CC: 2500 kW: 40 HP: 55 ÜRETİM YILI: 01/2019 → 12/2020
3070 F-GE (RS60)	Kohler Tier 3B	2500	40	55	01/2019 → 12/2020	3070 F-GE (RS60) MOTOR KODU: Kohler Tier 3B CC: 2500 kW: 40 HP: 55 ÜRETİM YILI: 01/2019 → 12/2020
3070 F-GE (RS60)	Kohler Tier 4	2500	40	55	01/2019 → 12/2020	3070 F-GE (RS60) MOTOR KODU: Kohler Tier 4 CC: 2500 kW: 40 HP: 55 ÜRETİM YILI: 01/2019 → 12/2020
3070 F-GE (RS61)	Kohler StageV	2500	48	65	01/2020 →	3070 F-GE (RS61) MOTOR KODU: Kohler StageV CC: 2500 kW: 48 HP: 65 ÜRETİM YILI: 01/2020 →
3080 F-GE (RS60)	Kohler Tier 4	2500	40	55	01/2019 → 12/2020	3080 F-GE (RS60) MOTOR KODU: Kohler Tier 4 CC: 2500 kW: 40 HP: 55 ÜRETİM YILI: 01/2019 → 12/2020
3080 F-GE (RS60)	Kohler Tier 3B	2500	40	55	01/2019 → 12/2020	3080 F-GE (RS60) MOTOR KODU: Kohler Tier 3B CC: 2500 kW: 40 HP: 55 ÜRETİM YILI: 01/2019 → 12/2020
3080 F-GE (RS60)	Kohler Tier 3B	2500	40	55	01/2019 → 12/2020	3080 F-GE (RS60) MOTOR KODU: Kohler Tier 3B CC: 2500 kW: 40 HP: 55 ÜRETİM YILI: 01/2019 → 12/2020
3080 F-GE (RS61)	Kohler StageV	2500	55	75	01/2020 →	3080 F-GE (RS61) MOTOR KODU: Kohler StageV CC: 2500 kW: 55 HP: 75 ÜRETİM YILI: 01/2020 →

MOTOR KODU

ÜRETİM YILI

3060 F-GE (RS60)

Kohler Tier 4

2500

01/2019 → 12/2020

3060 F-GE (RS60)

Kohler Tier 3B

2500

01/2019 → 12/2020

3060 F-GE (RS60)

Kohler Tier 3B

2500

01/2019 → 12/2020

3060 F-GE (RS61)

Kohler StageV

2500

01/2020 →

3070 F-GE (RS60)

Kohler Tier 3B

2500

01/2019 → 12/2020

3070 F-GE (RS60)

Kohler Tier 3B

2500

01/2019 → 12/2020

3070 F-GE (RS60)

Kohler Tier 4

2500

01/2019 → 12/2020

3070 F-GE (RS61)

Kohler StageV

2500

01/2020 →

3080 F-GE (RS60)

Kohler Tier 4

2500

01/2019 → 12/2020

3080 F-GE (RS60)

Kohler Tier 3B

2500

01/2019 → 12/2020

3080 F-GE (RS60)

Kohler Tier 3B

2500

01/2019 → 12/2020

3080 F-GE (RS61)

Kohler StageV

2500

01/2020 →

WACKER NEUSON

Kompaktlader / Skid Steer Loader | 05-08

	MOTOR KODU	kW	HP
SW 16	Kohler 1903TCR	41	56	i Use for OE no. 5200016463	SW 16 MOTOR KODU: Kohler 1903TCR CC: kW: 41 HP: 56 i Use for OE no. 5200016463
SW 17	Kohler 2504 TCR	54	74	i Use for OE no. 1000337856	SW 17 MOTOR KODU: Kohler 2504 TCR CC: kW: 54 HP: 74 i Use for OE no. 1000337856
SW 24	Kohler 3404TCR	54	74	i Use for OE no. 5200016463	SW 24 MOTOR KODU: Kohler 3404TCR CC: kW: 54 HP: 74 i Use for OE no. 5200016463
SW 28	Kohler 3404TCR	54	74	i Use for OE no. 5200016463	SW 28 MOTOR KODU: Kohler 3404TCR CC: kW: 54 HP: 74 i Use for OE no. 5200016463
SW 32	Kohler 3404TCR	74	100	i Use for OE no. 5200016463	SW 32 MOTOR KODU: Kohler 3404TCR CC: kW: 74 HP: 100 i Use for OE no. 5200016463

MOTOR KODU

ÜRETİM YILI

SW 16

Kohler 1903TCR

SW 17

Kohler 2504 TCR

SW 24

Kohler 3404TCR

SW 28

Kohler 3404TCR

SW 32

Kohler 3404TCR

100

TH (Teleskoplader / Telehandler) | 13-

	MOTOR KODU	CC	kW	HP	ÜRETİM YILI
TH 627	Kohler KDI2504 TCR	2482	55	75	01/2021 →		TH 627 MOTOR KODU: Kohler KDI2504 TCR CC: 2482 kW: 55 HP: 75 ÜRETİM YILI: 01/2021 →

MOTOR KODU

ÜRETİM YILI

TH 627

Kohler KDI2504 TCR

2482

01/2021 →

WEIDEMANN (WACKER NEUSON)

Teleskop | 05-

	MOTOR KODU	CC	kW	HP	ÜRETİM YILI
T6027	Kohler KDI2507 TCR	2200	55	75	01/2016 → 12/2019		T6027 MOTOR KODU: Kohler KDI2507 TCR CC: 2200 kW: 55 HP: 75 ÜRETİM YILI: 01/2016 → 12/2019
T6027	Kohler KDI 2504 TCR Tier 3B	2200	55	75	01/2016 → 12/2019		T6027 MOTOR KODU: Kohler KDI 2504 TCR Tier 3B CC: 2200 kW: 55 HP: 75 ÜRETİM YILI: 01/2016 → 12/2019

MOTOR KODU

ÜRETİM YILI

T6027

Kohler KDI2507 TCR

2200

01/2016 → 12/2019

T6027

Kohler KDI 2504 TCR Tier 3B

2200

01/2016 → 12/2019

ARGO Tractors

6654854A1

CATERPILLAR

215007

DAIHATSU

186100-5420
23303-64010
23303-64010-000
23303-83706

DULEVO

DBH3700000

FOMOCO

6M34-9150-BA

FORD

1213 456
1958791
4024 213
4403 318
4962893
5091 986
5119 662
9M34 9150 BA
XM34-9159-EA
XM349150AA
XM3J 9150 AA
YL5Z-9155-AB

FORD USA

YL5Z-9155-AB

IPS

48120
48121

ISEKI

BR1303664000

J.C.BAMFORD

333/G6057

JACOBSEN

T649001005

KOHLER

ED2175-318-S

KOMATSU

6734-71-6120

KUBOTA

18610-5420
HHV00-51920
V062151920

LANDINI

6654951 A1

MANITOU

2330364010

MAZDA

R2N-13ZA5
R2N5-13ZA5
R2N51-3ZA59A
R2N51-3ZA5A9A
WE01-13-ZA5
WE011-3ZA5-9A
WE011-3ZA5-A
WL81-13ZA5

NEXEN

92509071

NISSAN

16403-2SA00

SHIBAURA

1303664000

TOYOTA

04234-76010
23303-56040
23303-64010
23303-64020
23303-76021
23390-24480
23390-30150
23390-30180
23390-64480
23390-YZZAB

VALPADANA

6654854A1

VW GROUP (AUDI/SEAT/SKODA/VW)

J23303-64010

WACKER NEUSON

1000337856

YANMAR

11977355510

Son güncelleme tarihi: 2025-03-31 YAZDIR Hata bildir

EBATLAR YENİ FİLTRELER VE DEĞİŞİKLİKLER ÖZEL FİLTRELER

FİLTRE KATALOĞU

ARAMA SONUÇLARI

FİLTRE BUL

REACH-Information

PP 855

FAVORİLER

Filtry Filtron
