SVHC declaration according to the regulation EC 1907/2006 concerning the Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH).

Produkt: K 1002A - FILTRON

MANN+HUMMEL is well aware of REACH and meet all legal obligations under this regulation.

MANN+HUMMEL has established internal processes to ensure implementation and compliance with the REACH Regulation. Especially, we continuously work on the assessment of presence of SVHC (Substances of Very High Concern).

We may inform you that according to present level of information and best knowledge, this product does not contain any SVHC listed on the Candidate List in concentration above 0,1% (w/w).

Last update: 2024-09-19

Back

CABIN FILTERS

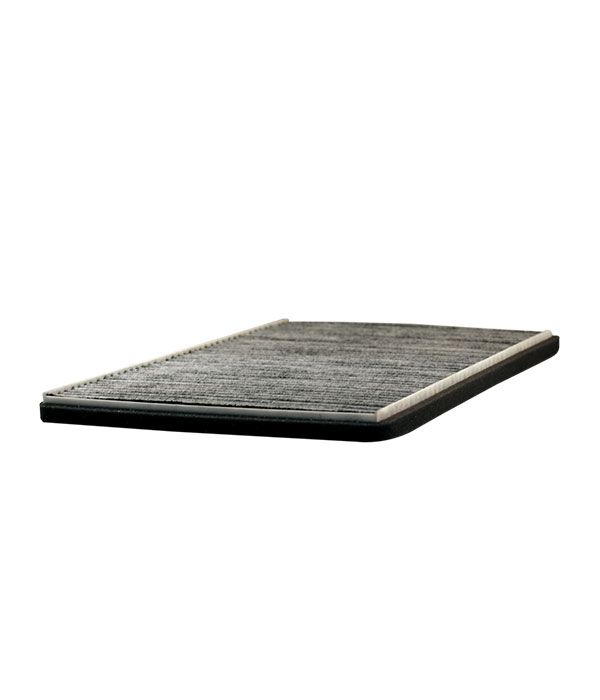

K 1002A

EAN CODE: 5904608110022

Installation manual

REACH information

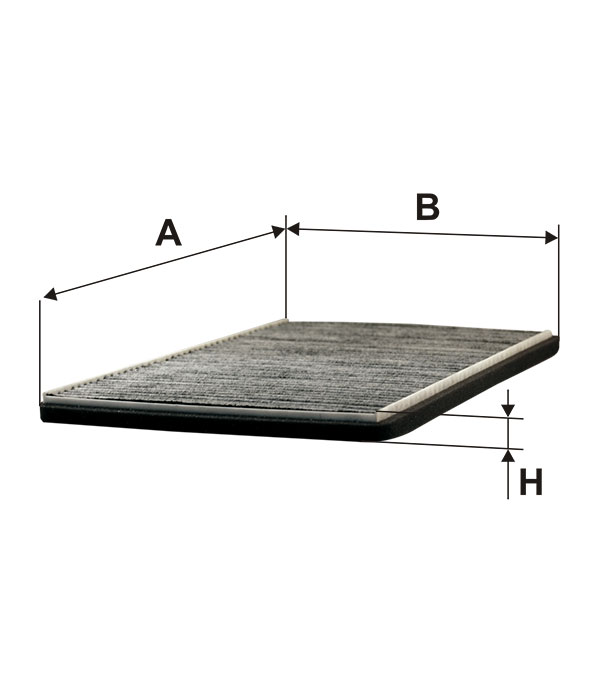

DIMENSIONS (mm):

340

195

As a standard, the filter features the PROTECT+ technology, which reduce allergens and prevents the growth of bacteria and mould on the filter. Find out more >>

APPLICATION
SUBSTITUTES

OPEL

Combo A | 94-01

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
1.2	C 12 NZ	1195	33	45	07/1994 → 08/2001	i Activated carbon filter	1.2 ENGINE CODE: C 12 NZ CC: 1195 kW: 33 HP: 45 YEAR OF MANUFACTURE: 07/1994 → 08/2001 i Activated carbon filter
1.4	C 14 NZ, X14 SZ	1389	44	60	07/1994 → 08/2001	i Activated carbon filter	1.4 ENGINE CODE: C 14 NZ, X14 SZ CC: 1389 kW: 44 HP: 60 YEAR OF MANUFACTURE: 07/1994 → 08/2001 i Activated carbon filter
1.4	C 14 SE	1389	60	82	07/1994 → 08/2001	i Activated carbon filter	1.4 ENGINE CODE: C 14 SE CC: 1389 kW: 60 HP: 82 YEAR OF MANUFACTURE: 07/1994 → 08/2001 i Activated carbon filter
1.4 16V	X 14 XE	1398	66	90	08/1999 → 10/2001	i Activated carbon filter	1.4 16V ENGINE CODE: X 14 XE CC: 1398 kW: 66 HP: 90 YEAR OF MANUFACTURE: 08/1999 → 10/2001 i Activated carbon filter
1.7 D	X 17 D (4EE1)	1686	44	60	07/1994 → 08/2001	i Activated carbon filter	1.7 D ENGINE CODE: X 17 D (4EE1) CC: 1686 kW: 44 HP: 60 YEAR OF MANUFACTURE: 07/1994 → 08/2001 i Activated carbon filter

ENGINE CODE

YEAR OF MANUFACTURE

1.2

C 12 NZ

1195

07/1994 → 08/2001

1.4

C 14 NZ, X14 SZ

1389

07/1994 → 08/2001

1.4

C 14 SE

1389

07/1994 → 08/2001

1.4 16V

X 14 XE

1398

08/1999 → 10/2001

1.7 D

X 17 D (4EE1)

1686

07/1994 → 08/2001

Corsa-B | 93-00

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
1.0i 12V	X 10 XE	973	40	54	11/1996 → 10/2000	i Activated carbon filter; Without air-conditioning system	1.0i 12V ENGINE CODE: X 10 XE CC: 973 kW: 40 HP: 54 YEAR OF MANUFACTURE: 11/1996 → 10/2000 i Activated carbon filter; Without air-conditioning system
1.2 16V	X 12 XE	1199	48	65	01/1998 → 10/2000	i Activated carbon filter; Without air-conditioning system	1.2 16V ENGINE CODE: X 12 XE CC: 1199 kW: 48 HP: 65 YEAR OF MANUFACTURE: 01/1998 → 10/2000 i Activated carbon filter; Without air-conditioning system
1.2i	C 12 NZ	1195	33	45	03/1993 → 10/2000	i Activated carbon filter; Without air-conditioning system	1.2i ENGINE CODE: C 12 NZ CC: 1195 kW: 33 HP: 45 YEAR OF MANUFACTURE: 03/1993 → 10/2000 i Activated carbon filter; Without air-conditioning system
1.4i	C 14 NZ	1389	44	60	03/1993 → 10/2000	i Activated carbon filter; Without air-conditioning system	1.4i ENGINE CODE: C 14 NZ CC: 1389 kW: 44 HP: 60 YEAR OF MANUFACTURE: 03/1993 → 10/2000 i Activated carbon filter; Without air-conditioning system
1.4i	X 14 XE	1389	66	90	09/1994 → 10/2000	i Activated carbon filter; Without air-conditioning system	1.4i ENGINE CODE: X 14 XE CC: 1389 kW: 66 HP: 90 YEAR OF MANUFACTURE: 09/1994 → 10/2000 i Activated carbon filter; Without air-conditioning system
1.4i 16V		1389	63	86	08/1997 → 10/2000	i Activated carbon filter; Without air-conditioning system	1.4i 16V ENGINE CODE: CC: 1389 kW: 63 HP: 86 YEAR OF MANUFACTURE: 08/1997 → 10/2000 i Activated carbon filter; Without air-conditioning system
1.4i S	C 14 SE	1389	60	82	03/1993 → 10/2000	i Activated carbon filter; Without air-conditioning system	1.4i S ENGINE CODE: C 14 SE CC: 1389 kW: 60 HP: 82 YEAR OF MANUFACTURE: 03/1993 → 10/2000 i Activated carbon filter; Without air-conditioning system
1.5 D	15 D (4EC1)	1488	37	50	03/1993 → 10/2000	i Activated carbon filter; Without air-conditioning system	1.5 D ENGINE CODE: 15 D (4EC1) CC: 1488 kW: 37 HP: 50 YEAR OF MANUFACTURE: 03/1993 → 10/2000 i Activated carbon filter; Without air-conditioning system
1.5 TD	X 15 DT (T4EC1)	1488	49	67	03/1993 → 10/2000	i Activated carbon filter; Without air-conditioning system	1.5 TD ENGINE CODE: X 15 DT (T4EC1) CC: 1488 kW: 49 HP: 67 YEAR OF MANUFACTURE: 03/1993 → 10/2000 i Activated carbon filter; Without air-conditioning system
1.6 GSI 16V	C 16 XE	1598	80	109	03/1993 → 10/2000	i Activated carbon filter; Without air-conditioning system	1.6 GSI 16V ENGINE CODE: C 16 XE CC: 1598 kW: 80 HP: 109 YEAR OF MANUFACTURE: 03/1993 → 10/2000 i Activated carbon filter; Without air-conditioning system
1.6i	X 16 XE	1598	78	106	09/1994 → 10/2000	i Activated carbon filter; Without air-conditioning system	1.6i ENGINE CODE: X 16 XE CC: 1598 kW: 78 HP: 106 YEAR OF MANUFACTURE: 09/1994 → 10/2000 i Activated carbon filter; Without air-conditioning system
1.6i 16V		1598	74	100	08/1997 → 10/2000	i Activated carbon filter; Without air-conditioning system	1.6i 16V ENGINE CODE: CC: 1598 kW: 74 HP: 100 YEAR OF MANUFACTURE: 08/1997 → 10/2000 i Activated carbon filter; Without air-conditioning system
1.7 D	X 17 D (4EE1)	1686	44	60	02/1996 → 10/2000	i Activated carbon filter; Without air-conditioning system	1.7 D ENGINE CODE: X 17 D (4EE1) CC: 1686 kW: 44 HP: 60 YEAR OF MANUFACTURE: 02/1996 → 10/2000 i Activated carbon filter; Without air-conditioning system

ENGINE CODE

YEAR OF MANUFACTURE

1.0i 12V

X 10 XE

973

11/1996 → 10/2000

1.2 16V

X 12 XE

1199

01/1998 → 10/2000

1.2i

C 12 NZ

1195

03/1993 → 10/2000

1.4i

C 14 NZ

1389

03/1993 → 10/2000

1.4i

X 14 XE

1389

09/1994 → 10/2000

1.4i 16V

1389

08/1997 → 10/2000

1.4i S

C 14 SE

1389

03/1993 → 10/2000

1.5 D

15 D (4EC1)

1488

03/1993 → 10/2000

1.5 TD

X 15 DT (T4EC1)

1488

03/1993 → 10/2000

1.6 GSI 16V

C 16 XE

1598

109

03/1993 → 10/2000

1.6i

X 16 XE

1598

106

09/1994 → 10/2000

1.6i 16V

1598

100

08/1997 → 10/2000

1.7 D

X 17 D (4EE1)

1686

02/1996 → 10/2000

Tigra | 94-00

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
1.4 16V		1389	63	86	08/1997 → 12/2000	i Activated carbon filter	1.4 16V ENGINE CODE: CC: 1389 kW: 63 HP: 86 YEAR OF MANUFACTURE: 08/1997 → 12/2000 i Activated carbon filter
1.4 16V	X 14 XE	1389	66	90	07/1994 → 12/2000	i Activated carbon filter	1.4 16V ENGINE CODE: X 14 XE CC: 1389 kW: 66 HP: 90 YEAR OF MANUFACTURE: 07/1994 → 12/2000 i Activated carbon filter
1.6 16V		1598	74	100	08/1997 → 12/2000	i Activated carbon filter	1.6 16V ENGINE CODE: CC: 1598 kW: 74 HP: 100 YEAR OF MANUFACTURE: 08/1997 → 12/2000 i Activated carbon filter
1.6 16V	X 16 XE	1598	78	106	07/1994 → 12/2000	i Activated carbon filter	1.6 16V ENGINE CODE: X 16 XE CC: 1598 kW: 78 HP: 106 YEAR OF MANUFACTURE: 07/1994 → 12/2000 i Activated carbon filter

ENGINE CODE

YEAR OF MANUFACTURE

1.4 16V

1389

08/1997 → 12/2000

1.4 16V

X 14 XE

1389

07/1994 → 12/2000

1.6 16V

1598

100

08/1997 → 12/2000

1.6 16V

X 16 XE

1598

106

07/1994 → 12/2000

VAUXHALL

Corsa Mk I | 93-00

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
1.0i 12V	X 10 XE	973	40	54	11/1996 → 10/2000	i Activated carbon filter; Without air-conditioning system	1.0i 12V ENGINE CODE: X 10 XE CC: 973 kW: 40 HP: 54 YEAR OF MANUFACTURE: 11/1996 → 10/2000 i Activated carbon filter; Without air-conditioning system
1.2 16V	X 12 XE	1199	48	65	01/1998 → 10/2000	i Activated carbon filter; Without air-conditioning system	1.2 16V ENGINE CODE: X 12 XE CC: 1199 kW: 48 HP: 65 YEAR OF MANUFACTURE: 01/1998 → 10/2000 i Activated carbon filter; Without air-conditioning system
1.2i	C 12 NZ/SZ	1195	33	45	03/1993 → 10/2000	i Activated carbon filter; Without air-conditioning system	1.2i ENGINE CODE: C 12 NZ/SZ CC: 1195 kW: 33 HP: 45 YEAR OF MANUFACTURE: 03/1993 → 10/2000 i Activated carbon filter; Without air-conditioning system
1.4i	C 14 NZ	1389	44	60	03/1993 → 10/2000	i Activated carbon filter; Without air-conditioning system	1.4i ENGINE CODE: C 14 NZ CC: 1389 kW: 44 HP: 60 YEAR OF MANUFACTURE: 03/1993 → 10/2000 i Activated carbon filter; Without air-conditioning system
1.4i	X 14 SZ / X 14 SX	1389	44	60	11/1996 → 10/2000	i Activated carbon filter; Without air-conditioning system	1.4i ENGINE CODE: X 14 SZ / X 14 SX CC: 1389 kW: 44 HP: 60 YEAR OF MANUFACTURE: 11/1996 → 10/2000 i Activated carbon filter; Without air-conditioning system
1.4i 16V	X 14 XE, Z 14 XE	1389	66	90	09/1994 → 10/2000	i Activated carbon filter; Without air-conditioning system	1.4i 16V ENGINE CODE: X 14 XE, Z 14 XE CC: 1389 kW: 66 HP: 90 YEAR OF MANUFACTURE: 09/1994 → 10/2000 i Activated carbon filter; Without air-conditioning system
1.4i S	C 14 SE	1389	60	82	03/1993 → 10/2000	i Activated carbon filter; Without air-conditioning system	1.4i S ENGINE CODE: C 14 SE CC: 1389 kW: 60 HP: 82 YEAR OF MANUFACTURE: 03/1993 → 10/2000 i Activated carbon filter; Without air-conditioning system
1.5 D	15 D (4EC1)	1488	37	50	03/1993 → 10/2000	i Activated carbon filter; Without air-conditioning system	1.5 D ENGINE CODE: 15 D (4EC1) CC: 1488 kW: 37 HP: 50 YEAR OF MANUFACTURE: 03/1993 → 10/2000 i Activated carbon filter; Without air-conditioning system
1.5 TD	X 15 DT (T4EC1)	1488	49	67	03/1993 → 10/2000	i Activated carbon filter; Without air-conditioning system	1.5 TD ENGINE CODE: X 15 DT (T4EC1) CC: 1488 kW: 49 HP: 67 YEAR OF MANUFACTURE: 03/1993 → 10/2000 i Activated carbon filter; Without air-conditioning system
1.6 GSI 16V	C 16 XE	1598	80	109	03/1993 → 10/2000	i Activated carbon filter; Without air-conditioning system	1.6 GSI 16V ENGINE CODE: C 16 XE CC: 1598 kW: 80 HP: 109 YEAR OF MANUFACTURE: 03/1993 → 10/2000 i Activated carbon filter; Without air-conditioning system
1.6i 16V	X 16 XE	1598	78	106	09/1994 → 10/2000	i Activated carbon filter; Without air-conditioning system	1.6i 16V ENGINE CODE: X 16 XE CC: 1598 kW: 78 HP: 106 YEAR OF MANUFACTURE: 09/1994 → 10/2000 i Activated carbon filter; Without air-conditioning system
1.7 D	X 17 D (4EE1)	1686	44	60	02/1996 → 10/2000	i Activated carbon filter; Without air-conditioning system	1.7 D ENGINE CODE: X 17 D (4EE1) CC: 1686 kW: 44 HP: 60 YEAR OF MANUFACTURE: 02/1996 → 10/2000 i Activated carbon filter; Without air-conditioning system

ENGINE CODE

YEAR OF MANUFACTURE

1.0i 12V

X 10 XE

973

11/1996 → 10/2000

1.2 16V

X 12 XE

1199

01/1998 → 10/2000

1.2i

C 12 NZ/SZ

1195

03/1993 → 10/2000

1.4i

C 14 NZ

1389

03/1993 → 10/2000

1.4i

X 14 SZ / X 14 SX

1389

11/1996 → 10/2000

1.4i 16V

X 14 XE, Z 14 XE

1389

09/1994 → 10/2000

1.4i S

C 14 SE

1389

03/1993 → 10/2000

1.5 D

15 D (4EC1)

1488

03/1993 → 10/2000

1.5 TD

X 15 DT (T4EC1)

1488

03/1993 → 10/2000

1.6 GSI 16V

C 16 XE

1598

109

03/1993 → 10/2000

1.6i 16V

X 16 XE

1598

106

09/1994 → 10/2000

1.7 D

X 17 D (4EE1)

1686

02/1996 → 10/2000

Tigra | 94-00

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
1.4 16V	X 14 XE	1389	66	90	07/1994 → 12/2000	i Activated carbon filter; Without air-conditioning system	1.4 16V ENGINE CODE: X 14 XE CC: 1389 kW: 66 HP: 90 YEAR OF MANUFACTURE: 07/1994 → 12/2000 i Activated carbon filter; Without air-conditioning system
1.6 16V	X 16 XE	1598	78	106	07/1994 → 12/2000	i Activated carbon filter; Without air-conditioning system	1.6 16V ENGINE CODE: X 16 XE CC: 1598 kW: 78 HP: 106 YEAR OF MANUFACTURE: 07/1994 → 12/2000 i Activated carbon filter; Without air-conditioning system

ENGINE CODE

YEAR OF MANUFACTURE

1.4 16V

X 14 XE

1389

07/1994 → 12/2000

1.6 16V

X 16 XE

1598

106

07/1994 → 12/2000

VAUXHALL-BEDFORD (LCV)

Combo / Corsa Van MK I | 94-01

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
1.2	X 12 SZ	1195	33	45	07/1994 → 10/2001	i Activated carbon filter; Without air-conditioning system	1.2 ENGINE CODE: X 12 SZ CC: 1195 kW: 33 HP: 45 YEAR OF MANUFACTURE: 07/1994 → 10/2001 i Activated carbon filter; Without air-conditioning system
1.4	C 14 NZ	1389	44	60	07/1994 → 10/2001	i Activated carbon filter; Without air-conditioning system	1.4 ENGINE CODE: C 14 NZ CC: 1389 kW: 44 HP: 60 YEAR OF MANUFACTURE: 07/1994 → 10/2001 i Activated carbon filter; Without air-conditioning system
1.4	C 14 SE	1389	60	82	07/1994 → 10/2001	i Activated carbon filter; Without air-conditioning system	1.4 ENGINE CODE: C 14 SE CC: 1389 kW: 60 HP: 82 YEAR OF MANUFACTURE: 07/1994 → 10/2001 i Activated carbon filter; Without air-conditioning system
1.4 16V	X 14 XE	1398	66	90	08/1999 → 10/2001	i Activated carbon filter	1.4 16V ENGINE CODE: X 14 XE CC: 1398 kW: 66 HP: 90 YEAR OF MANUFACTURE: 08/1999 → 10/2001 i Activated carbon filter
1.7 D	X 17 D (4EE1)	1686	44	60	07/1994 → 10/2001	i Activated carbon filter; Without air-conditioning system	1.7 D ENGINE CODE: X 17 D (4EE1) CC: 1686 kW: 44 HP: 60 YEAR OF MANUFACTURE: 07/1994 → 10/2001 i Activated carbon filter; Without air-conditioning system

ENGINE CODE

YEAR OF MANUFACTURE

1.2

X 12 SZ

1195

07/1994 → 10/2001

1.4

C 14 NZ

1389

07/1994 → 10/2001

1.4

C 14 SE

1389

07/1994 → 10/2001

1.4 16V

X 14 XE

1398

08/1999 → 10/2001

1.7 D

X 17 D (4EE1)

1686

07/1994 → 10/2001

GENERAL MOTORS (GM)

91132360

OPEL

1718045
9121626

VAUXHALL

9121626

Date of last data update: 2025-06-30 Print Report now
