REACH-Information

SVHC declaration according to the regulation EC 1907/2006 concerning the Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH).

Produkt: K 1296A - FILTRON

MANN+HUMMEL is well aware of REACH and meet all legal obligations under this regulation.

MANN+HUMMEL has established internal processes to ensure implementation and compliance with the REACH Regulation. Especially, we continuously work on the assessment of presence of SVHC (Substances of Very High Concern).

We may inform you that according to present level of information and best knowledge, this product does not contain any SVHC listed on the Candidate List in concentration above 0,1% (w/w).

Last update: 2024-09-19

Back

CABIN FILTERS

K 1296A

EAN CODE: 5904608902962

Installation manual

REACH information

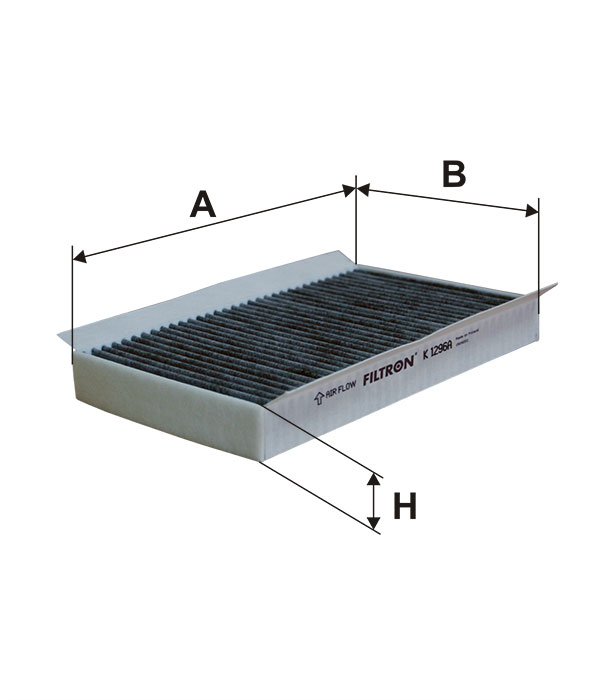

DIMENSIONS (mm):

270

158

As a standard, the filter features the PROTECT+ technology, which reduce allergens and prevents the growth of bacteria and mould on the filter. Find out more >>

APPLICATION
SUBSTITUTES

LAND ROVER

Discovery 3 / LR3 | 04-09

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
2.7 TD V6 (L319)	276DT	2720	140	190	10/2004 → 09/2009	i Activated carbon filter; With automatic climate control	2.7 TD V6 (L319) ENGINE CODE: 276DT CC: 2720 kW: 140 HP: 190 YEAR OF MANUFACTURE: 10/2004 → 09/2009 i Activated carbon filter; With automatic climate control
4.0		3999	160	218	02/2005 → 09/2009	i Activated carbon filter; With automatic climate control	4.0 ENGINE CODE: CC: 3999 kW: 160 HP: 218 YEAR OF MANUFACTURE: 02/2005 → 09/2009 i Activated carbon filter; With automatic climate control
4.4 V8 (L319)	AJ34	4394	220	299	10/2004 → 09/2009	i Activated carbon filter; With automatic climate control	4.4 V8 (L319) ENGINE CODE: AJ34 CC: 4394 kW: 220 HP: 299 YEAR OF MANUFACTURE: 10/2004 → 09/2009 i Activated carbon filter; With automatic climate control

ENGINE CODE

YEAR OF MANUFACTURE

2.7 TD V6 (L319)

276DT

2720

140

190

10/2004 → 09/2009

4.0

3999

160

218

02/2005 → 09/2009

4.4 V8 (L319)

AJ34

4394

220

299

10/2004 → 09/2009

Discovery 4 / LR4 | 09-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
2.7 TDV6	276DT(TDV6)	2720	140	190	09/2009 → 12/2018	i Activated carbon filter; With automatic climate control	2.7 TDV6 ENGINE CODE: 276DT(TDV6) CC: 2720 kW: 140 HP: 190 YEAR OF MANUFACTURE: 09/2009 → 12/2018 i Activated carbon filter; With automatic climate control
3.0	306PS(AJ126)	2995	250	340	08/2013 → 12/2018	i Activated carbon filter; With automatic climate control	3.0 ENGINE CODE: 306PS(AJ126) CC: 2995 kW: 250 HP: 340 YEAR OF MANUFACTURE: 08/2013 → 12/2018 i Activated carbon filter; With automatic climate control
3.0 SDV6, TD	306DT(TDV6)	2993	180	245	09/2009 → 12/2018	i Activated carbon filter; With automatic climate control	3.0 SDV6, TD ENGINE CODE: 306DT(TDV6) CC: 2993 kW: 180 HP: 245 YEAR OF MANUFACTURE: 09/2009 → 12/2018 i Activated carbon filter; With automatic climate control
3.0 SDV6, TD	306DT(TDV6)	2993	188	256	11/2009 → 12/2018	i Activated carbon filter; With automatic climate control	3.0 SDV6, TD ENGINE CODE: 306DT(TDV6) CC: 2993 kW: 188 HP: 256 YEAR OF MANUFACTURE: 11/2009 → 12/2018 i Activated carbon filter; With automatic climate control
3.0 TD	306DT(TDV6)	2993	183	249	07/2012 → 12/2018	i Activated carbon filter; With automatic climate control	3.0 TD ENGINE CODE: 306DT(TDV6) CC: 2993 kW: 183 HP: 249 YEAR OF MANUFACTURE: 07/2012 → 12/2018 i Activated carbon filter; With automatic climate control
3.0 TDV6	306DT(TDV6)	2993	200	272	09/2009 → 12/2018	i Activated carbon filter; With automatic climate control	3.0 TDV6 ENGINE CODE: 306DT(TDV6) CC: 2993 kW: 200 HP: 272 YEAR OF MANUFACTURE: 09/2009 → 12/2018 i Activated carbon filter; With automatic climate control
3.0 TDV6, TD	306DT(TDV6)	2993	155	211	10/2010 → 12/2018	i Activated carbon filter; With automatic climate control	3.0 TDV6, TD ENGINE CODE: 306DT(TDV6) CC: 2993 kW: 155 HP: 211 YEAR OF MANUFACTURE: 10/2010 → 12/2018 i Activated carbon filter; With automatic climate control
4.0 V6	406PN	3999	160	218	09/2009 →	i Activated carbon filter; With automatic climate control	4.0 V6 ENGINE CODE: 406PN CC: 3999 kW: 160 HP: 218 YEAR OF MANUFACTURE: 09/2009 → i Activated carbon filter; With automatic climate control
5.0 V8	AJ133	4998	276	375	09/2009 → 12/2018	i Activated carbon filter; With automatic climate control	5.0 V8 ENGINE CODE: AJ133 CC: 4998 kW: 276 HP: 375 YEAR OF MANUFACTURE: 09/2009 → 12/2018 i Activated carbon filter; With automatic climate control

ENGINE CODE

YEAR OF MANUFACTURE

2.7 TDV6

276DT(TDV6)

2720

140

190

09/2009 → 12/2018

3.0

306PS(AJ126)

2995

250

340

08/2013 → 12/2018

3.0 SDV6, TD

306DT(TDV6)

2993

180

245

09/2009 → 12/2018

3.0 SDV6, TD

306DT(TDV6)

2993

188

256

11/2009 → 12/2018

3.0 TD

306DT(TDV6)

2993

183

249

07/2012 → 12/2018

3.0 TDV6

306DT(TDV6)

2993

200

272

09/2009 → 12/2018

3.0 TDV6, TD

306DT(TDV6)

2993

155

211

10/2010 → 12/2018

4.0 V6

406PN

3999

160

218

09/2009 →

5.0 V8

AJ133

4998

276

375

09/2009 → 12/2018

Range Rover Sport (L320) | 05-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
2.7 TDV6 (L320)	276DT(TDV6)	2720	140	190	02/2005 → 03/2013	i Activated carbon filter; With automatic climate control	2.7 TDV6 (L320) ENGINE CODE: 276DT(TDV6) CC: 2720 kW: 140 HP: 190 YEAR OF MANUFACTURE: 02/2005 → 03/2013 i Activated carbon filter; With automatic climate control
3.0 SDV6 (L320)	306DT(TDV6)	2993	188	256	11/2009 → 03/2013	i Activated carbon filter; With automatic climate control	3.0 SDV6 (L320) ENGINE CODE: 306DT(TDV6) CC: 2993 kW: 188 HP: 256 YEAR OF MANUFACTURE: 11/2009 → 03/2013 i Activated carbon filter; With automatic climate control
3.0 TD (L320)	306DT(TDV6)	2993	183	249	08/2012 → 03/2013	i Activated carbon filter; With automatic climate control	3.0 TD (L320) ENGINE CODE: 306DT(TDV6) CC: 2993 kW: 183 HP: 249 YEAR OF MANUFACTURE: 08/2012 → 03/2013 i Activated carbon filter; With automatic climate control
3.0 TDV6 (L320)	306DT	2993	180	245	09/2009 →	i Activated carbon filter; With automatic climate control	3.0 TDV6 (L320) ENGINE CODE: 306DT CC: 2993 kW: 180 HP: 245 YEAR OF MANUFACTURE: 09/2009 → i Activated carbon filter; With automatic climate control
3.0 TDV6 (L320)	306DT(TDV6)	2993	155	211	05/2010 → 03/2013	i Activated carbon filter; With automatic climate control	3.0 TDV6 (L320) ENGINE CODE: 306DT(TDV6) CC: 2993 kW: 155 HP: 211 YEAR OF MANUFACTURE: 05/2010 → 03/2013 i Activated carbon filter; With automatic climate control
3.6 TDV8 (L320)	368DT(LION)	3630	200	272	04/2006 → 03/2013	i Activated carbon filter; With automatic climate control	3.6 TDV8 (L320) ENGINE CODE: 368DT(LION) CC: 3630 kW: 200 HP: 272 YEAR OF MANUFACTURE: 04/2006 → 03/2013 i Activated carbon filter; With automatic climate control
4.2 V8 Supercharged (L320)	AJ34	4197	286	389	05/2005 → 03/2013	i Activated carbon filter; With automatic climate control	4.2 V8 Supercharged (L320) ENGINE CODE: AJ34 CC: 4197 kW: 286 HP: 389 YEAR OF MANUFACTURE: 05/2005 → 03/2013 i Activated carbon filter; With automatic climate control
4.4 V8 (L320)	AJ34	4394	220	299	05/2005 → 03/2013	i Activated carbon filter; With automatic climate control	4.4 V8 (L320) ENGINE CODE: AJ34 CC: 4394 kW: 220 HP: 299 YEAR OF MANUFACTURE: 05/2005 → 03/2013 i Activated carbon filter; With automatic climate control
5.0 V8 Supercharged (L320)	508PS(AJ133)	4998	375	510	09/2009 → 03/2013	i Activated carbon filter; With automatic climate control	5.0 V8 Supercharged (L320) ENGINE CODE: 508PS(AJ133) CC: 4998 kW: 375 HP: 510 YEAR OF MANUFACTURE: 09/2009 → 03/2013 i Activated carbon filter; With automatic climate control
5.0 V8 Supercharged (L320)	508PN(AJ133)	4999	276	375	07/2009 → 03/2013	i Activated carbon filter; With automatic climate control	5.0 V8 Supercharged (L320) ENGINE CODE: 508PN(AJ133) CC: 4999 kW: 276 HP: 375 YEAR OF MANUFACTURE: 07/2009 → 03/2013 i Activated carbon filter; With automatic climate control

ENGINE CODE

YEAR OF MANUFACTURE

2.7 TDV6 (L320)

276DT(TDV6)

2720

140

190

02/2005 → 03/2013

3.0 SDV6 (L320)

306DT(TDV6)

2993

188

256

11/2009 → 03/2013

3.0 TD (L320)

306DT(TDV6)

2993

183

249

08/2012 → 03/2013

3.0 TDV6 (L320)

306DT

2993

180

245

09/2009 →

3.0 TDV6 (L320)

306DT(TDV6)

2993

155

211

05/2010 → 03/2013

3.6 TDV8 (L320)

368DT(LION)

3630

200

272

04/2006 → 03/2013

4.2 V8 Supercharged (L320)

AJ34

4197

286

389

05/2005 → 03/2013

4.4 V8 (L320)

AJ34

4394

220

299

05/2005 → 03/2013

5.0 V8 Supercharged (L320)

508PS(AJ133)

4998

375

510

09/2009 → 03/2013

5.0 V8 Supercharged (L320)

508PN(AJ133)

4999

276

375

07/2009 → 03/2013

JAGUAR

5H22-018B80-EA
JKR 500020

LAND ROVER

JKR 500020
LR 023977
LR 170345

Date of last data update: 2025-03-31 Print Report now
