SVHC declaration according to the regulation EC 1907/2006 concerning the Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH).

Produkt: K 1254-2x - FILTRON

MANN+HUMMEL is well aware of REACH and meet all legal obligations under this regulation.

MANN+HUMMEL has established internal processes to ensure implementation and compliance with the REACH Regulation. Especially, we continuously work on the assessment of presence of SVHC (Substances of Very High Concern).

We may inform you that according to present level of information and best knowledge, this product does not contain any SVHC listed on the Candidate List in concentration above 0,1% (w/w).

Last update: 2024-09-19

Back

CABIN FILTERS

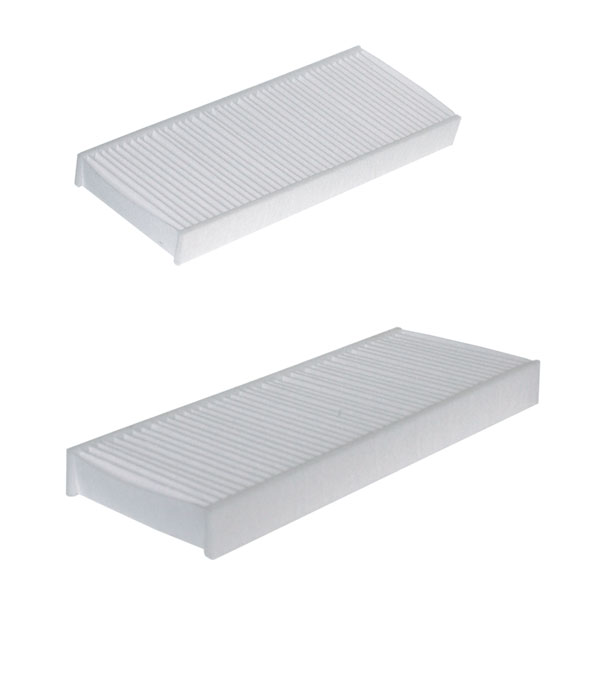

K 1254-2x

EAN CODE: 5904608802545

Installation manual

REACH information

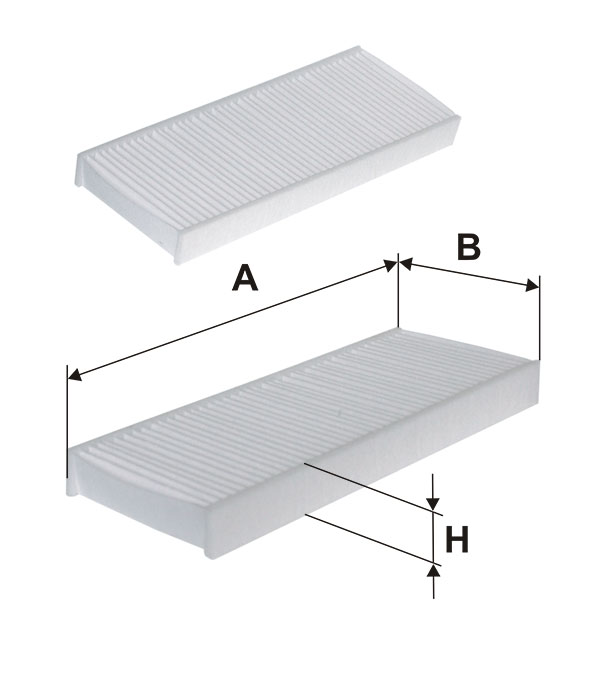

DIMENSIONS (mm):

262

100

As a standard, the filter features the PROTECT+ technology, which reduce allergens and prevents the growth of bacteria and mould on the filter. Find out more >>

APPLICATION
SUBSTITUTES

NISSAN

Navara (D40) | 05-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
2.5 dCi (D40)	YD25DDTi	2488	128	174	06/2005 →	i Particulate filter	2.5 dCi (D40) ENGINE CODE: YD25DDTi CC: 2488 kW: 128 HP: 174 YEAR OF MANUFACTURE: 06/2005 → i Particulate filter
2.5 dCi (D40)	YD25DDTi	2488	107	145	06/2005 →	i Particulate filter	2.5 dCi (D40) ENGINE CODE: YD25DDTi CC: 2488 kW: 107 HP: 145 YEAR OF MANUFACTURE: 06/2005 → i Particulate filter
2.5 dCi (D40)	YD25DDTi	2488	126	171	10/2006 → 03/2010	i Particulate filter	2.5 dCi (D40) ENGINE CODE: YD25DDTi CC: 2488 kW: 126 HP: 171 YEAR OF MANUFACTURE: 10/2006 → 03/2010 i Particulate filter
2.5 dCi (D40)	YD25DDTi	2488	140	190	12/2009 →	i Particulate filter	2.5 dCi (D40) ENGINE CODE: YD25DDTi CC: 2488 kW: 140 HP: 190 YEAR OF MANUFACTURE: 12/2009 → i Particulate filter
3.0 dCi (D40)	V9X	2991	170	231	06/2010 →	i Particulate filter	3.0 dCi (D40) ENGINE CODE: V9X CC: 2991 kW: 170 HP: 231 YEAR OF MANUFACTURE: 06/2010 → i Particulate filter
4.0 4WD (CLAD40, CLND40)	VQ40DE	3954	198	269	12/2005 → 11/2009	i Particulate filter	4.0 4WD (CLAD40, CLND40) ENGINE CODE: VQ40DE CC: 3954 kW: 198 HP: 269 YEAR OF MANUFACTURE: 12/2005 → 11/2009 i Particulate filter

ENGINE CODE

YEAR OF MANUFACTURE

2.5 dCi (D40)

YD25DDTi

2488

128

174

06/2005 →

2.5 dCi (D40)

YD25DDTi

2488

107

145

06/2005 →

2.5 dCi (D40)

YD25DDTi

2488

126

171

10/2006 → 03/2010

2.5 dCi (D40)

YD25DDTi

2488

140

190

12/2009 →

3.0 dCi (D40)

V9X

2991

170

231

06/2010 →

4.0 4WD (CLAD40, CLND40)

VQ40DE

3954

198

269

12/2005 → 11/2009

Navara / Hardbody (D22) | 87-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
2.5 Di	YD25DDTi		98	133	02/2002 →	i Particulate filter	2.5 Di ENGINE CODE: YD25DDTi CC: kW: 98 HP: 133 YEAR OF MANUFACTURE: 02/2002 → i Particulate filter
2.7 D 4x4 (D22)	TD27	2663	64	87	09/1987 → 12/1996	i Particulate filter	2.7 D 4x4 (D22) ENGINE CODE: TD27 CC: 2663 kW: 64 HP: 87 YEAR OF MANUFACTURE: 09/1987 → 12/1996 i Particulate filter
3.2 D 4x4 (D22 4x4)	QD32	3153	76	103	01/1998 → 10/2001	i Particulate filter	3.2 D 4x4 (D22 4x4) ENGINE CODE: QD32 CC: 3153 kW: 76 HP: 103 YEAR OF MANUFACTURE: 01/1998 → 10/2001 i Particulate filter
3.3	VG33E		125	170	11/2001 → 04/2007	i Particulate filter	3.3 ENGINE CODE: VG33E CC: kW: 125 HP: 170 YEAR OF MANUFACTURE: 11/2001 → 04/2007 i Particulate filter

ENGINE CODE

YEAR OF MANUFACTURE

2.5 Di

YD25DDTi

133

02/2002 →

2.7 D 4x4 (D22)

TD27

2663

09/1987 → 12/1996

3.2 D 4x4 (D22 4x4)

QD32

3153

103

01/1998 → 10/2001

3.3

VG33E

125

170

11/2001 → 04/2007

NP300 Pick Up | 08-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
2.5 dCi	YD25EFI	2488	98	133	04/2008 →	i Particulate filter	2.5 dCi ENGINE CODE: YD25EFI CC: 2488 kW: 98 HP: 133 YEAR OF MANUFACTURE: 04/2008 → i Particulate filter

ENGINE CODE

YEAR OF MANUFACTURE

2.5 dCi

YD25EFI

2488

133

04/2008 →

Pathfinder | 97-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
2.5 dCi (R51)	YD25DDTi	2488	128	174	03/2005 →	i Particulate filter	2.5 dCi (R51) ENGINE CODE: YD25DDTi CC: 2488 kW: 128 HP: 174 YEAR OF MANUFACTURE: 03/2005 → i Particulate filter
2.5 dCi (R51)	YD25DDTi	2488	126	171	10/2006 → 03/2010	i Particulate filter	2.5 dCi (R51) ENGINE CODE: YD25DDTi CC: 2488 kW: 126 HP: 171 YEAR OF MANUFACTURE: 10/2006 → 03/2010 i Particulate filter
2.5 dCi (R51)	YD25DDTi	2488	140	190	04/2010 →	i Particulate filter	2.5 dCi (R51) ENGINE CODE: YD25DDTi CC: 2488 kW: 140 HP: 190 YEAR OF MANUFACTURE: 04/2010 → i Particulate filter
2.7 TD (R50)	TD27ETI	2664	96	131	12/1999 → 03/2005	i Particulate filter; Series R51	2.7 TD (R50) ENGINE CODE: TD27ETI CC: 2664 kW: 96 HP: 131 YEAR OF MANUFACTURE: 12/1999 → 03/2005 i Particulate filter; Series R51
3.0 dCi (R51)	V9X	2991	170	231	06/2010 →	i Particulate filter	3.0 dCi (R51) ENGINE CODE: V9X CC: 2991 kW: 170 HP: 231 YEAR OF MANUFACTURE: 06/2010 → i Particulate filter
3.2 TD (R50)	QD32ETI	3153	110	150	12/1999 → 03/2005	i Particulate filter; Series R51	3.2 TD (R50) ENGINE CODE: QD32ETI CC: 3153 kW: 110 HP: 150 YEAR OF MANUFACTURE: 12/1999 → 03/2005 i Particulate filter; Series R51
3.3 V6 (R50)	VG33E	3275	110	150	08/1999 → 02/2001	i Particulate filter; Series R51	3.3 V6 (R50) ENGINE CODE: VG33E CC: 3275 kW: 110 HP: 150 YEAR OF MANUFACTURE: 08/1999 → 02/2001 i Particulate filter; Series R51
3.3 V6 (R50)	VG33E	3275	125	170	09/1997 → 03/2005	i Particulate filter; Series R51	3.3 V6 (R50) ENGINE CODE: VG33E CC: 3275 kW: 125 HP: 170 YEAR OF MANUFACTURE: 09/1997 → 03/2005 i Particulate filter; Series R51
3.5 4WD (R52)	VQ35DE	3498	183	249	10/2013 →	i Particulate filter; Series R51	3.5 4WD (R52) ENGINE CODE: VQ35DE CC: 3498 kW: 183 HP: 249 YEAR OF MANUFACTURE: 10/2013 → i Particulate filter; Series R51
3.5 V6 (R50)	VQ35DE	3498	162	220	01/2001 → 03/2005	i Particulate filter; Series R51	3.5 V6 (R50) ENGINE CODE: VQ35DE CC: 3498 kW: 162 HP: 220 YEAR OF MANUFACTURE: 01/2001 → 03/2005 i Particulate filter; Series R51
4.0 V6 (R51)	VQ40DE		195	265	05/2005 →	i Particulate filter	4.0 V6 (R51) ENGINE CODE: VQ40DE CC: kW: 195 HP: 265 YEAR OF MANUFACTURE: 05/2005 → i Particulate filter
4.0 V6 (R51)	VQ40DE		214	291	01/2010 → 08/2014	i Particulate filter	4.0 V6 (R51) ENGINE CODE: VQ40DE CC: kW: 214 HP: 291 YEAR OF MANUFACTURE: 01/2010 → 08/2014 i Particulate filter

ENGINE CODE

YEAR OF MANUFACTURE

2.5 dCi (R51)

YD25DDTi

2488

128

174

03/2005 →

2.5 dCi (R51)

YD25DDTi

2488

126

171

10/2006 → 03/2010

2.5 dCi (R51)

YD25DDTi

2488

140

190

04/2010 →

2.7 TD (R50)

TD27ETI

2664

131

12/1999 → 03/2005

3.0 dCi (R51)

V9X

2991

170

231

06/2010 →

3.2 TD (R50)

QD32ETI

3153

110

150

12/1999 → 03/2005

3.3 V6 (R50)

VG33E

3275

110

150

08/1999 → 02/2001

3.3 V6 (R50)

VG33E

3275

125

170

09/1997 → 03/2005

3.5 4WD (R52)

VQ35DE

3498

183

249

10/2013 →

3.5 V6 (R50)

VQ35DE

3498

162

220

01/2001 → 03/2005

4.0 V6 (R51)

VQ40DE

195

265

05/2005 →

4.0 V6 (R51)

VQ40DE

214

291

01/2010 → 08/2014

Pick Up / Navara (720, D21, D22) | 80-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
2.5 Di (D22)	YD25EFI	2488	98	133	03/2002 → 12/2010	i Particulate filter	2.5 Di (D22) ENGINE CODE: YD25EFI CC: 2488 kW: 98 HP: 133 YEAR OF MANUFACTURE: 03/2002 → 12/2010 i Particulate filter

ENGINE CODE

YEAR OF MANUFACTURE

2.5 Di (D22)

YD25EFI

2488

133

03/2002 → 12/2010

NISSAN

27274-EA000
