SVHC declaration according to the regulation EC 1907/2006 concerning the Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH).

Produkt: K 1334 - FILTRON

MANN+HUMMEL is well aware of REACH and meet all legal obligations under this regulation.

MANN+HUMMEL has established internal processes to ensure implementation and compliance with the REACH Regulation. Especially, we continuously work on the assessment of presence of SVHC (Substances of Very High Concern).

We may inform you that according to present level of information and best knowledge, this product does not contain any SVHC listed on the Candidate List in concentration above 0,1% (w/w).

Last update: 2024-09-19

Back

CABIN FILTERS

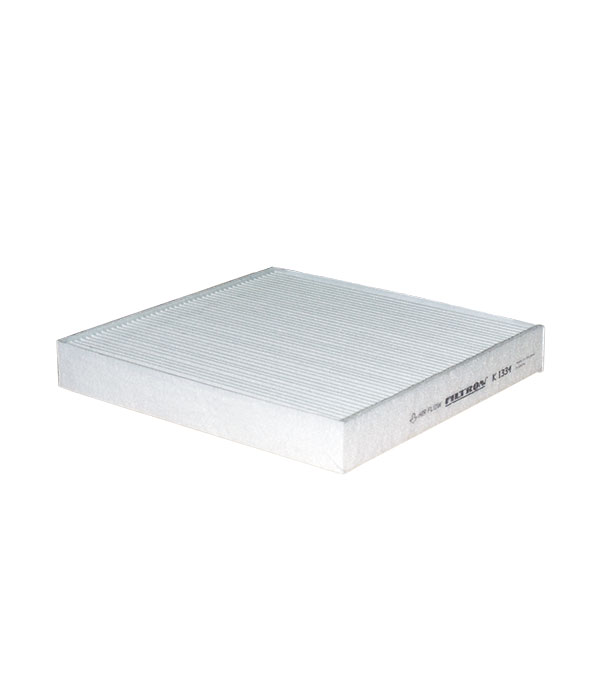

K 1334

EAN CODE:

Installation manual

REACH information

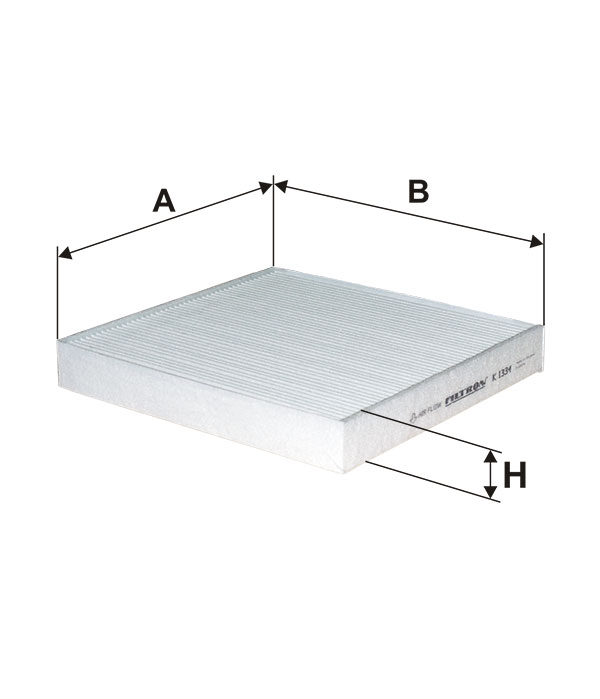

DIMENSIONS (mm):

233

245

As a standard, the filter features the PROTECT+ technology, which reduce allergens and prevents the growth of bacteria and mould on the filter. Find out more >>

APPLICATION
SUBSTITUTES

BMW

Z4 (E85/E86) | 02-09

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
2.0i (E85)	N 46 B 20	1995	110	150	05/2005 → 10/2008	i Particulate filter; With air-conditioning system	2.0i (E85) ENGINE CODE: N 46 B 20 CC: 1995 kW: 110 HP: 150 YEAR OF MANUFACTURE: 05/2005 → 10/2008 i Particulate filter; With air-conditioning system
2.2i (E85)	M 52 B 22	2171	125	170	09/2003 → 04/2006	i Particulate filter; With air-conditioning system	2.2i (E85) ENGINE CODE: M 52 B 22 CC: 2171 kW: 125 HP: 170 YEAR OF MANUFACTURE: 09/2003 → 04/2006 i Particulate filter; With air-conditioning system
2.5i (E85)	M 52 B 25	2494	141	192	03/2002 → 04/2006	i Particulate filter; With air-conditioning system	2.5i (E85) ENGINE CODE: M 52 B 25 CC: 2494 kW: 141 HP: 192 YEAR OF MANUFACTURE: 03/2002 → 04/2006 i Particulate filter; With air-conditioning system
2.5i (E85)	N 52 B 25	2497	130	177	03/2006 → 10/2008	i Particulate filter; With air-conditioning system	2.5i (E85) ENGINE CODE: N 52 B 25 CC: 2497 kW: 130 HP: 177 YEAR OF MANUFACTURE: 03/2006 → 10/2008 i Particulate filter; With air-conditioning system
2.5si (E85)	N 52 B 25	2497	160	218	09/2005 → 02/2009	i Particulate filter; With air-conditioning system	2.5si (E85) ENGINE CODE: N 52 B 25 CC: 2497 kW: 160 HP: 218 YEAR OF MANUFACTURE: 09/2005 → 02/2009 i Particulate filter; With air-conditioning system
3.0i (E85)	M 54 B 30	2979	170	231	03/2002 → 04/2006	i Particulate filter; With air-conditioning system	3.0i (E85) ENGINE CODE: M 54 B 30 CC: 2979 kW: 170 HP: 231 YEAR OF MANUFACTURE: 03/2002 → 04/2006 i Particulate filter; With air-conditioning system
3.0si (E85/E86)	N 52 B 30	2996	195	265	03/2006 → 10/2008	i Particulate filter; With air-conditioning system	3.0si (E85/E86) ENGINE CODE: N 52 B 30 CC: 2996 kW: 195 HP: 265 YEAR OF MANUFACTURE: 03/2006 → 10/2008 i Particulate filter; With air-conditioning system
3.2 M (E85/E86)	S 50 B 32	3246	252	343	03/2006 → 10/2008	i Particulate filter; With air-conditioning system	3.2 M (E85/E86) ENGINE CODE: S 50 B 32 CC: 3246 kW: 252 HP: 343 YEAR OF MANUFACTURE: 03/2006 → 10/2008 i Particulate filter; With air-conditioning system

ENGINE CODE

YEAR OF MANUFACTURE

2.0i (E85)

N 46 B 20

1995

110

150

05/2005 → 10/2008

2.2i (E85)

M 52 B 22

2171

125

170

09/2003 → 04/2006

2.5i (E85)

M 52 B 25

2494

141

192

03/2002 → 04/2006

2.5i (E85)

N 52 B 25

2497

130

177

03/2006 → 10/2008

2.5si (E85)

N 52 B 25

2497

160

218

09/2005 → 02/2009

3.0i (E85)

M 54 B 30

2979

170

231

03/2002 → 04/2006

3.0si (E85/E86)

N 52 B 30

2996

195

265

03/2006 → 10/2008

3.2 M (E85/E86)

S 50 B 32

3246

252

343

03/2006 → 10/2008

Z4 (E89) | 09-16

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
18i (E89)	N20B20	1997	115	156	03/2013 → 08/2016	i Particulate filter	18i (E89) ENGINE CODE: N20B20 CC: 1997 kW: 115 HP: 156 YEAR OF MANUFACTURE: 03/2013 → 08/2016 i Particulate filter
20i (E89)	N20 B20A	1997	135	184	09/2011 → 08/2016	i Particulate filter	20i (E89) ENGINE CODE: N20 B20A CC: 1997 kW: 135 HP: 184 YEAR OF MANUFACTURE: 09/2011 → 08/2016 i Particulate filter
23i (E89)	N52 B25	2497	150	204	05/2009 → 08/2011	i Particulate filter	23i (E89) ENGINE CODE: N52 B25 CC: 2497 kW: 150 HP: 204 YEAR OF MANUFACTURE: 05/2009 → 08/2011 i Particulate filter
28i (E89)	N20 B20A	1997	180	245	09/2011 → 08/2016	i Particulate filter	28i (E89) ENGINE CODE: N20 B20A CC: 1997 kW: 180 HP: 245 YEAR OF MANUFACTURE: 09/2011 → 08/2016 i Particulate filter
30i (E89)	N52 B30A	2996	190	258	05/2009 → 08/2011	i Particulate filter	30i (E89) ENGINE CODE: N52 B30A CC: 2996 kW: 190 HP: 258 YEAR OF MANUFACTURE: 05/2009 → 08/2011 i Particulate filter
35i (E89)	N54 B30A	2979	225	306	05/2009 → 08/2016	i Particulate filter	35i (E89) ENGINE CODE: N54 B30A CC: 2979 kW: 225 HP: 306 YEAR OF MANUFACTURE: 05/2009 → 08/2016 i Particulate filter
35is (E89)	N54 B30A	2979	250	340	03/2010 → 08/2016	i Particulate filter	35is (E89) ENGINE CODE: N54 B30A CC: 2979 kW: 250 HP: 340 YEAR OF MANUFACTURE: 03/2010 → 08/2016 i Particulate filter

ENGINE CODE

YEAR OF MANUFACTURE

18i (E89)

N20B20

1997

115

156

03/2013 → 08/2016

20i (E89)

N20 B20A

1997

135

184

09/2011 → 08/2016

23i (E89)

N52 B25

2497

150

204

05/2009 → 08/2011

28i (E89)

N20 B20A

1997

180

245

09/2011 → 08/2016

30i (E89)

N52 B30A

2996

190

258

05/2009 → 08/2011

35i (E89)

N54 B30A

2979

225

306

05/2009 → 08/2016

35is (E89)

N54 B30A

2979

250

340

03/2010 → 08/2016

BMW ALPINA B. BOVENSIEPEN

Roadster S (Z4) | 03-05

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
3.4i (E85)	M 54 B 34	3400	221	300	07/2003 → 12/2005	i Particulate filter	3.4i (E85) ENGINE CODE: M 54 B 34 CC: 3400 kW: 221 HP: 300 YEAR OF MANUFACTURE: 07/2003 → 12/2005 i Particulate filter

ENGINE CODE

YEAR OF MANUFACTURE

3.4i (E85)

M 54 B 34

3400

221

300

07/2003 → 12/2005

BMW

64 11 6 915 763
64 31 6 915 763
64 31 9 195 193
64 31 9 346 267

Date of last data update: 2025-06-30 Print Report now
